The SP7686 is a programmable LED flash driver that offers maximum flexibility with its user-programmable LED current. It features a high-speed OSC switching frequency, requires only 4 external components, and has a compact 2mm x 3mm DFN8 package. The SP7686A variant includes pre-programmed 2-level VFB for easy operation.

andrewwatkins
Download Presentation

SP7686

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SP7686 ProgrammableLED Flash Driver

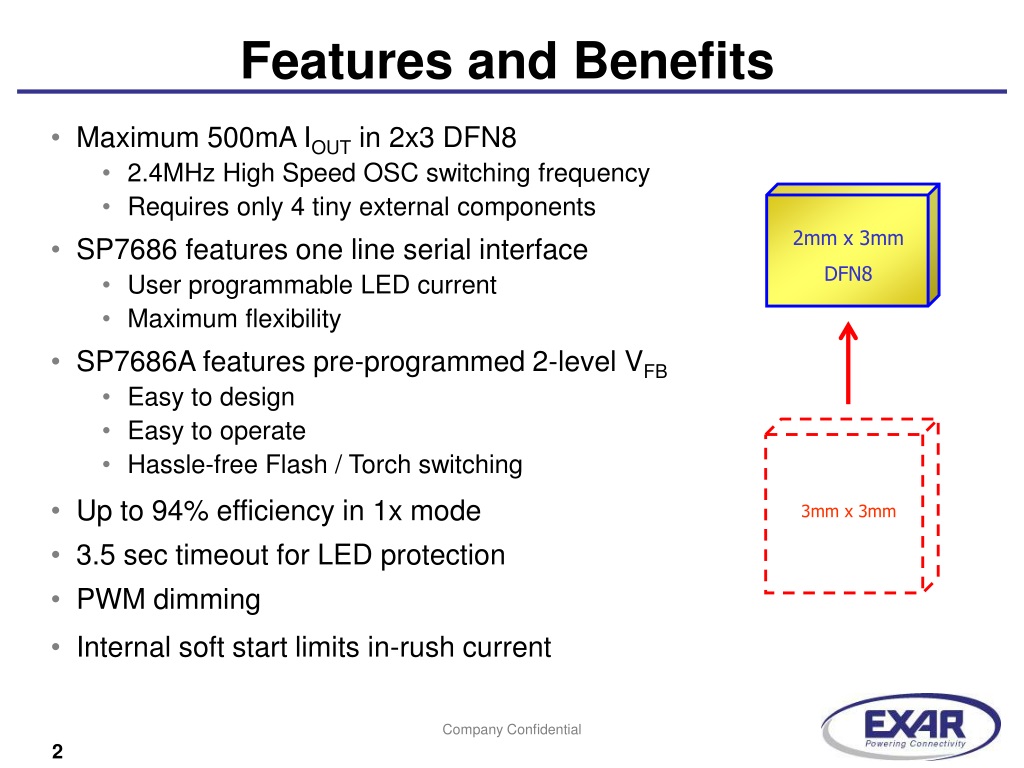

  2. Features and Benefits • Maximum 500mA IOUT in 2x3 DFN8 • 2.4MHz High Speed OSC switching frequency • Requires only 4 tiny external components • SP7686 features one line serial interface • User programmable LED current • Maximum flexibility • SP7686A features pre-programmed 2-level VFB • Easy to design • Easy to operate • Hassle-free Flash / Torch switching • Up to 94% efficiency in 1x mode • 3.5 sec timeout for LED protection • PWM dimming • Internal soft start limits in-rush current 2mm x 3mm DFN8 3mm x 3mm Company Confidential

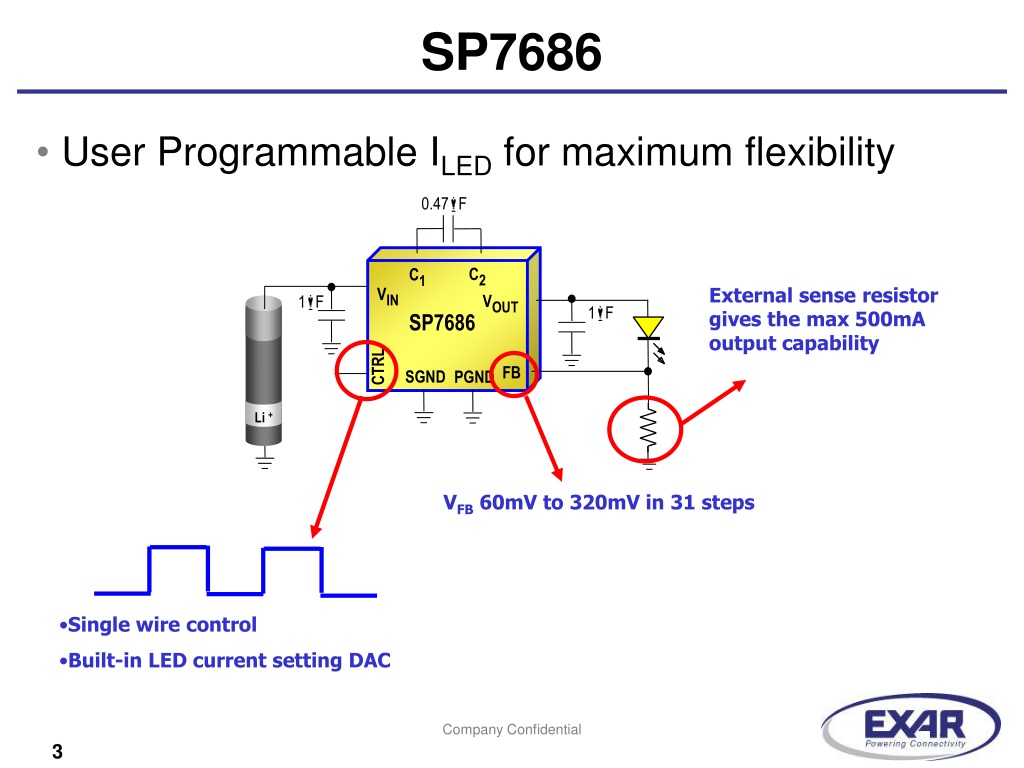

  3. External sense resistor gives the max 500mA output capability Li + 0.47mF C2 C1 VIN VFB 60mV to 320mV in 31 steps VOUT 1mF 1mF SP7686 CTRL FB SGND PGND • Single wire control • Built-in LED current setting DAC SP7686 • User Programmable ILED for maximum flexibility Company Confidential

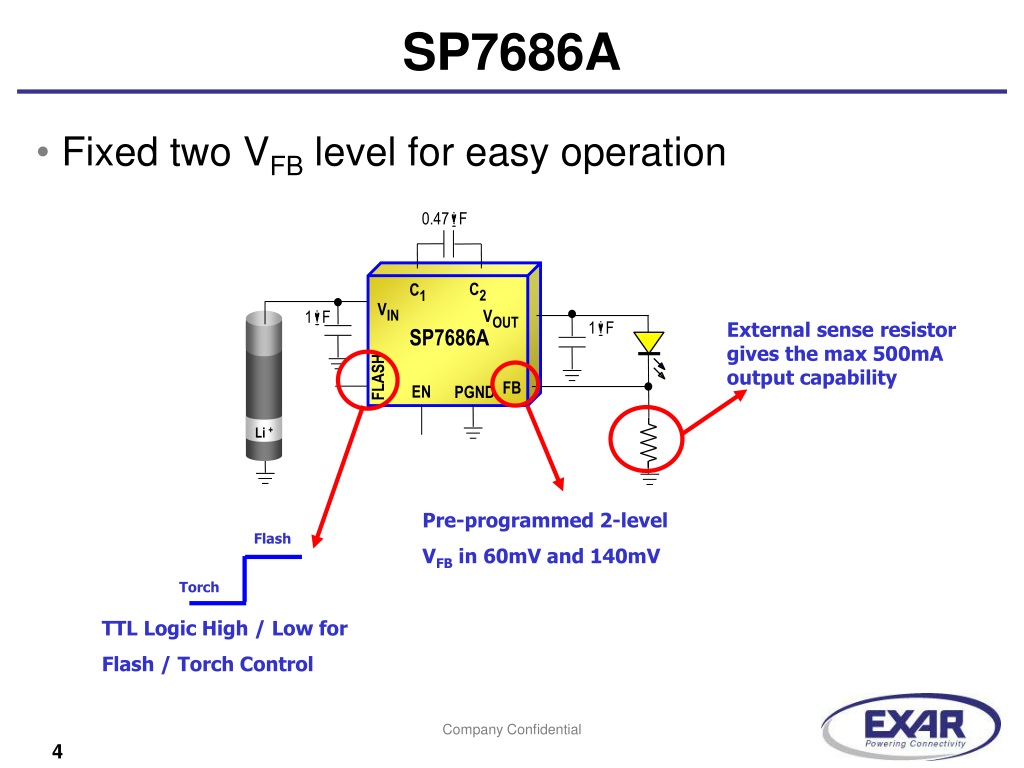

  4. External sense resistor gives the max 500mA output capability Li + 0.47mF C2 C1 Pre-programmed 2-level VFB in 60mV and 140mV VIN VOUT 1mF Flash 1mF SP7686A Torch FLASH FB EN PGND TTL Logic High / Low for Flash / Torch Control SP7686A • Fixed two VFB level for easy operation Company Confidential

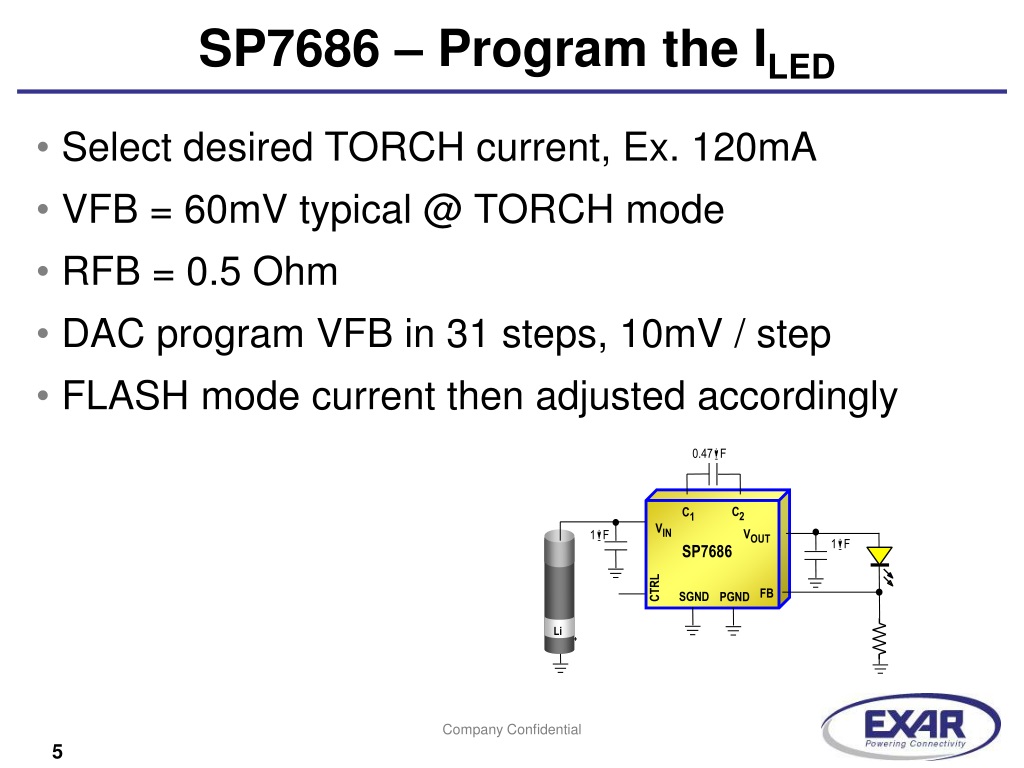

  5. Li + 0.47mF C2 C1 VIN VOUT 1mF 1mF SP7686 CTRL FB SGND PGND SP7686 – Program the ILED • Select desired TORCH current, Ex. 120mA • VFB = 60mV typical @ TORCH mode • RFB = 0.5 Ohm • DAC program VFB in 31 steps, 10mV / step • FLASH mode current then adjusted accordingly Company Confidential

  6. Li + 0.47mF C2 C1 VIN VOUT 1mF 1mF SP7686A FLASH FB EN PGND SP7686A – Program the ILED • Select a desired TORCH current, Ex 150mA • VFB = 60mV typical @ TORCH mode • Then pick RFB = 0.4 Ohm • VFB = 160mV typical @ FLASH mode • FLASH mode current then set to 400mA according to pre-selected RFB Company Confidential

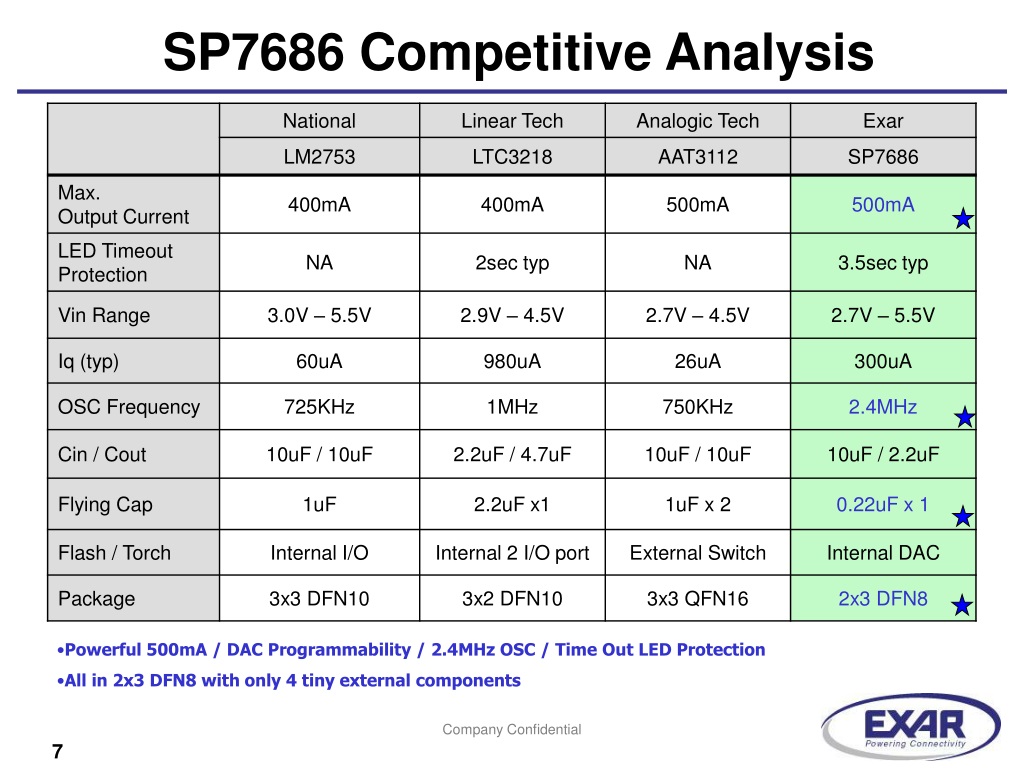

  7. SP7686 Competitive Analysis • Powerful 500mA / DAC Programmability / 2.4MHz OSC / Time Out LED Protection • All in 2x3 DFN8 with only 4 tiny external components Company Confidential

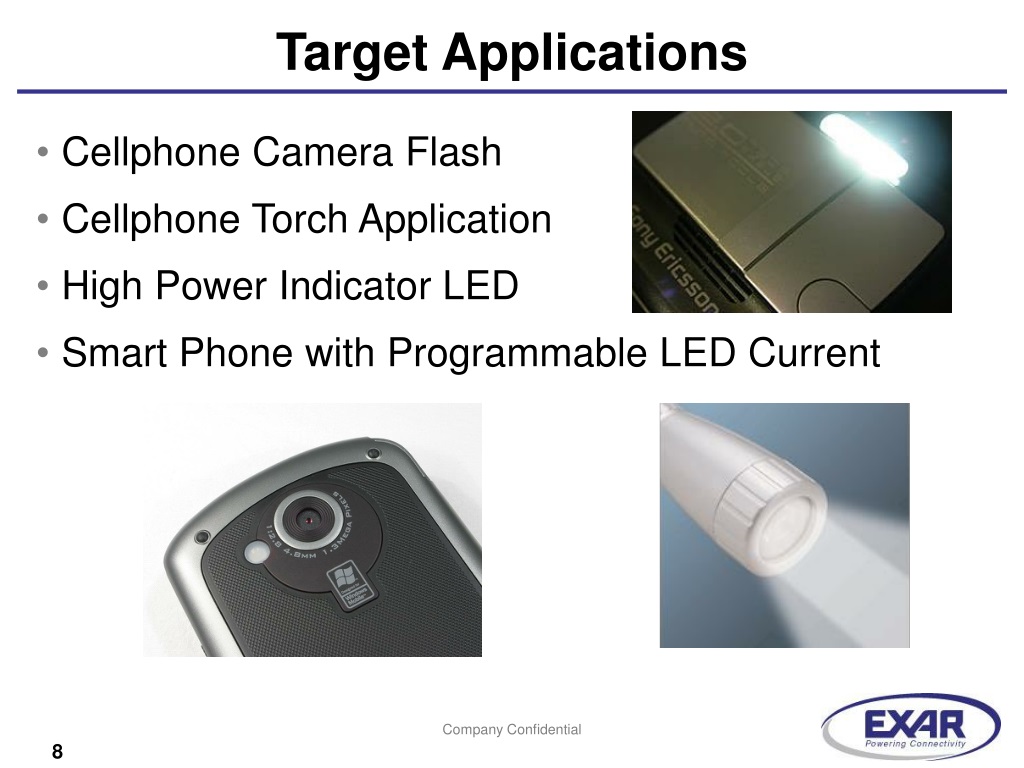

  8. Target Applications • Cellphone Camera Flash • Cellphone Torch Application • High Power Indicator LED • Smart Phone with Programmable LED Current Company Confidential

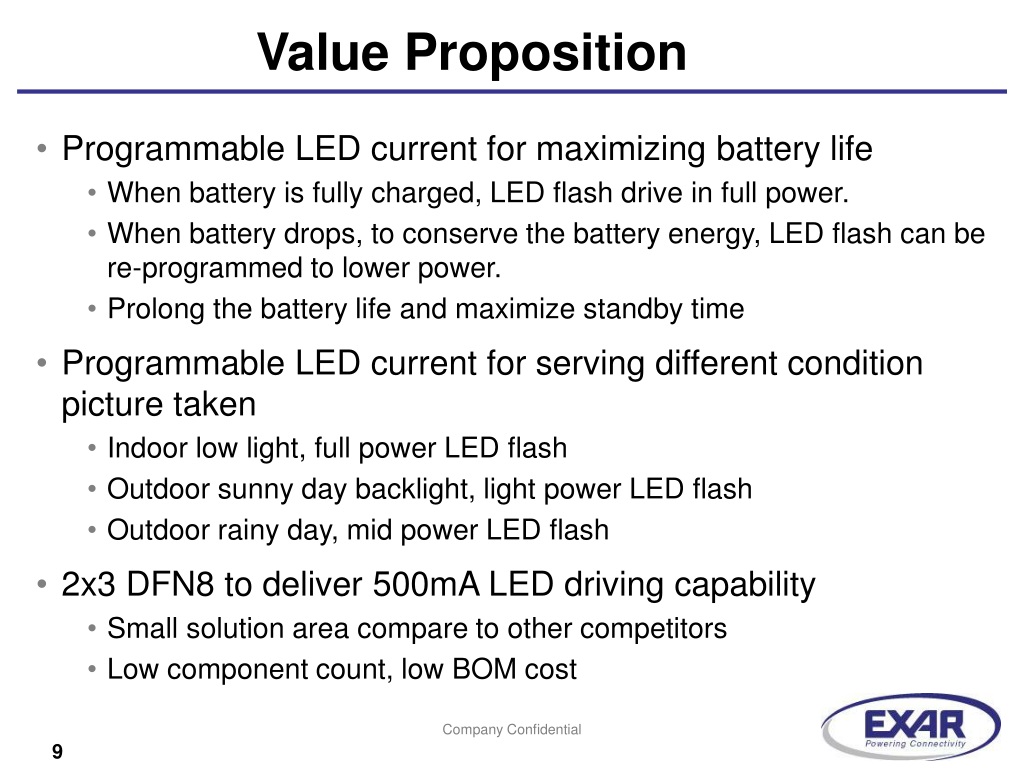

  9. Value Proposition • Programmable LED current for maximizing battery life • When battery is fully charged, LED flash drive in full power. • When battery drops, to conserve the battery energy, LED flash can be re-programmed to lower power. • Prolong the battery life and maximize standby time • Programmable LED current for serving different condition picture taken • Indoor low light, full power LED flash • Outdoor sunny day backlight, light power LED flash • Outdoor rainy day, mid power LED flash • 2x3 DFN8 to deliver 500mA LED driving capability • Small solution area compare to other competitors • Low component count, low BOM cost Company Confidential
