exemption procedure for non compliances at aerodromes module 8

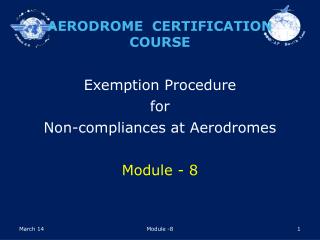

Exemption Procedure for Non-compliances at AerodromesModule - 8

AERODROME CERTIFICATION

COURSE

Module -8

exemption procedures for non compliance at aerodromes
Exemption Procedures for Non-compliance at Aerodromes

Objectives:

  • Review the procedures required to be followed by the aerodrome operators and regulatory authority staff for granting exemptions from non-compliances with National Aerodrome Standards for Certification of Aerodromes.

Module -8

exemptions
Exemptions

Exemptions may be necessary, but

safety

must not be compromised.

Module -8

ano 001 dras 1 0 dated 05 10 2009 requirement for issue and or renewal of aerodrome certificate
ANO-001-DRAS-1.0, Dated 05/10/2009 – Requirement for Issue and/or Renewal of Aerodrome Certificate

D10. EXEMPTIONS / WAIVERS:

D10.1 The Authority or Director General may exempt, in writing an Aerodrome Operator from complying with all or any provisions/requirements of this ANO for the reasons recorded separately. Such exemptions/waivers shall be granted on case to case basis, subject to such conditions relating to safety/other related matters as may be specified.

D10.2 As mentioned above, an exemption will be subject to the Aerodrome Operator’s complying with the conditions and procedures specified by the Authority or Director General and as deemed necessary in the interest of safety.

Module -8

ano 001 dras 1 0 dated 05 10 2009 requirement for issue and or renewal of aerodrome certificate5
ANO-001-DRAS-1.0, Dated 05/10/2009 – Requirement for Issue and/or Renewal of Aerodrome Certificate

D10. EXEMPTIONS / WAIVERS:

D10.3 Where an aerodrome does not meet the standards specified in Aerodrome Standards Manual of Pakistan, the Authority or Director General may determine after carrying out aeronautical studies,the conditions and procedures that are necessary to ensure a level of safety equivalent to the established standards.

D10.4 Any exemption granted by the Authority or Director General shall be included in the relevant part of Aerodrome Manual.

D10.5 The Authority has the right to exempt all or any aerodrome from any issue pertaining to safety and aerodrome certification subject to the conditions that operator has satisfied and given a timeline to remove the deficiencies for which exemption has been sought.

Module -8

aerodrome standards manual of pakistan
Aerodrome Standards Manual of Pakistan
  • The Aerodrome Standards Manual of Pakistan sets out requirements for the aerodromes design and operations in Pakistan.
  • At an existing aerodrome where the standards set forth in ASMP are not complied with, must be identified and exemption from the DG CAA Pakistan may be sought by the certificate holders with submission of his plan or timescale to bring the facility in compliance with the standards.
  • The plan and timescale shall be recorded in the aerodrome manual after the approval of DG CAA Pakistan.

Module -8

exemption procedures for non compliance at aerodromes8
Exemption Procedures for Non-compliance at Aerodromes

1. INTRODUCTION

An Aerodrome Certificate Holder is expected to comply with the requirements laid down in the Aerodrome Standards Manual of Pakistan.

Module -8

exemption procedures for non compliance at aerodromes9
Exemption Procedures for Non-compliance at Aerodromes

1. INTRODUCTION (contd.)

CAA Pakistan to have procedures for accepting cases for non-compliance in respect of an aerodrome being issued with a certifiate in the following situations:

  • There may be some circumstances where compliance of requirement have not been followed at an existing aerodrome:
    • because of physical constraints; and
    • where the facility had been provided earlier as per old standards and continued to be in operation.
  • Where compliance is not possible also for a new aerodrome due to physical constraints.

Module -8

exemption procedures for non compliance at aerodromes10
Exemption Procedures for Non-compliance at Aerodromes
  • Purpose
  • To harmonise the procedure for certification of aerodromes which do not conform to some of the specifications contained in the ASMP on Aerodrome Design and Operations Standard and are required to be complied for certification of aerodrome.
  • The ultimate goal is to require the non-compliances to be corrected and to deal with the situations where this is not possible, either due to physical constraints like terrain etc.,

Module -8

exemption procedures for non compliance at aerodromes11
Exemption Procedures for Non-compliance at Aerodromes

3.1 Examples of Non-compliances at Aerodromes

Facilities and equipment

  • Non-standard Visual and non-visual aids;
  • Obstacles on the strip and the obstacle limitation surfaces i.e. approach, departure and transitional surfaces;
  • Non-standards strip areas - dimensions and quality:
    • Inadequate runway strip width,
    • Inadequate taxiway width and lack of fillets;

Module -8

exemption procedures for non compliance at aerodromes12
Exemption Procedures for Non-compliance at Aerodromes

3.1 Examples of Non-compliances at Aerodromes

Facilities and equipment (contd.)

  • Inadequate runway end safety areas;
  • Inadequate runway – taxiway separation distances;
  • Non-standard approach and runway lights;
  • Inadequate rescue and fire-fighting vehicles, equipment and personnel.

Module -8

exemption procedures for non compliance at aerodromes13
Exemption Procedures for Non-compliance at Aerodromes

3.1 Examples of Non-compliances at Aerodromes

Services and operational procedures

  • Rescue and fire-fighting services;
  • Low visibility procedures;

Module -8

exemption procedures for non compliance at aerodromes14
Exemption Procedures for Non-compliance at Aerodromes

3.2 Categories of Exemptions

  • Temporary Exemptions:

Where the non-compliance is expected to be removed and interoperability is the predominant aspect of the requirement, such as mandatory signs, availability of runway strip etc.

Module -8

slide15

Temporary Exemptions

Mandatory instruction signs

Module -8

exemption procedures for non compliance at aerodromes16
Exemption Procedures for Non-compliance at Aerodromes

3.2 Categories of Exemptions (contd.)

  • Permanent Exemptions:

Where non-compliance is not reasonably be removed and interoperability is not the predominant aspect of the requirement, such as the infringement of high ground into an obstacle limitation surface etc.

Module -8

exemption procedures for non compliance at aerodromes18
Exemption Procedures for Non-compliance at Aerodromes

4. Procedure for Seeking Exemptions

4.1 The aerodrome operator shall submit separate application for each non-compliance in the prescribed proforma for seeking exemption.

4.2 The application for exemption shall be supported with:

  • the reasons for noncompliance;
  • safety assessment reports;
  • means of mitigation; and
  • indication as to when compliance can be expected.

Module -8

4 procedure for seeking exemptions
4. Procedure for Seeking Exemptions

4.3 The applicant should provide adequate information in the prescribed proforma for consideration for granting exemptions with supporting documents. Failure to provide adequate information may delay processing / refusal of the application.

4.4 The Director General after examining the applications for exemptions may exempt, in writing, an aerodrome operator from complying with specific provisions of the ASMP and may impose conditions for such exemptions to ensure the safety and regularity of aircraft operation.

Module -8

4 procedure for seeking exemptions20
4. Procedure for Seeking Exemptions

4.5 On approval of the exemption, it shall be included in the aerodrome manual and in AIP.

4.6 On removal of the exemption the certificate holder shall notify the same to the DG, CAAP and after approval of DG, the same shall be deleted from Aerodrome manual and AIP.

4.7 The exemption granted shall be reviewed during renewal of the aerodrome certificate.

Module -8

thank you end of module 8 exemption procedure for non compliances at aerodromes
Thank youEnd of Module – 8Exemption Procedure for Non-compliances at Aerodromes

Module -8
