  1. TA 101Think and Analyze AnupamSaxena Associate Professor Mechanical Engineering Compliant and Robotic Systems Lab Indian Institute of Technology Kanpur

  2. ANUPAM SAXENA TA101 LECTURE VI THIRD ANGLE PROJECTION

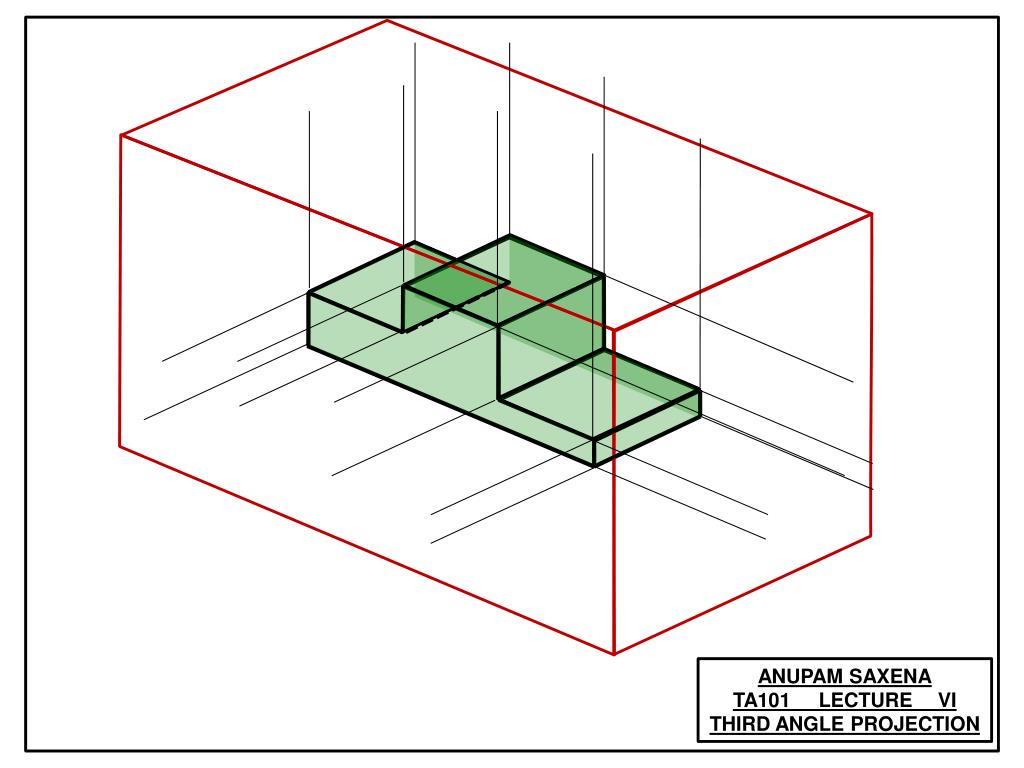

  3. THIRD QUADRANT ANUPAM SAXENA TA101 LECTURE VI THIRD ANGLE PROJECTION

  4. ANUPAM SAXENA TA101 LECTURE VI FIRST ANGLE PROJECTION

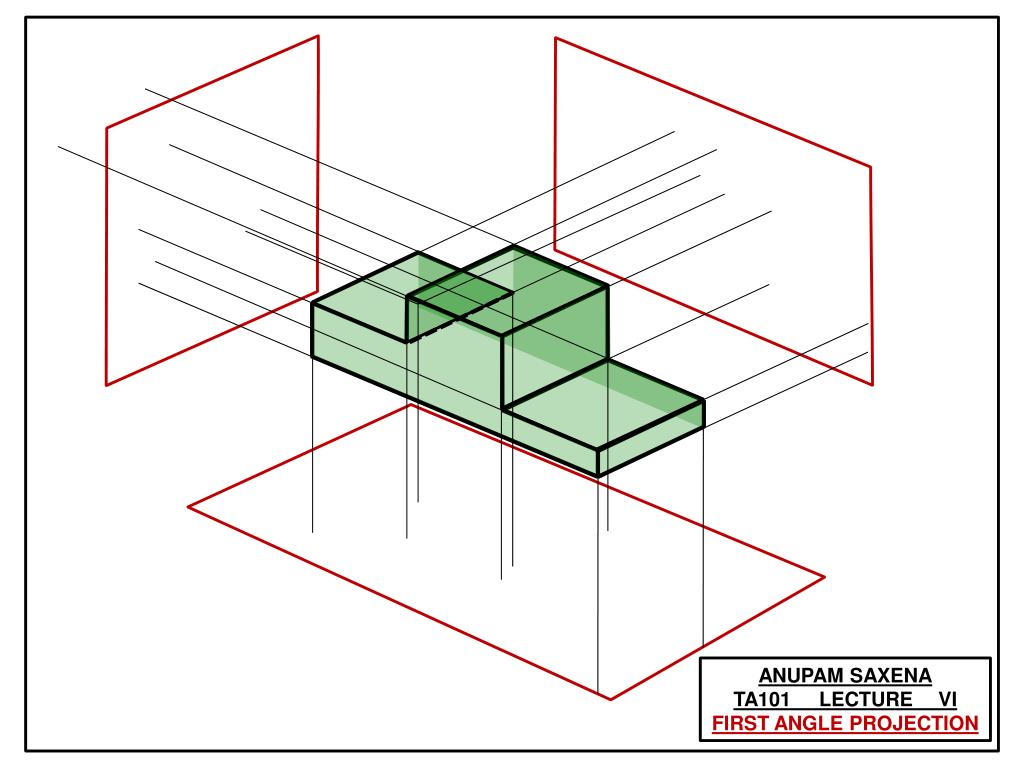

  5. FIRST QUADRANT ANUPAM SAXENA TA101 LECTURE VI FIRST ANGLE PROJECTION

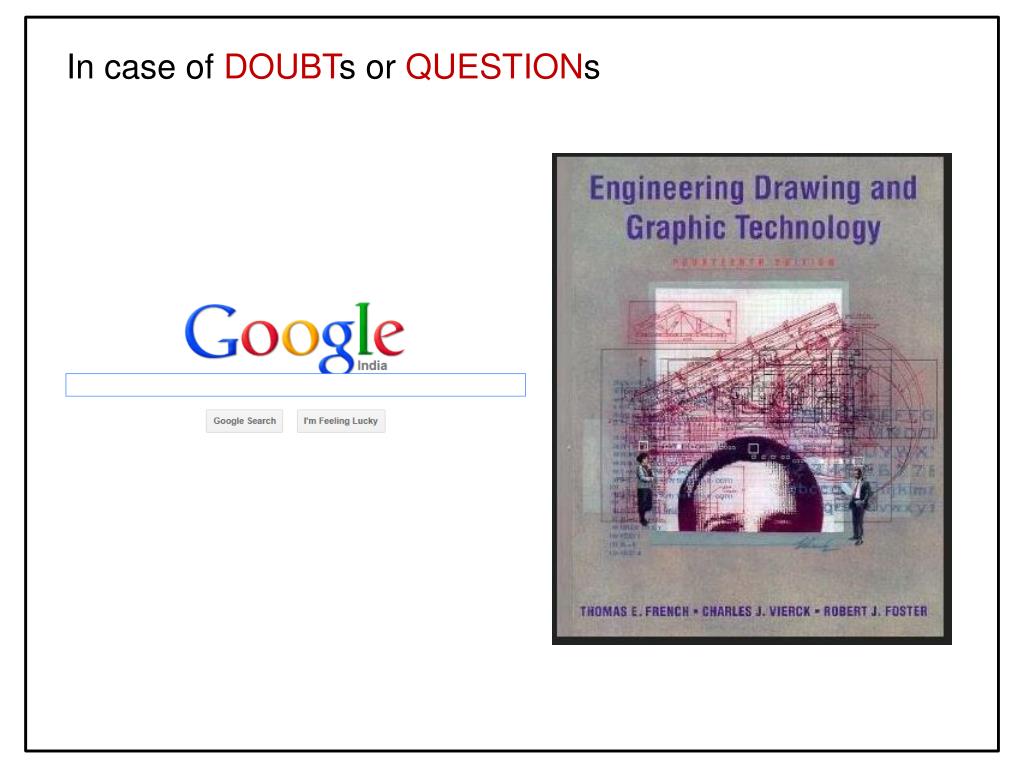

  6. In case of DOUBTs or QUESTIONs

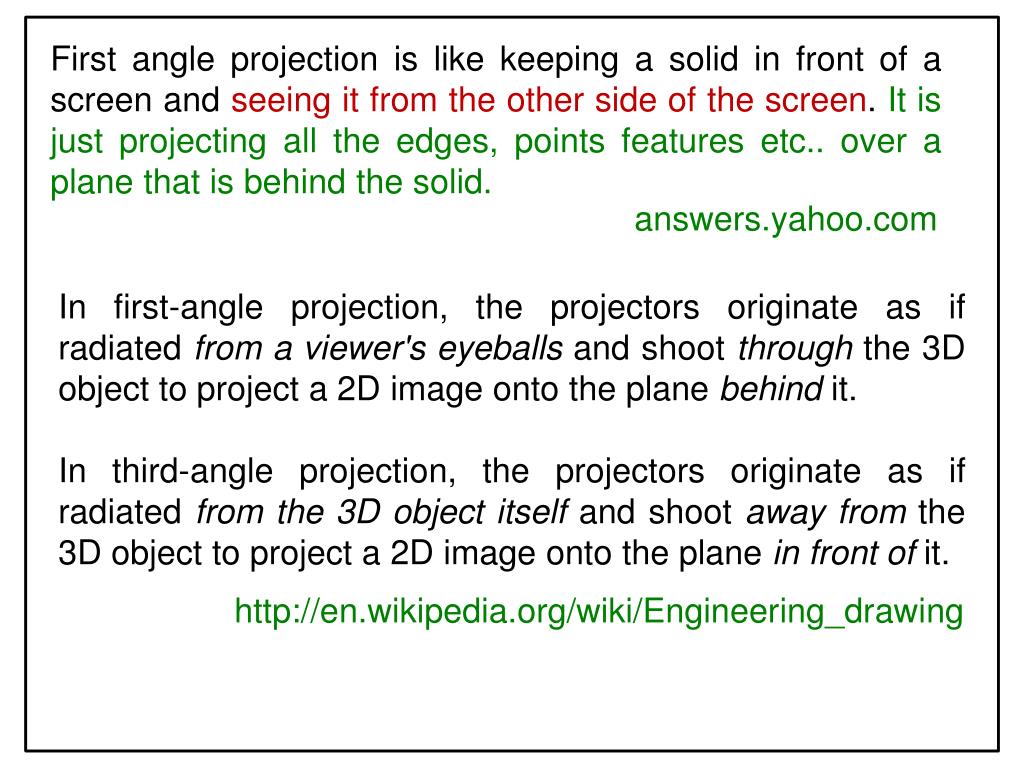

  7. First angle projection is like keeping a solid in front of a screen and seeing it from the other side of the screen. It is just projecting all the edges, points features etc.. over a plane that is behind the solid. answers.yahoo.com In first-angle projection, the projectors originate as if radiated from a viewer's eyeballs and shoot through the 3D object to project a 2D image onto the plane behind it. In third-angle projection, the projectors originate as if radiated from the 3D object itself and shoot away from the 3D object to project a 2D image onto the plane in front of it. http://en.wikipedia.org/wiki/Engineering_drawing

  8. Important assumption: View the object from the right! In first-angle projection, the object is conceptually located in quadrant I, i.e. it floats above and before the viewing planes, the planes are opaque, and each view is pushed through the object onto the plane furthest from it. http://en.wikipedia.org/wiki/Multiview_orthographic_projection

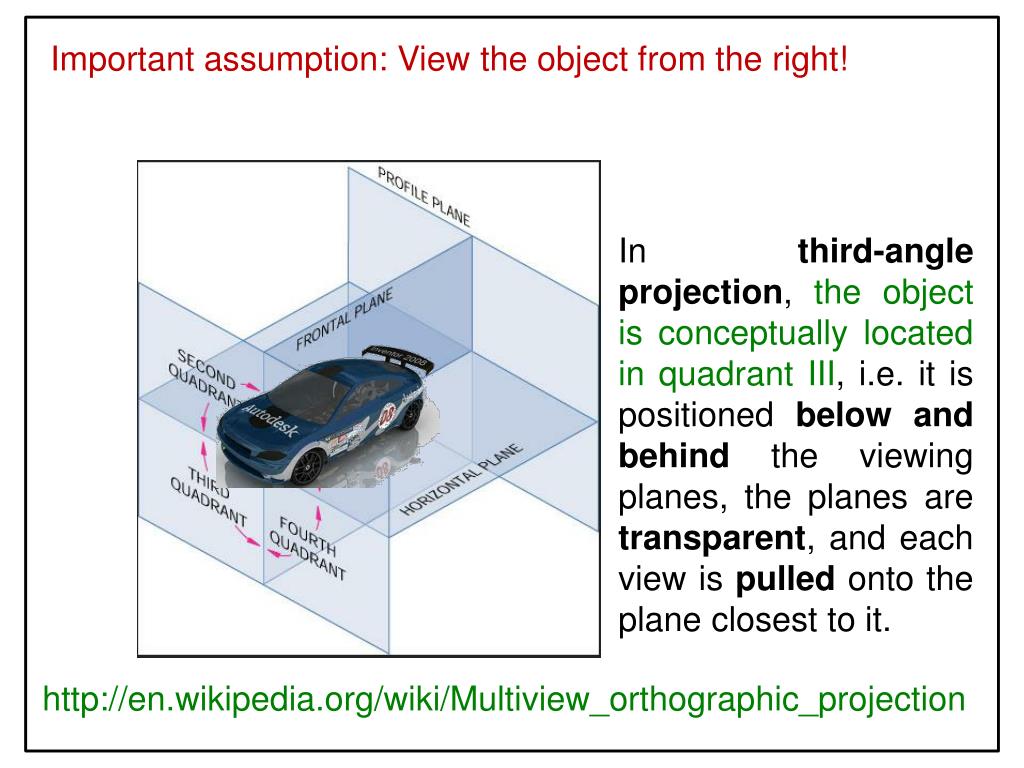

  9. Important assumption: View the object from the right! In third-angle projection, the object is conceptually located in quadrant III, i.e. it is positioned below and behind the viewing planes, the planes are transparent, and each view is pulled onto the plane closest to it. http://en.wikipedia.org/wiki/Multiview_orthographic_projection

  10. An for the drawing Comes with practice… and with MISTAKES!

  11. An for the drawing Comes with practice… and with MISTAKES!

  12. An for the drawing Comes with practice… and with MISTAKES!

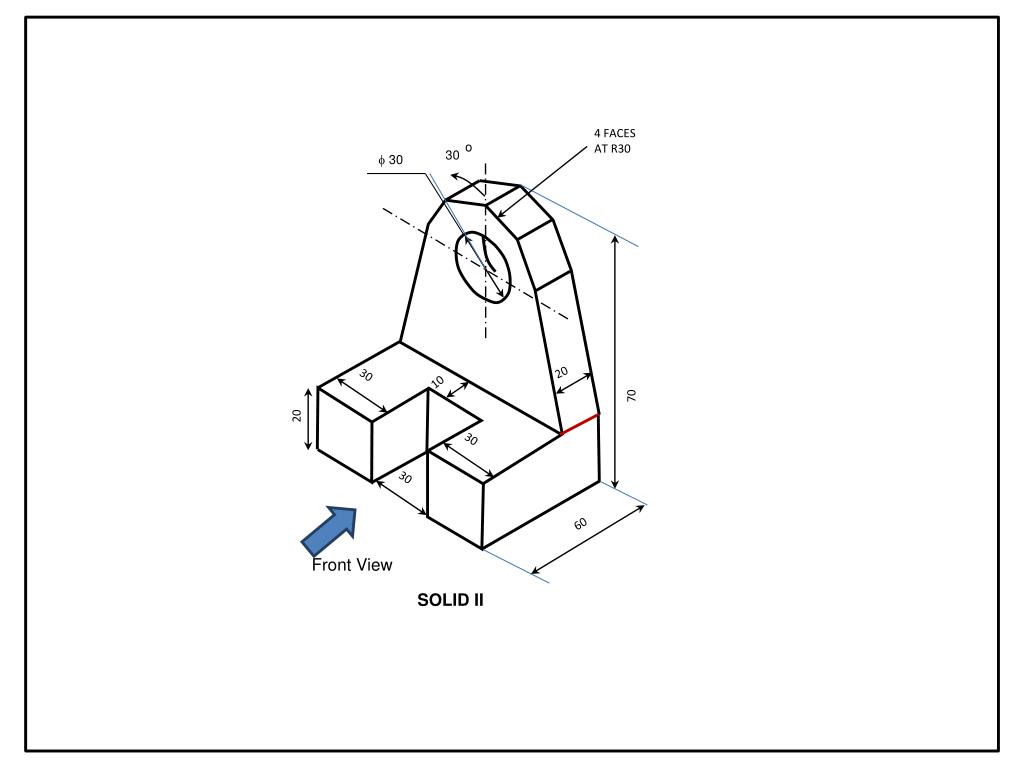

  13. 4 FACES AT R30 o 30  30 20 10 30 70 20 Front View 30 SOLID II 30 60

  14. 60 10 30 60 40 40 40 30 ANUPAM SAXENA TA101 LECTURE VIII ISOMETRIC PROJECTION: EXAMPLE WITH ELLIPSES

  15. 60 10 30 60 40 40 10 USE ISOMETRIC SCALE ISOMETRIC PROJECTION/VIEW USE TRUE SCALE ISOMETRIC DRAWING 40 30 ANUPAM SAXENA TA101 LECTURE VIII ISOMETRIC PROJECTION: SCALE 1:1

  16. Missing lines and Views

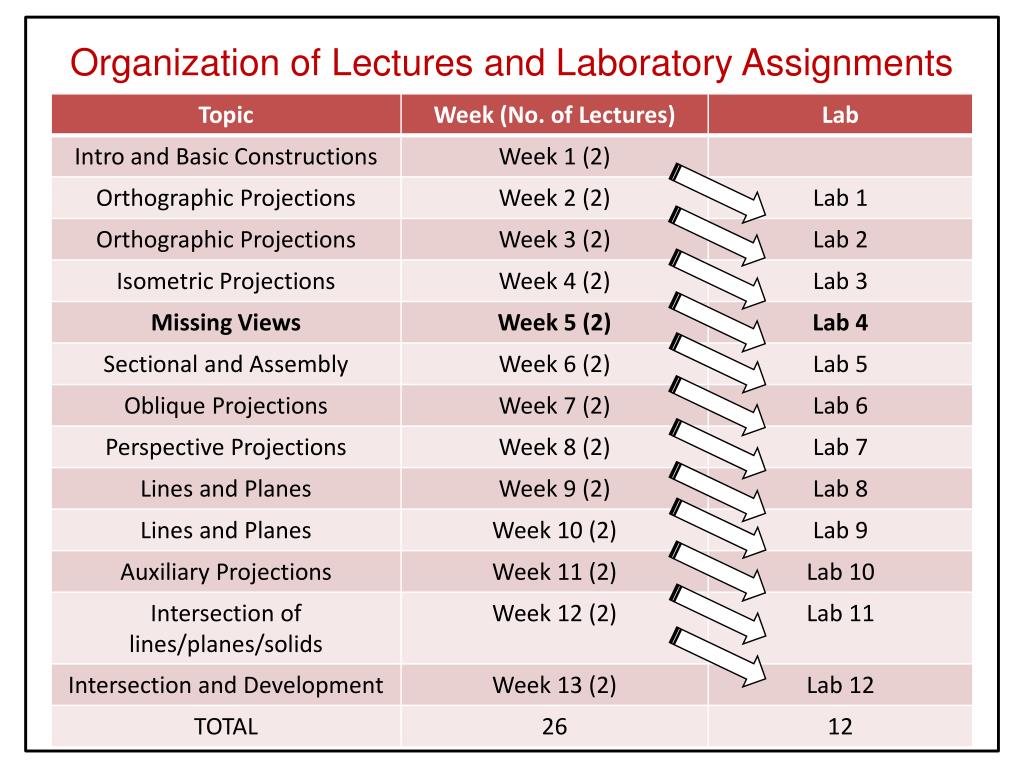

  17. Organization of Lectures and Laboratory Assignments

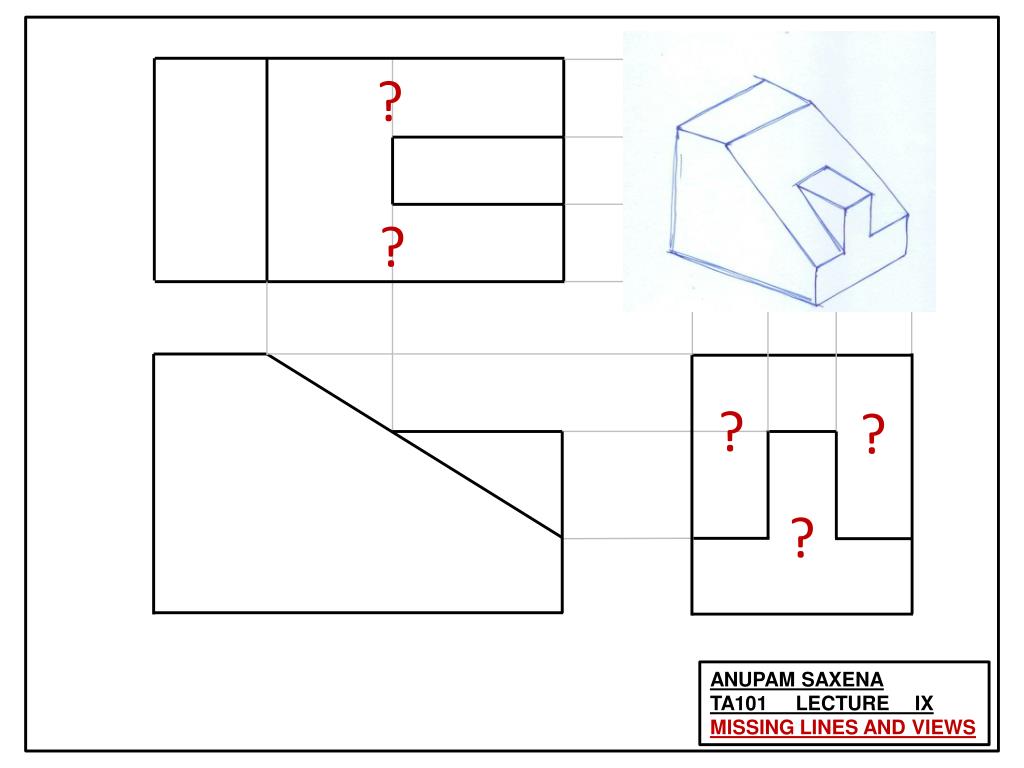

  18. ? ? ? ? ? ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

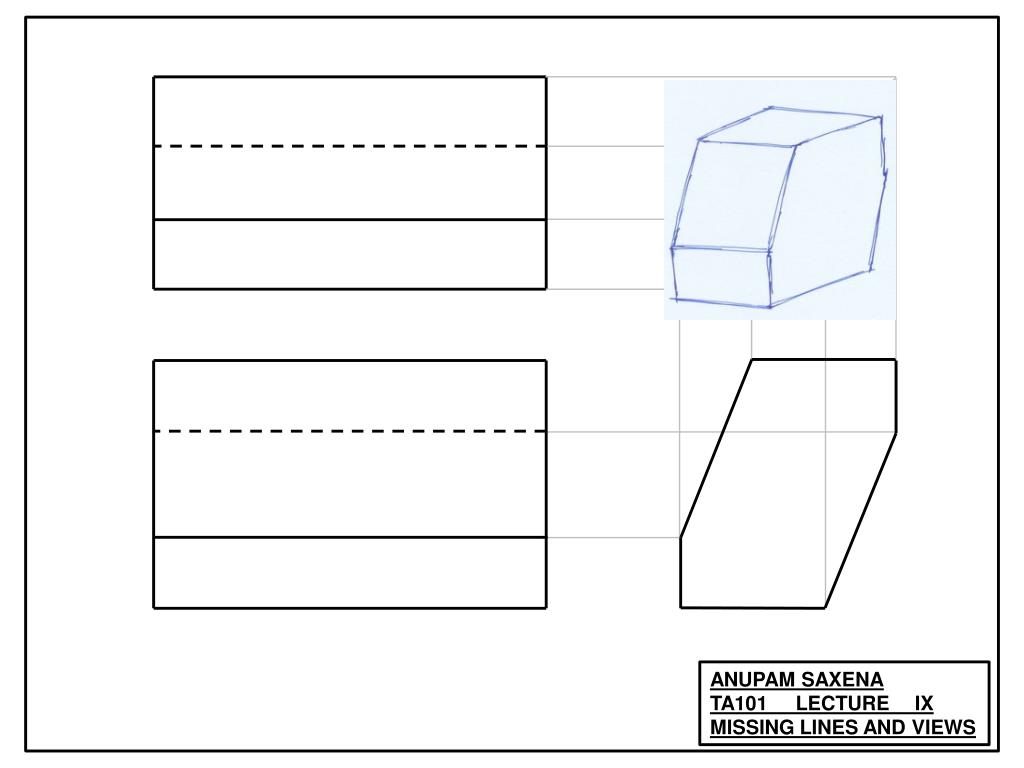

  19. ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

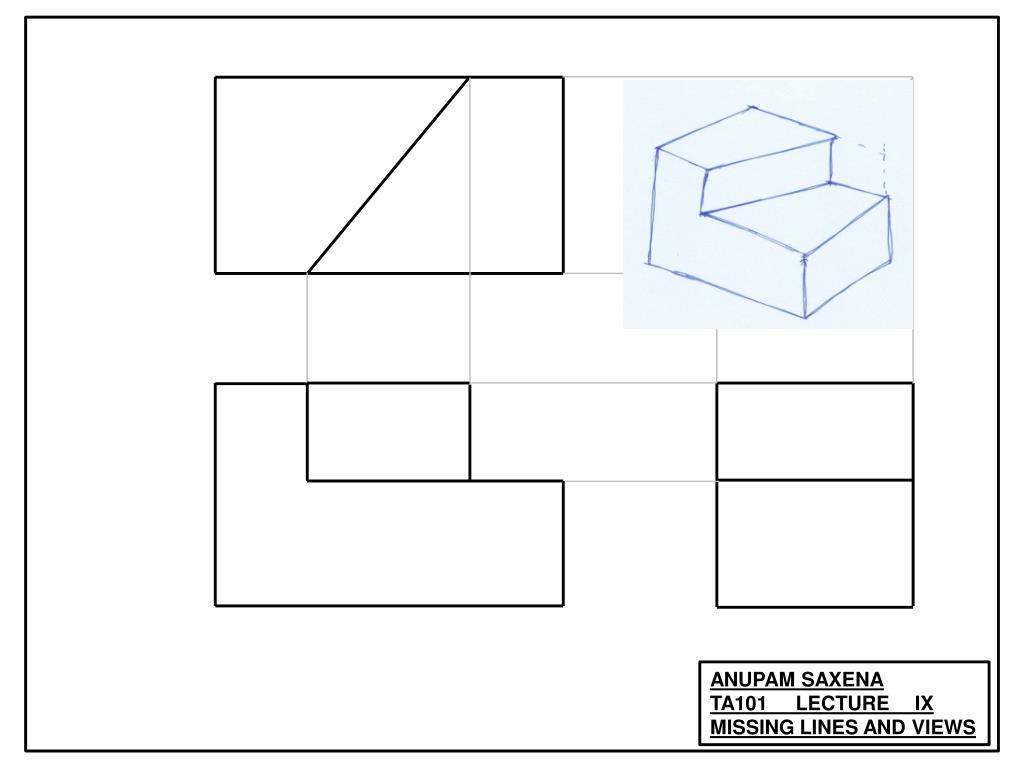

  20. ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

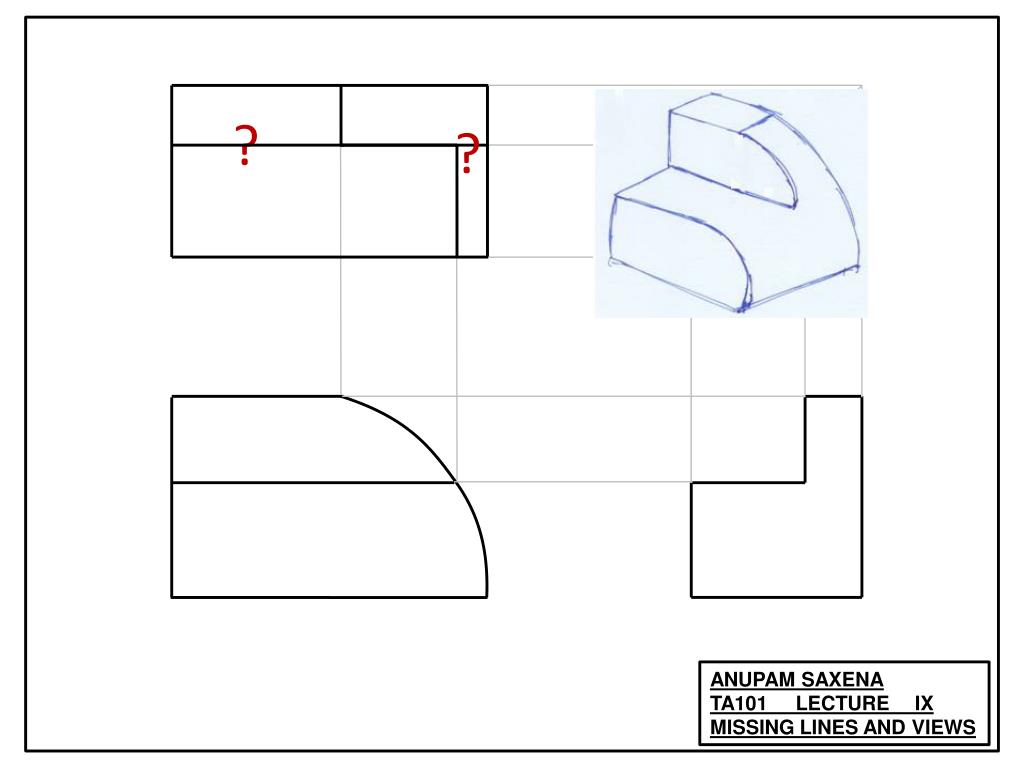

  21. ? ? ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

  22. ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

  23. TA: It helps to draw the isometric view to get an idea of the object’s shape Minimum possible lines to be introduced ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

  24. ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

  25. TA: Even center lines are important ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

  26. ANUPAM SAXENA TA101 LECTURE IX MISSING LINES AND VIEWS

  27. Think and Analyze Until next time...
