Lecture 23: Arrays

Lecture 23: Arrays. Chapter 7: sections 7.1, 7.2. One Dimension Array. Is a COLLECTION of simple variables of the SAME type Declaration : Dim arrayName ( n ) as DataType Example: Dim grades(30) as Double Dim students(30) as String. s ubscript or index. Assigning values.

andres
Download Presentation

Lecture 23: Arrays

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

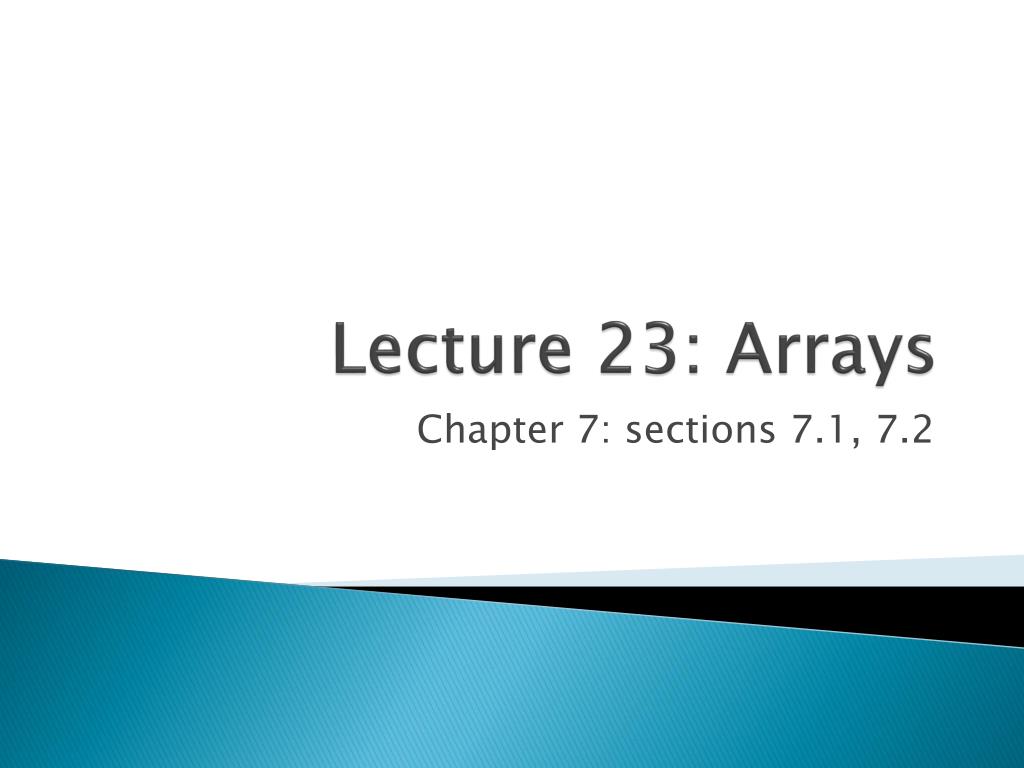

  1. Lecture 23: Arrays Chapter 7: sections 7.1, 7.2

  2. One Dimension Array • Is a COLLECTION of simple variables of the SAME type • Declaration: DimarrayName(n) asDataType • Example: Dim grades(30) as Double Dim students(30) as String subscript or index

  3. Assigning values • To assign a new value, use the same technique as if you need to assign a value to a regular variable BUT don’t forget the SUBSCRIPT • students(2) =“Tom the Cat” • grade(1) =100 • The values can be assigned in the declaration step

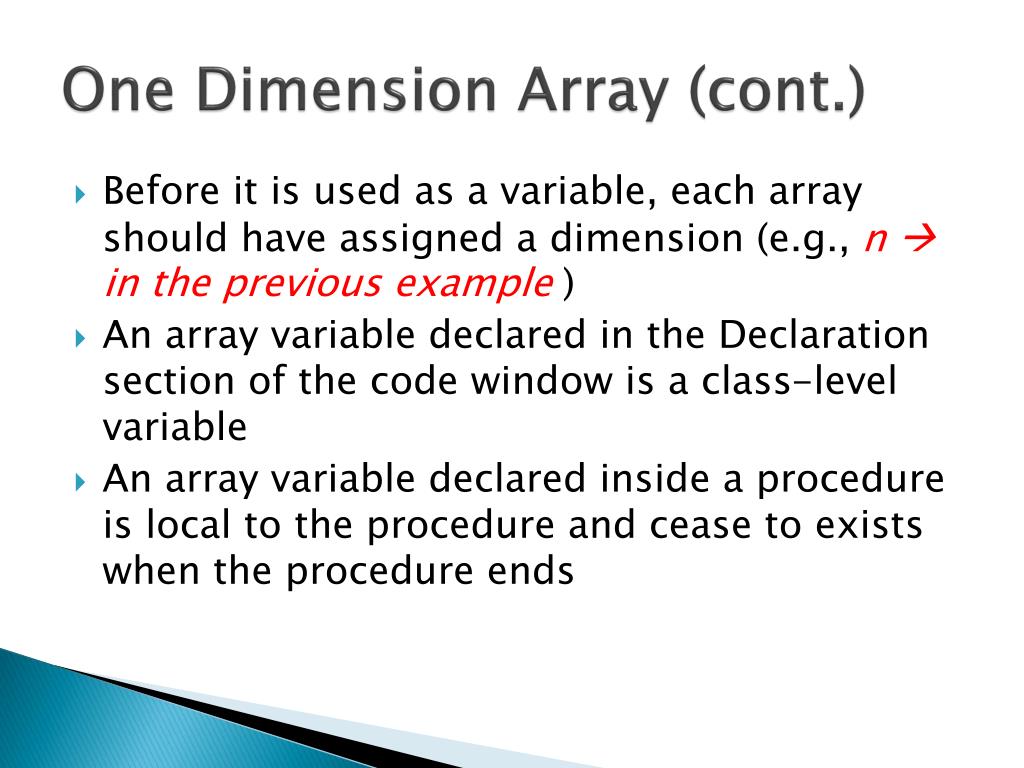

  4. One Dimension Array (cont.) • Before it is used as a variable, each array should have assigned a dimension (e.g., n  in the previous example ) • An array variable declared in the Declaration section of the code window is a class-level variable • An array variable declared inside a procedure is local to the procedure and cease to exists when the procedure ends

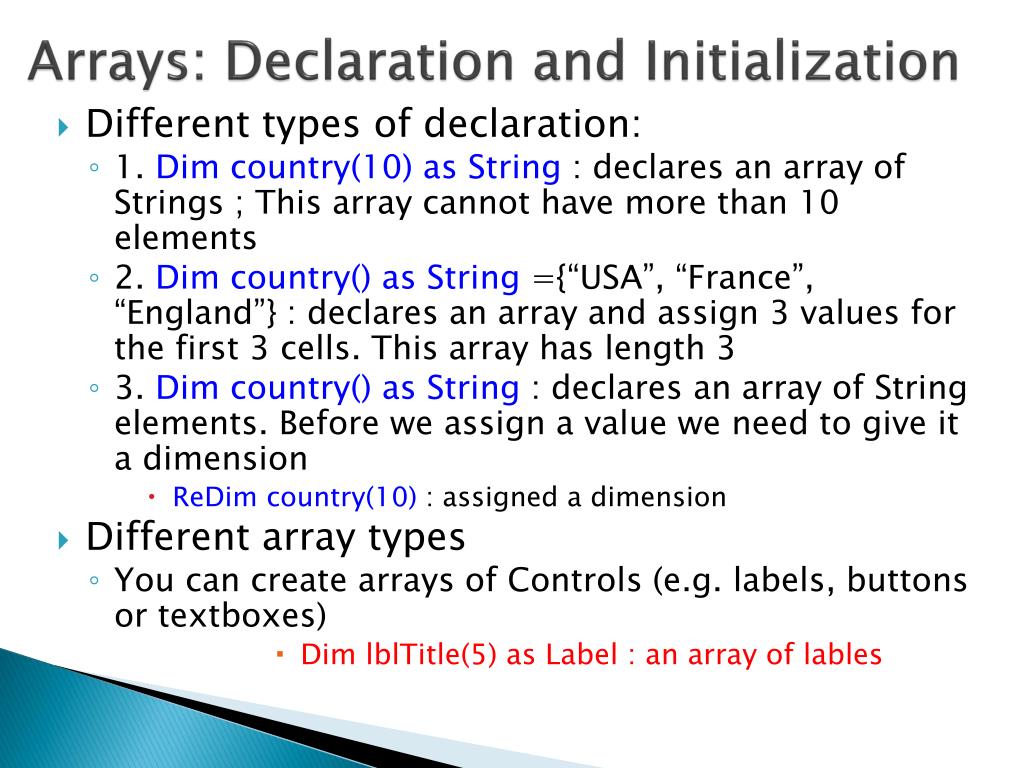

  5. Arrays: Declaration and Initialization • Different types of declaration: • 1. Dim country(10) as String : declares an array of Strings ; This array cannot have more than 10 elements • 2. Dim country() as String ={“USA”, “France”, “England”} : declares an array and assign 3 values for the first 3 cells. This array has length 3 • 3. Dim country() as String : declares an array of String elements. Before we assign a value we need to give it a dimension • ReDim country(10) : assigned a dimension • Different array types • You can create arrays of Controls (e.g. labels, buttons or textboxes) • Dim lblTitle(5) as Label : an array of lables

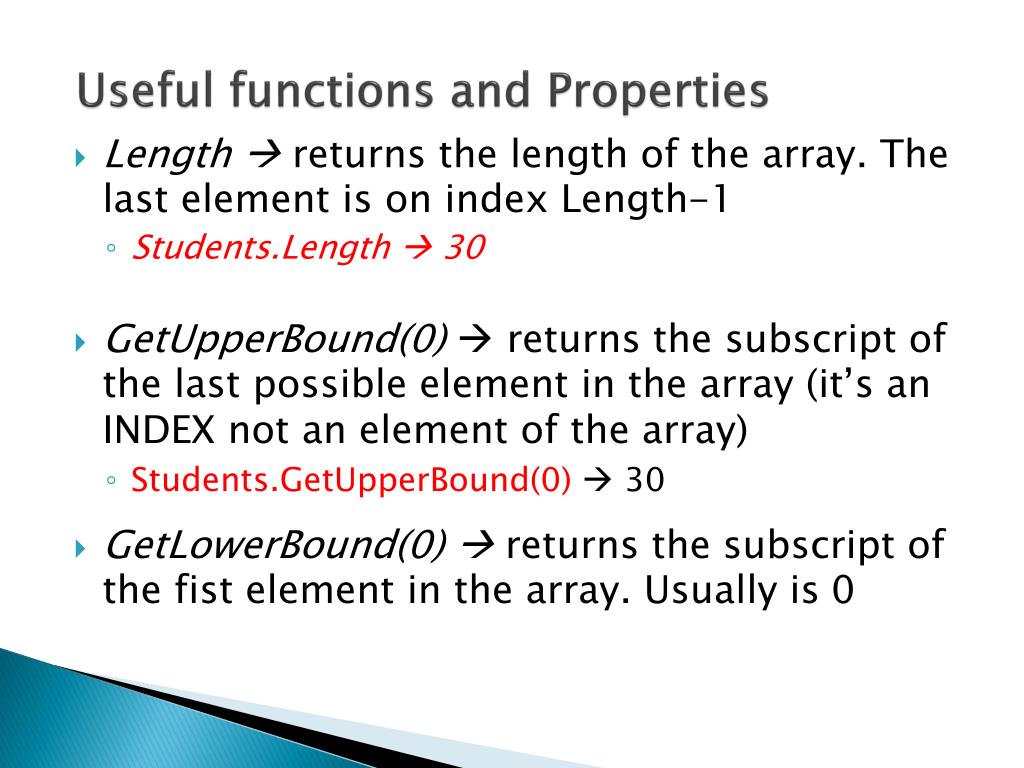

  6. Useful functions and Properties • Length  returns the length of the array. The last element is on index Length-1 • Students.Length  30 • GetUpperBound(0) returns the subscript of the last possible element in the array(it’s an INDEX not an element of the array) • Students.GetUpperBound(0)  30 • GetLowerBound(0)  returns the subscript of the fist element in the array. Usually is 0

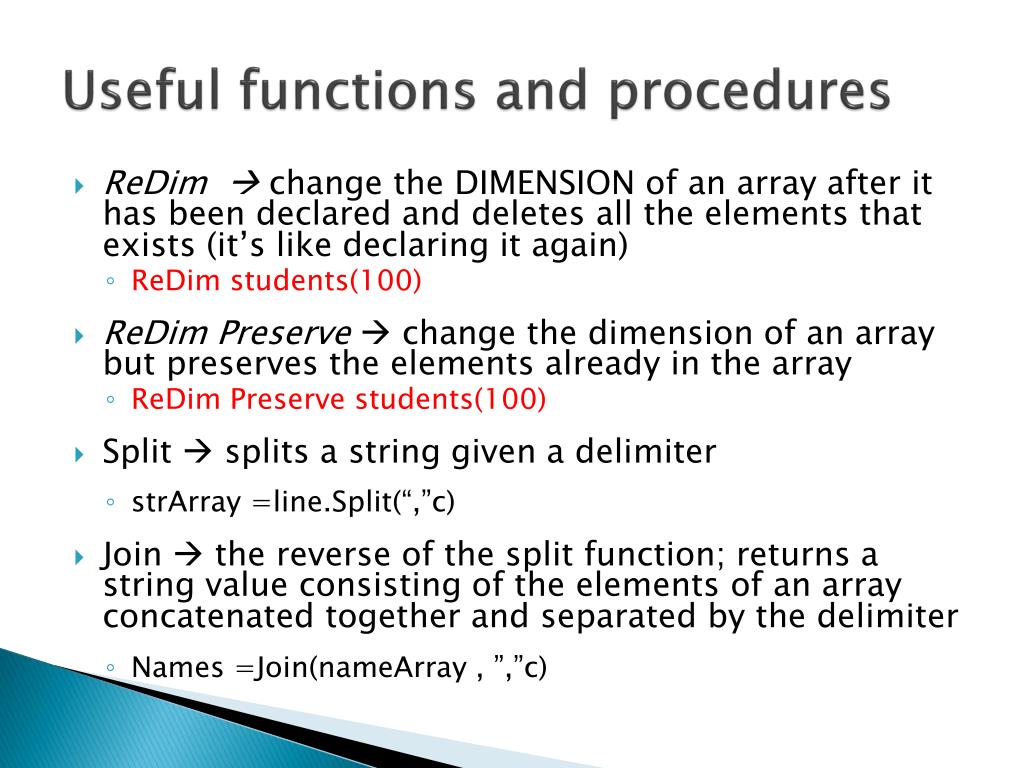

  7. Useful functions and procedures • ReDim  change the DIMENSION of an array after it has been declared and deletes all the elements that exists (it’s like declaring it again) • ReDim students(100) • ReDim Preserve  change the dimension of an array but preserves the elements already in the array • ReDim Preserve students(100) • Split  splits a string given a delimiter • strArray =line.Split(“,”c) • Join  the reverse of the split function; returns a string value consisting of the elements of an array concatenated together and separated by the delimiter • Names =Join(nameArray , ”,”c)

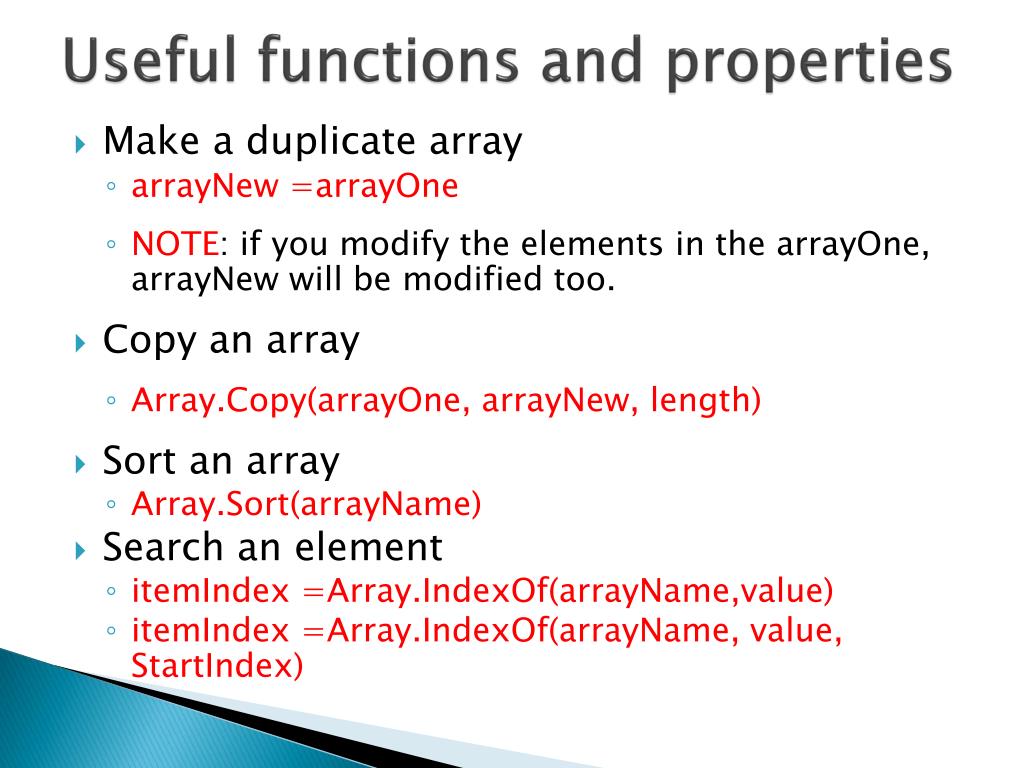

  8. Useful functions and properties • Make a duplicate array • arrayNew=arrayOne • NOTE: if you modify the elements in the arrayOne, arrayNew will be modified too. • Copy an array • Array.Copy(arrayOne, arrayNew, length) • Sort an array • Array.Sort(arrayName) • Search an element • itemIndex =Array.IndexOf(arrayName,value) • itemIndex =Array.IndexOf(arrayName, value, StartIndex)

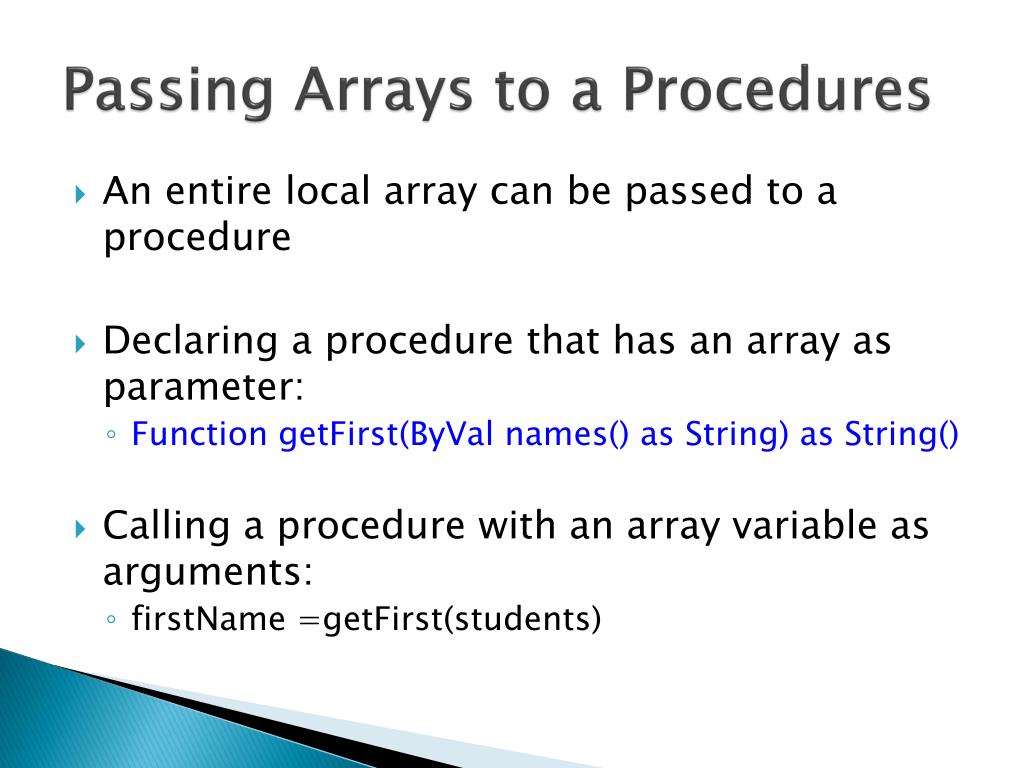

  9. Passing Arrays to a Procedures • An entire local array can be passed to a procedure • Declaring a procedure that has an array as parameter: • Function getFirst(ByVal names() as String) as String() • Calling a procedure with an array variable as arguments: • firstName=getFirst(students)

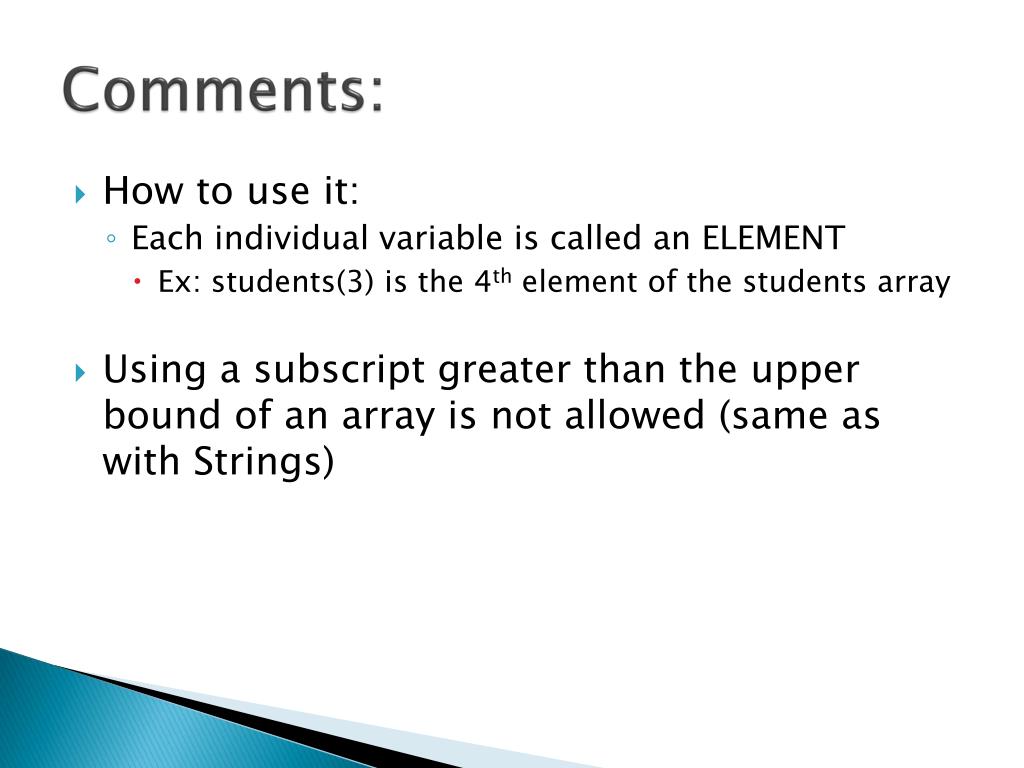

  10. Comments: • How to use it: • Each individual variable is called an ELEMENT • Ex: students(3) is the 4th element of the students array • Using a subscript greater than the upper bound of an array is not allowed (same as with Strings)
