  1. Building Reliable Software Requirements and Methods

  2. Reliability • Reliability means that the level and frequency of failure is acceptable • We are not requiring no failures at all • Merely an acceptable level • Failure is measured pragmatically

  3. Correctness • Software is correct if its behavior is correct • Correctness of behavior has to be defined • The definition is called a specification • So correctness is a matter of the implementation matching the specification • And is typically interpreted formally

  4. Correctness and Reliability • Correct but unreliable • Can result from an incorrect specification • Reliable but incorrect • Can result from a program that does not exactly meet its specification, but which works well enough. • Reliability is really what we are after • Correctness is a means to this end

  5. Requirements for Reliability • If a failure has high cost, then reliability becomes important. • How important depends on the cost • Most software is typically not very reliable

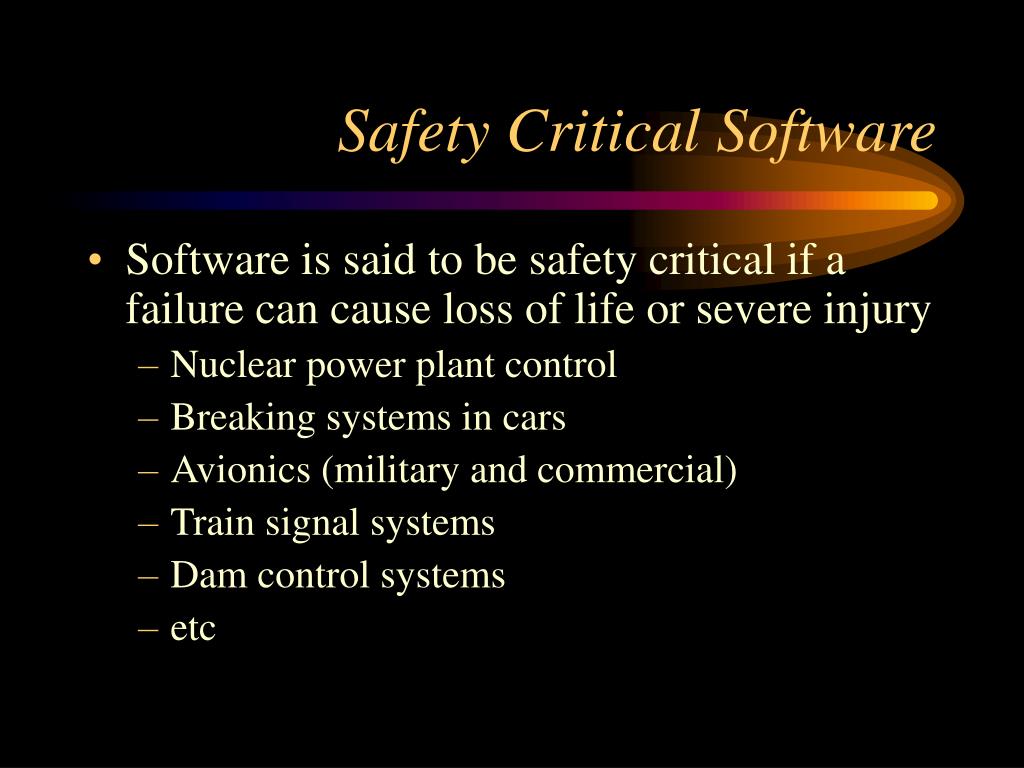

  6. Safety Critical Software • Software is said to be safety critical if a failure can cause loss of life or severe injury • Nuclear power plant control • Breaking systems in cars • Avionics (military and commercial) • Train signal systems • Dam control systems • etc

  7. SC Software – An example • The Boeing 777 • Fully computerized control • All avionics programmed in Ada • All safety critical • No flight problems ever encountered • Except in entertainment system • Which is in C++ and not safety critical 

  8. How do We approach Reliability • Use reliable tools • Program carefully • Test thoroughly • Is that good enough? • Would you fly on an airplane if that was the best we could say about our approach?

  9. Safety Critical Programming • We can’t depend on people being careful • Control the tools that are used • Control the process that is used • Develop formal specifications • Use formal design techniques • Use formal techniques for proving correctness • Do systematic testing • Measure how we are doing quantitatively

  10. Control Tools • We need simple programming languages • Avoid “dangerous” constructs • Dynamic storage allocation • Non-determinacy • Recursion • Typically very simple subsets are used • SPARK (www.praxis-cs.co.uk)

  11. More on Tools • Languages with strenuous compile time checking are more desirable • Redundancy is desirable • Say what you want multiple times and check consistency of usage • Ease of writing is irrelevant compared to ease of analysis and writing

  12. More on SPARK • SPARK is a very simple subset of Ada • No allocators, tasks, generics, exceptions etc • But adds static assertions • What variables are accessed and modified • What routines call one another etc • All assertions are verified at compile time

  13. More on Processes • Organized configuration control • Procedural standards (ISO 9000) • Use of metrics • Strict coding practices • Formal code reviews • Clean room techniques

  14. More on Formal Methods • A program is a mathematical object • We can reason about programs using standard mathematical techniques • Proving properties of programs • Proof of correctness • More limited proofs • Careful examination always helps • Formalizing this examination helps more!

  15. More on Specification • A formal specification is one about which we can reason mathematically • And for which correctness is a mathematical property • Specification languages • Very high level, not necessarily compilable • But how do we know the spec is correct?

  16. Formal Testing • Coverage testing • Every source line executed at least once • Decision testing • Every decision path tested • Flow testing • Every definition use chain tested

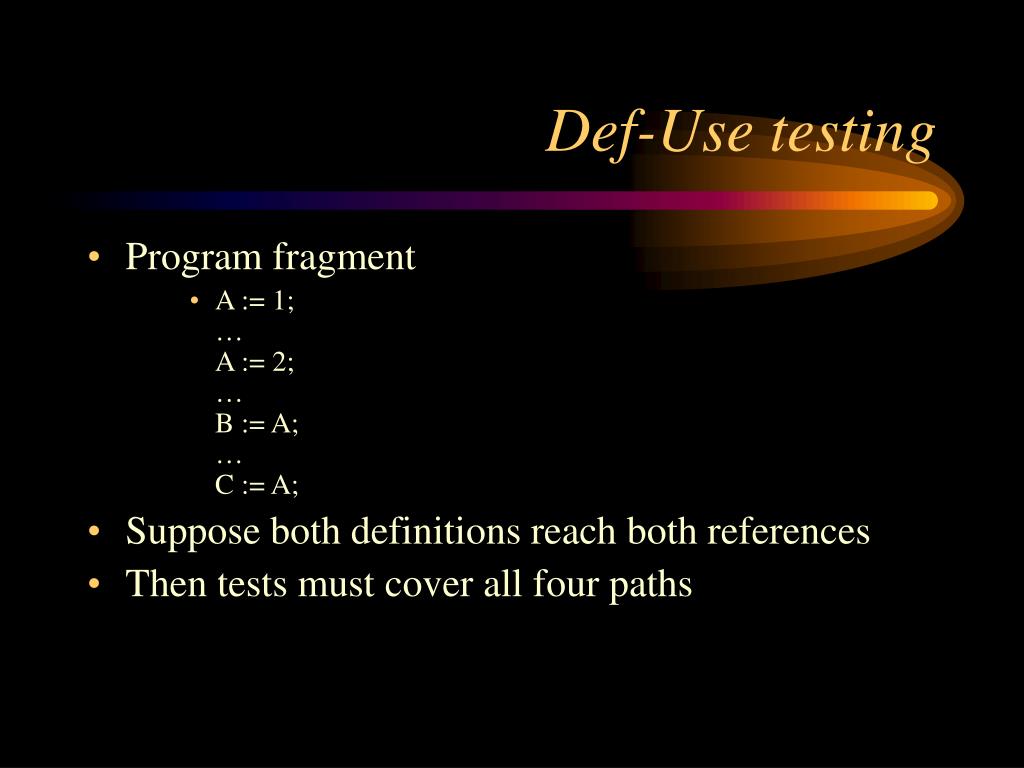

  17. Def-Use testing • Program fragment • A := 1;…A := 2;…B := A;…C := A; • Suppose both definitions reach both references • Then tests must cover all four paths

  18. The Basic Idea Behind Testing • We trust software much more if it has executed once than if it has never executed • So let’s set up testing so that as much as possible has been executed at least one • Testing does not guarantee reliability • But it helps

  19. Source/Object Traceability • Reasoning at the source level is useful • But it is not good enough • Why? Because we can’t trust compilers • So we need to reason and test at the object (generated machine code) level • We need to trace source-to-object easily • Optimization is a problem!

  20. Safety Critical Standards • DO-178B (also ED-12B) • A safety critical standard used for both military and commercial avionics in the US and Europe • Requires full documentation of process • Forbids certain constructs • Requires certain aspects (e.g. traceability) • Requires formal testing • Does not rely on any one aspect

  21. Other Guidelines • The ISO HRG of WG 9 • Prepares guidelines • HRG report catalogs safety critical techniques

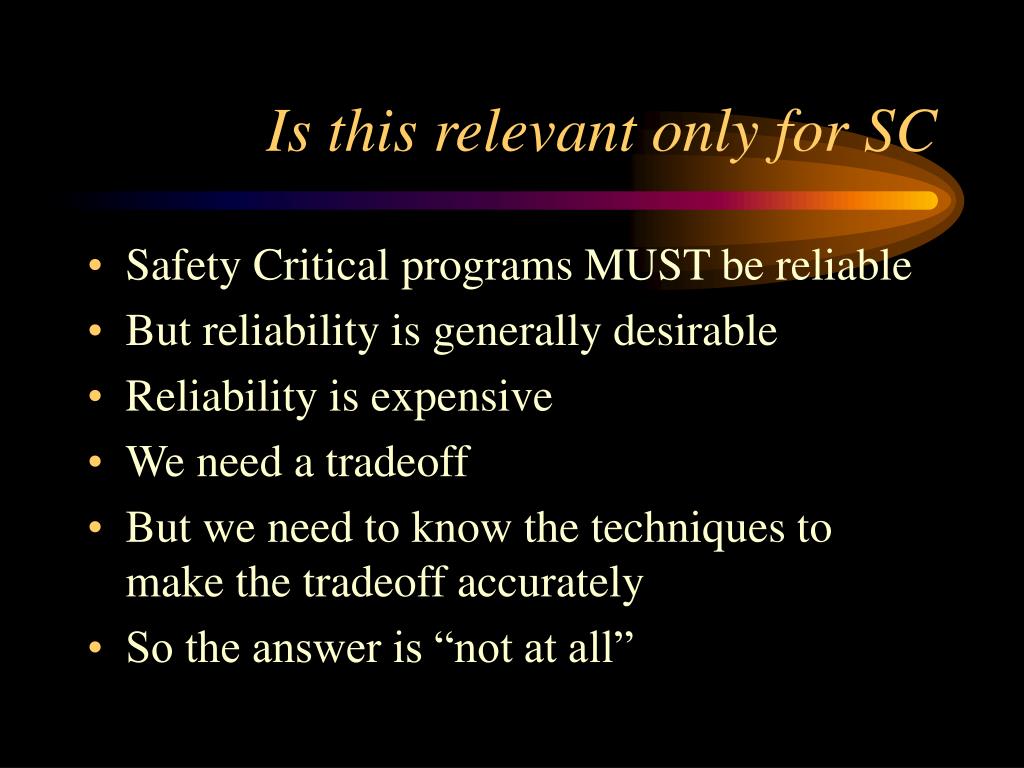

  22. Is this relevant only for SC • Safety Critical programs MUST be reliable • But reliability is generally desirable • Reliability is expensive • We need a tradeoff • But we need to know the techniques to make the tradeoff accurately • So the answer is “not at all”
