Presentation Transcript
motivation
Motivation
  • Automorphisms of an algebraic structure capture its symmetries.
  • Many properties can be proved by analyzing the automorphism group of the structure.
examples in mathematics
Examples in Mathematics
  • [Galois,1830] Structure of automorphism group of the splitting field of a polynomial f(x) characterizes the solvability of f using radicals.
  • [Hasse,1932] The number of rational points on elliptic curve Ep is between p+1-2p and p+1+2p.
what about algorithms complexity
What About Algorithms & Complexity?
  • Not received much attention.
  • Used only for few problems like polynomial factorization.
  • So are they not of much use?

Automorphisms of finite rings are intimately related to the complexity of many important algebraic problems.

examples discussed
Examples Discussed
  • Primality Testing
  • Integer Factoring
  • Polynomial Factoring
  • Graph Isomorphism
  • Polynomial Equivalence
problems related to automorphisms isomorphisms
Problems related to Automorphisms / Isomorphisms
  • Ring Automorphism: Given a ring R, does it have a non-trivial automorphism?
  • Ring Isomorphism: Given two rings R, S, are they isomorphic?
    • The functional versions of above two require one to find a morphism.
  • Automorphism Testing: Given a ring R and a function : R  R, is  an automorphism?
representations of finite rings
Representations of Finite Rings
  • We consider finite commutative rings with identity.
  • These rings have three main representations:
    • Table representation
    • Basis representation
    • Polynomial representation
table representation
Table Representation
  • The ring R is given as
    • (e1, e2, …, en) – the set of elements in R
    • The table of addition operation
    • The table of multiplication operation
  • The size of representation is Θ(|R|2).
table representation complexity
Table Representation: Complexity
  • Problems related to automorphisms can be computed in time O(nlog n):
    • The ring has O(log n)-sized generator set under addition.
    • An automorphism maps a generator set to another.
  • Too verbose!
basis representation
Basis Representation
  • The ring R is given as
    • (b1, m1, b2, m2, …, bn, mn) where b1, …, bn is a generator set for R under addition and miis the order of bi.
    • The table of multiplication operation for generators: bi * bj = 1≤k≤nijk bk.
  • The size of representation is Θ(n3) = O(log |R|)3– exponentially smaller than table representation.
basis representation complexity
Basis Representation: Complexity
  • Problems related to automorphisms are in the class FPAM coAM[Kayal-Saxena,2004]:
    • An automorphism/isomorphism is a linear map on additive generator set.
    • So guess-and-verify technique works.
    • A variant of Graph Isomorphism in coAM proof works.
polynomial representation
Polynomial Representation
  • The ring R is given as
    • Zm[X1, …, Xn] / (f1, …, fk) where X1, …, Xn is a generator set for R under addition and multiplication and (f1, …, fk) is the ideal of polynomials satisfied by X1, …, Xn.
    • Each fi is given as an arithmetic circuit.
  • The size of representation can be exponentially smaller than basis representation:
    • Example: F2[X1, …, Xn] / (X12, …, Xn2)
polynomial representation complexity
Polynomial Representation: Complexity
  • Problems related to automorphisms are NP-hard:
    • An automorphism is completely specified by its action on X1, …, Xn.
    • Verifying membership in the ideal (f1, …, fk) can be hard (EXPSPACE-complete in general).
    • Ring Automorphism problem is NP-hard.
    • Ring Isomorphism problem is coNP-hard.
  • Too compact!
slide14
So the best representation, from the complexity perspective, is basis representation.
  • Often, basis and polynomial representations have similar sizes.
    • In such cases, we use polynomial representation as it is most natural one.
automorphism testing primality testing
Automorphism Testing  Primality Testing

Fermat’s Little Theorem: If n is prime then the map (x) = xn (mod n) is the trivial automorphism of ring Zn.

  • Converse is not true.
  • Even if it were, it is expensive to test that the map is indeed an automorphism.
  • These problems can be eliminated!
automorphism testing primality testing1
Automorphism Testing  Primality Testing
  • Let R = Zn[Y] / (Yr – 1) for some r > 0 and define : R  R as (x) = xn.

Observation:  is an automorphism of R iff for every g(Y)  R,

gn(Y) = (g(Y)) = g((Y)) = g(Yn).

automorphism testing primality testing2
Automorphism Testing  Primality Testing

[A-Kayal-Saxena,2002]: For suitably chosen “small” r, if (Y + a)n = Yn + a in R for 1 ≤ a ≤ √r log n, then either n is prime or has a divisor < r.

  • Above is a slight generalization of the original statement.
automorphism testing primality testing3
Automorphism Testing  Primality Testing
  • Let ring S = Zn[Y] / (Y2r – Yr).
  • The AKS theorem translates to:

Theorem: (1) n is prime iff  is an automorphism in S.

(2) is an automorphism in S iff (Y + a) = (Y) + a for 1≤ a≤ √r log n.

automorphism testing polynomial factoring
Automorphism Testing  Polynomial Factoring
  • Let f be a polynomial of degree d in Fq[Y].
  • Let R = Fq[Y] / (f) and (x) = xq.

Observation: (1)  is an automorphism in R and d is the trivial automorphism.

(2)k is trivial iff degrees of all irreducible factors of f divide k.

(3)k is trivial iff Yqk = k(Y) = Y.

automorphism testing polynomial factoring1
Automorphism Testing  Polynomial Factoring
  • This allows to test for irreducibility of f as well as separate distinct degree factors of f:
    • Fork = 1toddo: computegcd(f, Yqk – Y).
automorphism testing polynomial factoring2
Automorphism Testing  Polynomial Factoring
  • Finding equal degree factors of f can be reduced to finding roots of a related polynomial in Fq:
    • Find at(Y)  R \ Fq, with(t(Y)) = t(Y).[use linear algebra]
    • Letg(x) = Res( t(Y) – x, f(Y) ).
    • For a rootαofg, gcd( t(Y) – α, f(Y) )is non-trivial.
automorphism testing polynomial factoring3
Automorphism Testing  Polynomial Factoring
  • Roots of g can be computed using distinct degree factorization method.
  • Works in randomized polynomial time.
finding ring automorphism integer factoring
Finding Ring Automorphism  Integer Factoring
  • Quadratic Sieve, Number Field Sieve: the fastest two known method for factoring integers.
  • Both aim to find a and b in Zn, a ≠ ± b, a2 = b2 (mod n).
  • Given such a and b, gcd(a+b, n) is non-trivial.

These methods are equivalent to finding an automorphism in a special ring.

finding ring automorphism integer factoring1
Finding Ring Automorphism  Integer Factoring
  • Let R = Zn[Y] / (Y2 – 1) for odd n.

Observation: x  x and x  –x are two straightforward automorphisms in R.

Lemma: Let  be any automorphism of R. Then, (Y) = cY with c2 = 1 (mod n).

finding ring automorphism integer factoring2
Finding Ring Automorphism  Integer Factoring

Proof: Let (Y) = cY + d. Then,

0 = (Y2 – 1) = (cY+d)2 – 1

= 2cdY + c2 + d2 – 1.

Since  is an automorphism, (c, n) = 1. Thus, d = 0 and c2 = 1 in Zn. □

So for any third automorphism, c ≠ ± 1.Therefore, finding a third automorphism is equivalent to factoringn.

finding ring automorphism integer factoring3
Finding Ring Automorphism  Integer Factoring
  • Conversely, finding ring automorphism can be reduced to integer factoring.
  • [Kayal-Saxena,2004] showed how:
    • Given ring R, split it as a sum of localrings using integer and polynomial factoring oracles.
    • For each local ring, it is easy to find a non-trivial automorphism if it exists.
finding ring automorphism integer factoring4
Finding Ring Automorphism  Integer Factoring
  • There are many other connections too.
  • [Kayal-Saxena,2004] showed that integer factoring reduces to:
    • Counting number of automorphisms of Zn[Y] / (Y2).
    • Finding any non-trivial automorphism of Zn[Y] / (f),f a random degree 3 poly.
    • Finding any isomorphism between Zn[Y] / (Y2-1) and Zn[Y] / (Y2-a2),a randomly chosen from Zn.
ring isomorphism graph isomorphism
Ring Isomorphism  Graph Isomorphism
  • Shown in [Kayal-Saxena,2004].
  • Here, we give a different, more general proof.
  • Let G = (V, E) be a graph on n vertices.
  • Define polynomial pG as:

pG(x1,…,xn) = (i,j)E xi xj.

  • Define polynomial ideal IG as:

IG(x1,…,xn) = (pG(x1,…,xn), {xi2}1 ≤i ≤ n,

{xixjxk}1≤ i < j < k ≤ n).

ring isomorphism graph isomorphism1
Ring Isomorphism  Graph Isomorphism
  • Let Rq,G = Fq[Y1,…,Yn] / IG(Y1,…,Yn).

Theorem: Graphs G1 and G2 are isomorphic iff either G1 = G2 = Km Dn-m or rings Rq,G1 and Rq,G2 are isomorphic.

Here, Dn-m is a collection of n-m isolated vertices and q any odd prime power.

ring isomorphism graph isomorphism2
Ring Isomorphism  Graph Isomorphism

Proof: If the graphs are isomorphic via , the rings are isomorphic via (Yi) = Y(i).

Suppose the rings are isomorphic and G2≠ Km Dn-m for any m.

Let  be an isomorphism,

(Yi) = ai + 1≤ j≤ n bijYj + 1≤ j < k≤ n cijk YjYk

ring isomorphism graph isomorphism3
Ring Isomorphism  Graph Isomorphism

Since (Yi)2 = (Yi2) = 0:

0 = (Yi)2 = ai2+higher degree terms,

implying that ai = 0.

So:

0 = (Yi)2 = 2 1≤ j < k≤ n bijbik YjYk.

ring isomorphism graph isomorphism4
Ring Isomorphism  Graph Isomorphism

If two or morebi’s are non-zero, pG2 must divide (Y)2.

This implies G2 =Km Dn-m. Not possible.

If allbi’s are zero then (YiYt) = 0. Not possible.

So, exactly one of bi’s is non-zero.

ring isomorphism graph isomorphism5
Ring Isomorphism  Graph Isomorphism

Let (i) = j where bij is non-zero.

If (i) = (t), then (YiYt) = 0. Not possible.

So  is a permutation on [1,n].

ring isomorphism graph isomorphism6
Ring Isomorphism  Graph Isomorphism

Also:

0 = (pG1) = (i,j)E1(Yi)(Yj)

= (i,j)E1 bi,(i)bj,(j) YiYj.

So pG2 must divide above.

This means (pG1) is a constant multiple of pG2 implying that  is an isomorphism.

polynomial equivalence
Polynomial Equivalence

The Problem: Given two polynomialsfandginF[x1,…,xn],test if there exists an invertible linear transformationTsuch that

g(x1,…,xn) = f(Tx1,…,Txn).

  • [Thierauf,1998] proved it is in NP  coAM when T is required to be a permutation.
  • His proof works for arbitrary linear transformations too.
polynomial equivalence1
Polynomial Equivalence
  • Polynomial equivalence for d-forms (homogeneous polynomials of degree d) is well-studied.
  • Witt’s theorem[1936] implies a polynomial time algorithm for quadraticforms.
  • No such algorithm is known for cubicforms.
  • There is even a cryptosystem based on (presumed) difficulty of deciding equivalence between collections of cubic forms.
polynomial equivalence ring isomorphism
Polynomial Equivalence  Ring Isomorphism

Theorem: Ring Isomorphism for rings of prime characteristic reduces to Polynomial Equivalence.

Proof: Let R and S be two rings given in basis representation:

R = (b1,p,…,bn,p), bibj = 1 ≤ k≤ nijk bk

S = (d1,p,…,dn,p), didj = 1 ≤ k≤ nbijk dk

polynomial equivalence ring isomorphism1
Polynomial Equivalence  Ring Isomorphism

Define polynomial pR(y,b) as:

pR(y,b) = 1≤i≤j≤ n yij (bibj - 1≤k≤ nijk bk).

Similarly define polynomial pS(z,d).

Claim: If R and S are isomorphic, then pRand pS are equivalent.

Proof: Let  be an isomorphism between R and S.

polynomial equivalence ring isomorphism2
Polynomial Equivalence  Ring Isomorphism

Then (bibj - 1≤k≤nijk bk) = 0 in S.

This implies that

(bibj - 1≤k≤nijkbk) = l,m ijlm(dldm - 1≤k≤nlmkdk).

Therefore, the T that extends  to yij’s as:

T(ijijlm yij) = zlm

is an equivalence between the polynomials.

polynomial equivalence ring isomorphism3
Polynomial Equivalence  Ring Isomorphism

Claim: If pR and pS are equivalent then R and S are isomorphic.

Proof: Let T be an equivalence. Then:

1≤i≤j≤n T(yij) T(bibj - 1≤k≤ nijk bk) = 1≤i≤j≤n zij (didj - 1≤k≤ nbijk dk).

By comparing degrees, we get:

1≤i≤j≤n T(yij) T(bibj) = 1≤i≤j≤ n zijdidj.

polynomial equivalence ring isomorphism4
Polynomial Equivalence  Ring Isomorphism

We first show that T(bi) is a linear combination of only d’s.

Suppose not. Let T(b1) include z11.

Set z11 to make T(b1) zero. This gives:

1<i≤j≤n T(yij) T(bibj) = 1≤i≤j≤n, j>1 zij (quad d’s) + (cubic d’s).

polynomial equivalence ring isomorphism5
Polynomial Equivalence  Ring Isomorphism

Notice that LHS has only n(n-1)/2 terms left while RHS has n(n+1)/2 – 1z’s.

For each term on LHS, if any of its component has a z-variable in it, set that variable to make the component zero.

Continuing this way, by setting at most 1+n(n-1)/2z-variables, LHS is independent of z’s. But RHS still has n-1 unset z-variables. Contradiction.

polynomial equivalence ring isomorphism6

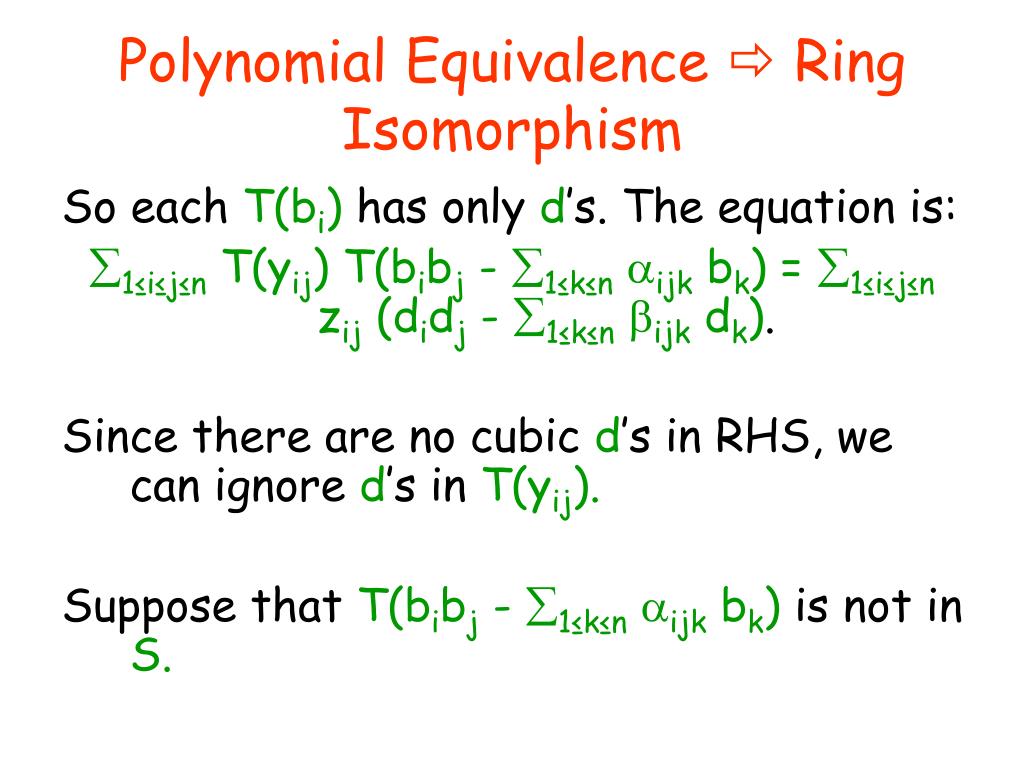

Polynomial Equivalence  Ring Isomorphism

So each T(bi) has only d’s. The equation is:

1≤i≤j≤n T(yij) T(bibj - 1≤k≤nijk bk) = 1≤i≤j≤n zij (didj - 1≤k≤nbijk dk).

Since there are no cubic d’s in RHS, we can ignore d’s in T(yij).

Suppose that T(bibj - 1≤k≤nijk bk) is not in S.

polynomial equivalence ring isomorphism7

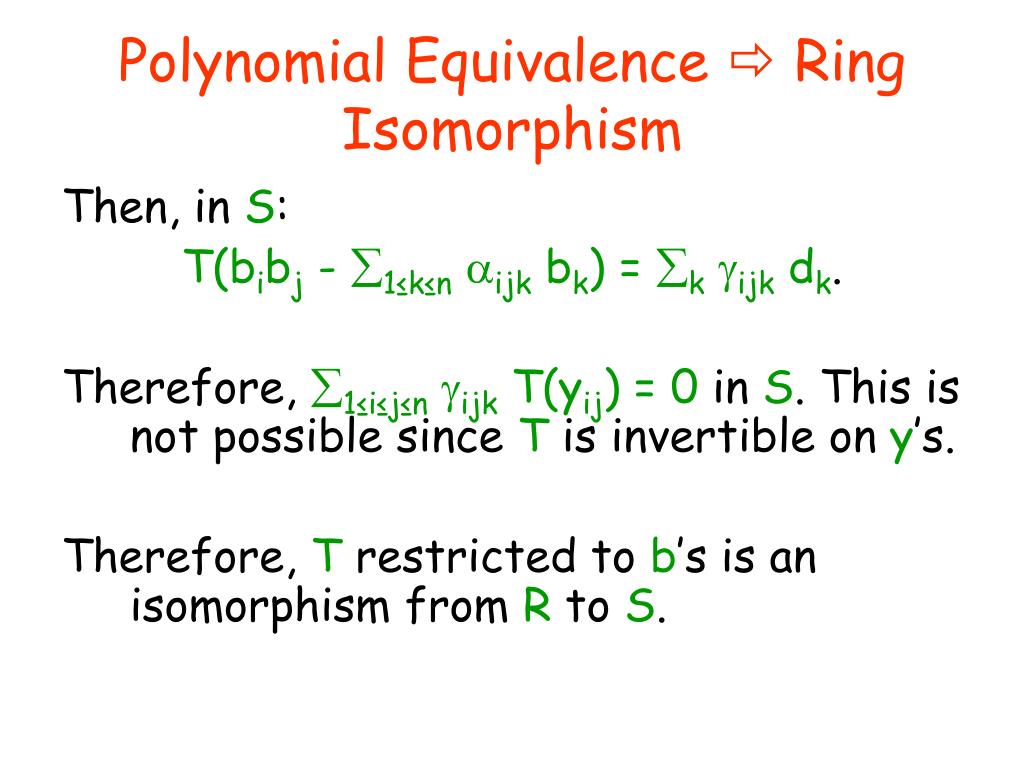

Polynomial Equivalence  Ring Isomorphism

Then, in S:

T(bibj - 1≤k≤nijk bk) = kijk dk.

Therefore, 1≤i≤j≤nijk T(yij) = 0 in S. This is not possible since T is invertible on y’s.

Therefore, T restricted to b’s is an isomorphism from R to S.

other connections
Other Connections
  • Similar, more involved, proof shows that Graph Isomorphism reduces to cubic form equivalence.
  • d-form equivalence over Fq with (d, q-1) = 1, reduces to Ring Isomorphism for constant d.
slide52
Can one find connections with problems like discrete-log?
  • Can one show that Ring Isomorphism reduces to cubic form equivalence?
    • Our proof only reduces to degree 3 polynomials.
slide53
Most of the effort in Integer Factoring has been concentrated on the ring Zn[Y] / (Y2 – 1).
    • Can taking the problem to other rings help?
    • [Kayal-Saxena,2004] provide some alternative rings.
slide54
We reduce Graph Isomorphism to cubic form equivalence (over any field).
  • Is the theory of cubic forms of any help in solving Graph Isomorphism?
