Presentation Transcript
Data security data administration and database administration l.jpg

Data Security, Data Administration and Database Administration

University of California, Berkeley

School of Information

IS 257: Database Management

Lecture outline l.jpg

Midterm Project Report Requirements Administration


Database Administration: Security

Database Administration: Disasters, Backup and Recovery

Database Administration: Roles

Lecture Outline

Lecture outline3 l.jpg

Midterm Project Report Requirements Administration


Database Administration: Security

Database Administration: Disasters, Backup and Recovery

Database Administration: Roles

Lecture Outline

Midterm project requirements l.jpg
Midterm Project Requirements Administration

  • See WWW site:


  • Report on personal/group database including:

    • Expanded and Updated Database description and purpose

    • Updated Data Dictionary

    • Updated Relationships Diagram

    • Plans or prototype examples for interface applications using the database

Lecture outline5 l.jpg

Midterm Project Report Requirements Administration


Database Administration: Data Integrity and Security

Database Administration: Disasters, Backup and Recovery

Database Administration: Roles

Lecture Outline

Data integrity l.jpg
Data Integrity Administration

  • Intrarecord integrity (enforcing constraints on contents of fields, etc.)

  • Referential Integrity (enforcing the validity of references between records in the database)

  • Concurrency control (ensuring the validity of database updates in a shared multiuser environment)

Integrity constraints review l.jpg
Integrity Constraints (review) Administration

  • The constraints we wish to impose in order to protect the database from becoming inconsistent.

  • Five types

    • Required data

    • attribute domain constraints

    • entity integrity

    • referential integrity

    • enterprise constraints

Referential integrity l.jpg
Referential Integrity Administration

  • Ensures that dependent relationships in the data are maintained. In Oracle, for example:

  • CREATE TABLE table-name (

    attr1 attr-type PRIMARY KEY,

    attr2 attr-type NOT NULL,

    …, attrM attr-type REFERENCES owner.tablename(attrname) ON DELETE CASCADE, …

Concurrency control l.jpg
Concurrency Control Administration

  • The goal is to support access by multiple users to the same data, at the same time

  • It must assure that the transactions are serializable and that they are isolated

  • It is intended to handle several problems in an uncontrolled system

  • Specifically:

    • Lost updates

    • Inconsistent data states during access

    • Uncompleted (or committed) changes to data

Concurrency control locking l.jpg
Concurrency Control: Locking Administration

  • Locking levels

    • Database

    • Table

    • Block or page

    • Record

    • Field

  • Types

    • Shared (S locks)

    • Exclusive (X locks)

Transaction control in oracle l.jpg
Transaction Control in ORACLE Administration

  • Transactions are sequences of SQL statements that ORACLE treats as a unit

    • From the user’s point of view a private copy of the database is created for the duration of the transaction

  • Transactions are started with SET TRANSACTION, followed by the SQL statements

  • Any changes made by the SQL are made permanent by COMMIT

  • Part or all of a transaction can be undone using ROLLBACK

Transactions in oracle l.jpg
Transactions in ORACLE Administration

  • COMMIT; (I.e., confirm previous transaction)





  • Freezes the data for the user in both tables before either select retrieves any rows, so that changes that occur concurrently will not show up

  • Commits before and after ensure any uncompleted transactions are finish, and then release the frozen data when done

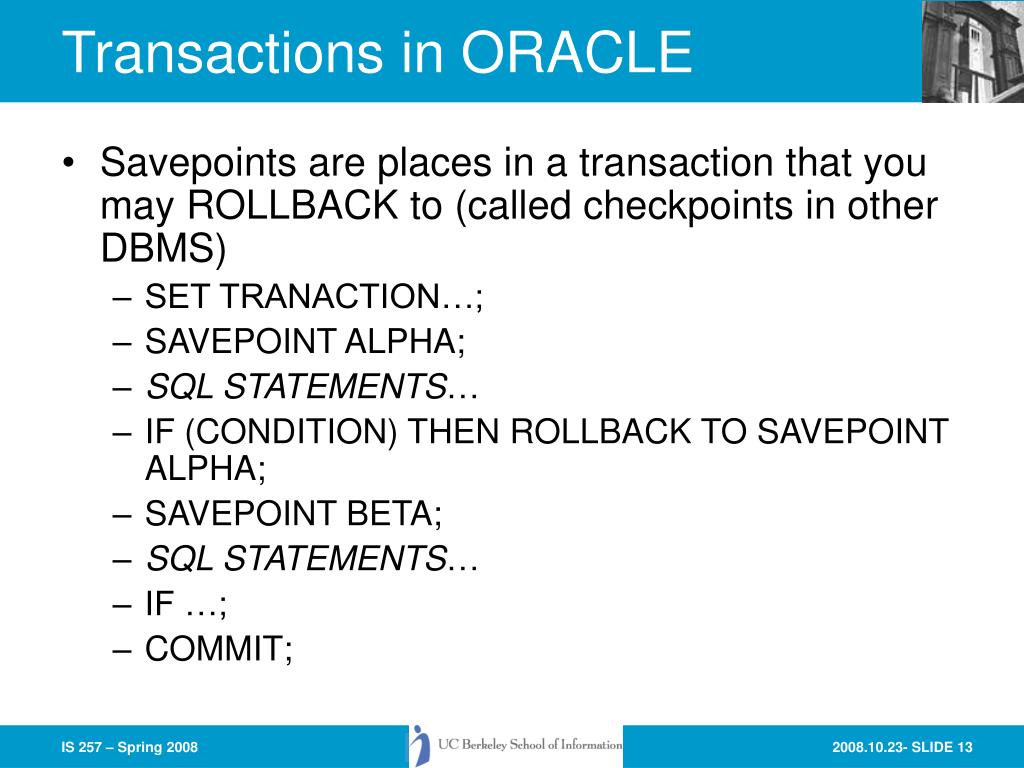

Transactions in oracle13 l.jpg
Transactions in ORACLE Administration

  • Savepoints are places in a transaction that you may ROLLBACK to (called checkpoints in other DBMS)







    • IF …;

    • COMMIT;

Security and integrity functions in database administration l.jpg
Security and Integrity Functions in Database Administration Administration

  • Data Integrity

  • Security Management

  • Backup and Recovery

Database security l.jpg
Database Security Administration

  • Views or restricted subschemas

  • Authorization rules to identify users and the actions they can perform

  • User-defined procedures (with rule systems or triggers) to define additional constraints or limitations in using the database

  • Encryption to encode sensitive data

  • Authentication schemes to positively identify a person attempting to gain access to the database

Views l.jpg
Views Administration

  • A subset of the database presented to some set of users

    • SQL:

      CREATE VIEW viewname AS SELECT field1, field2, field3,…, FROM table1, table2 WHERE <where clause>;

    • Note: “queries” in Access function as views

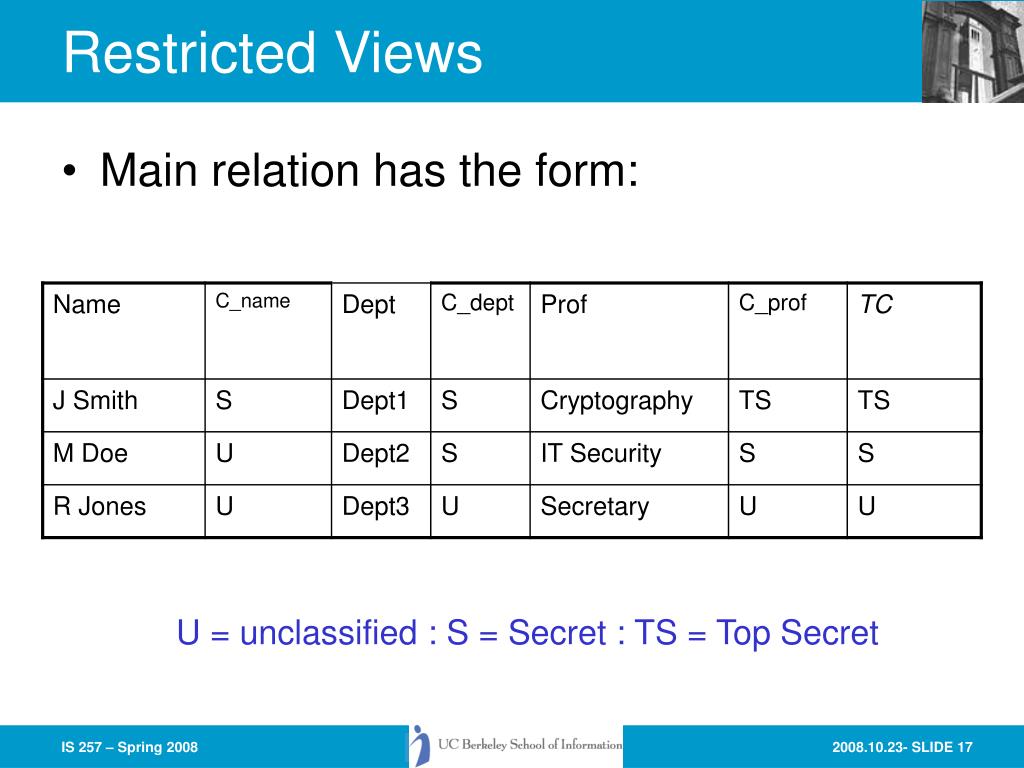

Restricted views l.jpg
Restricted Views Administration

  • Main relation has the form:

U = unclassified : S = Secret : TS = Top Secret

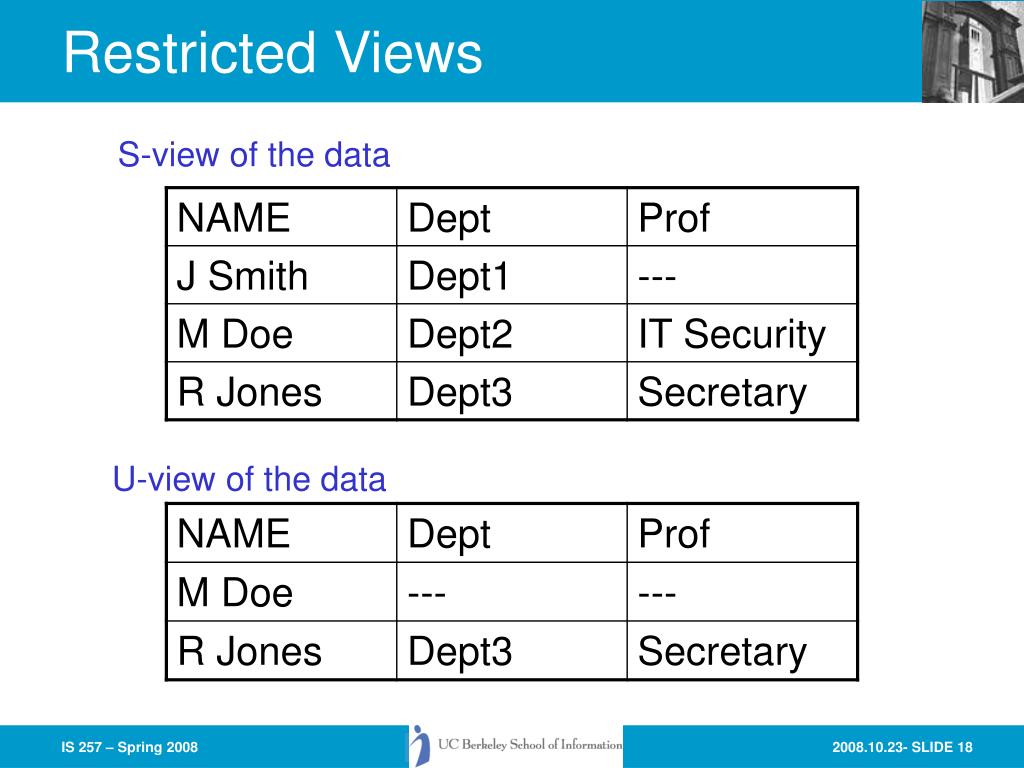

Restricted views18 l.jpg
Restricted Views Administration

S-view of the data

U-view of the data

Authorization rules l.jpg
Authorization Rules Administration

  • Most current DBMS permit the DBA to define “access permissions” on a table by table basis (at least) using the GRANT and REVOKE SQL commands

  • Some systems permit finer grained authorization (most use GRANT and REVOKE on variant views

Lecture outline20 l.jpg

Midterm Project Report Requirements Administration


Database Administration: Security

Database Administration: Disasters, Backup and Recovery

Database Administration: Roles and Functions

Lecture Outline

Database backup and recovery l.jpg
Database Backup and Recovery Administration

  • Backup

  • Journaling (audit trail)

  • Checkpoint facility

  • Recovery manager

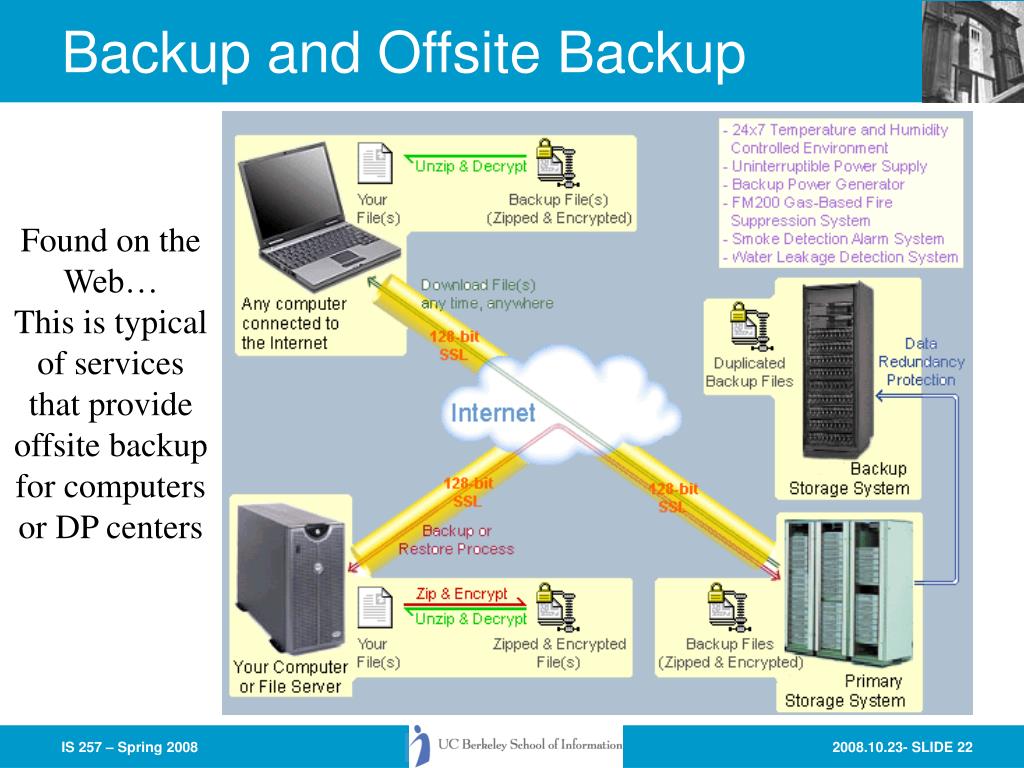

Backup and offsite backup l.jpg
Backup and Offsite Backup Administration

Found on the Web…

This is typical

of services that provide offsite backup for computers or DP centers

Disaster recovery planning l.jpg
Disaster Recovery Planning Administration







Testing and


Budget &




From Toigo “Disaster Recovery Planning”

Slide25 l.jpg

La Crosse, Wisc 2001 Administration

Katrina l.jpg
Katrina Administration

Katrina27 l.jpg
Katrina Administration

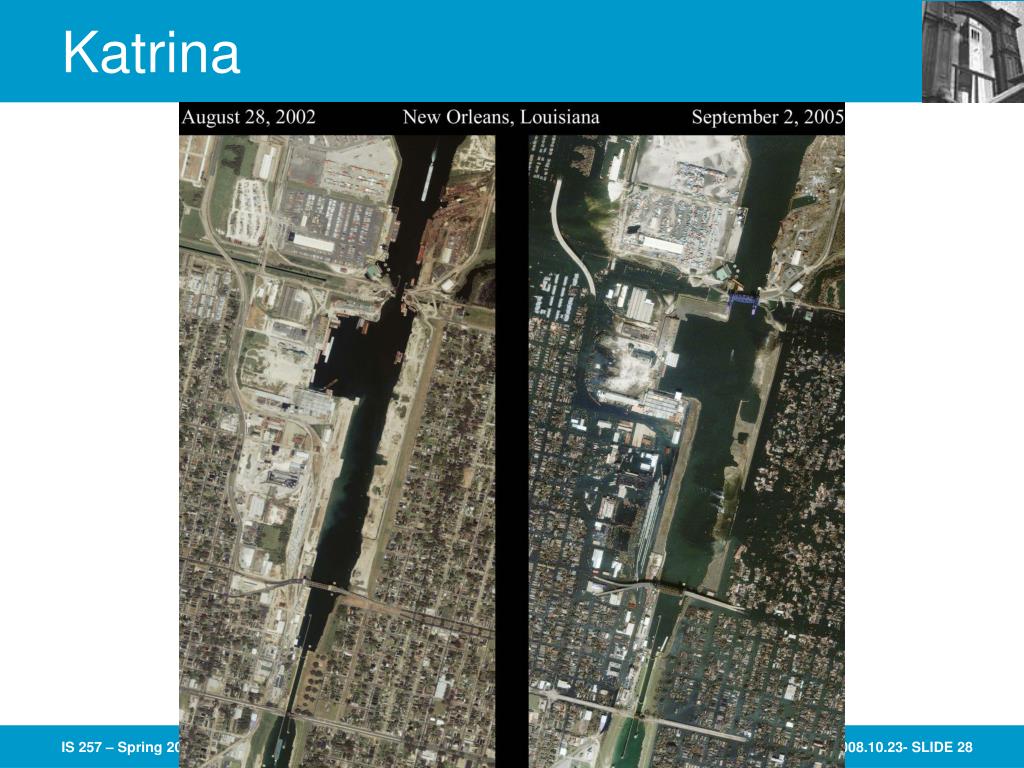

Katrina28 l.jpg
Katrina Administration

Katrina29 l.jpg
Katrina Administration

Katrina30 l.jpg
Katrina Administration

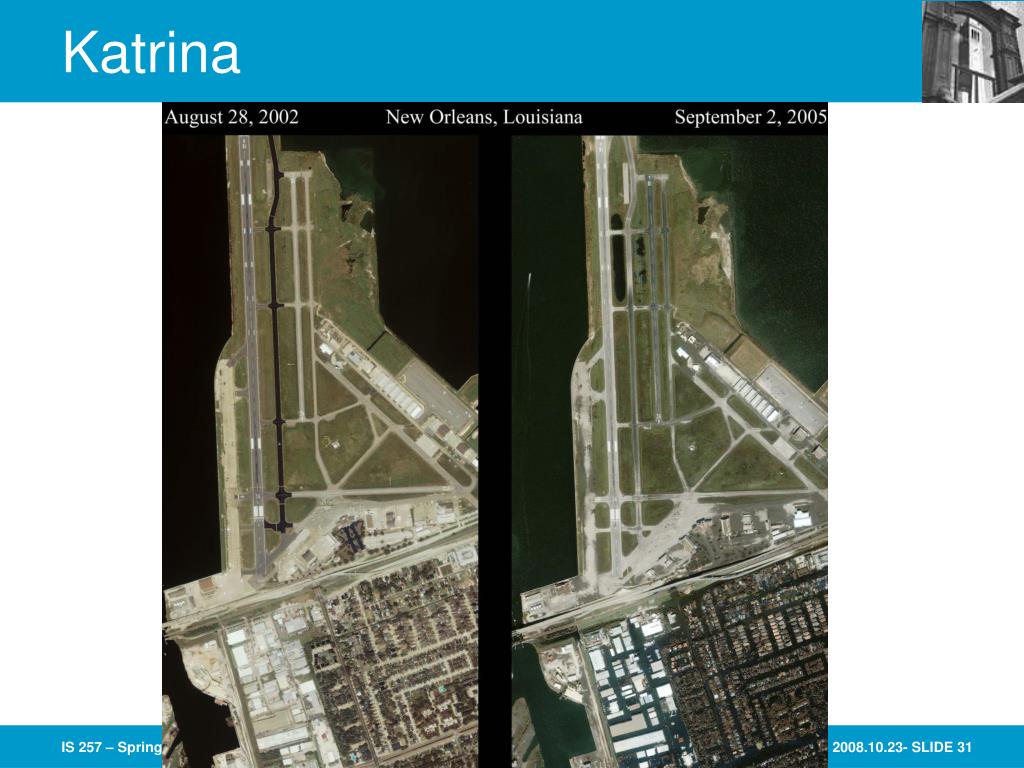

Katrina31 l.jpg
Katrina Administration

Threats to assets and functions l.jpg
Threats to Assets and Functions Administration

  • Water

  • Fire

  • Power Failure

  • Mechanical breakdown or software failure

  • Accidental or deliberate destruction of hardware or software

    • By hackers, disgruntled employees, industrial saboteurs, terrorists, or others

Threats l.jpg
Threats Administration

  • Between 1967 and 1978 fire and water damage accounted for 62% of all data processing disasters in the U.S.

  • The water damage was sometimes caused by fighting fires

  • More recently improvements in fire suppression (e.g., Halon) for DP centers has meant that water is the primary danger to DP centers

Kinds of records l.jpg
Kinds of Records Administration

  • Class I: VITAL

    • Essential, irreplaceable or necessary to recovery


    • Essential or important, but reproducible with difficulty or at extra expense

  • Class III: USEFUL

    • Records whose loss would be inconvenient, but which are replaceable


    • Records which upon examination are found to be no longer necessary

Offsite storage of data l.jpg
Offsite Storage of Data Administration

  • Early offsite storage facilities were often intended to survive atomic explosions

  • PRISM International directory

    • PRISM = Professional Records and Information Services Management


  • Mirror sites (Hot sites)

Agility “Hotsuite”

Offsite storage providers l.jpg
Offsite Storage Providers Administration

Iron Mountain

Offsite backup providers l.jpg
Offsite backup providers Administration

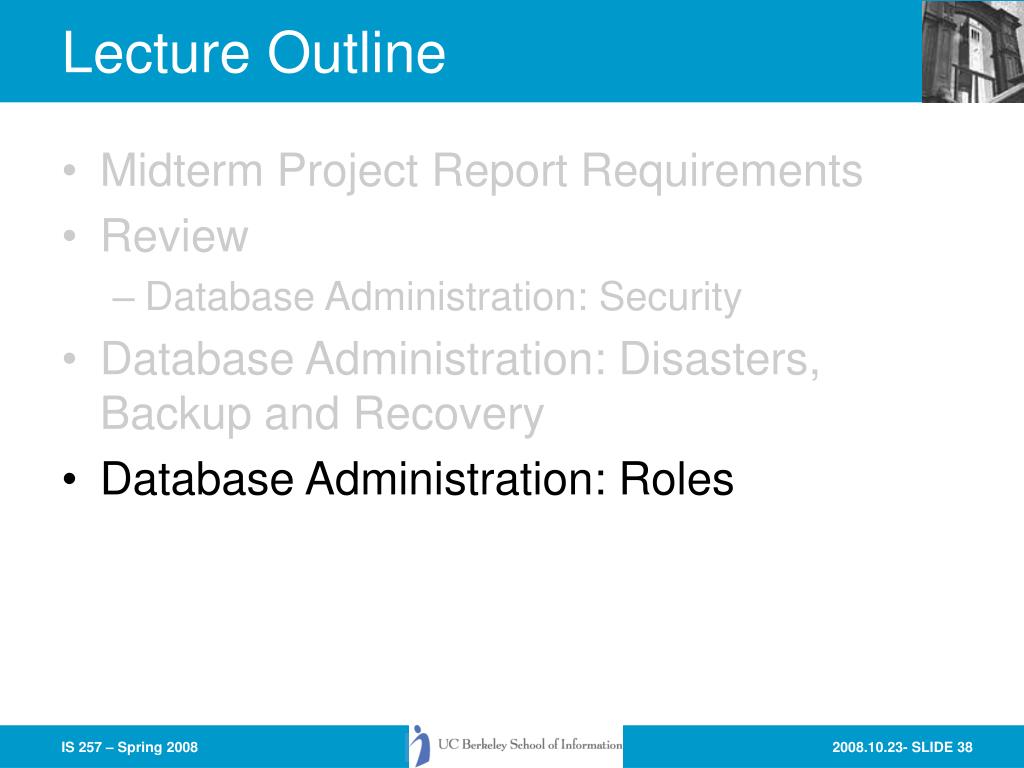

Lecture outline38 l.jpg

Midterm Project Report Requirements Administration


Database Administration: Security

Database Administration: Disasters, Backup and Recovery

Database Administration: Roles

Lecture Outline

Today l.jpg
Today Administration

  • Traditional and Current Data Administration

  • Traditional and Current Database Administration

  • Review of Security, Integrity, etc.

Changes in traditional roles l.jpg
Changes in Traditional Roles Administration

  • This is being driven by rapid changes in

    • Technology

    • Platforms (e.g., Micro vs. Mainframe vs. Server)

    • Organizational Structure

  • We will focus on the core functions and tasks of these roles (traditional or current)

Terms and concepts trad l.jpg
Terms and Concepts (trad) Administration

  • Data Administration

    • Responsibility for the overall management of data resources within an organization

  • Database Administration

    • Responsibility for physical database design and technical issues in database management

  • These roles are often combined or overlapping in some organizations

Terms and concepts trad42 l.jpg
Terms and Concepts (trad) Administration

  • DA

    • Data adminstrator - person responsible for the Data Administration function in an organization

    • Sometimes may be the CIO -- Chief Information Officer

  • DBA

    • Database Administrator - person responsible for the Database Administration Function

Database system life cycle l.jpg
Database System Life Cycle Administration





Growth &


Operation &






Note: this is a different version of this

life cycle than discussed previously

Database planning l.jpg
Database Planning Administration

  • Development of a strategic plan for database development that supports the overall organization’s business plan

  • DA supports top management in development of this plan

  • The result of this stage is an enterprise data model

Database planning da dba functions l.jpg
Database Planning: DA & DBA functions Administration

  • Develop corporate database strategy (DA)

  • Develop enterprise model (DA)

  • Develop cost/benefit models (DA)

  • Design database environment (DA)

  • Develop data administration plan (DA)

Database analysis l.jpg
Database Analysis Administration

  • This is the process (discussed previously) of identifying data entities currently used by the organization, precisely defining those entities and their relationships, and documenting the results in a form that can support the follow-on design phase

  • Must also identify new data elements or changes to data elements that will be required in the future

  • The result of this phase is the Conceptual Data Model -- usually represented as an ER diagram

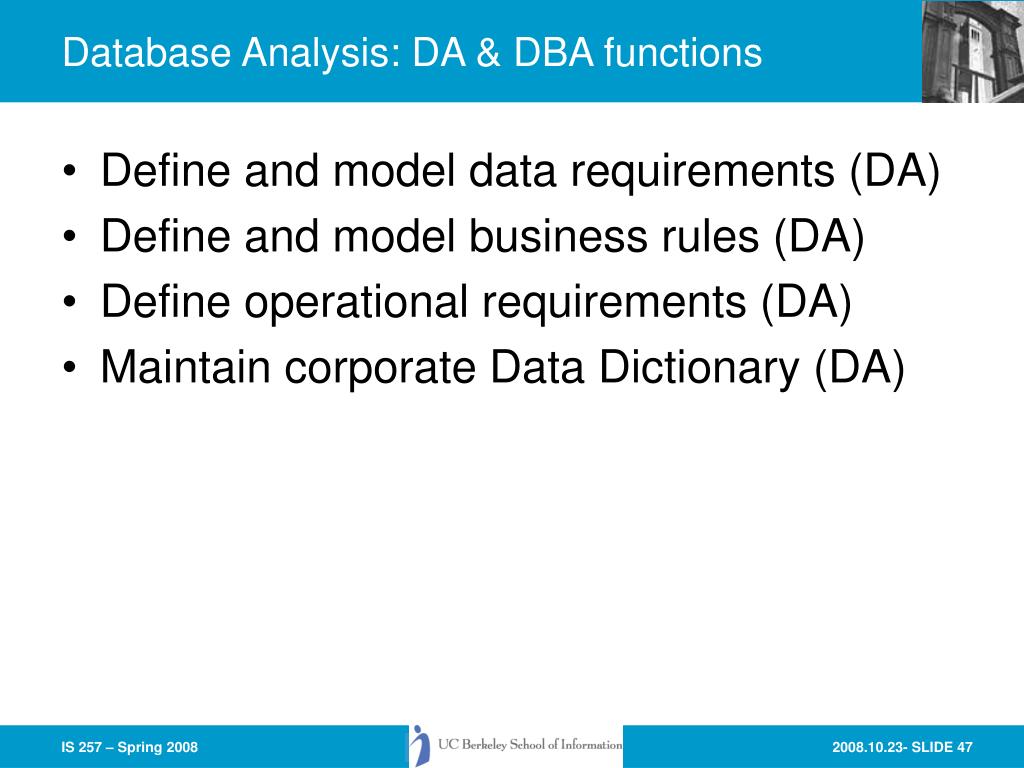

Database analysis da dba functions l.jpg
Database Analysis: DA & DBA functions Administration

  • Define and model data requirements (DA)

  • Define and model business rules (DA)

  • Define operational requirements (DA)

  • Maintain corporate Data Dictionary (DA)

Database design l.jpg
Database Design Administration

  • Purpose of the design phase is the development of the logical database design that will serve the needs of the organization and the physical design implementing the logical design

  • In relational systems the outcome is normalized relations, and the data definition for a particular database systems (including indexes, etc.)

Design 2 physical creation l.jpg
Design 2: Physical Creation Administration

  • Development of the Physical Model of the Database

    • data formats and types

    • determination of indexes, etc.

  • Load a prototype database and test

  • Determine and implement security, privacy and access controls

  • Determine and implement integrity constraints

Database design da dba functions l.jpg
Database Design: DA &DBA functions Administration

  • Perform logical database design (DA)

  • Design external models (subschemas) (DBA)

  • Design internal model (Physical design) (DBA)

  • Design integrity controls (DBA)

Database implementation l.jpg
Database Implementation Administration

  • Database design gives you an empty database

  • Load data into the database structure

  • Convert existing data sets and applications to use the new database

    • May need programs, conversion utilities to convert old data to new formats.

  • Outcome is the actual database with its data

Database implementation da dba functions l.jpg
Database Implementation DA & DBA functions Administration

  • Specify database access policies (DA & DBA)

  • Establish Security controls (DBA)

  • Supervise Database loading (DBA)

  • Specify test procedures (DBA)

  • Develop application programming standards (DBA)

  • Establish procedures for backup and recovery (DBA)

  • Conduct User training (DA & DBA)

Operation and maintenance 1 operations l.jpg
Operation and Maintenance 1: Operations Administration

  • Users are responsible for updating the database, DA and DBA are responsible for developing procedures that ensure the integrity and security of the database during the update process.

  • Specific responsibility for data collection, editing and verification must be assigned

  • Quality assurance must be practiced to protect and audit the database quality.

Operation and maintenance 2 maintenance l.jpg
Operation and Maintenance 2: Maintenance Administration

  • The ongoing process of updating the database to keep it current

    • adding new records

    • deleting obsolete records

    • changing data values in particular records

    • modifying relation structures (e.g. adding new fields)

  • Privacy, security, access control must be in place.

  • Recovery and Backup procedures must be established and used

Operation and maintenance da dba functions l.jpg
Operation and Maintenance: DA & DBA functions Administration

  • Monitor database performance (DBA)

  • Tune and reorganize databases (DBA)

  • Enforce standards and procedures (DBA)

  • Support users (DA & DBA)

Growth change l.jpg
Growth & Change Administration

  • Change is a way of life

    • Applications, data requirements, reports, etc. will all change as new needs and requirements are found

    • The Database and applications and will need to be modified to meet the needs of changes to the organization and the environment

    • Database performance should be monitored to maintain a high level of system performance

Growth change da dba functions l.jpg
Growth & Change: DA & DBA functions Administration

  • Implement change control procedures (DA & DBA)

  • Plan for growth and change (DA & DBA)

  • Evaluate new technology (DA & DBA)
