Siemens 6SL3120-1TE28-5AA3_ Comprehensive Guide to the SINAMICS G120 Drive Module

1. Siemens 6SL3120-1TE28-5AA3: Comprehensive Guide to the SINAMICS G120 Drive Module The Siemens 6SL3120-1TE28-5AA3 is a key component in Siemens’ SINAMICS G120 family, a modular and flexible frequency converter solution widely used in industrial automation. This drive module offers excellent control for asynchronous motors, providing high performance, reliability, and energy efficiency. Its versatility makes it suitable for applications ranging from simple pumps to complex conveyor systems. In this article, we will explore everything about the Siemens 6SL3120-1TE28-5AA3, from its technical specifications to practical applications, installation, programming, and troubleshooting. Whether you’re an automation engineer, technician, or buyer, this guide will help you understand why this module stands out in industrial automation. 1. Siemens 6SL3120-1TE28-5AA3 The 6SL3120-1TE28-5AA3 is a power module (also called a converter module) part of the SINAMICS G120 series. This drive controls motor speed by converting AC supply voltage into a variable frequency and voltage output. Its modular design allows easy integration with different control units to meet a wide range of automation needs.

2. Siemens designed this module for flexibility and robustness. It supports various motor types, including asynchronous and synchronous motors, and provides a scalable power range. The module’s compact size fits well into control cabinets, minimizing space while maximizing performance. This drive module can be combined with a control unit such as the CU240-2 to offer advanced functions like fieldbus communication and integrated safety features. Its efficient power electronics ensure energy savings and reduce operational costs. 2. Key Features and Benefits Key Features: ● Power Rating: Typically supports motor power from 0.37 kW up to several kWs depending on variant. ● Voltage: Compatible with 3-phase AC supply, usually 380-480V. ● Modular Design: Can be paired with various control units and options. ● Control Modes: V/f control, sensorless vector control, and closed-loop vector control. ● Integrated Safety: Supports safe torque off (STO) and other safety functions. ● Communication: Supports PROFIBUS, PROFINET, and other industrial protocols when paired with control units. ● Diagnostics: Built-in diagnostics and parameterization via Siemens software tools. ● Energy Efficiency: Optimized for reduced energy consumption with regenerative capabilities.

3. Benefits: ● Flexibility: Easily adapts to multiple applications and motor types. ● Reliability: Robust design suitable for harsh industrial environments. ● Ease of Maintenance: Modular components simplify replacement and upgrades. ● Energy Savings: Reduces operational costs via efficient motor control. ● Scalability: Supports expansion in growing industrial setups. ● Advanced Safety: Meets modern safety standards for industrial machinery. 3. Technical Specifications Specification Details Product Code 6SL3120-1TE28-5AA3 Series SINAMICS G120 Power Rating Varies (e.g., 0.37 to 11 kW)* Input Voltage 3-phase AC, 380-480V ±10% Output Voltage Variable, up to input voltage Output Frequency Range 0 to 500 Hz Control Method V/f, sensorless vector, vector control with encoder Communication Interface Via CU Control Units (PROFIBUS, PROFINET, EtherNet/IP) Safety Features STO (Safe Torque Off), SS1, SLS (with appropriate CU)

4. Cooling Method Fan-cooled or convection Ambient Temperature 0 to 50 °C (operation) Range Protection Class IP20 (standard enclosure) Dimensions (HxWxD) Varies, compact design Weight Approx. 2-5 kg (model-dependent) *Note: Exact power ratings depend on the specific module version; please refer to the datasheet for your exact model. 4. SINAMICS G120 Drive Family: Positioning of 6SL3120-1TE28-5AA3 The SINAMICS G120 family is a flexible modular drive system designed to cover a broad spectrum of industrial automation tasks. The 6SL3120-1TE28-5AA3 serves as a core power module in this range, distinguished by: ● High integration capabilities ● Modular design for easy customization ● Support for multiple communication protocols via control units ● Suitable for standard and demanding automation tasks Other modules in the G120 series may offer different power ratings, control features, or form factors (e.g., booksize, chassis, or cabinet modules), but the 6SL3120-1TE28-5AA3 balances compact size with powerful performance.

5. 5. Typical Applications and Industries The versatility of the 6SL3120-1TE28-5AA3 makes it popular in various sectors: Industrial Applications: ● Pumps and Fans: Efficient speed control to optimize energy use. ● Conveyors and Material Handling: Precise motor speed and torque control for smooth operation. ● Packaging Machines: Synchronization with other equipment for high-speed automation. ● Mixers and Agitators: Smooth start/stop and variable speed control. ● HVAC Systems: Energy-efficient motor operation. Industries: ● Manufacturing ● Food and Beverage ● Automotive ● Water and Wastewater Treatment ● Chemical Processing ● Textile Industry

6. 6. Installation and Wiring Guidelines Correct installation is vital to maximize the performance and lifespan of the Siemens 6SL3120-1TE28-5AA3. Installation Tips: ● Mount the drive in a well-ventilated control cabinet. ● Maintain required spacing around the module for cooling. ● Use shielded cables for power and communication to reduce interference. ● Ground the drive properly according to Siemens standards. ● Avoid exposure to moisture, dust, and extreme temperatures. Wiring: ● Follow the wiring diagrams provided by Siemens. ● Connect power supply to the designated terminals (L1, L2, L3). ● Output wiring to the motor must be secured and shielded. ● Communication wiring depends on the control unit used; follow protocol-specific guidelines. Siemens manuals provide step-by-step wiring instructions and safety precautions that should be strictly followed.

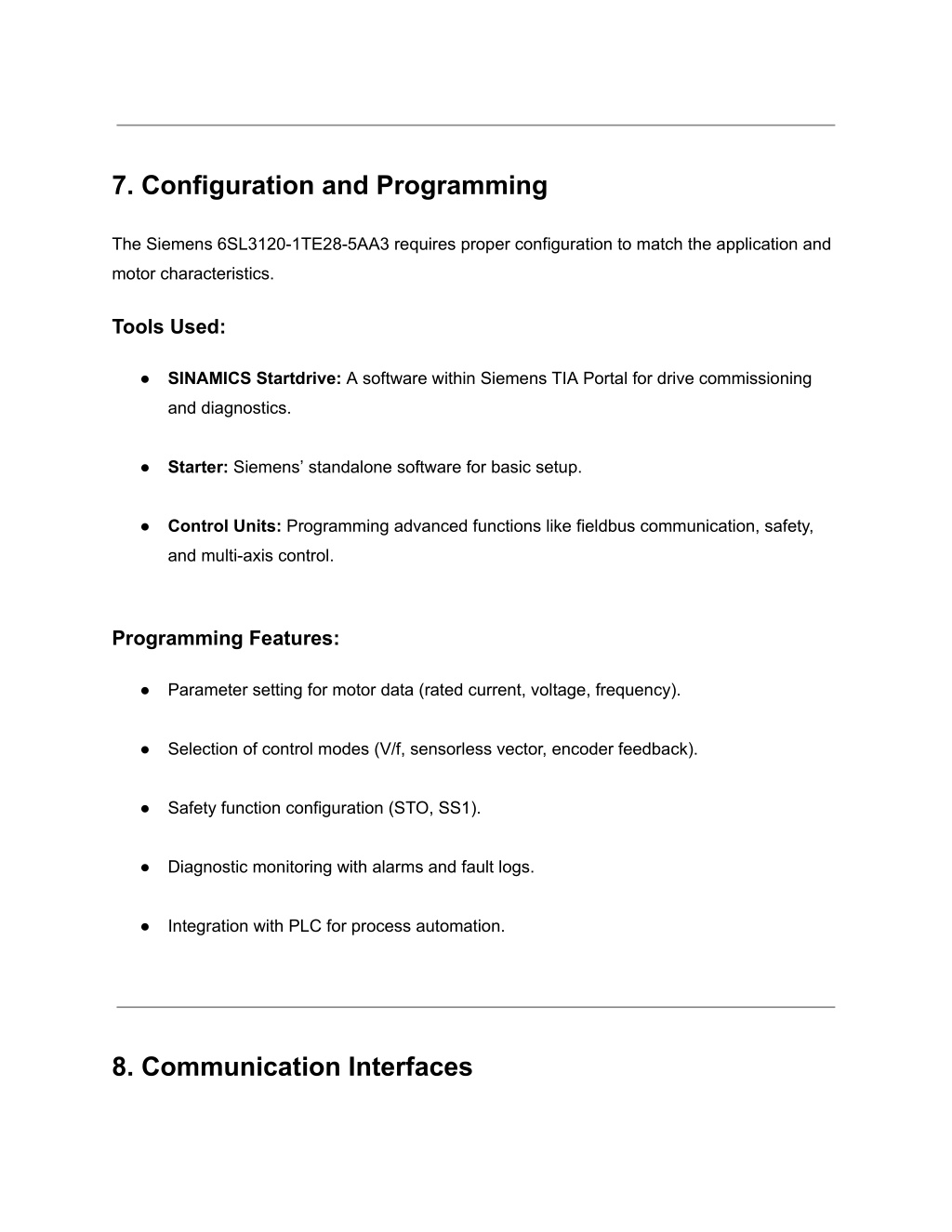

7. 7. Configuration and Programming The Siemens 6SL3120-1TE28-5AA3 requires proper configuration to match the application and motor characteristics. Tools Used: ● SINAMICS Startdrive: A software within Siemens TIA Portal for drive commissioning and diagnostics. ● Starter: Siemens’ standalone software for basic setup. ● Control Units: Programming advanced functions like fieldbus communication, safety, and multi-axis control. Programming Features: ● Parameter setting for motor data (rated current, voltage, frequency). ● Selection of control modes (V/f, sensorless vector, encoder feedback). ● Safety function configuration (STO, SS1). ● Diagnostic monitoring with alarms and fault logs. ● Integration with PLC for process automation. 8. Communication Interfaces

8. While the 6SL3120-1TE28-5AA3 itself is a power module, it communicates via an attached control unit such as the CU240-2. Supported Protocols: ● PROFIBUS DP: Common in industrial automation networks. ● PROFINET: Industrial Ethernet for fast data transfer. ● EtherNet/IP: Widely used in manufacturing automation. ● Modbus: For simple serial communication. This flexibility allows easy integration into existing control systems and Industry 4.0 frameworks. 9. Troubleshooting and Maintenance Maintaining the drive ensures long-term reliability and prevents unexpected downtime. Common Issues: ● Overcurrent or overvoltage faults. ● Communication errors with control units. ● Motor overheating. ● Parameter misconfiguration. Troubleshooting Steps:

9. ● Use diagnostic LEDs and fault codes to identify problems. ● Check wiring and connections. ● Review parameter settings via Siemens software. ● Reset or update firmware if needed. ● Contact Siemens support for unresolved issues. Maintenance: ● Keep the drive clean and dust-free. ● Verify cooling fans function properly. ● Inspect wiring periodically. ● Update firmware to benefit from improvements. 10. Comparison with Other Siemens Drive Modules Feature 6SL3120-1TE28-5AA 6SL3210 (G120C) 6SL3220 (G120P) 3 Power Range Medium (0.37-11 kW) Small (0.12-4 kW) High (up to 250 kW) Modular Yes Compact Cabinet (high power) (all-in-one) Communication Via CU units Integrated Via CU units

10. Safety Functions Yes Limited Advanced Application Flexibility High Limited Very High Cooling Fan or convection Convection Forced air or water-cooled 11. Purchasing and Support Where to Buy: ● Authorized Siemens distributors. ● Online industrial automation suppliers. ● Siemens official sales channels. Support: ● Siemens Industry Online Support Portal ● Customer helplines and chat support ● Technical manuals and FAQs on Siemens website ● Local Siemens field engineers for onsite assistance 12. Frequently Asked Questions (FAQs)

11. Q1: Can this module control synchronous motors? Yes, with appropriate configuration and control units, the 6SL3120-1TE28-5AA3 supports synchronous motor control. Q2: Is the module compatible with 400V systems? Yes, it supports 3-phase 380-480V AC power supplies. Q3: What is the maximum ambient temperature for operation? Typically, up to 50 °C, but check the exact datasheet for your environment. Q4: Does it have built-in safety features? Yes, including Safe Torque Off (STO) when used with compatible control units. 13. Conclusion The Siemens 6SL3120-1TE28-5AA3 power module is a versatile and reliable component for industrial motor control. Its modular design, combined with flexible communication and advanced safety features, makes it an excellent choice for modern automation projects. By understanding its specifications, installation requirements, and maintenance needs, you can leverage this drive module to optimize your industrial processes efficiently. For automation engineers and plant managers, investing in a Siemens SINAMICS G120 series drive like the 6SL3120-1TE28-5AA3 ensures scalable, energy-efficient, and safe operation in various demanding environments.
