  1. MS SQL Server A brief introduction

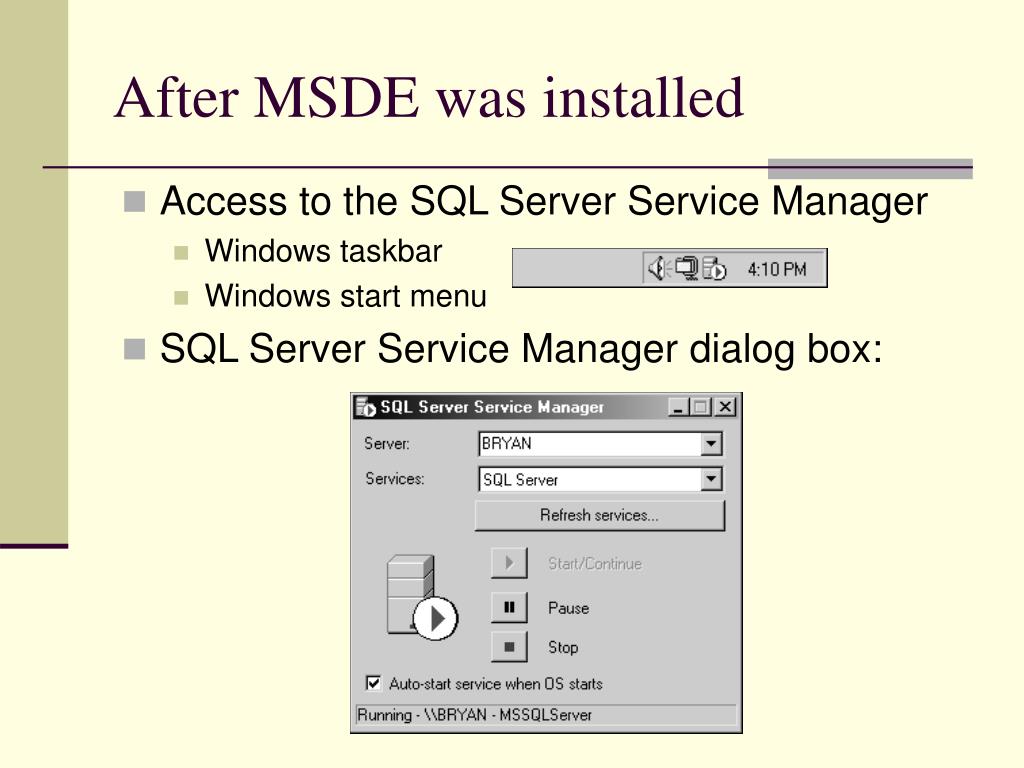

  2. After MSDE was installed • Access to the SQL Server Service Manager • Windows taskbar • Windows start menu • SQL Server Service Manager dialog box:

  3. Client tools for SQL Server • Book online – it provides online help • Enterprise Manager – it administers SQL server databases • Import and Export Data – import, export, and transform data form various sources • Query Analyzer – write an execute SQL statements and scripts These tools are accessed from the start menu

  4. The Enterprise Manager • Graphical tool that let a user manage the databases and their object • It has two sides: • Left side: displays installed instances of SQL Servers in a tree structure • Right side: displays the items in the note currently selected. • Commands can be applied to a selected item: • from the Action menu • from the toolbar • By right-clicking the right side

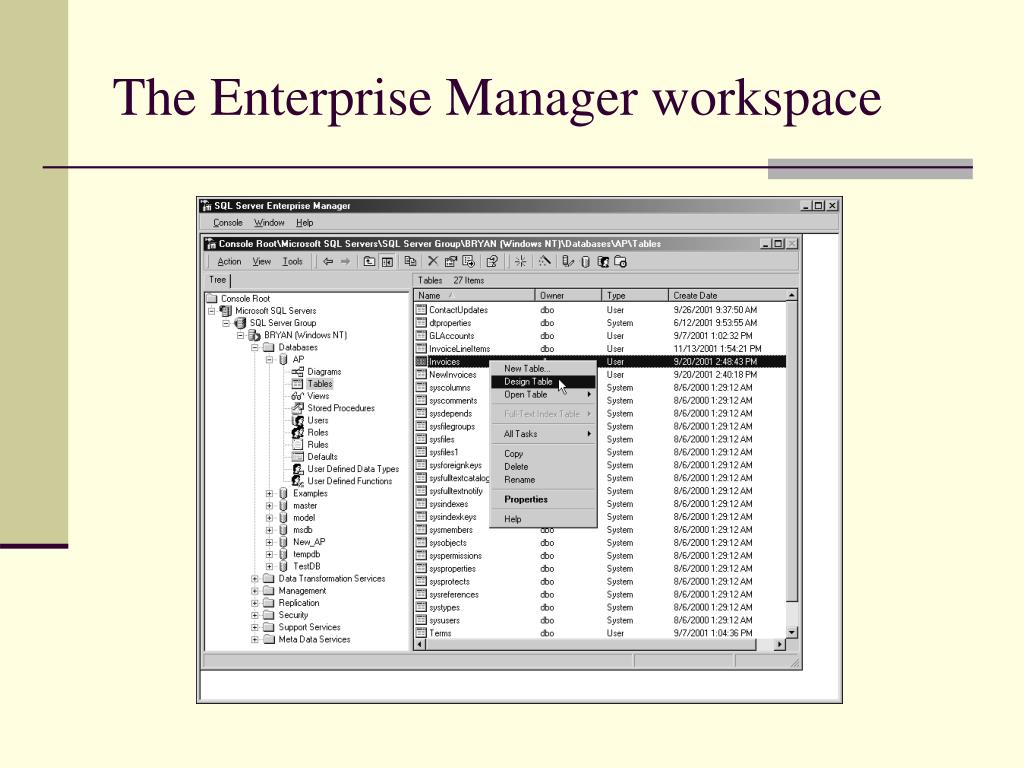

  5. The Enterprise Manager workspace

  6. The Enterprise Manager let do: • Manage databases • Manage tables • Manage views • Manage database diagrams • View additional information about a table • Execute other MS SQL Server tools • Manage users • Define stored procedures • Define rules

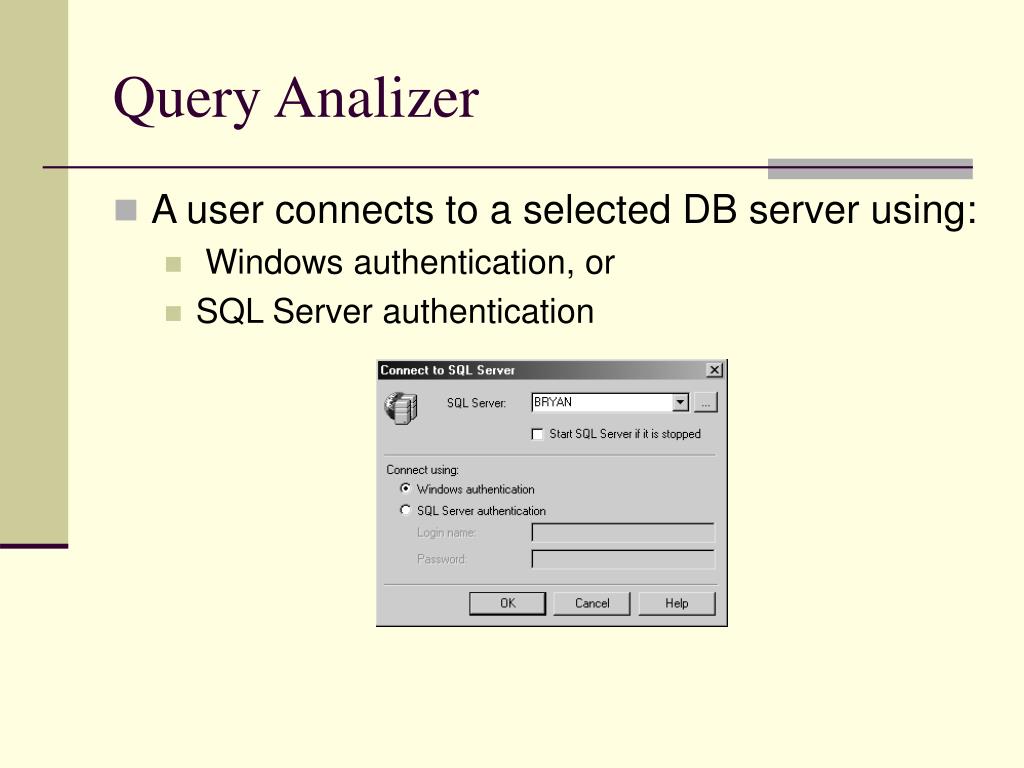

  7. Query Analizer • A user connects to a selected DB server using: • Windows authentication, or • SQL Server authentication

  8. Query Analyzer lets you: • Select or change a database • Write and execute Transact-SQL queries • Browse the database object such as tables • Save queries and results • Load and execute script files • Manage indexes • Connect or disconnect DB servers • Open several windows • Print results • Other functions

  9. Query Browser and a table displayed

  10. Editing and executing a query • Select a database from the combo box in the toolbar or Query menu • Type the query in the query window (open a new query window if required) • Several ways for executing the query: • Press the F5 key • Click the execute query button in the toolbar • Choose the Query Execute command from the menu bar • Results are displayed in the Grid tab of the results pane

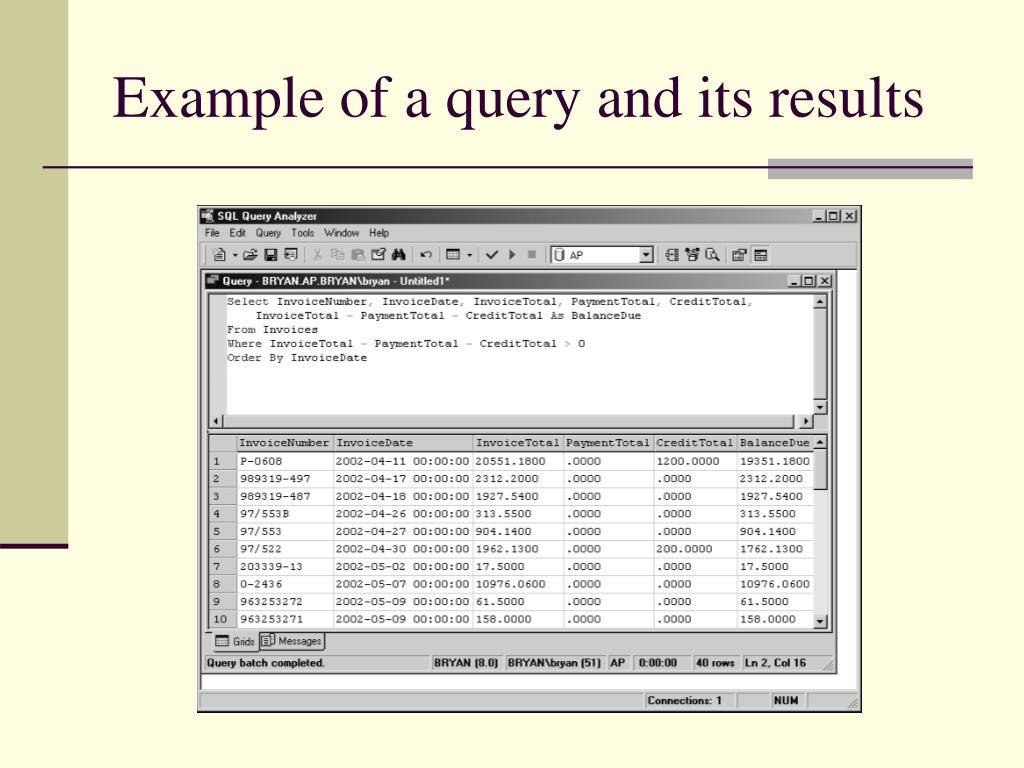

  11. Example of a query and its results
