Locked-Rotor In-Rush Current

Locked-Rotor In-Rush Current. At locked-rotor, each phase of an induction motor stator looks like a series R-L circuit. Closing the switch causes a current that consists of a transient and a steady-state component. The steady-state component is called the locked rotor in-rush current.

amos
Download Presentation

Locked-Rotor In-Rush Current

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

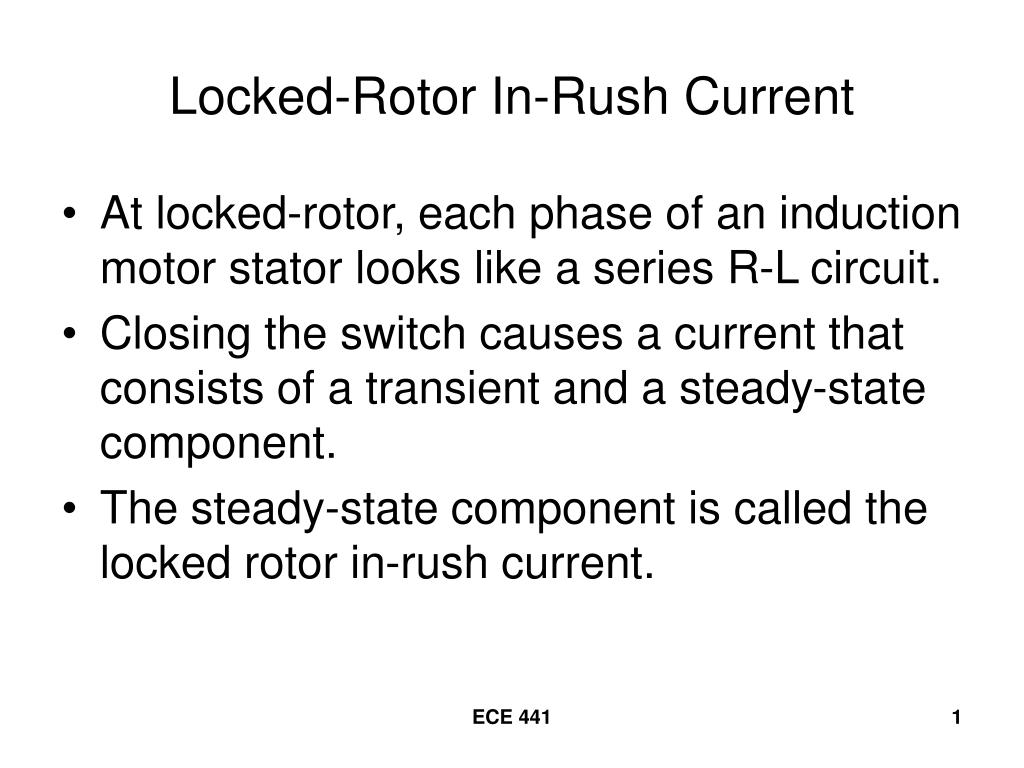

  1. Locked-Rotor In-Rush Current • At locked-rotor, each phase of an induction motor stator looks like a series R-L circuit. • Closing the switch causes a current that consists of a transient and a steady-state component. • The steady-state component is called the locked rotor in-rush current. ECE 441

  2. Locked-Rotor In-Rush Current ECE 441

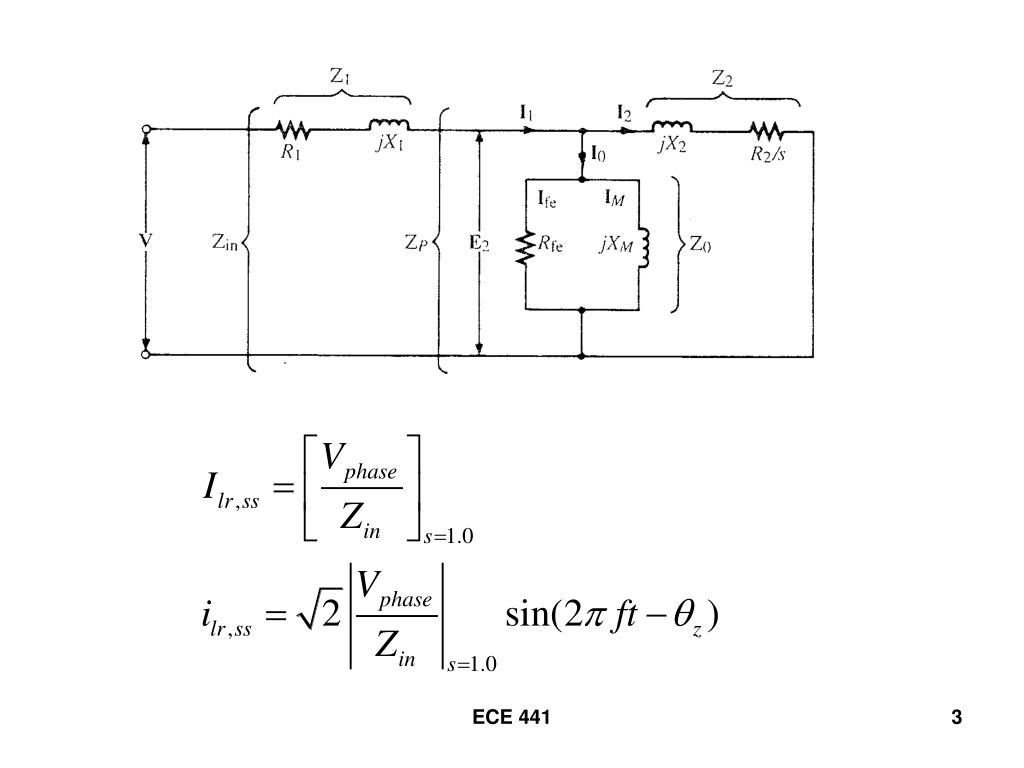

  3. ECE 441

  4. ECE 441

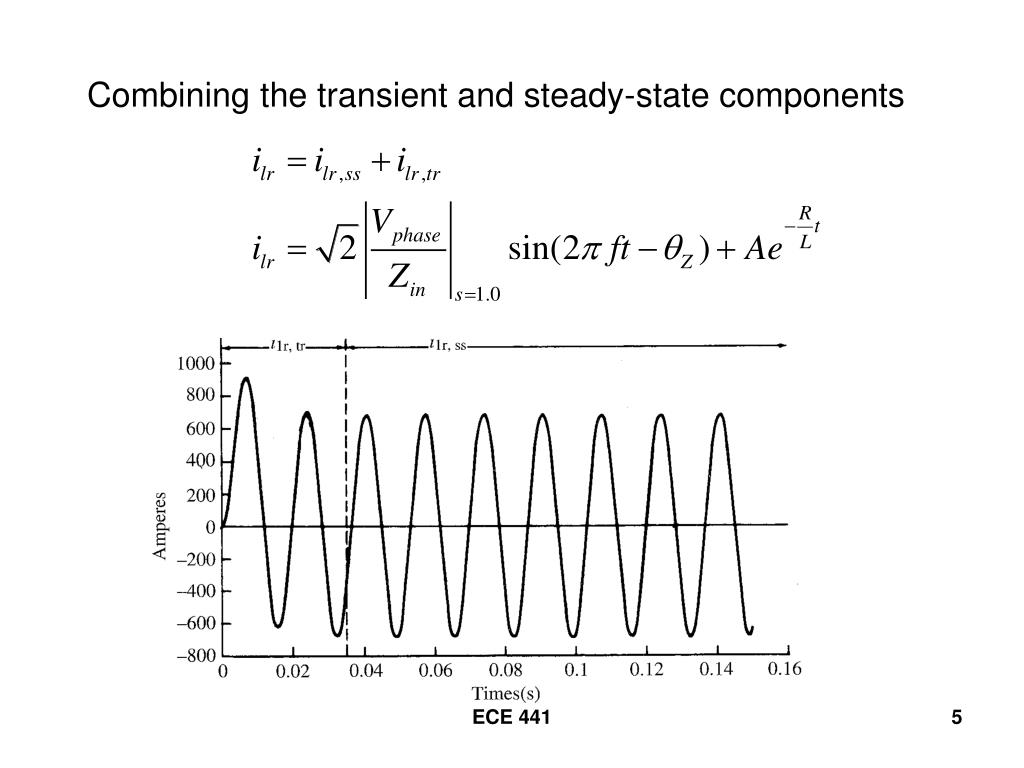

  5. Combining the transient and steady-state components ECE 441

  6. Example 5.13 • For the motor whose nameplate is shown, determine the expected in-rush current. ECE 441

  7. Solution • The motor is a NEMA design B machine rated at 150hp at 460-V, 60-Hz. It has a rated current of 163A, a nominal efficiency of 96.2%, and a Code G designation for locked-rotor kVA/hp. Referring to Table 5.9, the expected range of starting kVA/hp for a Code G machine is 5.6 < kVA/hp < 6.3 ECE 441

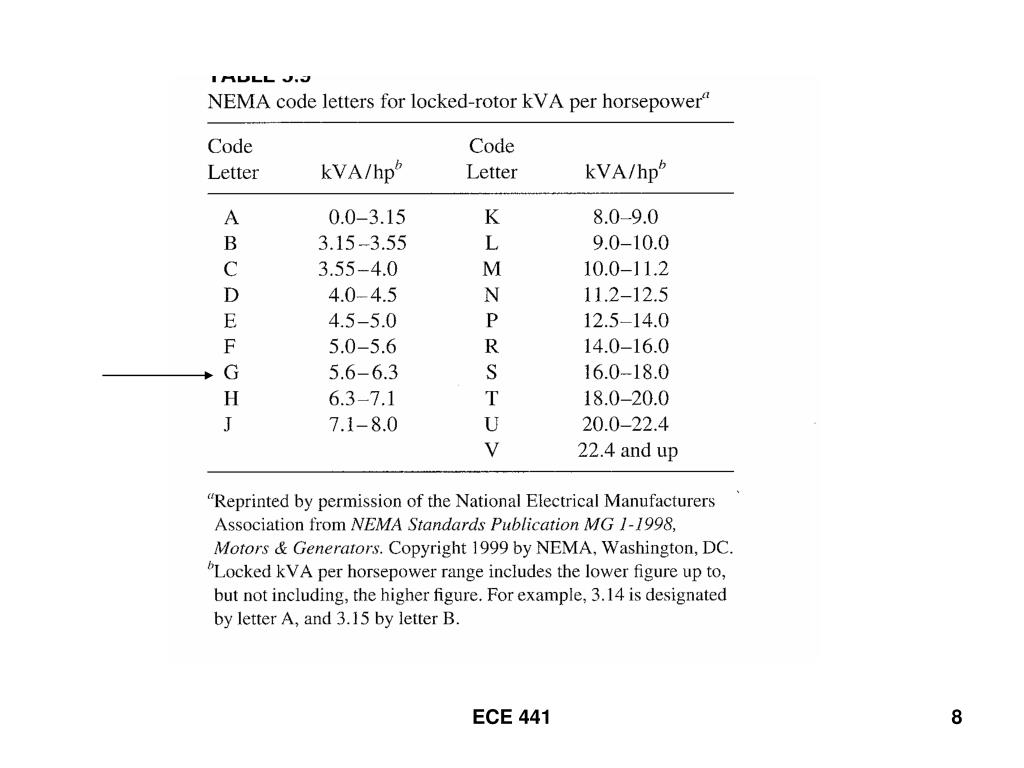

  8. ECE 441

  9. Expected Range of Locked-Rotor Current is Determined from Lower Limit Upper Limit ECE 441

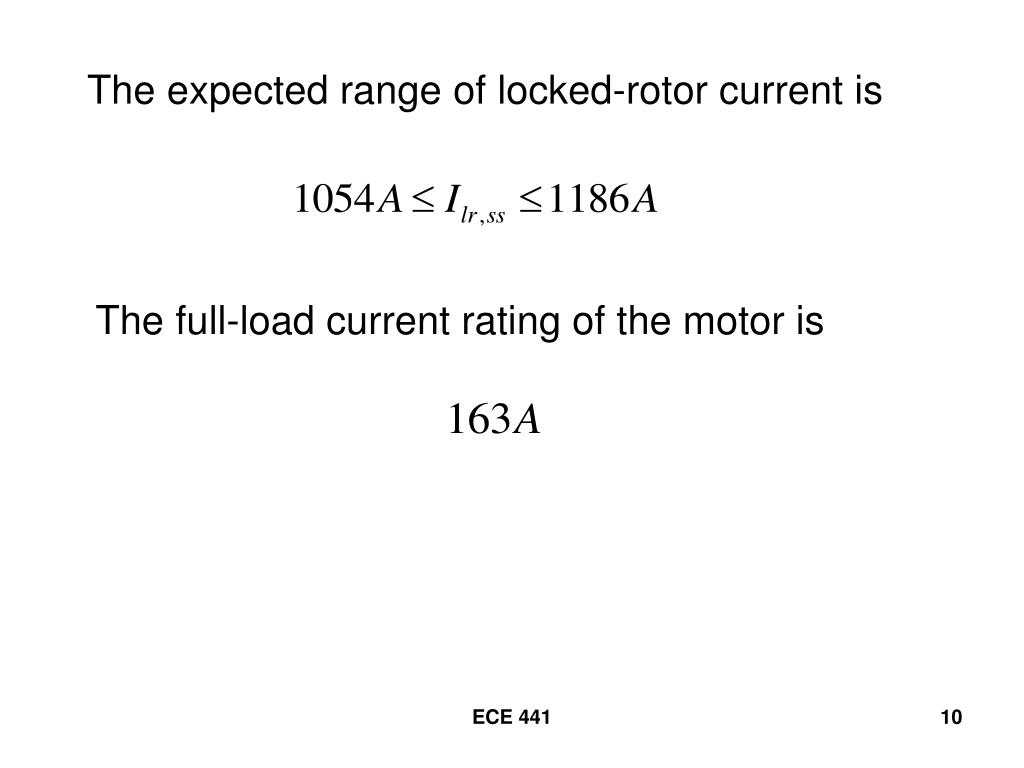

  10. The expected range of locked-rotor current is The full-load current rating of the motor is ECE 441
