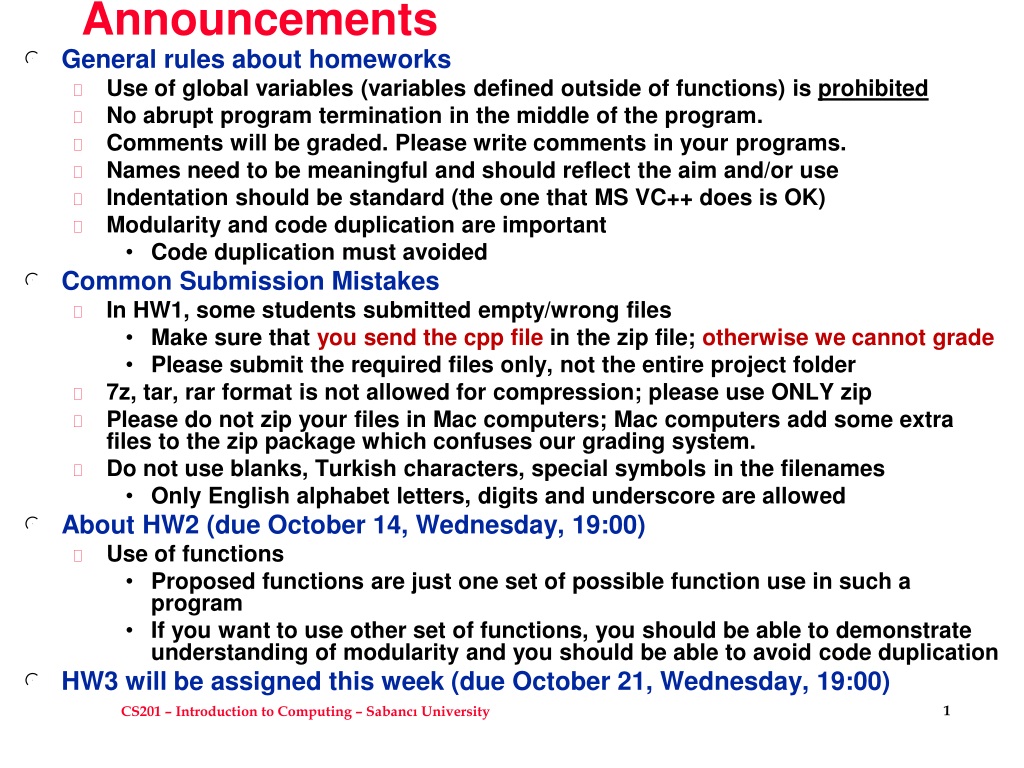

1. Announcements • General rules about homeworks • Use of global variables (variables defined outside of functions) is prohibited • No abrupt program termination in the middle of the program. • Comments will be graded. Please write comments in your programs. • Names need to be meaningful and should reflect the aim and/or use • Indentation should be standard (the one that MS VC++ does is OK) • Modularity and code duplication are important • Code duplication must avoided • Common Submission Mistakes • In HW1, some students submitted empty/wrong files • Make sure that you send the cpp file in the zip file; otherwise we cannot grade • Please submit the required files only, not the entire project folder • 7z, tar, rar format is not allowed for compression; please use ONLY zip • Please do not zip your files in Mac computers; Mac computers add some extra files to the zip package which confuses our grading system. • Do not use blanks, Turkish characters, special symbols in the filenames • Only English alphabet letters, digits and underscore are allowed • About HW2 (due October 14, Wednesday, 19:00) • Use of functions • Proposed functions are just one set of possible function use in such a program • If you want to use other set of functions, you should be able to demonstrate understanding of modularity and you should be able to avoid code duplication • HW3 will be assigned this week (due October 21, Wednesday, 19:00)

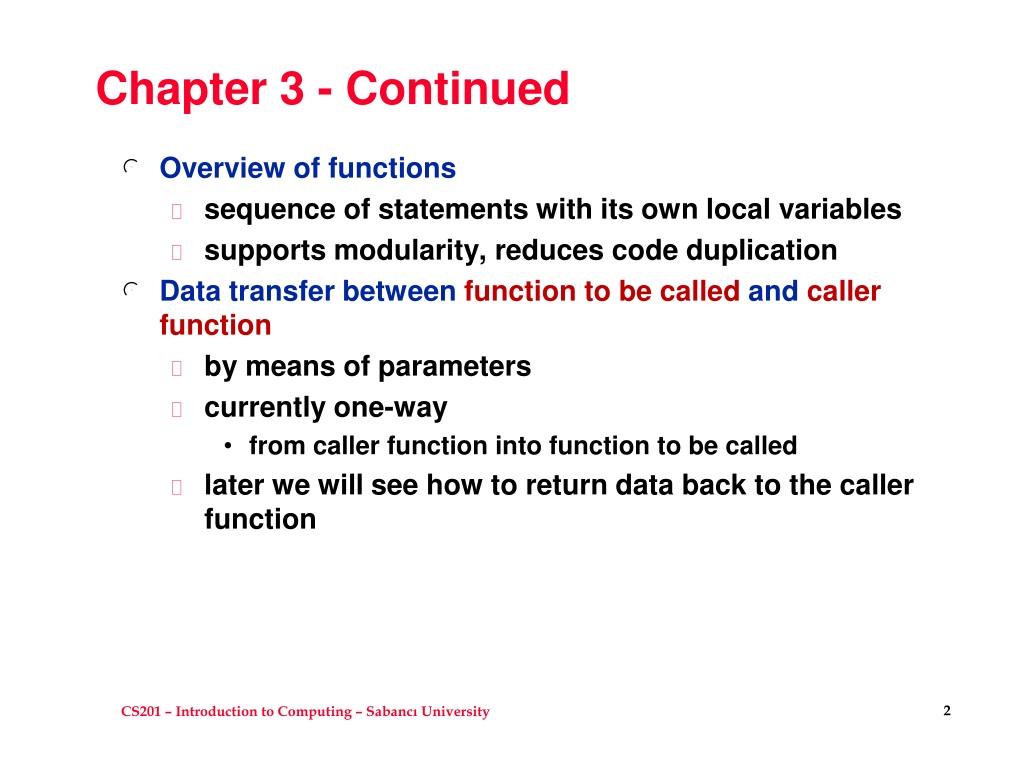

2. Chapter 3 - Continued • Overview of functions • sequence of statements with its own localvariables • supports modularity, reduces code duplication • Data transfer between function to be called and caller function • by means of parameters • currently one-way • from caller function into function to be called • later we will see how to return data back to the caller function

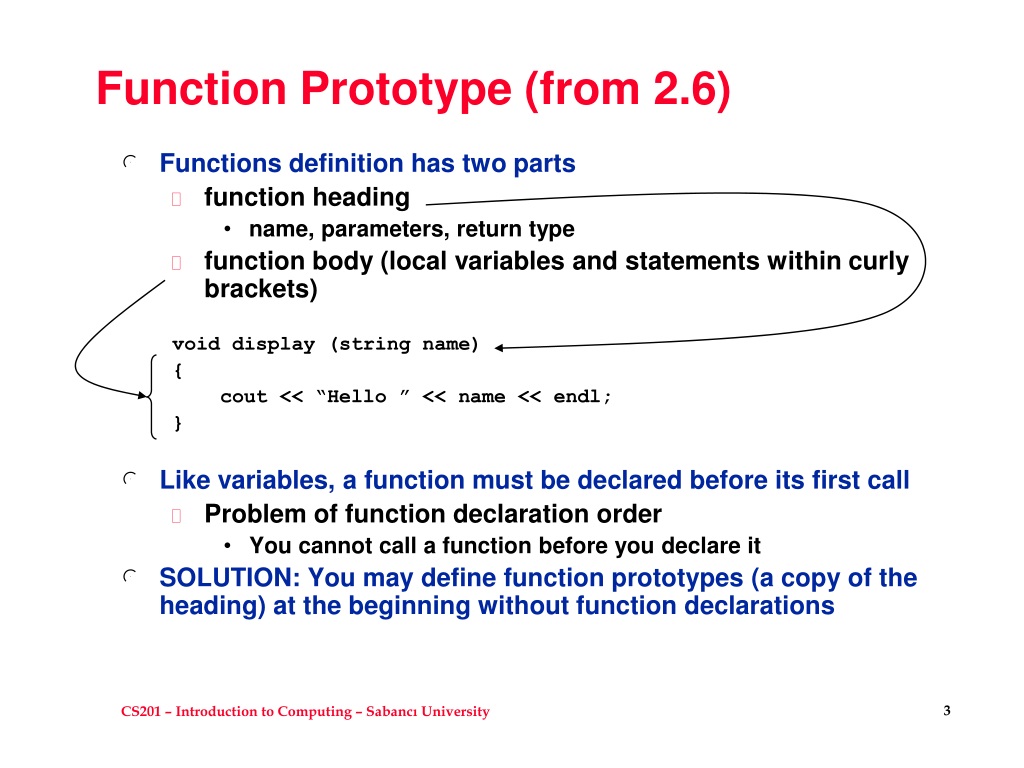

3. Function Prototype (from 2.6) • Functions definition has two parts • function heading • name, parameters, return type • function body (local variables and statements within curly brackets) void display (string name) { cout << “Hello ” << name << endl; } • Like variables, a function must be declared before its first call • Problem of function declaration order • You cannot call a function before you declare it • SOLUTION: You may define function prototypes (a copy of the heading) at the beginning without function declarations

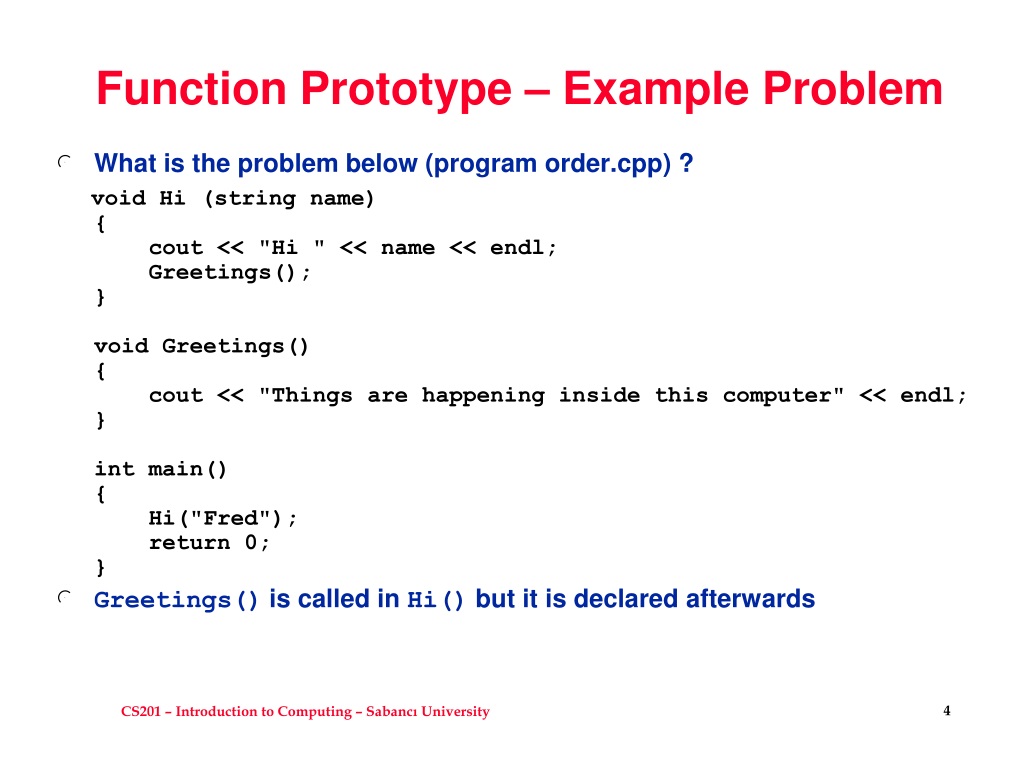

4. Function Prototype – Example Problem • What is the problem below (program order.cpp) ? void Hi (string name){ cout << "Hi " << name << endl; Greetings();}void Greetings(){ cout << "Things are happening inside this computer" << endl;}int main(){ Hi("Fred"); return 0;} • Greetings() is called in Hi() but it is declared afterwards

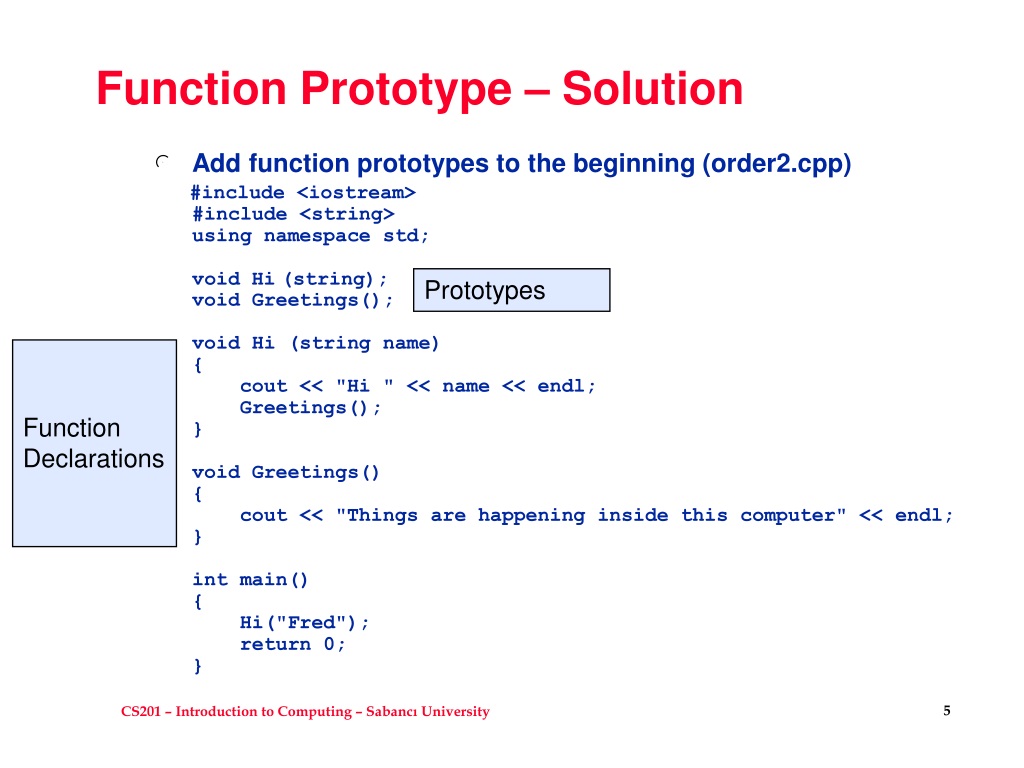

5. Function Prototype – Solution • Add function prototypes to the beginning (order2.cpp) #include <iostream>#include <string>using namespace std;void Hi(string);void Greetings();void Hi (string name){ cout << "Hi " << name << endl; Greetings();}void Greetings(){ cout << "Things are happening inside this computer" << endl;}int main(){ Hi("Fred"); return 0;} Prototypes FunctionDeclarations

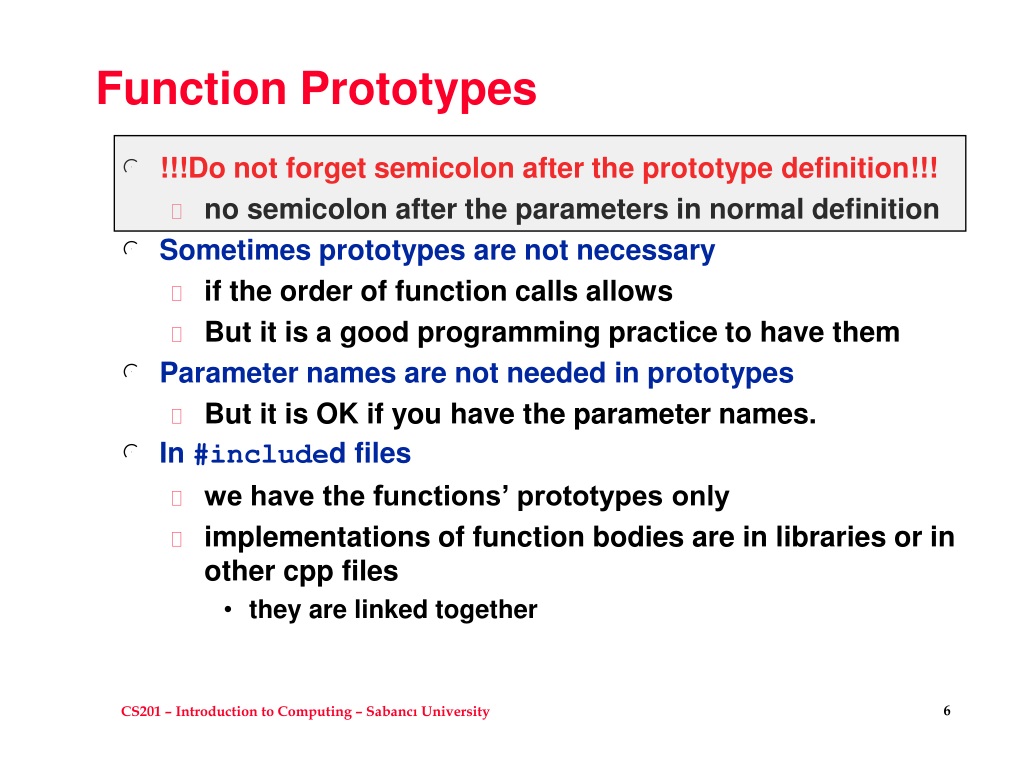

6. Function Prototypes • !!!Do not forget semicolon after the prototype definition!!! • no semicolon after the parameters in normal definition • Sometimes prototypes are not necessary • if the order of function calls allows • But it is a good programming practice to have them • Parameter names are not needed in prototypes • But it is OK if you have the parameter names. • In #included files • we have the functions’ prototypes only • implementations of function bodies are in libraries or in other cpp files • they are linked together

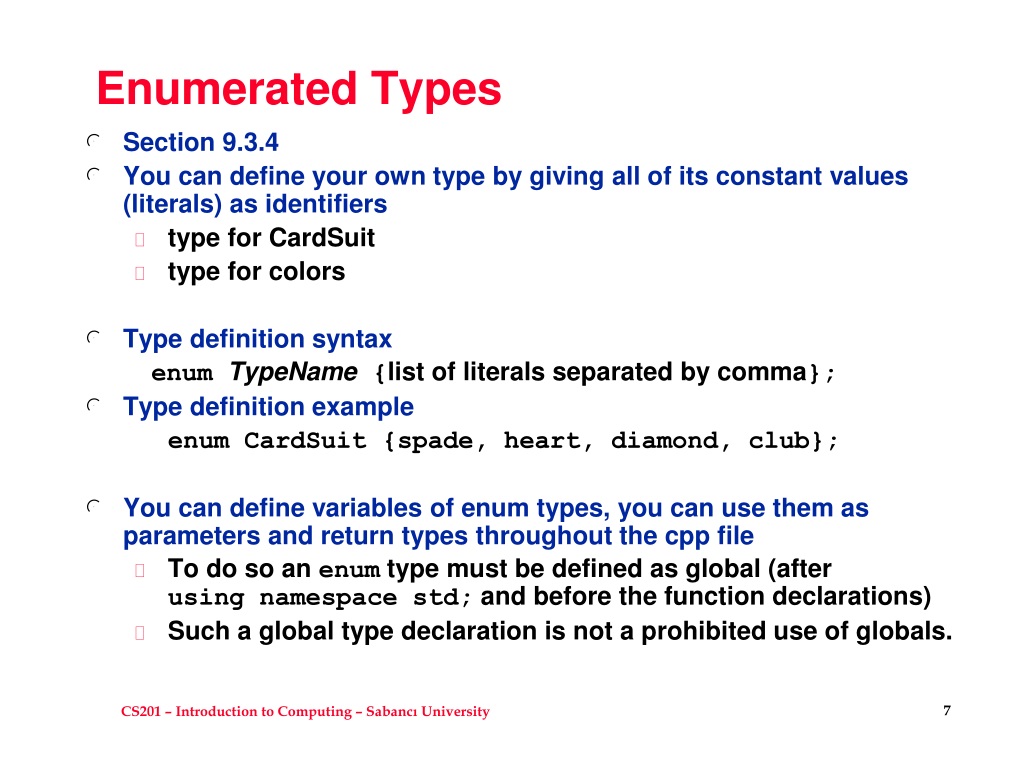

7. Enumerated Types • Section 9.3.4 • You can define your own type by giving all of its constant values (literals) as identifiers • type for CardSuit • type for colors • Type definition syntax enum TypeName {list of literals separated by comma}; • Type definition example enum CardSuit {spade, heart, diamond, club}; • You can define variables of enum types, you can use them as parameters and return types throughout the cpp file • To do so an enum type must be defined as global (after using namespace std; and before the function declarations) • Such a global type declaration is not a prohibited use of globals.

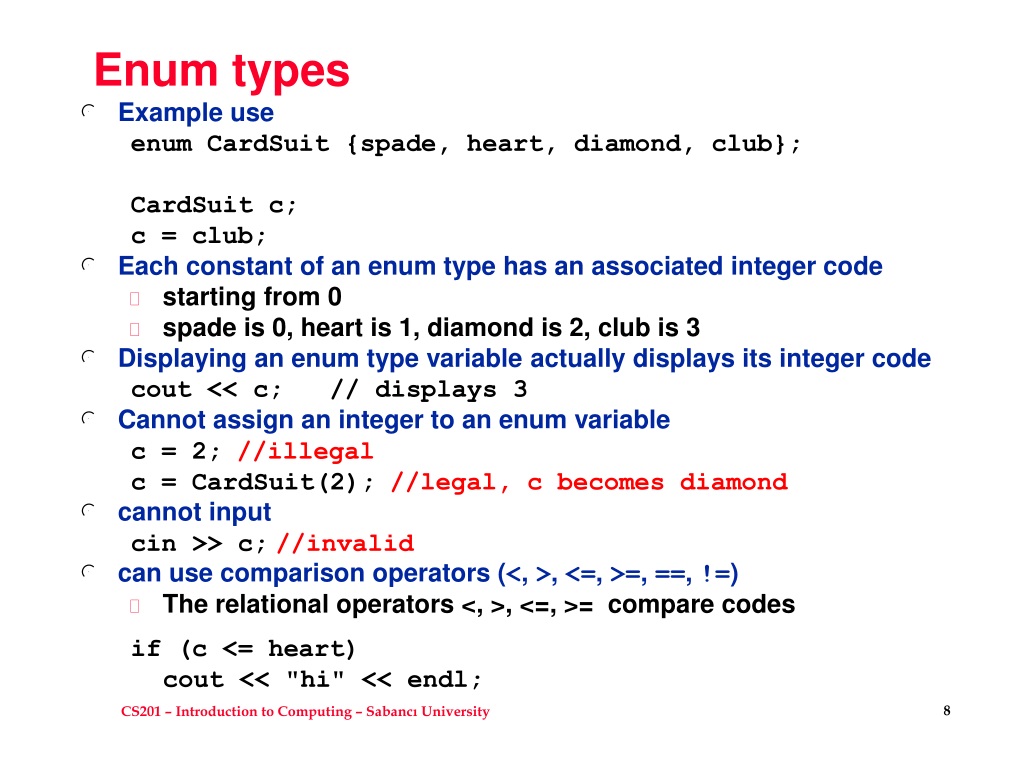

8. Enum types • Exampleuse enumCardSuit {spade, heart, diamond, club}; CardSuit c; c = club; • Eachconstant of an enumtype has an associatedintegercode • startingfrom 0 • spade is 0, heart is 1, diamond is 2, club is 3 • Displaying an enumtypevariableactuallydisplaysitsintegercode cout << c; // displays 3 • Cannotassign an integerto an enumvariable c = 2;//illegal c = CardSuit(2);//legal, c becomesdiamond • cannotinput cin >> c;//invalid • can usecomparisonoperators (<, >, <=, >=, ==, !=) • Therelationaloperators<, >, <=, >= compare codes if (c <= heart) cout << "hi" << endl;

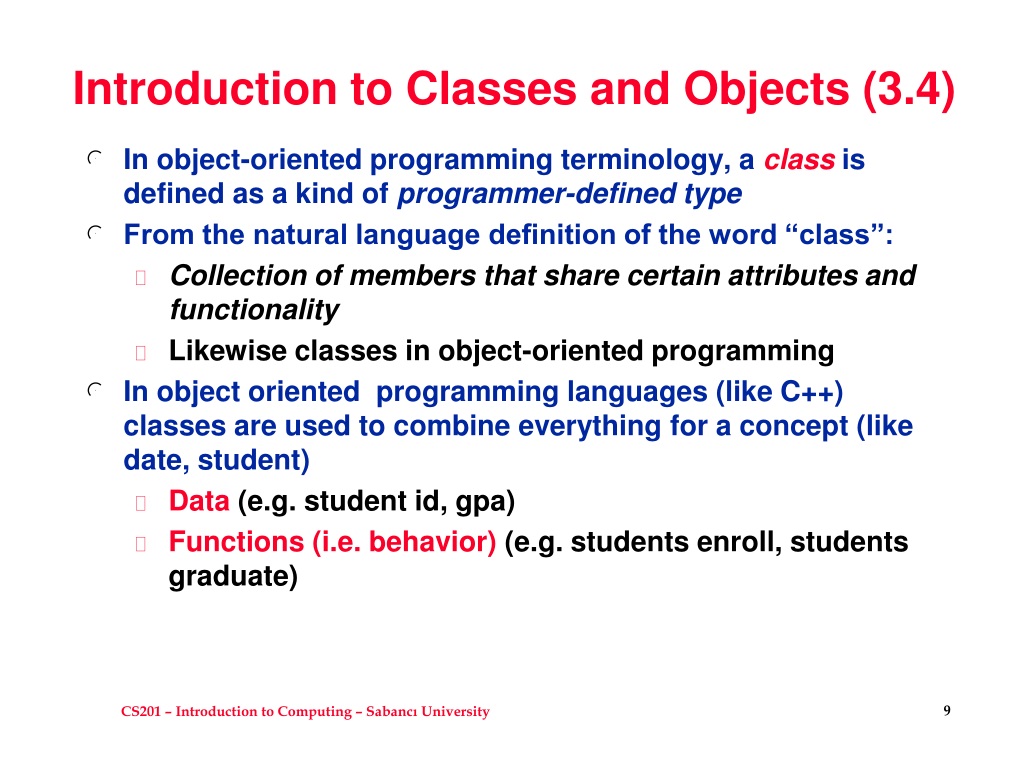

9. Introduction to Classes and Objects (3.4) • In object-oriented programming terminology, a class is defined as a kind of programmer-defined type • From the natural language definition of the word “class”: • Collection of members that share certain attributes and functionality • Likewise classes in object-oriented programming • In object oriented programming languages (like C++) classes are used to combine everything for a concept (like date, student) • Data (e.g. student id, gpa) • Functions (i.e. behavior) (e.g. students enroll, students graduate)

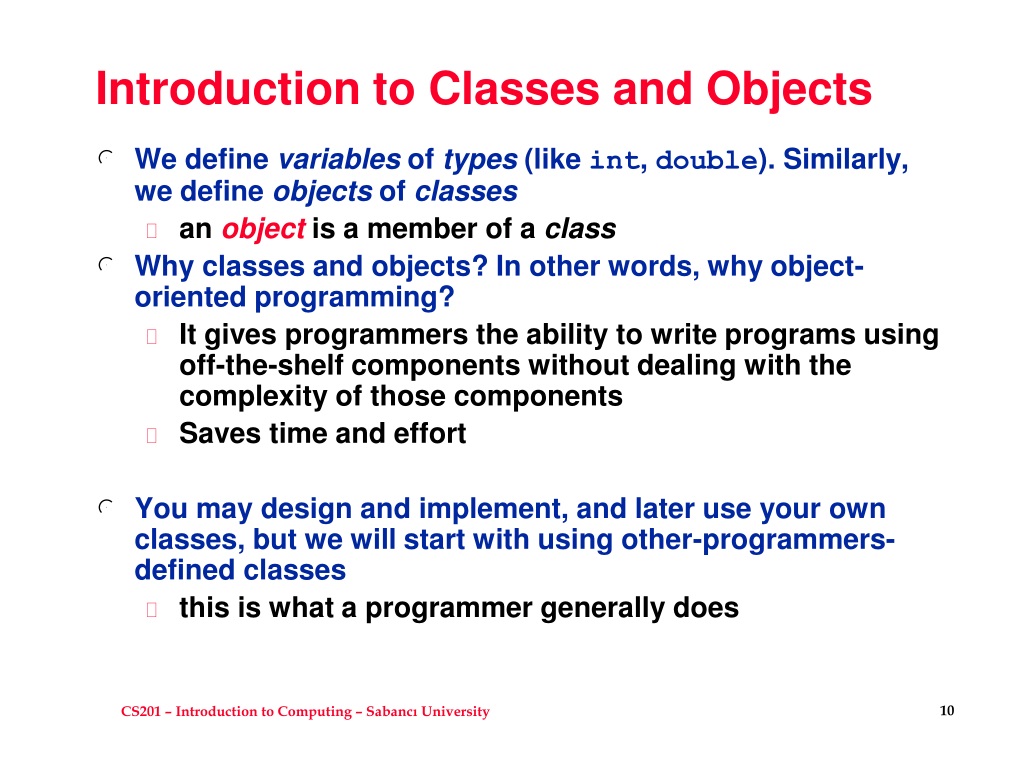

10. Introduction to Classes and Objects • We define variables of types (like int, double). Similarly, we define objects of classes • anobjectis a member of a class • Why classes and objects? In other words, why object-oriented programming? • It gives programmers the ability to write programs using off-the-shelf components without dealing with the complexity of those components • Saves time and effort • You may design and implement, and later use your own classes, but we will start with using other-programmers-defined classes • this is what a programmer generally does

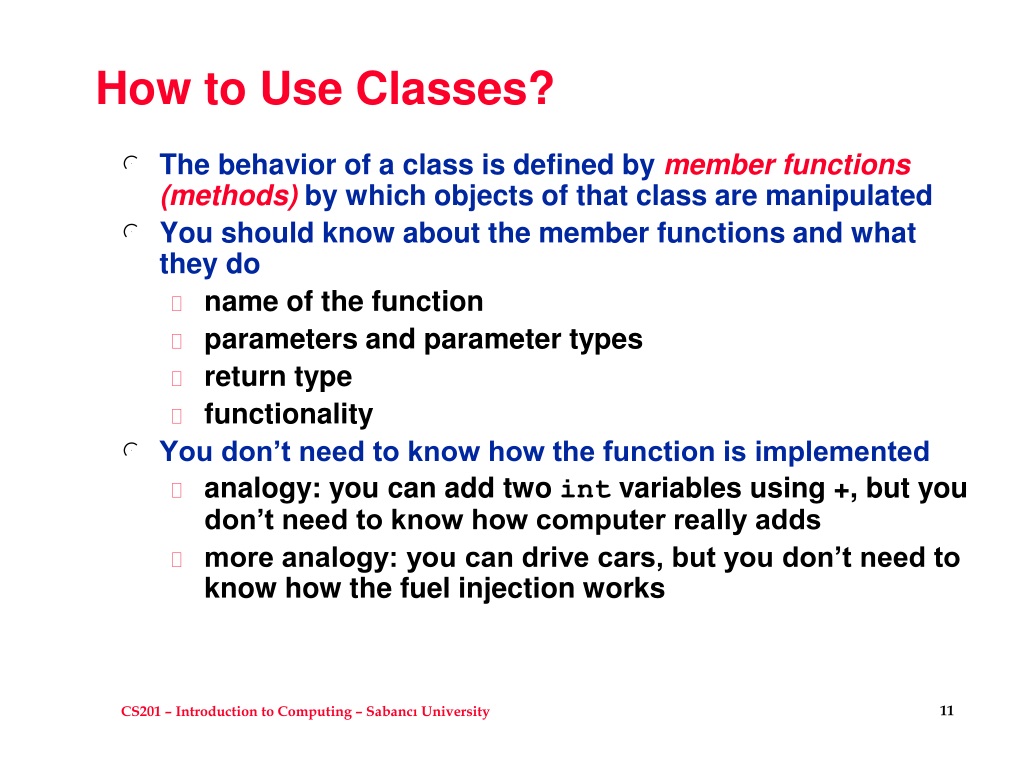

11. How to Use Classes? • The behavior of a class is defined by member functions (methods) by which objects of that class are manipulated • You should know about the member functions and what they do • name of the function • parameters and parameter types • return type • functionality • You don’t need to know how the function is implemented • analogy: you can add two int variables using +, but you don’t need to know how computer really adds • more analogy: you can drive cars, but you don’t need to know how the fuel injection works

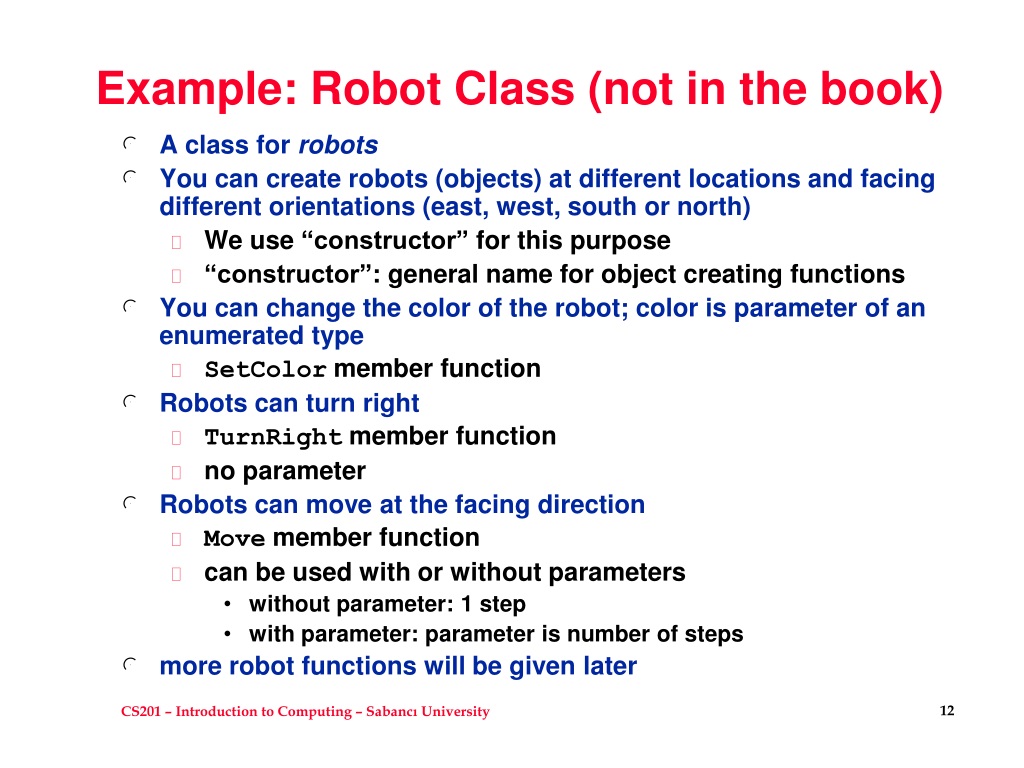

12. Example: Robot Class (not in the book) • A class for robots • You can create robots (objects) at different locations and facing different orientations (east, west, south or north) • We use “constructor” for this purpose • “constructor”: general name for object creating functions • You can change the color of the robot; color is parameter of an enumerated type • SetColor member function • Robots can turn right • TurnRight member function • no parameter • Robots can move at the facing direction • Move member function • can be used with or without parameters • without parameter: 1 step • with parameter: parameter is number of steps • more robot functions will be given later

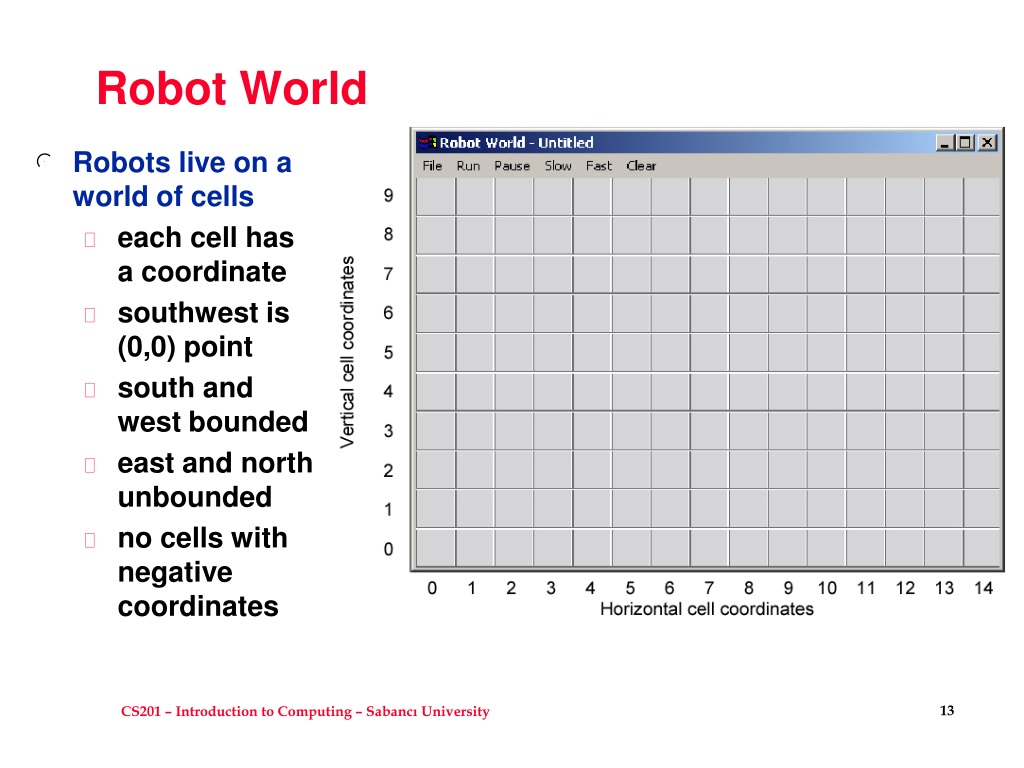

13. Robot World • Robots live on a world of cells • each cell has a coordinate • southwest is (0,0) point • south and west bounded • east and north unbounded • no cells with negative coordinates

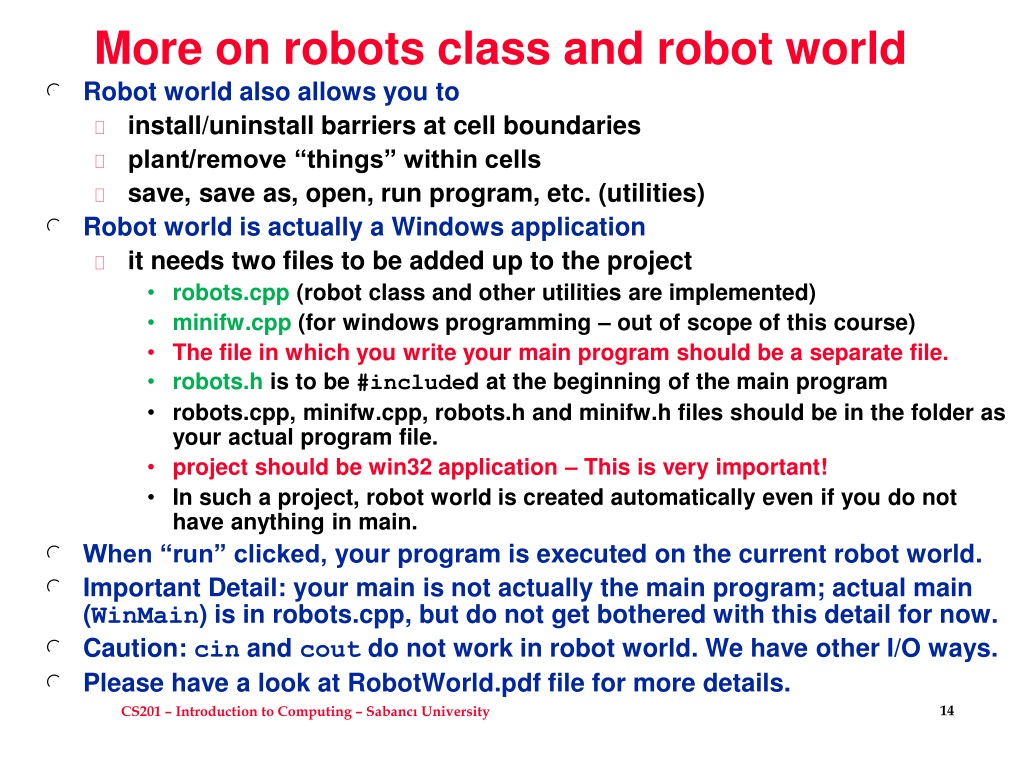

14. More on robots class and robot world • Robot world also allows you to • install/uninstall barriers at cell boundaries • plant/remove “things” within cells • save, save as, open, run program, etc. (utilities) • Robot world is actually a Windows application • it needs two files to be added up to the project • robots.cpp (robot class and other utilities are implemented) • minifw.cpp (for windows programming – out of scope of this course) • The file in which you write your main program should be a separate file. • robots.h is to be #included at the beginning of the main program • robots.cpp, minifw.cpp, robots.h and minifw.h files should be in the folder as your actual program file. • project should be win32 application – This is very important! • In such a project, robot world is created automatically even if you do not have anything in main. • When “run” clicked, your program is executed on the current robot world. • Important Detail: your main is not actually the main program; actual main (WinMain) is in robots.cpp, but do not get bothered with this detail for now. • Caution: cin and cout do not work in robot world. We have other I/O ways. • Please have a look at RobotWorld.pdf file for more details.

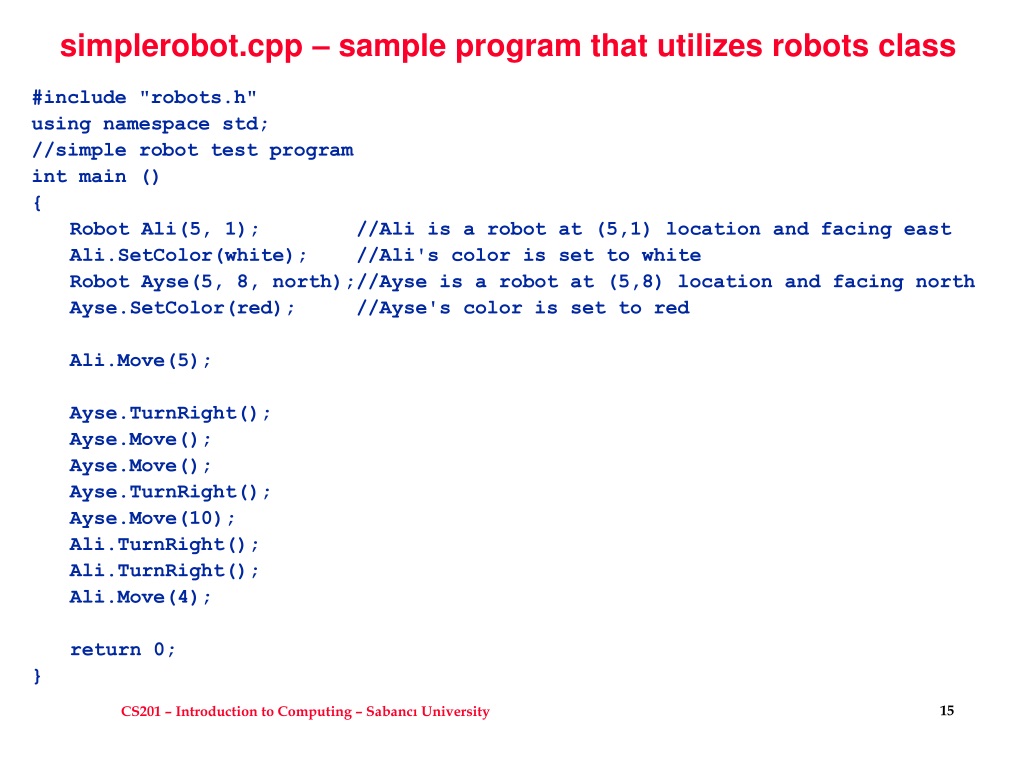

15. simplerobot.cpp – sample program that utilizes robots class #include "robots.h" using namespace std; //simple robot test program int main () { Robot Ali(5, 1); //Ali is a robot at (5,1) location and facing east Ali.SetColor(white); //Ali's color is set to white Robot Ayse(5, 8, north);//Ayse is a robot at (5,8) location and facing north Ayse.SetColor(red); //Ayse's color is set to red Ali.Move(5); Ayse.TurnRight(); Ayse.Move(); Ayse.Move(); Ayse.TurnRight(); Ayse.Move(10); Ali.TurnRight(); Ali.TurnRight(); Ali.Move(4); return 0; }

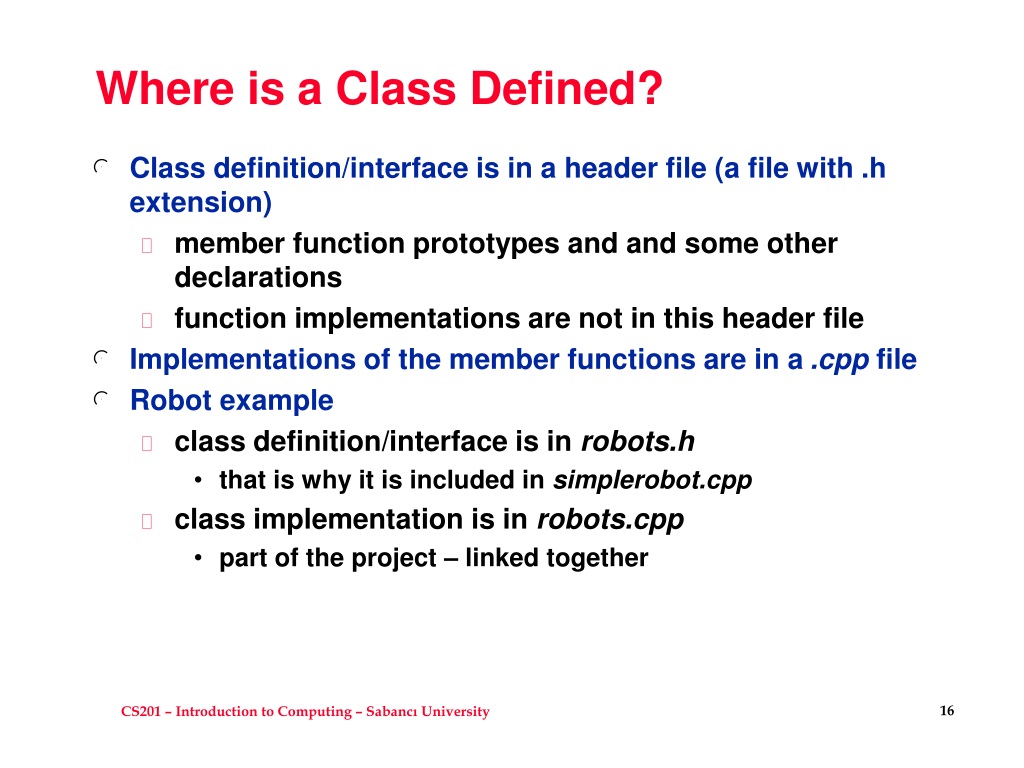

16. Where is a Class Defined? • Class definition/interface is in a header file (a file with .h extension) • member function prototypes and and some other declarations • function implementations are not in this header file • Implementations of the member functions are in a .cpp file • Robot example • class definition/interface is in robots.h • that is why it is included in simplerobot.cpp • class implementation is in robots.cpp • part of the project – linked together

17. robots.h - Definition of class Robot(partial) #ifndef Robots_h // to avoid duplicate inclusions of robots.h #define Robots_h // enumerated types for colors and directions enum Direction { east, west, north, south }; enum Color { white, yellow, red, blue, green, purple, pink, orange }; class Robot { public: Robot (int x, int y, Direction dir = east, int things = 0); // robot constructor – default color is yellow, default direction is east, //defaultthings in bag is zero void Move (int distance = 1); // to move robot, default displacement is 1 void TurnRight (); // to turn the robot right void SetColor (Color color); //to change the color of robot // there are some other functions that we will see later // see next page for the rest of the file Continued on the next page

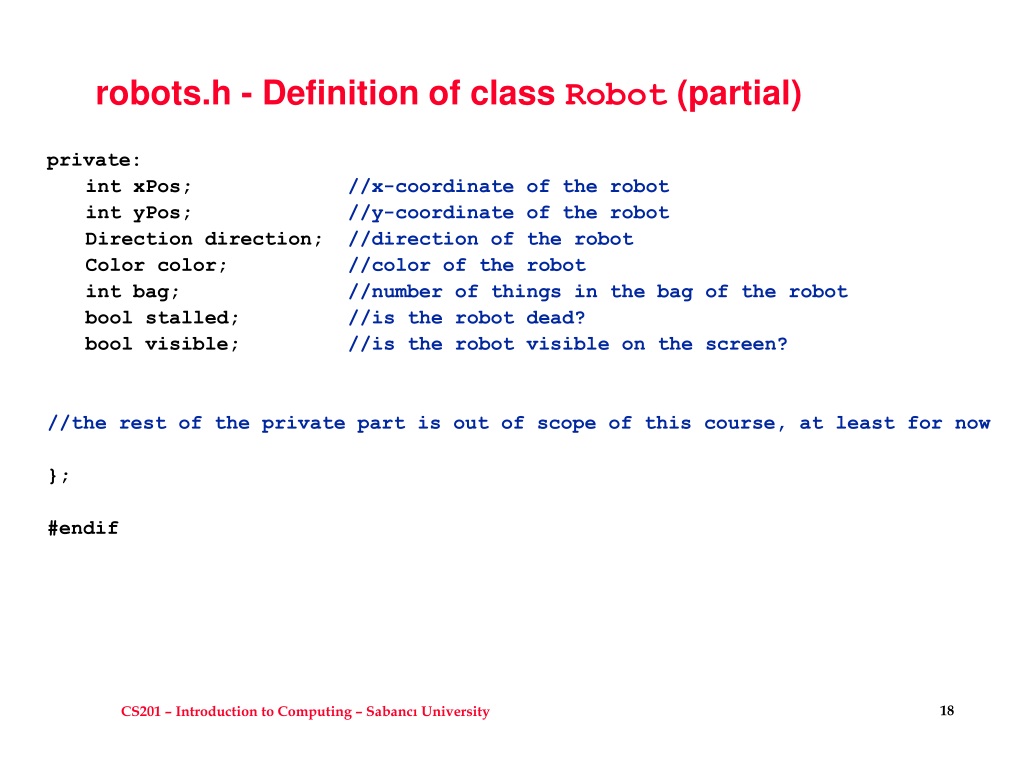

18. robots.h - Definition of class Robot(partial) private: int xPos; //x-coordinate of the robot int yPos; //y-coordinate of the robot Direction direction; //direction of the robot Color color; //color of the robot int bag; //number of things in the bag of the robot bool stalled; //is the robot dead? bool visible; //is the robot visible on the screen? //the rest of the private part is out of scope of this course, at least for now }; #endif

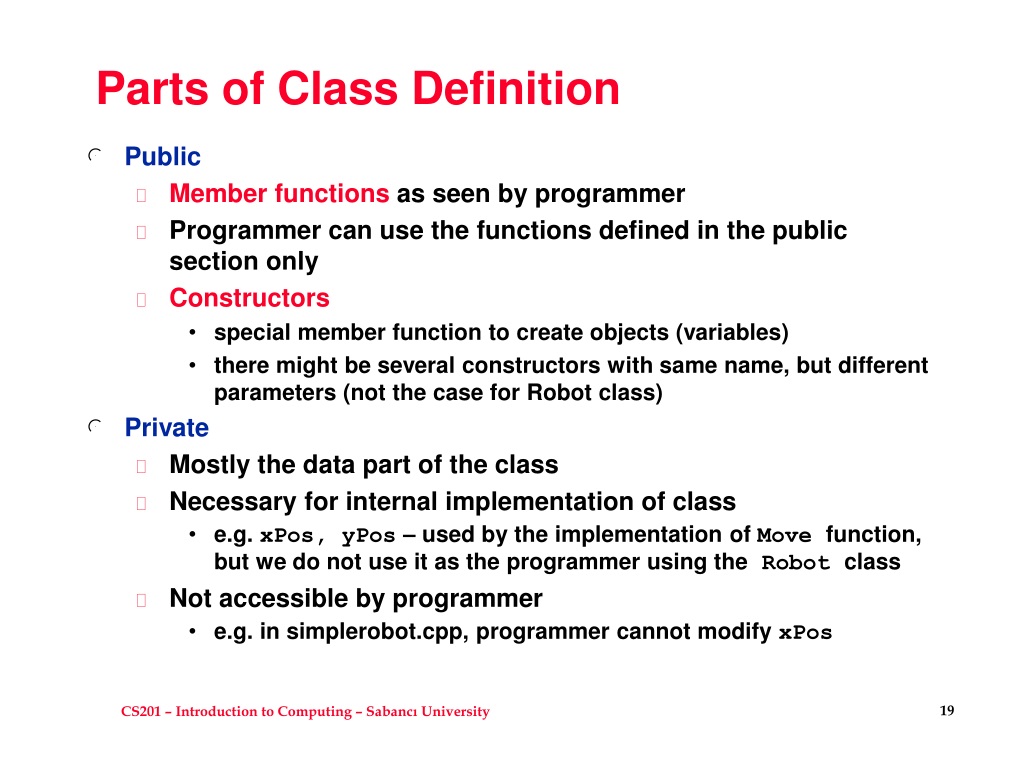

19. Parts of Class Definition • Public • Member functions as seen by programmer • Programmer can use the functions defined in the public section only • Constructors • special member function to create objects (variables) • there might be several constructors with same name, but different parameters (not the case for Robot class) • Private • Mostly the data part of the class • Necessary for internal implementation of class • e.g. xPos, yPos – used by the implementation of Movefunction, but we do not use it as the programmer using the Robot class • Not accessible by programmer • e.g. in simplerobot.cpp, programmer cannot modify xPos

20. How to • How to define objects? class_nameobject_name_list_separated_by_comma; • do not forget arguments for each object, if any. • How to call a member function? object_name.function_name(arguments); • a member function operates on an object for which it is called.

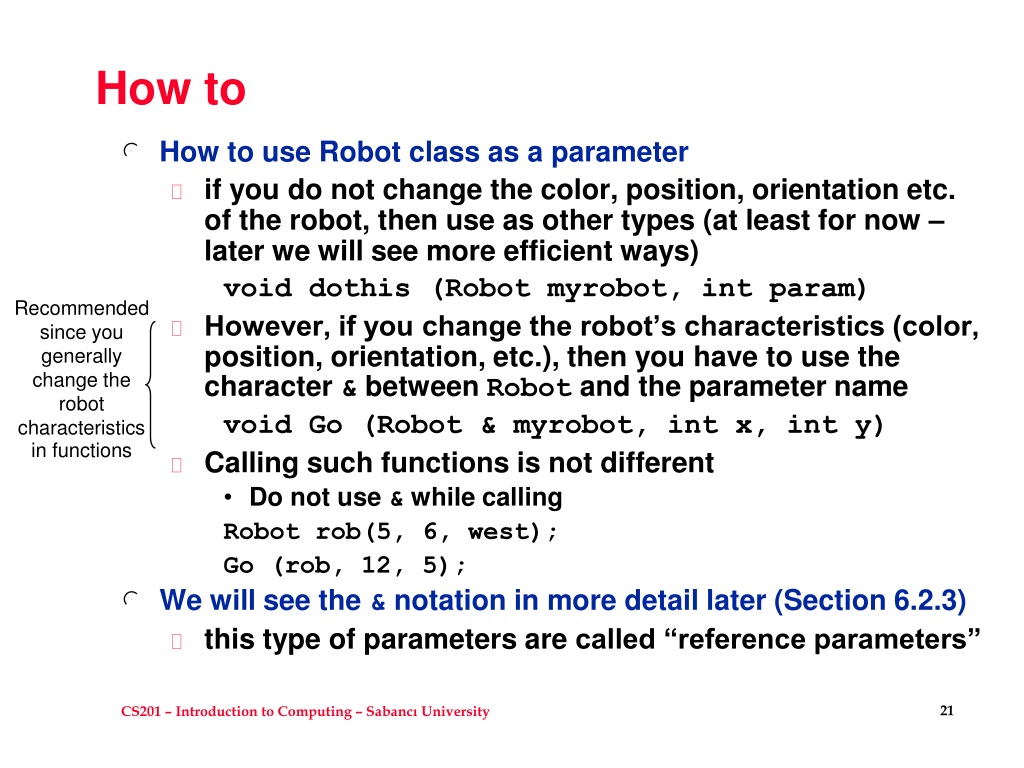

21. How to • How to use Robot class as a parameter • if you do not change the color, position, orientation etc. of the robot, then use as other types (at least for now – later we will see more efficient ways) void dothis (Robot myrobot, int param) • However, if you change the robot’s characteristics (color, position, orientation, etc.), then you have to use the character & between Robot and the parameter name void Go (Robot & myrobot, int x, int y) • Calling such functions is not different • Do not use & while calling Robot rob(5, 6, west); Go (rob, 12, 5); • We will see the & notation in more detail later (Section 6.2.3) • this type of parameters are called “reference parameters” Recommended since you generally change the robot characteristics in functions

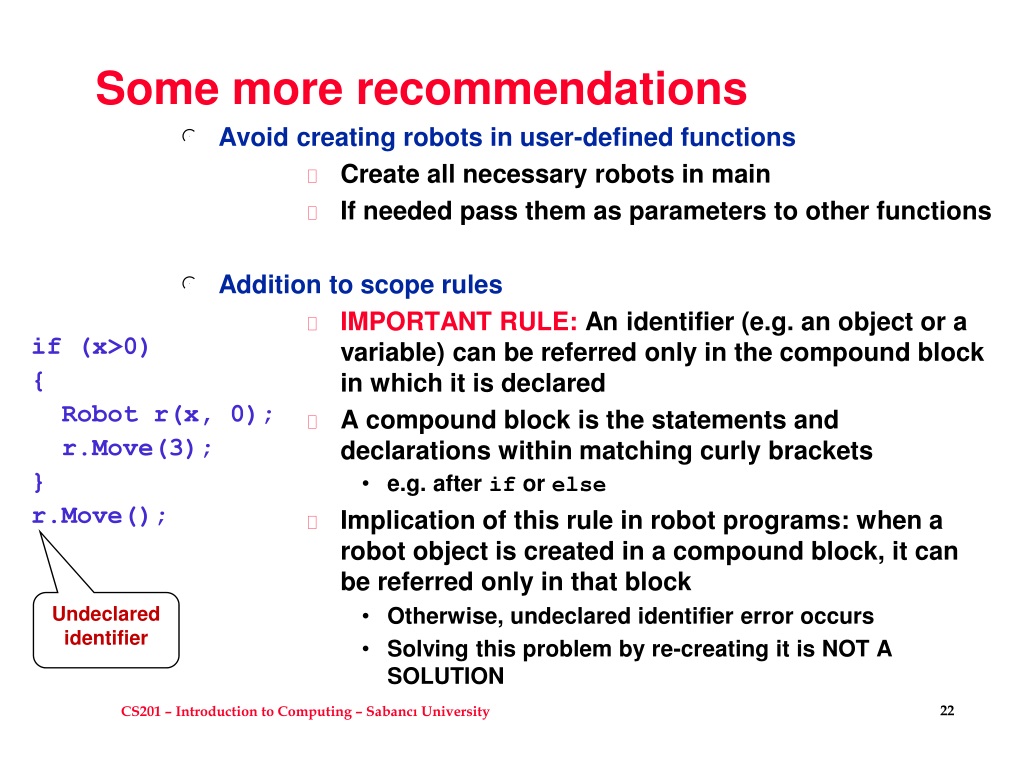

22. Some more recommendations • Avoid creating robots in user-defined functions • Create all necessary robots in main • If needed pass them as parameters to other functions • Addition to scope rules • IMPORTANT RULE: An identifier (e.g. an object or a variable) can be referred only in the compound block in which it is declared • A compound block is the statements and declarations within matching curly brackets • e.g. after if or else • Implication of this rule in robot programs: when a robot object is created in a compound block, it can be referred only in that block • Otherwise, undeclared identifier error occurs • Solving this problem by re-creating it is NOT A SOLUTION if (x>0) { Robot r(x, 0); r.Move(3); } r.Move(); Undeclared identifier

23. Compiling, Linking • Single file case • Linking is necessary to use the libraries • for example, iostream for cin and cout, string for string class operations • library functions are defined (prototypes) in header files (#included) • library function bodies are ready in object code • linked • Whenyou "build" in MS Visual Studio, it doeseverything, but it is goodtoknowthedifferencesbetweencompilationandlinking myprog.cpp (source code) myprog.obj (object code) myprog.exe compile link

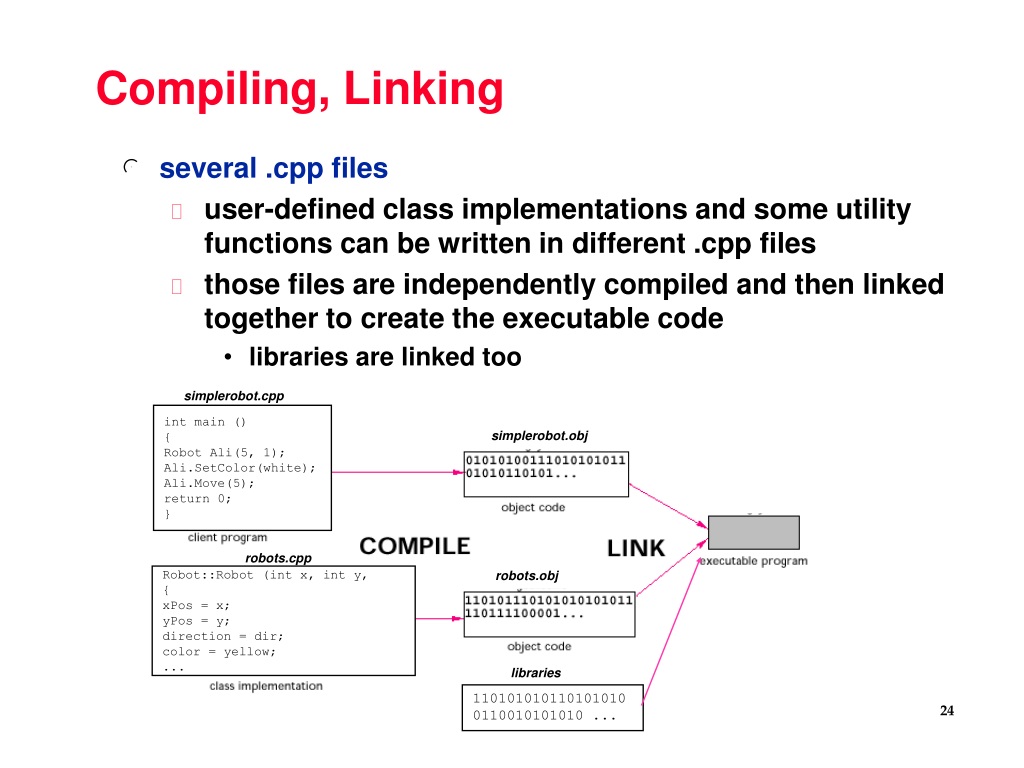

24. Compiling, Linking • several .cpp files • user-defined class implementations and some utility functions can be written in different .cpp files • those files are independently compiled and then linked together to create the executable code • libraries are linked too simplerobot.cpp int main () { Robot Ali(5, 1); Ali.SetColor(white); Ali.Move(5); return 0; } simplerobot.obj robots.cpp robots.obj Robot::Robot (int x, int y, { xPos = x; yPos = y; direction = dir; color = yellow; ... libraries 1101010101101010100110010101010 ...

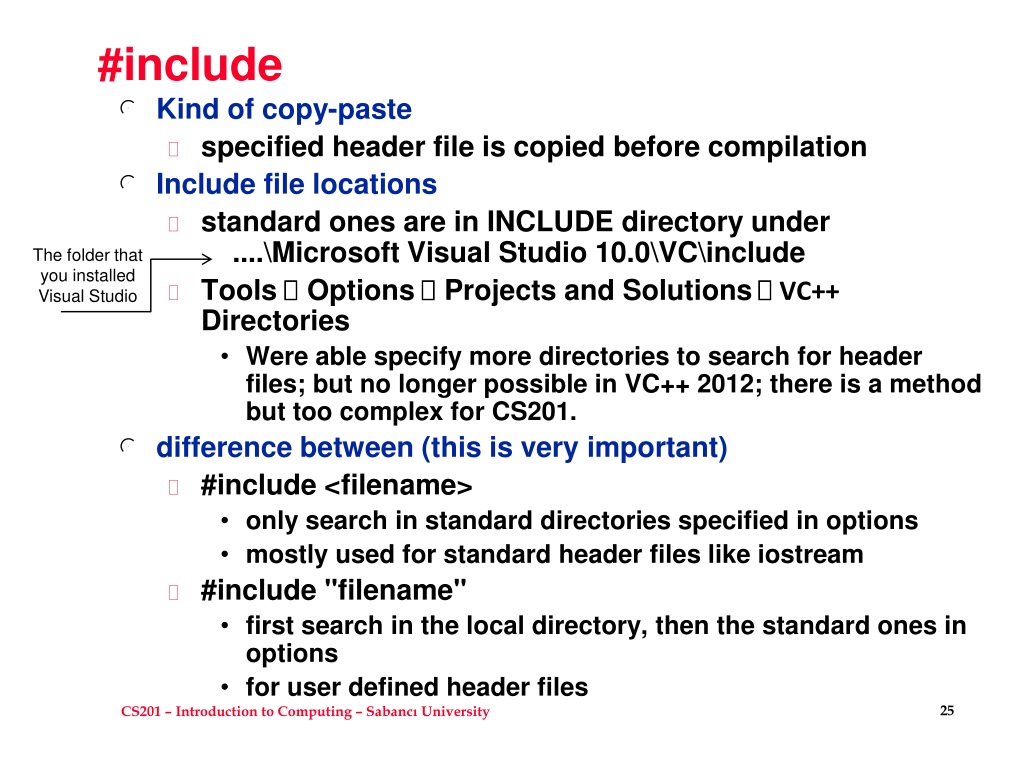

25. #include • Kind of copy-paste • specified header file is copied before compilation • Include file locations • standard ones are in INCLUDE directory under....\Microsoft Visual Studio 10.0\VC\include • Tools  Options  Projects and Solutions VC++ Directories • Were able specify more directories to search for header files; but no longer possible in VC++ 2012; there is a method but too complex for CS201. • difference between (this is very important) • #include <filename> • only search instandard directories specified in options • mostly used for standard header files like iostream • #include "filename" • first search in the local directory, then the standard ones in options • for user defined header files Thefolderthatyouinstalled Visual Studio

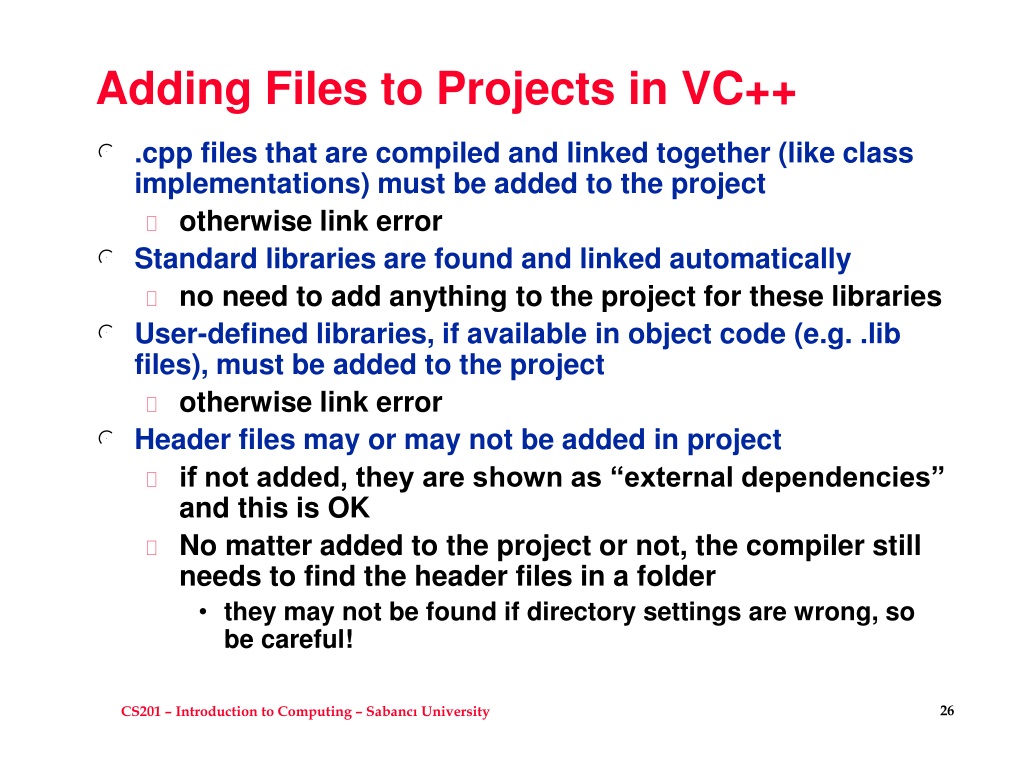

26. Adding Files to Projects in VC++ • .cpp files that are compiled and linked together (like class implementations) must be added to the project • otherwise link error • Standard libraries are found and linked automatically • no need to add anything to the project for these libraries • User-defined libraries, if available in object code (e.g. .lib files), must be added to the project • otherwise link error • Header files may or may not be added in project • if not added, they are shown as “external dependencies” and this is OK • No matter added to the project or not, the compiler still needs to find the header files in a folder • they may not be found if directory settings are wrong, so be careful!
