Presentation Transcript
slide1

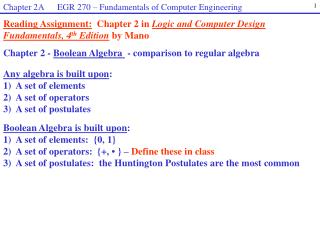

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Reading Assignment:Chapter 2 in Logic and Computer Design Fundamentals, 4th Edition by Mano

Chapter 2 - Boolean Algebra - comparison to regular algebra

Any algebra is built upon:

1) A set of elements

2) A set of operators

3) A set of postulates

Boolean Algebra is built upon:

1) A set of elements: {0, 1}

2) A set of operators: {+, • } – Define these in class

3) A set of postulates: the Huntington Postulates are the most common

slide2

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Huntington Postulates – The following 6 postulates, along with the set of elements and set of operators shown above, uniquely and completely define Boolean algebra.

1) Closure for the operations {+, • } - Discuss

2) Two identity elements: - Illustrate by showing all possible values for x

A) 0: 0 + x = x + 0 = x

B) 1: 1 • x = x • 1 = x

3) Commutative Laws: - Illustrate by showing all possible values for x and y

A) x + y = y + x

B) xy = yx

slide3

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

4) Distributive Laws: - Prove by truth table

A) x • (y + z) = xy + xz

B) x + yz = (x + y) • (x + z)

slide4

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

x

x’

4

0

1

1

0

5) Existence of a Complement: - Illustrate by considering all possible values for x

Define by the following truth table:

Related postulates:

A) x + x’ = 1

B) x • x’ = 0

6) At least two non-equal elements: {0, 1} - Discuss

slide5

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

5

Common Theorems

Boolean algebra has already been completely defined. Additional theorems are also often used, not because they are required, but because they are useful. Some of the most common theorems are shown below. Note that each theorem could be formally proven using the postulates.

1) Idempotency: (“same power”)

A) x + x = x – Illustrate by trying all possible values for x

B) x • x = x

Example: Show related examples using this theorem.

slide6

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

2) (no name) – Discuss

A) x + 1 = 1

B) x • 0 = 0

3) Involution: – Discuss and illustrate using NOT gates

x’’ = = x

4) Associative Laws: – Discuss and illustrate using logic gates

A) x + (y + z) = (x + y) + z

B) x(yz) = (xy)z

slide7

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

DeMorgan’sTheorems:

Note: These theorems are not obvious and can be tricky.

Hint: Apply to one operation at a time (OR or AND).

Prove 5A by truth table

Example: Show related examples using DeMorgan’s theorem.

slide8

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

6) Absorption:

A) x + xy = x

B) x (x+y) = x

Example: Show related examples.

7) (no name)

A) x + x’y = x + y

B) x (x’ + y) = xy

Example: Show related examples.

slide9

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

8) Concensus:

A) xy + x’z + yz = xy + x’z

B) (x + y)(x’ + z)( y + z) = (x + y)(x’ + z)

Example: Show related examples.

slide10

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Operation

Precedence

Parentheses

Higher

NOT

AND

OR

Lower

Order of operations – The following precedence is used to evaluate logic operations:

.

Note that the same order of operations is used in Excel, C++, and MATLAB

Example: In which order are the operations performed for the following function?

f = ab+cd

Note: spacing is often used to make it clearer: f = ab + cd

Example: Evaluate the following expression (show each step):

F = 10 + (1 1’1)’(1+0’) + (0+1’)10

slide11

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Boolean Functions – Simplifying Boolean functions corresponds to minimizing the amount of circuitry (logic gates) to be used.

Minimizing Boolean functions

No specific rules. In general we use Boolean algebra (postulates and theorems) to reduce the number of terms, literals, logic gates, or integrated circuits (Ics).

Literal– a primed (complemented) or unprimed variable. In counting literals, we count all occurrences of each literal.

Truth table

Boolean function

Minimize with Boolean algebra

Implement with logic circuits

Example: How many literals are in the expression f = ab + a’c + bc’d ? (Answer: 7)

slide12

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Examples – Minimize the following Boolean functions:

 1) F = AB + A(B + C) + B(B + C)

F = AB’(C + BD) + A’B’

slide13

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

F(A,B,C,D) = A + A’BC + C’

F = [(x’y)’ + z’]’

slide14

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

5)

 6) f(x,y,z) = x’y(z + y’x) + y’z

complement of a function a function f has the exact opposite truth table as function f

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Example:

A) Find F’ for the function below using DeMorgan’s theorem.

B) Find truth tables for F and for F’ for the function below. Are they opposites?

Complement of a Function

A function F’ has the exact opposite truth table as function F.

slide17

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

  • Canonical and Standard forms
  • Boolean functions are commonly expressed using the following forms:
  • Canonical forms:
    • Sum of minterms
    • Product of maxterms
  • Standard forms:
    • Sum of products (SOP)
    • Product of sums (POS)
  • Note: These 4 forms will be used regularly throughout the course.
  • Many designs begin by expressing functions in Sum of minterms or Product of maxterms forms.
  • When we minimize expressions the result is typically minimal SOP or minimal POS form.
slide18

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Minterm – (also called a standard product) A minterm is a term containing all n variables (complemented or uncomplemented) ANDed together.

Example:f(A,B) has 4 possible minterms. List them.

  • Each minterm represents one n-bit word where:
  • Primed variable  0
  • Unprimed variable  1
  • Minterm designation: for function f(x,y,z) the input combination 000 represents minterm x’y’z’ and is designated m0.

xyz = 000

x’y’z’

m0

slide19

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Example:Show all 8 possible minterms and the shorthand designations for f(x, y, z).

slide20

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Key Point: A Boolean function F may be represented by a sum (ORed together) of its minterms. They represent the input combinations needed to yield F = 1. So minterms represent the 1’s in the truth table for F.

Example:Pick a truth table for some function f(x,y,z) and represent f as a sum of minterms.

slide21

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Maxterm – (also called a standard sum) A maxterm is a term containing all n variables (complemented or uncomplemented) ORed together.

Example:f(A,B) has 4 possible maxterms. List them.

  • Each maxterm represents one n-bit word where:
  • Primed variable 1
  • Unprimed variable 0
  • (note that this is opposite of the notation used for minterms)
  • Maxterm designation: for function f(x,y,z) the input combination 000 represents maxterm (x + y + z) and is designated M0.

xyz = 000

x+y+z

M0

slide22

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Example:Show all 8 possible maxterms and the shorthand designations for f(x, y, z).

slide23

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Key Point: A Boolean function F may be represented by a product (ANDed together) of its maxterms. They represent the input combinations needed to yield F = 0. So maxterms represent the 0’s in the truth table for F.

Example:Pick a truth table for some function f(x,y,z) and represent f as a product of maxterms.

slide24

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Relationship between minterms and maxterms

Example: Illustrate the relationships above with any minterm or maxterm.

slide25

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Conversion between forms

Since minterms represent where F = 1 and maxterms represent where F = 0, all terms are either minterms or maxterms. So if F is expressed as a sum of minterms, then F is a product of the maxterms (the terms that were not minterms). So it is simple to convert between forms.

Example:Convert to the other canonical form

1. F(A, B) = (0, 1)

2. F(x, y, z) = (0, 1)

3. F(x, y, z) = (4, 5, 6)

4. F(a, b, c, d, e) = (0-4, 8, 13-18)

slide26

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Conversion to sum of minterms or product of maxterms forms from other forms

Possible approaches include Boolean algebra and truth tables.

Examples:Represent each function below as a sum of minterms:

1. F(A, B) = A

2. F(x, y, z) = xy + z

slide27

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Examples: Represent each function below as a product of maxterms:

1. F(A, B) = A’B + AB’

2. F(x, y, z) = x’ + y’

slide28

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Standard Forms

Canonical forms are not minimized and are not useful for many circuit implementations.

Standard forms are more useful. Functions are typically minimized into one of the two standard forms:

Sum of Products (SOP) : F = sum of ANDed terms (but not necessarily minterms)

2. Product of Sums (POS) : F = product of ORed terms (but not necessarily maxterms)

Sum term (variables ORed)

Product term (variables ANDed)

Sum (Products ORed)

Product (Sums ANDed)

slide29

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Example: Determine the type of expression in each case below.

slide30

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Example: Function F(A,B,C) has the following truth table.

Express F in each of the following forms:

1. Sum of minterms

2. Product of maxterms

3. Minimal SOP

4. Minimal POS

slide31

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Standard Forms: 2-Level Implementations

Standard forms are referred to as “2-level implementations” because they can be implemented with two levels gates (and thus only two gate delays). Note that this does not include initial inverters.

Example: Implement a SOP expression using logic gates to illustrate that it is a 2-level implementation.

Example: Implement a POS expression using logic gates to illustrate that it is a 2-level implementation.

slide32

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Non-standard forms:

4 commonly used forms have been covered (sum of minterms, product of maxterms, SOP, and POS). These forms will be used throughout the course. There are, however, other non-standard forms.

  • Example: The following function is in non-standard form:
        • F = A(B + C(D+E(G+HJ)))
  • Draw the logic diagram. How many gate delays are there?
  • Expand F into minimal SOP form and draw the logic diagram. How many gate delays are there?
slide33

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

  • Basic functions/gates and their truth tables:
  • We previously defined two functions with two or more inputs: AND, OR.
  • How many possible 2-input logic functions could be defined (consider the diagram shown below)? (Answer: 16)
  • How many correspond to actual gates (commercially available)? (Answer: 6)

6 commonly defined 2-input logic functions/gates:

1. AND 4. NOR

2. OR 5. XOR (Exclusive-OR)

NAND 6. XNOR (Exclusive-NOR or Equivalence)

The AND and OR gates have already been defined. The remaining 4 gates will be discussed on the following slides.

slide34

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

NAND: Show logic symbol, truth table, and logic expressions:

NOR: Show logic symbol, truth table, and logic expressions:

slide35

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

XOR: Show logic symbol, truth table, and logic expressions:

XNOR: Show logic symbol, truth table, and logic expressions:

slide36

Chapter 2A EGR 270 – Fundamentals of Computer Engineering

Other Logic Symbols: (We won’t use these in this course.)
