  1. Bioenergy-butanol

  2. Agenda • Bioethanol versus biodiesel • Butanol (CH3CH2CH2CH2OH) • Chemical properties • How to make it?

  3. Butanol

  4. Feedstock • Any starch/sugar rich biomass • Agricultural biomass • Corn • Wheat • Sugar cane • Sugar beets • Straws • Corn stover • Woody biomass

  5. History • 1916 utilization of Clostridia acetobutylicum for acetone production by Chime Wizemann (fermentation process) • Smokeless gun powder • 1945 the second most important commercial fermentation process • 1960 growth of petroleum industry • Butanol production via petrochemical pathway • 1980-2008 • Biological pathway

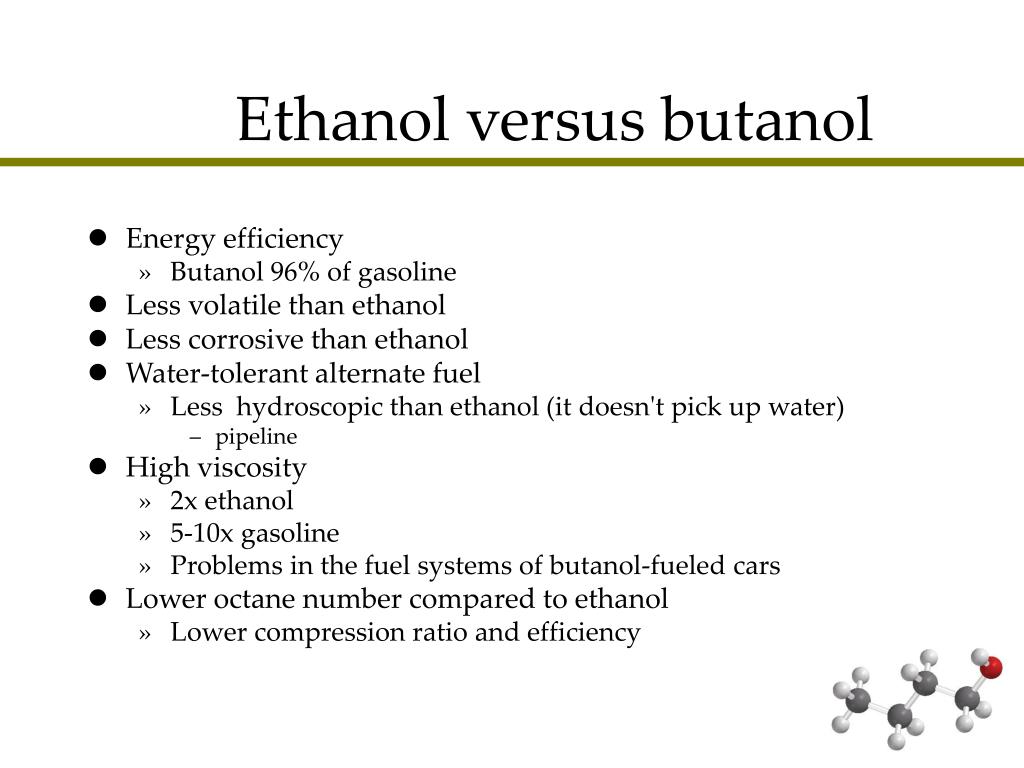

  6. Ethanol versus butanol • Energy efficiency • Butanol 96% of gasoline • Less volatile than ethanol • Less corrosive than ethanol • Water-tolerant alternate fuel • Less hydroscopic than ethanol (it doesn't pick up water) • pipeline • High viscosity • 2x ethanol • 5-10x gasoline • Problems in the fuel systems of butanol-fueled cars • Lower octane number compared to ethanol • Lower compression ratio and efficiency

  7. Butanol-properties • Sweet smelling solvent • Industrial solvent • High melting point of 25.5°C causes it to gel and freeze near room temperature • Additive in gasoline • Industrial commodity • 370million gallon/year • $3.75/gallon • Petrochemical route

  8. Production of butanol (1) • Fermentation • Weizmann organism (chemist Weizmann) • Anaerobic bacteria • Starch, sugars • Extracellular amylolytic enzymes •  and  amylase • Glucoamylase etc. • Distillation (boiling point) Clostridium acetobutylicum, the "Weizmann Organism"

  9. ABE fermentation (2) • ABE fermentation (butanol, acetone, ethanol) butanol:acetone:ethanol (6:3:1) • Other by-products: • Acetic acid • Lactic acid • Propionic acids • Isopropanol • 1 bushel of corn: • 1.3 gallons of butanol • 0.65 gallons of acetone • 0.22 gallons of ethanol (each 1-2%)

  10. Ethanol S. cerevisiae (yeast) Temp 30°C pH 6 No extracellular enzymes Monomeric sugars (6C) Products: 50% ethanol, 50% CO2 Toxicity of the final product over 100g/L of ethanol Butanol Clostridium (bacteria) Temp 30-40°C pH 6.8-7 drops to 5.0 (acidogenesis) and increases to 7.0 (solventogenesis) Presence of extracellular enzymes Starch, cellobiose and monomers (5 and 6C) Variety of products Toxicity of the final products 20g/L max of acetone, butanol, and ethanol Ethanol versus butanol fermentation (1)

  11. Ethanol versus butanol fermentation (2) Ethanol S. cerevisiae Butanol Clostridium

  12. ABE fermentation (3) • Pure sugar source • Toxicity of butanol to C.acetobutylicum • ethanol, thus butanol, higher recovery cost of butanol • Lignocellulosic substrate • More inhibitors generated during pretreatment • Lower butanol yields

  13. Cars running on butanol Over 10,000 miles around and across US
