Presentation Transcript
assignment of weights

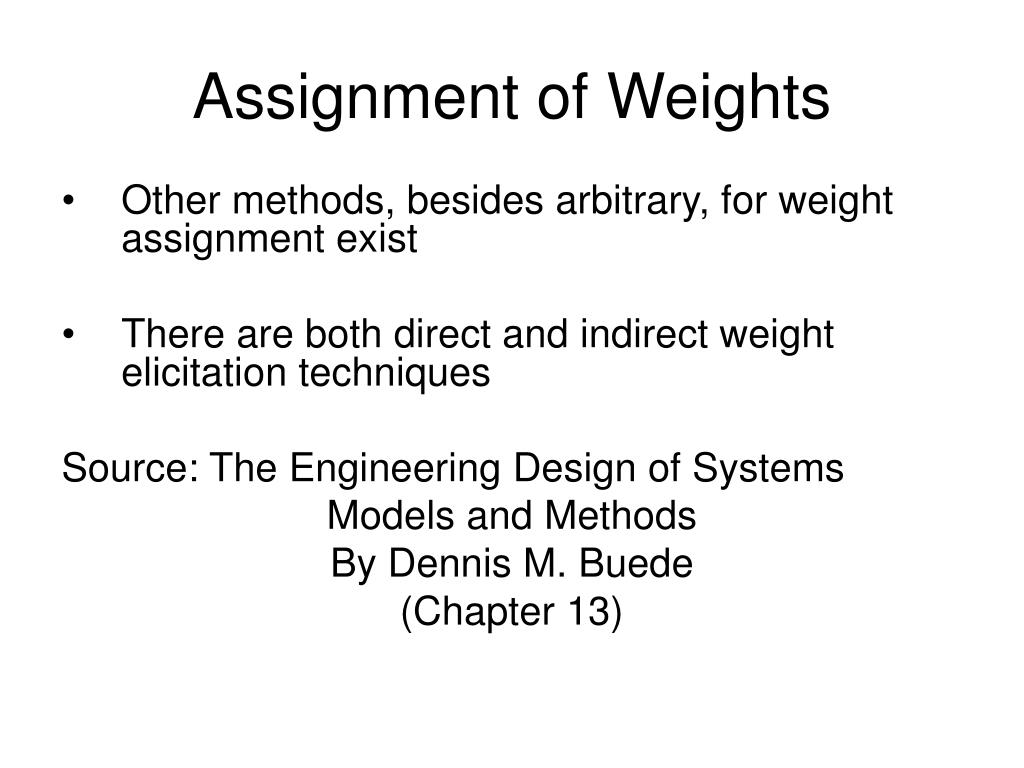

Assignment of Weights
  • Other methods, besides arbitrary, for weight assignment exist
  • There are both direct and indirect weight elicitation techniques

Source: The Engineering Design of Systems

Models and Methods

By Dennis M. Buede

(Chapter 13)

alternative weighting methods

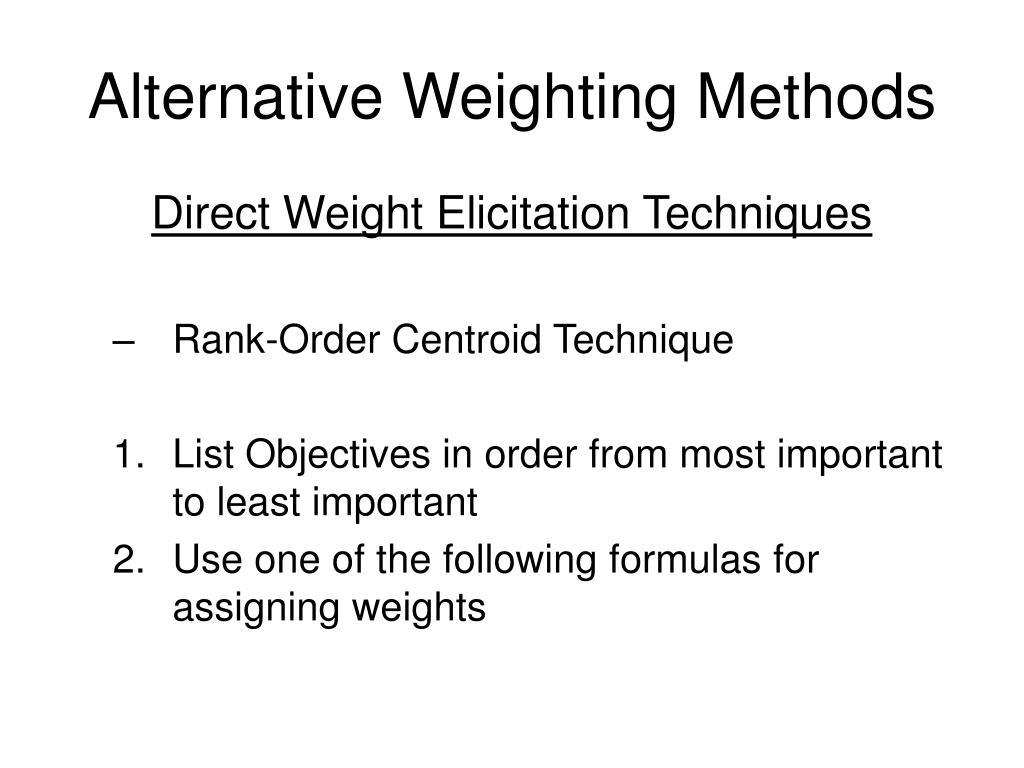

Alternative Weighting Methods

Direct Weight Elicitation Techniques

  • Rank-Order Centroid Technique
  • List Objectives in order from most important to least important
  • Use one of the following formulas for assigning weights
alternative weighting methods1

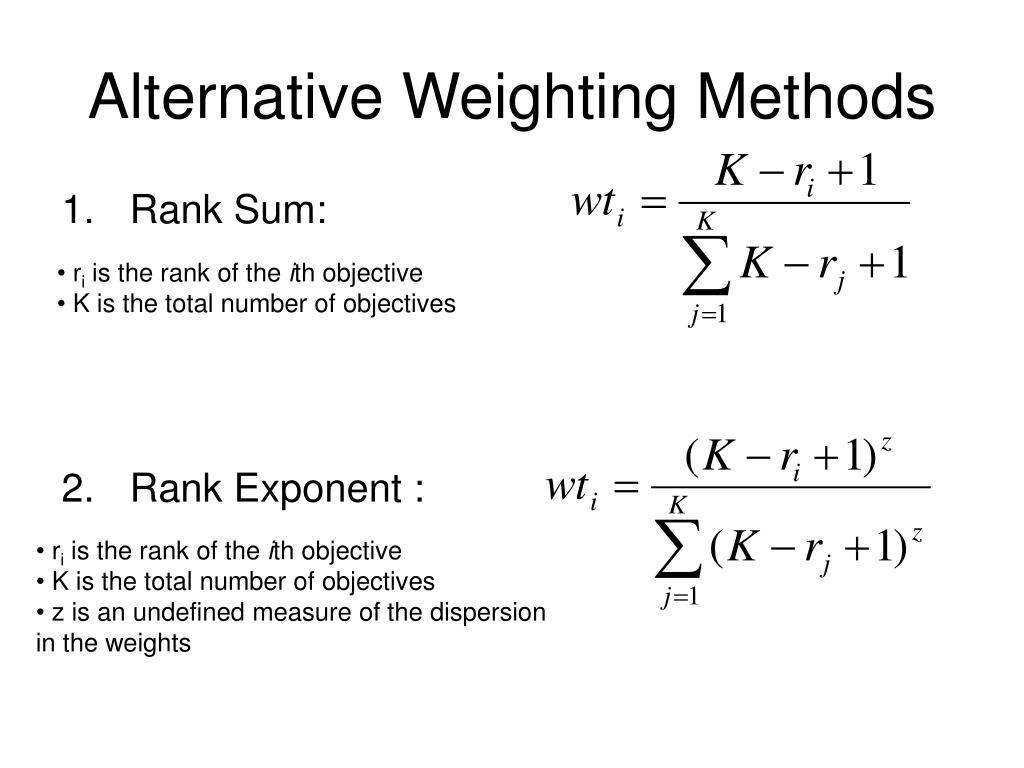

Alternative Weighting Methods
  • Rank Sum:
  • Rank Exponent :
  • ri is the rank of the ith objective
  • K is the total number of objectives
  • ri is the rank of the ith objective
  • K is the total number of objectives
  • z is an undefined measure of the dispersion in the weights
alternative weighting methods2
Alternative Weighting Methods

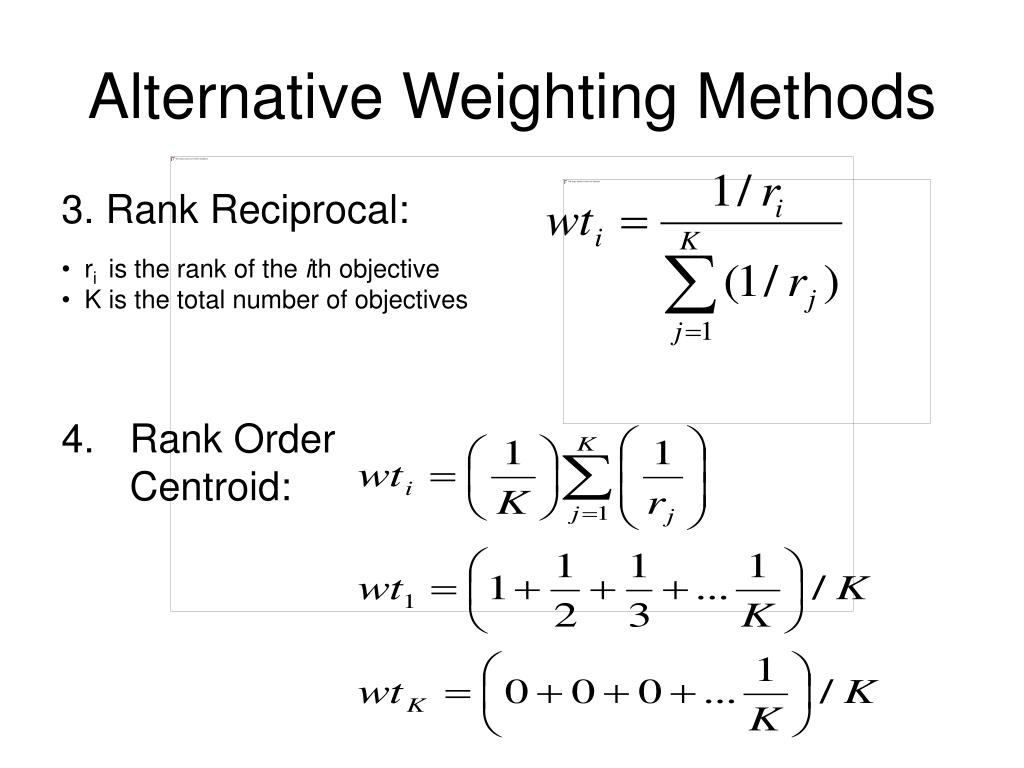

3. Rank Reciprocal:

  • Rank Order Centroid:
  • ri is the rank of the ith objective
  • K is the total number of objectives
alternative weighting methods3
Alternative Weighting Methods

Indirect Weight Elicitation Techniques

Trade Offs:

  • Objectives ranked in order of their overall swing in value
  • Stakeholders asked if overall swing weight of the second objective is as great as the swing from the lowest to some intermediate point of the value scale of the first objective.
  • The third objective is can now be compared to intermediate points on either the first or second ranked objective and so on…
  • Method works well when the value curves are firmly established and when the value curves are continuous
alternative weighting methods4

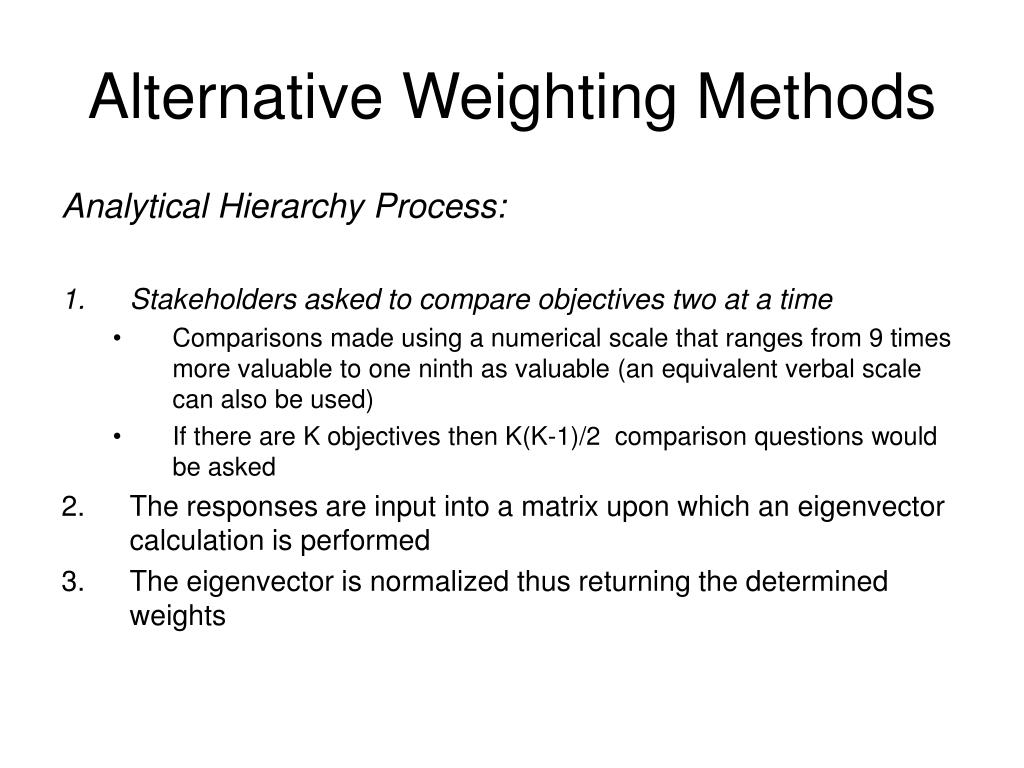

Alternative Weighting Methods

Analytical Hierarchy Process:

  • Stakeholders asked to compare objectives two at a time
    • Comparisons made using a numerical scale that ranges from 9 times more valuable to one ninth as valuable (an equivalent verbal scale can also be used)
    • If there are K objectives then K(K-1)/2 comparison questions would be asked
  • The responses are input into a matrix upon which an eigenvector calculation is performed
  • The eigenvector is normalized thus returning the determined weights
alternative weighting methods5
Alternative Weighting Methods

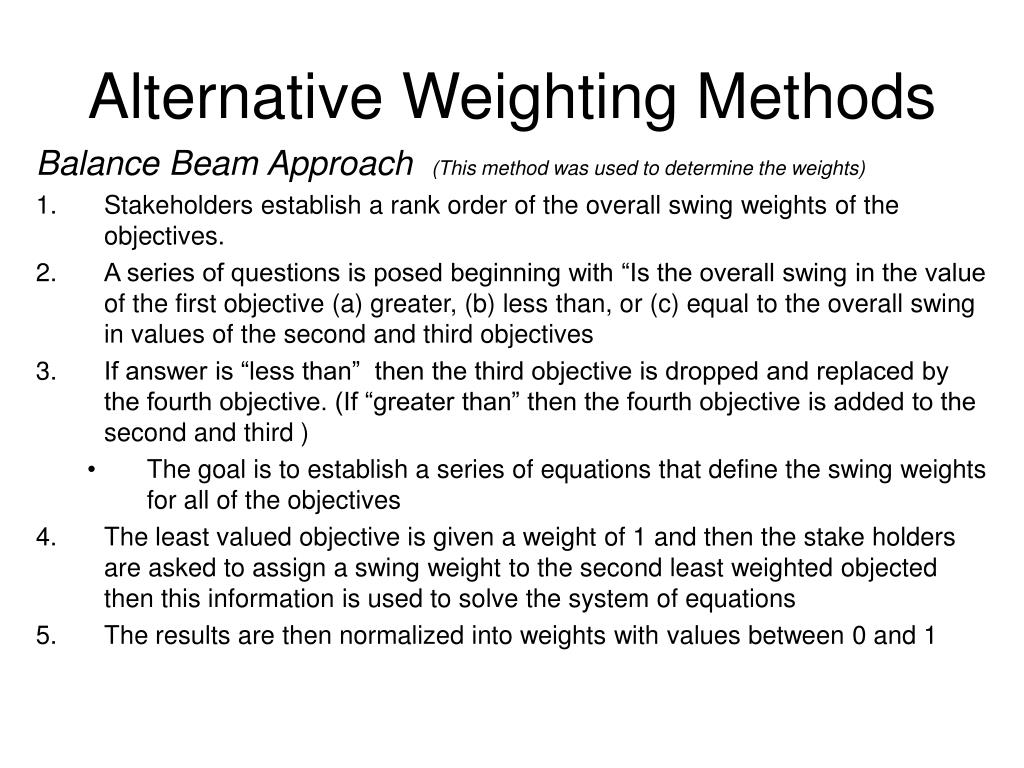

Balance Beam Approach (This method was used to determine the weights)

  • Stakeholders establish a rank order of the overall swing weights of the objectives.
  • A series of questions is posed beginning with “Is the overall swing in the value of the first objective (a) greater, (b) less than, or (c) equal to the overall swing in values of the second and third objectives
  • If answer is “less than” then the third objective is dropped and replaced by the fourth objective. (If “greater than” then the fourth objective is added to the second and third )
    • The goal is to establish a series of equations that define the swing weights for all of the objectives
  • The least valued objective is given a weight of 1 and then the stake holders are asked to assign a swing weight to the second least weighted objected then this information is used to solve the system of equations
  • The results are then normalized into weights with values between 0 and 1
example bicycle wheel
Example: Bicycle Wheel
  • The company 322 Bikes decides to design a new rear wheel due to high failure rates with the current design.
  • Three representatives set out to interview potential customers and returned with that following results…
example bicycle wheel1

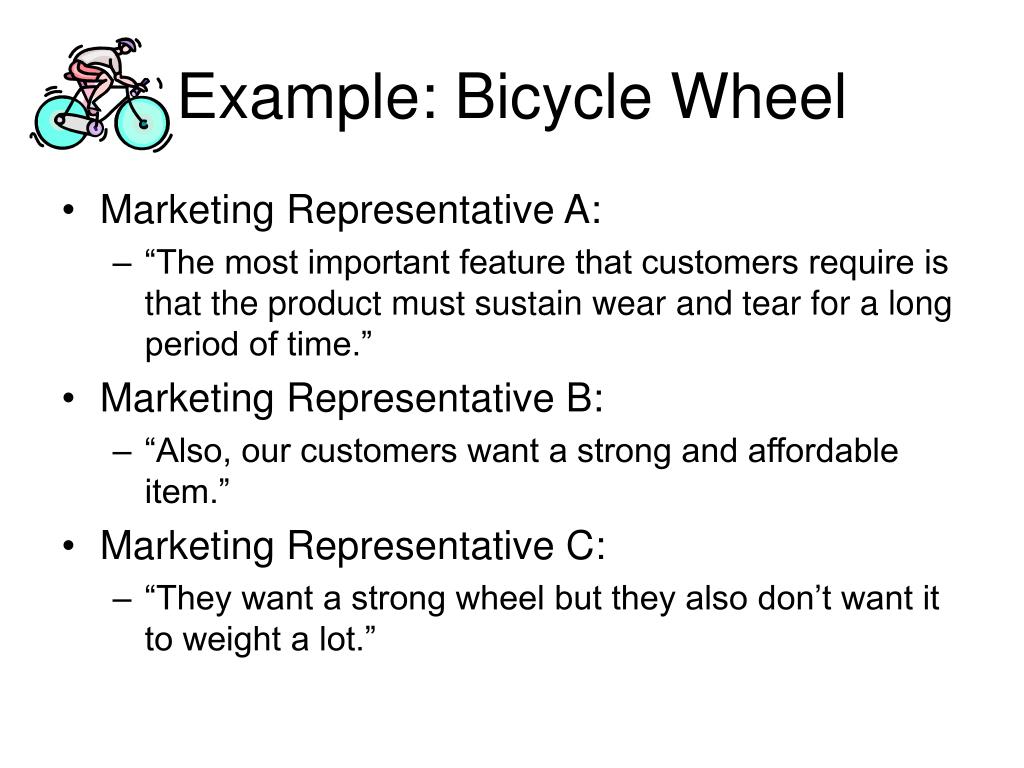

Example: Bicycle Wheel
  • Marketing Representative A:
    • “The most important feature that customers require is that the product must sustain wear and tear for a long period of time.”
  • Marketing Representative B:
    • “Also, our customers want a strong and affordable item.”
  • Marketing Representative C:
    • “They want a strong wheel but they also don’t want it to weight a lot.”
example bicycle wheel2

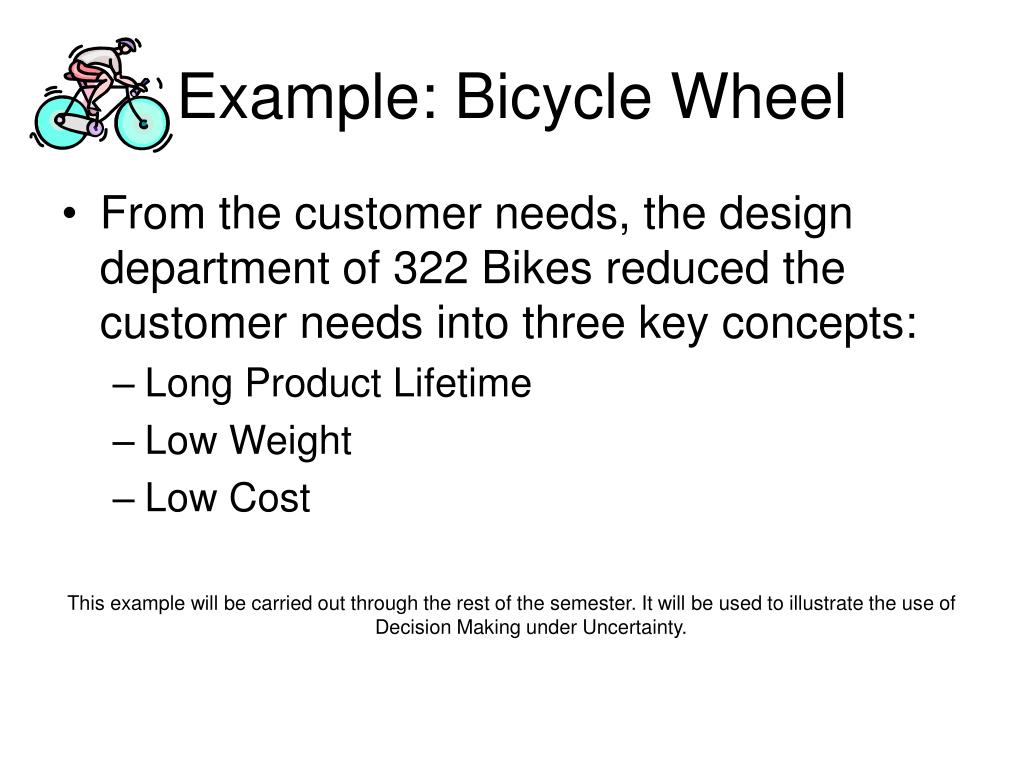

Example: Bicycle Wheel
  • From the customer needs, the design department of 322 Bikes reduced the customer needs into three key concepts:
    • Long Product Lifetime
    • Low Weight
    • Low Cost

This example will be carried out through the rest of the semester. It will be used to illustrate the use of Decision Making under Uncertainty.

example bicycle wheel3

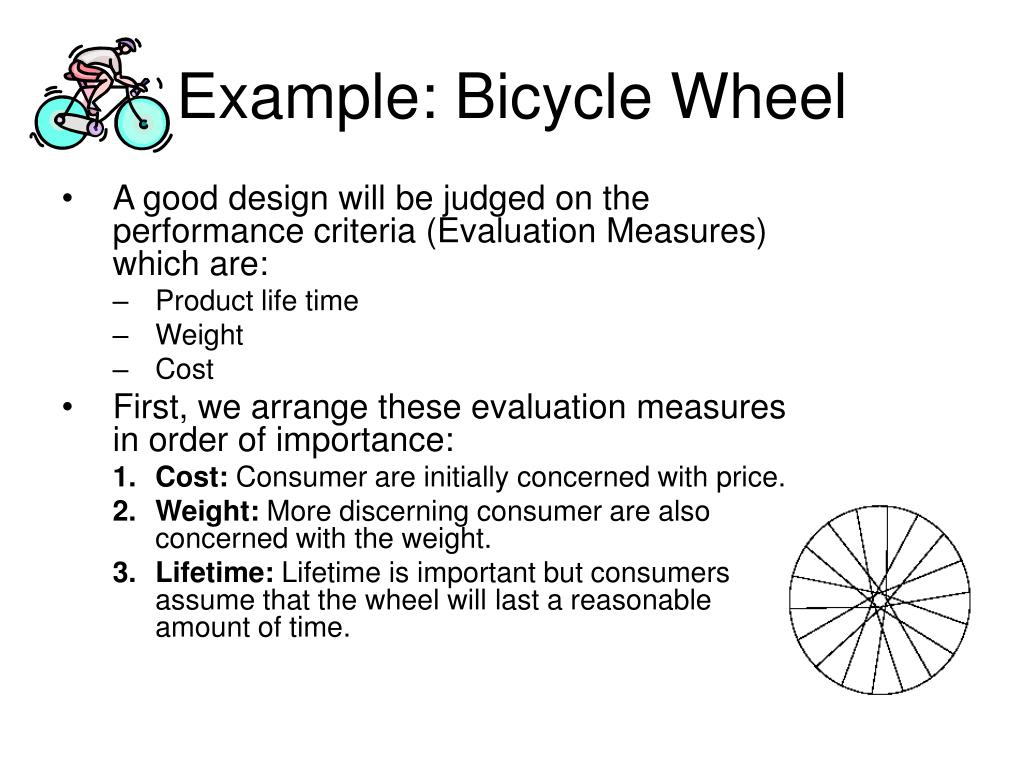

Example: Bicycle Wheel
  • A good design will be judged on the performance criteria (Evaluation Measures) which are:
    • Product life time
    • Weight
    • Cost
  • First, we arrange these evaluation measures in order of importance:
    • Cost: Consumer are initially concerned with price.
    • Weight: More discerning consumer are also concerned with the weight.
    • Lifetime: Lifetime is important but consumers assume that the wheel will last a reasonable amount of time.
example bicycle wheel4
Example: Bicycle Wheel

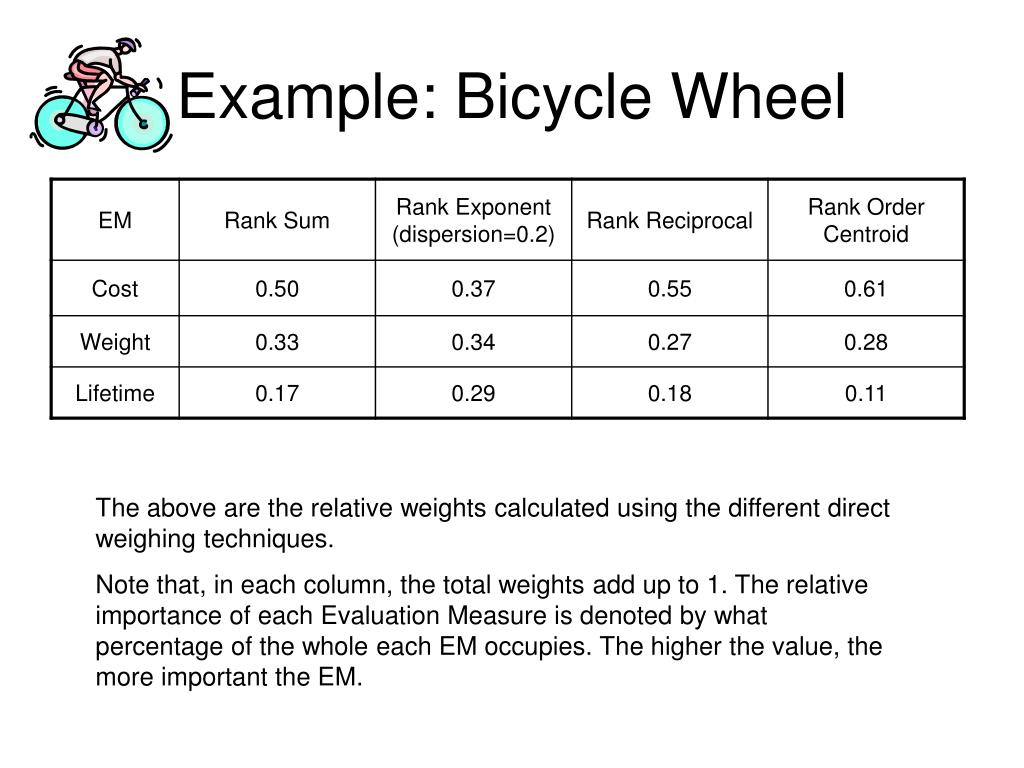

The above are the relative weights calculated using the different direct weighing techniques.

Note that, in each column, the total weights add up to 1. The relative importance of each Evaluation Measure is denoted by what percentage of the whole each EM occupies. The higher the value, the more important the EM.

example bicycle wheel5

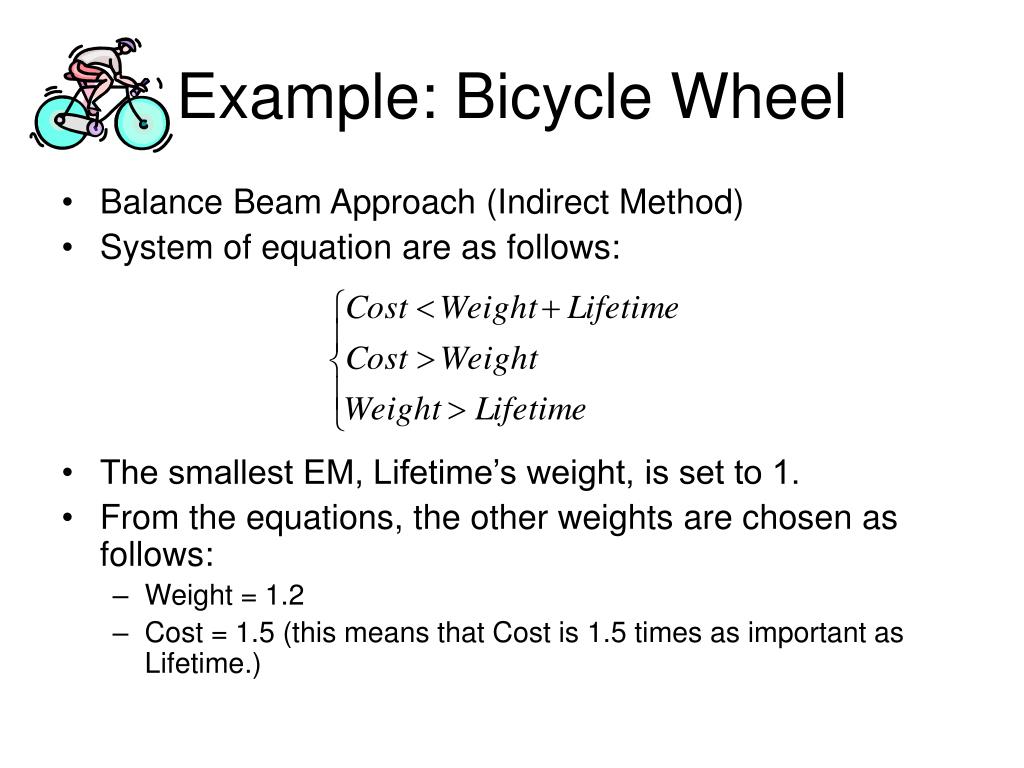

Example: Bicycle Wheel
  • Balance Beam Approach (Indirect Method)
  • System of equation are as follows:
  • The smallest EM, Lifetime’s weight, is set to 1.
  • From the equations, the other weights are chosen as follows:
    • Weight = 1.2
    • Cost = 1.5 (this means that Cost is 1.5 times as important as Lifetime.)
example bicycle wheel6

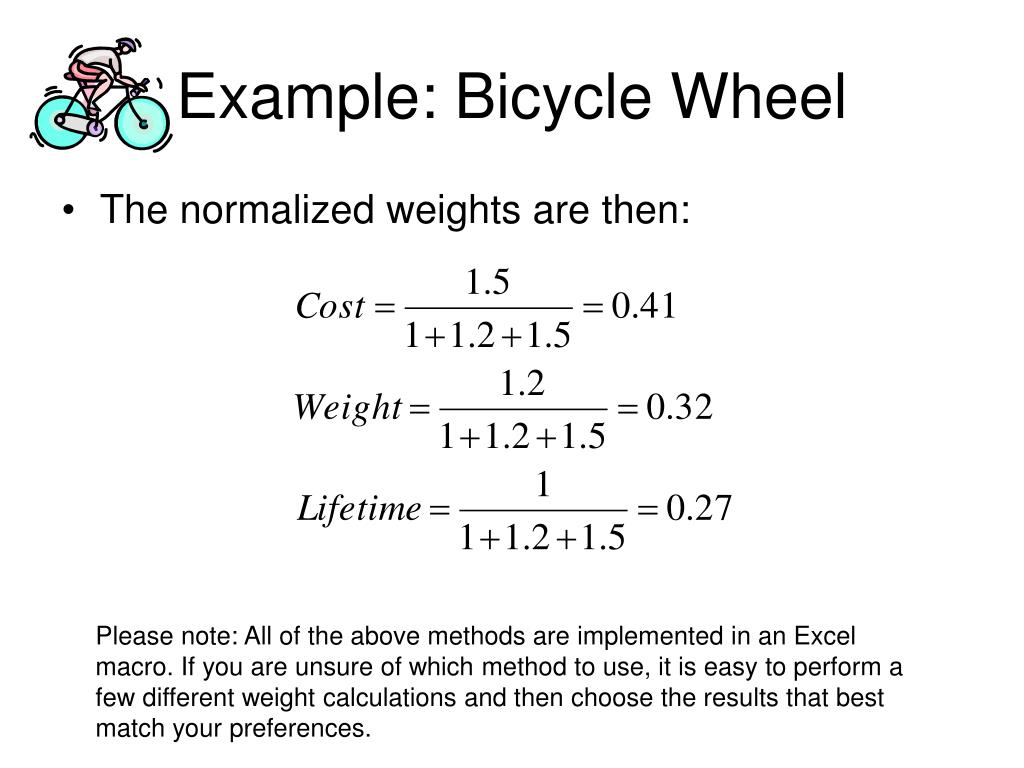

Example: Bicycle Wheel
  • The normalized weights are then:

Please note: All of the above methods are implemented in an Excel macro. If you are unsure of which method to use, it is easy to perform a few different weight calculations and then choose the results that best match your preferences.
