Presentation Transcript

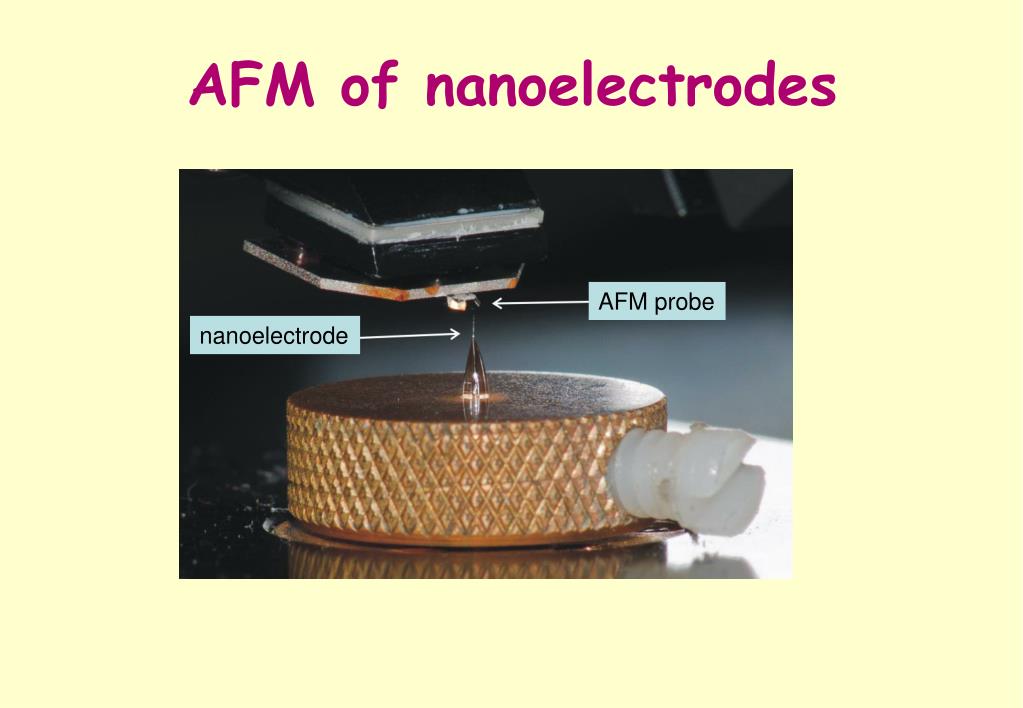

  1. AFM of nanoelectrodes AFM probe nanoelectrode

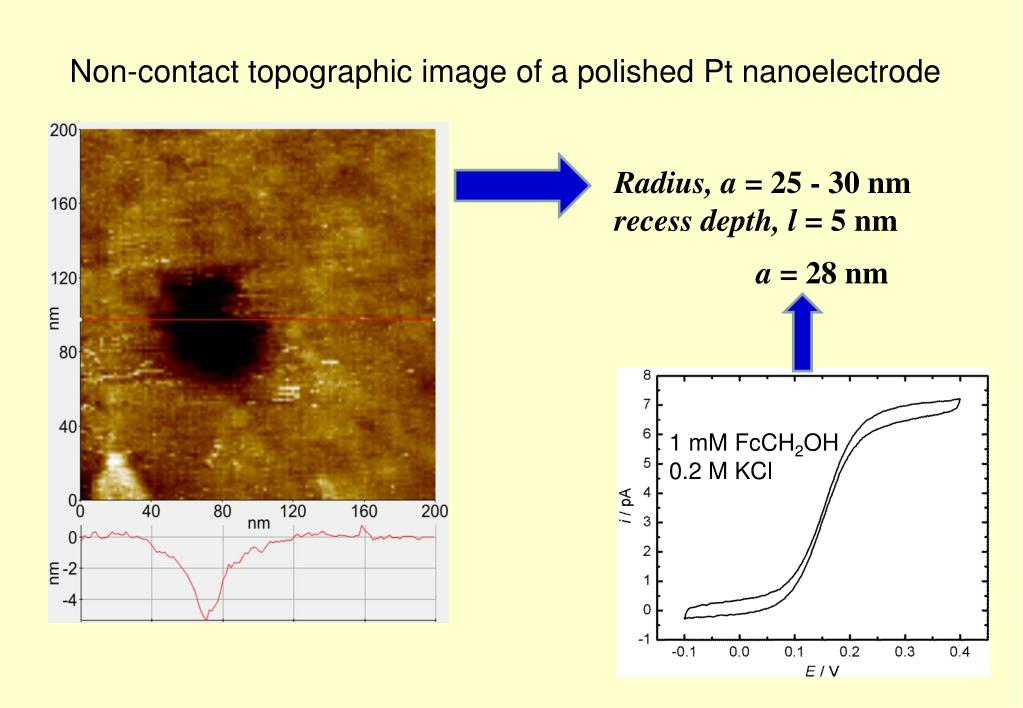

  2. Non-contact topographic image of a polished Pt nanoelectrode Radius, a= 25 - 30 nm recess depth, l = 5 nm a = 28 nm 1 mM FcCH2OH 0.2 M KCl
