Presentation Transcript
slide1

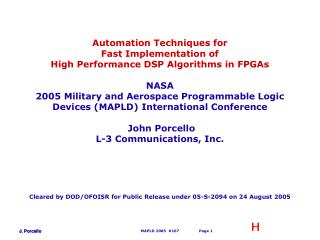

Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAsNASA2005 Military and Aerospace Programmable Logic Devices (MAPLD) International Conference John PorcelloL-3 Communications, Inc.Cleared by DOD/OFOISR for Public Release under 05-S-2094 on 24 August 2005

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs

Outline

  • Background
  • Automation Techniques
  • DSP Algorithm Design
  • HDL Coding and Synthesis
  • Timing & Placement
  • Hardware-In-The-Loop (HITL) Test and Verification
  • Case Study: Direct Digital Synthesizer (DDS) using Xilinx Virtex-4 XtremeDSP
  • Summary

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas1
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Background

Field Programmable Gate Arrays (FPGAs) are the leading implementation path for Reprogrammable, High Performance Digital Signal Processing (DSP) Applications. The performance advantage of FPGAs over Programmable DSPs is a driving factor for implementing DSP designs in an FPGA.

  • Using VHDL and Verilog Hardware Description Languages (HDL) is often a lengthy development path to implement a DSP design into an FPGA.
  • FPGA development tools are using HDL and non-HDL DSP Intellectual Property (IP) to reduce the design and implementation time. This concept and approach is successful at reducing the design and implementation cycle and increasing productivity in many applications.
  • However, High Performance DSP implementations using dedicated HDL still provide the greatest flexibility for implementing High Performance DSP Algorithms… WHY?

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas2
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Three (3) Reasons to use a dedicated HDL Implementation Path for a High Performance DSP Application

1) Control: Available IP can’t achieve required performance and functionality.

2) Complexity: Increasing DSP Algorithm Complexity requires unique tailoring for the application.

3) Components: FPGA architectures are increasing the number of dedicated components other than FPGA fabric (embedded multipliers, hard microprocessors, dedicated transceivers, application specific devices, etc). Low level control is required to maximize these components into a high performance design.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas3
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Major Advantages and Disadvantages using the HDL Implementation Path for High Performance DSP Applications
    • Low Level Control and flexibility to achieve required or specific performance (+)
    • Design, development and integration of various IP cores (+)
    • Source level control of DSP design (+)
    • Considerable design and implementation path relative to non-HDL implementation path (-)
    • Extensive Debug, Test and Verification Path (-)
  • Can we reduce or eliminate any of these disadvantages to improve productivity?

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas4
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • YES
  • The Objectives of Automation Techniques - Identify and apply methods useful for faster implementation of High Performance DSP Designs.
    • Reduce Design and Implementation Time
    • Perform Error Checking
    • Develop greater insight into successful high performance DSP Implementations by automating techniques
  • Specific focus areas to achieve objectives:
    • DSP Algorithm Design
    • HDL Coding and Synthesis
    • Timing & Placement
    • Hardware-In-The-Loop (HITL) Test and Verification

If one of these processes cannot meet required performance, it is often necessary to back up and apply techniques to collect data to study the problem.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas5
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Automation Techniques - Not a new concept. No single direct formula for applying them. Automation Techniques are a function of DSP design and FPGA implementation processes. Automation Techniques are a means to improve and refine these processes. A look at the overall design through to implementation is required. Automation Techniques are then developed to improve processes. Consider the following processes and goals:

ProcessGoal

DSP Algorithm Design Produce a DSP Algorithm structured for an FPGA (function).

HDL Coding and Synthesis Synthesizable DSP functions and

performance (implementation).

Timing & Placement DSP timing and interface performance (speed).

H/W-In-The-Loop (HITL) DSP numerical and interface performance

Test and Verification (accuracy, speed).

Automation Techniques can be applied to improve these processes.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas6
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Considerations for developing Automation Techniques

1) Technical: Automation Technique(s) are often required to go beyond the basics, and increase technical capabilities:

    • A substantial amount of data will be generated, tested or analyzed to quantify performance. This includes the DSP design (truth vectors) and FPGA testing (DUT).
    • Develop greater insight into DSP Design and FPGA Implementation.
    • Solve a specific problem. Current processes not effective.
    • Improve DSP Design and FPGA Implementation processes in terms

of efficiency and productivity.

2) Cost: Development of Automation Techniques easily provide a cost benefit for processing large amounts of data. Other techniques may require substantial Non-Recurring Engineering (NRE) to design, develop and implement. In these cases, Automation Techniques must provide substantial benefit to justify the NRE. Substantial effort to develop Automation Techniques for High Performance DSP Algorithms can often be applied when there is significant near-term benefit (current project) or long-term benefit (marketing new DSP algorithms with increased functionality and/or improved performance).

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas7
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • DSP Algorithm Design - The DSP Algorithm has the greatest impact on the implementation and performance.
    • Best practice matches the DSP Algorithm to the FPGA Architecture. Knowledge of target hardware architecture is important to reduce a DSP Algorithm to equivalent high performance functions within an FPGA.
    • The class of DSP Algorithm is significant (wide variation):
      • Filter, FFT, Multiply and Accumulate (MAC), Up/Down Converters
      • Carrier Recovery, Timing and Synchronization
      • Direct Digital Synthesizers (DDS), Waveform Generators
      • Systolic Arrays, Matrix Methods, Statistical DSP
      • Beam Forming, Image Processing
      • Wideband, High Speed Spectral Processing
    • Full parallel (unrolled, unfolded) implementations of iterative DSP Algorithms yield significant increase in performance at the expense of FPGA resources.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas8
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • DSP Algorithm Design- Systolic Array Design using the Xilinx Virtex-4 XtremeDSP Tile
    • Systolic Arrays are small, interconnected arrays of DSP Processing Elements (PEs). Very useful for many high performance DSP applications such as Digital Filters and Matrix Processing. Systolic arrays are typically full parallel structures processing one data sample per clock. Used in many VLSI designs, they can be 1-Dimensional or Multidimensional.
    • Systolic array can be mapped from DSP equations consisting of iterative algorithms that can be “unrolled” (Filters, FFTs, etc.) . Latency is higher since data flow is through each element. However, structures of this type may be implemented using FPGA fabric and/or dedicated FPGA components over high speed interconnects.

1D Systolic Array

Input

Output

Processing Element (PE)

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas9
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs

Processing Element (PE)

  • DSP Algorithm Design - Systolic Array Design using the Xilinx Virtex-4 XtremeDSP Tile (cont.)
    • FPGA Embedded Component:

Xilinx Virtex-4 XtremeDSP Tile

consists of two (2) DSP48 slices:

      • Dedicated, pipelined MULT,

Add/Subtract, ACC, MACC,

Shift, Divide, Square Root, etc.

      • High speed, dedicated interconnects

between DSP48 slices and to other

XtremeDSP tiles

      • Dynamically configurable functions

(via OPMODE)

      • Highest performance achieved

w/out FPGA fabric

1D Systolic Array

Ref. Xilinx XtremeDSP Design Considerations User Guide, Courtesy of Xilinx, Inc.

Input

Output

Processing Element (PE)

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas10
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • DSP Algorithm Design - Systolic Array Design using the Xilinx Virtex-4 XtremeDSP Tile (cont.)
    • 1 Dimensional Systolic Array:

FIR filter with constant coefficients, relatively easy

to manage design and implementation.

1D Systolic Array FIR Filter

with

1D Systolic Array – FIR Filter

Input

Output

Processing Element (PE)

Routing over dedicated, high speed interconnect

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas11
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • DSP Algorithm Design - Systolic Array Design using the Xilinx Virtex-4 XtremeDSP Tile (cont.)
    • 2 Dimensional Systolic Array: Increasing capabilities in DSP applications at the expense of increasing algorithm complexity.

2D Systolic Array N-Point FFT

2D Systolic Array – FFT

Routing over FPGA fabric

Input

with

Reduce to Even and Odd PEs:

Apply DSP Algorithm Automation

Techniques to manage complex DSP design, debugging, test

and validation.

Output

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas12
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • DSP Algorithm Design Automation Techniques
      • DSP Design Validation, Quantifying Required Algorithm Performance and Limitations: Automating tools and simulations to perform extensive end-to-end test, data reduction and analysis, and algorithm validation. Automated techniques are useful in DSP designs where algorithm confidence level over a broad performance range requires substantial baseline of test data. Techniques may utilize scripts or custom programs (MATLAB, C/C++, etc.) to verify algorithm numerical accuracy or maximum error, using simulated or actual test data. Methods used to validate a DSP algorithm are very important.
      • Testing and Debugging DSP Modular Functions: Automating generation of “truth” data or vectors for test and analysis of synthesizable DSP functional building blocks.
      • Algorithm Strength Reduction: Testing and evaluating alternate, equivalent DSP Algorithms and mathematically equivalent functions (symmetry, periodicity, transform reduction, etc.). Functions that will have a higher performance and/or consume fewer FPGA resources.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas13
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • HDL Coding and Synthesis
    • HDL Coding style directly impacts FPGA Implementation.
    • Good Coding techniques use HDL Coding Styles that support Scalable and Modular DSP designs (use of generics, VHDL generate, etc.). Important to tailor HDL coding to maximize Synthesis Tool.
    • Full Parallel implementations often require dividing up the DSP processing into small operations that can be performed during very short clock periods. This amounts to isolating functions or breaking up processing over several clock cycles at increased latency (and additional FPGA resources) to maintain throughput.
    • Maximize DSP processing onto high-speed interconnects for dedicated DSP components, such as the XtremeDSP tile, whenever possible.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas14
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • HDL Coding and Synthesis Automation Techniques
    • Autocoding Functions: Autocoding routines can be used to automatically implement (or change) HDL code:
      • Custom DSP Functions that must be divided up across several clock cycles to operate at maximum speed
      • Clocking Techniques, Positive and Negative Edge HDL implementations
      • Built-In-Test (BIT) Vector Generators / Vector Receivers: support debug, test and verification up to the system level. Place multiple BIT blocks at full throughput. Useful for debugging, analysis and insight into successful High Performance DSP Designs. Can be combined with HITL testing for performance verification.
    • HDL Converters: convert code (interpret code) from another language to Synthesizable HDL. Effective converter tools may be implemented for porting algorithms to FPGA platforms.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas15
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • HDL Coding and Synthesis Automation Techniques
    • Synthesis Profiling: Batch processing multiple Synthesis runs to obtain insight into the synthesis of a design:
      • Establish desired variations in an HDL design for analysis. Generate multiple versions or incrementally modify HDL parameters in the design via C/C++, script or equivalent code.
      • Batch process Synthesis Tool with synthesis constraints and obtain synthesis report. Batch processing via script or command line, refer to synthesis tool manual, such as the Xilinx Synthesis Technology (XST) User Guide for an XST design flow.
      • Extract desired performance parameters from the Synthesis Report via C/C++, script or equivalent code.

(continued next slide)

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas16
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • HDL Coding and Synthesis Automation Techniques
    • Synthesis Profiling: (continued)
      • Repeat process until sufficient information from multiple synthesis runs are collected.
      • Analyze the results of the multiple Synthesis runs. Profile the performance impact of parameters on the synthesis of the design.
      • Useful for profiling effect of DSP Design and HDL coding parameters on Synthesis, performing design tradeoffs, best-match analysis between DSP design and FPGA Implementation, and obtaining insight into successful High Performance DSP Designs.
      • Combine with Timing and Placement Profiling for analyzing the entire FPGA implementation flow. FPGA Implementation Tools are usually well suited for command line processing of the entire implementation flow (example: Xilinx XFLOW).

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas17
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Timing and Placement
    • Timing and Placement constraints direct the FPGA implementation tools and control the maximum speed and placement of the design. These constraints will directly impact many important performance criteria such as design margin, DSP throughput, pin placement, and data I/O.
    • Effective methods exist such as the use of Relationally Placed Macros (RPMs) to create instances of specific DSP functions and direct their placement within the FPGA.
    • Timing Analysis reveals details of the speed of a given implementation and design margin against performance requirements. The Timing Analysis must be carefully interpreted to draw conclusions and identify where recoding and/or change to synthesis, timing and placement constraints is necessary.
    • Timing Analysis also reveals which functions within the DSP algorithm are the issue and may not be achievable given fixed resources (FPGA type) and performance requirements. This indicates that a fundamental change in the DSP function or HDL coding is required.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas18
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Timing and Placement (cont.)
    • High Performance DSP designs often require considerable attention to the data I/O for signal processing, in addition to the internal functionality of the algorithm.
    • Successful High Performance DSP designs carefully match DSP functionality to high speed I/O lines. Interfacing the FPGA to other high performance components has to remain a consideration through design and implementation.
    • Timing and Placement will take a substantial amount of time for large DSP implementations. Most tools are capable of running at the command line, which supports batch processing.
    • Many timing and placement constraints are available for FPGA implementation. Careful interpretation and selection of timing and placement constraints is required.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas19
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Timing and Placement Automation Techniques
    • Timing and Placement Profiling: Same as Synthesis Profiling with a few additional notes:
      • Establish desired variations to constraints and/or pin placement of the design. Profile timing and placement constraints against a single synthesized design. Profiling a single set of constraints against multiple designs amounts to processing entire flow for different designs.
      • Batch process Translation, Mapping and Place & Route Tools with timing and placement constraints and obtain performance parameters. Use C/C++, script or equivalent code used to extract desired performance parameters from these reports.
      • Repeat process until sufficient information from multiple runs are collected.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas20
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Timing and Placement Automation Techniques
    • Timing and Placement Profiling: (continued)
      • Analyze and Interpret the results of multiple runs. Timing reports are available after the MAP and PAR processes.
      • Profile timing and placement constraints only when multiple runs will provide insight into performance. Such as being combined with synthesis profiling over the entire implementation flow.
      • Using timing analysis tools is a better approach than timing and placement profiling for debugging a single implementation that does not meet timing.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas21
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Hardware-In-The-Loop (HITL) Test and Verification
    • HITL: Direct Input and/or Output through one or more interfaces with the FPGA:
      • Analog-To-Digital Converter (ADC)
      • Digital-To-Analog Converter (DAC)
      • On Chip Debugger (Dedicated IP cores for data capture and transfer via JTAG, local bus, I/O pins)
      • Logic Analyzer interface to pins
    • HITL is a real-time test configuration. HITL provides a significant advantage in terms of incremental design, test and verification:
      • Real-Time “Divide-and-Conquer” Debugging and Test of modules and subsystems
      • Inject and/or transmit real-time signals (interface testing)
      • Event and anomaly capture
      • Practical Performance Benchmarking, HITL used as a

True Measure-Of-Performance

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas22
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Hardware-In-The-Loop (HITL) Test and Verification Automation Techniques
    • HITL Automation Techniques are used to automate generating, collecting and processing large amounts of test data. This supports design validation, on-chip debugging, test and verification
      • Test Equipment: Utilize COTS and/or custom automation software to control test instruments and inject input or store/analyze output. Supports interface and end-to-end testing
      • HITL Data Reduction and Analysis: Collection and batch processing of large amounts of HITL data
      • HITL Generated Performance Curves: Useful for quantifying actual performance data (Threshold Sensitivity, Frequency Stability, Error, etc.), compare to theoretical for design insight

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas23
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Case Study - Direct Digital Synthesizer (DDS) using Xilinx Virtex-4 XtremeDSP
    • Objective: High Speed, High Resolution Multimode DDS for
      • Communications, Radar, Navigation, Tracking
      • SIGINT, ELINT
      • High Speed Spectral Processing
      • Software Defined Radio (SDR)
      • EW, ECM, Self-Protection Jamming
    • Performance: (Algorithm & FPGA Only – Pre DAC)
      • Frequency Resolution: < 1 Hz
      • Frequency Tuning Speed: < 1 uSec
      • Spurious: < -100 dBc
      • Harmonics: < -100 dBc
      • Maximum Clock Speed: > 200 MHz

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas24
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Case Study - DDS using Xilinx Virtex-4 XtremeDSP

DDS Block Diagram

(I) Inphase

Phase

Per CLK

Phase

Accumulate

DDS

Transform

(Q) Quadrature

FM

Mod

PM

Mod

AM

Mod

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas25
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Case Study - DDS using Xilinx Virtex-4 XtremeDSP

Automation Technique:

DSP Algorithm Verification and Analysis Tools

DDS Block Diagram

(I) Inphase

Phase

Per CLK

Phase

Accumulate

DDS

Transform

(Q) Quadrature

FM

Mod

PM

Mod

AM

Mod

Automation Technique:

HDL Coding and Synthesis – One time handcrafting required to meet performance. Now that a solution is verified, a scalable Autocoding function will be developed to implement this solution into the next High Performance DSP design

Note: Although Timing & Placement was important and required adjustment, no Automation Techniques were necessary to meet Performance Requirements

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas26
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Case Study - DDS using Xilinx Virtex-4 XtremeDSP

DDS Output Power Spectrum:

Automation Technique:

HITL Debugging, Testing, Performance Analysis and Verification

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas27
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs

Automation Technique:

DSP Analysis and HITL Performance Analysis provides insight into this design. This class of DDS capable of faster frequency tuning speed, higher frequency resolution, and clock speed greater than 300 MHz using Register Balancing and Double Data Rate (DDR) techniques.

  • Case Study - DDS using Xilinx Virtex-4 XtremeDSP

DDS Spectrogram:

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas28
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Summary
  • Automation Techniques can be applied to improve DSP design and FPGA implementation processes. Automation Techniques are a means to shorten development time, improve efficiency and manage substantial design, debugging, test and verification efforts. There is no direct formula for applying them. Examine the DSP design techniques, FPGA implementation flow and tools used for a project. Do not blindly apply automation techniques. Look for processes where a benefit can be realized by applying Automation Techniques. Refer to the Summary of Automation Techniques matrix, or create new techniques to meet requirements.
  • Objectives of Automation Techniques:
    • Reduce Design and Implementation Time
    • Perform Error Checking
    • Develop greater insight into successful high performance DSP Implementations by automating techniques

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas29
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Summary (cont.)
  • Specific focus areas to achieve objectives:
    • DSP Algorithm Design
    • HDL Coding and Synthesis
    • Timing & Placement
    • Hardware-In-The-Loop (HITL) Test and Verification
  • Automation Techniques may be required to go beyond basic DSP design and FPGA implementation. Development of Automation Techniques easily provide a cost benefit for processing large amounts of data. Other Automation Techniques may require substantial NRE. For these cases, techniques must provide substantial benefit to the design and implementation process.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas30
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Summary (cont.)
  • Designing effective Automation Techniques for High Performance DSP Implementations requires understanding of DSP Design and FPGA Implementation Tools.
  • Automation Techniques can be used to profile Synthesis, Timing and Placement of FPGA Implementations. Careful interpretation of this data is required.
  • Automation Techniques can be used for High Performance DSP Designs that require substantial amounts of data, test, analysis and verification.

MAPLD 2005 #167

automation techniques for fast implementation of high performance dsp algorithms in fpgas31
Automation Techniques for Fast Implementation of High Performance DSP Algorithms in FPGAs
  • Summary (cont.)

Summary of Automation Techniques

MAPLD 2005 #167
