Presentation Transcript
dana levine maritza ruiz le n liu daniel talanc n esteban mendoza
Dana Levine

Maritza Ruiz

León Liu

Daniel Talancón

Esteban Mendoza

Stove Improvement

summary of research
Summary of Research
  • Video of stove in use
  • Most stoves are not enclosed
  • Biggest complaint about current stoves
    • Smoke
  • Those interviewed are aware of the health risks associated with smoke
  • They would be willing to modify their stoves
  • $37 US per month in wood
design motivation
Design Motivation
  • Reduce smoke emission
    • More fully enclose the combustion chamber
    • Utilize existing ventilation
      • chimney
  • Reduce smoke production
    • More efficient combustion
      • Better air flow
    • www.youtube.com/watch?v=A7EWQMnNGt0
refined engineering specs

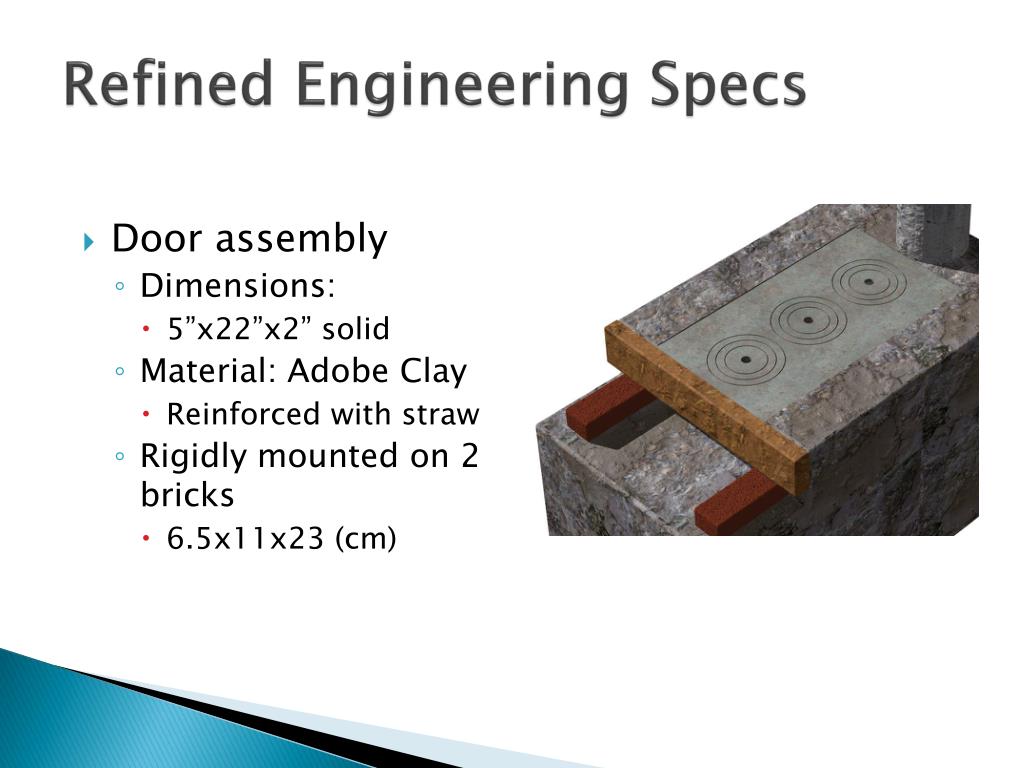

Refined Engineering Specs
  • Door assembly
    • Dimensions:
      • 5”x22”x2” solid
    • Material: Adobe Clay
      • Reinforced with straw
    • Rigidly mounted on 2 bricks
      • 6.5x11x23 (cm)

Figure showing

Primary air intake

And door assembly

refined engineering specs5
Refined Engineering Specs
  • Pipe Assembly
    • Dimensions of each U-bent pipe
    • 1” dia. x 66” long
    • top-half perforated with 1/8” holes
    • 2 U-pipes are bound together with wire
      • Allow for different stove sizes

Figure with semi-


U-bent pipes

physical interactions
Physical Interactions
  • User Interactions
    • Pipes removable for cleaning
      • Hose or Brush
    • Door is easy to move
      • Bricks do not get hot (material)
      • Can rest on back for loading
      • Can be tilted forward to check fire
      • Can be removed entirely for pipe removal/stove cleaning
  • Stove Interactions
    • Geometric Considerations
functional interactions
Functional Interactions
  • Door (Integral)
    • Blocks bears the load of the door (cemented on)
    • Blocks elevate door
    • Door blocks smoke from entering room
    • Elevated door allows for primary air to reach flames
    • Interaction between door and pipes
      • Provides increased smoke concentration
      • Retains heat to increase chamber temperature
      • Elevated bricks allow for pipes to be exposed to air
functional interactions cont d
Functional Interactions (cont’d)
  • Secondary Air Intake (Integral)
    • Oxygen deficiency in combustion chamber creates a current of air being sucked into the stove
    • Heat from fire warms air
    • Perforated tubes release warmed oxygen into combustion chamber
    • Increased smoke concentration and higher chamber temperature ignites smoke near perforated tubes
    • This improves the efficiency of burning
      • Results in less wasted fuel
prototype development and testing
Prototype Development and Testing
  • Development
    • Examine choice of door
      • Material, dimensions, and handle placement
    • Assess efficacy of secondary combustion system
      • Vary the number and arrangement of U-tubes
  • Testing
    • Use a surrogate stove to measure:
      • Qualitative decrease in smoke production
      • Quantitative increase in efficiency
  • Based on results, we will select our final design
key business goals manufacturing
Key Business Goals:Manufacturing
  • Independent production of door assembly and metal tube assembly
    • Determine cost of raw materials
      • Bulk discount?
  • Establish partnership with laborers/artisans for production
    • Fix wages for laborers
    • Secure a place for storage of finished products
  • Factor cost of transporting raw and finished goods
key business goals marketing
Key Business Goals: Marketing
  • Select representative for selling our product
    • local hardware store
    • independent vendor
  • Offer of demonstrations
    • Decide whether vendor will help with installation
    • Assess effect on price vs. likelihood of consumer purchasing
  • Choose sales strategy
    • Sell product as a package (with replacements)
    • Establish prices
      • Distinguish vendor’s price with final consumer price
key business goals sustainability
Key Business Goals: Sustainability
  • Expand business model to accommodate other local villages
    • E.g. Hardware store services several communities
  • Encourage households to keep track of wood consumption
    • Identify how much money/wood is saved with use of product
  • Promote maintenance of product
    • Tips or accessories for cleaning
    • Replacement parts
proposed business plan
Proposed Business Plan
  • Partner with central hardware stores
    • Provide services to multiple villages
  • Supply stove improvement kits
    • With replacement parts
  • Hardware stores install and maintain stove modifications
  • Technical
    • Design Constraints for Prototypes
      • Door: requires heat resistant, durable and light weight material.
      • Secondary Combustion System: requires flexible and environmentally stable tubing.
      • Maximize safety, comfort and ease of use and maintenance.
    • Performance Uncertainties to be Tested
      • Door: might not effectively insulate heat and smoke without a tight seal.
      • Secondary Combustion System: might not produce the desired effects due to design constraints.
      • Minimize negative overlap between subsystems.
challenges cont d

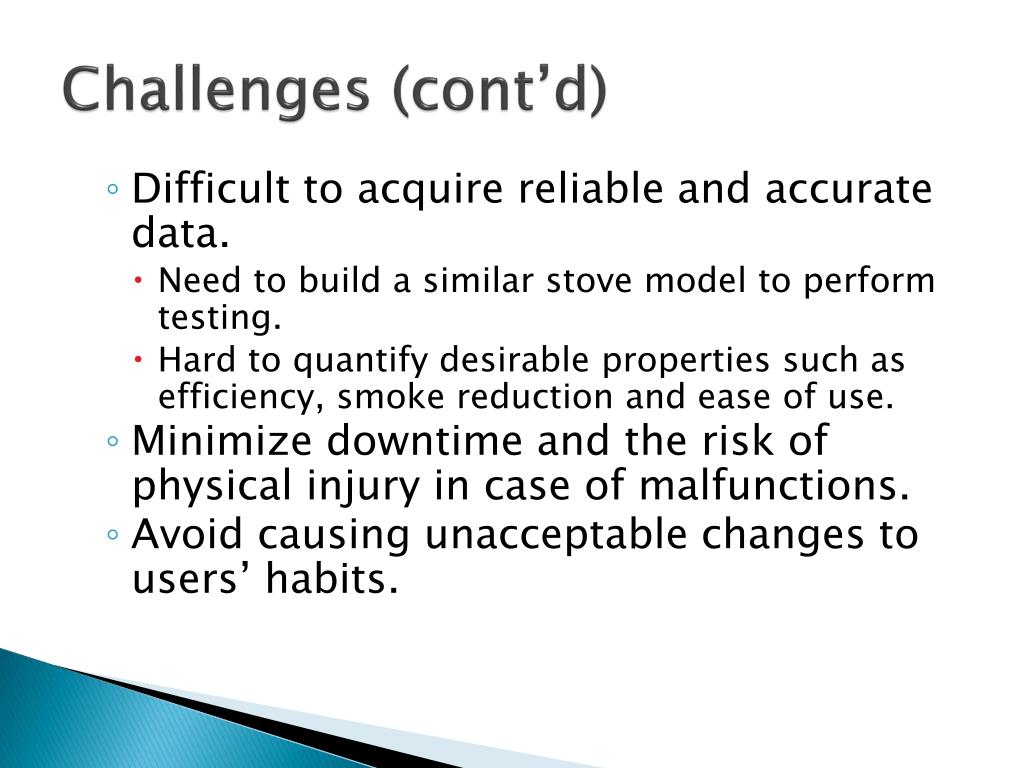

Challenges (cont’d)
  • Difficult to acquire reliable and accurate data.
    • Need to build a similar stove model to perform testing.
    • Hard to quantify desirable properties such as efficiency, smoke reduction and ease of use.
  • Minimize downtime and the risk of physical injury in case of malfunctions.
  • Avoid causing unacceptable changes to users’ habits.
challenges cont d16
Challenges (cont’d)
  • Financial
    • Performance vs. cost tradeoff
      • Door material
      • Quality and quantity of secondary air tubing.
      • Simplicity vs. effectiveness of specs.
    • Economy of scale
    • Minimizing overhead and maximizing value to producers.
    • Possible need for sponsorship and subsidy.
challenges cont d17

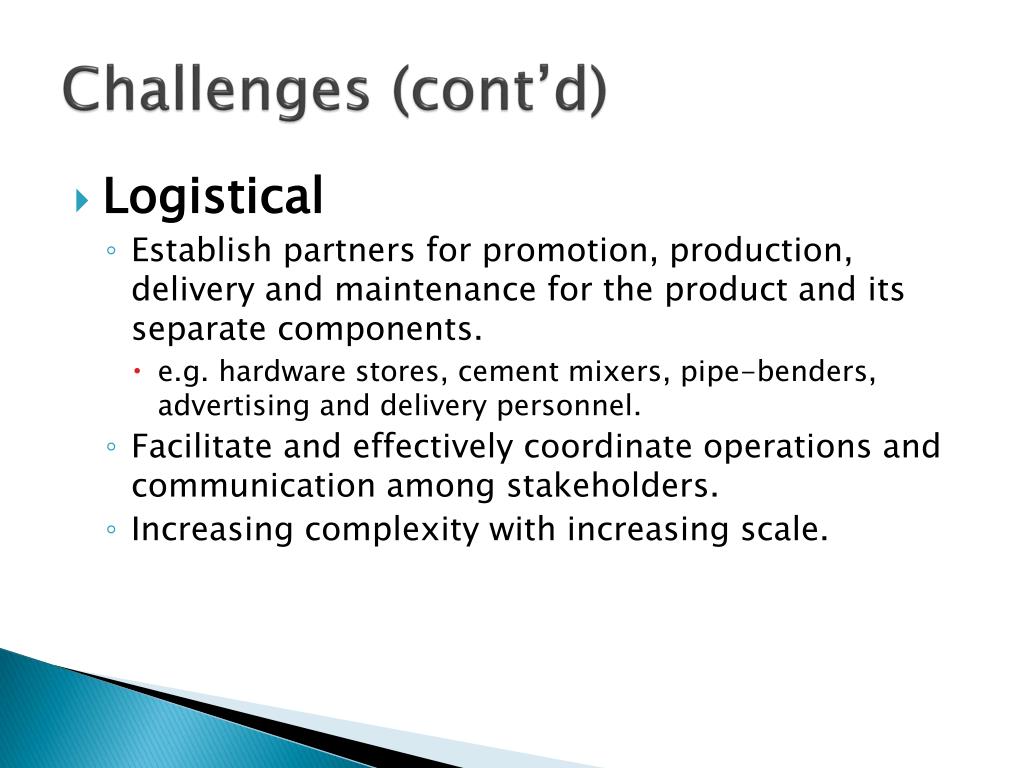

Challenges (cont’d)
  • Logistical
    • Establish partners for promotion, production, delivery and maintenance for the product and its separate components.
      • e.g. hardware stores, cement mixers, pipe-benders, advertising and delivery personnel.
    • Facilitate and effectively coordinate operations and communication among stakeholders.
    • Increasing complexity with increasing scale.
address the challenges
Address the Challenges
  • Perform more research
    • Contact hardware store with questions
    • Contact cement mason in Pasajquim
    • Contact adobe mason near TPS
  • Test and Analyze Data
    • Build a stove
  • Iterate Development
    • Build a prototype
      • Learn to use adobe
    • Learn and Repeat
  • Used the teamwork rating form from Jeff Kranski
    • Everyone was satisfied with the load distribution
      • Equal work
      • Clear jobs
    • Punctuality can be improved (all guilty)
      • Busy schedules
