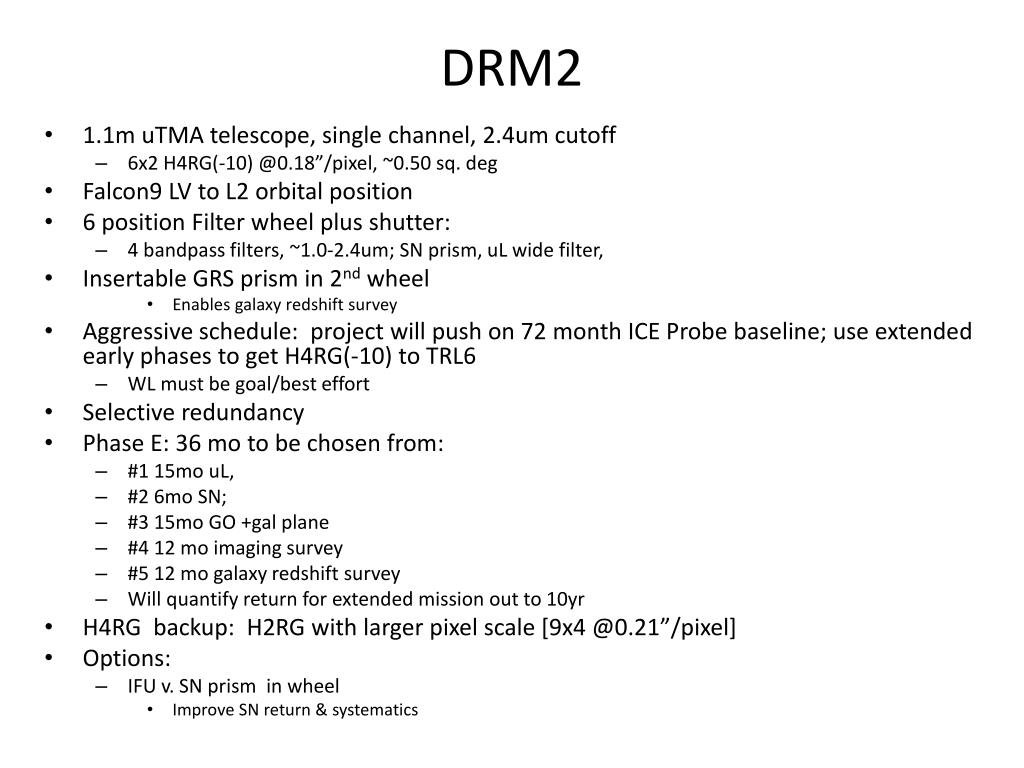

slide1
DRM2
  • 1.1m uTMA telescope, single channel, 2.4um cutoff
    • 6x2 H4RG(-10) @0.18”/pixel, ~0.50 sq. deg
  • Falcon9 LV to L2 orbital position
  • 6 position Filter wheel plus shutter:
    • 4 bandpass filters, ~1.0-2.4um; SN prism, uL wide filter,
  • Insertable GRS prism in 2nd wheel
      • Enables galaxy redshift survey
  • Aggressive schedule: project will push on 72 month ICE Probe baseline; use extended early phases to get H4RG(-10) to TRL6
    • WL must be goal/best effort
  • Selective redundancy
  • Phase E: 36 mo to be chosen from:
    • #1 15mo uL,
    • #2 6mo SN;
    • #3 15mo GO +gal plane
    • #4 12 mo imaging survey
    • #5 12 mo galaxy redshift survey
    • Will quantify return for extended mission out to 10yr
  • H4RG backup: H2RG with larger pixel scale [9x4 @0.21”/pixel]
  • Options:
    • IFU v. SN prism in wheel
      • Improve SN return & systematics
