  1. 东海的HK石墨材料

  2. 东海碳素的放电加工用石墨材料 Tokai Confidential

  3. 电极材料选定 Tokai Confidential

  4. HK0 HK1 HK15 普遍使用 用途：较大的加工面，粗加工最适合。例、鍛造用模具 SURFACE FINISHES OF (6.3mm, 250minch, 36vdi) 普遍使用 用途：塑料模具的粗加工、鍛造用模具的精加工 SURFACE FINISHES OF (3.2mm, 125minch, 30vdi) HK2 高性能 用途：低消耗和加工速度都有要求 SURFACE FINISHES OF (2.2mm, 88minch, 27vdi) HK75 高性能 用途：低消耗和高精度，较高要求的精加工。 SURFACE FINISHES OF (1.6mm, 63minch, 24vdi) 高精密 用途：非常高要求精加工，低消耗的边角 精密塑料模具 SURFACE FINISHES OF (1mm, 40minch, 20vdi) HK3 超精密 用途：最高級的精度和边角部分的低消耗、还有微細加工特性 超精密加工最合适的材料 SURFACE FINISHES OF (0.63mm, 25.2minch, 16vdi) 各种用途 Tokai Confidential

  5. SURFACE FINISHES OF (6.3mm, 250minch, 36vdi) Average grain size 13μm HK-0汽车引擎部件 Tokai Confidential

  6. 汽车门拉手 汽车内饰件 Average grain size 11μm HK-1 • SURFACE FINISHES OF (3.2mm, 125minch, 30vdi) Tokai Confidential

  7. SURFACE FINISHES OF (2.2mm, 88minch, 27vdi) Average grain size ７μm HK-15汽车后视镜 Tokai Confidential

  8. SURFACE FINISHES OF (1.6mm, 63minch, 24vdi) Average grain size ７μm HK-2汽车前挡风板 Tokai Confidential

  9. HK-75喇叭网 SURFACE FINISHES OF (1mm, 40minch, 20vdi) Average grain size 4μm Tokai Confidential

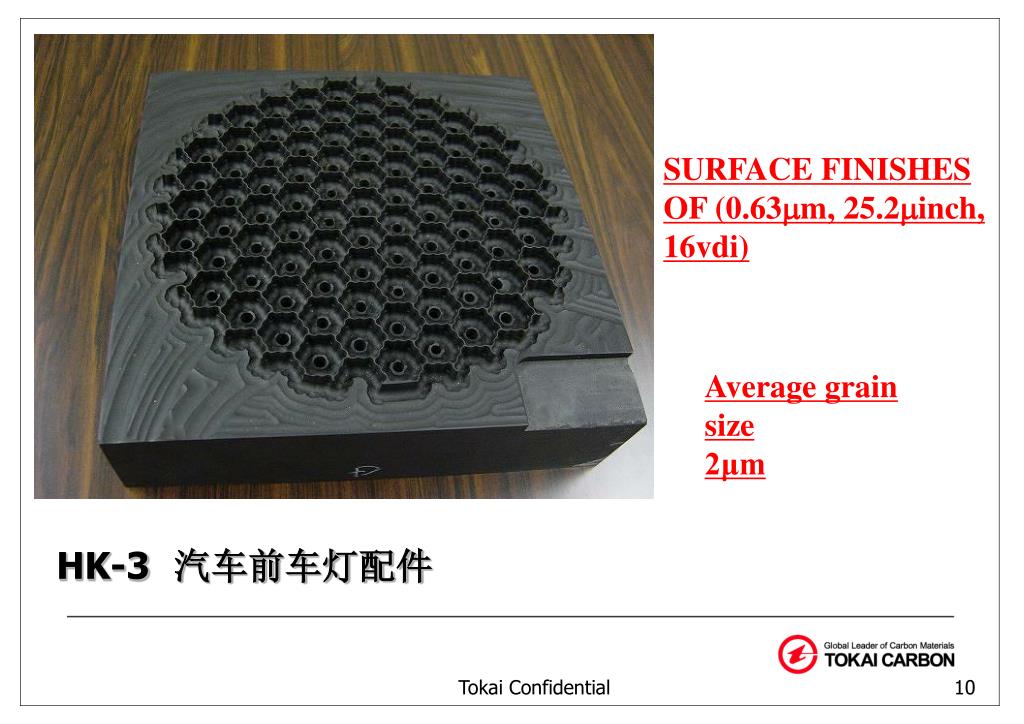

  10. SURFACE FINISHES OF (0.63mm, 25.2minch, 16vdi) Average grain size 2μm HK-3汽车前车灯配件 Tokai Confidential

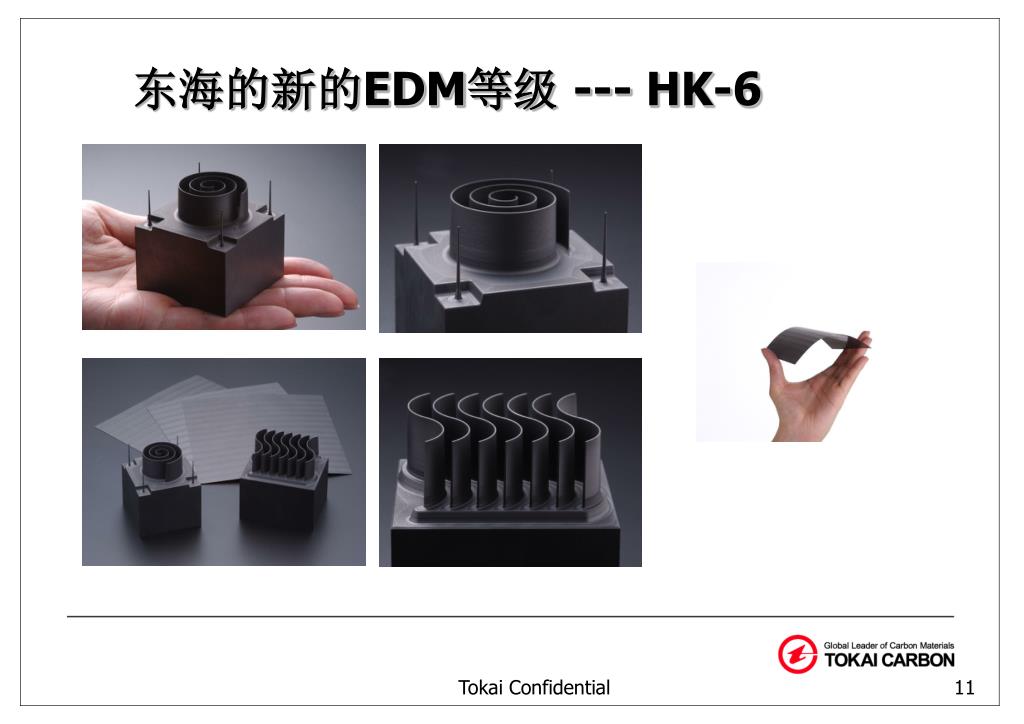

  11. 东海的新的EDM等级 --- HK-6 Tokai Confidential

  12. HK-6 Specifications 16(VDI) Ra=0.63μm Rmax=5μm HK-3 1.84 15.5 88 78 2 Tokai Confidential
