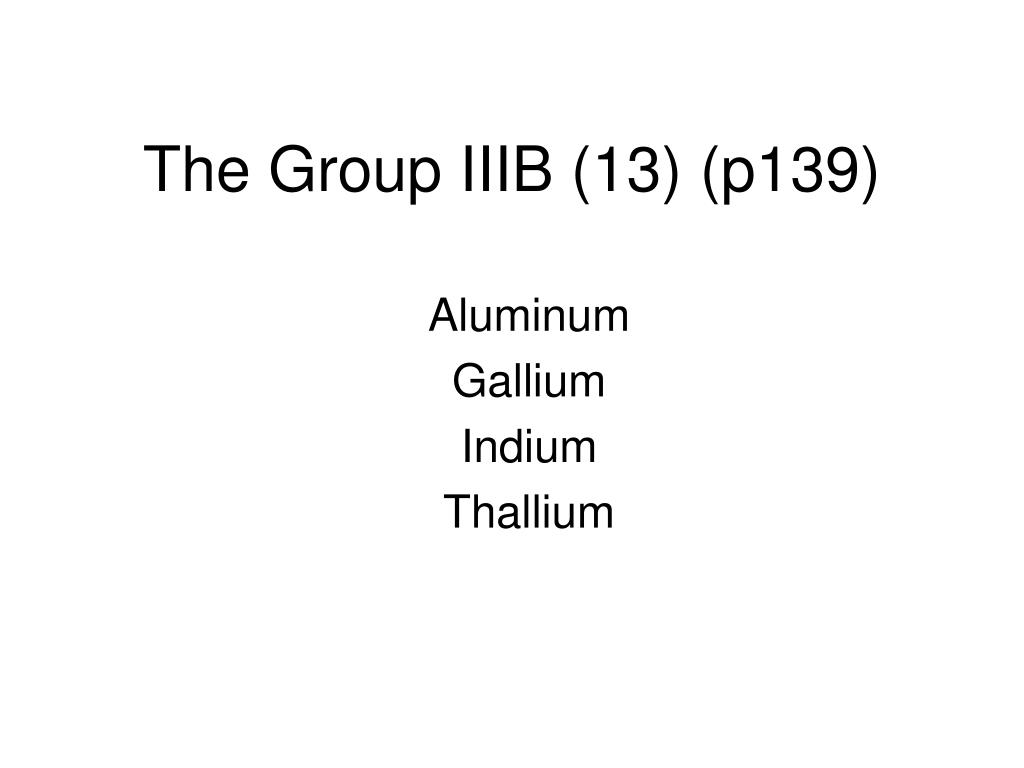

  1. The Group IIIB (13) (p139) Aluminum Gallium Indium Thallium

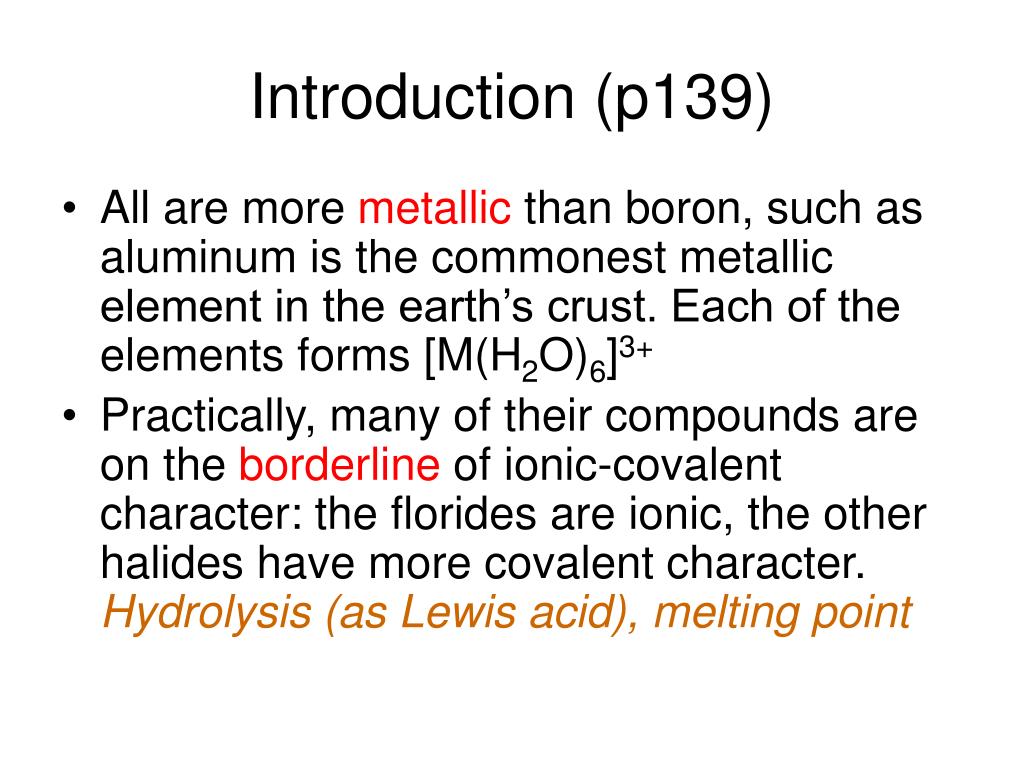

  2. Introduction (p139) • All are more metallic than boron, such as aluminum is the commonest metallic element in the earth’s crust. Each of the elements forms [M(H2O)6]3+ • Practically, many of their compounds are on the borderline of ionic-covalent character: the florides are ionic, the other halides have more covalent character. Hydrolysis (as Lewis acid), melting point

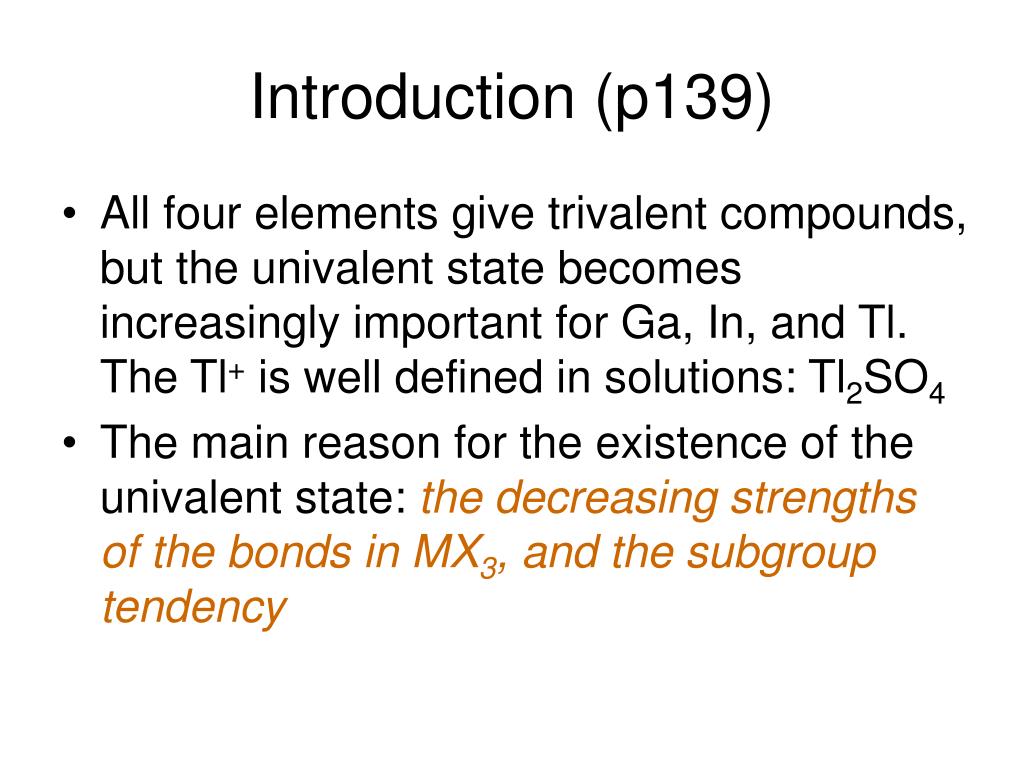

  3. Introduction (p139) • All four elements give trivalent compounds, but the univalent state becomes increasingly important for Ga, In, and Tl. The Tl+ is well defined in solutions: Tl2SO4 • The main reason for the existence of the univalent state: the decreasing strengths of the bonds in MX3, and the subgroup tendency

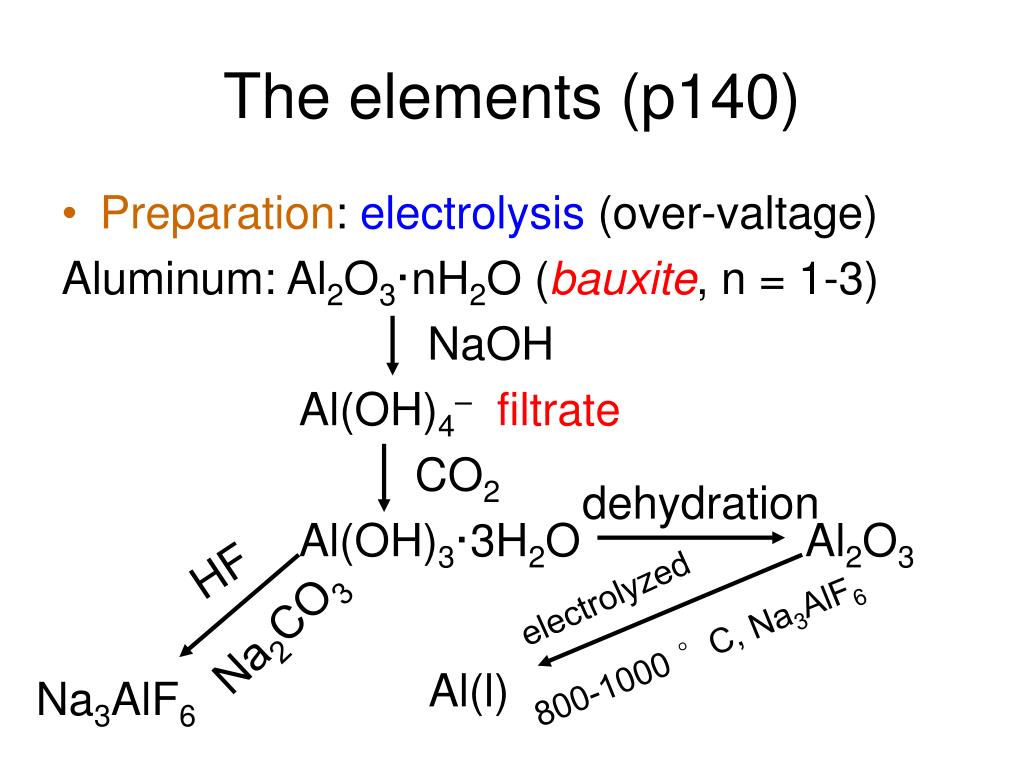

  4. The elements (p140) • Preparation: electrolysis (over-valtage) Aluminum: Al2O3·nH2O (bauxite, n = 1-3) NaOH Al(OH)4–filtrate CO2 Al(OH)3·3H2O Al2O3 dehydration HF electrolyzed Na2CO3 800-1000 °C, Na3AlF6 Al(l) Na3AlF6

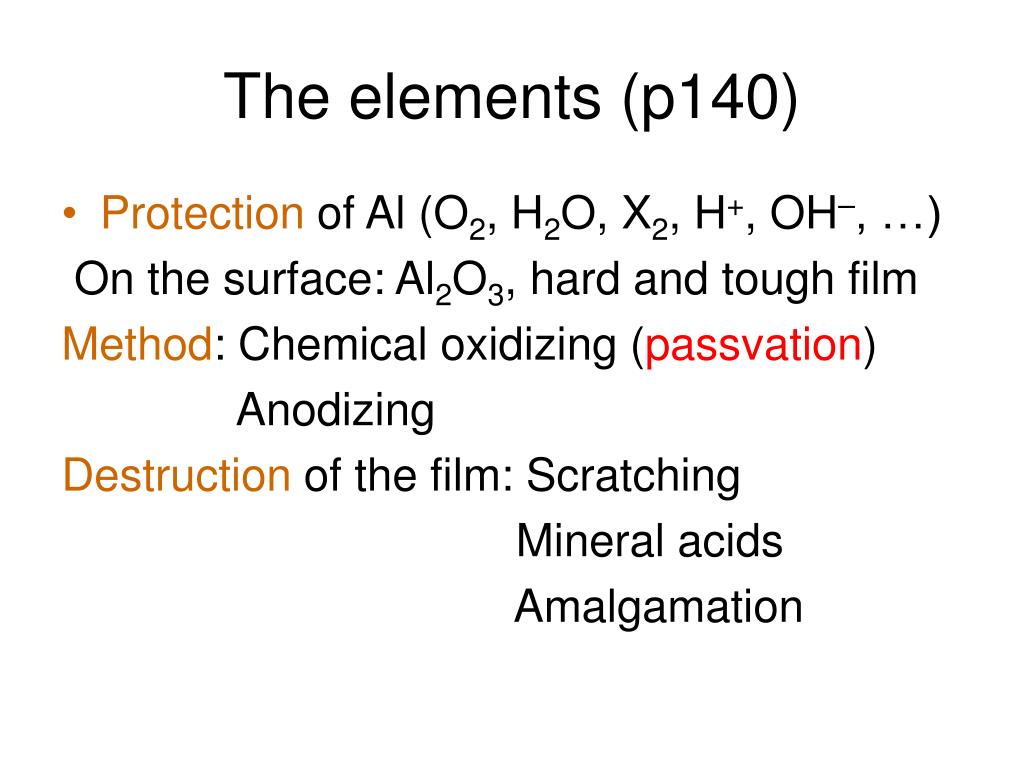

  5. The elements (p140) • Protection of Al (O2, H2O, X2, H+, OH–, …) On the surface: Al2O3, hard and tough film Method: Chemical oxidizing (passvation) Anodizing Destruction of the film: Scratching Mineral acids Amalgamation

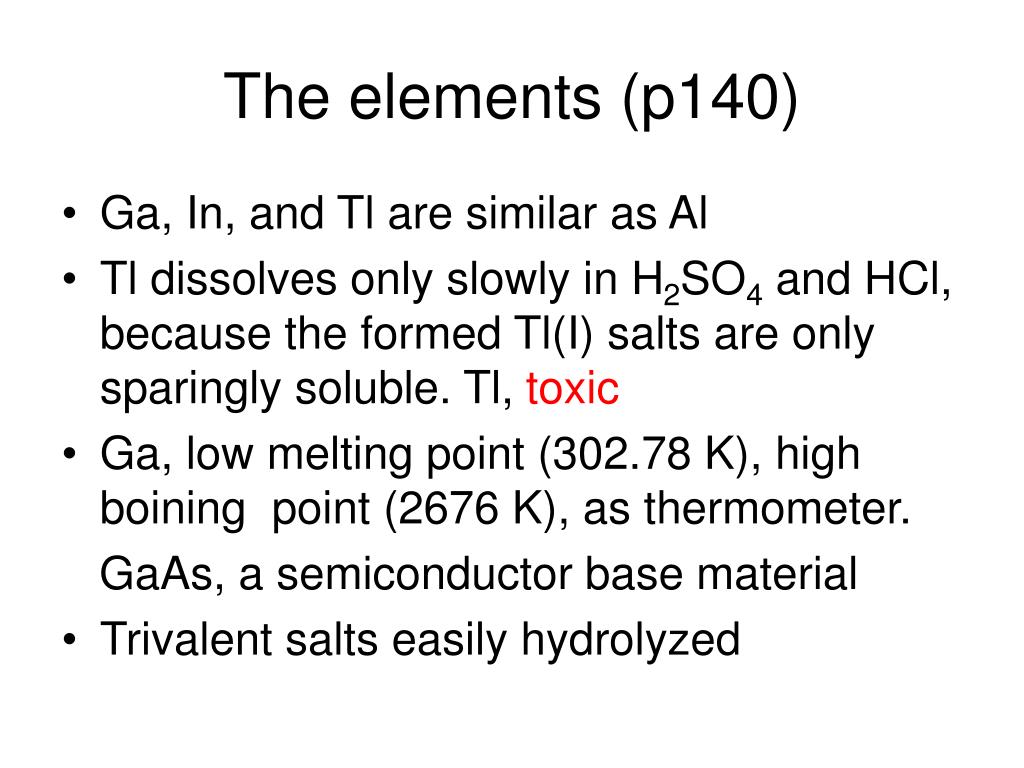

  6. The elements (p140) • Ga, In, and Tl are similar as Al • Tl dissolves only slowly in H2SO4 and HCl, because the formed Tl(I) salts are only sparingly soluble. Tl, toxic • Ga, low melting point (302.78 K), high boining point (2676 K), as thermometer. GaAs, a semiconductor base material • Trivalent salts easily hydrolyzed

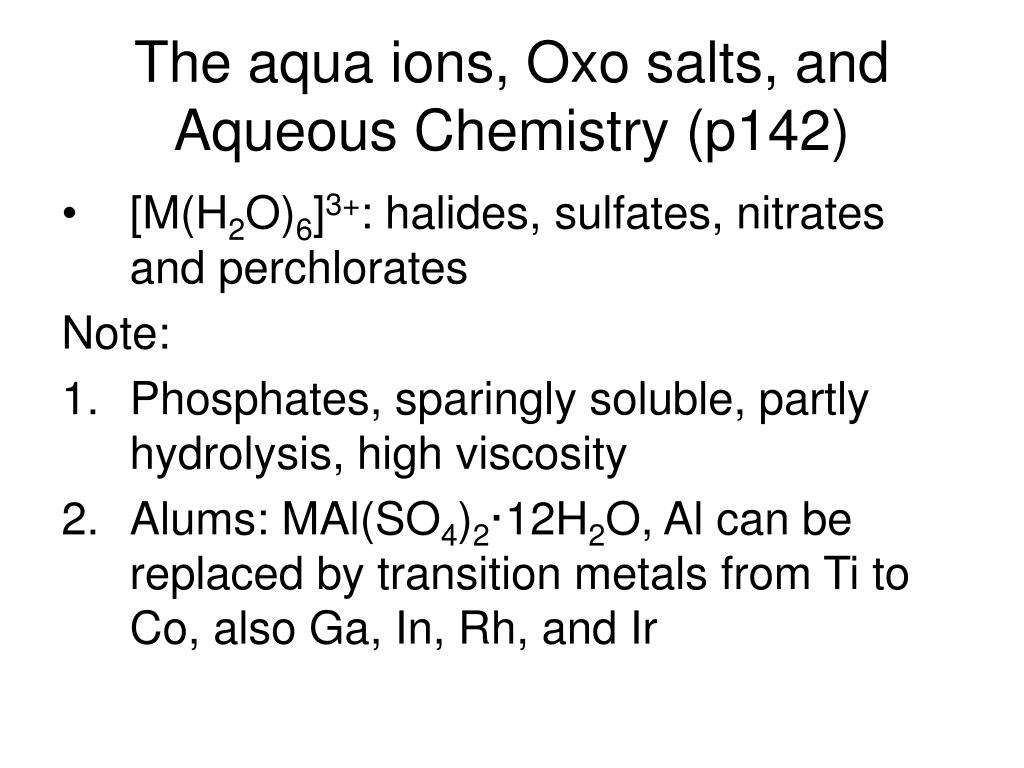

  7. The aqua ions, Oxo salts, and Aqueous Chemistry (p142) • [M(H2O)6]3+: halides, sulfates, nitrates and perchlorates Note: • Phosphates, sparingly soluble, partly hydrolysis, high viscosity • Alums: MAl(SO4)2·12H2O, Al can be replaced by transition metals from Ti to Co, also Ga, In, Rh, and Ir

  8. The aqua ions, Oxo salts, and Aqueous Chemistry (p142) • Hydrolysis of [M(H2O)6]3+: Ka1 in the order: Al (The smallest) < Ga > In < Tl (The largest), 1.12E-5 to 7E-2 Salts of strong acids: extensive hydrolysis Salts of weak acids: can’t exist in contact with water

  9. The aqua ions, Oxo salts, and Aqueous Chemistry (p143) • Hydroxides of Aluminum and Gallium are amphoteric, while those of Indium and Thallium are purely basic. • Polymerization: [Alm(OH)nOx]3m– n – 2x • pH 8 ~ 12: OH bridged polymer, Octahedral Al pH > 13, C < 1.5 M: tetrahedral Al(OH)4– pH > 13, C > 1.5 M: [(HO)3AlOAl(OH)3]2–

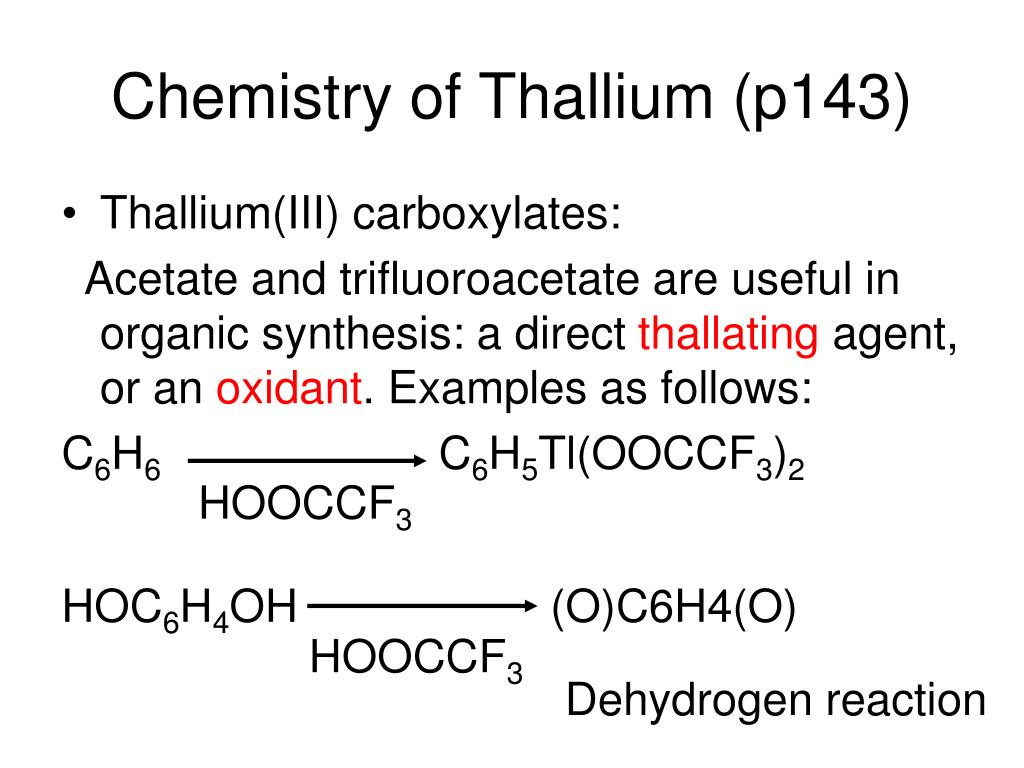

  10. Chemistry of Thallium (p143) • Thallium(III) carboxylates: Acetate and trifluoroacetate are useful in organic synthesis: a direct thallating agent, or an oxidant. Examples as follows: C6H6 C6H5Tl(OOCCF3)2 HOC6H4OH (O)C6H4(O) HOOCCF3 HOOCCF3 Dehydrogen reaction

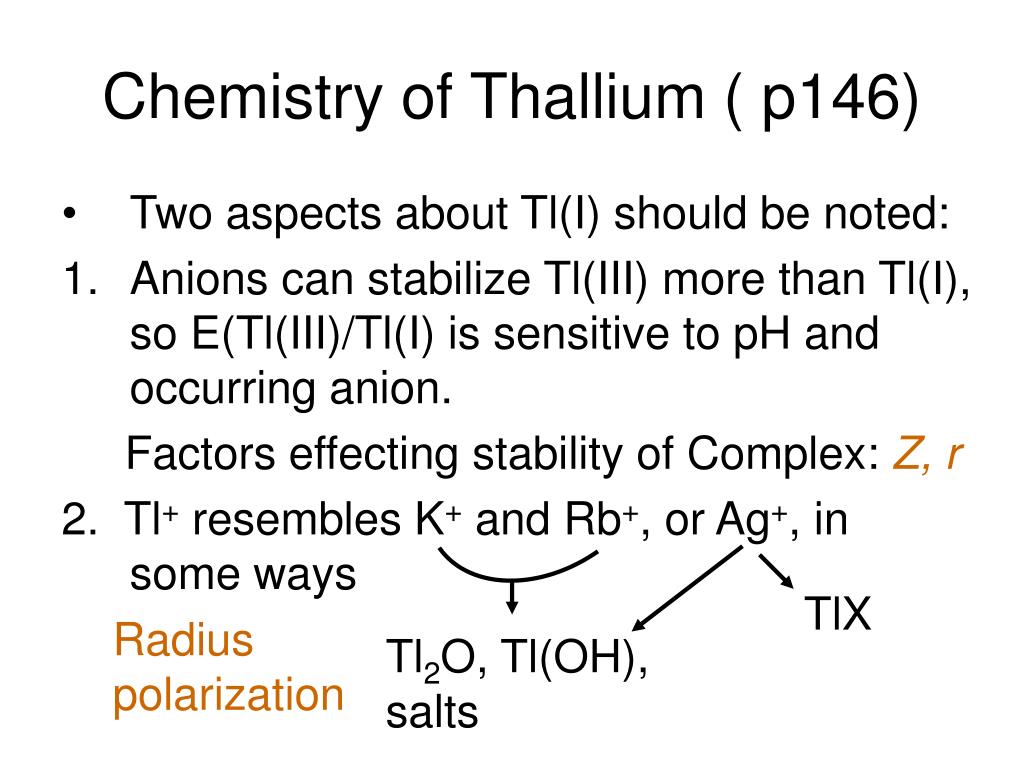

  11. Chemistry of Thallium ( p146) • Two aspects about Tl(I) should be noted: • Anions can stabilize Tl(III) more than Tl(I), so E(Tl(III)/Tl(I) is sensitive to pH and occurring anion. Factors effecting stability of Complex: Z, r 2. Tl+ resembles K+ and Rb+, or Ag+, in some ways TlX Radius polarization Tl2O, Tl(OH), salts

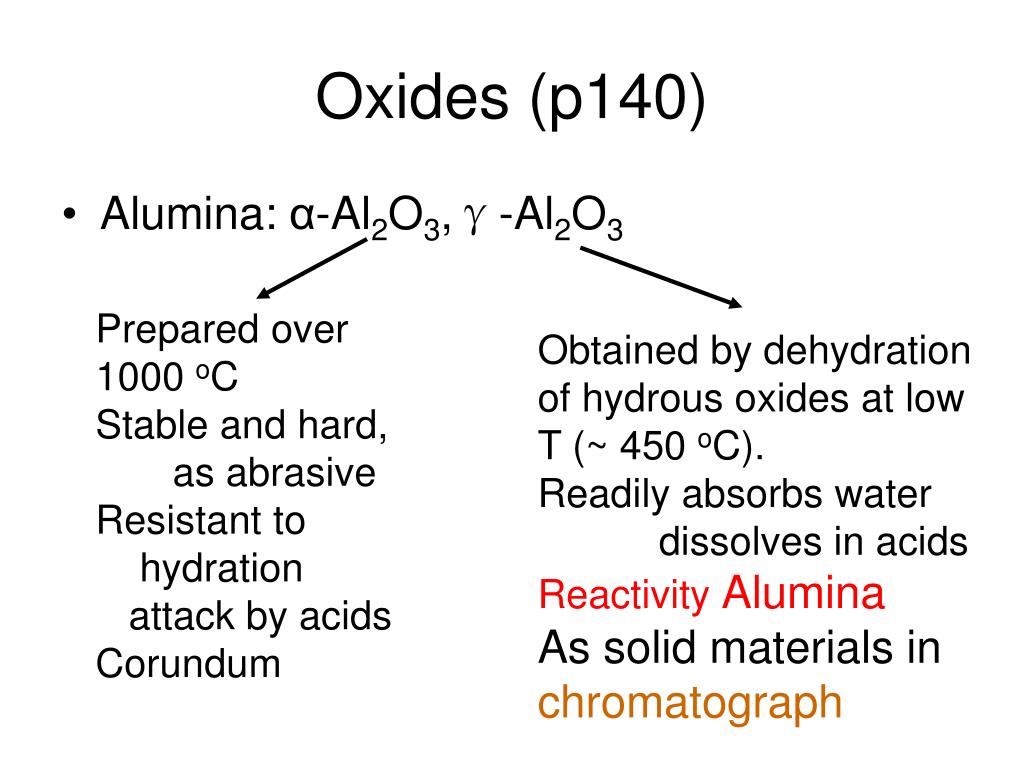

  12. Oxides (p140) • Alumina: α-Al2O3,γ-Al2O3 Prepared over 1000 oC Stable and hard, as abrasive Resistant to hydration attack by acids Corundum Obtained by dehydration of hydrous oxides at low T (~ 450 oC). Readily absorbs water dissolves in acids Reactivity Alumina As solid materials in chromatograph

  13. Oxides (p140) NH3·H2O Al3+ AlO·OH boehmite Boining NaOH CO2 Al(OH)4– Al(OH)3 • Mixed oxides: • Containing traces of other metal ions (Cr3+, Fe3+, Ti4+, Fe2+), Ruby ,Blue Sapphire • MIIMIII2O4, spinal structure such as MgAl2O4,BeAl2O4,Na2Al2O4

  14. Halides (p141) • TlX3, not stable but TlF3, TlI3, rather TlI(I3) • Ionic, or ionic-covalent character • Structure: discrete dimer, even Al2(CH3)6 • Solubility in nonpolar solvents • As Lewis Acid, hence catalyst

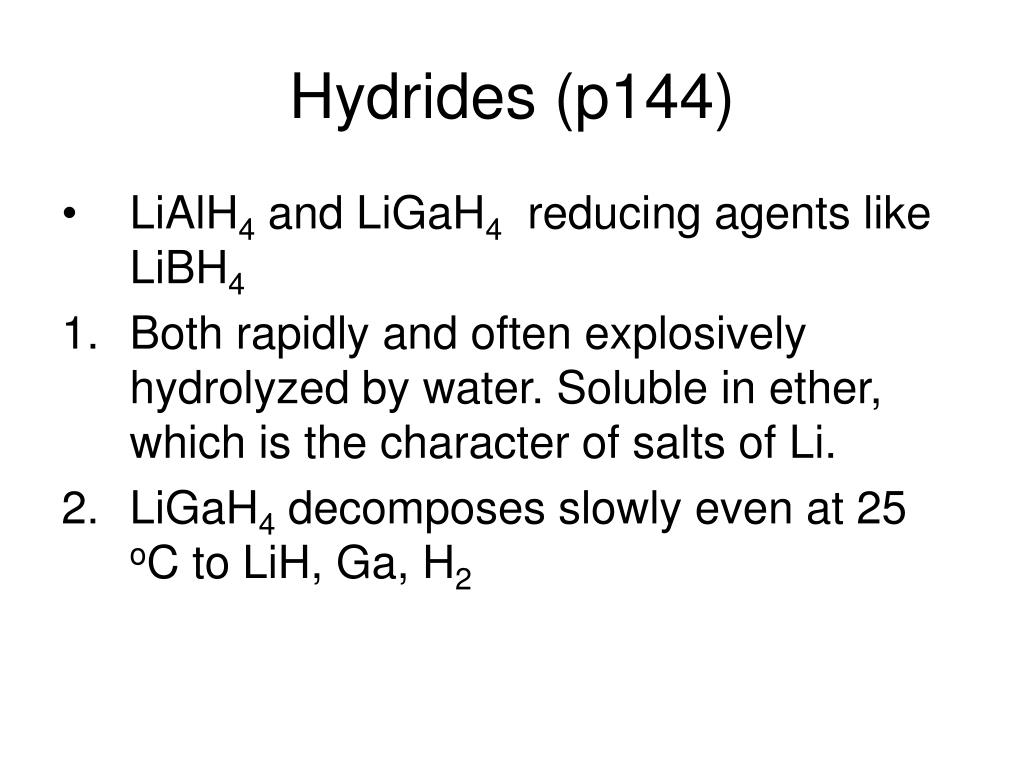

  15. Hydrides (p144) • LiAlH4 and LiGaH4 reducing agents like LiBH4 • Both rapidly and often explosively hydrolyzed by water. Soluble in ether, which is the character of salts of Li. • LiGaH4 decomposes slowly even at 25 oC to LiH, Ga, H2

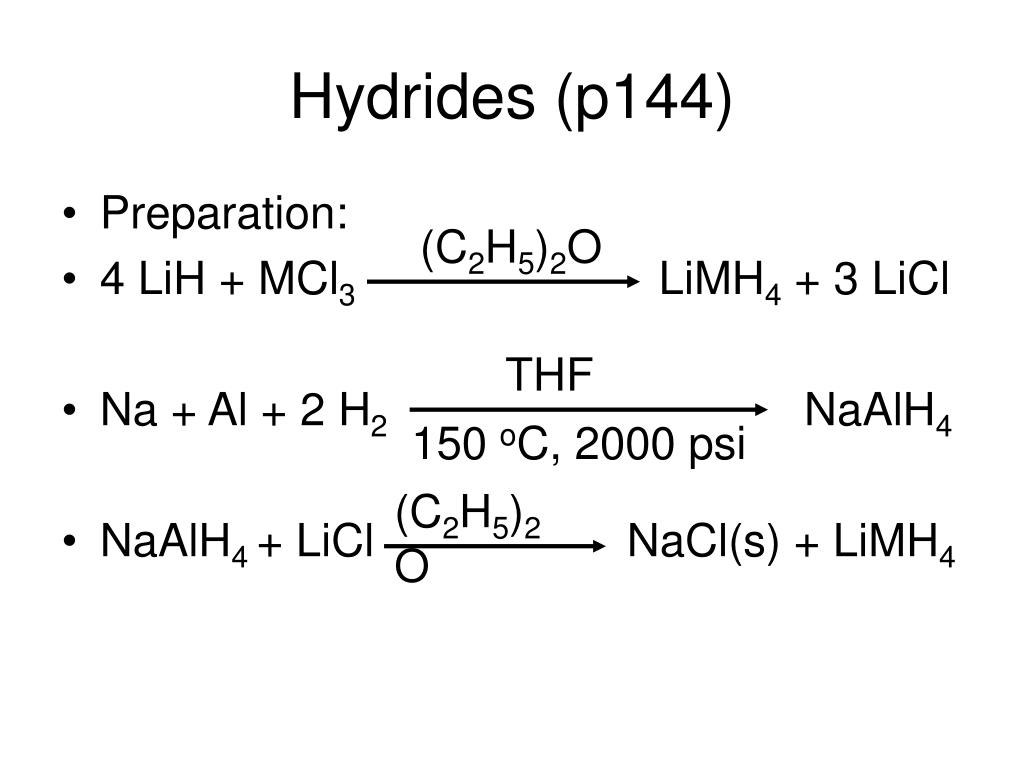

  16. Hydrides (p144) • Preparation: • 4 LiH + MCl3 LiMH4 + 3 LiCl • Na + Al + 2 H2 NaAlH4 • NaAlH4 + LiCl NaCl(s) + LiMH4 (C2H5)2O THF 150 oC, 2000 psi (C2H5)2O
