potential way the connectivity will work lea drives the routing policy
Potential Way the Connectivity Will Work(LEA Drives the Routing Policy)

LEA

Internet

Layer-2 Metro Ethernet between NCREN and NCREN Managed Router at LEA; LEA maintains control of WAN connectivity to LEA owned router, LEA firewall, and controls own routing policy, and receives routing information about NCREN from NCREN managed router;

Shared Education Application Service

NCREN

Internet2/NLR

DPI

NCWISE

NCSU

another alternative ncren controls routing policy at the edge for the lea

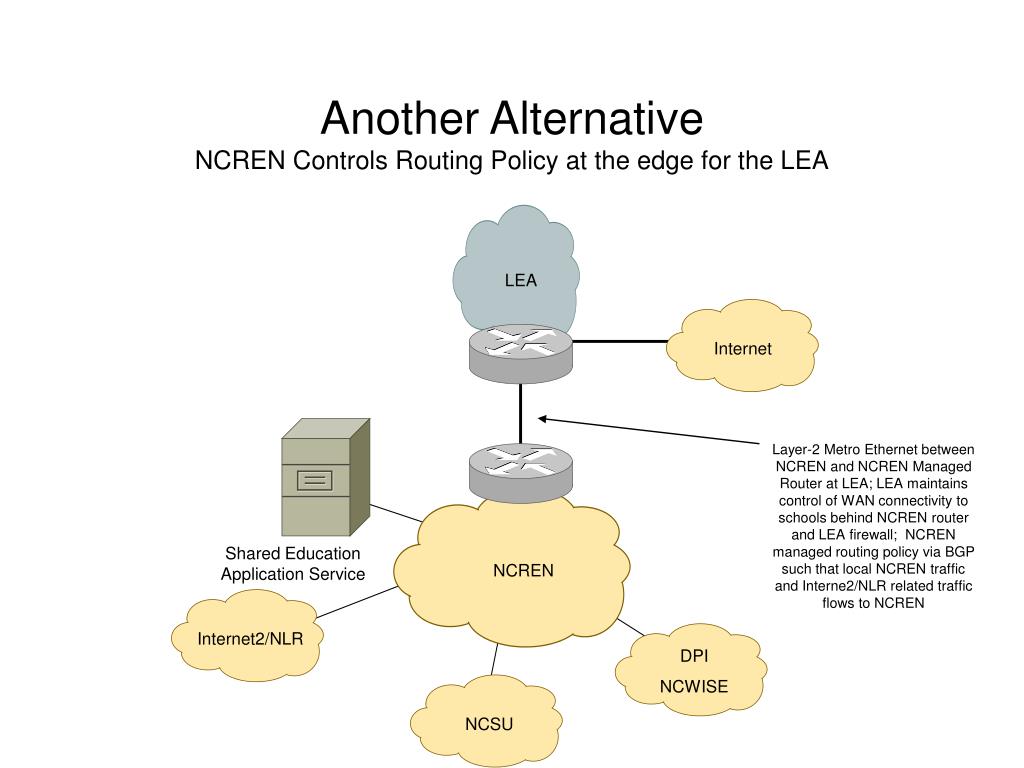

Another AlternativeNCREN Controls Routing Policy at the edge for the LEA

LEA

Internet

Layer-2 Metro Ethernet between NCREN and NCREN Managed Router at LEA; LEA maintains control of WAN connectivity to schools behind NCREN router and LEA firewall; NCREN managed routing policy via BGP such that local NCREN traffic and Interne2/NLR related traffic flows to NCREN

Shared Education Application Service

NCREN

Internet2/NLR

DPI

NCWISE

NCSU

one other option all traffic comes to ncren for local delivery and delivery to the internet
One Other OptionAll Traffic comes to NCREN, for local delivery, and delivery to the internet

Layer-2 Metro Ethernet between NCREN and NCREN Managed Router at LEA; LEA maintains control of WAN connectivity to schools behind NCREN router and LEA firewall; NCREN managed router delivers all traffic to NCREN, Interne2/NLR, and the global internet

LEA

Shared Education Application Service

Internet

NCREN

Internet2/NLR

DPI

NCWISE

NCSU
