pipelined van emde boas tree algorithms analysis and applications

Pipelined van Emde Boas Tree: Algorithms, Analysis, and Applications

Hao Wang and Bill Lin

University of California, San Diego

introduction
Introduction
  • Priority queues used many network applications
    • Per-flow weighted fair queueing
    • Management of per-flow packet buffers using DRAM
    • Maintenance of exact statistics counters for real-time network measurements
  • Items in priority queue sorted at all times(e.g. smallest key first)
  • Challenge: Need to operate at high speeds (e.g. 10+ Gb/s)
introduction1
Introduction
  • Binary heap common data structure for priority queues
    • O(lg n) time complexity, where n is # items
    • e.g. in fine-grained per-flow weighted fair queueing, ncan be very large (e.g. 1 million)
    • O(lg n) may be too slow for high line rates
  • Pipeline heaps[Bhagwan, Lin 2000][Ioannou, Katevenis 2001]
    • Reduced time complexity to O(1)
    • At the expense of O(lg n) pipeline stages
this talk
This Talk
  • Instead of pipelining binary heaps, we present new approach based on pipelining van Emde Boas trees
  • van Emde Boas (vEB) trees introduced in 1975
    • Instead of maintaining a priority queue of sorted items, maintain a sorted dictionary of keys
    • In many applications, since keys are represented by a w-bit integer, possible keys can only be from fixed universeofu = 2wvalues
    • Only O(lg lg u) complexity vs. O(lg n) for heaps
  • Main result: pipelined vEB with O(1) operation andO(lg lg u) pipeline stages
van emde boas veb trees
van Emde Boas (vEB) Trees
  • Goal: Maintain a sorted subset S from universeU = {0, 1, …, u – 1} of size u = 2w, subject to INSERT, DELETE, EXTRACTMIN, SUCCESSOR, PREDECESSOR. e.g.
    • INSERT – Inserts new item into the queue
    • EXTRACTMIN– Removes item with smallest key
veb trees
vEB Trees
  • Size u vs. n depends on application. e.g.
  • If u is only polynomial in n, i.e. u = O(nc), thenO(lg lg u) = O(lg lg n), exponential speedup over O(lg n)

Application

w

u = 2w

n

compare

O(lg lg u)

O(lg n)

Per-flow

Fair Queues

24 bits

4 × 106

106 flows

u≈ n

5

20

Statistics

Counters

8 bits

512

106 counters

512 groups

u« n

u ≈ n

3

20

8

veb trees1
vEB Trees

w/2 bits

H and L[0], …,L[ – 1] recursivelydefined as vEB treeswith w/2 bits

H

w/2 bits

. . .

L[0]

L[1]

L[ -1]

sub-trees

  • Conceptually think of the universe of w-bits,U = {0, 1, …, 2w – 1}, as a binary tree with height w
  • Think of top part H of w/2bits,and bottom part of sub-trees ofw/2bits, L[0], L[1], …, L[ – 1]
veb trees2
vEB Trees

w/2 bits

H

w/2 bits

. . .

L[0]

L[1]

L[ -1]

sub-trees

  • Suppose w = 8 bits, consider e.g. a key x = 31
  • Split x into high and low parts:
  • Consider INSERT( x, S )
    • If xh H, recursively call
      • INSERT( xl , L[xh])
    • Else, recursively call
      • INSERT( xh , H )
      • INSERT( xl , L[xh])
  • Can avoid 2nd recursionby storing min[S]

0

0

0

1

1

1

1

1

xh

xl

representing veb trees
Representing vEB Trees
  • H L[0] L[1] L[ – 1]
  • min[S] : minimum key in S
  • n[S] : number of elements in S
  • H, L’s : just pointers to corresponding vEB sub-trees

min[S]

n[S]

i nsert operation
INSERT Operation

// if S empty

set min to x

// if x is smaller

swap them

// recursive call

to eitherL[xh]

or H

// increment size of S

Only One Recursive Call

i nsert operation1
INSERT Operation

Supposew = 8

x =

INSERT( x, S )

  • If xh H, recursively call
    • INSERT( xl , L[xh])
  • Else, recursively call
    • INSERT( xh , H )
    • min( L[xh]) ←xl

0

0

0

1

1

1

1

1

xh

xl

H

4 bits

4 bits

. . .

L[0]

L[1]

L[255]

i nsert operation2

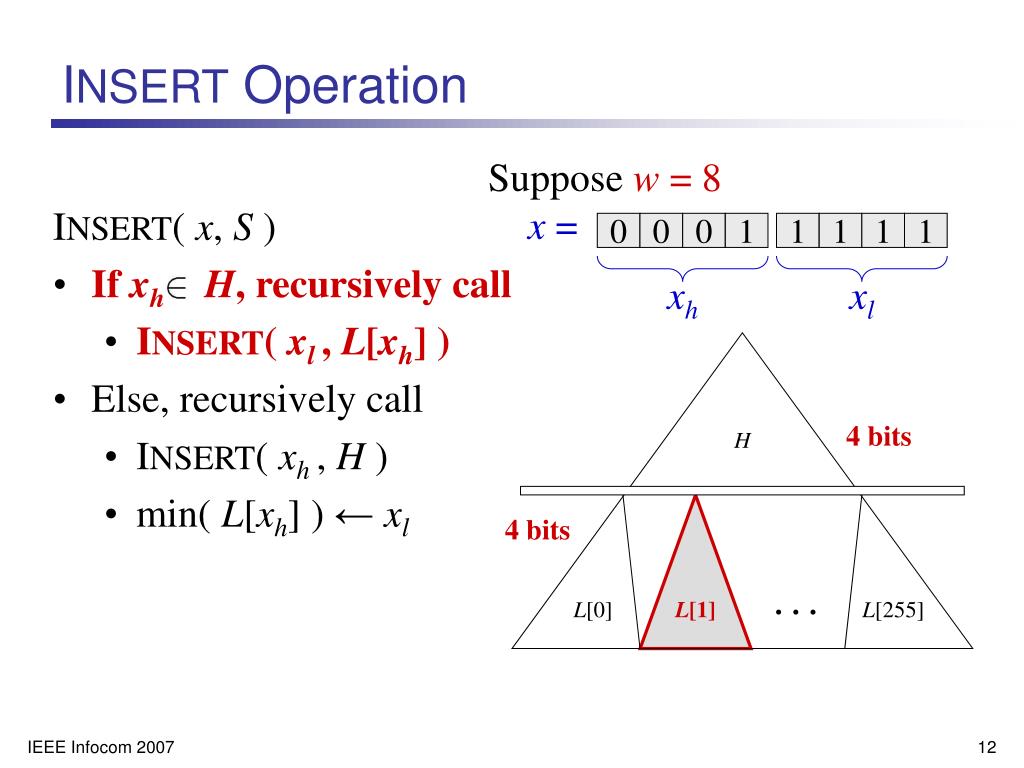

INSERT Operation

Supposew = 8

x =

INSERT( x, S )

  • If xh H, recursively call
    • INSERT( xl , L[xh])
  • Else, recursively call
    • INSERT( xh , H )
    • min( L[xh]) ←xl

0

0

0

1

1

1

1

1

xh

xl

H

4 bits

4 bits

. . .

L[0]

L[1]

L[255]

i nsert operation3
INSERT Operation

Noww = 4

x =

1

1

1

1

xh

xl

INSERT( x, S )

  • If xh H, recursively call
    • INSERT( xl , L[xh])
  • Else, recursively call
    • INSERT( xh , H )
    • min( L[xh]) ←xl

L[1]

4 bits

i nsert operation4
INSERT Operation

Noww = 4

x =

1

1

1

1

xh

xl

INSERT( x, S )

  • If xh H, recursively call
    • INSERT( xl , L[xh])
  • Else, recursively call
    • INSERT( xh , H )
    • min( L[xh]) ←xl

H

2 bits

2 bits

. . .

L[0]

L[1]

L[255]

i nsert operation5
INSERT Operation

Noww = 4

x =

1

1

1

1

xh

xl

INSERT( x, S )

  • If xh H, recursively call
    • INSERT( xl , L[xh])
  • Else, recursively call
    • INSERT( xh , H )
    • min( L[xh]) ←xl

H

2 bits

2 bits

. . .

L[0]

L[1]

L[255]

i nsert operation6
INSERT Operation

Noww = 4

x =

1

1

1

1

xh

xl

INSERT( x, S )

  • If xh H, recursively call
    • INSERT( xl , L[xh])
  • Else, recursively call
    • INSERT( xh , H )
    • min( L[xh]) ←xl

H

2 bits

2 bits

. . .

L[0]

L[1]

L[255]

Overall O(lg w) or O(lg lg u) time

e xtract m in operation
EXTRACTMIN Operation

// if S empty, nothing to return

// set return to current min

// recursive call to either

H or L[mh]

// decrement size of S

// set new minimum and return value

e xtract m in operation1
EXTRACTMIN Operation

// if S empty, nothing to return

// set return to current min

// recursive call to either

H or L[mh]

// decrement size of S

// set new minimum and return value

Again Only One Recursive Call

basic idea of pipelining
Basic Idea of Pipelining

H

w/2 bits

w/2 bits

. . .

L[0]

L[1]

L[ -1]

sub-trees

  • vEB operations are recursively defined
    • Each operation only makes one recursive call at each level of recursion
    • Each call goes down to a sub-tree with universe defined by w/2 bits (then w/4 bits,w/8 bits, etc)
    • Therefore, intuitively canunroll into lg lg u steps
pipeline structure
Pipeline Structure

min

min

min

min

n

n

n

n

H

H

H

H

L0

L0

L0

L0

L1

L1

L1

L1

input

output

op1

arg1

stage 1

M1 = pointers to all subtrees

of width w/2

op2

arg2

stage 2

M2 = pointers to all subtrees

of width w/4

op3

arg3

stage 3

M3 = pointers to all subtrees

of width w/8

op4

arg4

stage 4

M4 = pointers to all subtrees

of width w/16

:

:

main issues
Main Issues
  • Want to initiate new operation at every pipeline cycle(e.g. initiate an INSERT or EXTRACTMIN)
  • Even if throughput is O(1),
    • Don’t want to wait lg lg u pipeline cycles to retrieve data (e.g. want data in same pipeline cycle for EXTRACTMIN)
    • But previous INSERTand EXTRACTMIN operation(s) may still be in pipeline
  • Two pipeline stages may need to access same data
    • Need to resolve memory access orders
basic idea
Basic Idea

min

min

min

min

n

n

n

n

H

H

H

H

L0

L0

L0

L0

L1

L1

L1

L1

  • Operations proceed from top to bottom
  • min[S] for the vEB tree rooted at that level is updated immediately as operations flow thru pipeline
  • e.g. INSERT at Stage 1 will update min[S] immediately so next EXTRACTMIN at Stage 1 will retrieve correct min[S]

input

output

op1

arg1

stage 1

op2

arg2

stage 2

op3

arg3

stage 3

op4

arg4

stage 4

:

:

other operations
Other Operations
  • In addition to INSERTand EXTRACTMIN, paper describes
    • SUCCESSOR( x, S ) – Returns next element in S larger than x in the universe U
  • Can also define in a similar pipeline fashion
    • PREDECESSOR( x, S ) – Returns next element in Ssmaller than x in the universe U
    • EXTRACTMAX( S )– Removes item with largest key
  • To facilitate these operations, we also
    • Store max[S] for corresponding S at each pipeline stage
    • Provide another pipeline memory structure for tracking “in-flight” SUCCESSOR and PREDECESSOR operations
conclusions
Conclusions
  • Pipelined van Emde Boas trees can achieve O(1) operations with O(lg lg u) pipelined stages
  • Same O(1) time complexity as pipelined heaps, but exponentially fewer pipeline stages than O(lg n) required for pipelined heaps when u is a polynomial of n
  • Can simultaneously support EXTRACTMIN and EXTRACTMAX, which is harder to do with heaps
  • Can support other operations like SUCCESSOR and PREDECESSOR, which have potential application to various network problem instances
