  1. Sci-Fi Tracker Performance • Software Status • RF background simulation • Beam simulation • Reconstruction • Data sample • Expected performance • Performance • Emittance calculation • Summary M. Ellis - MICE Collaboration Meeting - Wednesday 27th October 2004

  2. RF Background Simulation • As described by Rikard at VC of 22/9/04 • Software used from tag mice-0-9-10 • Background generated in 100 jobs of 100 events each on CSF farm at RAL. • Total time to produce 10k events on CSF was over 4 days! • Output files merged into one file that is then used as input for each of the 10k event samples.

  3. TURTLE Beam • Added as G4MICE option • In CVS as tag mice-0-9-11 • 720,000 events produced using the “June04” configuration were provided by Kevin Tilley • Sample broken up into 72 sets of 10,000 events each for submission as jobs on CSF farm at RAL

  4. Reconstruction • TDC aspect of Digitisation is now more realistic (exact details of discriminators still to be perfected). • Duplets (space point made from 2 views in a station) are now reconstructed and used in the pattern recognition. • Individual clusters are used as separate measurements in the Kalman track fit. • Still need to add the use of a field map (particularly with the more detailed simulation now in use) – currently assuming a fixed field!

  5. Data Sample • Four sets of events processed: • Various sets of 20k events to study effects of multiple scattering, non-uniform field, etc... • 720k events with all physics processes, but no RF background • 720k events with all physics processes and overlaid RF background events • 7k events with 100x nominal RF background • All performance plots are from the sample with nominal RF and all physics processes. • A summary table at the end will show differences between performance with and without RF background

  6. Expected Performance • Expected momentum resolution based on “back of the envelope” calculations. • Determine effect that multiple scattering will have on resolution. • Predict resolution as a function of PT and PZ

  7. sR R sPT / PT= sR / R sPT = Q B RsR / R sPT = 1.202 xsR sR = 0.427 * 3.5 / √12 sR = 0.431 mm No Multiple Scattering - PT PT = Q B · R  sPT = 0.52 MeV/c

  8. PT Resolution • From the previous slide, it is clear that the PT resolution should be flat as a function of PT: sPT = Q B sR • So long as the track does not have an excessively high PZ (resulting in the projection in XY being a small fraction of a circle), the PT resolution should also be flat in PZ

  9. a tan(a) = df / dz PZ = PT / tan(a) No Multiple Scattering - PZ f z

  10. sPZ2 = (k1 / PT)2 + k22 sPZ2 = k12 + (k2 + k3 PZ)2 PZ Resolution • PZ = PT / tan(a) • The resolution in f depends on the radius of curvature: stan(a) = k / PT • Therefore the uncertainty on PZ depends on the uncertainty in PT (which is fixed) and that in tan(a) in quadrature • For cases of High PT, or Low PZ, the resolution in PT will dominate over the resolution in tan(a): sPZ = PZ x sPT / PT • High PT (100 MeV/c): sPZ = 0.52 / 100 x 225 = 1.15 MeV/c • Low PZ (150 MeV/c): sPZ = 0.52 / 50 x 150 = 1.56 MeV/c

  11. Dz = 1.9 mm X0 = 42 cm → x/X0 = 0.45% Qms = √2 x 13.6 MeV / bcp x 0.053 Qms 100 < p < 350 MeV/c 68.76 < bcp < 335.1 MeV 3.1 < Qms < 14.9 mrad With Multiple Scattering Not to scale! V X W

  12. Point Resolution with MCS • 3.1 < Qms < 14.9 mrad • Station is 1.9 mm thick • Mean total momentum is 240 MeV/c, giving a typical Qms = 5 mrad. • MCS produces additional error on the point resolution of between 6 and 30 mm. • MCS has no appreciable effect on the resolution of measuring an individual point

  13. Multiple Scattering - PT Typical distance between planes = 175 mm Error on position = 175 * 5 mrad = 0.875 mm Resolution in R becomes 0.97 mm sPT = 1.202 xsR sPT = 1.16 MeV/c

  14. Multiple Scattering - PZ • For case of high PT and high P, expect sPZ to depend just on new sPT: sPZ = PZ x sPT / PT= 160 x 1.16 / 100 = 1.86 MeV/c • In general, the effects of multiple scattering will increase as P drops, so expect resolution to approach no multiple scattering level at high P and PT, and get worse as the momentum drops.

  15. Performance • Position resolution • X, Y • Momentum pulls • PX, PY and PZ • Momentum resolution • PT, PZ • sPT versus PT, sPT vs PZ • sPZ versus PT, sPZ vs PZ • “Primes” resolution • X’, Y’, T’ • Efficiency and Purity

  16. X Position Resolution RMS = 48.49 mm RMS = 0.391 mm

  17. Y Position Resolution RMS = 57.05 mm RMS = 0.392 mm

  18. PX PY and PZ Pulls

  19. PT Resolution RMS = 28.65 MeV/c RMS = 1.75 MeV/c

  20. PZ Resolution RMS = 25.65 MeV/c RMS = 2.41 MeV/c

  21. Resolution vs PT

  22. Resolution vs PZ

  23. X’ Resolution RMS = 182.1 mrad RMS = 8.00 mrad

  24. Y’ Resolution RMS = 172.3 mrad RMS = 7.91 mrad

  25. T’ Resolution RMS = 5.48 x 10-2 RMS = 5.06 x 10-3

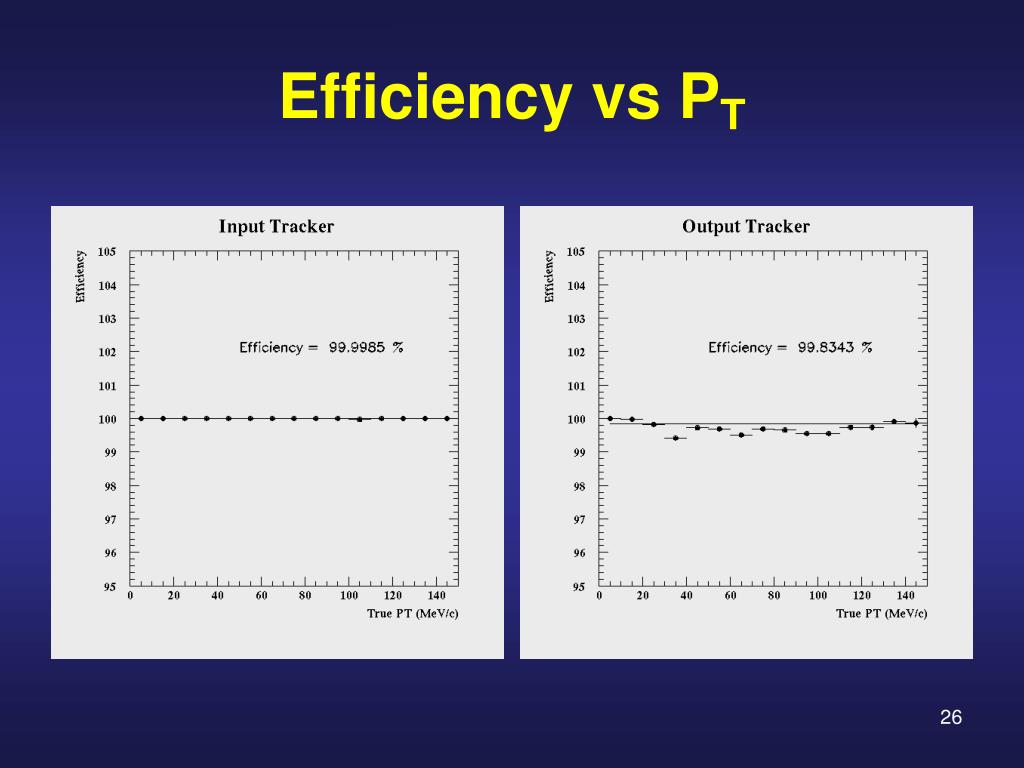

  26. Efficiency vs PT

  27. Efficiency vs PZ

  28. Efficiency vs PT / PZ

  29. Purity vs PT

  30. Purity vs PZ

  31. Purity vs PT / PZ

  32. Emittance Calculation • Analysis code developed by Chris: • Trace and phase space • Monte Carlo truth, reconstructed parameters, virtual planes, ICOOL output files... • Can calculate 2D, 4D, 6D emittance, apply cuts, re-weighting, etc... • Performance checked against ecalc9f • For each 10,000 event run, calculate one value of emittance from Monte Carlo truth information and one from reconstructed track information. • Determine resolution and bias in 4D (XY) emittance (TOF unavailable, hence no 6D emittance).

  33. Emittance Resolution

  34. Performance Summary:
