  1. SITES IN SERIES Complex Watersheds SITES SOFTWARE APPLICATION SEMINAR __________________________ SITES 2005.1.4 INTEGRATED DEVELOPMENT ENVIRONMENT for WATER RESOURCE SITE ANALYSIS

  2. TRAINING OBJECTIVES • Working knowledge of SITES software for a simple series routing

  3. SUBWATERSHED STRUCTURE REACH NODE or JUNCTION REACH STRUCTURE

  4. Example Sites in series

  5. Schematic diagram of the example in the previous slide 58-3 58 Model of routing diagram for site 58d 58d

  6. SITES IN SERIES

  7. There are 17 sites in this watershed under consideration. Site 14 is above 15. There are 16 sites above 17. SITES 14 & 15 LOWER SITE 17 (B-1)

  8. Sites 14 & 15 Lower Site 17

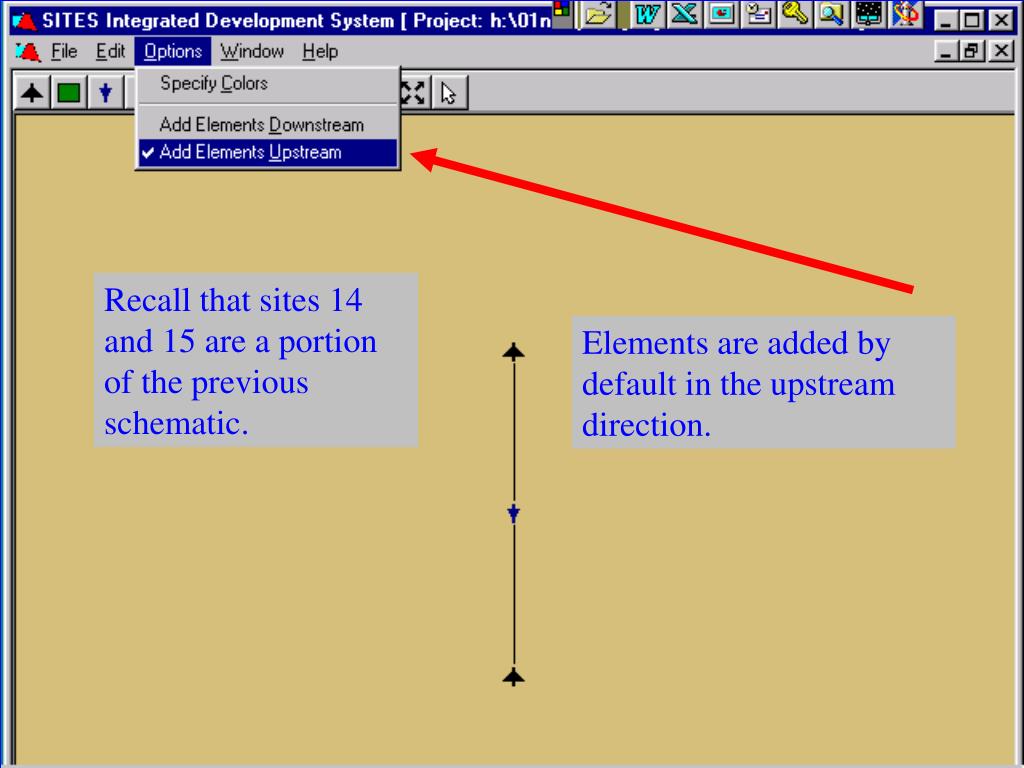

  9. Recall that sites 14 and 15 are a portion of the previous schematic. Elements are added by default in the upstream direction.

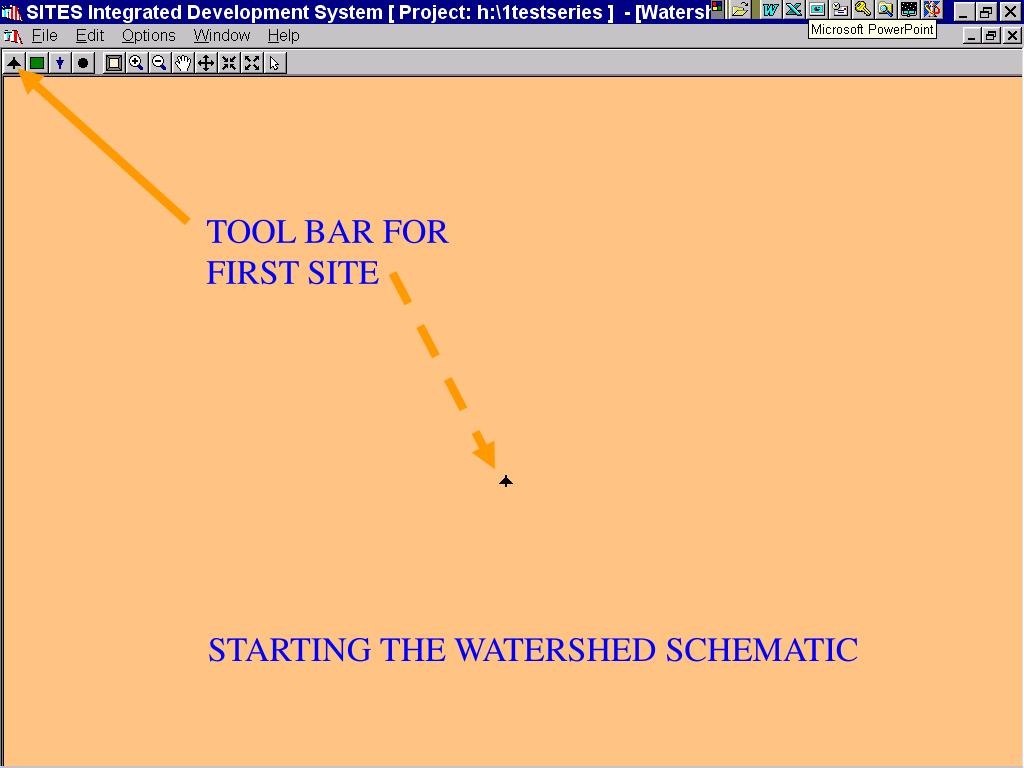

  10. TOOL BAR FOR FIRST SITE STARTINGTHE WATERSHED SCHEMATIC

  11. NEXTADD THE REACH ABOVE THE LOWER SITE

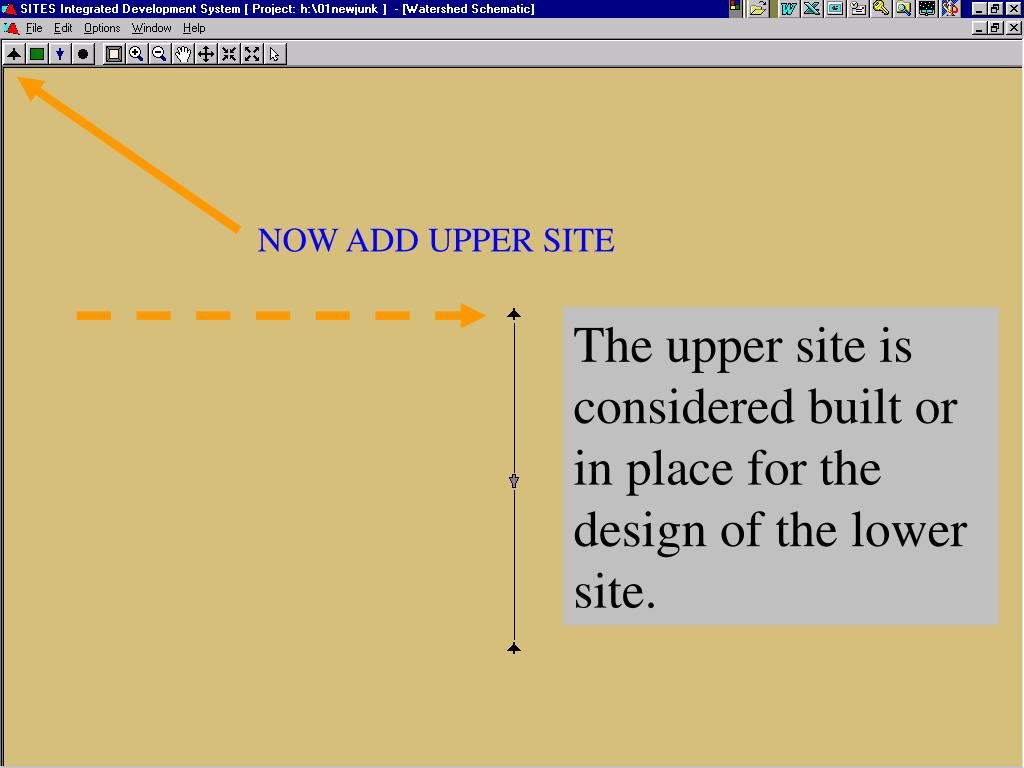

  12. NOW ADD UPPER SITE The upper site is considered built or in place for the design of the lower site.

  13. Upper Site (designed and considered in place before the start of series routing for design of Lower Site) Reach 3500’ - with cross-section #200 Lower Site (to be designed) Sites in Series Example

  14. On the first screen, either start a new project or open an existing project (created earlier using the interface).

  15. Last 5 The last 5 projects worked on will show up on the file menu. Click to load one of these projects.

  16. Right clicking in the peach colored area brings up the GoTo Block

  17. Right clicking on an element causes a menu to appear. Selecting “edit element” allows data entry or revision.

  18. Label for the lower structure - LWTST

  19. Label for Reach - 1

  20. Highlight “edit element” to edit existing data or input data for the element.

  21. Right clicking on the upper site brings up the menu which will allow the user to import a designed site.

  22. Selecting the designed site saves entering the data again.

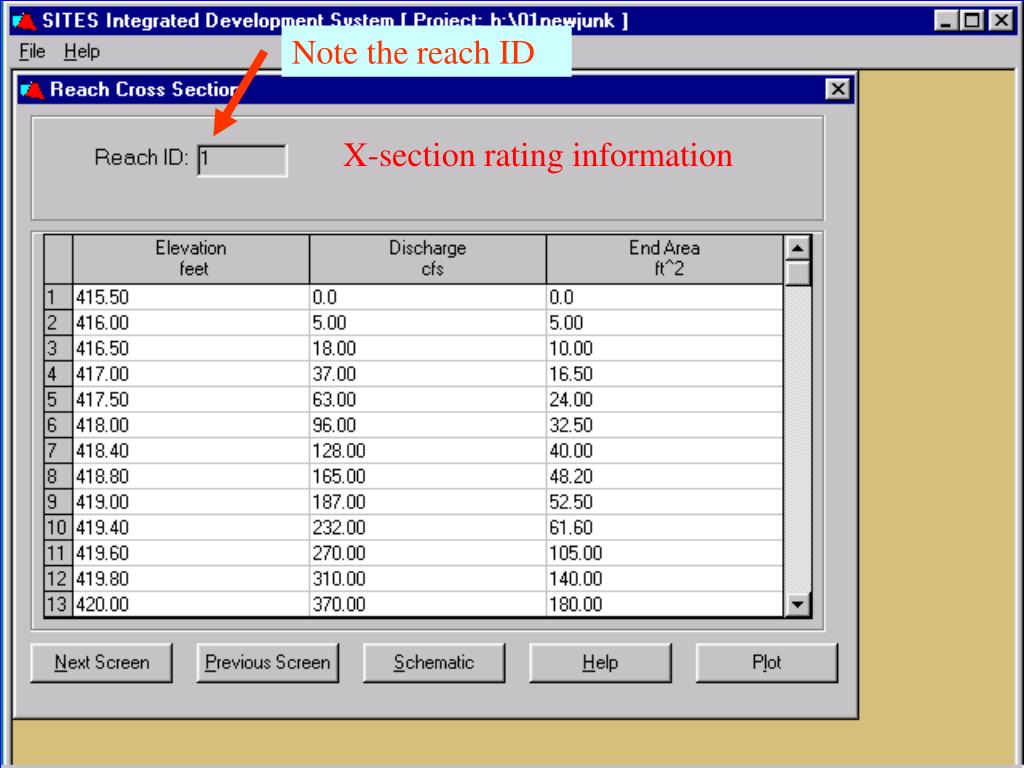

  23. Note the reach ID X-section rating information

  24. After the file is “Built” the output data can be displayed. Below the hydrographs with 200’ wide spillway is highlighted.

  25. Zoom capabilities

  26. Note change in graph scales from previous slide. Beforezoom

  27. Below we have selected output for the BW: 200’ spillway.

  28. Selecting “output” from the menu gives text output. For the lower site it will look like the output from the .out file. Note the edit is not available.

  29. More of the text output

  30. You can change summary fields.

  31. Select the data fields to be displayed by rows on the summary table.

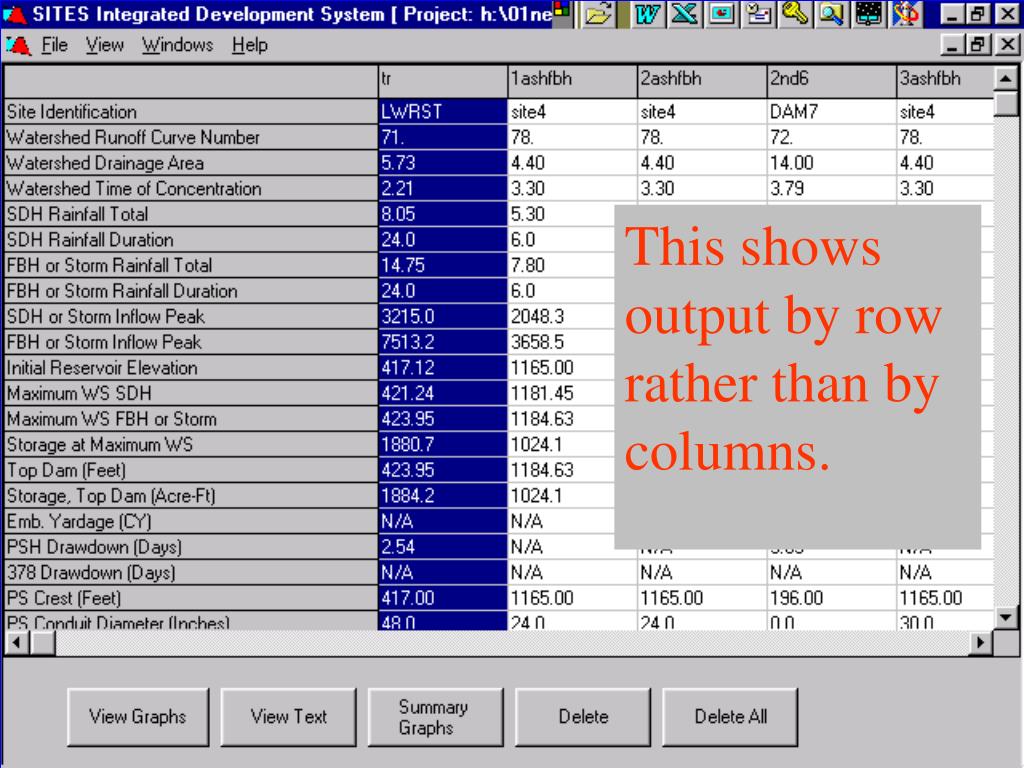

  32. This shows output by row rather than by columns.
