hydrogen for energy pure and sustainable an update from the fuel cell world

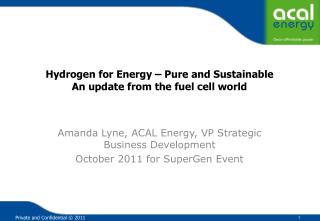

Hydrogen for Energy – Pure and SustainableAn update from the fuel cell world

Amanda Lyne, ACAL Energy, VP Strategic Business Development

October 2011 for SuperGen Event

slide2
Fuel cell technology is starting to penetrate niche markets$500M Today Growing to $1B in 2014, Potentially Even Faster Growth After 2015

Example: Ballard Yearly Unit Sales Growing Rapidly in B/U and Materials Handling

Total 3,014

Total 1,700

Total 1,177

Total 849

Total 462

  • Stationary market growing rapidly
    • 1-5kW size for telecom back-up in emerging markets
    • But, larger size applications beginning to accelerate
  • Materials handling also growing
    • Driven largely by Plug Power, recently placed 3,000 unit order from Ballard
    • Size range increasing, now up to 20kW
  • CHP continues to grow in Japan
    • Recently nuclear problems have accelerated interest
    • German commitment via Callux project
global auto rollout is happening for 2015
Global auto rollout is happening for 2015

Automotive demands will drive supply chain development, currently assuming initial roll out based on reformer technology

global examples of small scale stationary deployment
Global examples of small scale stationary deployment

Hydrogenics

Date centre & UPS

IdaTech Telecoms back up

(Liquid fuel)

Dantherm Power

Telecom’s back up

Altergy

Telecoms Back Up

fuel cell products for chp
Fuel Cell products for CHP

BaxiInnotech PEM micro CHP

UTC SOFC CHP systems

HEXIS SOFC

Ene Farm PEM CHP

CFCL BlueGen SOFC

fuel cell products materials handling
Fuel Cell Products – Materials Handling

Plug Power Gendrive

Hydrogenics

Nuvera

challenges remain to achieve mass market take up
Challenges remain to achieve mass market take up
  • Cost down
    • Mass market supply chain
    • More cost effective durability
  • Re-fuelling Infrastructure
    • For automotive & transport
    • For niche application (packed gas logistics)
    • For integration in renewable systems
  • System Integration and increased awareness
    • Investment in innovation
    • Reduction in development risk versus investment payback
a fundamentally lower cost more reliable pem fuel cell system
A fundamentally lower cost, more reliable PEM Fuel Cell System

ACAL Process Flow Diagram

Proprietary Catalyst Solution

Air, Water Vapor, Heat

* PEM Fuel cells are proton exchange membrane fuel cells which are most the commonly used type for automotive and stationary power applications

Fuel Cell

Stack

Regenerator

FlowCath® replaces up to 90% of the expensive platinum catalyst found in a PEM Fuel Cell with a safe, low cost, water-based catalyst solution.

Which eliminates the need for membrane dehydration, has no peroxide attack, and no catalyst deactivation that leads to improved reliability and robustness

At the same time it eliminates the need for humidification, air and fuel pressurization, and a separate cooling system.

Provides cost savings of 40% and greater over conventional PEM Fuel Cell systems.

Technology can be applied to PEM Fuel Cells from 1 to 200kW+ in size.

Blower

Air

Hydrogen or

Reformate Fuel

Pump

slide11

First system will be installed by end of the Summer 2011

Pipeline supplied hydrogen

Net 1kW (Gross 2.5kW) power for environmental remediation plant pump

Uninterrupted power supply (UPS) and continuous running duty cycles

Subsequent units in the planning stage
