  1. ProJetTM Personal 3D Printers www.printin3d.com NYSE: DDD

  2. 3D Printers To Fit Your Personal Needs • Home • Office • Classroom • Studio • Workshop • Lab • BfB Touch • RapMan • Zprinter® 150/250 • ProJetTM1000/1500 • Affordable • Easy to Use • Compact • Quiet • Fast • Versatile 2 4

  3. Democratizing Access

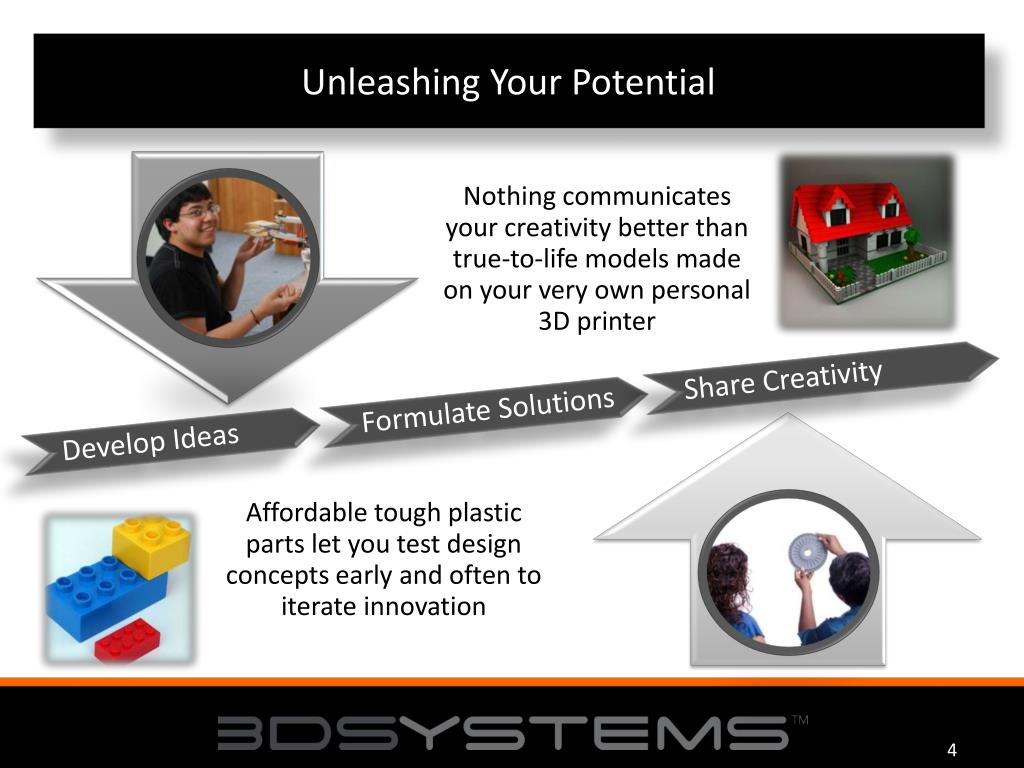

  4. Unleashing Your Potential Share Creativity Formulate Solutions Develop Ideas

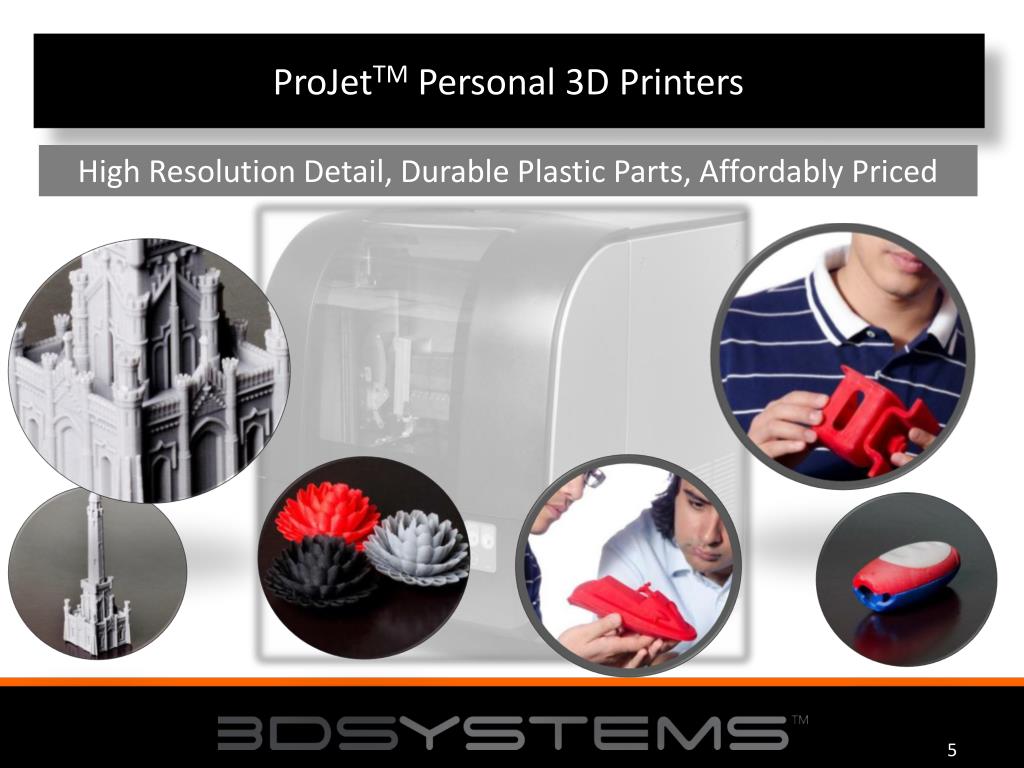

  5. ProJetTM Personal 3D Printers High Resolution Detail, Durable Plastic Parts, Affordably Priced

  6. ProJetTM Personal 3D Printers

  7. ProJetTM Personal 3D Printers Save Money Lowest price high resolution 3D printers Make tough plastic parts “same day” directly from digital data Faster and cheaper than outsourcing Iterate more often to compress design time & improve designs Protect against downstream rework costs

  8. ProJetTM Personal 3D Printers ProJetTM 1000 ProJetTM 1500 • Choose from 6 Vibrant COLORS • 28% Larger Net Build Area: • 6.75 x 9 x 8 in (171 x 228 x 203 mm) • Build Speed: • Standard Mode – 0.5 in./hr. (12.7 mm/hr.) • High Speed Mode – 0.8 in./hr. (20 mm/hr.) • Single Part Color - Ivory • Net Build Area: • 6.75 x 8 x 7 in (171 x 203 x 178 mm) • Build Speed: • Standard Mode – 0.5 in./hr. (12.7mm/hr.)

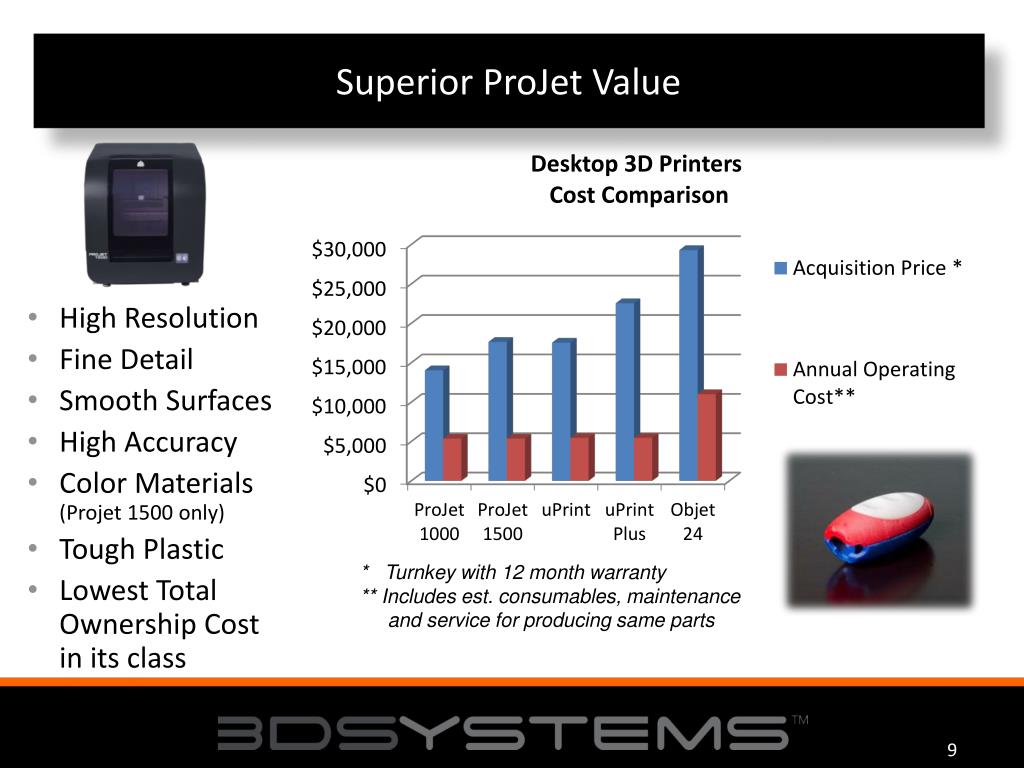

  9. Superior ProJet Value High Resolution Fine Detail Smooth Surfaces High Accuracy Color Materials (Projet 1500 only) Tough Plastic Lowest Total Ownership Cost in its class * Turnkey with 12 month warranty ** Includes est. consumables, maintenance and service for producing same parts

  10. Highly Detailed Precision Parts Produces fine details like 3D printers that cost more than 2X the price Smooth surfaces even on curved features Feature sizes down to 0.01 inches (0.254 mm)

  11. Tough Plastic Parts Tough testing Rough handling Snap fits End-use parts Drilling & tapping

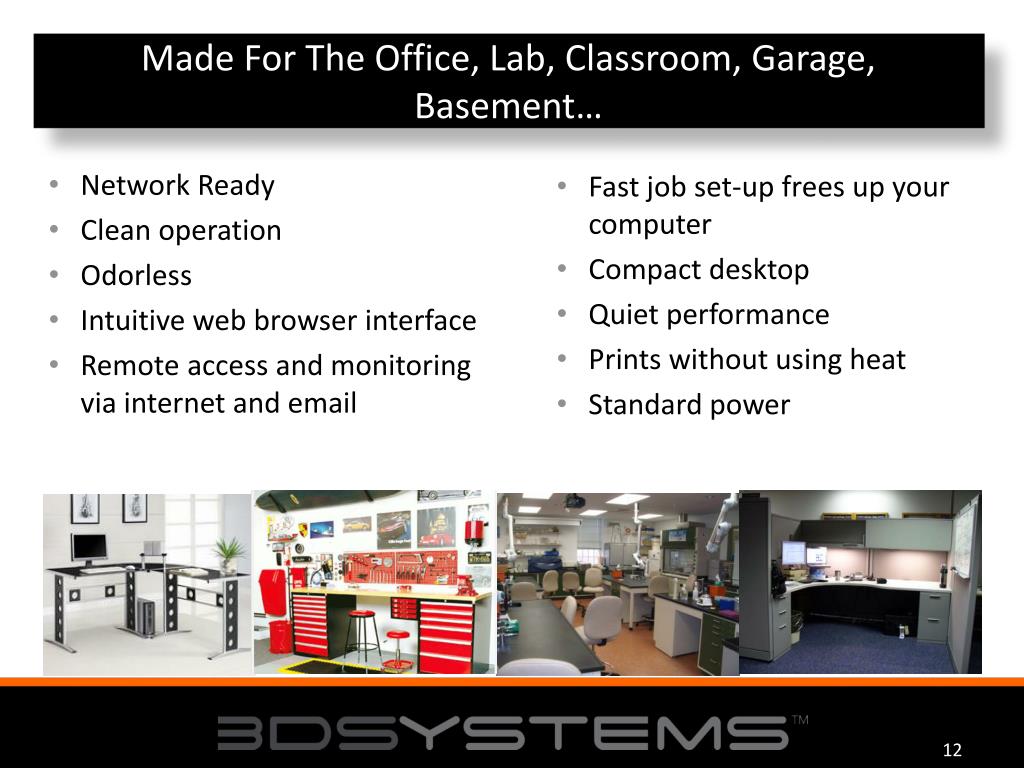

  12. Made For The Office, Lab, Classroom, Garage, Basement… Network Ready Clean operation Odorless Intuitive web browser interface Remote access and monitoring via internet and email Fast job set-up frees up your computer Compact desktop Quiet performance Prints without using heat Standard power

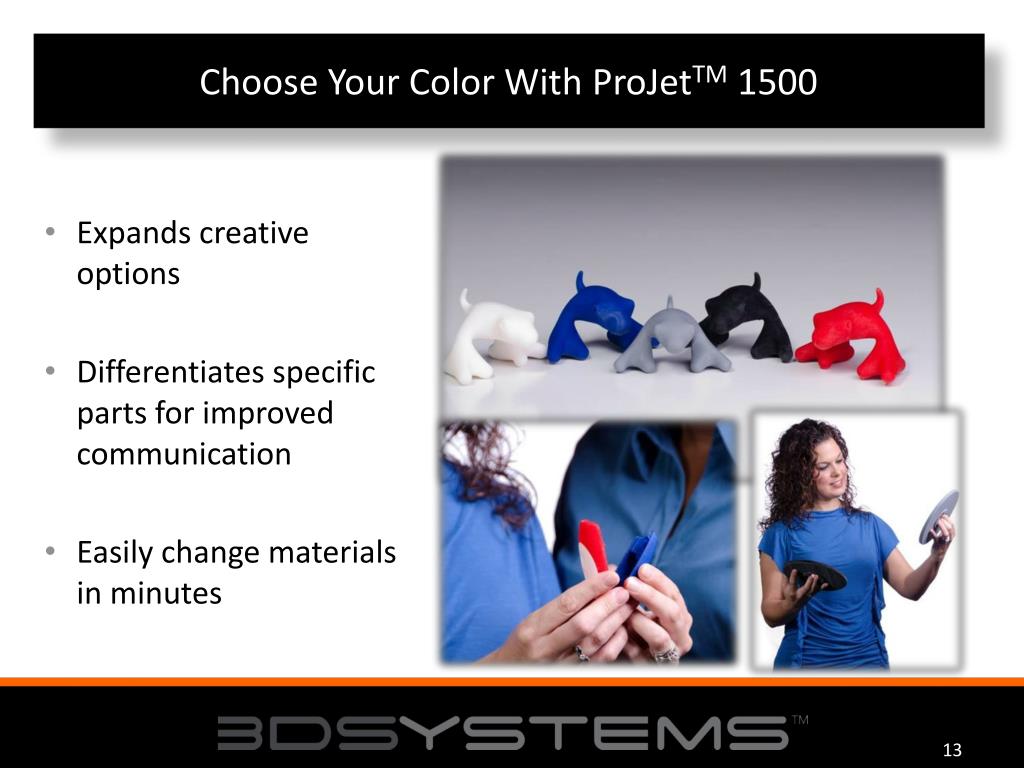

  13. Choose Your Color With ProJetTM 1500 Expands creative options Differentiates specific parts for improved communication Easily change materials in minutes

  14. User Convenience Large viewing window to see part building Front panel Play/Pause controls & status indicators Easy side-load for material cartridge Standard power cord and ethernet cable

  15. Durable VisiJet® Plastic Print Materials • Visijet® FTI-Zoom- for high speed and draft capability • Visijet® FTI-Ivory- all purpose material • Visijet® FTI-Grey- great for showing detail in parts • Visijet® FTI-Black- consistent opacity black material • Visijet® FTI-Blue- deep blue material for eye catching • Models • Visijet® FTI-Red- bright red great for detail and surface quality Note: ProJetTM 1000 uses VisiJet FTI-Ivory Material only

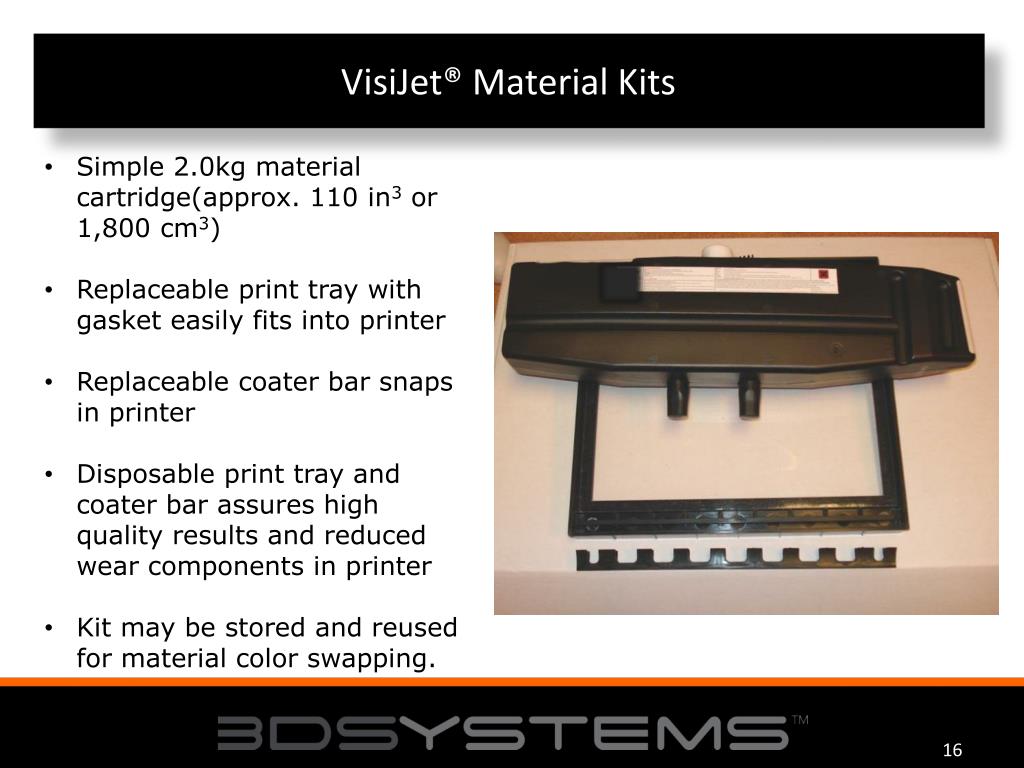

  16. VisiJet® Material Kits • Simple 2.0kg material cartridge(approx. 110 in3 or 1,800 cm3) • Replaceable print tray with gasket easily fits into printer • Replaceable coater bar snaps in printer • Disposable print tray and coater bar assures high quality results and reduced wear components in printer • Kit may be stored and reused for material color swapping.

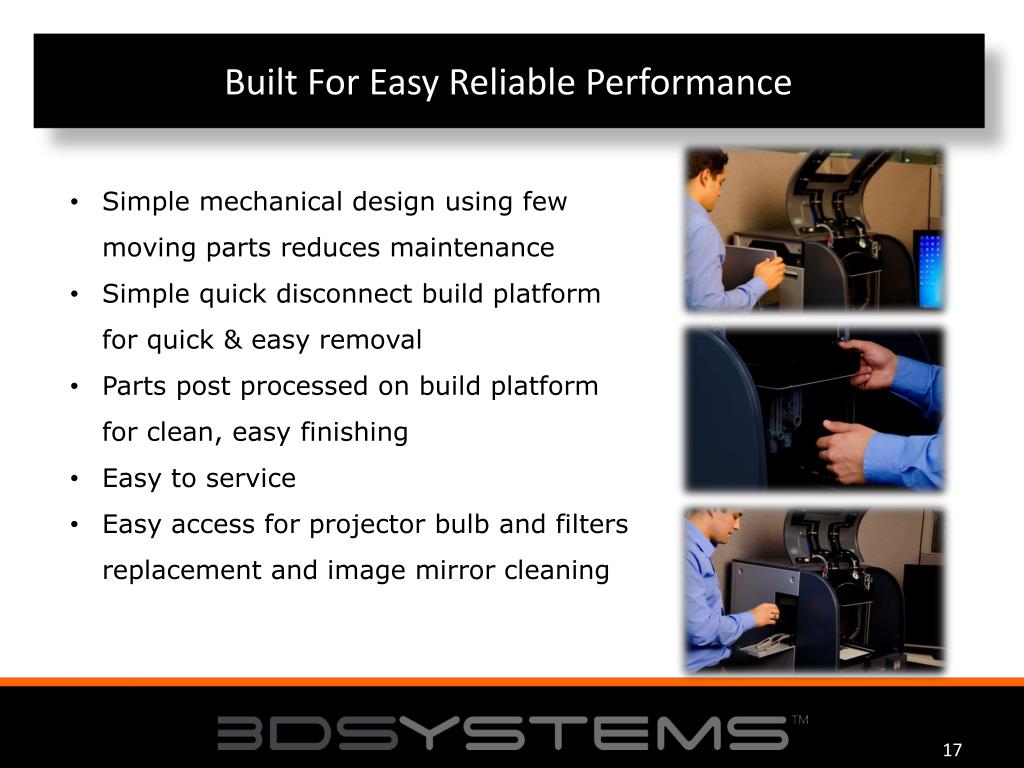

  17. Built For Easy Reliable Performance • Simple mechanical design using few moving parts reduces maintenance • Simple quick disconnect build platform for quick & easy removal • Parts post processed on build platform for clean, easy finishing • Easy to service • Easy access for projector bulb and filters replacement and image mirror cleaning

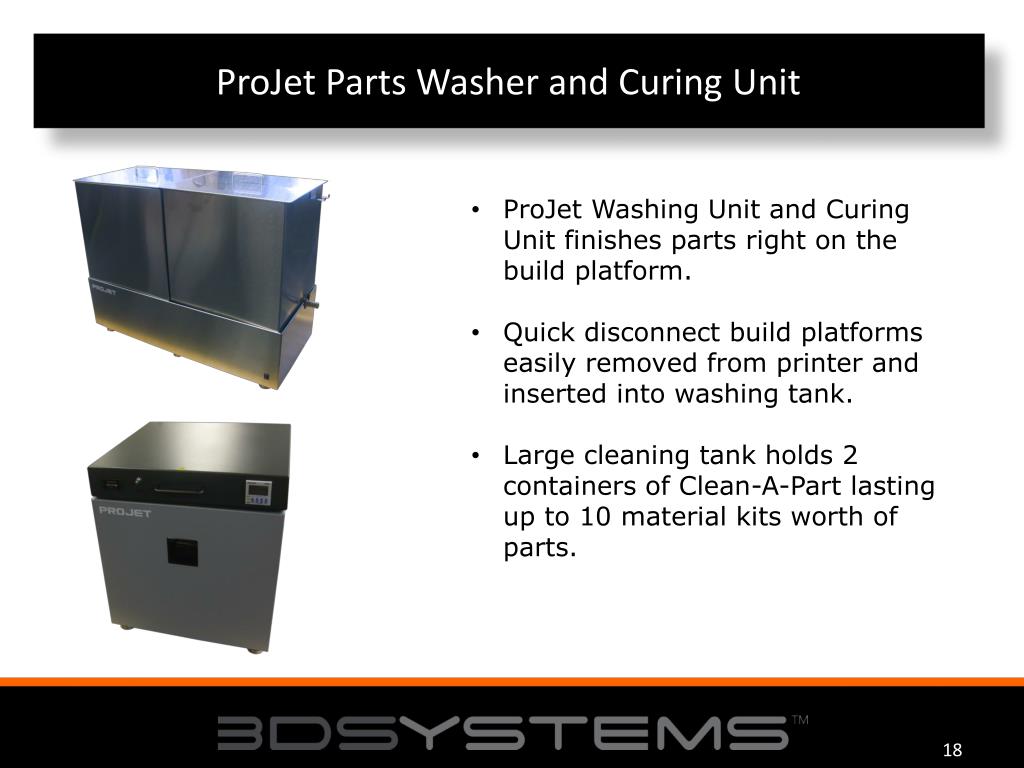

  18. ProJet Parts Washer and Curing Unit • ProJet Washing Unit and Curing Unit finishes parts right on the build platform. • Quick disconnect build platforms easily removed from printer and inserted into washing tank. • Large cleaning tank holds 2 containers of Clean-A-Part lasting up to 10 material kits worth of parts.

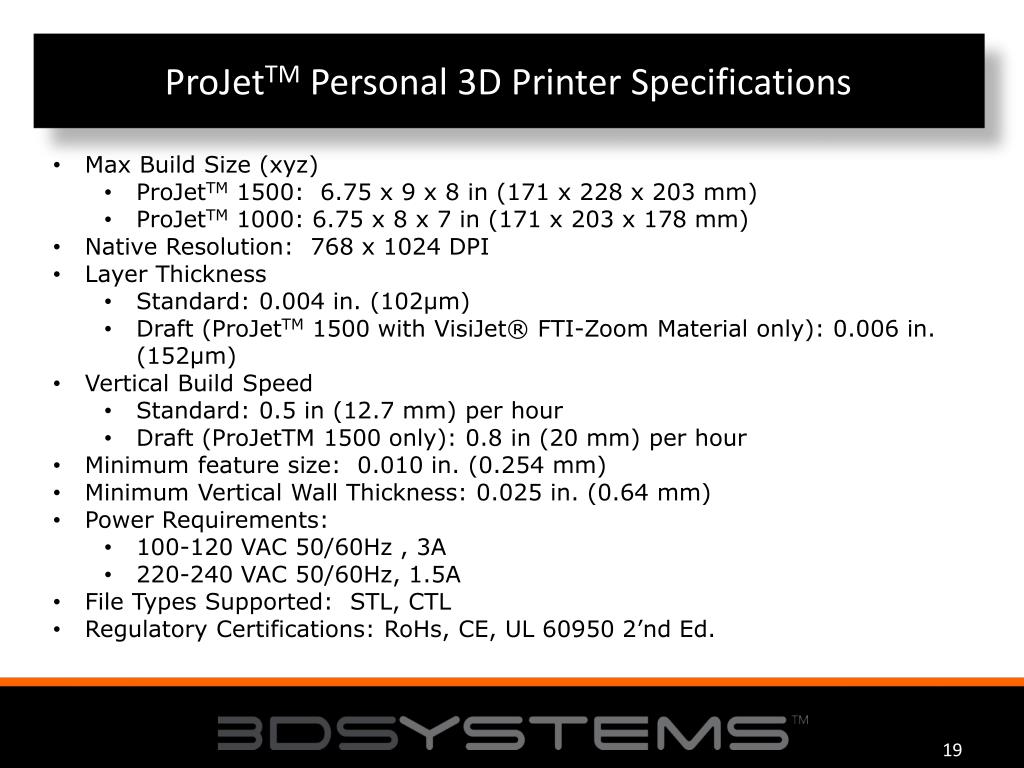

  19. ProJetTM Personal 3D Printer Specifications • Max Build Size (xyz) • ProJetTM 1500: 6.75 x 9 x 8 in (171 x 228 x 203 mm) • ProJetTM 1000: 6.75 x 8 x 7 in (171 x 203 x 178 mm) • Native Resolution: 768 x 1024 DPI • Layer Thickness • Standard: 0.004 in. (102µm) • Draft (ProJetTM 1500 with VisiJet® FTI-Zoom Material only): 0.006 in. (152µm) • Vertical Build Speed • Standard: 0.5 in (12.7 mm) per hour • Draft (ProJetTM 1500 only): 0.8 in (20 mm) per hour • Minimum feature size: 0.010 in. (0.254 mm) • Minimum Vertical Wall Thickness: 0.025 in. (0.64 mm) • Power Requirements: • 100-120 VAC 50/60Hz , 3A • 220-240 VAC 50/60Hz, 1.5A • File Types Supported: STL, CTL • Regulatory Certifications: RoHs, CE, UL 60950 2’nd Ed.

  20. Superior Resolution…Superior Part Qualities uPrint ProJetTM Smooth Surfaces Sharp Detail Watertight No Z-layer stepping Rough Surfaces Distorted or Missing Detail Not Watertight Z-layer stepping

  21. ProJetTM 1500 Advantages vs. uPrint Plus • Lower price saves thousands (enough for 2+ years worth of material) • Higher resolution = better parts • Smooth surfaces • Fine detail • 26% larger net build volume • Up to 5X faster when building multiple or complex parts • Comparable material and maintenance costs • No excess heat saves electricity; no heat source in the office • No heat used in post processing, shorter post processing cycle also saves electricity Confidential – For Internal Use Only

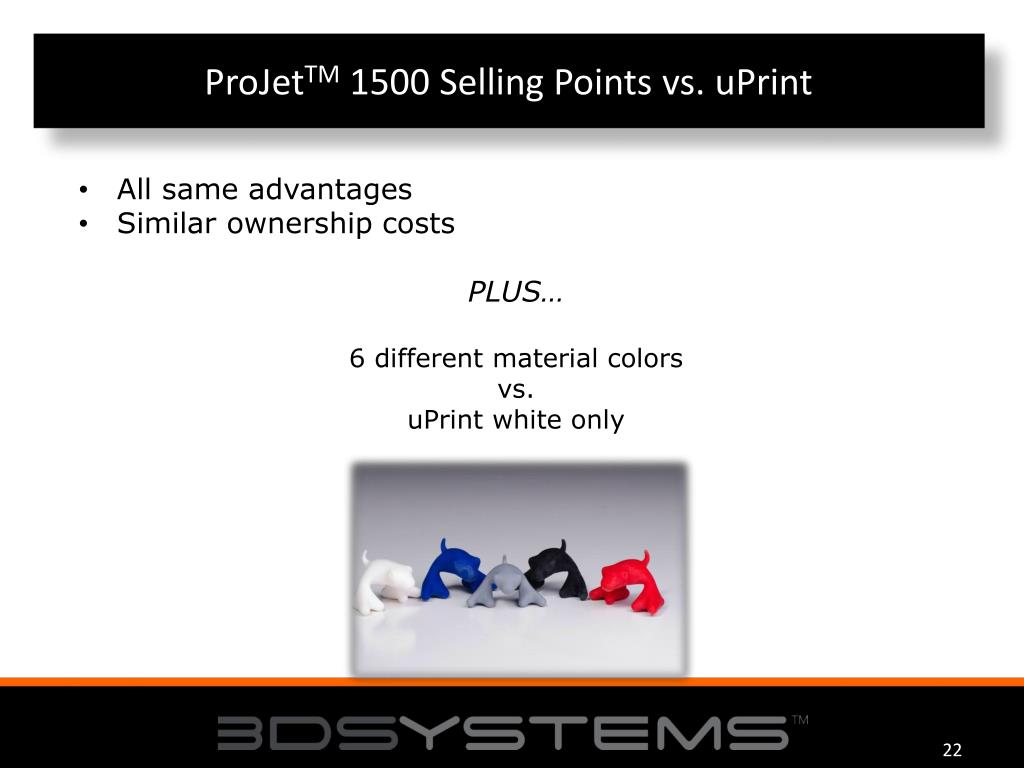

  22. ProJetTM 1500 Selling Points vs. uPrint • All same advantages • Similar ownership costs • PLUS… • 6 different material colors • vs. • uPrint white only

  23. ProJetTM 1500 Advantages vs. Objet 24 • Lower initial price saves enough to buy 4+ years of material • Less than ½ the annual operating cost (materials + service) • Bright eye-catching color models vs. single white color • Up to 2X faster build speeds • Larger build volume (+17.9%) • Typically uses less than ½ the material by volume • No strong, unpleasant odor like Objet • No consumable print heads to purchase and replace saves $ thousands • Comes with standard 12 month warranty. In some countries standard Objet warranty is only 3 months.

  24. Thank You www.3dsystems.com NYSE: DDD
