  1. C# Language Design Peter Hallam Software Design Engineer C# Compiler Microsoft Corporation

  2. Overview • Introduction to C# • Design Problems • Future Directions • Questions

  3. Hello World using System; class Hello { static void Main() { Console.WriteLine("Hello, world!"); } }

  4. C# Program Structure • Namespaces • Contain types and other namespaces • Type declarations • Classes, structs, interfaces, enums, and delegates • Members • Constants, fields, methods, operators, constructors, destructors • Properties, indexers, events • Organization • No header files, code written “in-line”

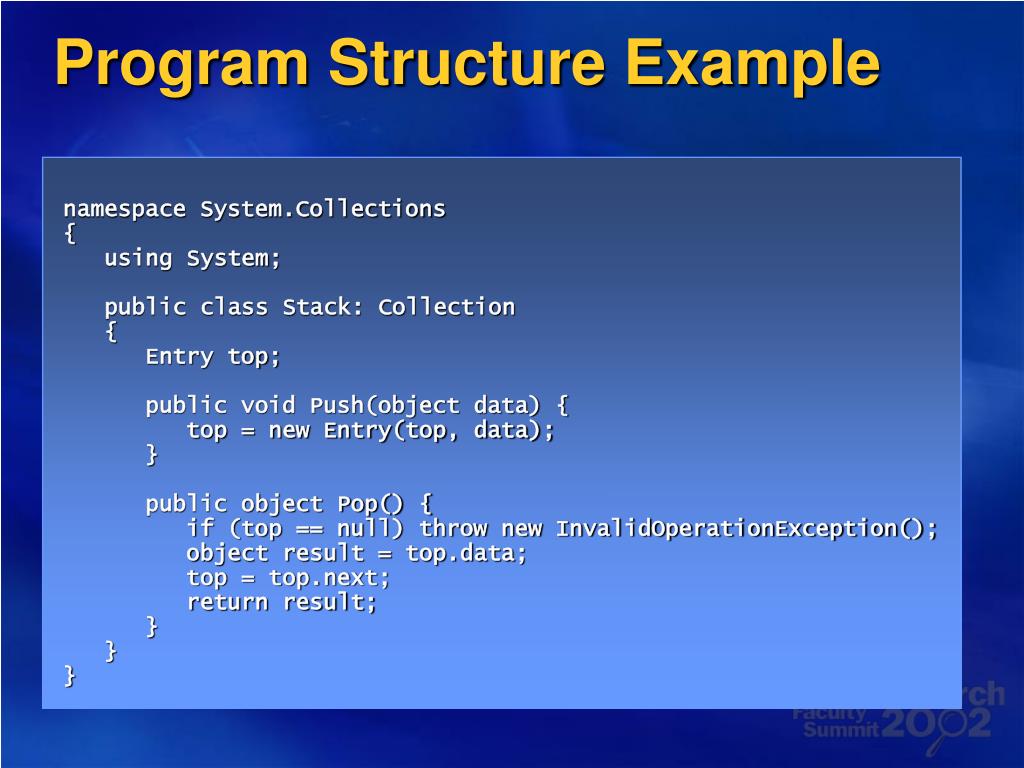

  5. Program Structure Example namespace System.Collections { using System; public class Stack: Collection { Entry top; public void Push(object data) { top = new Entry(top, data); } public object Pop() { if (top == null) throw new InvalidOperationException(); object result = top.data; top = top.next; return result; } } }

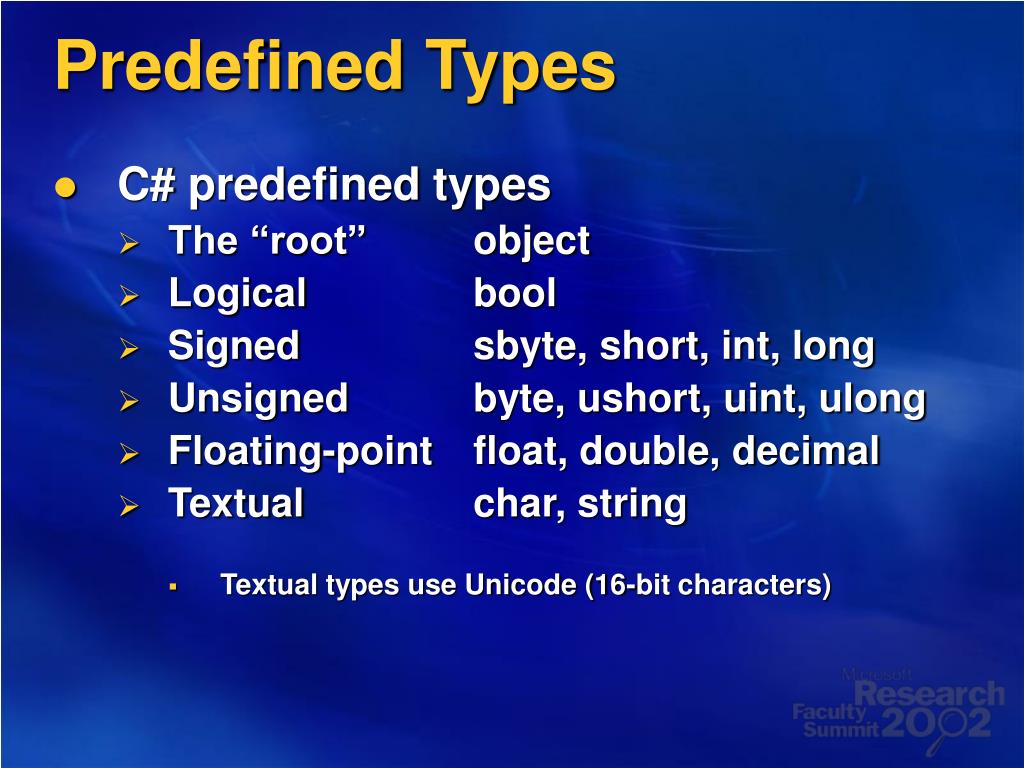

  6. Predefined Types • C# predefined types • The “root” object • Logical bool • Signed sbyte, short, int, long • Unsigned byte, ushort, uint, ulong • Floating-point float, double, decimal • Textual char, string • Textual types use Unicode (16-bit characters)

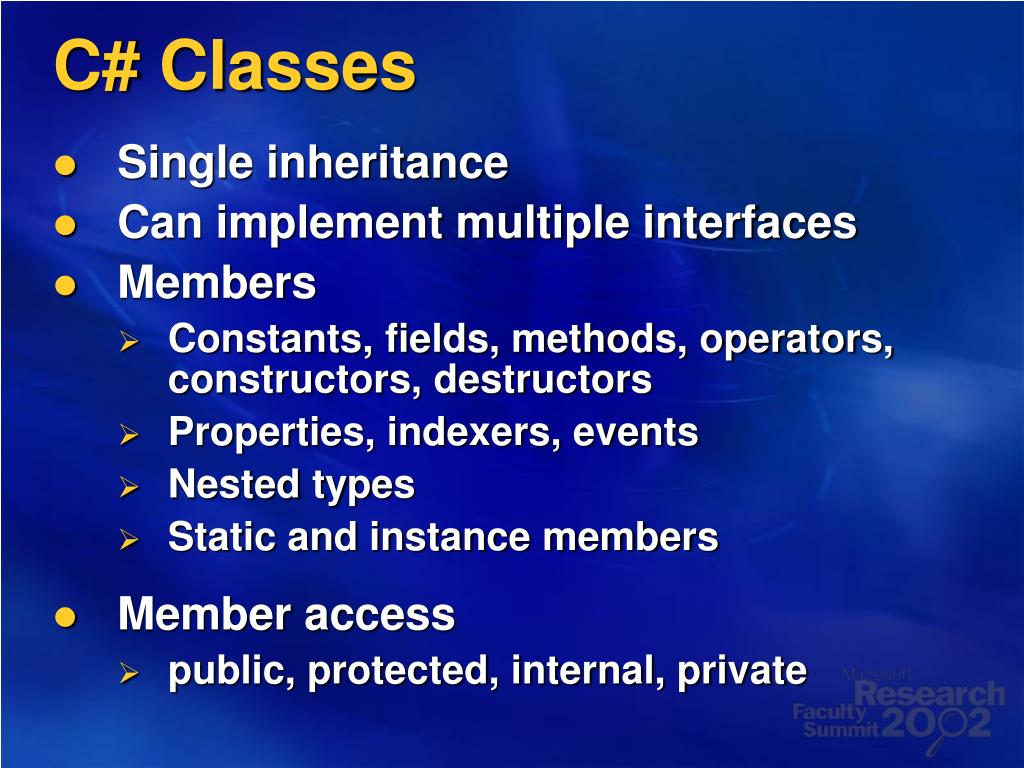

  7. C# Classes • Single inheritance • Can implement multiple interfaces • Members • Constants, fields, methods, operators, constructors, destructors • Properties, indexers, events • Nested types • Static and instance members • Member access • public, protected, internal, private

  8. Interfaces • Can contain method declarations; no code or data • Defines a “contract” that a class must support • Classes have one base class, but can implement many interfaces interface IFormattable { string Format(string format); } class DateTime: IFormattable { public string Format(string format) {…} }

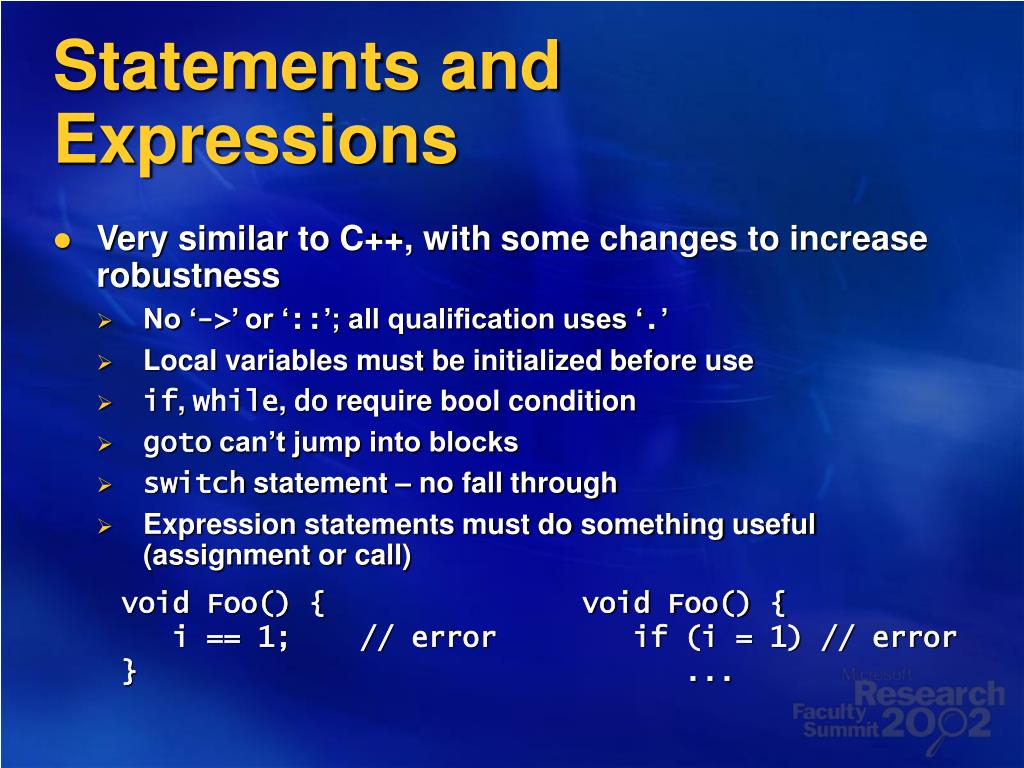

  9. Statements and Expressions • Very similar to C++, with some changes to increase robustness • No ‘->’ or ‘::’; all qualification uses ‘.’ • Local variables must be initialized before use • if, while, do require bool condition • goto can’t jump into blocks • switch statement – no fall through • Expression statements must do something useful (assignment or call) void Foo() { void Foo() { i == 1; // error if (i = 1) // error } ...

  10. C# Design Goals • Simple, Extensible Type System • 1st Class Component Support • Robust and Versionable • Preserve existing investments

  11. Problem:How to Unify the Type System • A single universal base type (“object”) • All types ultimately inherit from object • Object variable can hold any value • Any piece of data can be stored, transported, and manipulated with no extra work • Unification enables: • Calling virtual functions on any value • Collection classes for any type

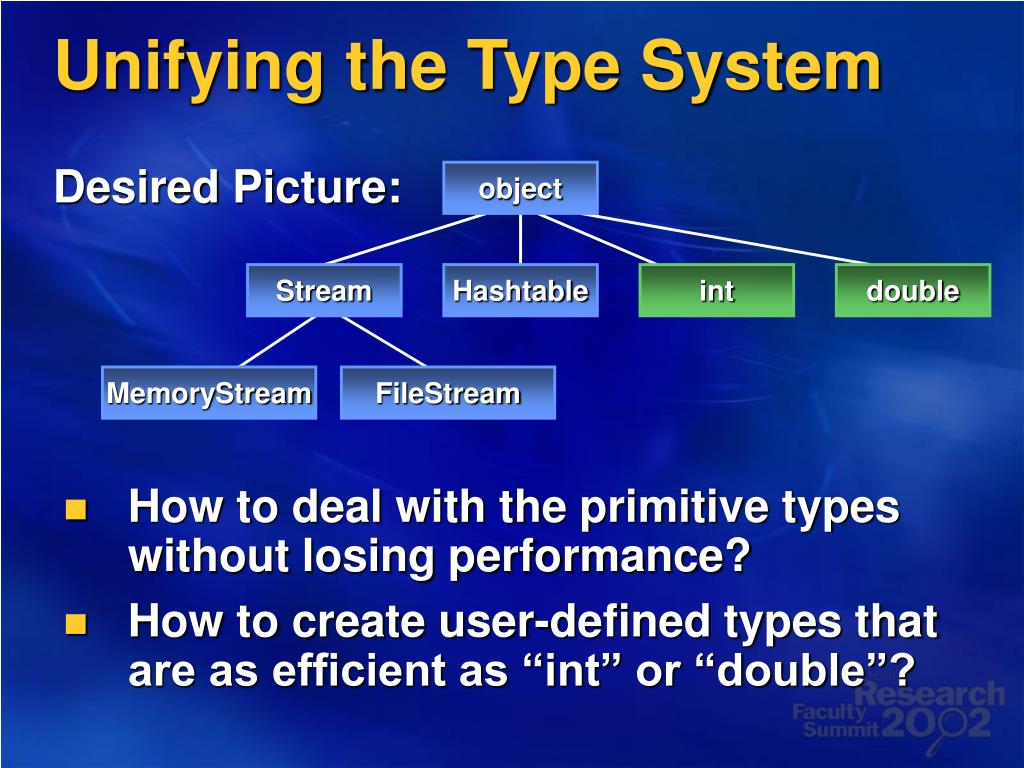

  12. Unifying the Type System Desired Picture: object Stream Hashtable int double MemoryStream FileStream • How to deal with the primitive types without losing performance? • How to create user-defined types that are as efficient as “int” or “double”?

  13. How to Unify:A traditional approach (SmallTalk) • Make everything a real object • Performance implications • All objects have a type descriptor or virtual function table • May require all object to be heap-allocated to prevent dangle pointers • Behavior and expectation mismatch • “int” variables can be “null”

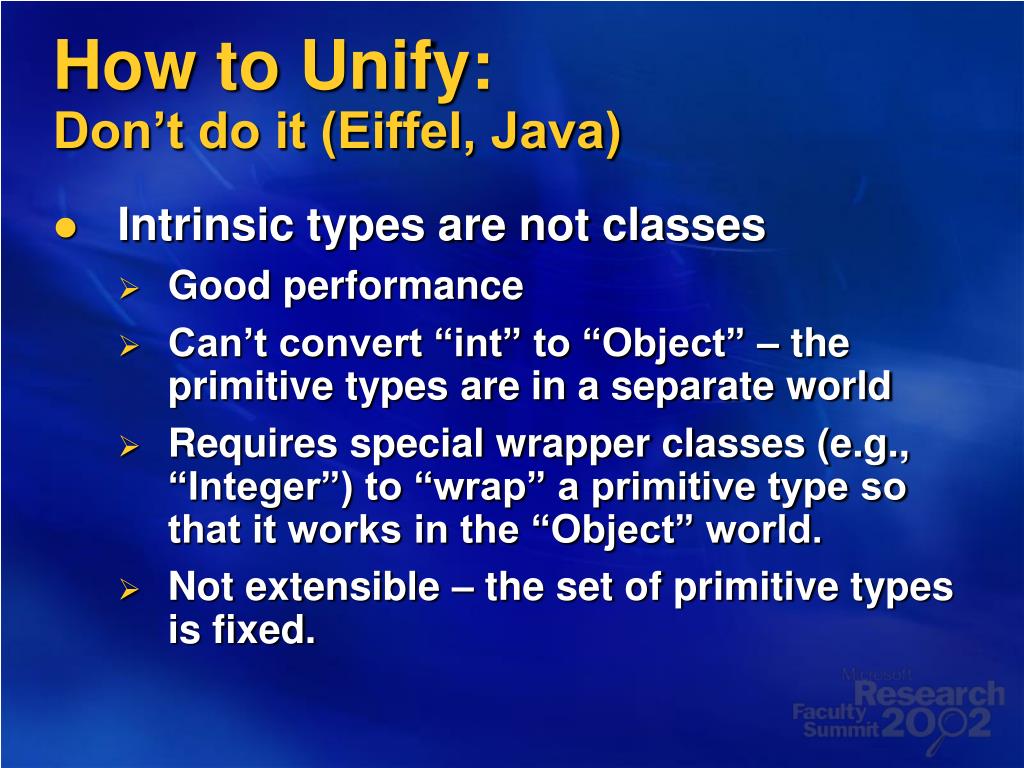

  14. How to Unify:Don’t do it (Eiffel, Java) • Intrinsic types are not classes • Good performance • Can’t convert “int” to “Object” – the primitive types are in a separate world • Requires special wrapper classes (e.g., “Integer”) to “wrap” a primitive type so that it works in the “Object” world. • Not extensible – the set of primitive types is fixed.

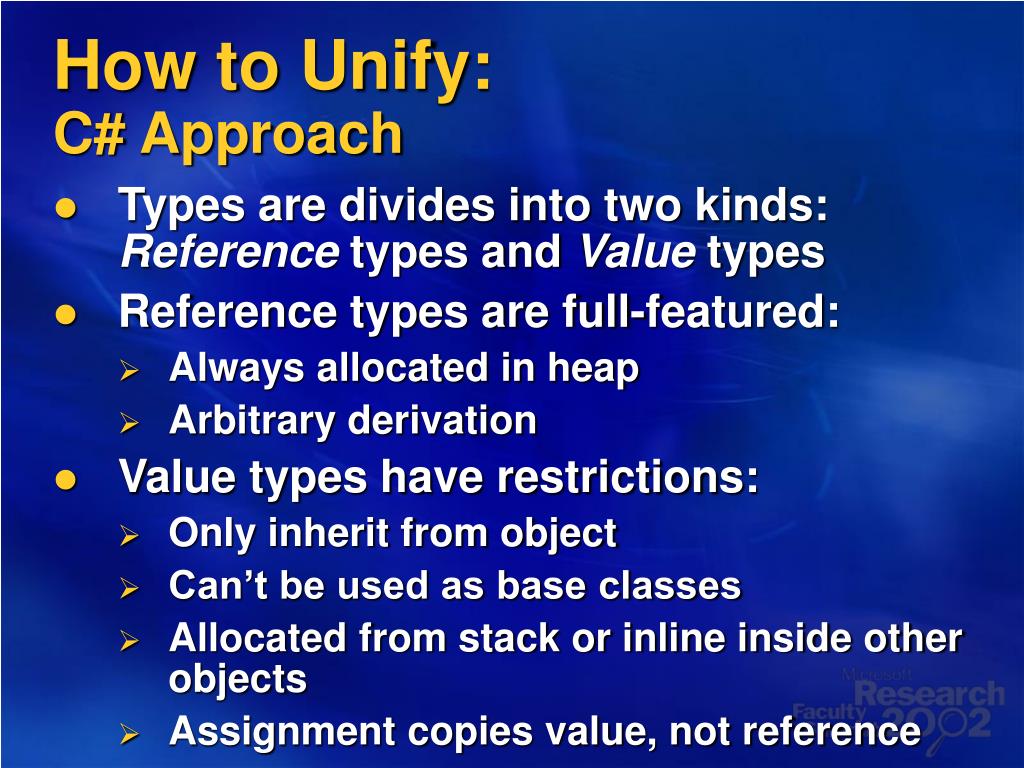

  15. How to Unify:C# Approach • Types are divides into two kinds: Reference types and Value types • Reference types are full-featured: • Always allocated in heap • Arbitrary derivation • Value types have restrictions: • Only inherit from object • Can’t be used as base classes • Allocated from stack or inline inside other objects • Assignment copies value, not reference

  16. Unification • Value types don’t need type descriptors or vtables (efficient!) • “object” does need a type descriptor, because it can contain any type • Value types become reference types when they are converted to “object” • Value is copied to heap, type descriptor attached • Process is called “boxing” • When cast back to value type, “unboxing” occurs, value is copied out of heap

  17. 123 i } o “int” “Boxing” 123 ? } “Unboxing” j Boxing and Unboxing • “Everything is an object” • Any type can can be stored as an object int i = 123; object o = i; int j = (int)o; 123

  18. User-Defined Types • C# allows user-defined types to be either reference or value types • Classes (reference) • Used for most objects • Structs (value) • Objects that are like primitive data (Point, Complex, etc). struct Point { int x, y; ... } Point sp = new Point(10, 20);

  19. C# Type System • Natural User Model • Extensible • Performant

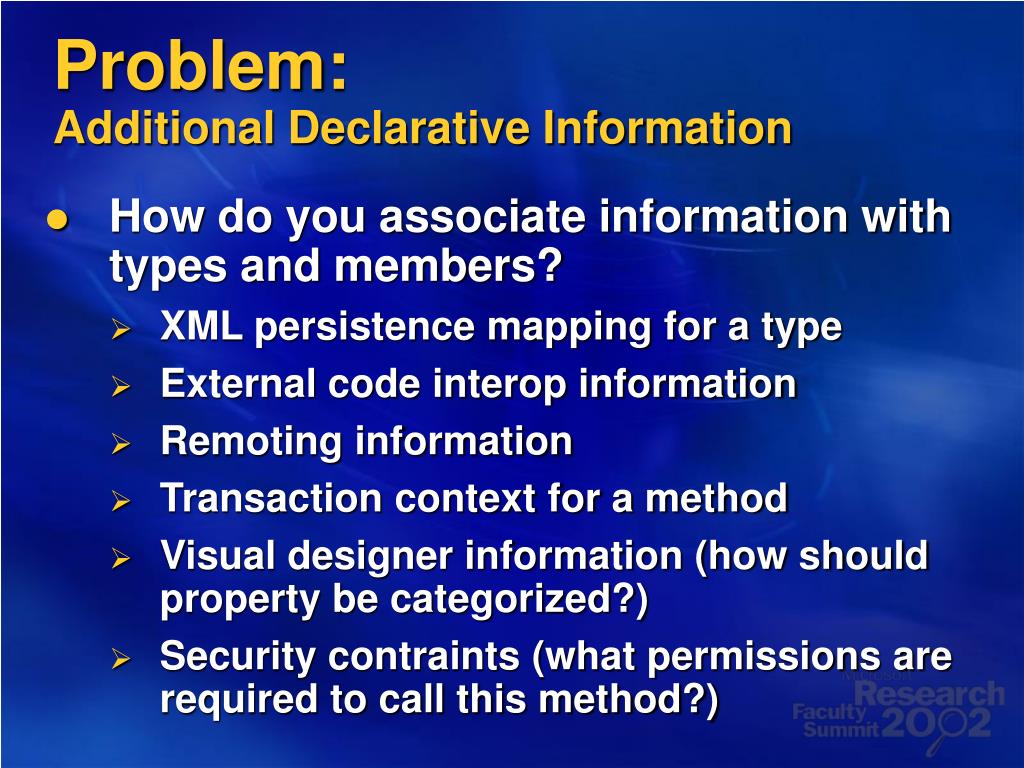

  20. Problem: Additional Declarative Information • How do you associate information with types and members? • XML persistence mapping for a type • External code interop information • Remoting information • Transaction context for a method • Visual designer information (how should property be categorized?) • Security contraints (what permissions are required to call this method?)

  21. Other Approaches • Add keyword or pragma • Requires updating the compiler for each new piece of information • Use external file • Information clumsy to find/see • Require duplication of names • Example: IDL files for remote procedures • Use naming patterns • Create a new class or constant that describes the class/members • Example: Java “BeanInfo” classes

  22. C# Solution: Attributes • Attach named attributes (with optional arguments) to language element • Uses simple bracketed syntax • Arguments must be constants of string, number, enum, type-name

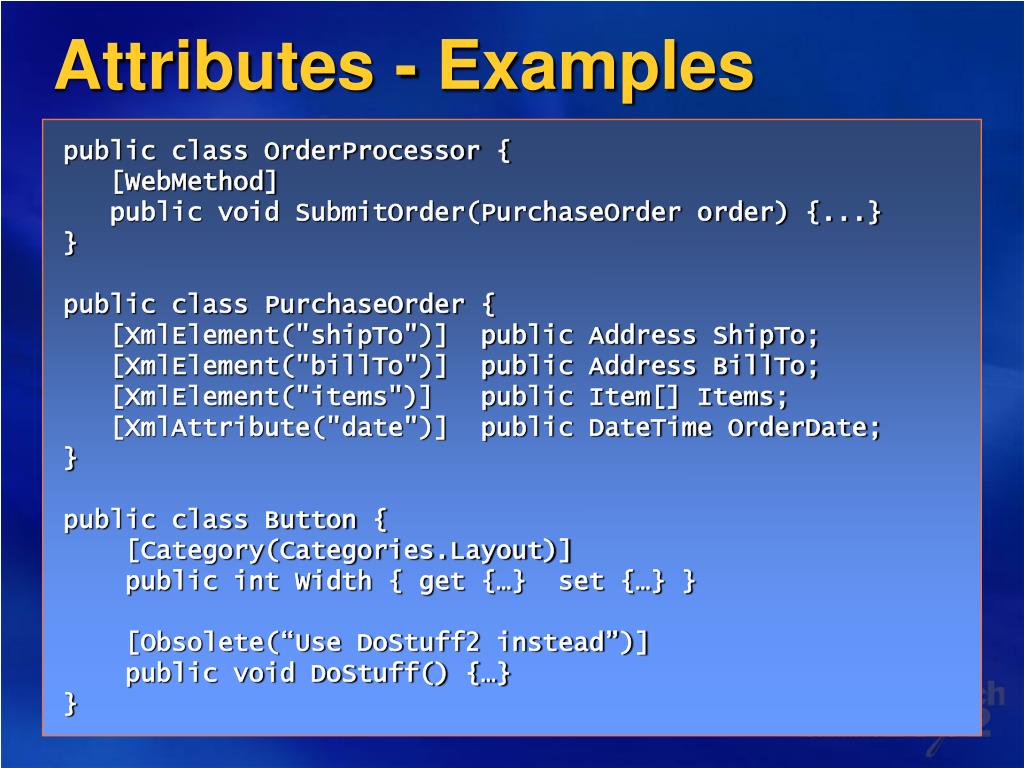

  23. Attributes - Examples public class OrderProcessor { [WebMethod] public void SubmitOrder(PurchaseOrder order) {...} } public class PurchaseOrder { [XmlElement("shipTo")] public Address ShipTo; [XmlElement("billTo")] public Address BillTo; [XmlElement("items")] public Item[] Items; [XmlAttribute("date")] public DateTime OrderDate; } public class Button { [Category(Categories.Layout)] public int Width { get {…} set {…} } [Obsolete(“Use DoStuff2 instead”)] public void DoStuff() {…} }

  24. Attributes • Attributes • Attached to types, members, parameters, and libraries • Present in the compiled metadata • Can by examined by the common language runtime, by compilers, by the .NET Frameworks, or by user code (using reflection) • Extensible • Type-safe • Extensively used in .NET Frameworks • XML, Web Services, security, serialization, component model, transactions, external code interop…

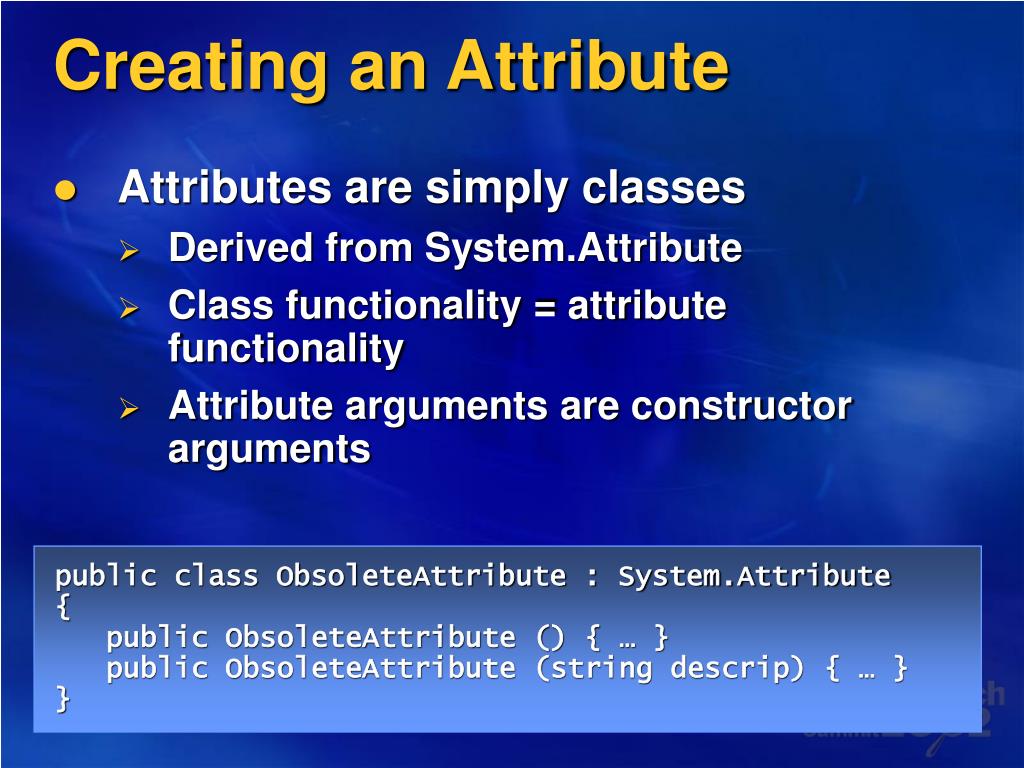

  25. Creating an Attribute • Attributes are simply classes • Derived from System.Attribute • Class functionality = attribute functionality • Attribute arguments are constructor arguments public class ObsoleteAttribute : System.Attribute { public ObsoleteAttribute () { … } public ObsoleteAttribute (string descrip) { … } }

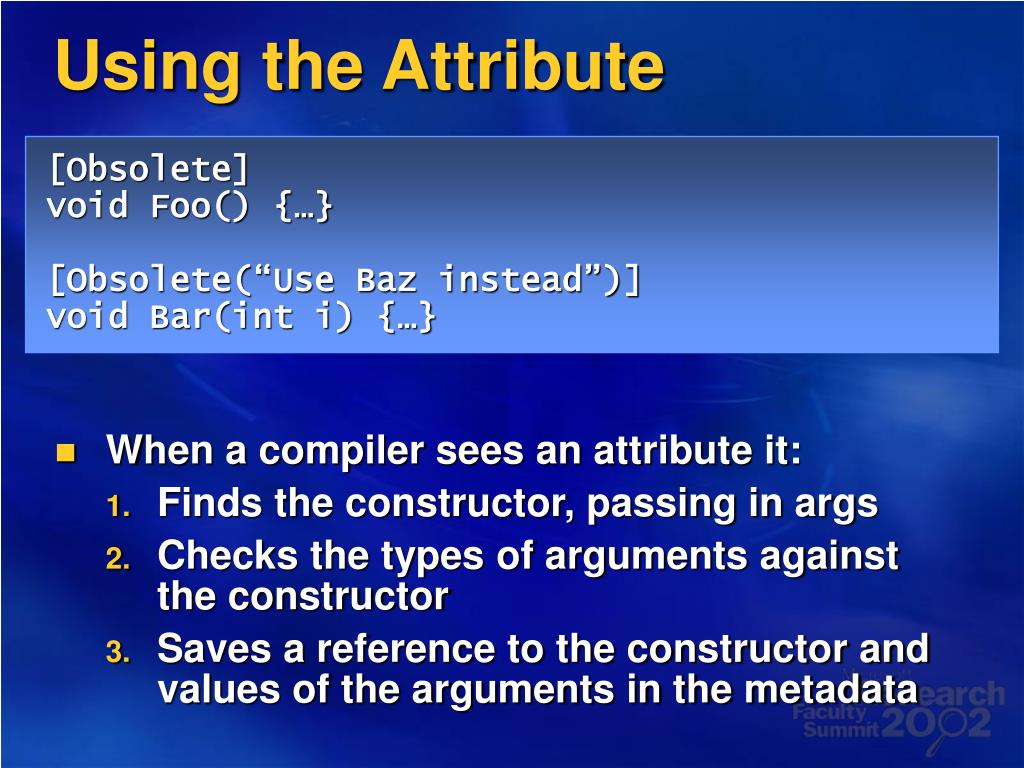

  26. Using the Attribute [Obsolete] void Foo() {…} [Obsolete(“Use Baz instead”)] void Bar(int i) {…} • When a compiler sees an attribute it: • Finds the constructor, passing in args • Checks the types of arguments against the constructor • Saves a reference to the constructor and values of the arguments in the metadata

  27. Querying Attributes • Use reflection to query attributes Type type = typeof(MyClass); foreach(Attribute attr in type.GetCustomAttributes()) { if ( attr is ObsoleteAttribute ) { ObsoleteAttribute oa = (ObsoleteAttribute) attr; Console.WriteLine(“{0} is obsolete: {1}”, type, attr.Description; } }

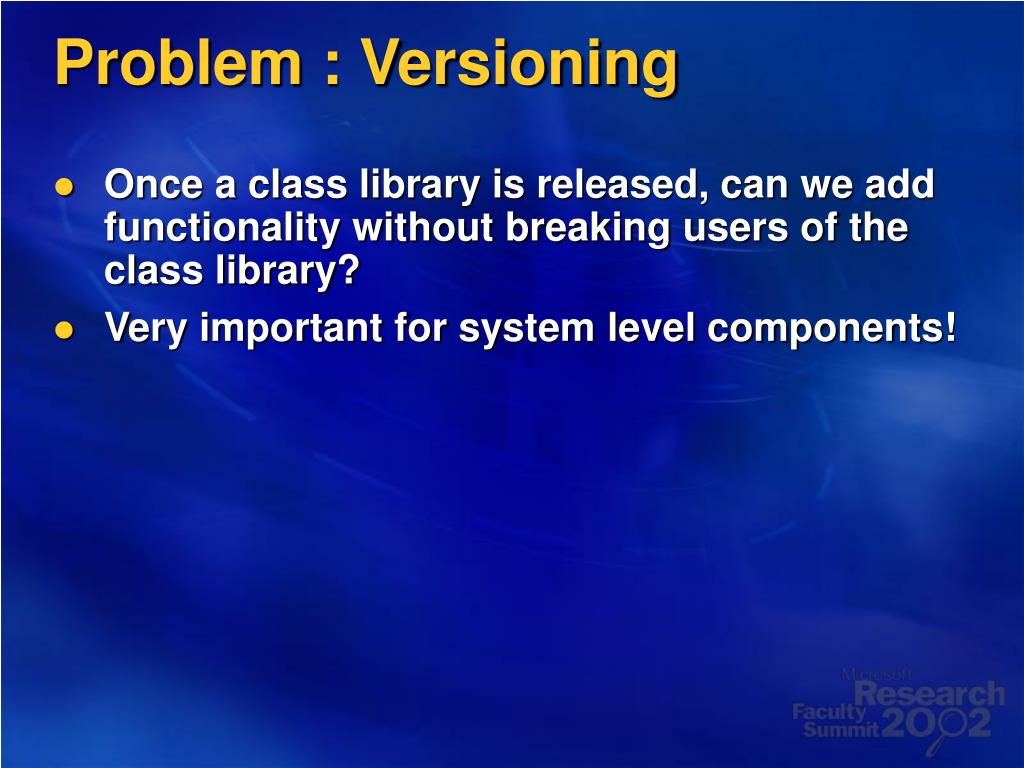

  28. Problem : Versioning • Once a class library is released, can we add functionality without breaking users of the class library? • Very important for system level components!

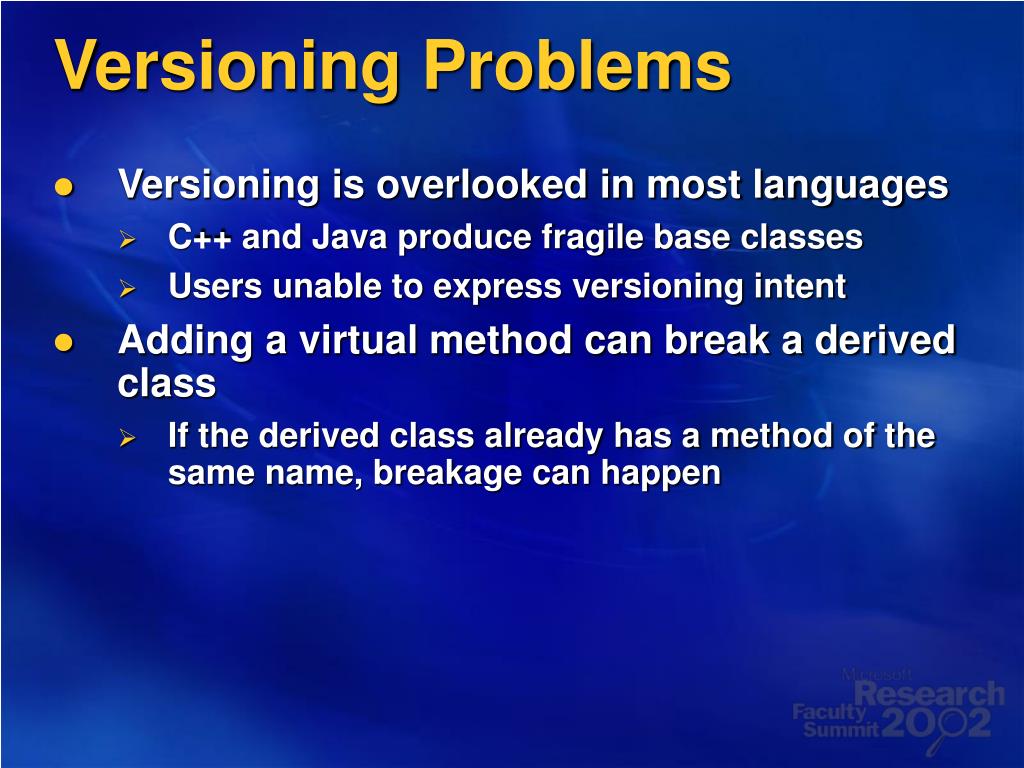

  29. Versioning Problems • Versioning is overlooked in most languages • C++ and Java produce fragile base classes • Users unable to express versioning intent • Adding a virtual method can break a derived class • If the derived class already has a method of the same name, breakage can happen

  30. Versioning: C# solution • C# allows intent to be expressed • Methods are not virtual by default • C# keywords “virtual”, “override” and “new” provide context • Adding a base class member never breaks a derived class • Adding or removing a private member never breaks another class • C# can't guarantee versioning • Can enable (e.g., explicit override) • Can encourage (e.g., smart defaults)

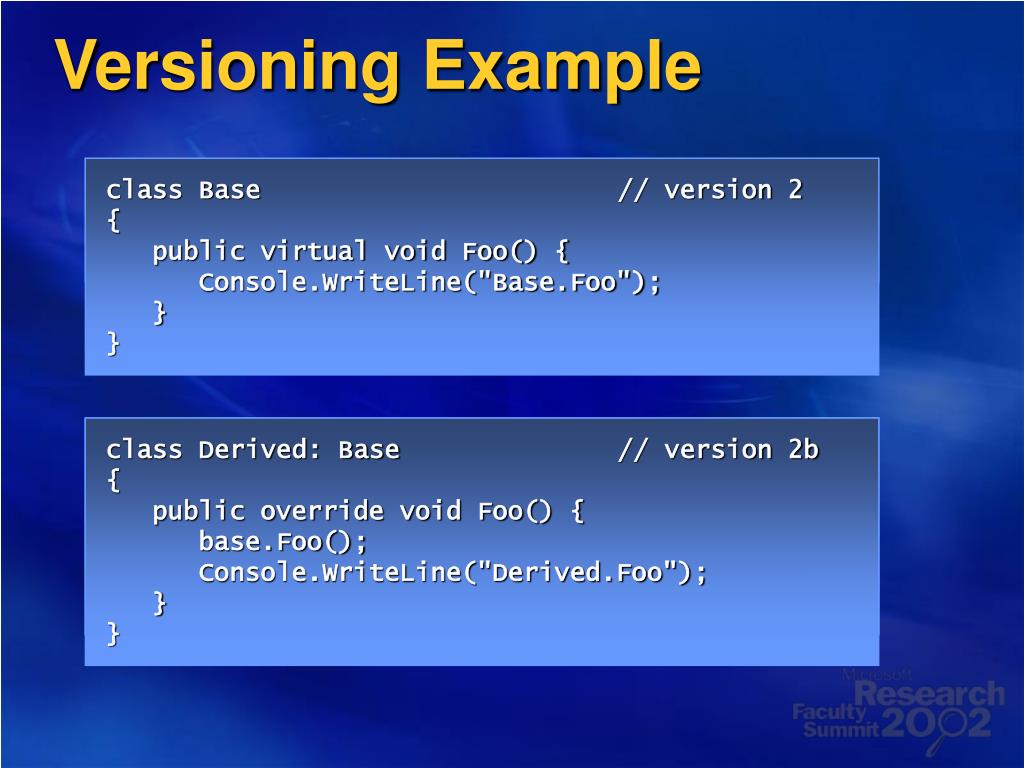

  31. Versioning Example class Base // version 1 { } class Base // version 2 { public virtual void Foo() { Console.WriteLine("Base.Foo"); } } class Derived: Base // version 1 { public virtual void Foo() { Console.WriteLine("Derived.Foo"); } } class Derived: Base // version 2a { new public virtual void Foo() { Console.WriteLine("Derived.Foo"); } } class Derived: Base // version 2b { public override void Foo() { base.Foo(); Console.WriteLine("Derived.Foo"); } }

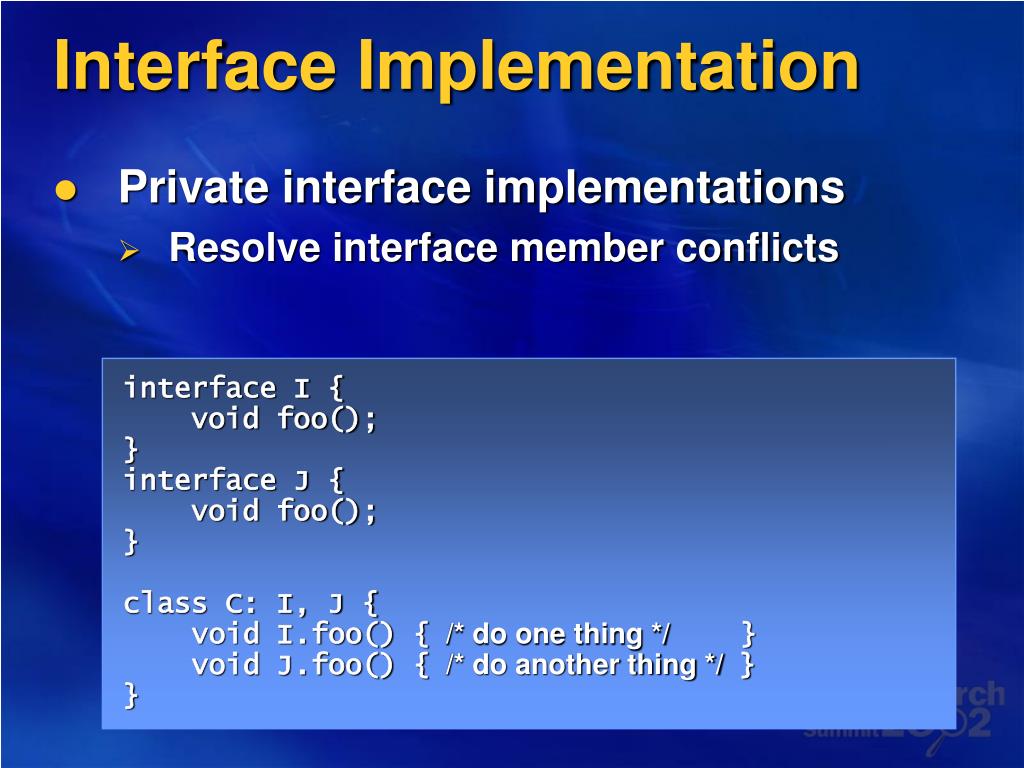

  32. Interface Implementation • Private interface implementations • Resolve interface member conflicts interface I { void foo(); } interface J { void foo(); } class C: I, J { void I.foo() { /* do one thing */ } void J.foo() { /* do another thing */ } }

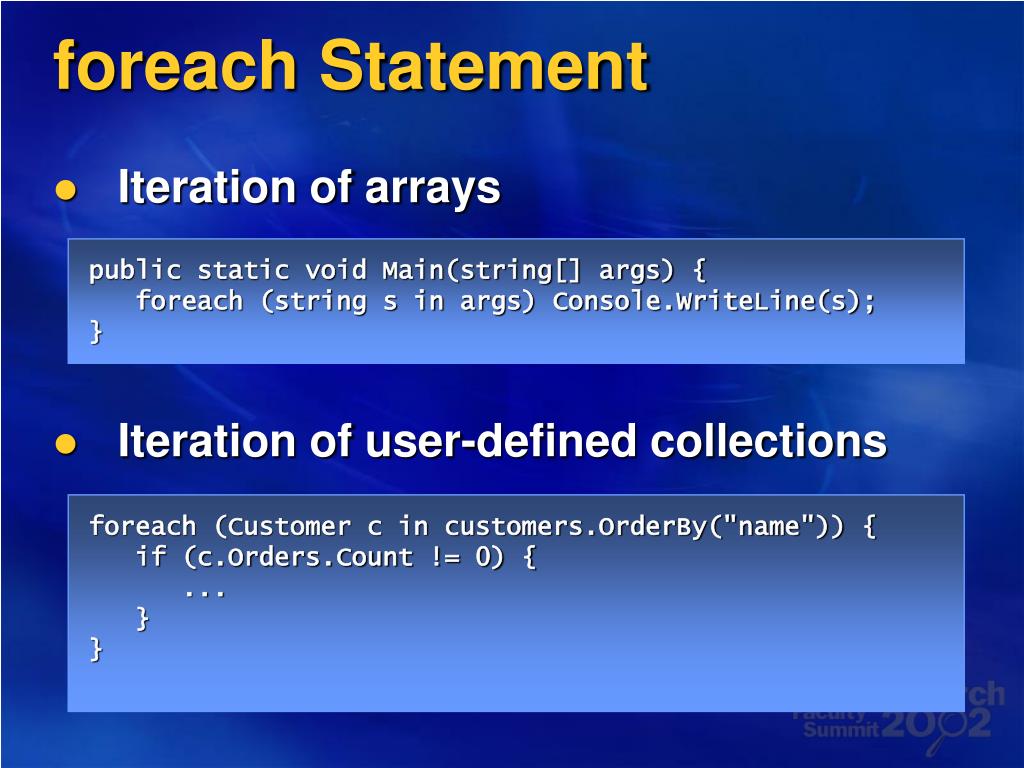

  33. foreach Statement • Iteration of arrays • Iteration of user-defined collections public static void Main(string[] args) { foreach (string s in args) Console.WriteLine(s); } foreach (Customer c in customers.OrderBy("name")) { if (c.Orders.Count != 0) { ... } }

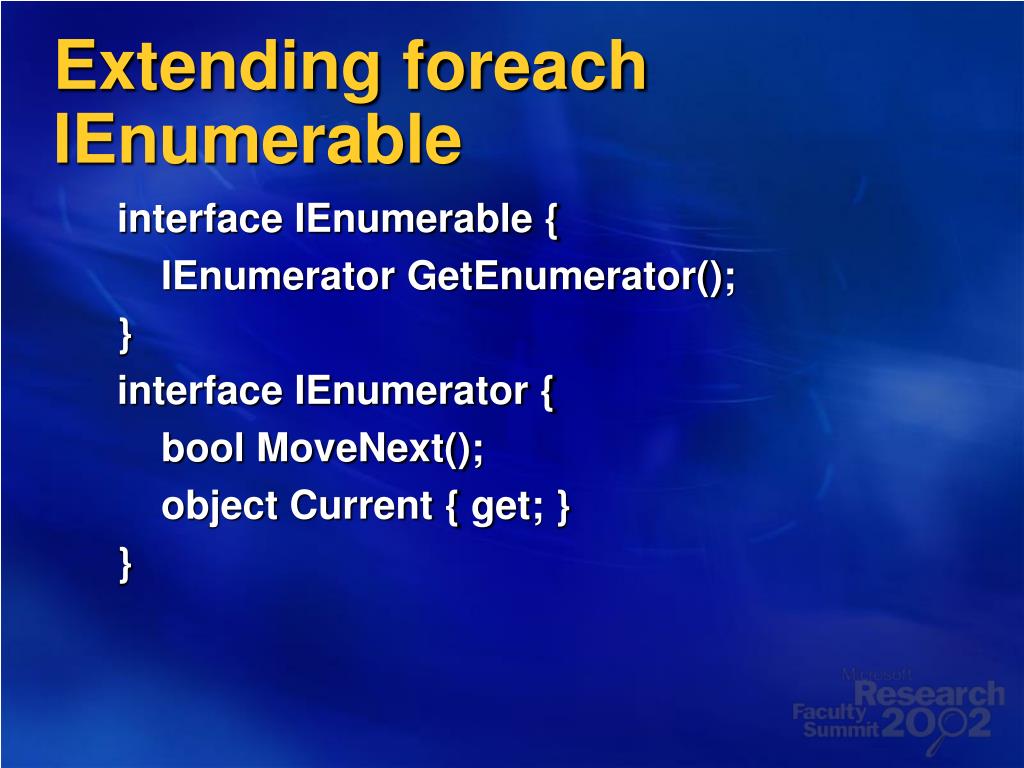

  34. Extending foreachIEnumerable interface IEnumerable { IEnumerator GetEnumerator(); } interface IEnumerator { bool MoveNext(); object Current { get; } }

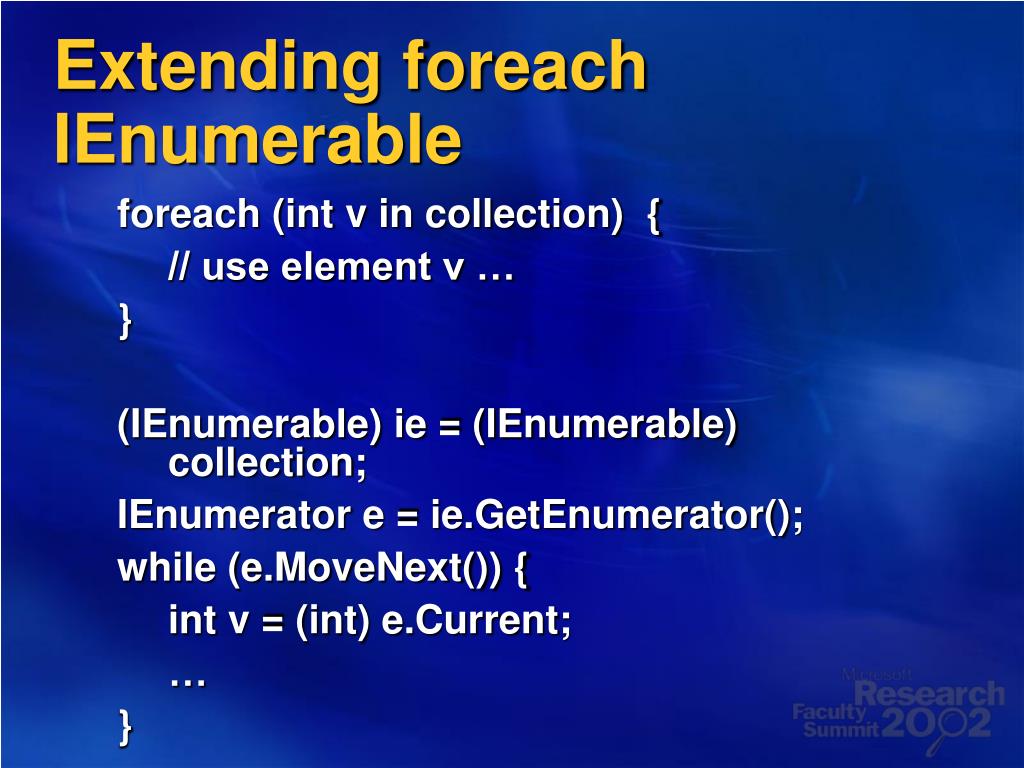

  35. Extending foreachIEnumerable foreach (int v in collection) { // use element v … } (IEnumerable) ie = (IEnumerable) collection; IEnumerator e = ie.GetEnumerator(); while (e.MoveNext()) { int v = (int) e.Current; … }

  36. foreach • Problems with IEnumerable • no compile time type checking • boxing when enumerating value types • Solution : A pattern-based approach • The C# compiler looks for: • GetEnumerator() on the collection • bool MoveNext() on the enumerator type • Strongly typed Current on the enumerator type

  37. foreach - Summary • Some Complexity • interface • pattern • Extensible • User collections can plug into foreach • User Model • Compile-time type checking • Performance • Value type access without boxing

  38. Future Directions

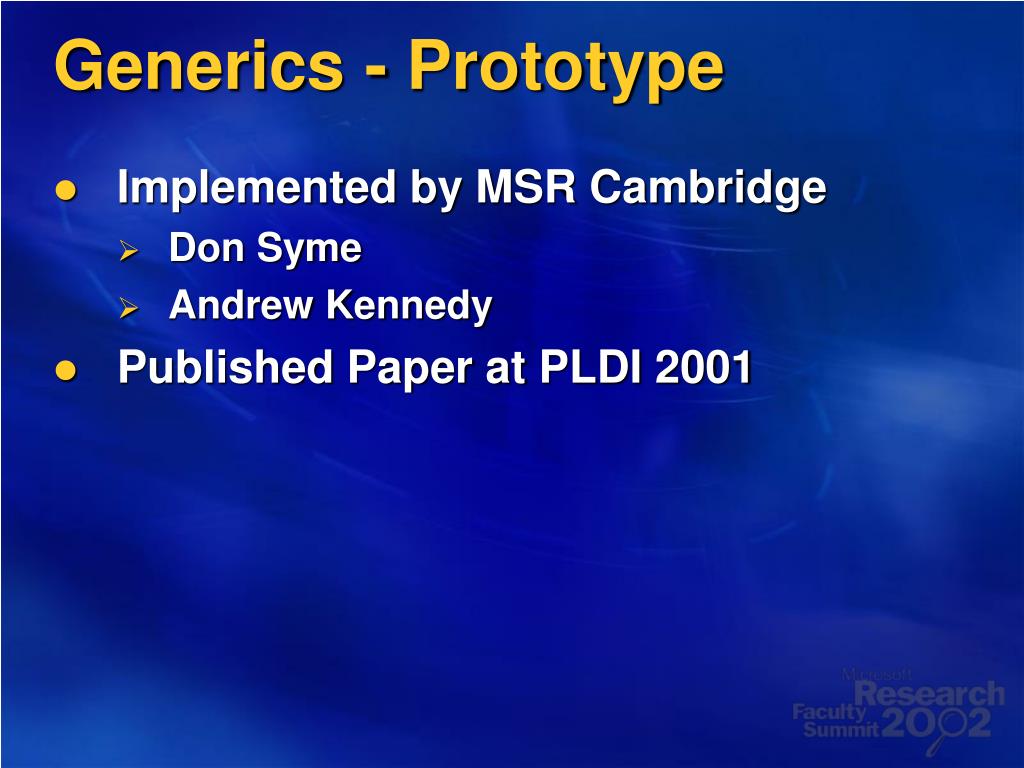

  39. Generics - Prototype • Implemented by MSR Cambridge • Don Syme • Andrew Kennedy • Published Paper at PLDI 2001

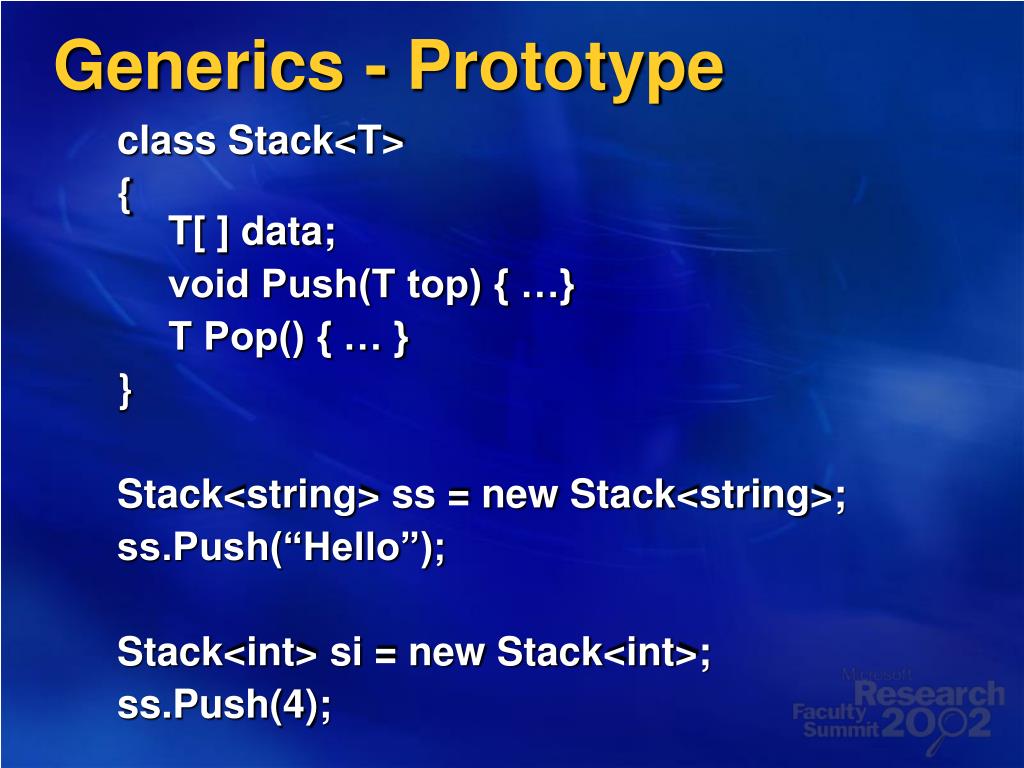

  40. Generics - Prototype class Stack<T> {T[ ] data; void Push(T top) { …} T Pop() { … } } Stack<string> ss = new Stack<string>; ss.Push(“Hello”); Stack<int> si = new Stack<int>; ss.Push(4);

  41. Other Approaches – C++ • Templates are really typed macros • Compile time instantiations only • Require source for new instantiations • Type Parameter Bounds Infered • Good Execution Speed • Bad Code Size

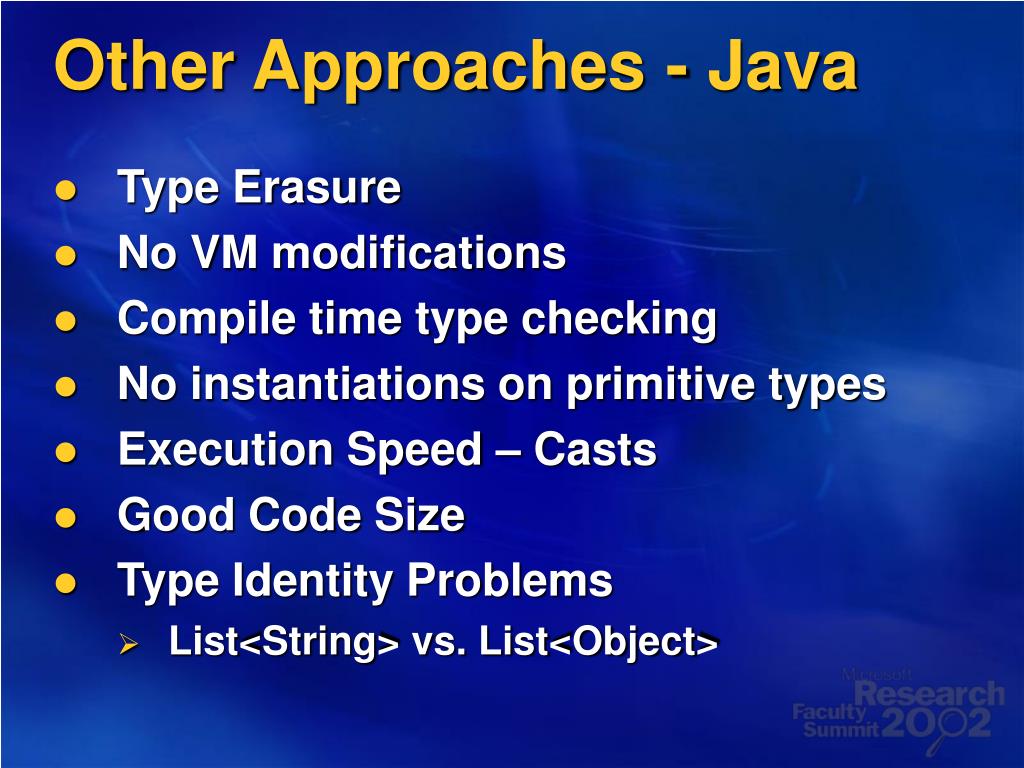

  42. Other Approaches - Java • Type Erasure • No VM modifications • Compile time type checking • No instantiations on primitive types • Execution Speed – Casts • Good Code Size • Type Identity Problems • List<String> vs. List<Object>

  43. C# .NET Generics Prototype • prototype .NET runtime is generics aware • All objects carry exact runtime type • Instantiations on reference and value types • Type Parameters bounded by base class and/or interfaces • Runtime performs specialization

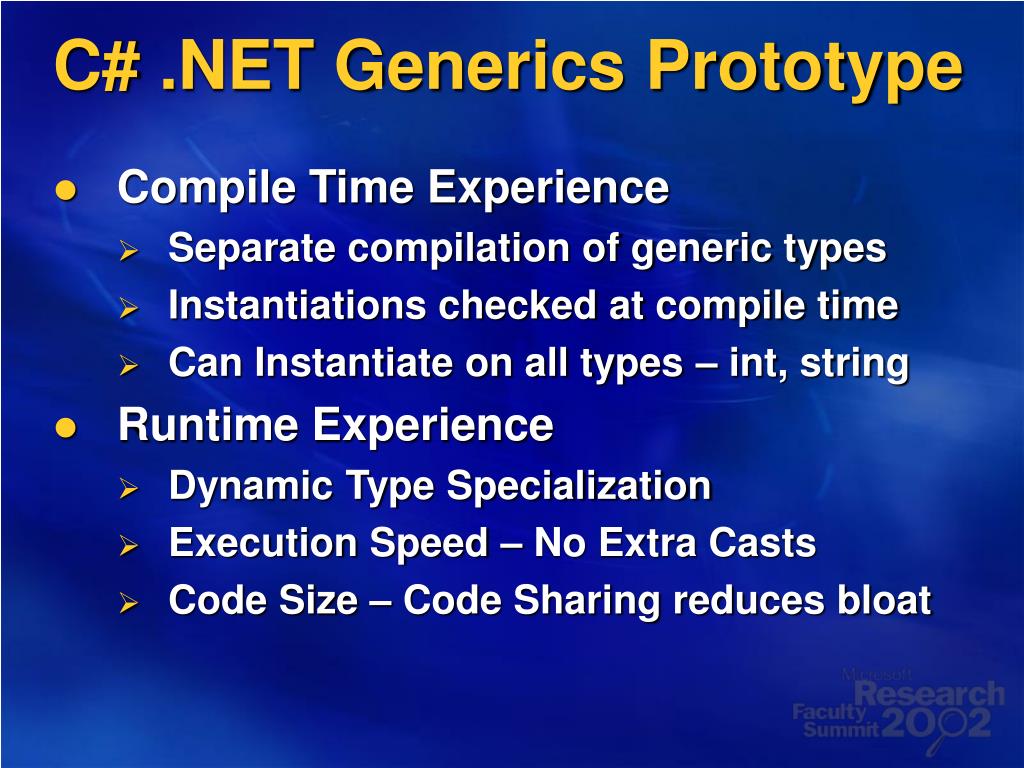

  44. C# .NET Generics Prototype • Compile Time Experience • Separate compilation of generic types • Instantiations checked at compile time • Can Instantiate on all types – int, string • Runtime Experience • Dynamic Type Specialization • Execution Speed – No Extra Casts • Code Size – Code Sharing reduces bloat
