  1. BIOMECHATRONIC HAND PRESENTED BY ALBERT KURIAN

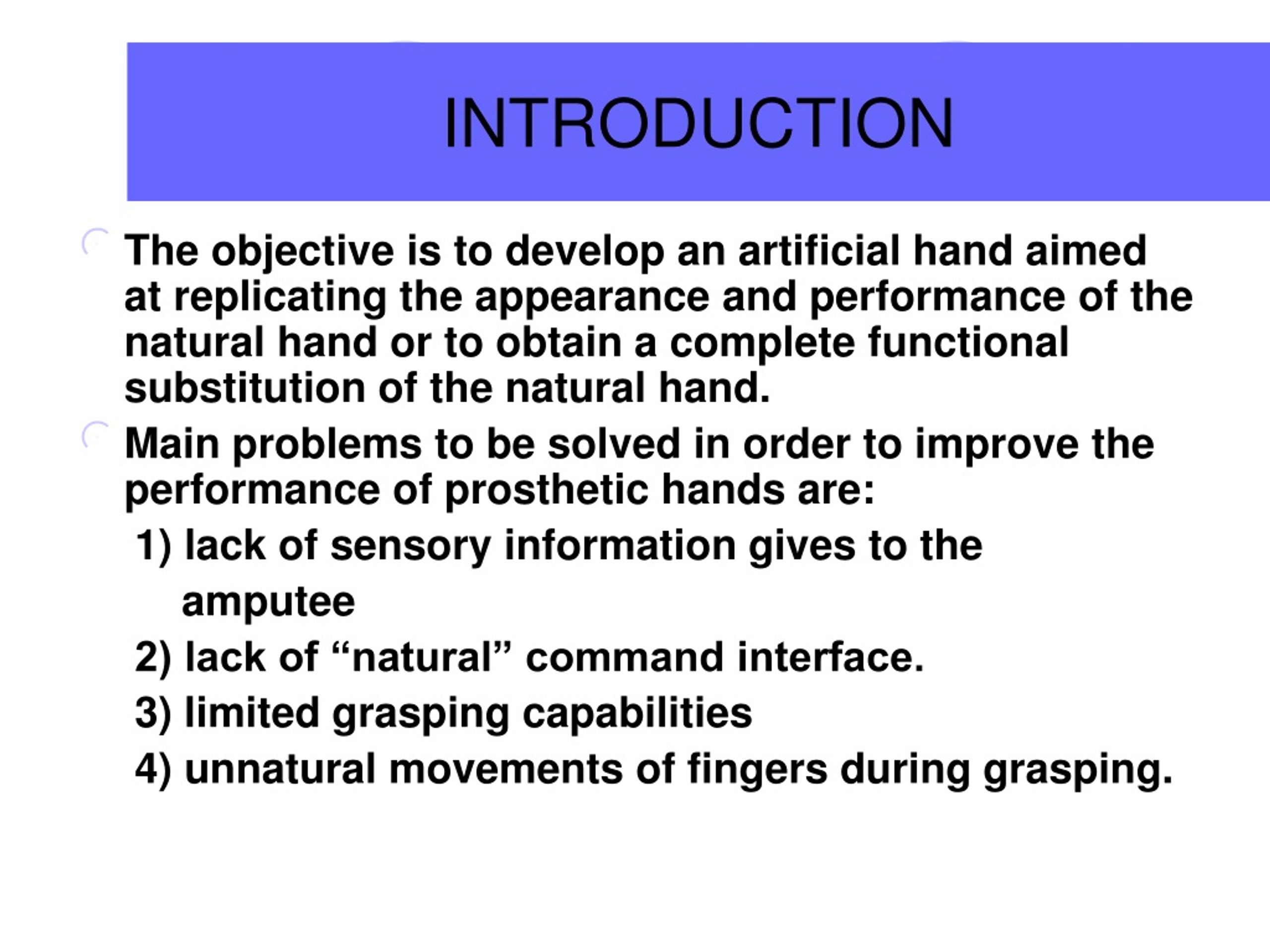

  2. INTRODUCTION • The objective is to develop an artificial hand aimed at replicating the appearance and performance of the natural hand or to obtain a complete functional substitution of the natural hand. • Main problems to be solved in order to improve the performance of prosthetic hands are: 1) lack of sensory information gives to the amputee 2) lack of “natural” command interface. 3) limited grasping capabilities 4) unnatural movements of fingers during grasping.

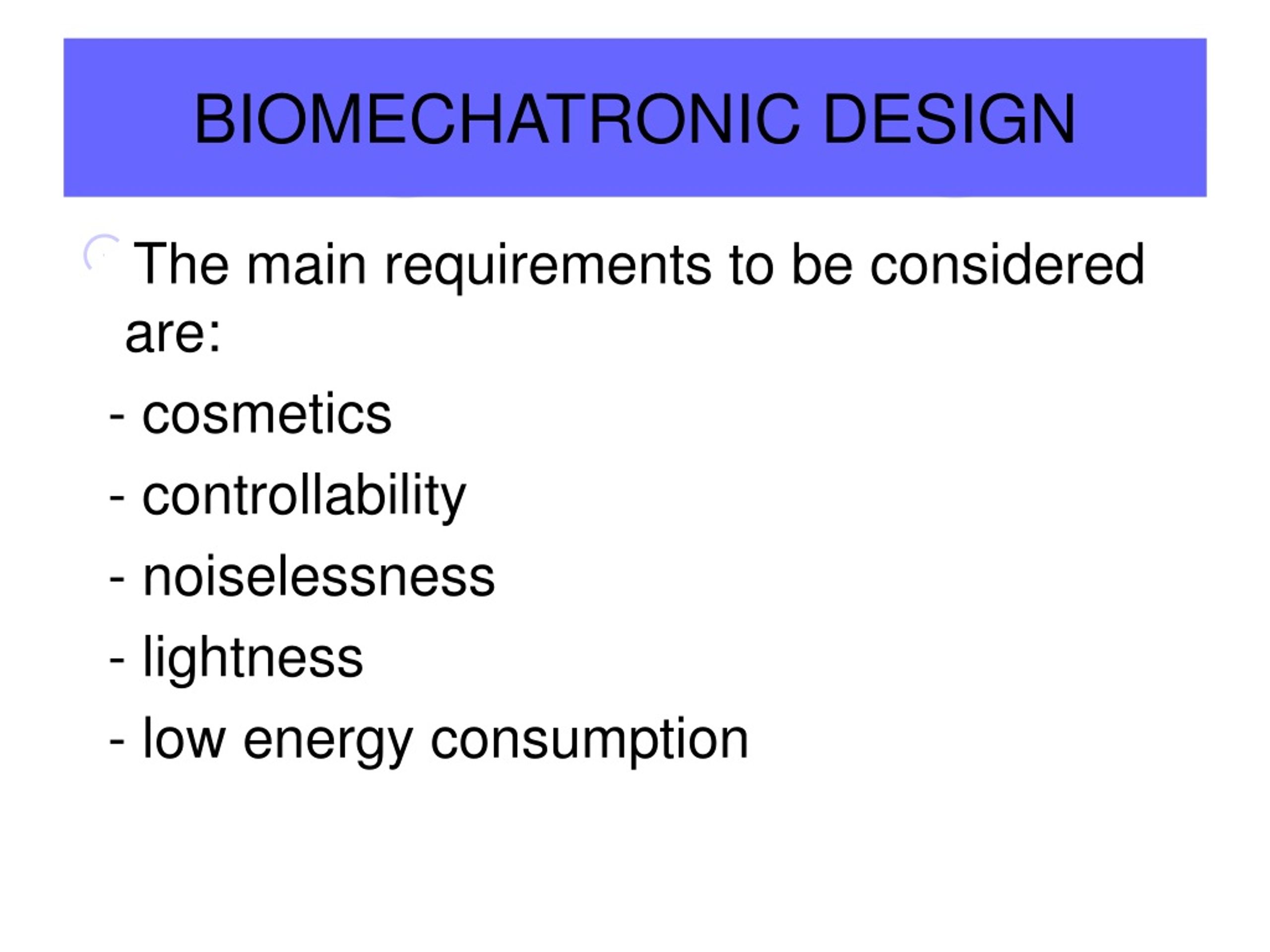

  3. BIOMECHATRONIC DESIGN • The main requirements to be considered are: - cosmetics - controllability - noiselessness - lightness - low energy consumption

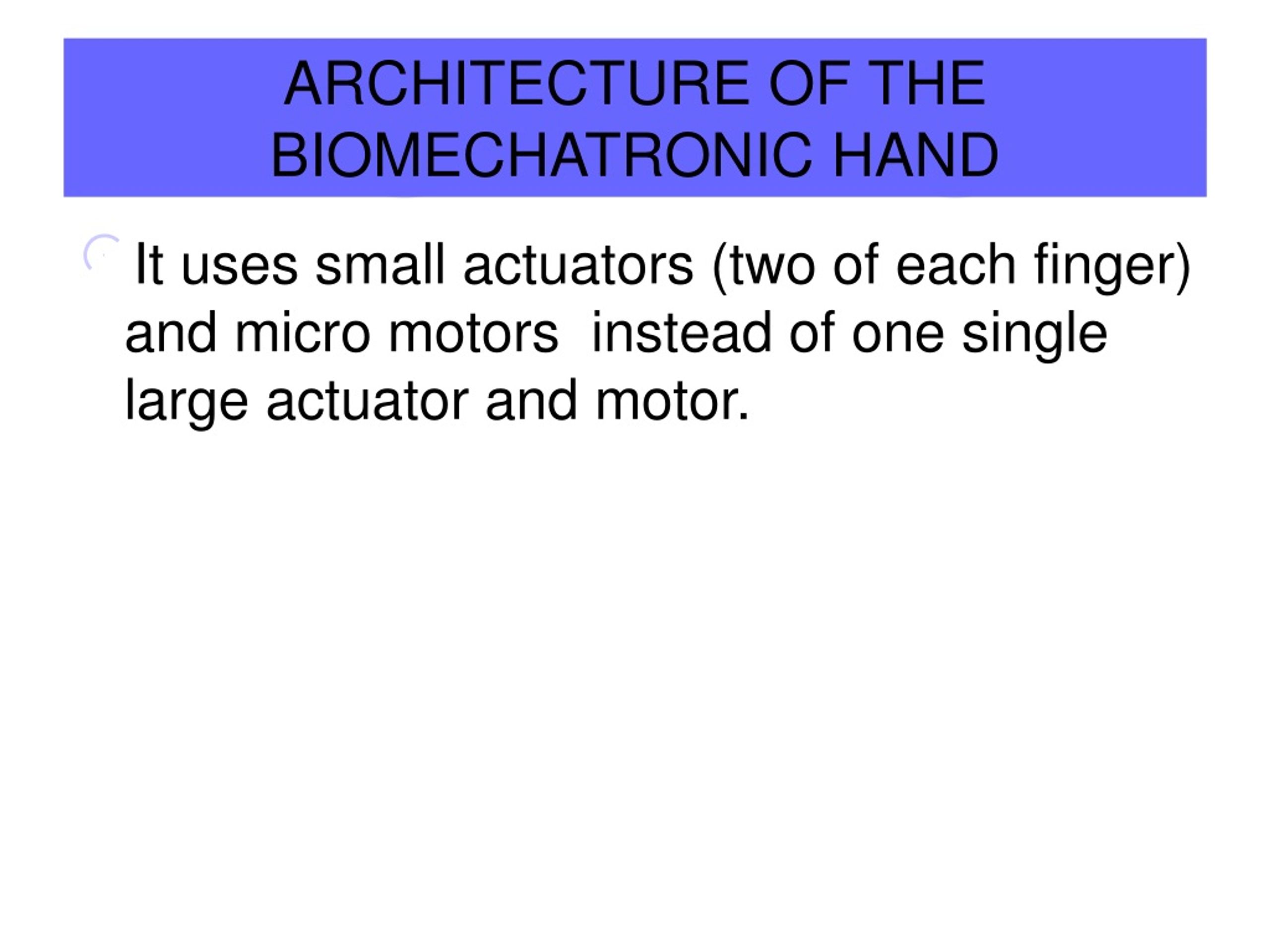

  4. ARCHITECTURE OF THE BIOMECHATRONIC HAND • It uses small actuators (two of each finger) and micro motors instead of one single large actuator and motor.

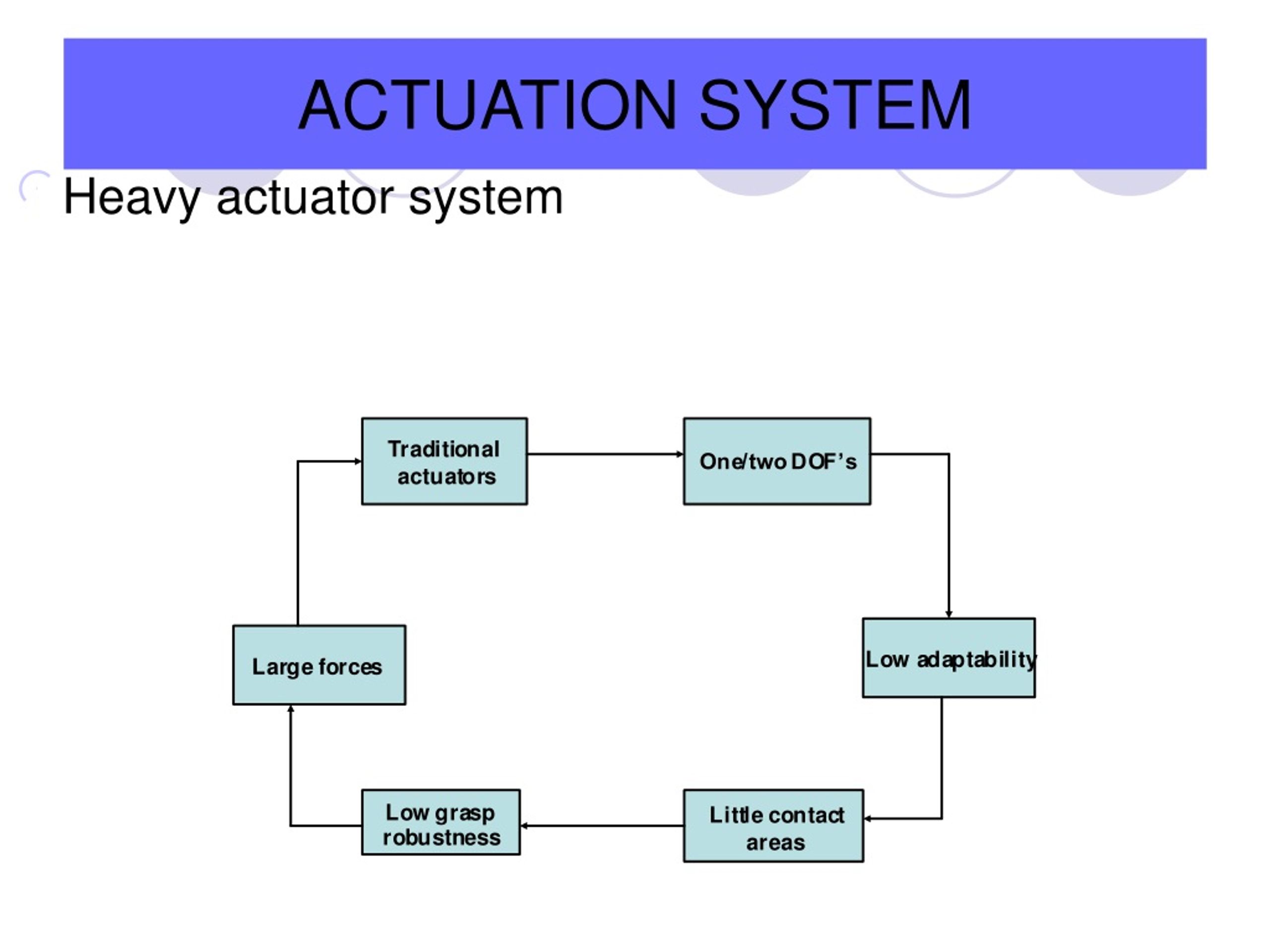

  5. ACTUATION SYSTEM • Heavy actuator system

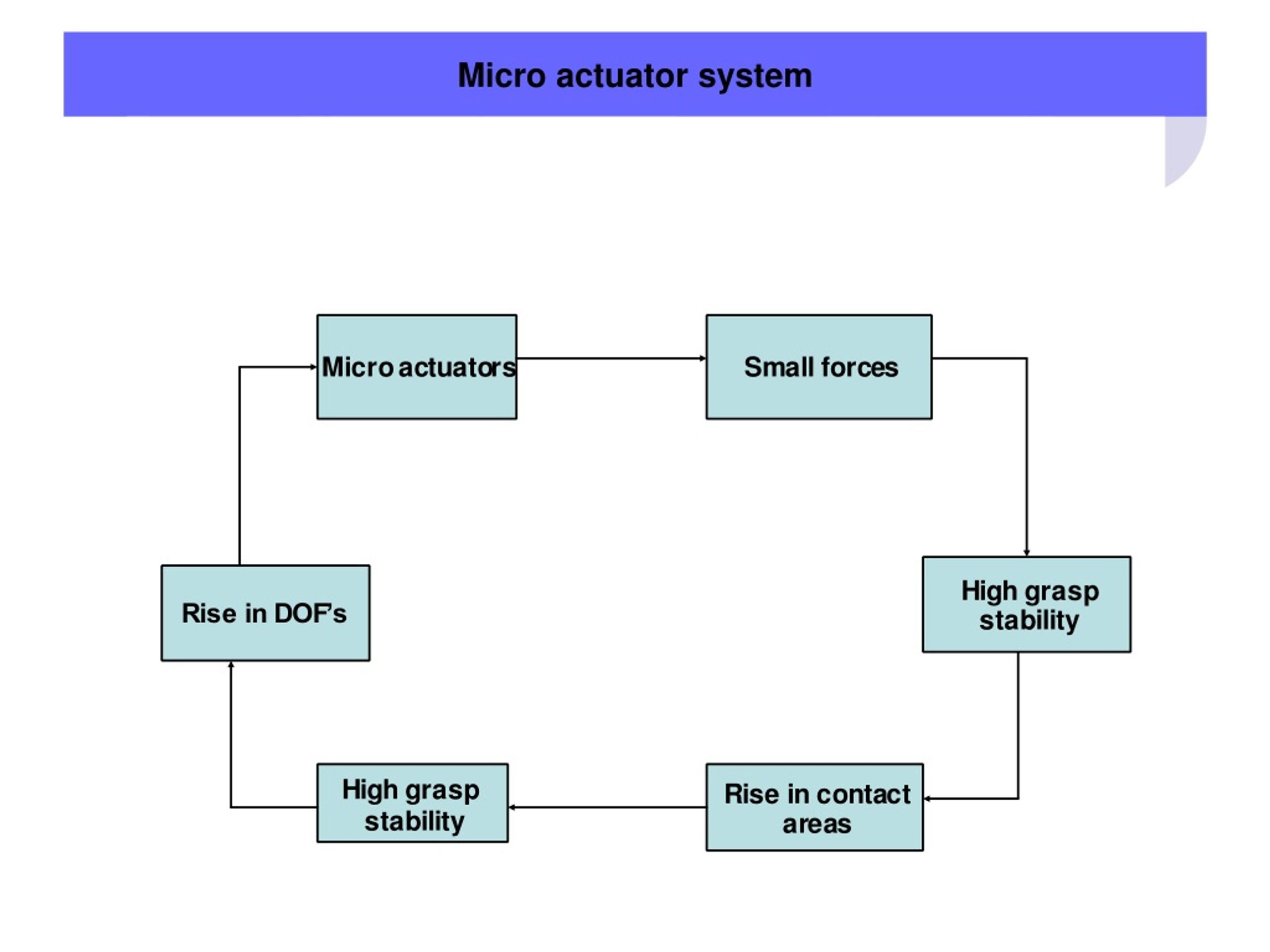

  6. Micro actuator system

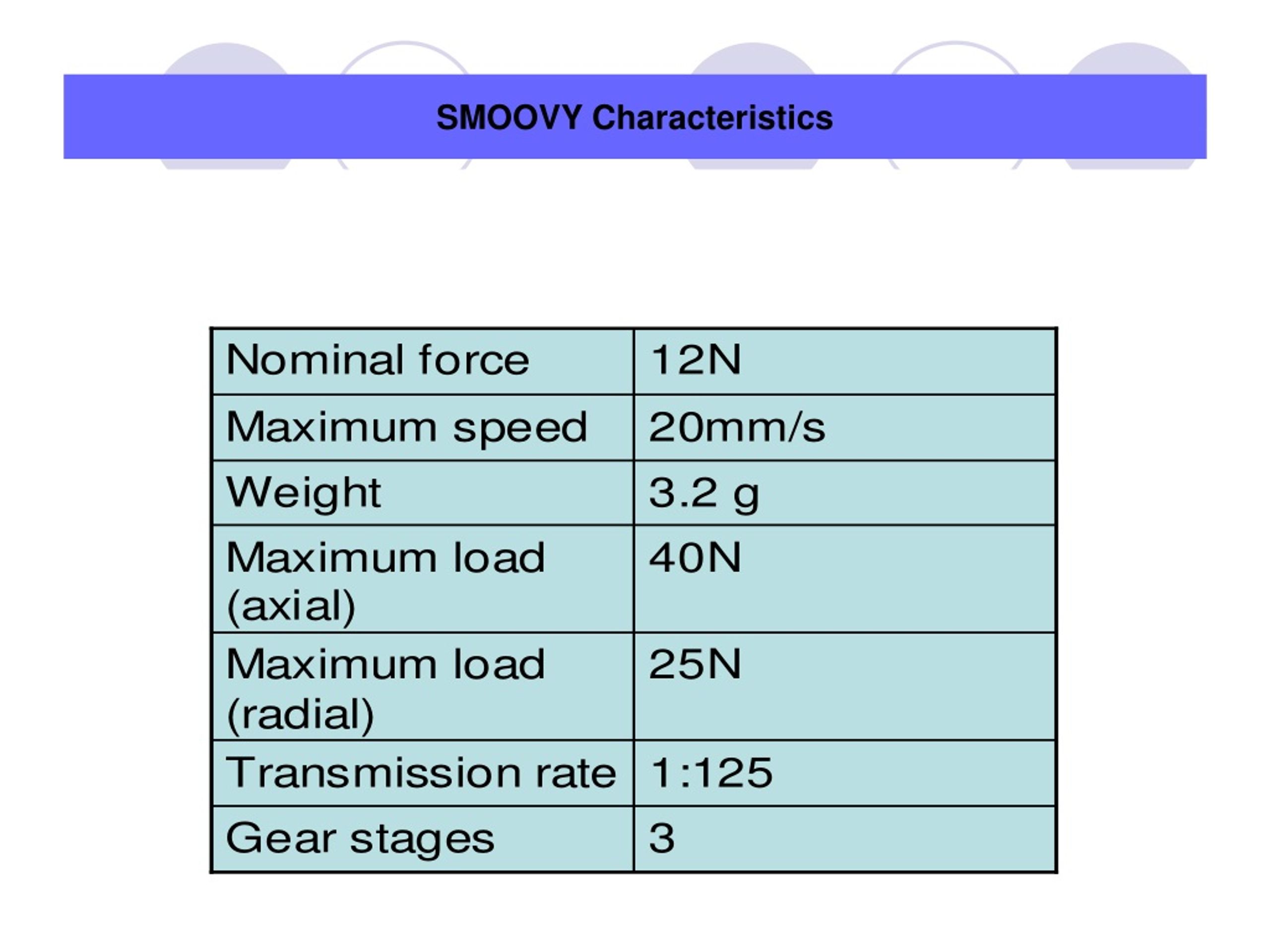

  7. SMOOVY Characteristics

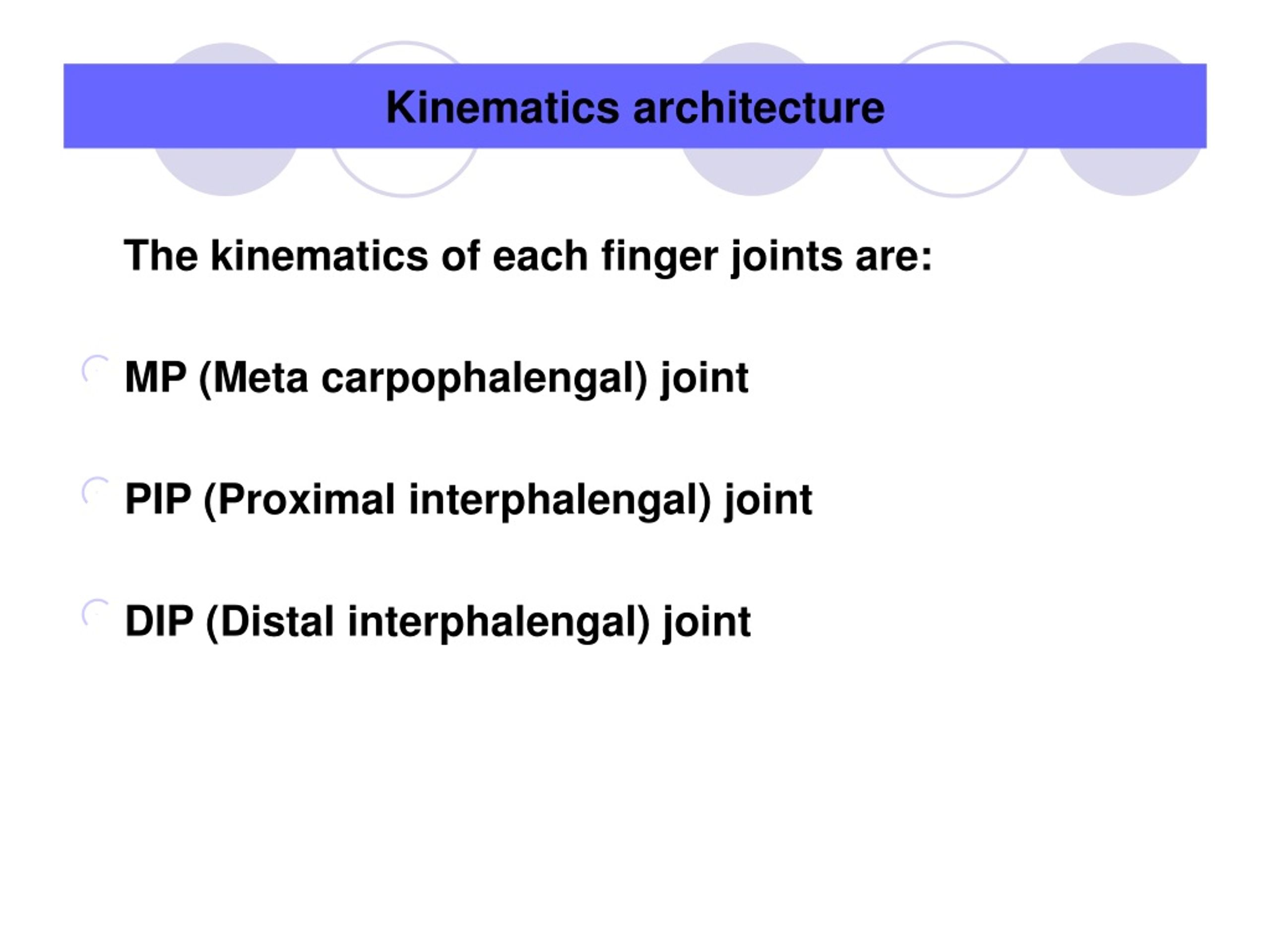

  8. Kinematics architecture The kinematics of each finger joints are: • MP (Meta carpophalengal) joint • PIP (Proximal interphalengal) joint • DIP (Distal interphalengal) joint

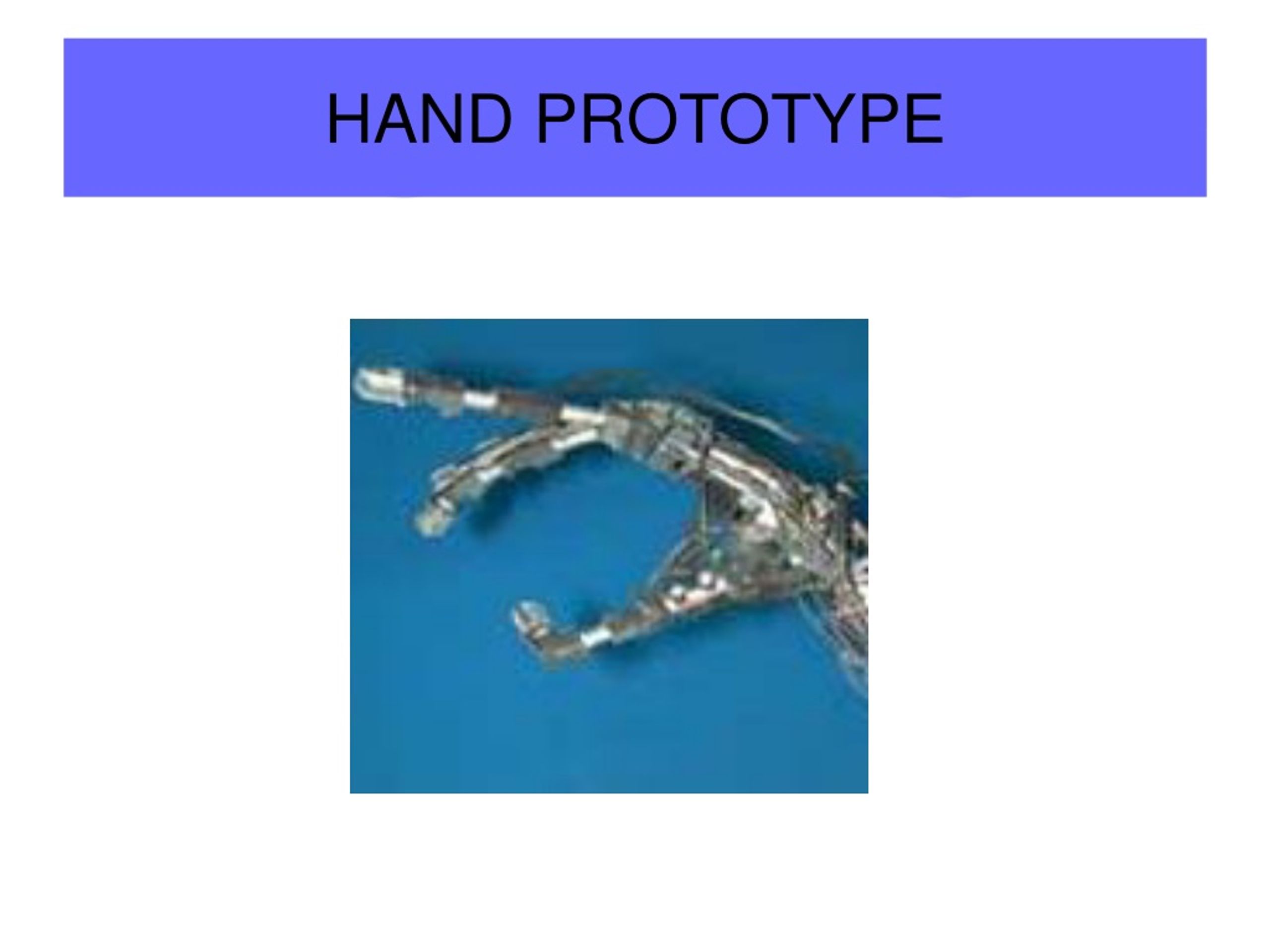

  9. HAND PROTOTYPE

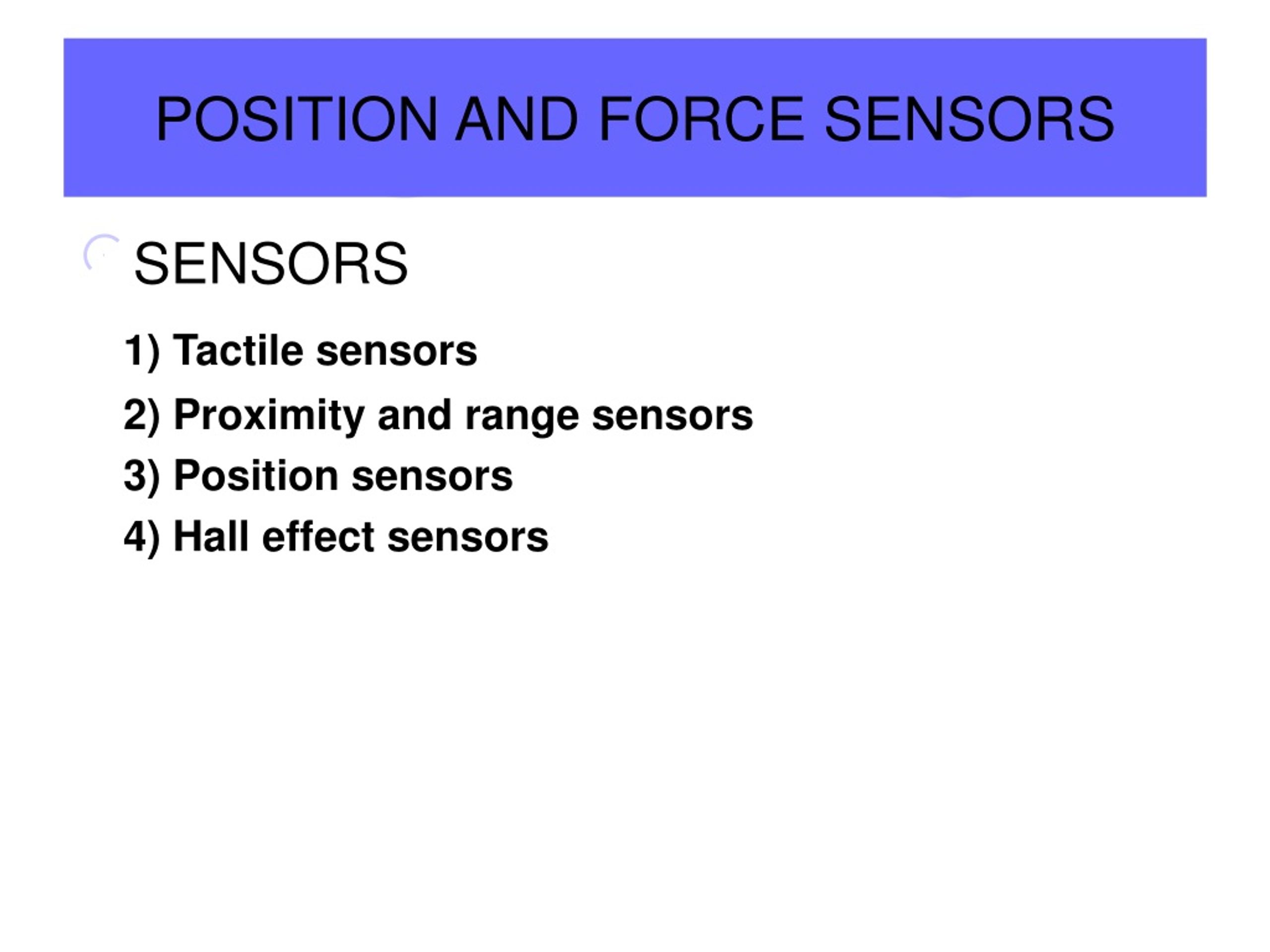

  10. POSITION AND FORCE SENSORS • SENSORS 1) Tactile sensors 2) Proximity and range sensors 3) Position sensors 4) Hall effect sensors

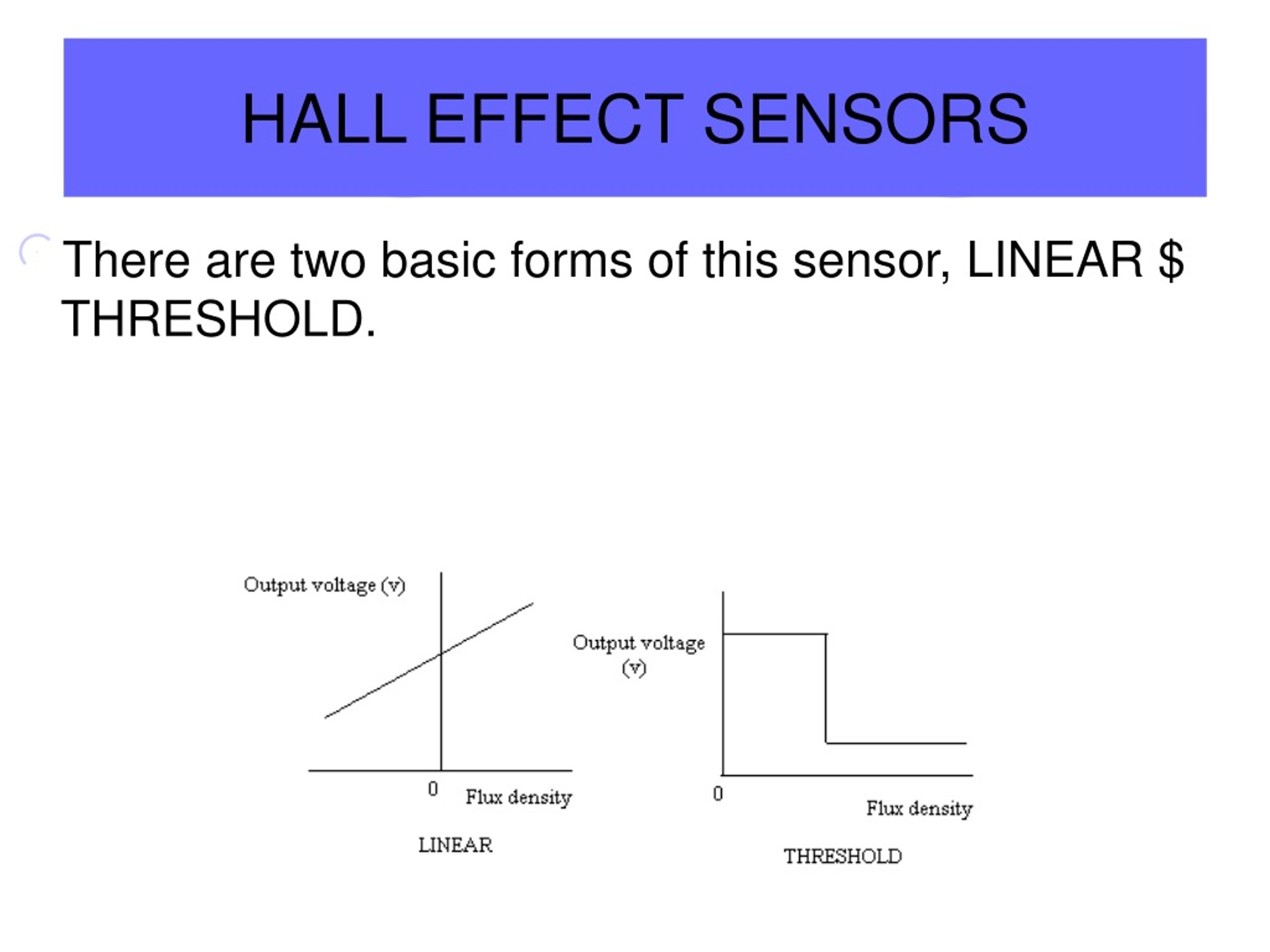

  11. HALL EFFECT SENSORS • There are two basic forms of this sensor, LINEAR $ THRESHOLD.

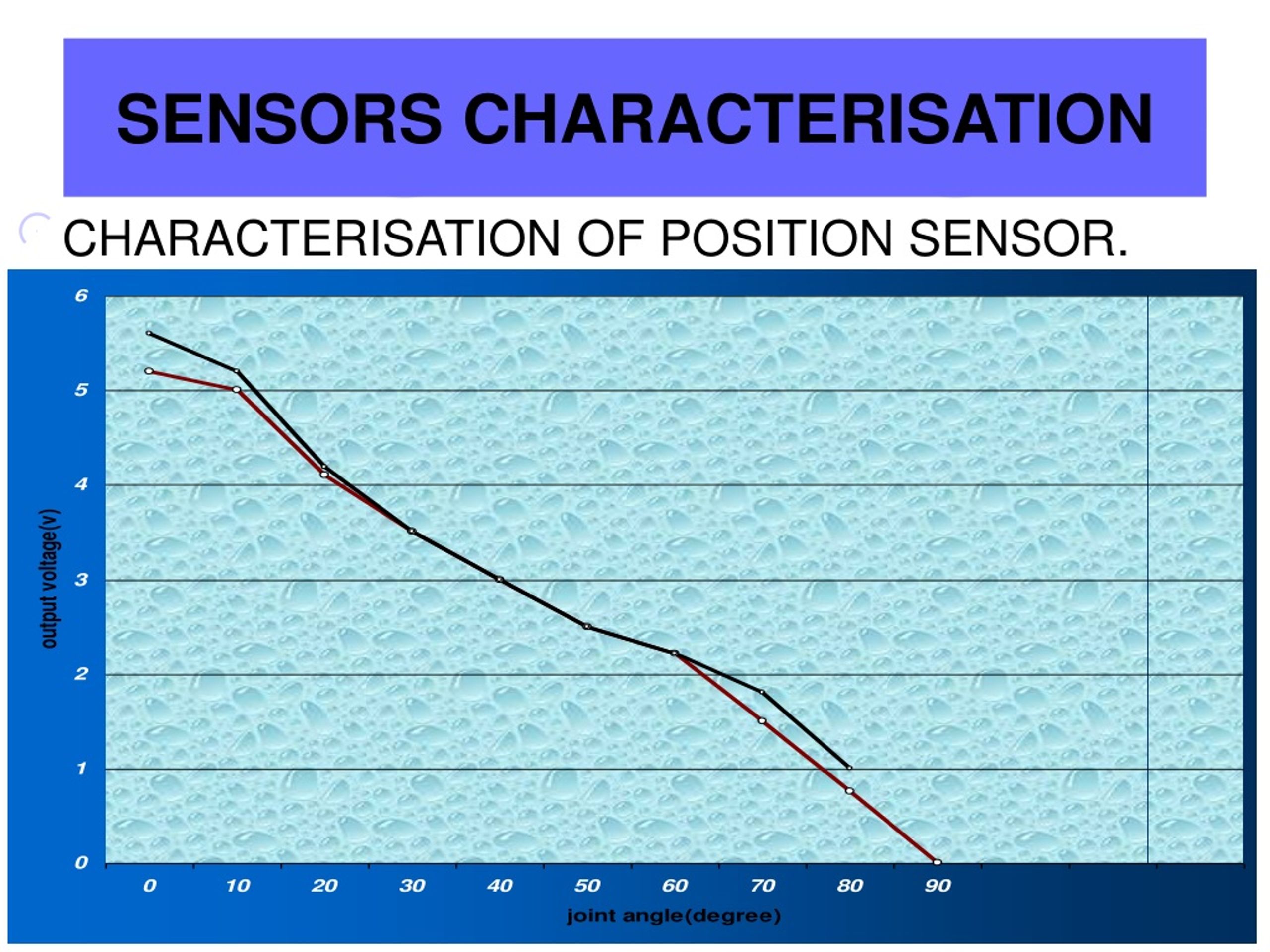

  12. SENSORSCHARACTERISATION • CHARACTERISATION OF POSITION SENSOR.

  13. CHARACTERIZATION OF FORCE SENSOR

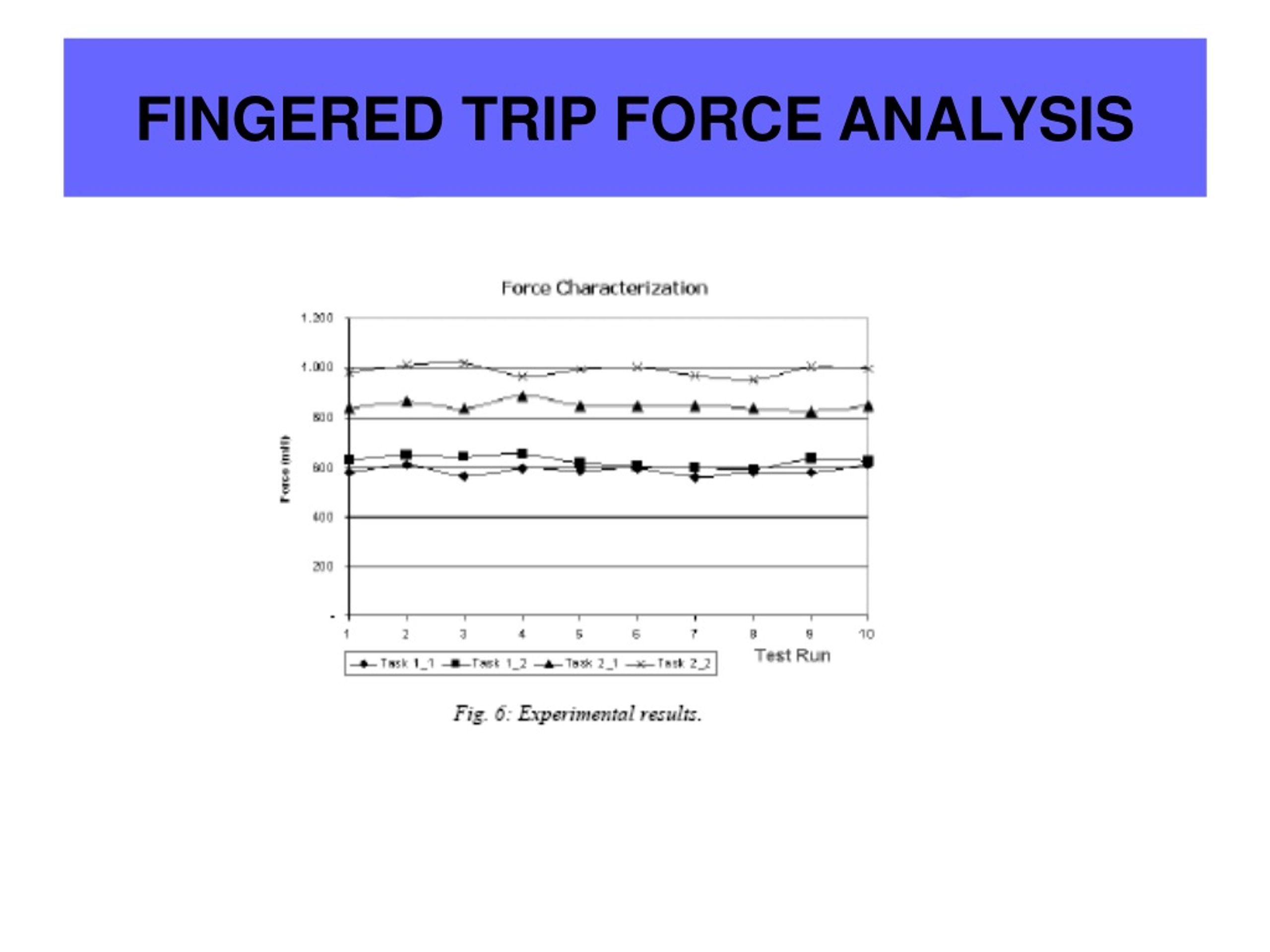

  14. FINGERED TRIP FORCE ANALYSIS

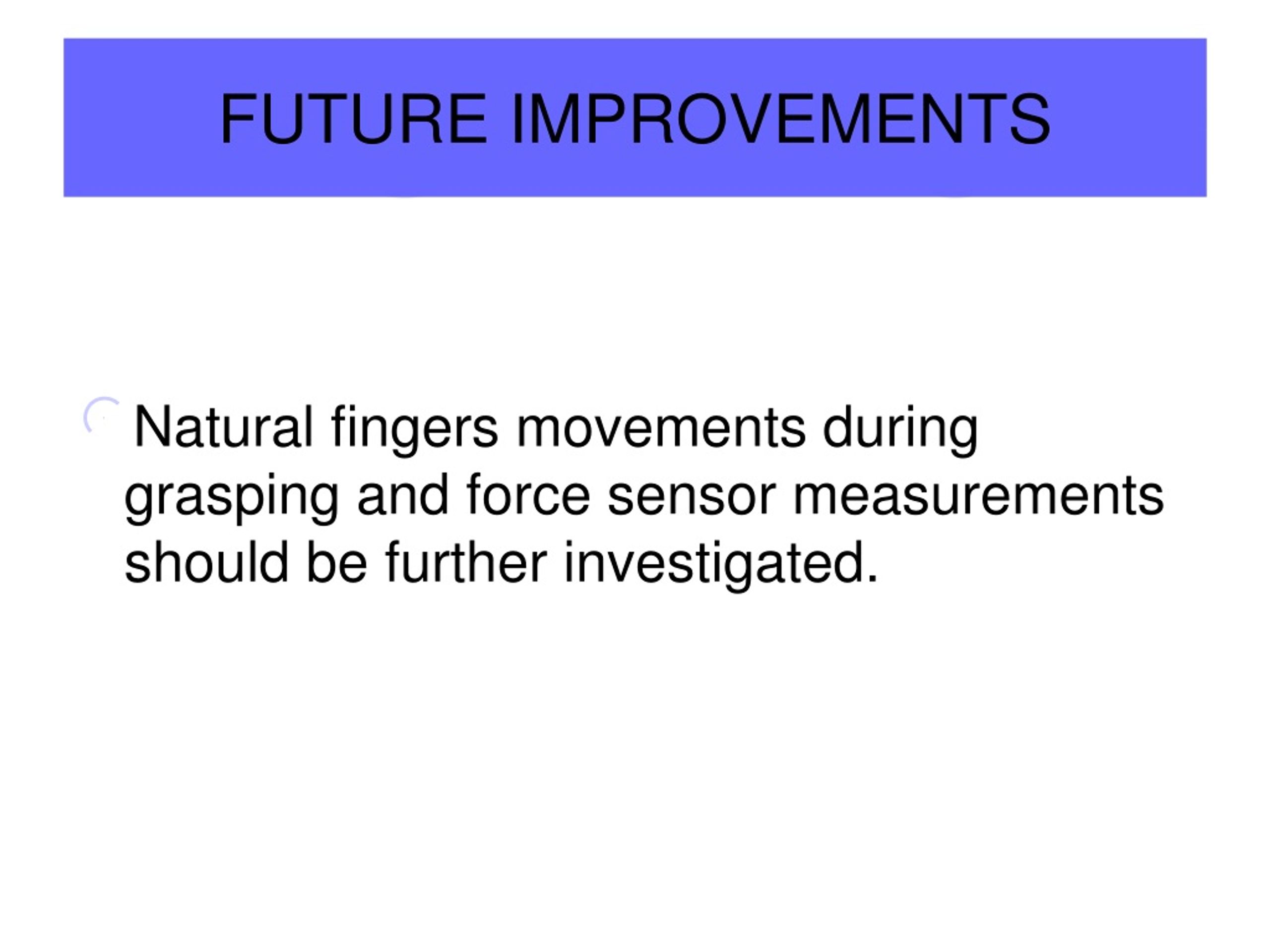

  15. FUTURE IMPROVEMENTS • Natural fingers movements during grasping and force sensor measurements should be further investigated.

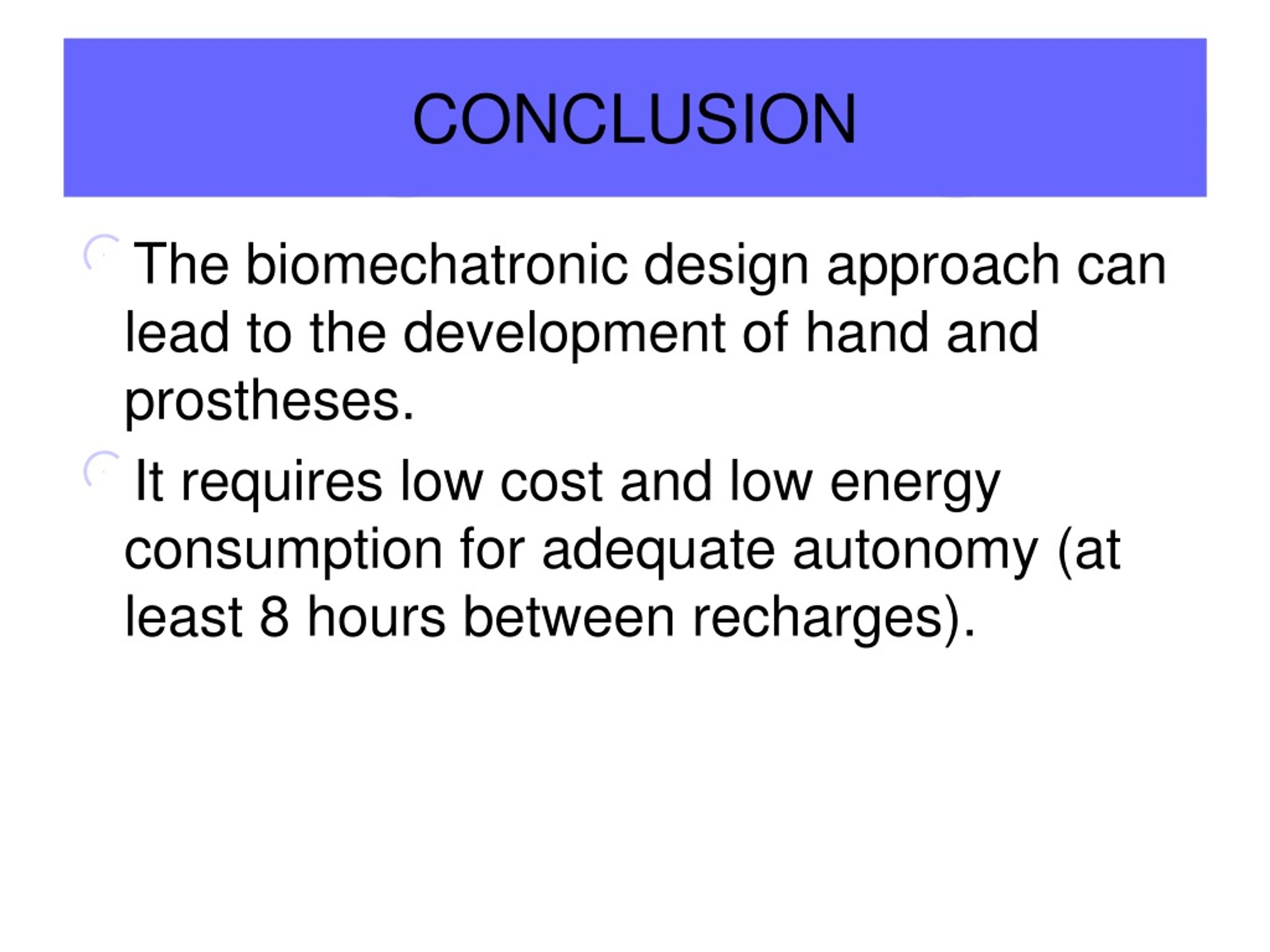

  16. CONCLUSION • The biomechatronic design approach can lead to the development of hand and prostheses. • It requires low cost and low energy consumption for adequate autonomy (at least 8 hours between recharges).
