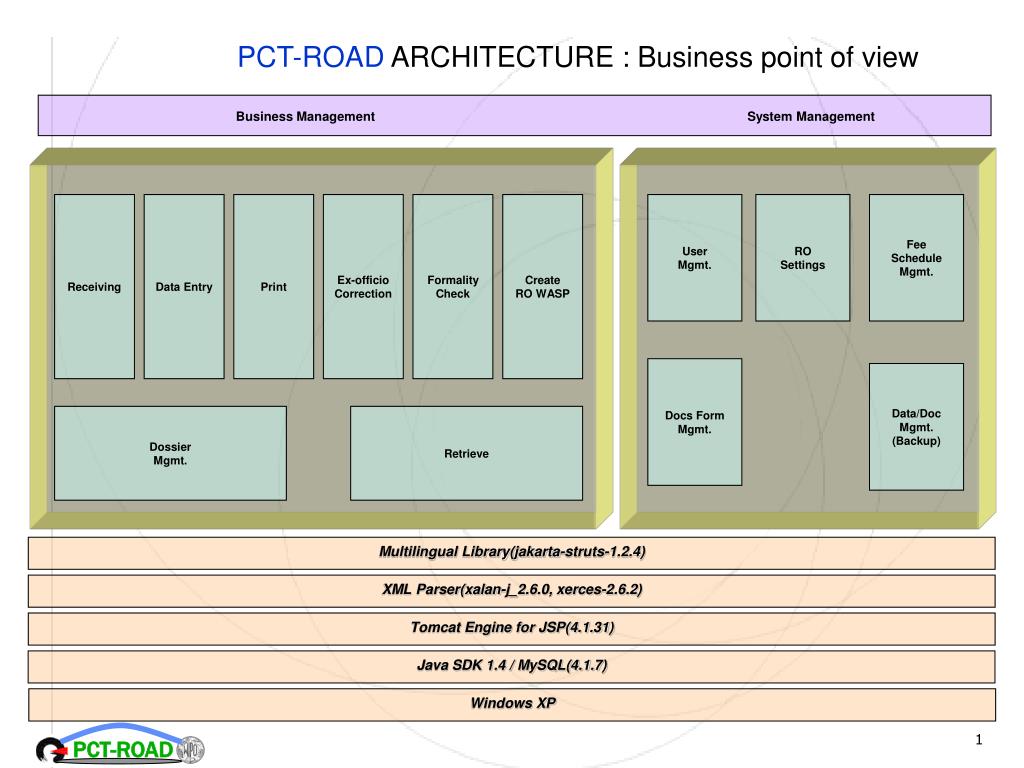

  1. PCT-ROAD ARCHITECTURE : Business point of view Business Management System Management Receiving Data Entry Print Ex-officioCorrection FormalityCheck CreateRO WASP UserMgmt. ROSettings FeeScheduleMgmt. Docs FormMgmt. Data/DocMgmt.(Backup) DossierMgmt. Retrieve Multilingual Library(jakarta-struts-1.2.4) XML Parser(xalan-j_2.6.0, xerces-2.6.2) Tomcat Engine for JSP(4.1.31) Java SDK 1.4 / MySQL(4.1.7) Windows XP

  2. PCT-ROAD ARCHITECTURE : System point of view Presentation Tier Business Tier Persistent Tier Back-End Systems Call JavaComponents CallBusiness Logic JSP/ Servlet HTTP Request Java Components JDBC DAO (Data Access Object) Data Base WAS (Tomcat) 3 4 1 2 5 HTTP response Open/Close DB ConnectionDo Business LogicMake query PC(Web browser) XML Doc Common Library (Multilingual Lib, DB Pool Lib, CommonClass) FOP XMLParser Printer PDF  XML Data Source Client Machine Application Server Multilingual Library(jakarta-struts-1.2.4) XML Parser(xalan-j_2.6.0, xerces-2.6.2) Tomcat Engine for JSP(4.1.31) Java SDK 1.4, MySQL(4.1.7) Windows XP
