### Sampling, Reconstruction, and Elementary Digital Filters

R.C. Maher

ECEN4002/5002 DSP Laboratory

Spring 2003

Sampling and Reconstruction

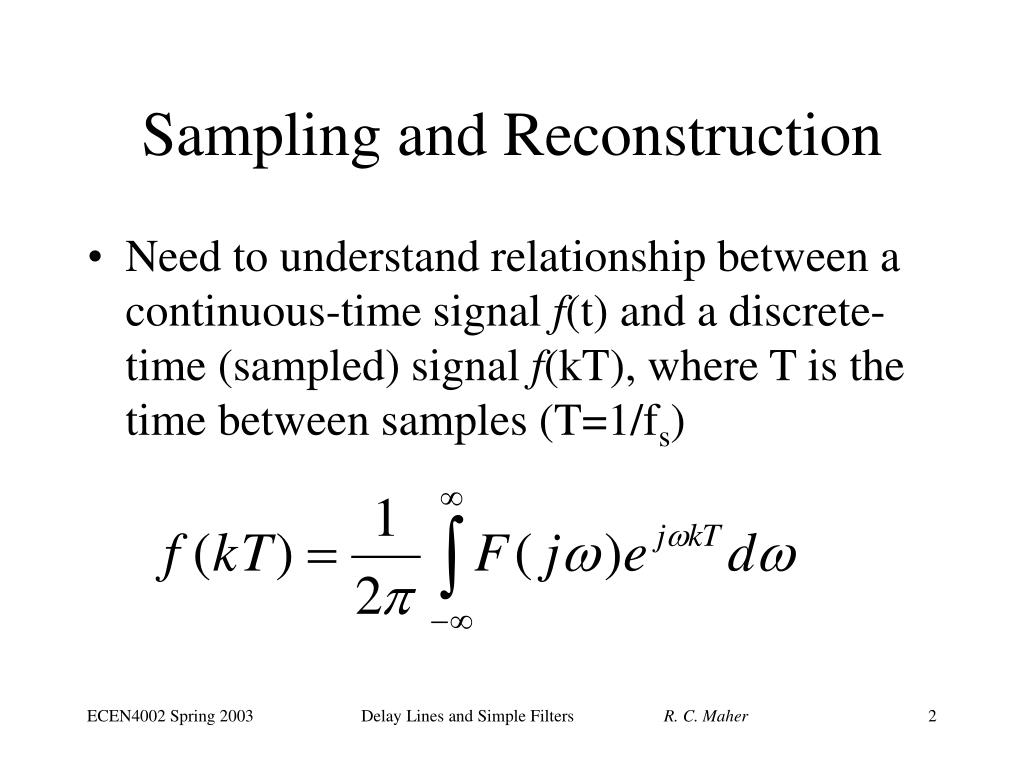

• Need to understand relationship between a continuous-time signal f(t) and a discrete-time (sampled) signal f(kT), where T is the time between samples (T=1/fs)

Delay Lines and Simple Filters R. C. Maher

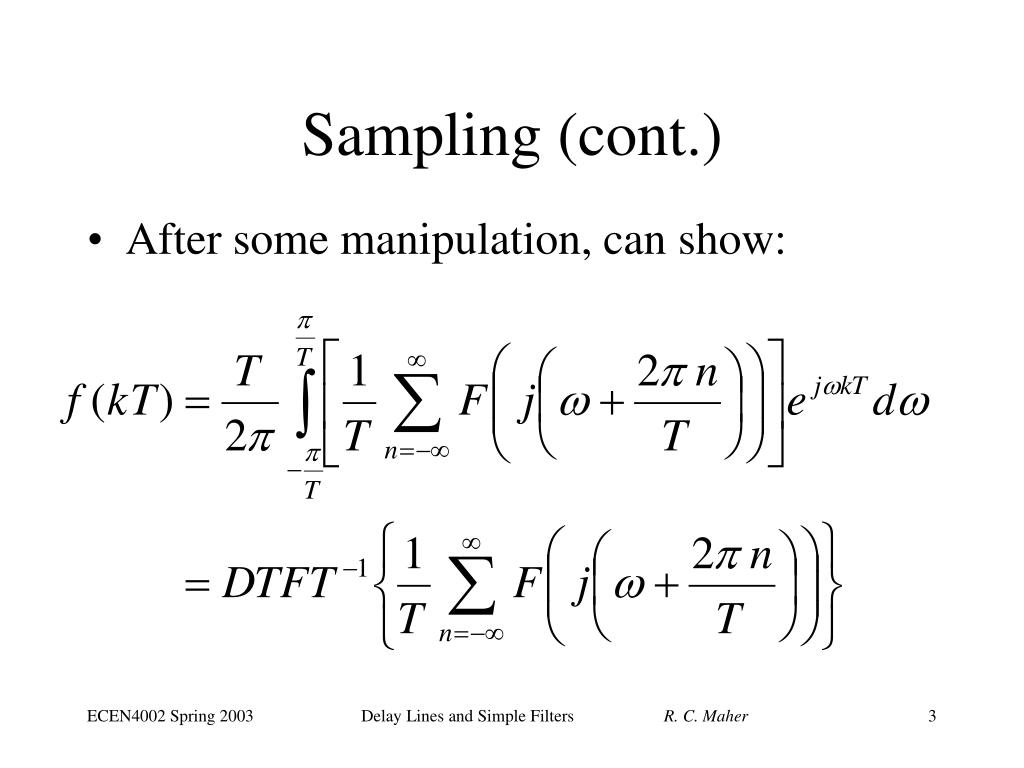

Sampling (cont.)
• After some manipulation, can show:

Delay Lines and Simple Filters R. C. Maher

Xc(j)

-N

N

XS(j)

-2S

-S

-N

N

S

2S

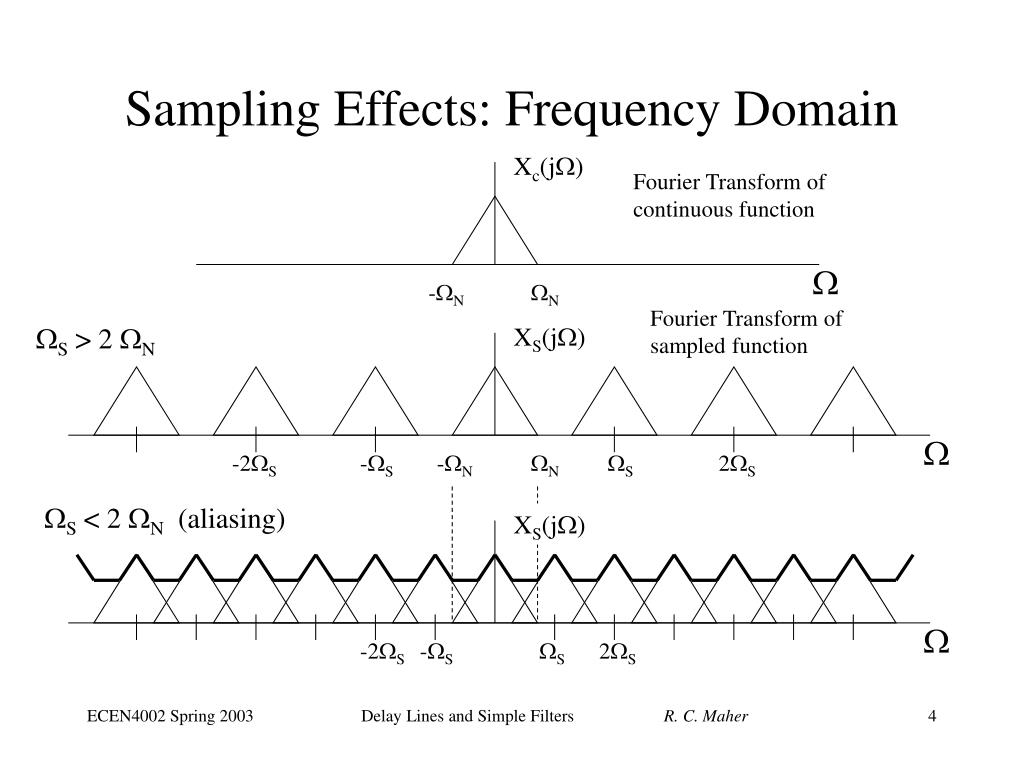

Sampling Effects: Frequency Domain

Fourier Transform of continuous function

Fourier Transform of sampled function

S > 2 N

S < 2 N (aliasing)

XS(j)

-2S

-S

S

2S

Delay Lines and Simple Filters R. C. Maher

XS(j)

-2S

-S

-N

N

S

2S

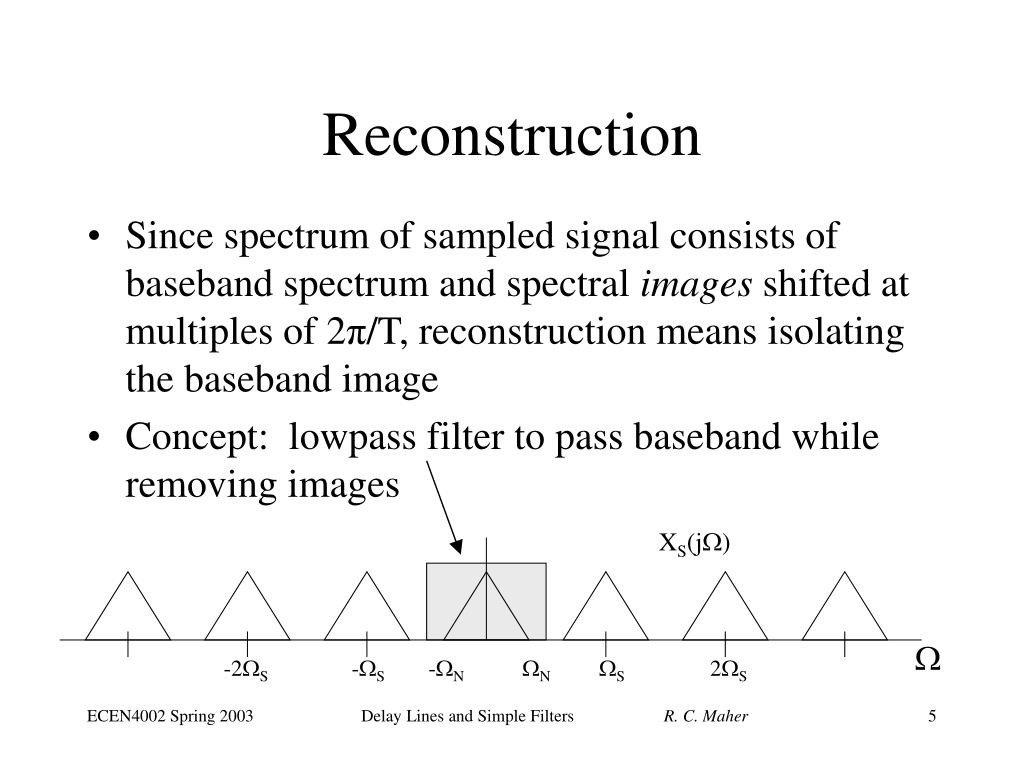

Reconstruction
• Since spectrum of sampled signal consists of baseband spectrum and spectral images shifted at multiples of 2π/T, reconstruction means isolating the baseband image
• Concept: lowpass filter to pass baseband while removing images

Delay Lines and Simple Filters R. C. Maher

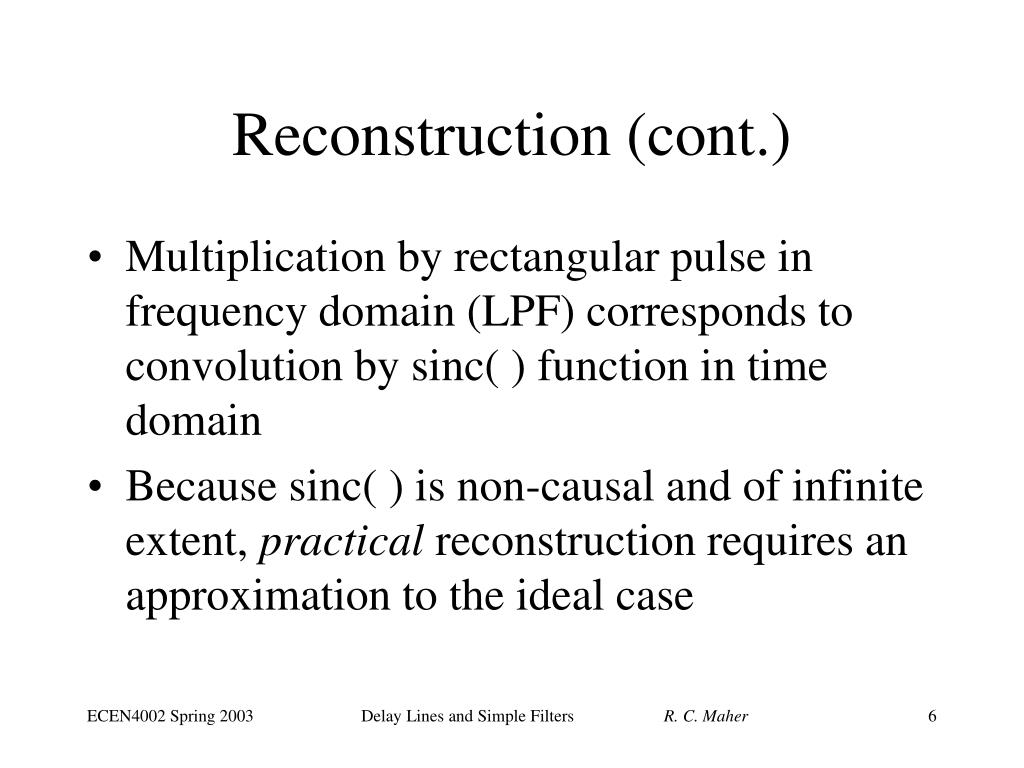

Reconstruction (cont.)
• Multiplication by rectangular pulse in frequency domain (LPF) corresponds to convolution by sinc( ) function in time domain
• Because sinc( ) is non-causal and of infinite extent, practical reconstruction requires an approximation to the ideal case

Delay Lines and Simple Filters R. C. Maher

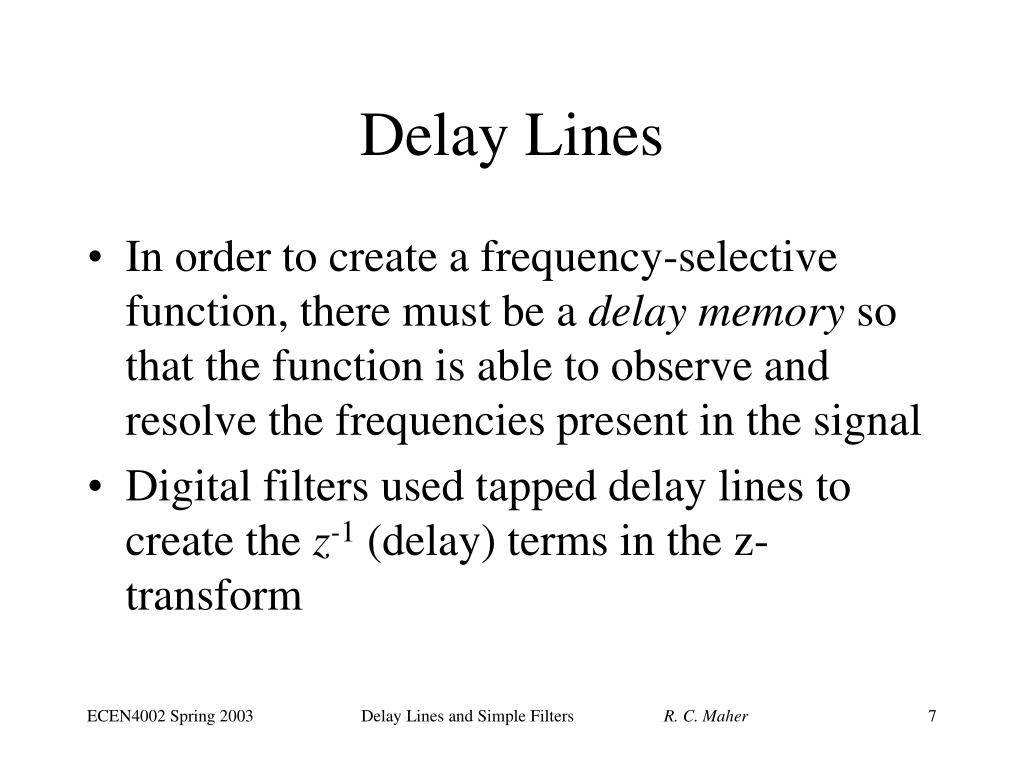

Delay Lines
• In order to create a frequency-selective function, there must be a delay memory so that the function is able to observe and resolve the frequencies present in the signal
• Digital filters used tapped delay lines to create the z-1 (delay) terms in the z-transform

Delay Lines and Simple Filters R. C. Maher

+

x[n]

y[n]

h0

Z-1

x[n-1]

h1

Z-1

x[n-2]

h2

Z-1

x[n-3]

h3

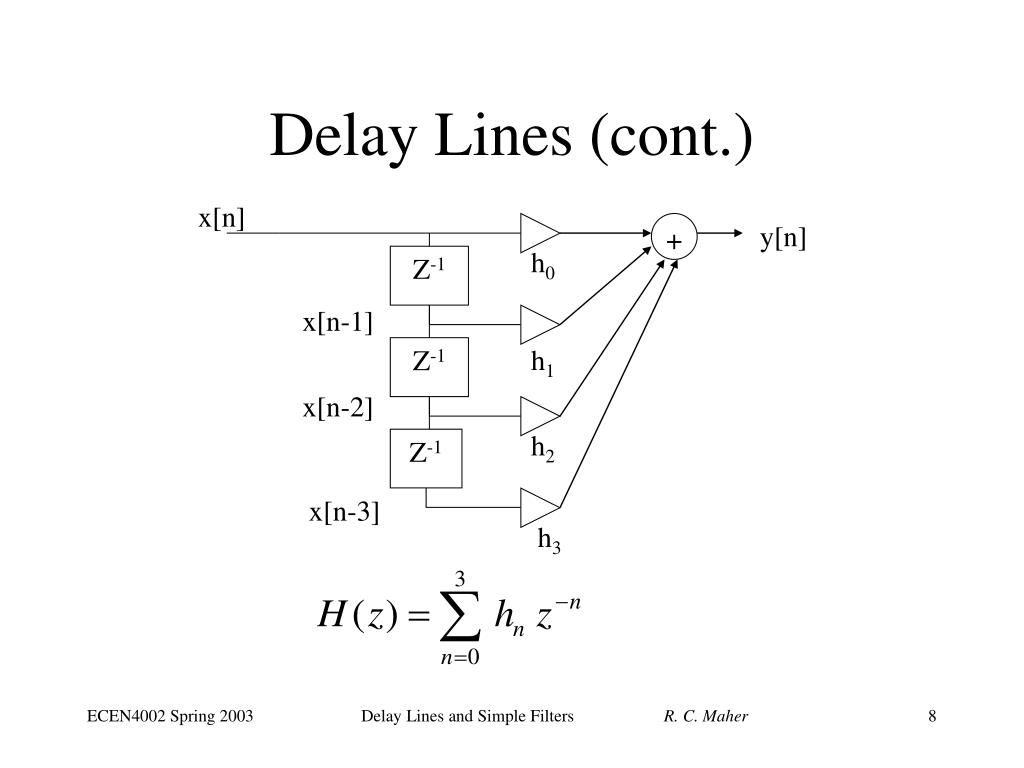

Delay Lines (cont.)

Delay Lines and Simple Filters R. C. Maher

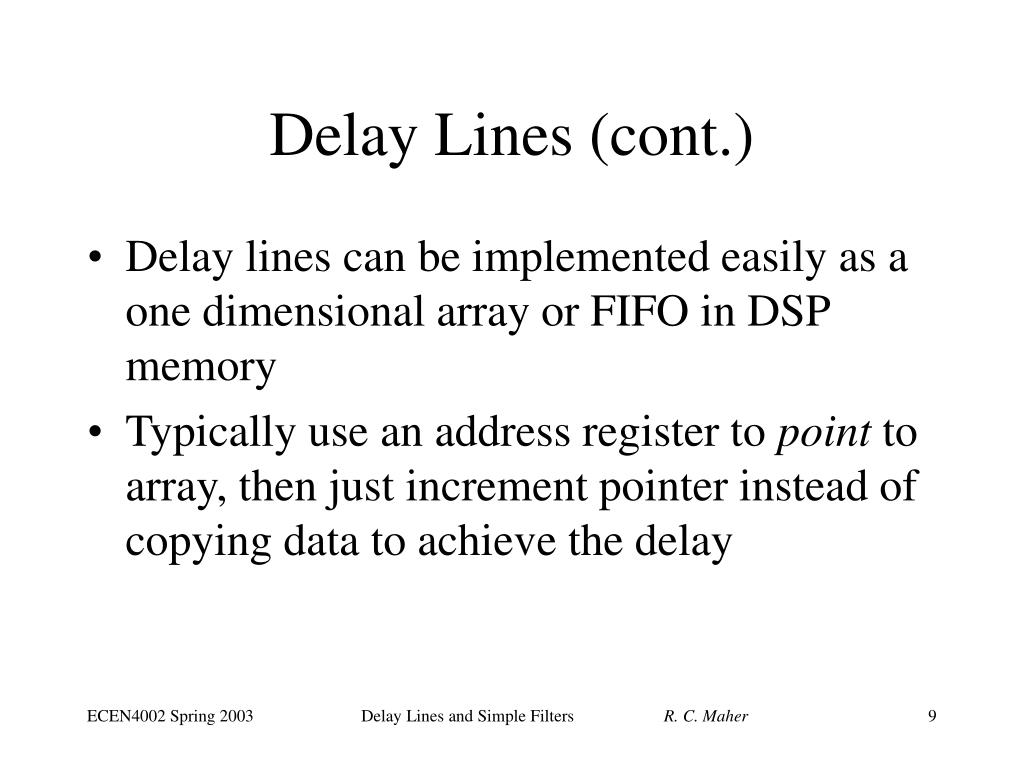

Delay Lines (cont.)
• Delay lines can be implemented easily as a one dimensional array or FIFO in DSP memory
• Typically use an address register to point to array, then just increment pointer instead of copying data to achieve the delay

Delay Lines and Simple Filters R. C. Maher

Modulo Buffers
• DSP supports modulo arithmetic in the address generation unit
• With modulo buffer, incrementing or decrementing address register “rolls over” automatically at beginning and ending of buffer memory range
• Modulo buffers are useful for delay stages in filters and other FIFO queue structures

Delay Lines and Simple Filters R. C. Maher

N memory locations

Modulo N

Buffer

Memory

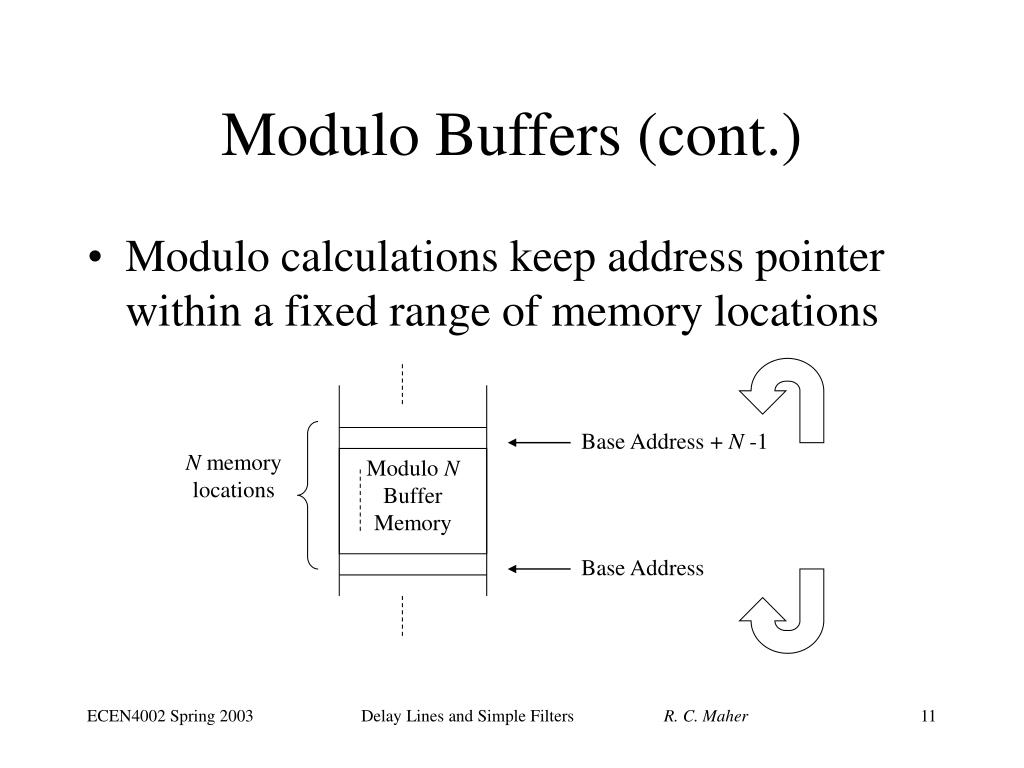

Modulo Buffers (cont.)
• Modulo calculations keep address pointer within a fixed range of memory locations

Delay Lines and Simple Filters R. C. Maher

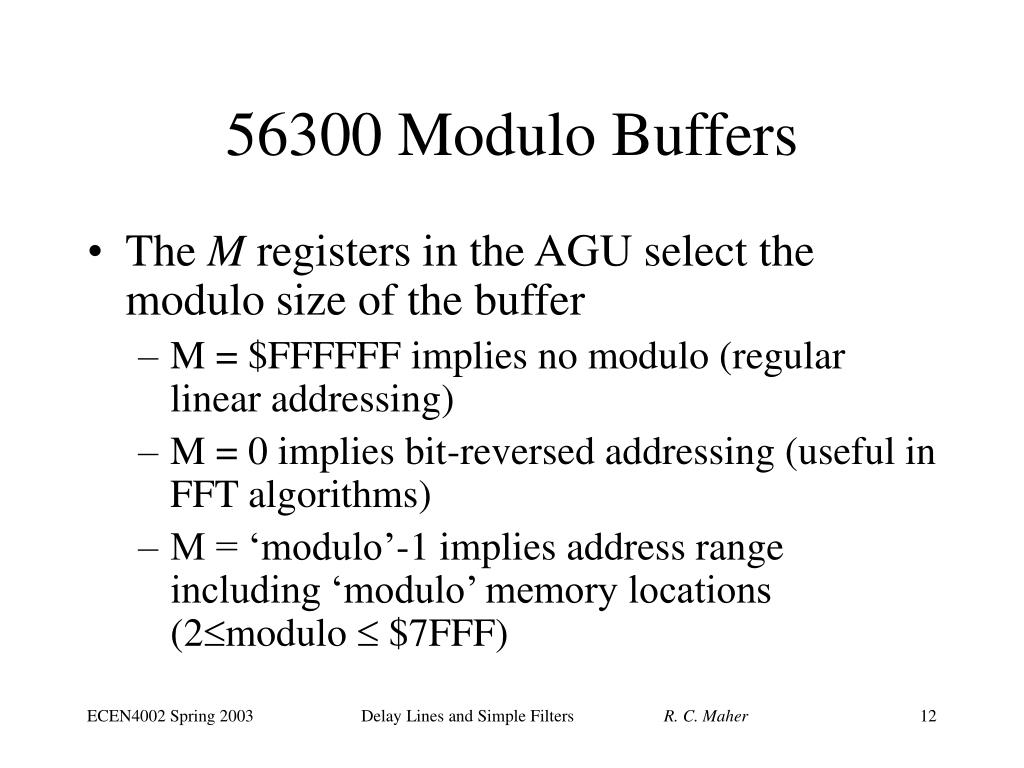

56300 Modulo Buffers
• The M registers in the AGU select the modulo size of the buffer
• M = \$FFFFFF implies no modulo (regular linear addressing)
• M = 0 implies bit-reversed addressing (useful in FFT algorithms)
• M = ‘modulo’-1 implies address range including ‘modulo’ memory locations (2modulo  \$7FFF)

Delay Lines and Simple Filters R. C. Maher

56300 Modulo (cont.)
• The base address of the modulo buffer must be a power of 2
• The base address must either be zero, or a power of 2 that is greater than or equal to the modulo
• In other words, the base address must be 2k, where 2kmodulo, which implies k least significant bits must be zero

Delay Lines and Simple Filters R. C. Maher

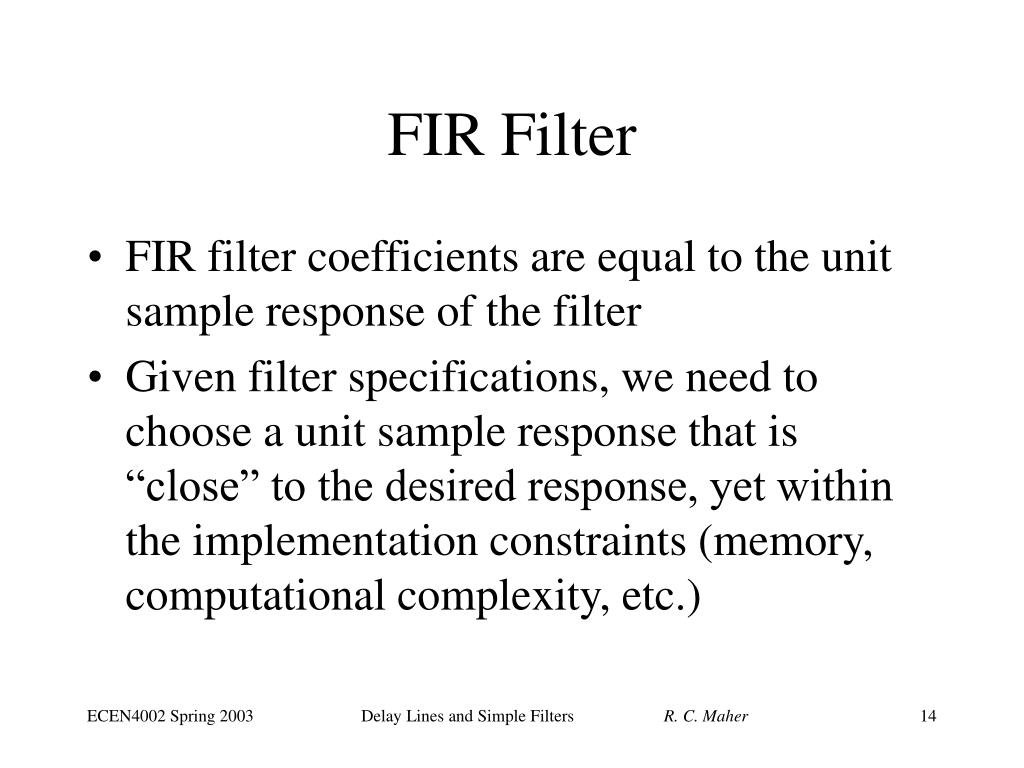

FIR Filter
• FIR filter coefficients are equal to the unit sample response of the filter
• Given filter specifications, we need to choose a unit sample response that is “close” to the desired response, yet within the implementation constraints (memory, computational complexity, etc.)

Delay Lines and Simple Filters R. C. Maher

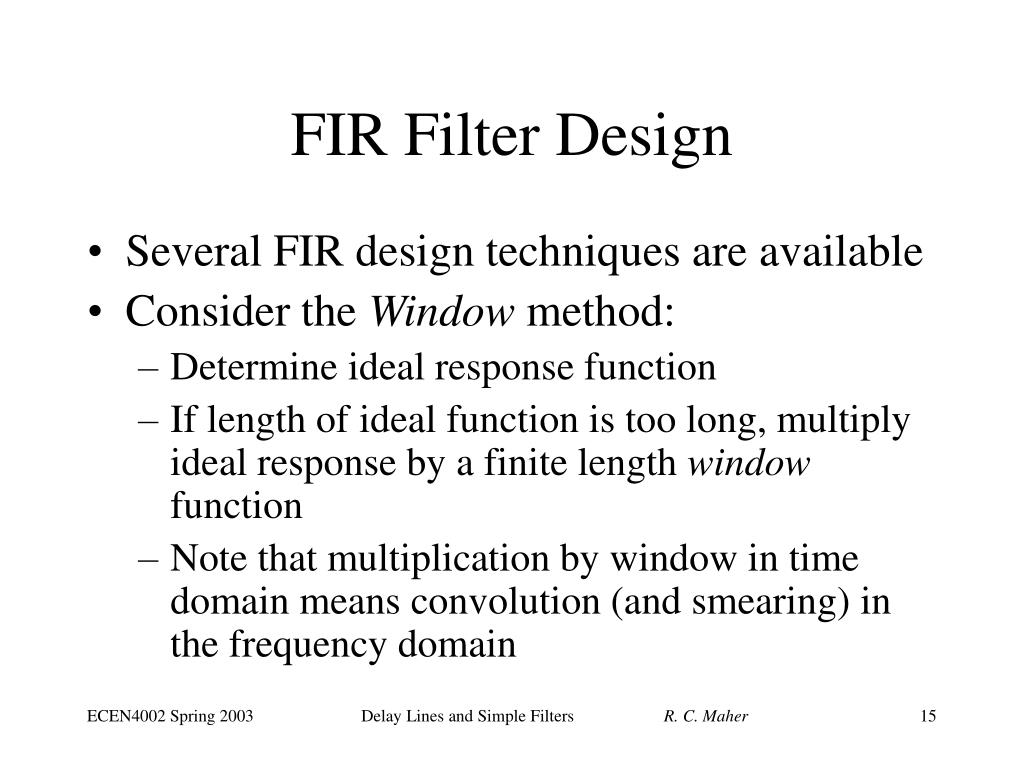

FIR Filter Design
• Several FIR design techniques are available
• Consider the Window method:
• Determine ideal response function
• If length of ideal function is too long, multiply ideal response by a finite length window function
• Note that multiplication by window in time domain means convolution (and smearing) in the frequency domain

Delay Lines and Simple Filters R. C. Maher

1.2

1

0.8

Amplitude (linear scale)

0.6

0.4

0.2

0

0

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

0.5

Frequency (fraction of fs)

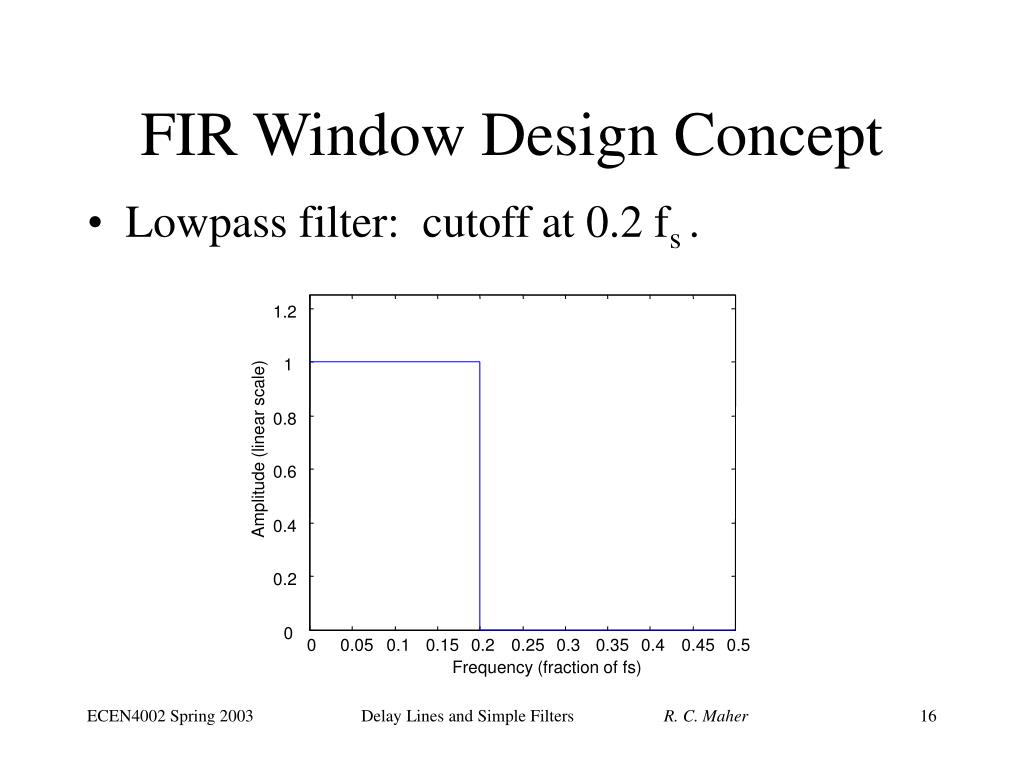

FIR Window Design Concept
• Lowpass filter: cutoff at 0.2 fs .

Delay Lines and Simple Filters R. C. Maher

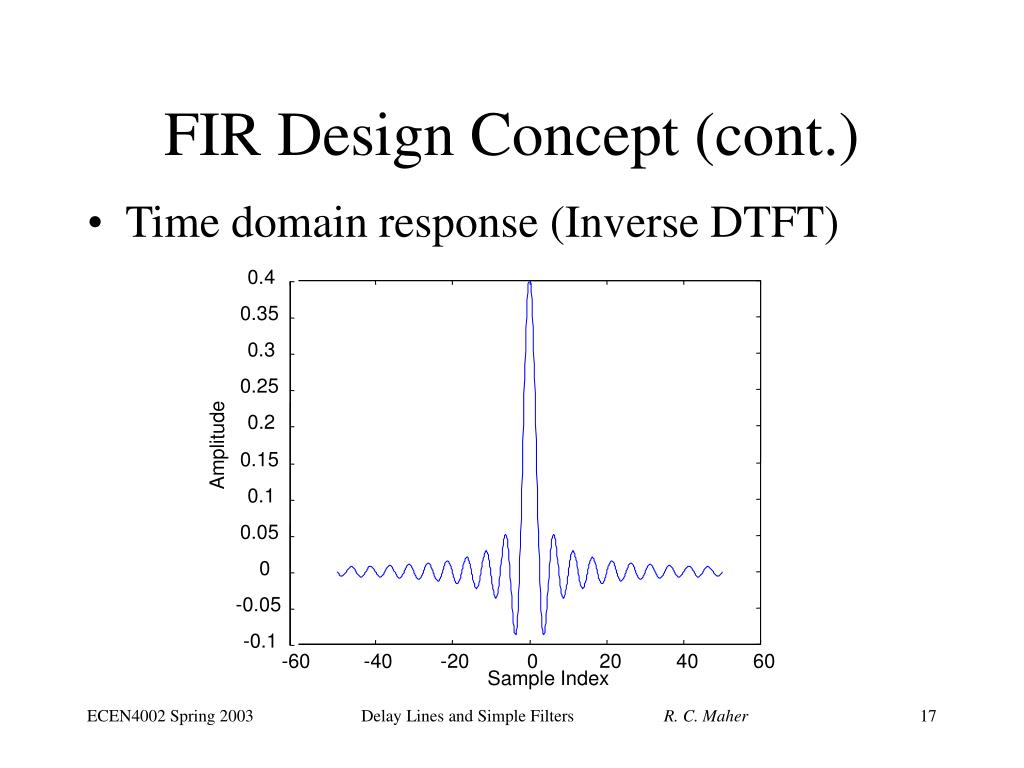

FIR Design Concept (cont.)
• Time domain response (Inverse DTFT)

0.4

0.35

0.3

0.25

0.2

Amplitude

0.15

0.1

0.05

0

-0.05

-0.1

-60

-40

-20

0

20

40

60

Sample Index

Delay Lines and Simple Filters R. C. Maher

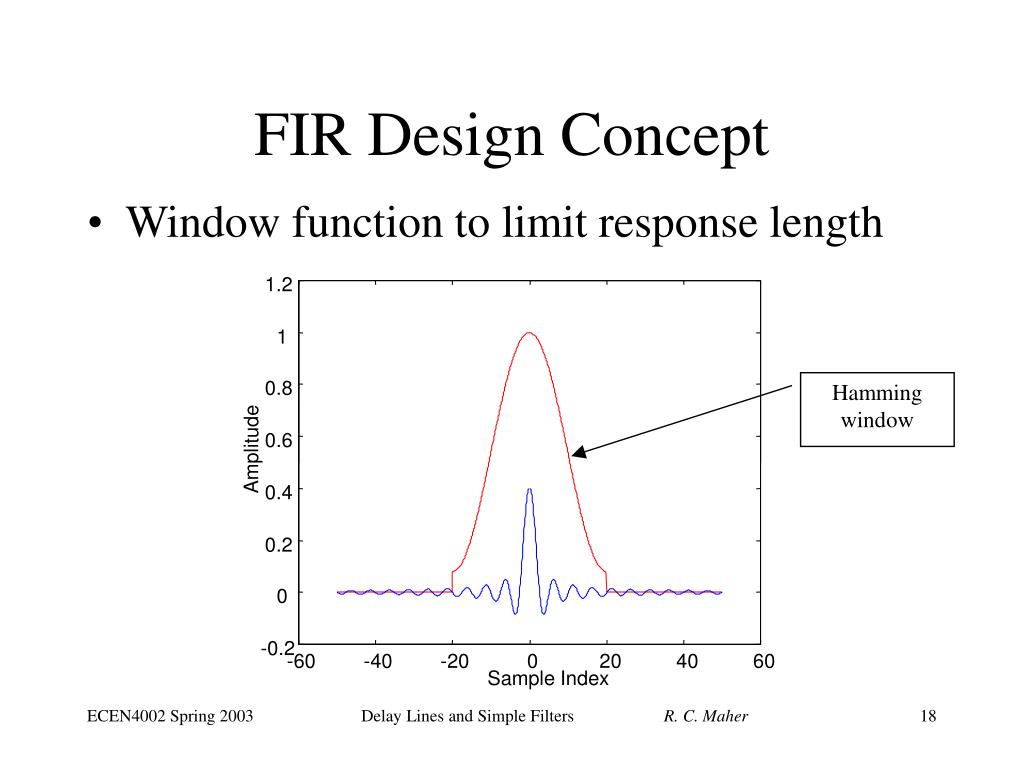

FIR Design Concept
• Window function to limit response length

1.2

1

Hamming window

0.8

0.6

Amplitude

0.4

0.2

0

-0.2

-60

-40

-20

0

20

40

60

Sample Index

Delay Lines and Simple Filters R. C. Maher

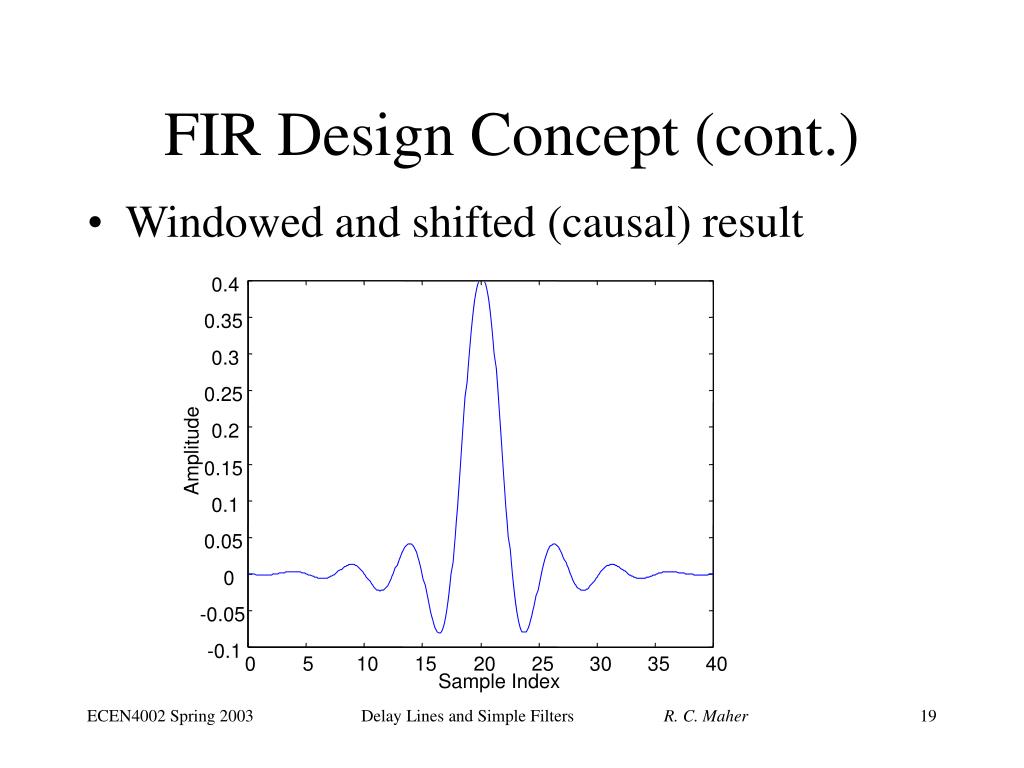

FIR Design Concept (cont.)
• Windowed and shifted (causal) result

0.4

0.35

0.3

0.25

0.2

Amplitude

0.15

0.1

0.05

0

-0.05

-0.1

0

5

10

15

20

25

30

35

40

Sample Index

Delay Lines and Simple Filters R. C. Maher

FIR Design Concept

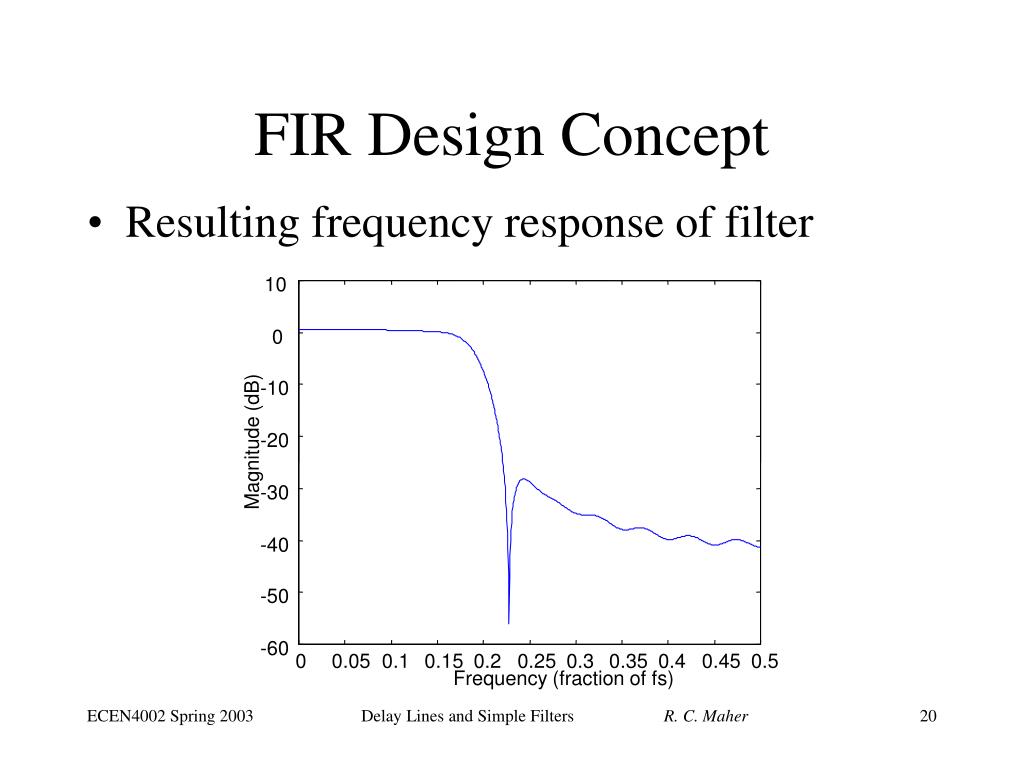

• Resulting frequency response of filter

10

0

-10

-20

Magnitude (dB)

-30

-40

-50

-60

0

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

0.5

Frequency (fraction of fs)

Delay Lines and Simple Filters R. C. Maher

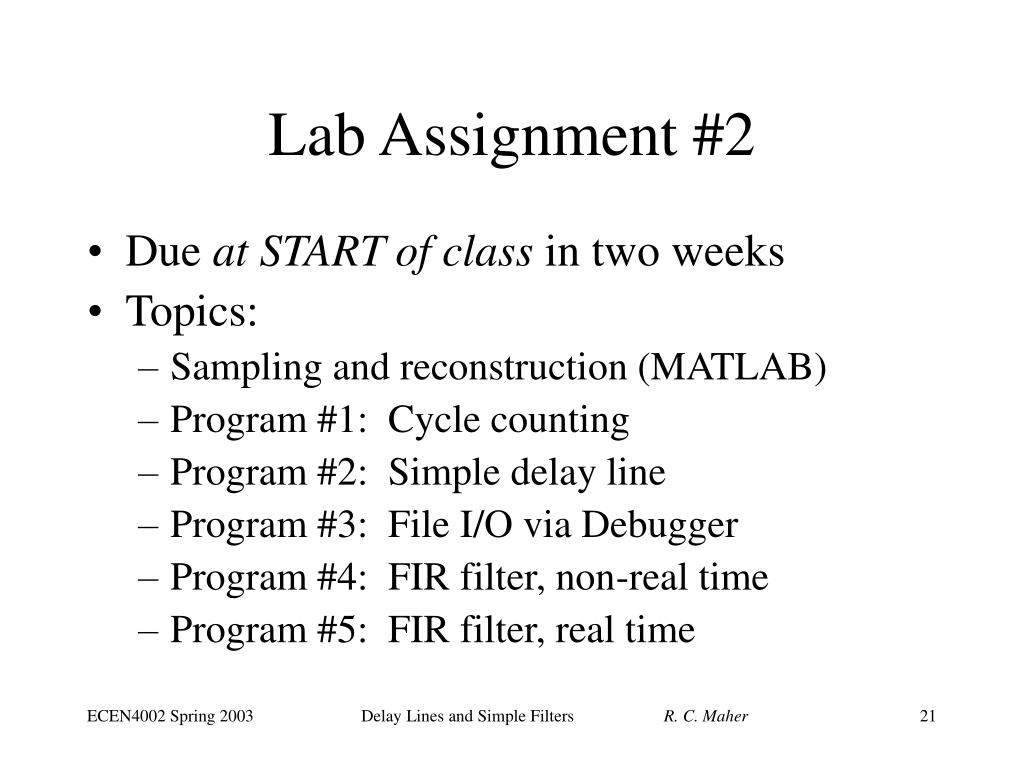

Lab Assignment #2
• Due at START of class in two weeks
• Topics:
• Sampling and reconstruction (MATLAB)
• Program #1: Cycle counting
• Program #2: Simple delay line
• Program #3: File I/O via Debugger
• Program #4: FIR filter, non-real time
• Program #5: FIR filter, real time

Delay Lines and Simple Filters R. C. Maher
