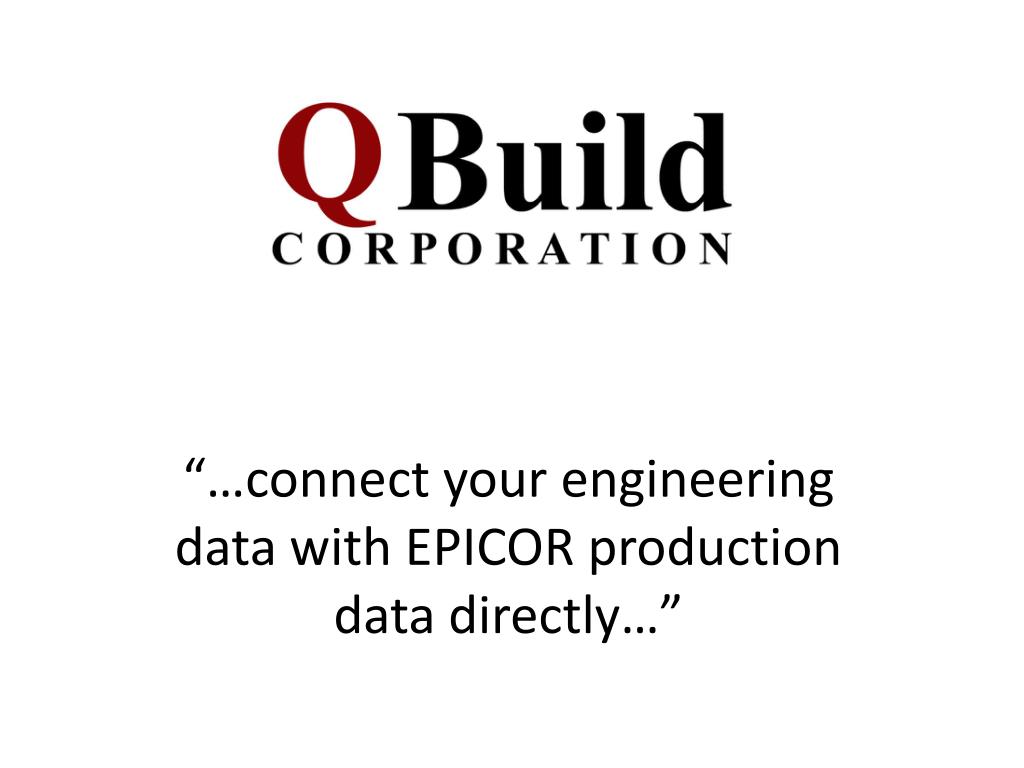

  1. “…connect your engineering data with EPICOR production data directly…”

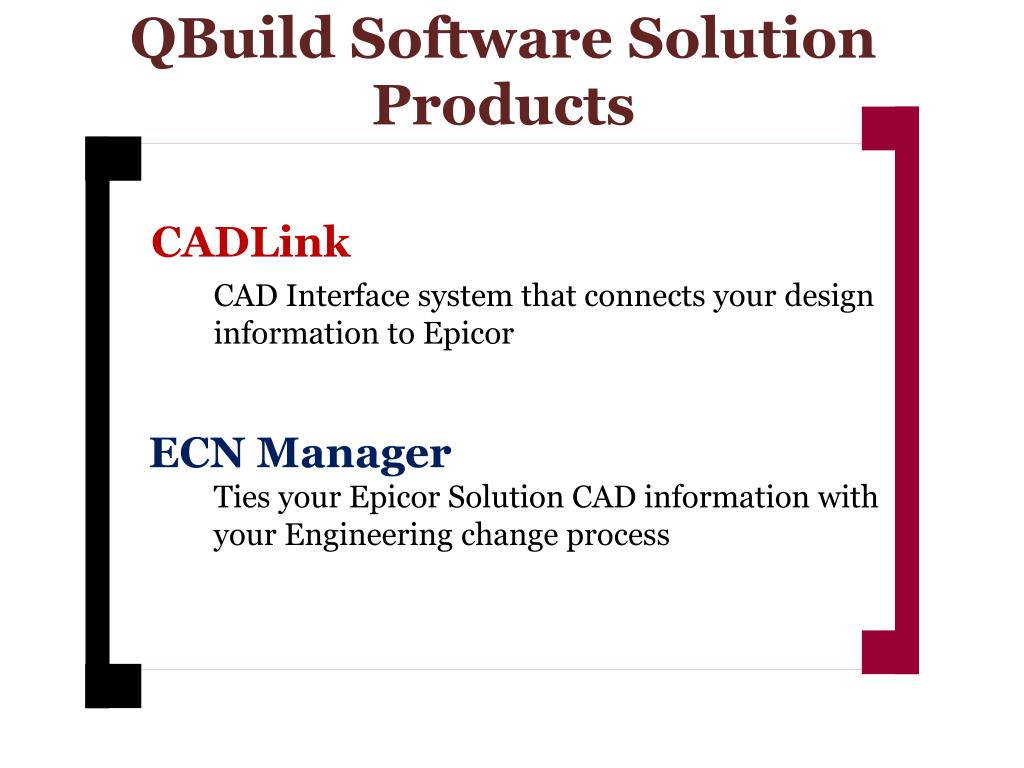

  2. QBuild Software Solution Products CADLink CAD Interface system that connects yourdesign information to . Epicor 9, Vantage and Vista. ECN Manager Ties your Epicor Solution CAD information with your Engineering change process.

  3. CAD Systems • AutoCAD • CATIA • Inventor • Pro-E • SolidEdge • SolidWorks CADLink interface enables integration with the below leading CAD systems:QBuild began in 1995 with a simple AutoCAD ERP link. Today QBuild successfully integrates with a number of ERP systems, providing CAD ERP link with leading ERP providers including Epicor.

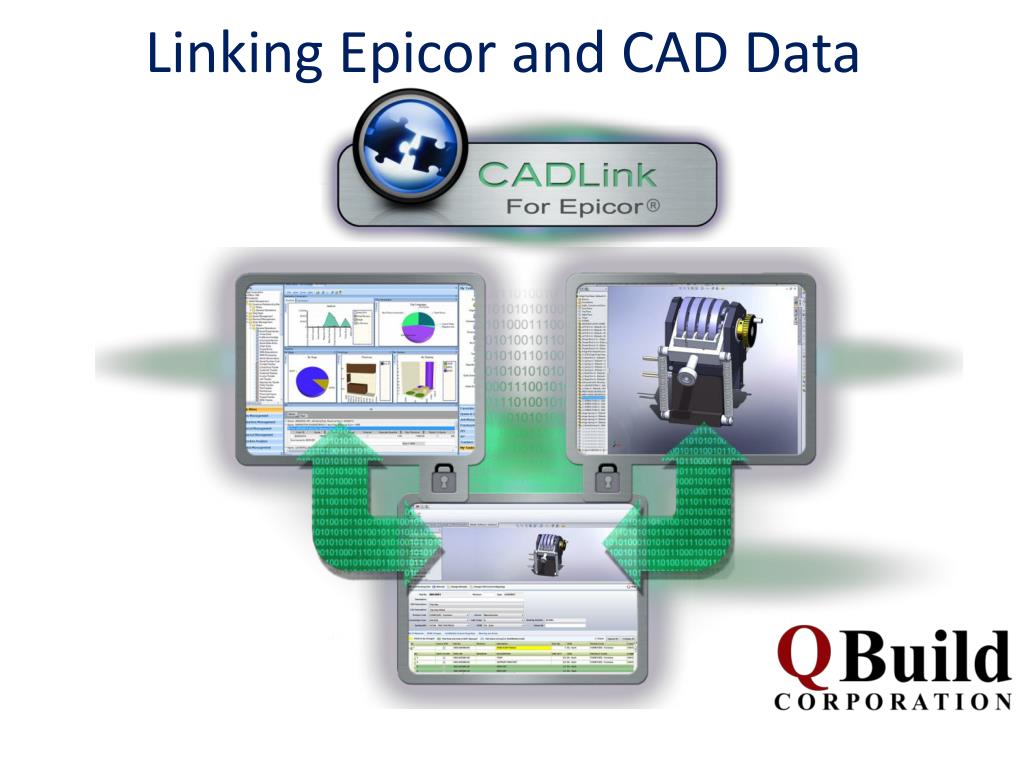

  4. Linking Epicor and CAD Data

  5. Benefits Reduce engineering costs • Reduce non value-added engineering activities • Double and triple data entries are eliminated Improve accuracy from engineering to production • Reduce scrap • Improve purchasing accuracy • Eliminate “wrong build” situations • Improve on time shipments

  6. Features Direct link to Epicor • Push Epicor description on drawing • Push revision information to CAD and Epicor database • Item, BOM and operations updates from within your CAD system • Other database interfacing • Tie critical dimensions to Epicor BOM information

  7. CADLink

  8. CADLink

  9. CADLink Discrepancy between CAD and Epicor Data are highlighted Bill Of Material information is pulled from Models or Drawings and displayed for the Engineer in this grid.

  10. CADLink Multi Level Bill Of Material

  11. CADLink Shows the discrepancy between CAD and Epicor Data. Allows engineering to select the correct one

  12. CADLink Class Code table is taken directly from Epicor Database

  13. CADLink Group Code table is taken directly from Epicor Database

  14. CADLink Epicor Raw Material data is accessible directly from CADLink

  15. CADLink Epicor Routing data created directly from within CADLink

  16. CADLink Engineering can select the specific operation for each assembly component

  17. CADLink Bill of Material Changes Summary shows only the BOM changes that will be made to Epicor

  18. CADLink SolidWorks Custom Properties for the entire assembly conveniently summarized in a single tab

  19. CADLink CADLink can be configured to suit your requirements

  20. ECN Manager • Extends CADLink functionality with change processing • Supports your engineering change processes • Promotes visibility of changes

  21. QBuild Software Solution Products CADLink CAD Interface system that connects yourdesign information to Epicor ECN Manager Ties your Epicor Solution CAD information with your Engineering change process

  22. Contact for Sales and Consulting: Geovanna PazminoApplications Engineer QBuild C O R P O R A T I O N145 Renfrew Drive, Unit 140 | Markham, ON L3R 9R6 | CANADA Phone +1 905 479 7811 EXT 224 Fax +1 905 479 2636 Email: geovanna.pazmino@qbuildsoftware.com www.qbuildsoftware.com
