Physics 6B

Physics 6B. Oscillations Examples. Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown.

alina
Download Presentation

Physics 6B

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Physics 6B Oscillations Examples Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  2. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

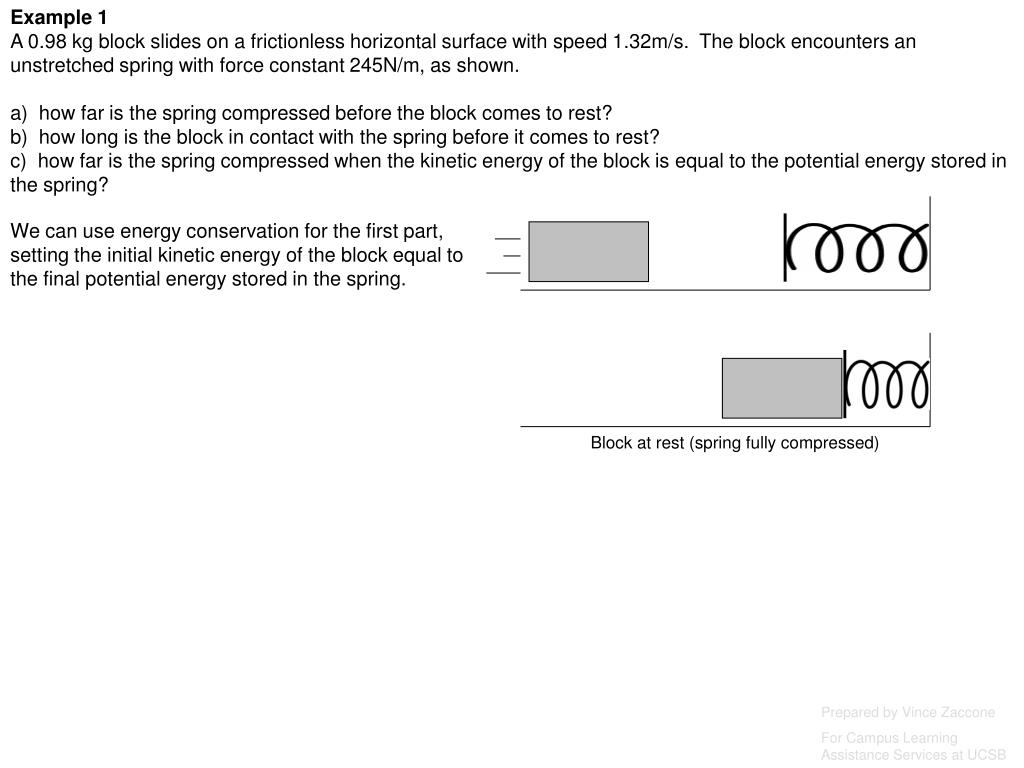

  3. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? We can use energy conservation for the first part, setting the initial kinetic energy of the block equal to the final potential energy stored in the spring. Block at rest (spring fully compressed) Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  4. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx We can use energy conservation for the first part, setting the initial kinetic energy of the block equal to the final potential energy stored in the spring. Block at rest (spring fully compressed) Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  5. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx We can use energy conservation for the first part, setting the initial kinetic energy of the block equal to the final potential energy stored in the spring. Block at rest (spring fully compressed) Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

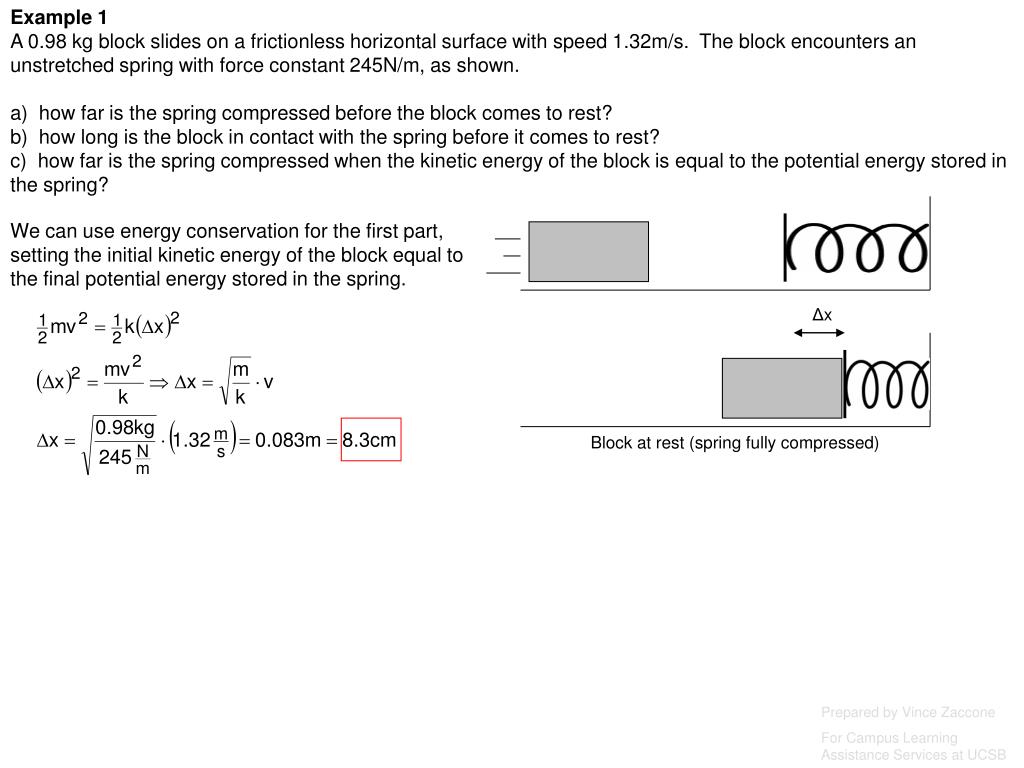

  6. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx We can use energy conservation for the first part, setting the initial kinetic energy of the block equal to the final potential energy stored in the spring. Block at rest (spring fully compressed) Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

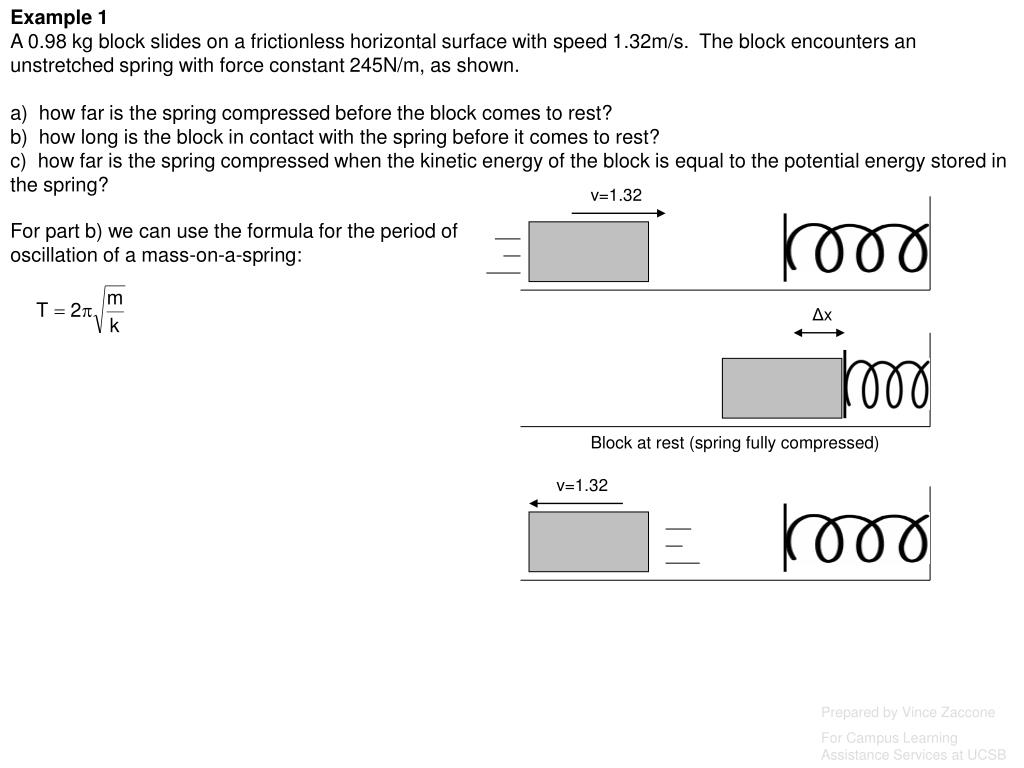

  7. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 For part b) we can use the formula for the period of oscillation of a mass-on-a-spring: v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

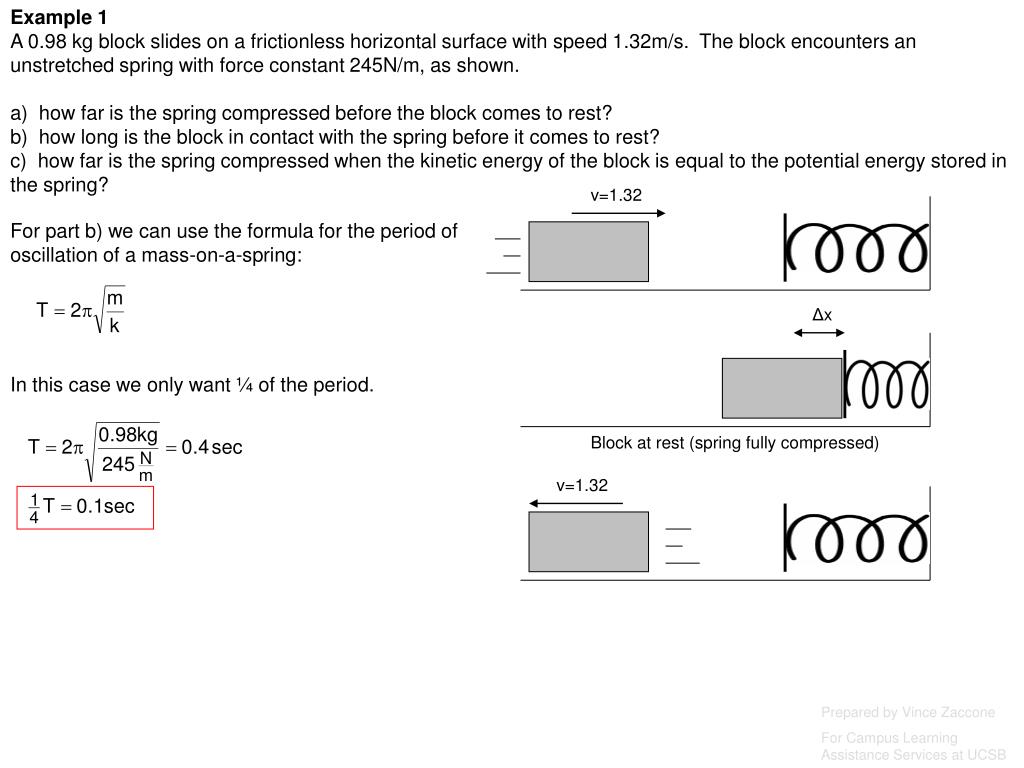

  8. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 For part b) we can use the formula for the period of oscillation of a mass-on-a-spring: In this case we only want ¼ of the period. v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  9. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 Part c) is easiest to understand using energy. We know that Etotal = Kinetic + Potential. v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  10. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 Part c) is easiest to understand using energy. We know that Etotal = Kinetic + Potential. We can also calculate the total energy from the given initial speed: v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  11. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 Part c) is easiest to understand using energy. We know that Etotal = Kinetic + Potential. We can also calculate the total energy from the given initial speed: Now we have to realize that when the kinetic and potential energies are equal, they are also each equal to half of the total energy. v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  12. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 Part c) is easiest to understand using energy. We know that Etotal = Kinetic + Potential. We can also calculate the total energy from the given initial speed: Now we have to realize that when the kinetic and potential energies are equal, they are also each equal to half of the total energy. Since we want to find the compression distance, we should use the formula involving potential energy: v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  13. Example 1 A 0.98 kg block slides on a frictionless horizontal surface with speed 1.32m/s. The block encounters an unstretched spring with force constant 245N/m, as shown. a) how far is the spring compressed before the block comes to rest? b) how long is the block in contact with the spring before it comes to rest? c) how far is the spring compressed when the kinetic energy of the block is equal to the potential energy stored in the spring? Δx Block at rest (spring fully compressed) v=1.32 Part c) is easiest to understand using energy. We know that Etotal = Kinetic + Potential. We can also calculate the total energy from the given initial speed: Now we have to realize that since the kinetic and potential energies are equal, they are also each equal to half of the total energy. Since we want to find the compression distance, we should use the formula involving potential energy: v=1.32 Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  14. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  15. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? ? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  16. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? If we consider all the forces acting on the mass when it is hanging at rest we see that the weight must cancel the spring force. So if we can find the spring constant k, we can solve for x. ? kx mg Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  17. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? If we consider all the forces acting on the mass when it is hanging at rest we see that the weight must cancel the spring force. So if we can find the spring constant k, we can solve for x. Use the formula for the period of a mass-spring system: ? kx mg Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  18. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? If we consider all the forces acting on the mass when it is hanging at rest we see that the weight must cancel the spring force. So if we can find the spring constant k, we can solve for x. Use the formula for the period of a mass-spring system: ? kx Plugging in the given values we get mg Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  19. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? If we consider all the forces acting on the mass when it is hanging at rest we see that the weight must cancel the spring force. So if we can find the spring constant k, we can solve for x. Use the formula for the period of a mass-spring system: ? kx Plugging in the given values we get mg Now we can use Fspring=weight: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  20. Example 2 A 0.260kg mass is attached to a vertical spring. When the mass is put into motion, its period is 1.12sec. How much does the mass stretch the spring when it is at rest in its equilibrium position? If we consider all the forces acting on the mass when it is hanging at rest we see that the weight must cancel the spring force. So if we can find the spring constant k, we can solve for x. Use the formula for the period of a mass-spring system: ? kx Plugging in the given values we get mg Now we can use Fspring=weight: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  21. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  22. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Here is a diagram of the pendulum. θ Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  23. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Here is a diagram of the pendulum. We have a formula for the period of this pendulum: θ Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  24. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Here is a diagram of the pendulum. We have a formula for the period of this pendulum: θ We can solve this for the length: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  25. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Here is a diagram of the pendulum. We have a formula for the period of this pendulum: θ We can solve this for the length: What value should we use for the period? Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  26. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Here is a diagram of the pendulum. We have a formula for the period of this pendulum: θ We can solve this for the length: What value should we use for the period? We are given a time of 1.13s to go from max angle to the lowest point. This is only ¼ of a full cycle. So we multiply by 4: T = 4.52s Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB

  27. 11.46 You want to construct a simple pendulum with a 3.25kg bob that will take 1.13sec to swing from a maximum angle of 9.5° to its lowest point after being released from rest. How long should this pendulum be? Here is a diagram of the pendulum. We have a formula for the period of this pendulum: θ We can solve this for the length: What value should we use for the period? We are given a time of 1.13s to go from max angle to the lowest point. This is only ¼ of a full cycle. So we multiply by 4: T = 4.52s Now we can plug in to get our answer: Prepared by Vince Zaccone For Campus Learning Assistance Services at UCSB
