  1. Open Systems Interconnect (OSI) Model

  2. Controller Area Network Standard • Defines Physical Layer (L1) • Defines Data Link Layer (L2) • Defines how to Transport (L4) small (8 bytes) datagrams • No flow control (L3 and L4) • No sequencing and fragmentation (L3) • No Session (L5) or Presentation (L6) specs • Different Higher Layer Protocols (HLPs) handle the rest

  3. Common CAN HLPs • CanKingdom • CANopen • CCP/XCP • DeviceNet • SAE J1939 • OSEK • SDS • These define the “Object” Layer (layers not defined by the CAN standard)

  4. CAN Physical Layer – Voltages • Open collector (wired-OR); NRZ • Dominant bits are logical 0 • Recessive bits are logical 1 • Provides arbitration free transmission If A transmits recessive (1) and sees dominant (0) from B, A knows collision occurred and stops transmitting (will retry 6 clock cycles after end of dominant message)

  5. CAN Physical Layer – Timing • Each node has its own clock • Synchronization done by dividing bit time into four segments • Phases 1 & 2 adjusted based on network and node conditions • Sample between Phase 1 & 2 Bit Time Sync Propagation Phase Segment 1 Phase Segment 2 Clock

  6. CAN Data Link Layer • Specifies four message types • Data: contains data for transmission • Data Request (Remote): requests transmission of a specific identifier • Error: transmitted by any node detecting an error • Overload: injects a delay between data and/or remote frames

  7. CAN Data Frames For Data Request RTR = 1 (recessive) and DLC = 0 (data field empty)

  8. Error Frames • Active error generated by transmitter • Passive error generated by receiver • Error Types • Bit: Send recessive, read dominant • Stuff: more than 5 consecutive bits of same polarity • CRC: computed and received CRCs not equal • Form: invalid bits in field • ACK: no acknowledgement from receiver

  9. Overload Frames • Two overload conditions • Internal conditions of receiver – it can’t keep up • Dominant bit detected during expected intermission (interframe space)

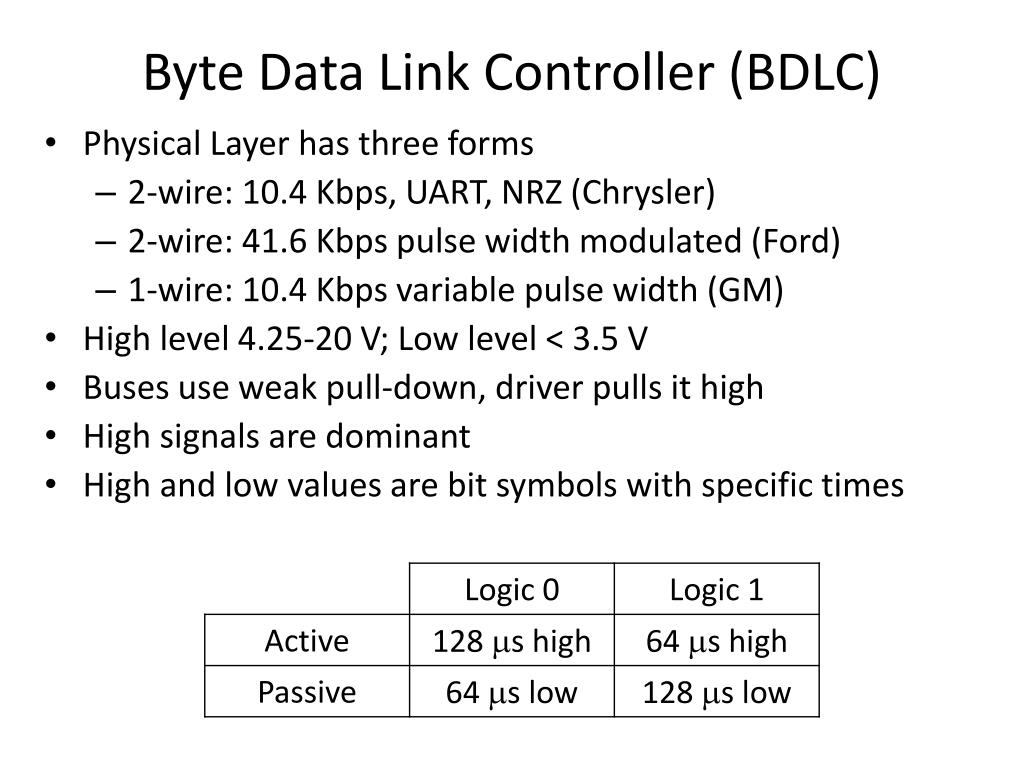

  10. Byte Data Link Controller (BDLC) • Physical Layer has three forms • 2-wire: 10.4 Kbps, UART, NRZ (Chrysler) • 2-wire: 41.6 Kbps pulse width modulated (Ford) • 1-wire: 10.4 Kbps variable pulse width (GM) • High level 4.25-20 V; Low level < 3.5 V • Buses use weak pull-down, driver pulls it high • High signals are dominant • High and low values are bit symbols with specific times

  11. BDLC – Data Link Layer SOF Header Data CRC EOD IFR CRC EOF 3 byte headers contain destination and source addresses
