  1. Chapter 31 Imaging Studies in Orthopaedics

  2. Overview • The availability of diagnostic images to physical therapists greatly depends on the practice setting. • Outside of the United States military health system, the ordering of imaging studies is not within the scope of physical therapy practice

  3. Imaging Studies • The results from imaging studies should be used in conjunction with other clinical findings • In general, imaging tests have a high sensitivity (few false negatives), but low specificity (high false-positive rate)

  4. Radiology • Conventional (plain film) radiography is generally considered to be the first order diagnostic imaging modality. • X-rays are part of the electromagnetic spectrum and have the ability to penetrate through body tissues of varying densities • Exposure to the x-ray particles causes the film to darken, while those areas of absorption appear lighter on the x-ray film or radiograph • The denser a tissue is, the lighter it appears on the film or radiograph.

  5. Radiology • The following structures are in order of descending density: • Metal • Bone. Bone can have varying densities within the body. For example, cancellous bone is less dense than cortical bone, and will thus appear lighter than the cortical bone • Soft tissue • Water or body fluid • Fat • Air. As air is the least dense material in the body, it absorbs the least amount of x-ray particles, resulting in the darkest portion of the film

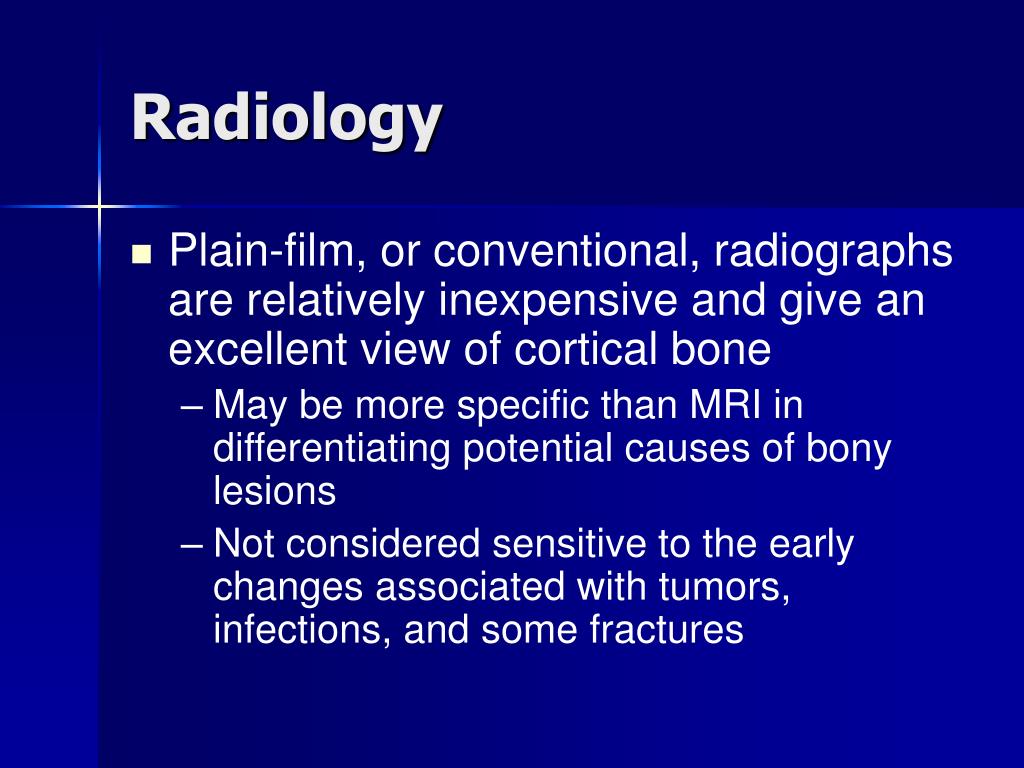

  6. Radiology • Plain-film, or conventional, radiographs are relatively inexpensive and give an excellent view of cortical bone • May be more specific than MRI in differentiating potential causes of bony lesions • Not considered sensitive to the early changes associated with tumors, infections, and some fractures

  7. Radiology • When evaluating radiographs, a systematic approach such as the mnemonic ABCS is recommended; • A = Architecture or alignment • B = Bone density • C = Cartilage spaces • S = Soft tissue evaluation

  8. Radiology • A stress radiograph is a procedure using radiographs taken while stress is applied to a joint • Can be helpful in assessing spinal stability • Video fluoroscopy procedures involve the use of x-rays to evaluate the quality and quantity of joint motion

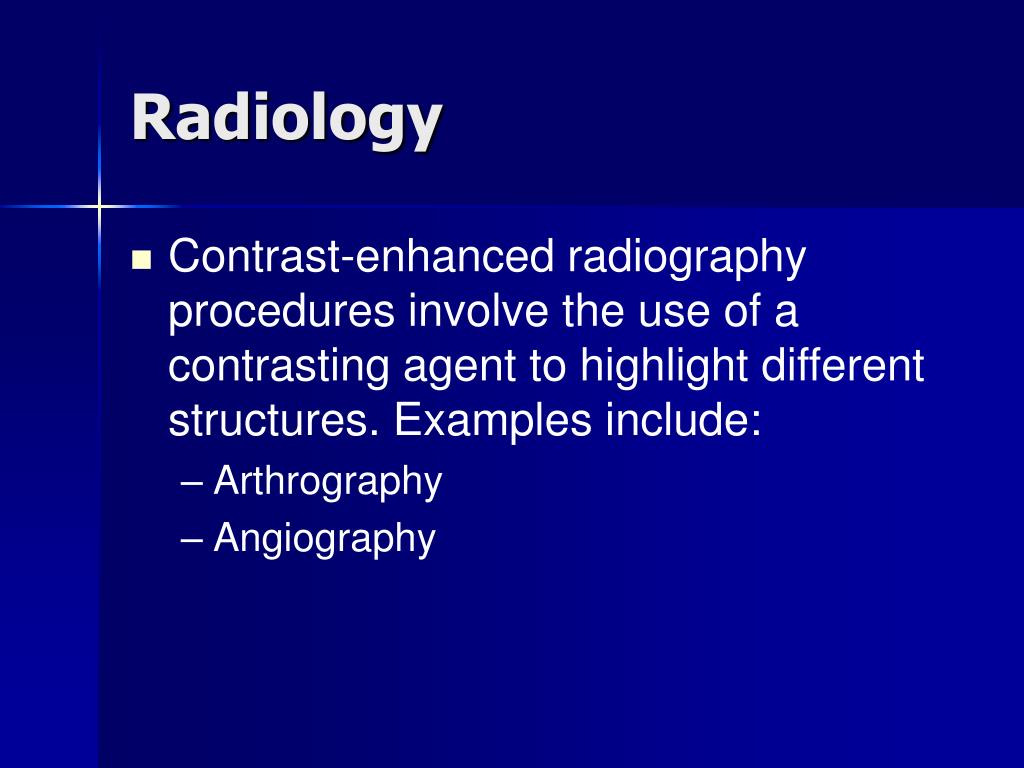

  9. Radiology • Contrast-enhanced radiography procedures involve the use of a contrasting agent to highlight different structures. Examples include: • Arthrography • Angiography

  10. Computed Tomography (CT) • Also known as computerized axial tomography (CAT) and computerized transaxial tomography (CTI). • Uses a fan-like beam of x-rays to provide an almost three-dimensional or tomographic image • Helpful in the examination of acute fractures, aneurysms, infections, hematomas, cysts and tumors

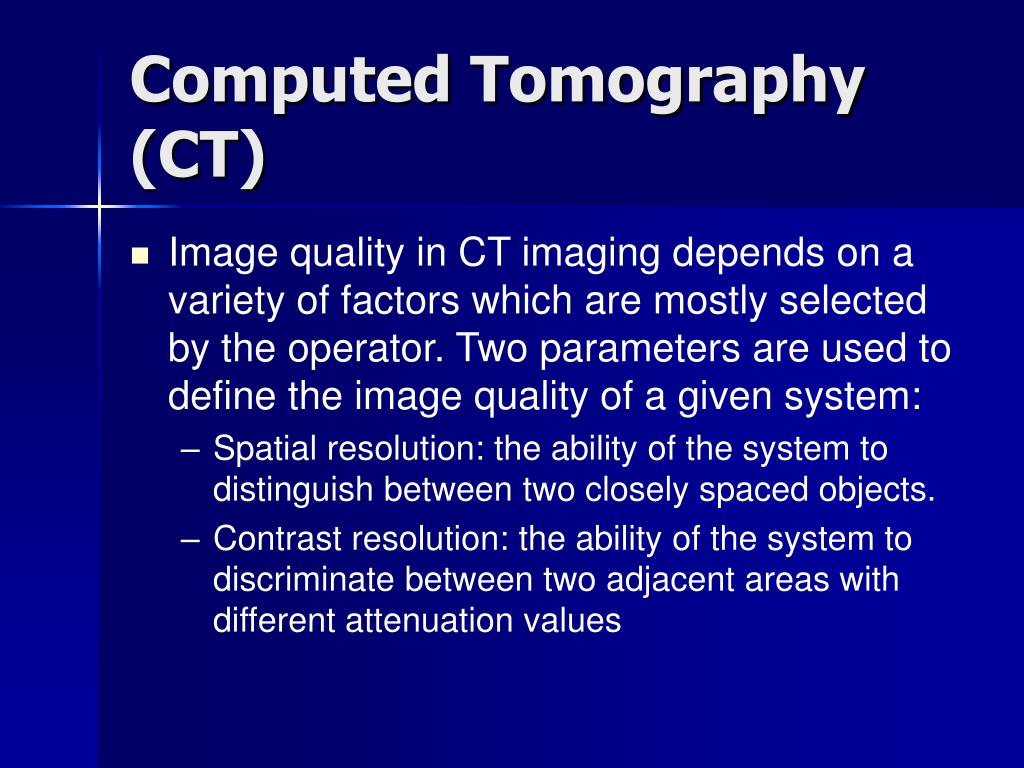

  11. Computed Tomography (CT) • Image quality in CT imaging depends on a variety of factors which are mostly selected by the operator. Two parameters are used to define the image quality of a given system: • Spatial resolution: the ability of the system to distinguish between two closely spaced objects. • Contrast resolution: the ability of the system to discriminate between two adjacent areas with different attenuation values

  12. Computed Tomography (CT) • CT scan provides good visualization of the shape, symmetry, and position of structures by delineating specific areas • This information can be helpful in the examination of acute trauma, aneurysms, infections, hematomas, cysts, and tumors

  13. CT Myelogram • A diagnostic tool that uses radiographic contrast media (dye) to illuminate the spinal canal, cord, and nerve roots during imaging

  14. Magnetic Resonance Imaging (MRI) • MRI images are the result of the interaction of body tissues with electromagnetic forces • Commonly used to assess the central nervous system, and soft tissue injuries

  15. Magnetic Resonance Imaging (MRI) • The advantages of MRI include its excellent tissue contrast, ability to provide cross-sectional images, noninvasive nature, and complete lack of ionizing radiation. MRI provides an excellent view of anatomic and physiologic tissues

  16. Diagnostic Ultrasound • Based on the transmission of sound waves through tissue and the time it takes for the waves to be reflected back to the transducing probe • Currently used to help detect soft tissue injuries, tumors, bone infections, bone mineral density, and arthropathy

  17. Radionuclide Scanning • Involve the diagnostic use of radioactive material or isotopes that are administered orally or intravenously • This test is used to detect particular areas of abnormal metabolic activity within a bone
