  1. About the Compilation of CSL, a Real-Time – pattern based – Specification Language Vered Gafni, IAI

  2. Scope • Work initiation in SPEEDS, IP of 6th framework EC IST program. • Speculative and Exploratory Design in Systems Engineering, • namely: SPEEDS is about • ‘Components based formal development of embedded systems’ • Development = specification+analysis (by formal methods)

  3. SPEEDS Partners: • Academies: INRIA, Rennes, France, OFFIS, Oldenburg, Germany, VERIMAG, Grenoble, France, Parade, Rome, Italy • Industries: AirBus, IAI, Carmeq (VW), Bosch • Tool providers: Telelogic, Esterel, GreenSys • People: • Roberto Passerone, University of Trento, Italy • Albert Benveniste, Benoit Caillaud, INRIA • Joseph Sifakis, Susanne Graf, VERIMAG • Werner Damm, Bernhard Josko, OFFIS • Alberto Sangiovanni, Berkeley

  4. Component Based Development Clear splitting of responsibilities Building systems from library of components various viewpoints: Functionality Real time Safety,… Heterogeneous behavior: Discrete & continuous Distributed development

  5. SPEEDS Component View

  6. Contract: Basic Specification element Assumption Promise Assumption, Promise – assertions regarding component behavior Assumption: - Minimal delay of 50 sec. between successive trains. - At startup no train is already in XR - Trains move in one direction Promise: - Gate closed as long as a train is in XR. - Gate open whenever XR isemptyfor more than 10 sec. Component

  7. Component: Viewpoints & Refinement Component Functionality Performance Safety • Viewpoints: • Refinement:

  8. Component Functionality Time performance Safety Component Component Component contracts contracts contracts Analysis: based on algebra of contracts (w.r.t. composition) • Consistency, • Compatibility, • Dominance, • Simulation, • Satisfiability • within a component (same interface) • along components (a certain viewpoint) • Refinement Contract contract contract contract

  9. Assertions Expression – Hybrid Automata (HRC formalism) • H = X, , G=(V,E), VL=(init, inv, flow), EL=(ET, EC) • X = {x1,…xn} - finite set of real-numbered variables. •  - finite set of events (atomic entities) • G=(V,E) - control graph, (V - control modes, E - control switches). • VL-mode labeling functions: • init: V  {predicates overx} -- initial condition • inv: V  {predicates overx} -- invariant condition • flow: V  {predicates overx,x∂} -- continuous evolvement. • EL – switch labeling functions • ET: E  -- assigns a transition event to each edge. • EC: E {predicates overx,x’} -- discrete transition condition. • - x∂ - the derivatives of x during continuous change. • - x’ - values at the conclusion of discrete change.

  10. Train Controller Gate

  11. Assertions Expression – Formal Language In practice, • Contract’s assertions must be expressed in formal language; but, HA is ‘too formal’ (low level) to be used by normal engineers. • Alternative options like (Metric) LTL were examined; did better The gate is closed when a train traverses GR (gate region). (EnterGR  ClosedUExitGR) but for normal properties Between the time an elevator is called at a floor and the time it opensits doors at that floor the elevator can pass that floor at most twice. ((call Open)  (Move U (Open  (Stop U (Open  (Move U (Open  (Stop U (Open  (Move U Open)))))))))) still too difficult – not accepted!.

  12. Assertions Expression – Patterns (SafeAir Project) Next attempt: ‘patterns’ • English like fixed sentence embedded with parameters’ place holders, e.g.: inv [Q] while [P] after [N] steps represents a fixed property up to parameters' instantiation. • Semantics: a fixed automaton. A patterns library developed by OFFIS (Oldenburg) • Parameters instantiation – state expressions • Semantics over discrete time model • Idea acceptable by users (format, less) but shortly patterns became complex, like: inv [P] triggers [Q] unless [S] within [B] after_reaching [R] and library grew up to ~400 patterns, not manageable.

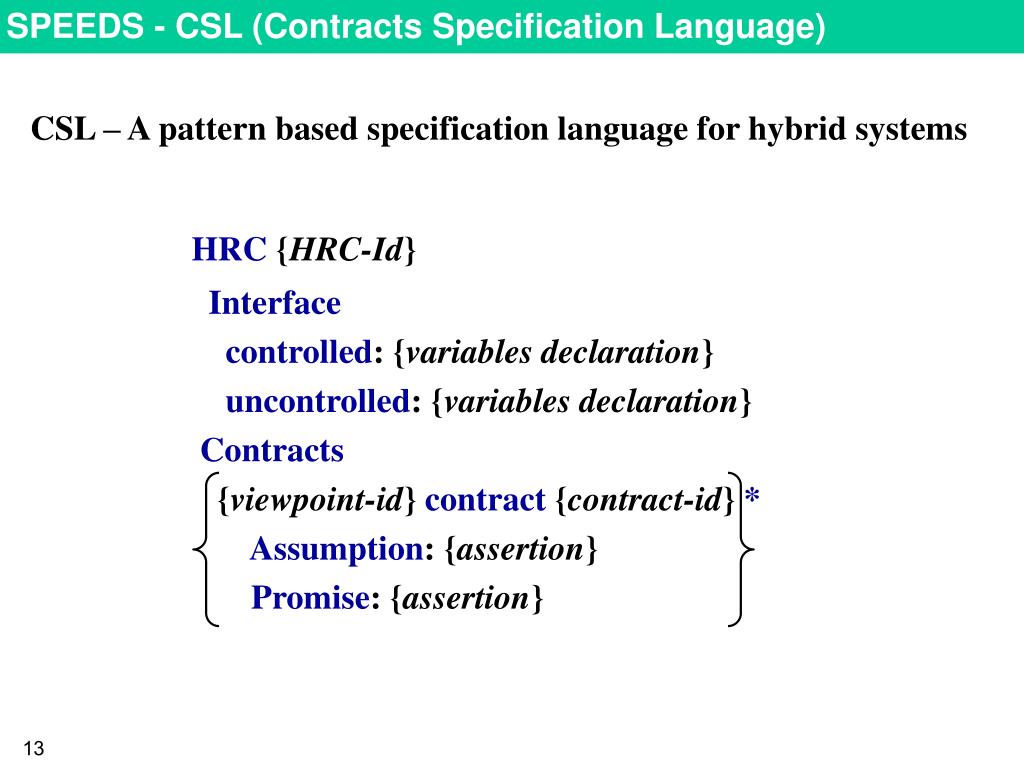

  13. SPEEDS - CSL (Contracts Specification Language) CSL – A pattern based specification language for hybrid systems HRC {HRC-Id} Interface controlled: {variables declaration} uncontrolled: {variables declaration} Contracts {viewpoint-id} contract {contract-id} * Assumption: {assertion} Promise: {assertion}

  14. CSL – What’s new (I) • Time model: R. • Variables: • Discrete range • Continuous range • - pwc evolution •  pw derivable • Events (non-Zenon)

  15. C E I E2 E1 I E C I CSL Patterns – What’s new ? • More intuitive names • Temporal/Continuous expressions for parameters: • Events • Conditions • Intervals • whenever [E] occurs [C] holds during following [I] • whenever[E1] occurs [E2] occurs within [I] • [C] during [I] raises [E]

  16. Pattern parameters: Events & Conditions • Events: • Primitive: a, b, c,… Startup,e~v (evalued event) • Derived: edefined-bystate-change ,e.g., tr(C), fs(C) • Time delay: e+T • Expressions: e1e2, e1e2, e1-e2, e1;e2, ewhenC • Conditions • Boolean variable: A, B, C,… • Boolean expression constructed by: , , , ,  • Relations overx, x∂: x>5,x∂=-x+5 • predefined functions:Timer(T) at e, PeriodicTimer(T) at e

  17. Timers • Timer(T) at e • e+Ttr(c=T) where c=Timer(T) at e • PeriodicTimer(T) at e

  18. Intervals • Interval definition: |e1,e2,…,en| where n1, and |..|{ [ ], [ ), ( ], ( ) } • Occurs when e1;e2;…;en occurs, and lasts from e1 to en. • Special cases: • |n:e||e,e,…,e|, for n>2 - sliding window • Singletons appear only as closed intervals: [e] • For periodic e: |n+1:e|  |n e|, thus |3 sec| defines 3 sec. interval. • For condition C: |C| |tr(C), fs(C)|,

  19. CSL Examples • Whenever the request button is pressed a car should arrives • at the station within 3 minutes • Whenever[car-request]occurs[car-arrives]occurs within[3min] • Dispatching commands will be refused during first 5 seconds • after a car arrives at station • Whenever [car-arrives]occurs • [dispatch-cmd]implies[refuse-msg]during following[5sec] • 40 sec. minimal delay between trains: • Whenever[Tin]occurs[Tin]does not occur during following(40 sec] • Between the time an elevator is called at a floor and the time it • stops at that floor the elevator can pass that floor at most twice. • [PassFloor[m]]occurs at most[2]times • during(CallAtFloor[m], StopAtFloor[m])

  20. F<3m3/s A A A Pattern Occurrence Types • Iterative occurrences – non interleaving occurrence's instances Whenever [car-request] occurs [car-arrives] occurs within [3min] • Flowing occurrences - interleaving occurrence's instances [F<3]during[3 Sec]raises[AlarmSignal]

  21. Pattern 1: Automaton Representation Pattern #1: whenever [E_1] occurs [C] holds during following [E_2, E_3]

  22. Pattern 2: Automaton Representation (by Verimag)

  23. Pattern 4: Automaton Representation whenever[E] occurs [ER] occurs within[ES,EF]

  24. Event Identification Automata state change event: e, e1e2,e1e2, e1-e2 state change event: tr(C) delay event: e+T sequence event: e1;e2

  25. CSL • Why ? • Number of patterns starts increasing (14); some simpler, • some more complex. • Compilation is not trivial, needs experts. • Idea motivated by the observation: • Pattern behavior: triggering behavior implies promised behavior Triggering behavior Promised behavior Whenever [car-request] occurs [car-arrives] occurs within [3min] Hence: few simple patterns + combination operators

  26. Improved Version of CSL • 3 basic (simple) patterns: • [C: condition] during |I: interval| • [E: event] occurs within |I: interval| • [E: event] does not occur during |I: interval| • Compound patterns by 2 composition operators: • patternimpliespattern • patternentailspattern Examples: • [Gate_closed] during [Car_in, Car_out] • [Car_request] entails [Car_arrives] occurs within [3min] • Extends expressive power while reducing complexity • Compilation into HRC becomes simpler

  27. Derived patterns & examples • [e] occurs within [e] is abbreviated to [e]. • whenever [E] occurs [C] holds during following |I| • [E] entails [C] during |I| • whenever [E1] occurs [E2] implies [E3] during following |I| • [E1] entails [E2-E3] does not occur during |I| • [C] during [I] raises [E] •  [C] during [I] entails [E] occurs within [0]

  28. Compilation of Basic Patterns

  29. Compound Patterns: Front-Back Fusion (I)

  30. Compound Patterns: Front-Back Fusion (II) Fusion algorithm ? [e] occurs within [e1,e2] entails [C] during [e3,e4]

  31. Fusion by Composition (I) [e] occurs within [e1,e2] entails [e’] occurs within [e3,e4] Triggering behavior Promised behavior

  32. Three forms of a basic pattern [e] occurs within [e1,e2] entails [e’] occurs within [e3,e4]

  33. Fusion by Composition (II)

  34. Indevedual vs. fusion version

  35. Fusion by Composition (III)

  36. Fusion by Composition • Result: • Each basic pattern appears in 3 versions: • Individual, • Front fusion • Back fusion • then fusion reduces to composition of automata (well defined)

  37. Further work • Practical: • Build a compiler for CSL (then gain all the power of • analysis tools created in SPEEDS). • Theoretical: • Examine the expressive power of CSL (w.r.t. metric LTL, HA) • Examine different sets of basic patterns + operators (is there a • ‘minimal’ configuration?, more expressive one? (is it needed in • practice), • Examine different models of intervals deployment
