  1. EM Track III Overview • EM Track III is a Windows Based Tire Records System • Multiple Customers Can be Maintained at Same Time • Share Customers Data With Co-Workers etc. • System will Track a Tire’s Life from Cradle to Grave • Very User Friendly • Point and Click Technology • Excellent Reporting Features • Cost Analysis ,Between • Manufacturers • Tread Designs • Vehicle Types • Wheel Positions • Compounds • Can Track Tires & Rims

  2. Account Editor Screen Multiple Account Registration Choose Measurement Units & Inspection Order

  3. Vehicle Editor Screen

  4. Vehicle Editor Screen Multiple Vehicle Registration (Uses Standard Windows Icons)

  5. Add Vehicle Screen

  6. Tire Inventory Screen

  7. Tire Registration Screen Register New Tire Click Save Icon

  8. Tire Registration Screen Fast Multiple Tire Registrations

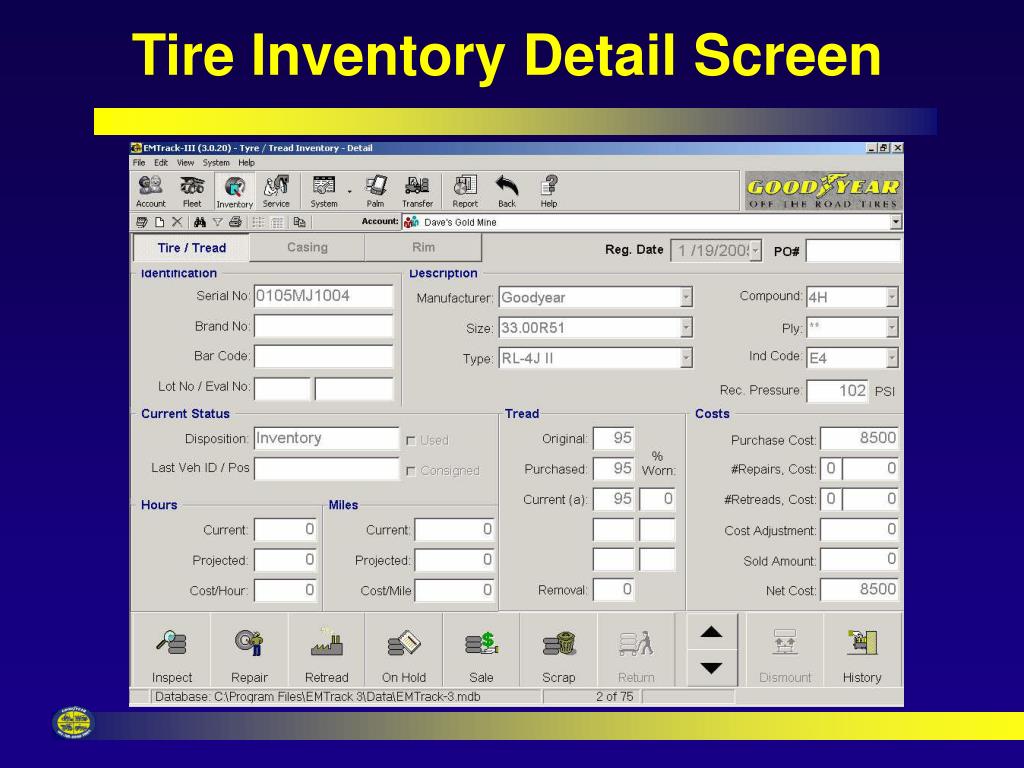

  9. Tire Inventory Detail Screen

  10. Installation of Tires on Vehicles

  11. Vehicle In-service Screen New easy to work with vehicle screen. Complete list of Vehicle ID #’s. Tire Information Tire Wear Color Legend New easy to understand icons

  12. Tire Inspection & History Screen Inspection Report allows up to 3 NS measurements Easy to work with history screen.

  13. Fleet Inspection Click Here to Enter Fleet Inspection Data

  14. Fleet Inspection Enter Rapid Fleet Inspection Data Here

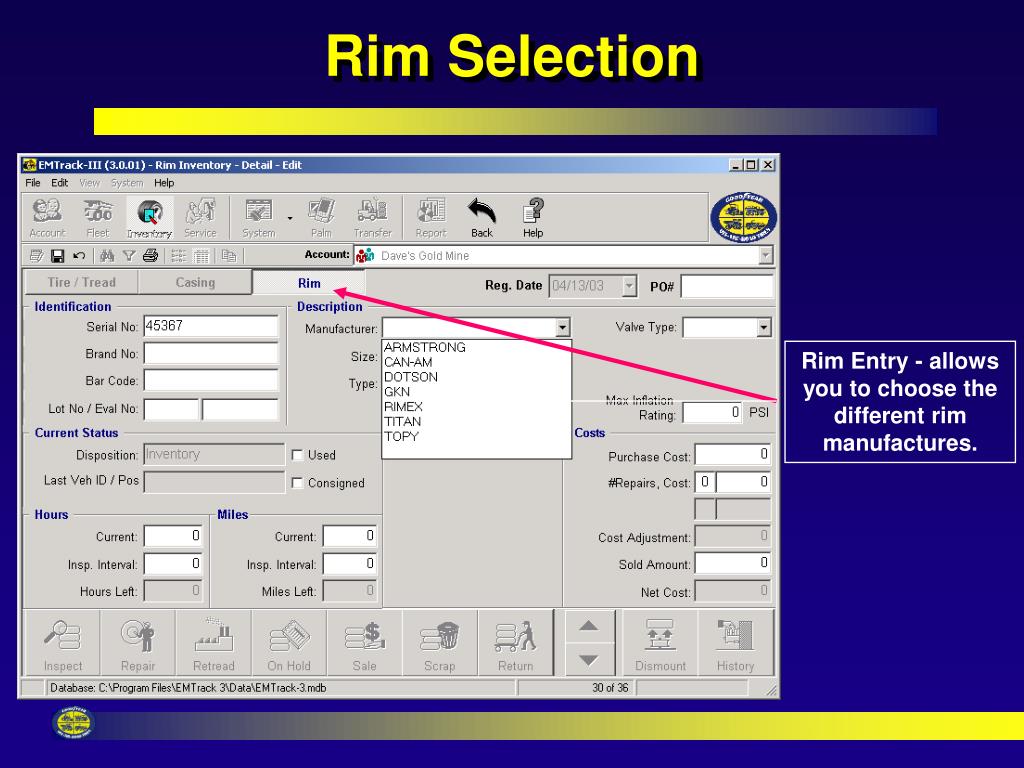

  15. Rim Selection Rim Entry - allows you to choose the different rim manufactures.

  16. Rim Base and Flange Selection Rim Entry - allows you to choose the different rim bases along with the flanges.

  17. Rim Installation Rim installed with Assembly Rim installed with just the casing Rim with tire or assembly installed

  18. Rim Inspection Screen Rim Inspection Conditions

  19. EMTrack III - Rim Reports Rim Reports Available

  20. Custom Configure , Unique Wheel Positions , Custom Names to Wheel Positions

  21. Security 3 Levels: Administrator User Guest

  22. Table Maintenance 23 Available “Table Maintenance” Items to add or edit existing tables. Use Standard Items When Possible Ability to Hide Unused Items

  23. Help Screens - Context Sensitive

  24. EM Track III Reports 23 Tire Reports 10 Rim Reports 6 Vehicle Reports 43 Different Graphs

  25. Report Filters

  26. EM Track III Graphs

  27. Add Custom Report Titles

  28. View or Print Tire History

  29. Search For a Vehicle Will Search for a Vehicle by Vehicle Type or Unit Number

  30. Search For a Tire Will Search for a Tire by Size or Brand or Serial Number or Manufacturer Type or Size

  31. Change the Disposition of a Tire i.e.: Send to Scrap Send to Retread or Repair Hold for Inspection

  32. Transfer of Equipment

  33. Thank You
