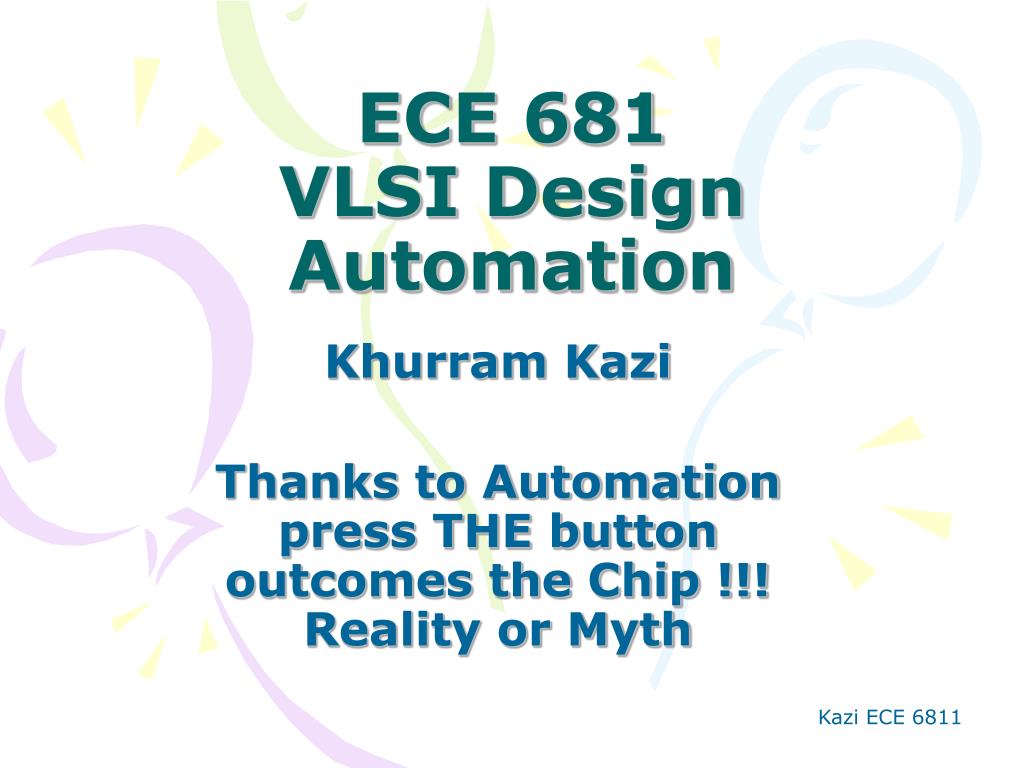

1. ECE 681VLSI Design Automation Khurram Kazi Thanks to Automation press THE button outcomes the Chip !!! Reality or Myth

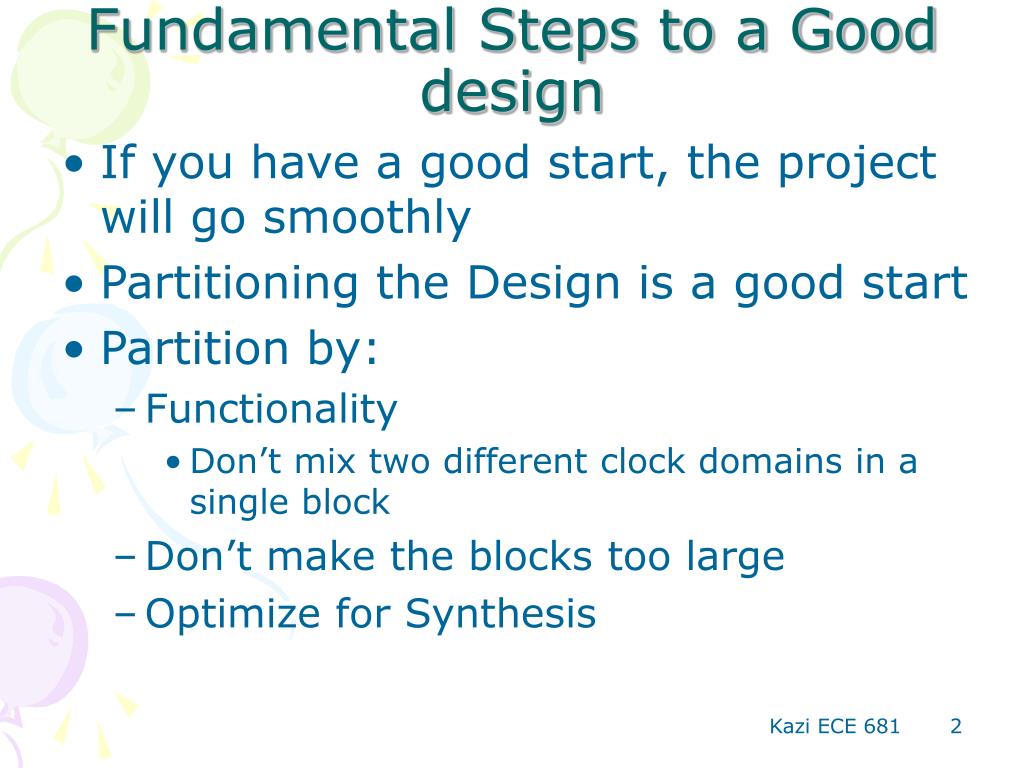

2. Fundamental Steps to a Good design • If you have a good start, the project will go smoothly • Partitioning the Design is a good start • Partition by: • Functionality • Don’t mix two different clock domains in a single block • Don’t make the blocks too large • Optimize for Synthesis

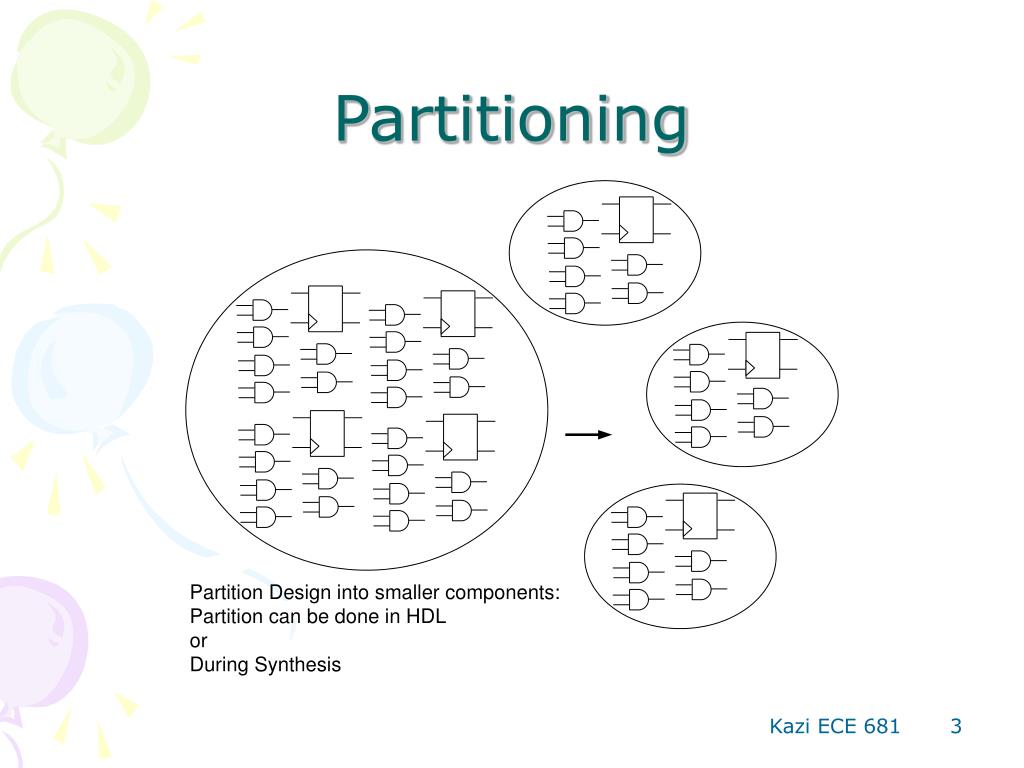

3. Partitioning

4. Partitioning Using HDL • Using Entities and Instantiating such entities partitioning is created. Entity framing_block is Architecture struct is U1: pattern_match port map (serial_datain, clk, reset_n ….); U2: frame_monitor port map (par_data, clk, reset_n, data_out….); . . End struct;

5. Partitioning during Synthesis

6. Using “group” command in Synopsys (design compiler)

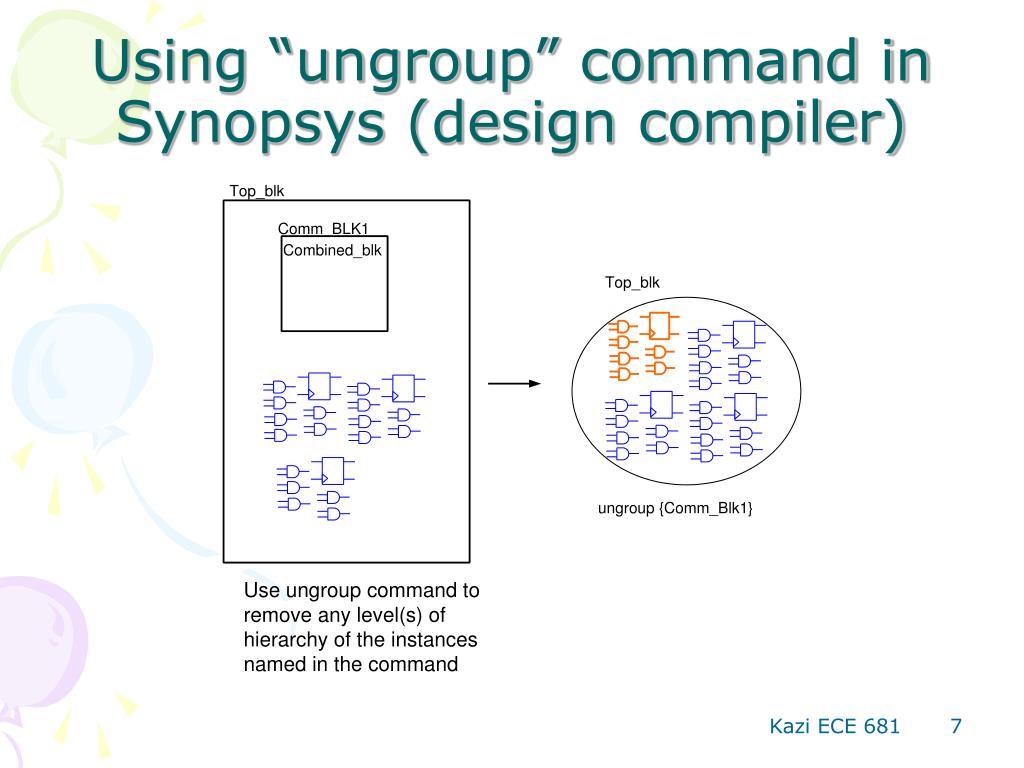

7. Using “ungroup” command in Synopsys (design compiler)

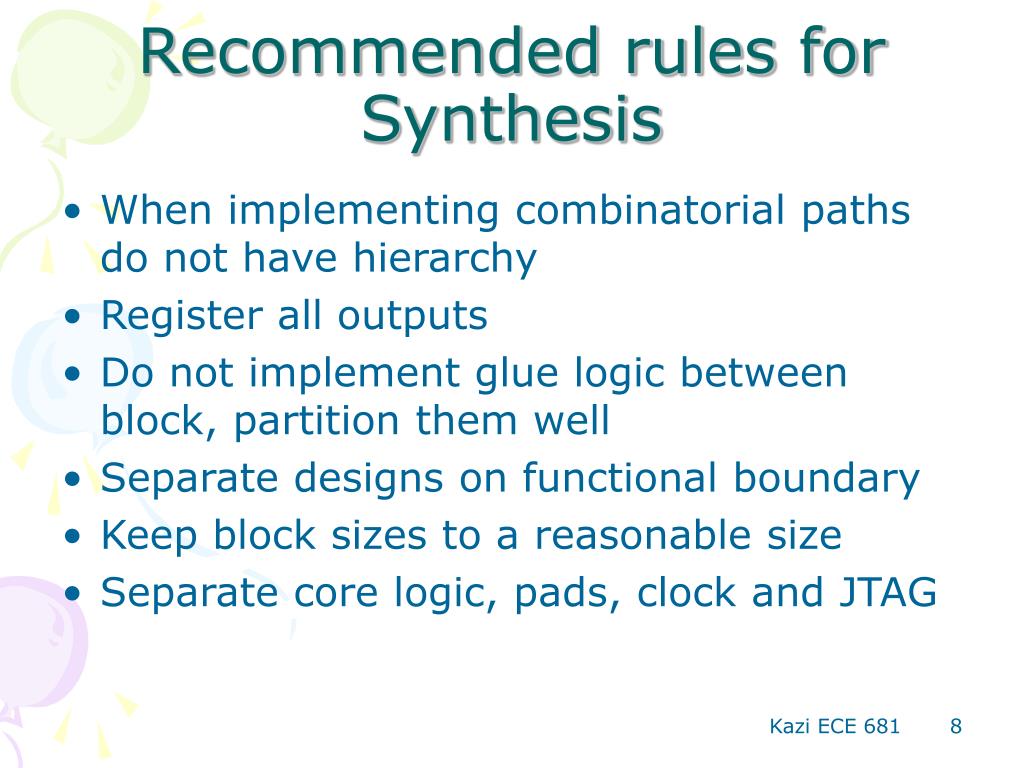

8. Recommended rules for Synthesis • When implementing combinatorial paths do not have hierarchy • Register all outputs • Do not implement glue logic between block, partition them well • Separate designs on functional boundary • Keep block sizes to a reasonable size • Separate core logic, pads, clock and JTAG

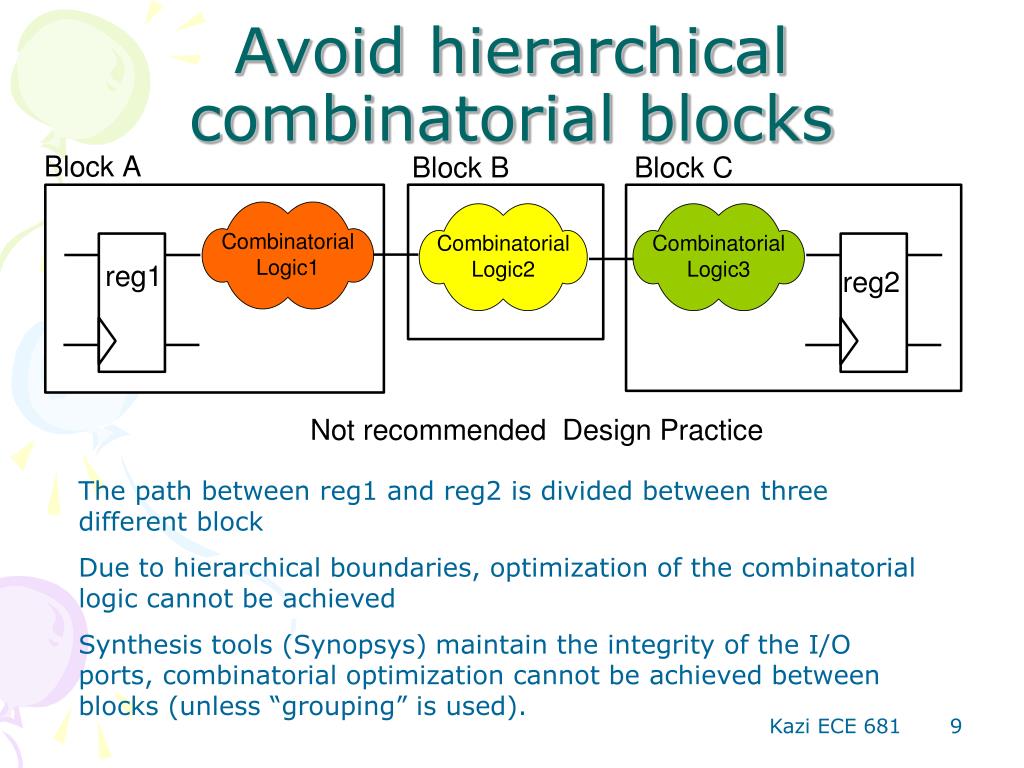

9. Avoid hierarchical combinatorial blocks The path between reg1 and reg2 is divided between three different block Due to hierarchical boundaries, optimization of the combinatorial logic cannot be achieved Synthesis tools (Synopsys) maintain the integrity of the I/O ports, combinatorial optimization cannot be achieved between blocks (unless “grouping” is used).

10. Recommend way to handle Combinatorial Paths All the combinatorial circuitry is grouped in the same block that has its output connected the destination flip flop It allows the optimal minimization of the combinatorial logic during synthesis Allows simplified description of the timing interface

11. Register all outputs Simplifies the synthesis design environment: Inputs to the individual block arrive within the same relative delay (caused by wire delays) Don’t really need to specify output requirements since paths starts at flip flop outputs. Take care of fanouts, rule of thumb, keep the fanout to 16 (dependent on technology and components that are being driven by the output)

12. NO GLUE LOGIC between blocks Due to time pressures, and a bug found that can be simply be fixed by adding some simple glue logic. RESIST THE TEMPTATION!!! At this level in the hierarchy, this implementation will not allow the glue logic to be absorbed within any lower level block.

13. Separate design with different goals reg1 may be driven by time critical function, hence will have different optimization constraints reg3 may be driven by slow logic, hence no need to constrain it for speed

14. Optimization based on design requirements • Use different entities to partition design blocks • Allows different constraints during synthesis to optimize for area or speed or both.

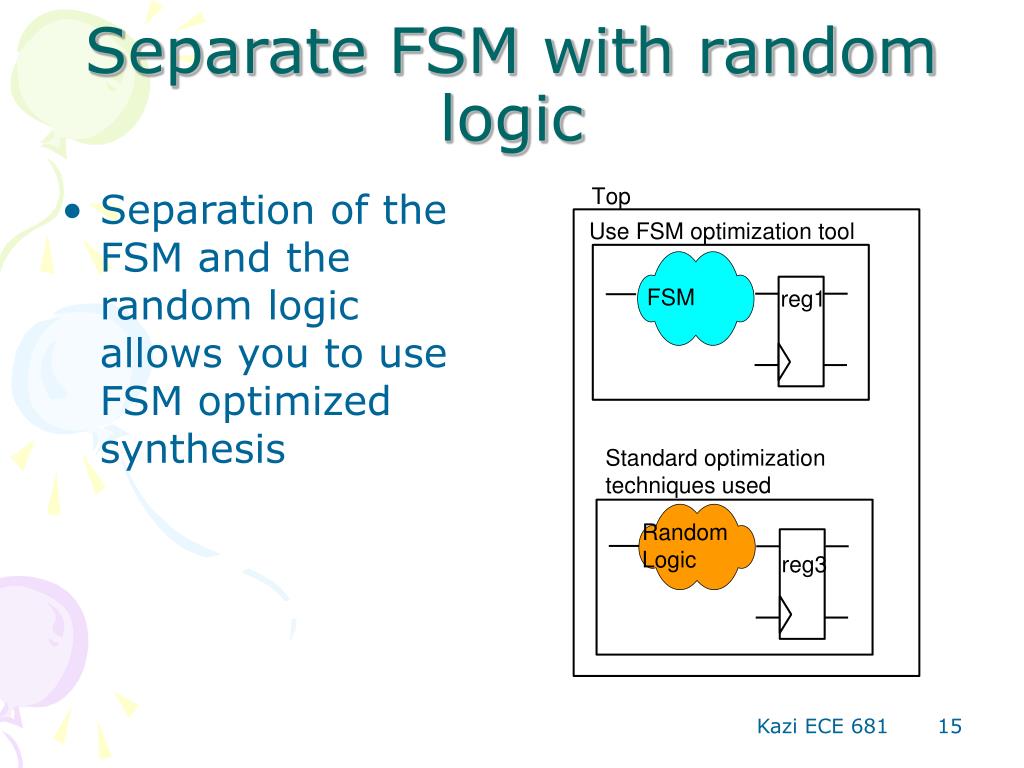

15. Separate FSM with random logic • Separation of the FSM and the random logic allows you to use FSM optimized synthesis

16. Maintain a reasonable block size • Partition your design such that each block is between 1000-10000 gates (this is strictly tools and technology dependent) • Larger the blocks, longer the run time -> quick iterations cannot be done.

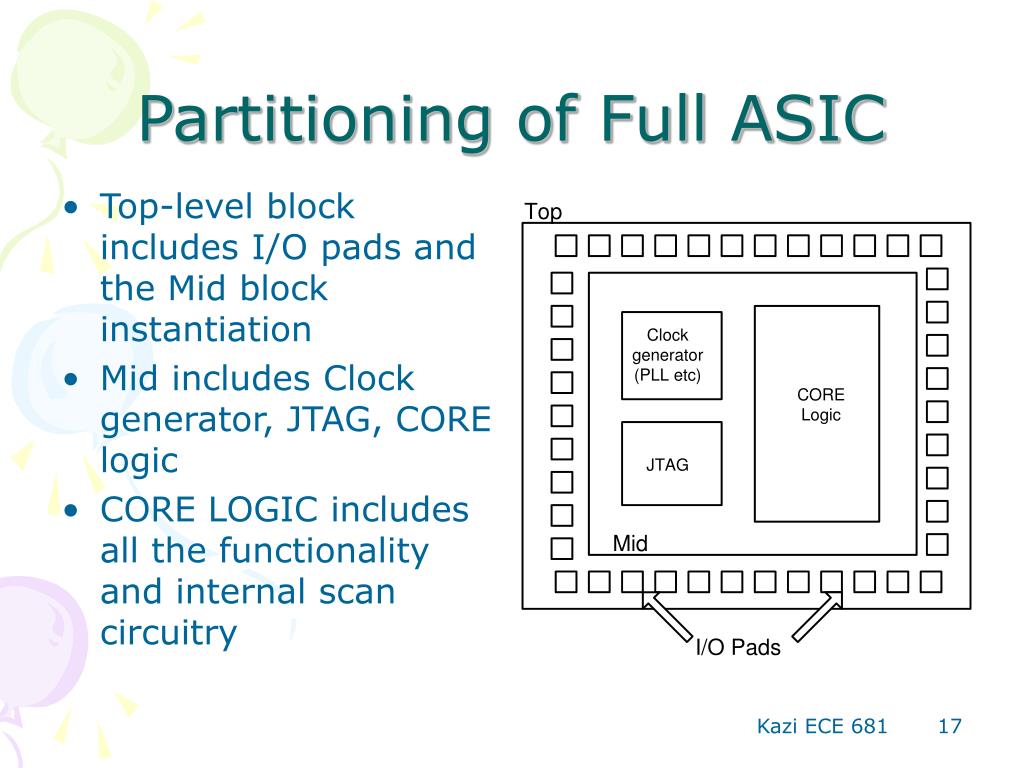

17. Partitioning of Full ASIC • Top-level block includes I/O pads and the Mid block instantiation • Mid includes Clock generator, JTAG, CORE logic • CORE LOGIC includes all the functionality and internal scan circuitry

18. Synthesis Constraints • Specifying an Area goal • Area constraints are vendor/library dependent (e.g. 2 input-nand gate, square mils, grid etc) • Design compiler has the Max Area constraint as one of the constraint attributes.

19. Timing constraints for synchronous designs • Define timing paths within the design, i.e. paths leading into the design, internal paths and design leading out of the design • Define the clock • Define the I/O timing relative to the clock

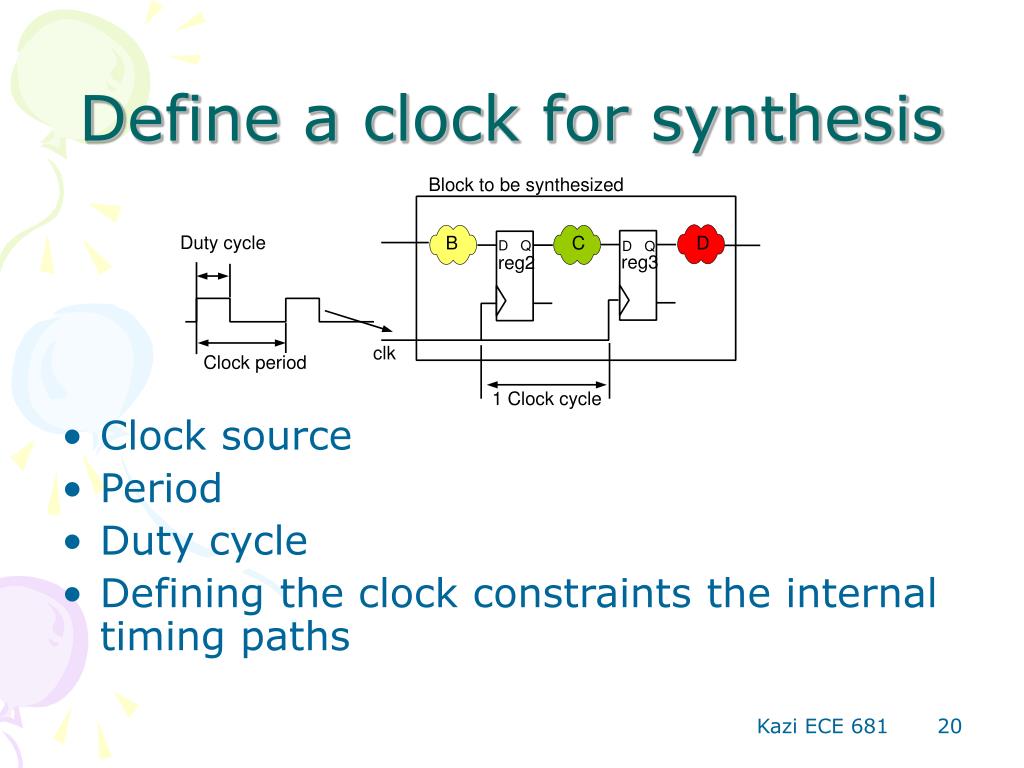

20. Define a clock for synthesis • Clock source • Period • Duty cycle • Defining the clock constraints the internal timing paths

21. Timing goals for synchronous design • Define timing constraints for all paths within a design • Define the clocks • Define the I/O timing relative to the clock

22. Constraining input path • Input delay is specified relative to the clock • External logic uses some time within the clock period and i.e. • TclkToQ(clock to Q delay) + Tw (net delay) ->{At input to B} • Example command for this in synopsys design compiler: • Dc_shell> set_input_delay –clock clk 5 (where 5 represents the input delay)

23. Constraining output path • Output delay is specified relative to the clock • How much of the clock period does the external logic (shown by cloud b) use up? • Tb + Tsetup; The amount to be specified as the output delay

24. Generic statement for input and output delays • Normally the input and the output delay values are set by using some rule of thumb value which is dependent on the fanout, external logic, and the technology being used • The design compiler (Synthesis tools have to work with time (Tclk-Tin-Tout) during synthesis.

25. False and Multicycle paths • False path • Very slow signals like reset test mode enable, that are not used under normal conditions are classified as false paths • Multicycle path • Paths that take more than one clock cycle are known as multicycle paths. • Have to take define the multicylce paths in the analyzer and it takes those constraints into account when synthesizing

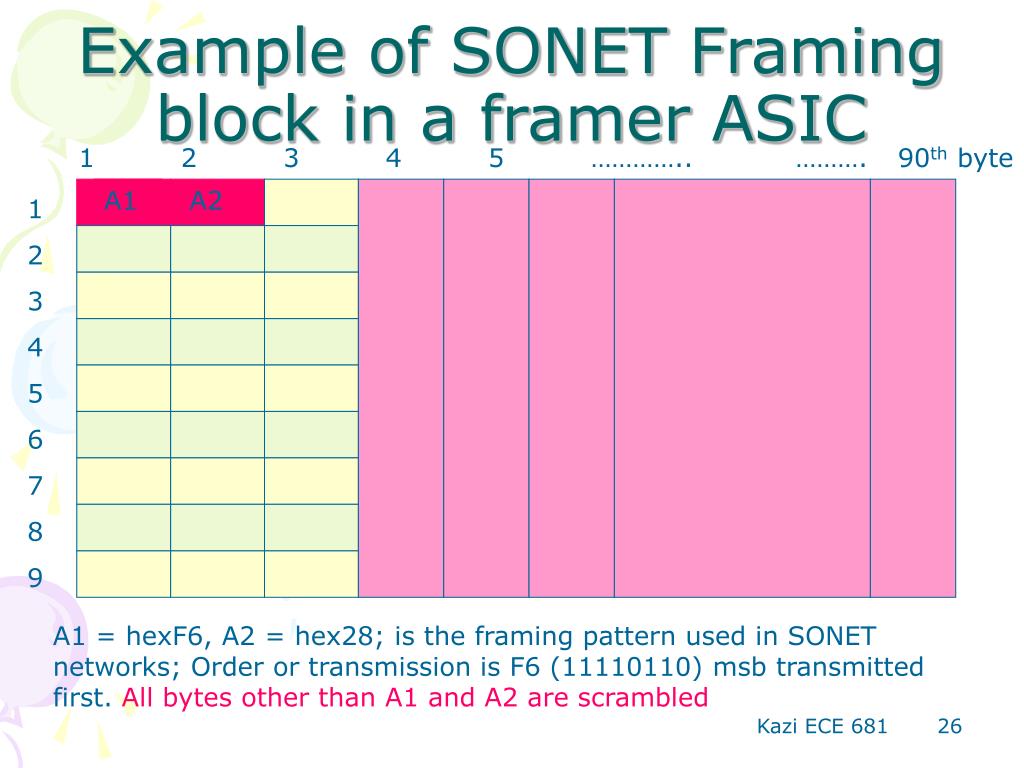

26. Example of SONET Framing block in a framer ASIC 1 2 3 4 5 ………….. ………. 90th byte A1 A2 1 2 3 4 5 6 7 8 9 A1 = hexF6, A2 = hex28; is the framing pattern used in SONET networks; Order or transmission is F6 (11110110) msb transmitted first. All bytes other than A1 and A2 are scrambled

27. Scrambling in SONET (STS-1)1 + x6 + x7 On the receive side use the same circuit and the receive data goes in the “datain” pin and the original unscrambled data is extracted on “dataout” 1234567 datain dataout unscrambled data 1 1111111 1 0 1 2 0111111 1 0 1 3 0011111 0 1 0 4 0001111 0 1 0 5 0000111 0 1 0 6 0000011 1 0 1 7 0000001 1 0 1 8 1000000 1 1 1 9 0100000 1 1 1 10 0010000 0 0 0 11 0001000 0 0 0

28. PRBS (Pseudo Random Binary Sequence) • PRBS is a very powerful pattern generator and that can be self- checking on the receiving end. • Some of the widely used polynomials are:

29. BIP -8 (bit interleaved parity) first byte in 2 row, B1 byte • The BIP-8 (B1 byte) performs even-parity check on the previous STS-1 frame, after it has been scrambled. The parity is then inserted in the B1 position in the SONET frame. During the parity checking, the first bit of the BIP-8 field is set so that the total number of ones in the first positions of all the octets in the previously scrambled frame is always even number. The bit of the BIP-8 is used exactly the same way except it performs a check on the second bits of each octet and so on.

30. Data Com bytes (D1-D3) • D1-D3 bytes are the 1st three bytes in the 3rd row of the STS-1 frame. These bytes are used as a 192 kbps data channel for operations functions, such as Operations, Adminstration, Management and Provisioning (OAM&P). These bytes are used between 2 “section” type equipment (like regenerator)

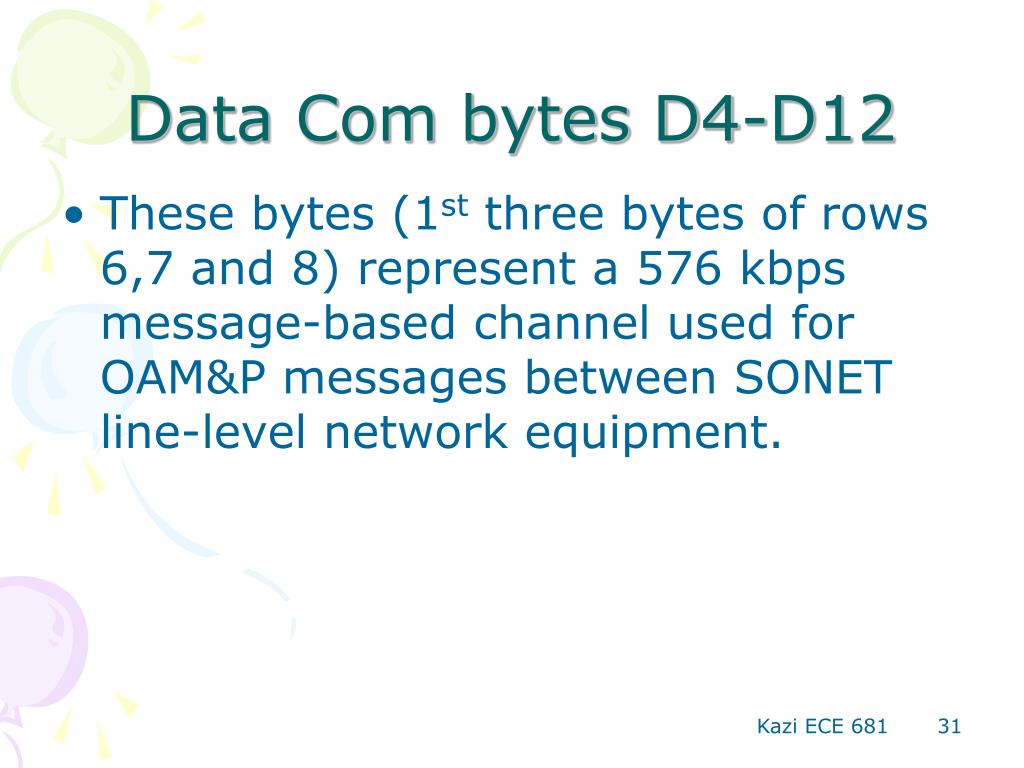

31. Data Com bytes D4-D12 • These bytes (1st three bytes of rows 6,7 and 8) represent a 576 kbps message-based channel used for OAM&P messages between SONET line-level network equipment.

32. Assignment 1 continued • Use the SONET scramble to scramble the data (except A1 and A1 bytes) • Calculate B1and insert it in the next SONET frame • Use PRBS pattern generator to insert in the 3 Data Com bytes D1-D3 byte positions • Take first 9 characters of your name and convert them into ASCII (bit value). Insert those values in the D4-D12 byte positions. • The D1-D3 and D4-D12 data should come out on separate serial ports along with 192 kbps and 576 kbps clock. The firs byte should be indicated by a start of frame signal. (3 ports per Data com bytes should be output ports from your block, therefore total of 6 output ports)
