opnet lab review

Opnet – Lab Review

ENTC 345

Dr. Ana Goulart

Assistant Professor

lab 1 tutorial on m m 1 queue
Lab#1 – Tutorial on M/M/1 Queue
  • Review the main steps
    • New project
      • New node
      • New network (with a single node)
      • Statistics
      • Configure Simulation
      • Analyze the results

Run

Simulation

View and

Analyze

Results

Create

Network

Models

Choose

Statistics

slide3

Create

Network

Models

  • We had to create a New node model in Node Editor.
  • We had to create New network (with a single node) in Project Editor
slide4

Create

Network

Models

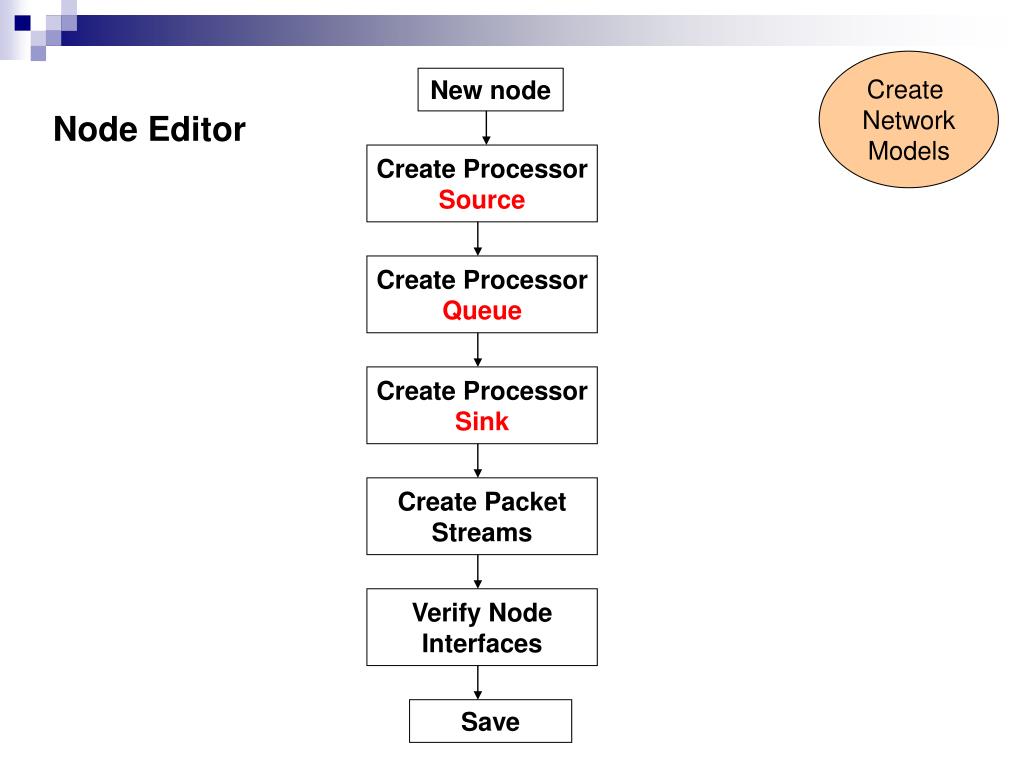

New node

Node Editor

Create Processor

Source

Create Processor

Queue

Create Processor

Sink

Create Packet

Streams

Verify Node

Interfaces

Save

slide6

Create

Network

Models

Project Editor

Add the new

node model to a

Custom Palette

Create New

Network

With a single node

Save

slide8

Choose

Statistics

Specify Network

Model

Probe Editor

Set probes

Save

Create node

statistic probe

Create node

statistic probe

Choose object

(queue)

Choose object

(queue)

Statistic:

Queue delay

Statistic:

Queue size

slide10

Simulation Sequence

Editor

Run

Simulation

DES

Configure DES

(Advanced)

Set Duration,

Seed

Create a

Simulation

Scenario

Outputs –

Statistical

Collection

(Probe File)

Save

slide12

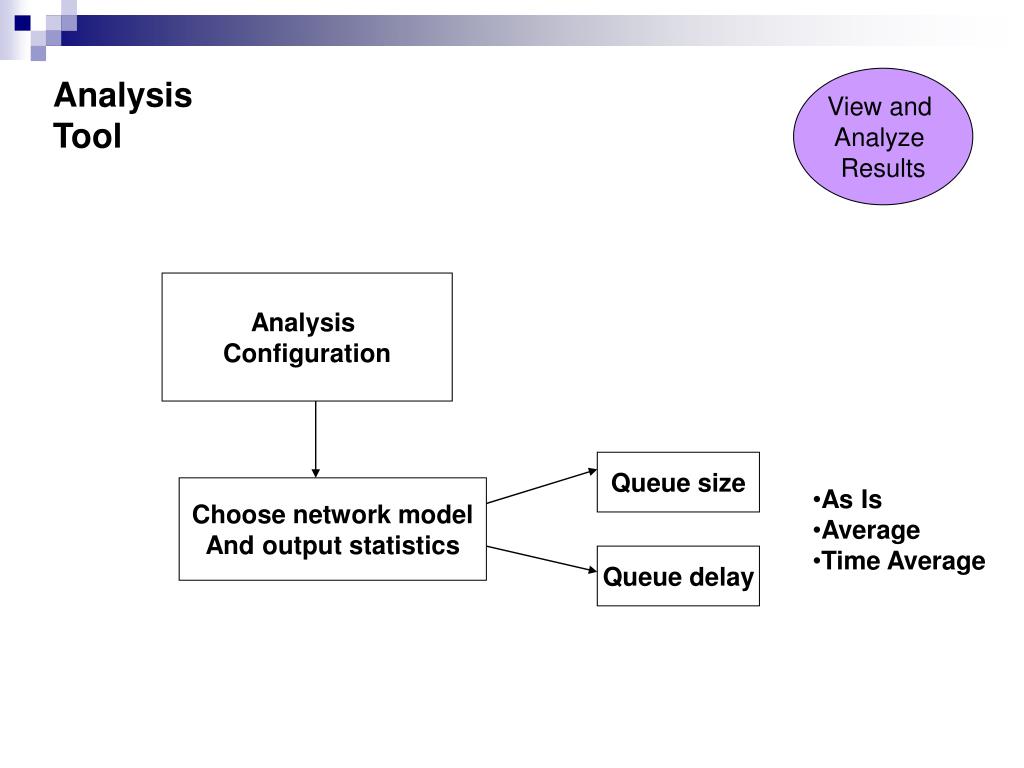

Analysis Tool

View and

Analyze

Results

Analysis

Configuration

Queue size

Choose network model

And output statistics

  • As Is
  • Average
  • Time Average

Queue delay

slide15

Create

Network

Models

Now, let’s go back

to the node editor:

New node

Create Processor

Source

  • Generates packets
  • The attributes are:
  • Name = src
  • Process model = simple_source
  • Packet Interarrival time
    • exponential
    • mean outcome = 1
  • Packet Size
    • exponential
    • mean outcome = 9000 bits

Create Processor

Queue

Create Processor

Sink

Create Packet

Streams

Verify Node

Interfaces

Save

slide16
For example, Packet inter-arrival time:
    • Exponential, mean outcome = 1 means:

Poisson process, with rate λ = 1 packet/sec

L

x

time

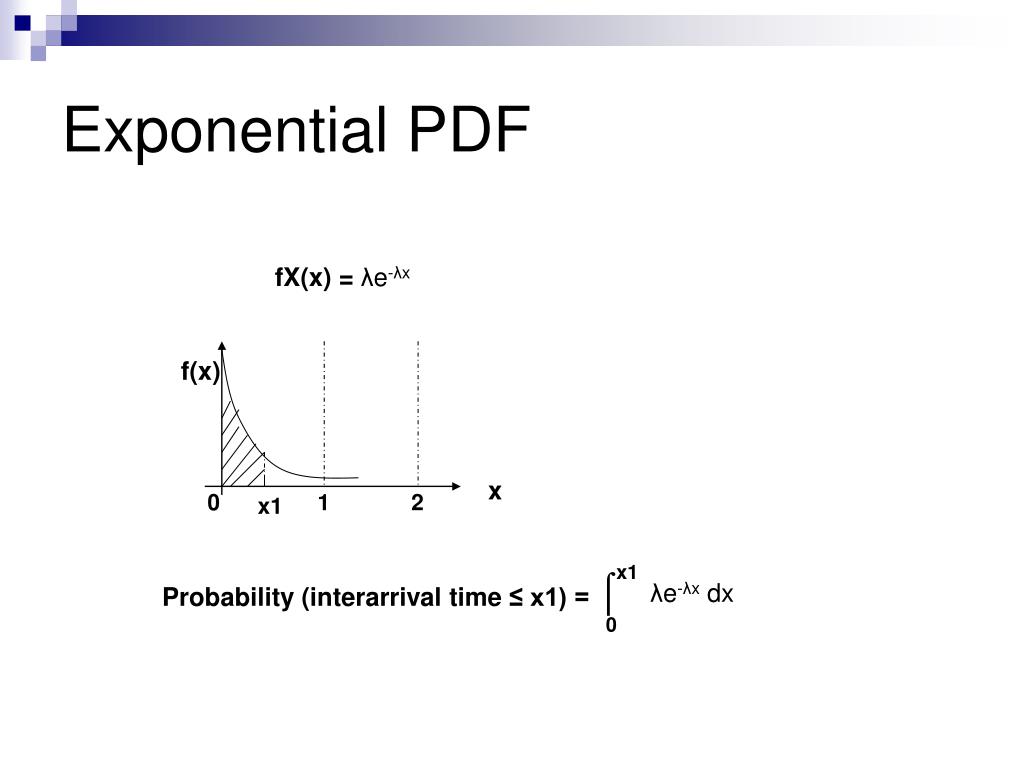

The exponential random variable X, with parameter λ. The PDF is given by

fX(x) = λe-λx

f(x)

x

0

1

2

exponential pdf
Exponential PDF

fX(x) = λe-λx

f(x)

x

0

1

2

x1

x1

Probability (interarrival time ≤ x1) = ⌠

λe-λx dx

0

slide18
Example of other PDF options:
    • Packet size = constant
    • Packet size = uniform distribution
    • Packet interarrival time = constant
    • Packet interarrival time = normal distribution

f(x)

f(x)

x

x

1

1

There are several PDFs (probability density function) to choose from. Then

we would have a different process (not necessarily an M/M/1 queue model).

slide19

Create

Network

Models

New node

Create Processor

Source

  • Represent queue and service
  • The attributes are:
  • Name = queue
  • Process model = acb_fifo (first in / first out)
  • Service rate = 9600 bits/sec

Create Processor

Queue

Create Processor

Sink

Create Packet

Streams

Verify Node

Interfaces

Save

slide20

Create

Network

Models

New node

Create Processor

Source

  • To delete packets and save memory
  • The attributes are:
  • Name = sink

Create Processor

Queue

Create Processor

Sink

Create Packet

Streams

Verify Node

Interfaces

Save

slide21

Create

Network

Models

New node

Create Processor

Source

To interconnect the modules

Create Processor

Queue

Create Processor

Sink

Create Packet

Streams

Verify Node

Interfaces

Save

slide22

Create

Network

Models

New node

Create Processor

Source

Because of details of Opnet implementation

Create Processor

Queue

Create Processor

Sink

Create Packet

Streams

Verify Node

Interfaces

Save

slide23

Create

Network

Models

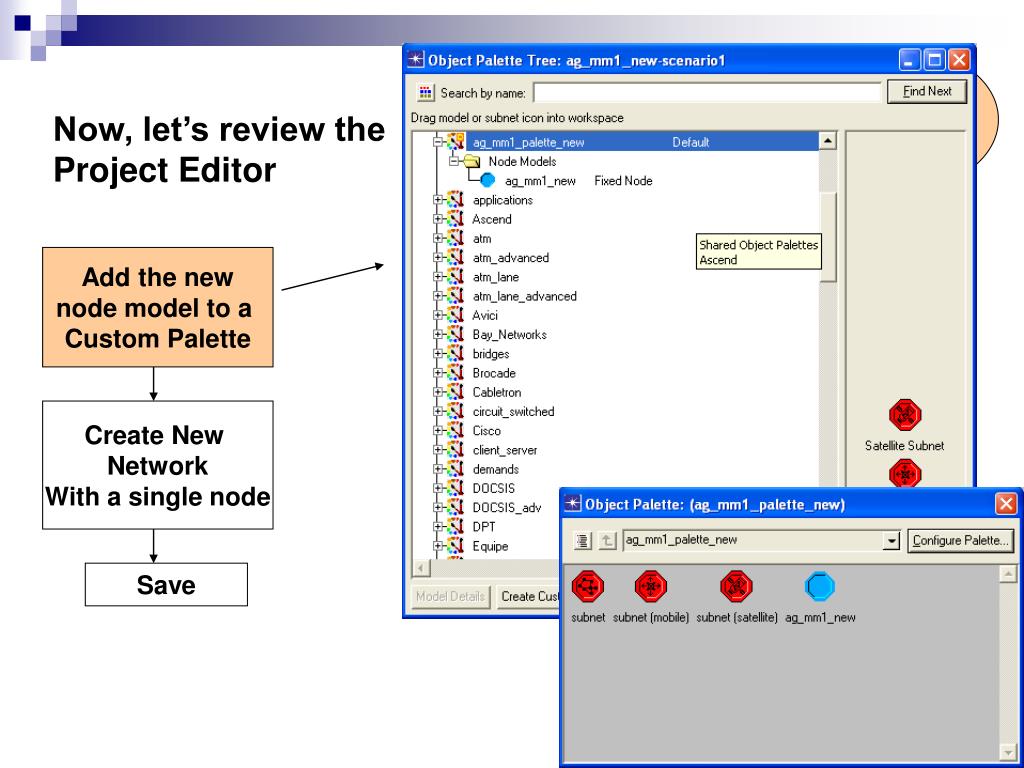

Now, let’s review the Project Editor

Add the new

node model to a

Custom Palette

Create New

Network

With a single node

Save

slide24

Create

Network

Models

Now, let’s review the Project Editor

Add the new

node model to a

Custom Palette

Create New

Network

With a single node

Save

for lab 2 2 nd part an exercise to understand the delays and collisions in ethernet networks
For Lab#2 (2nd part): An exercise to understand the delays and collisions in Ethernet networks

Consider a 100-m optical fiber link operating at 1Gbps. The velocity of propagation of optical fiber is typically about 2 x 108 m/s.

Assume a frame of 1000 octets (8000 bits).

a) What is this frame’s transmission time?

b) What is the propagation time?

c) How many bits on the link when a stream of bits fully occupies the link?

example
Example

B

A

to

First bit of the frame

B

A

to + tprop

….

Llink

B

A

to+ tx

….

Last bit of the frame

example1
Example

And finally, all bits are transmitted and received

B

A

to + tprop + tx

last bit of the frame

one more example now for 10mbps ethernet
One more example – Now for 10Mbps Ethernet

R= 10Mbps

D= 100m

V=2x108m/s

L = 8000 bits (packet size)

a) What is this frame’s transmission time?

b) What is the propagation time?

c) How many bits on the link when a stream of bits fully occupies the link?
