Presentation Transcript
objectives

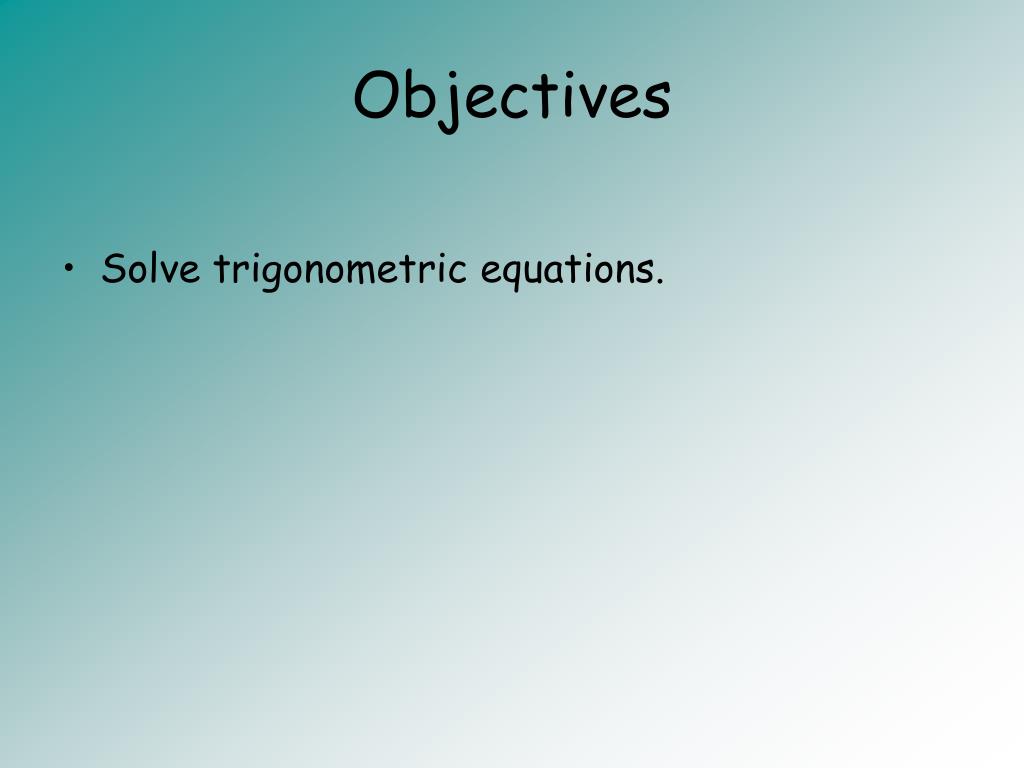

Objectives
  • Solve trigonometric equations.
solve the equation on the interval

This equation is asking what angle(s) t in the interval [0, 2π) has a sine

value of ?

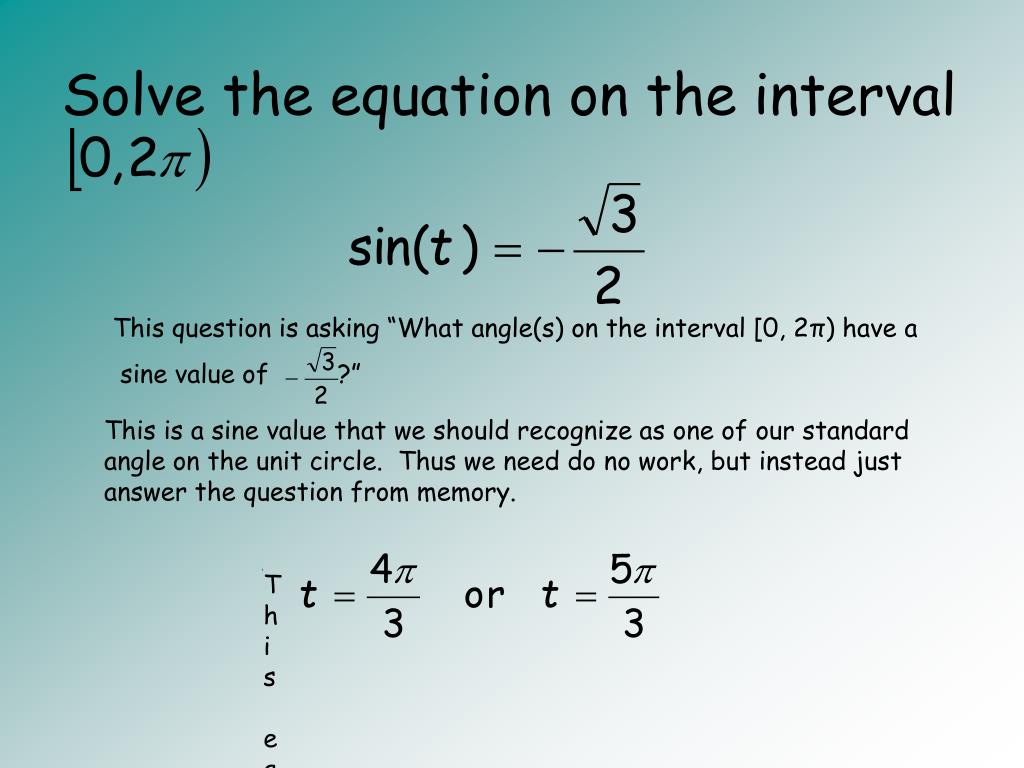

Solve the equation on the interval

This question is asking “What angle(s) on the interval [0, 2π) have a

sine value of ?”

This is a sine value that we should recognize as one of our standard angle on the unit circle. Thus we need do no work, but instead just answer the question from memory.

solve the equation on the interval1

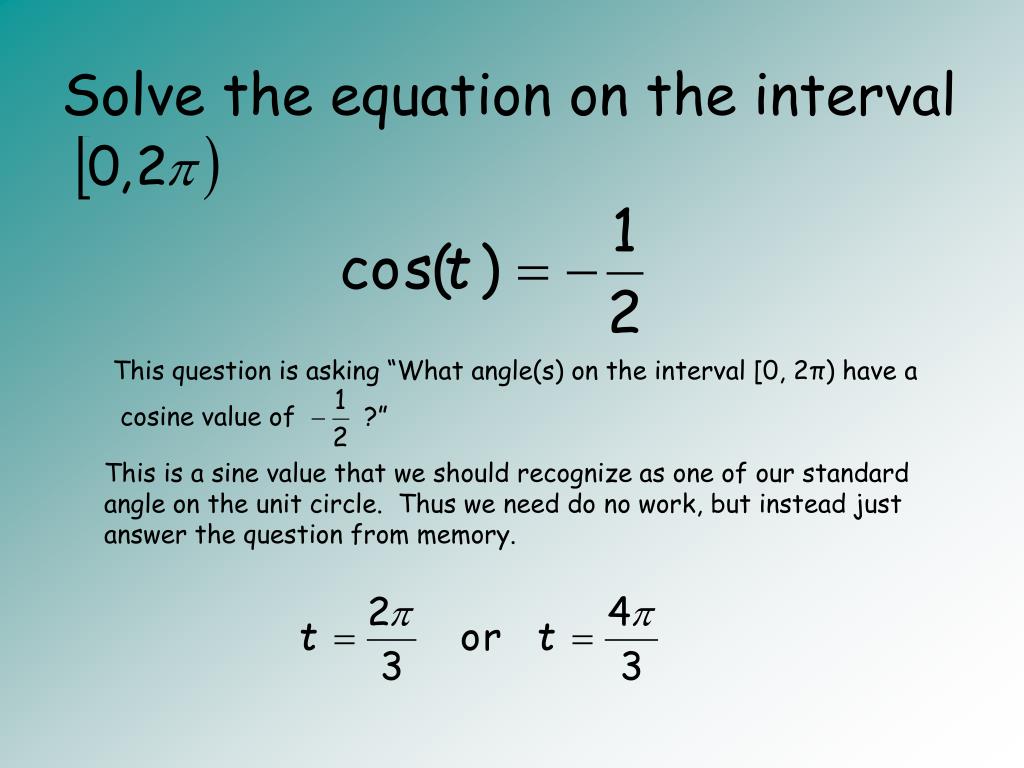

Solve the equation on the interval

This question is asking “What angle(s) on the interval [0, 2π) have a

cosine value of ?”

This is a sine value that we should recognize as one of our standard angle on the unit circle. Thus we need do no work, but instead just answer the question from memory.

solve the equation on the interval2
Solve the equation on the interval

Although we recognize the ½ as a value we know, since the sine function is squared, we first must take the square root of both sides of the equation.

continued on next slide

solve the equation on the interval3

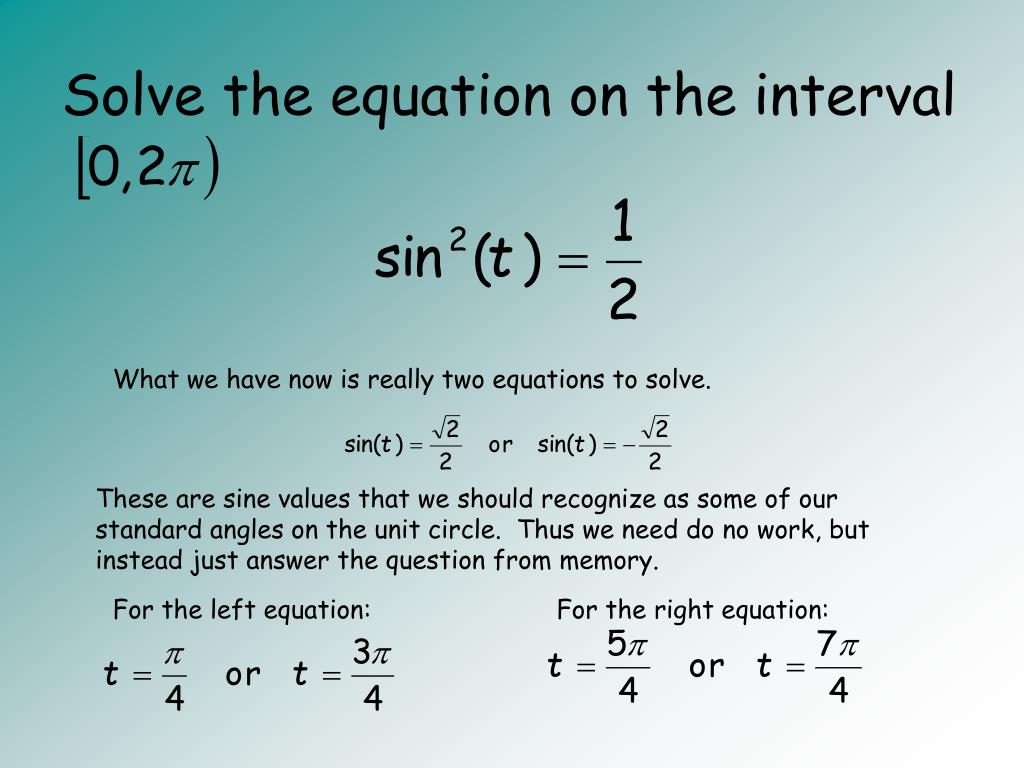

Solve the equation on the interval

What we have now is really two equations to solve.

These are sine values that we should recognize as some of our standard angles on the unit circle. Thus we need do no work, but instead just answer the question from memory.

For the left equation:

For the right equation:

solve the equation on the interval4

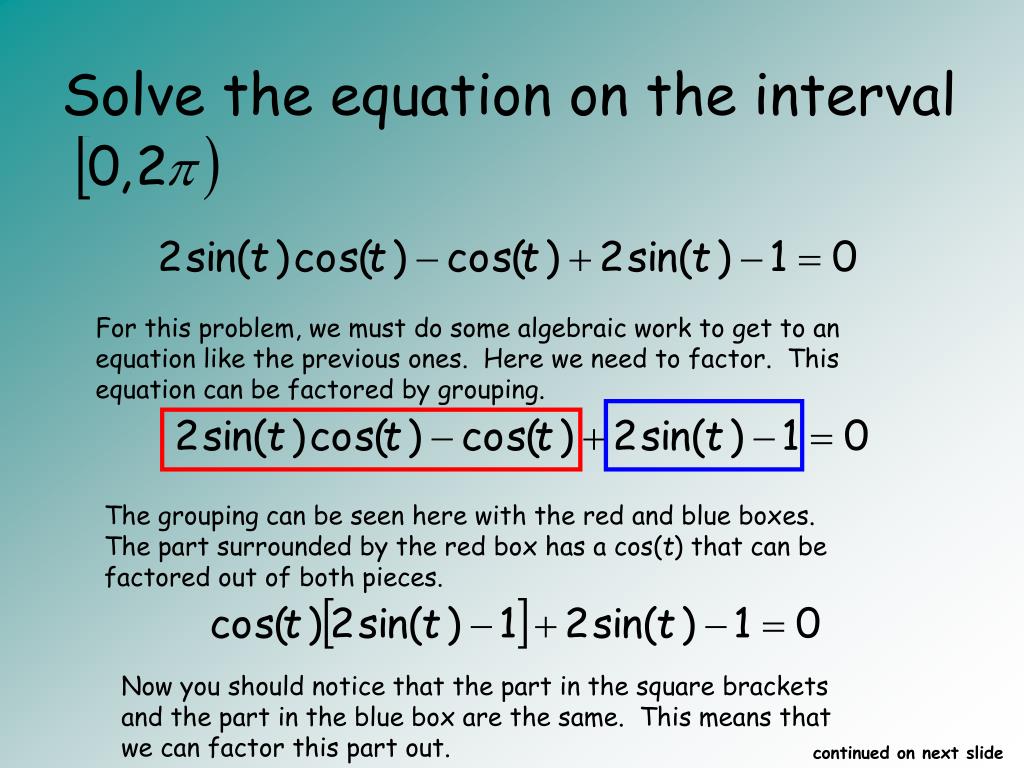

Solve the equation on the interval

For this problem, we must do some algebraic work to get to an equation like the previous ones. Here we need to factor. This equation can be factored by grouping.

The grouping can be seen here with the red and blue boxes. The part surrounded by the red box has a cos(t) that can be factored out of both pieces.

Now you should notice that the part in the square brackets and the part in the blue box are the same. This means that we can factor this part out.

continued on next slide

solve the equation on the interval5

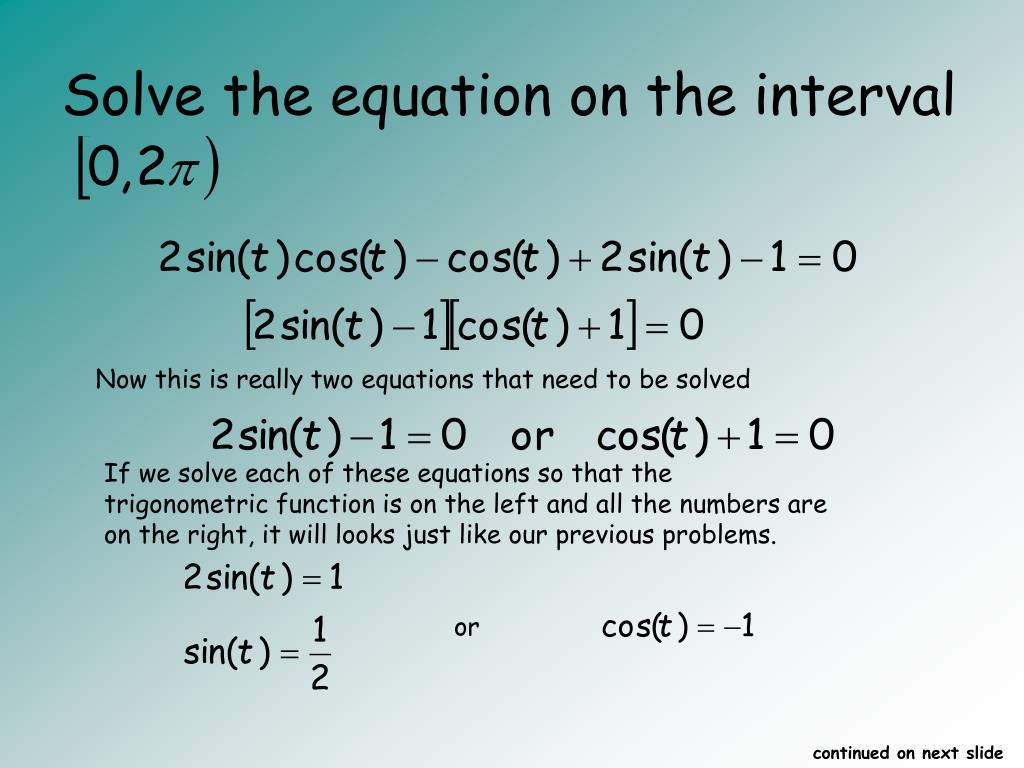

Solve the equation on the interval

Now this is really two equations that need to be solved

If we solve each of these equations so that the trigonometric function is on the left and all the numbers are on the right, it will looks just like our previous problems.

or

continued on next slide

solve the equation on the interval6

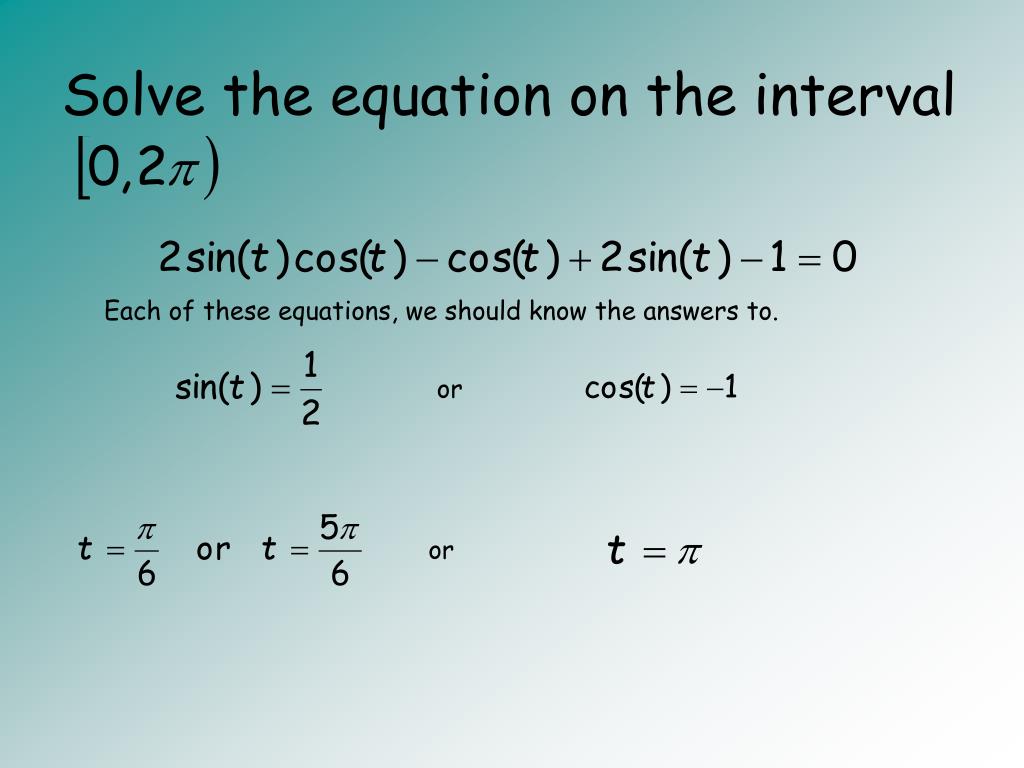

Solve the equation on the interval

Each of these equations, we should know the answers to.

or

or

solve the equation on the interval7
Solve the equation on the interval

In order to do this problem, we need to angles to be the same. The angle in the sine function is 2x. The angle in the cosine function is x. Since we have an identity for the double angle of a sine function, we can replace sin(2x) with the identity. This will give us the same angles in all of the trigonometric functions.

Now we can factor a cos(x) out of each piece to get:

continued on next slide

solve the equation on the interval8

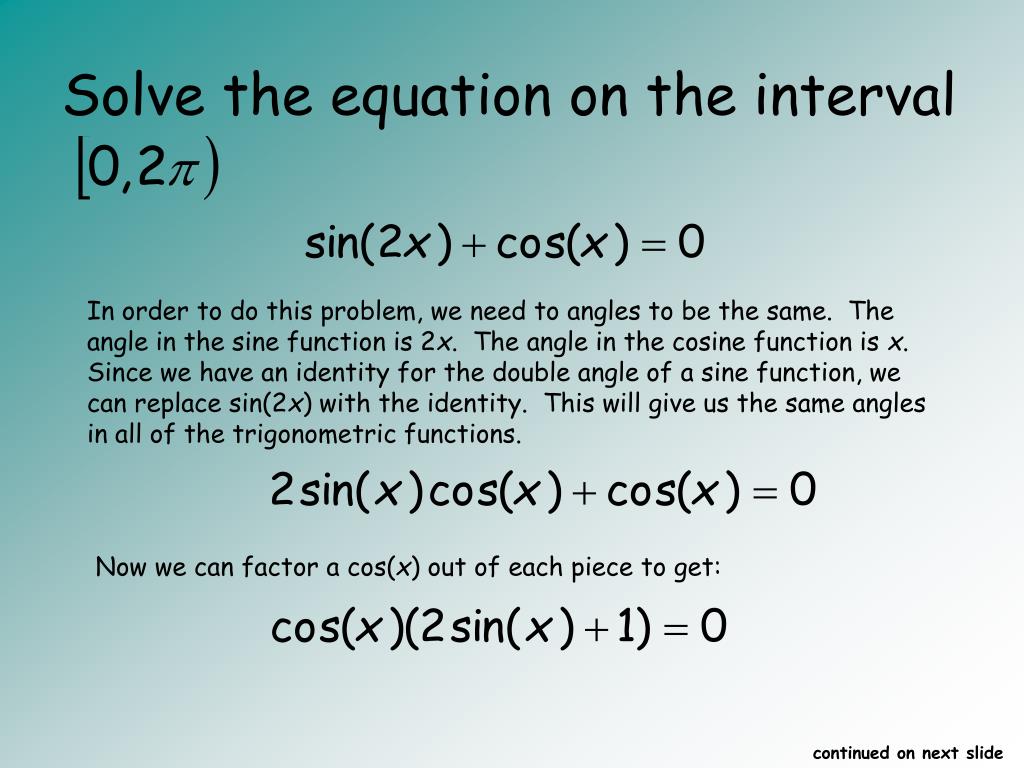

Solve the equation on the interval

In order to do this problem, we need to angles to be the same. The angle in the sine function is 2x. The angle in the cosine function is x. Since we have an identity for the double angle of a sine function, we can replace sin(2x) with the identity. This will give us the same angles in all of the trigonometric functions.

Now we can factor a cos(x) out of each piece to get:

continued on next slide

solve the equation on the interval9

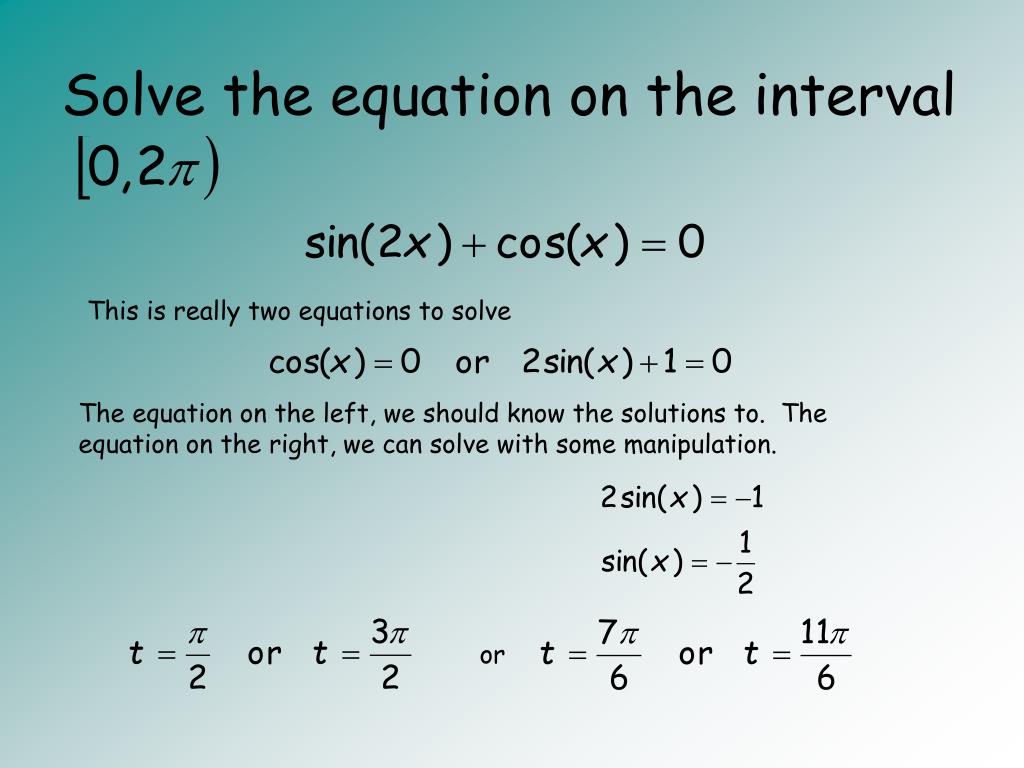

Solve the equation on the interval

This is really two equations to solve

The equation on the left, we should know the solutions to. The equation on the right, we can solve with some manipulation.

or

solve the equation on the interval10
Solve the equation on the interval

Our first step in the problem will be to take the square root of both sides of the equation.

This will give us two equations to solve.

or

Neither of these is a value that we know from our standard angles.

continued on next slide

solve the equation on the interval11
Solve the equation on the interval

In order to find these angles, we will need to use our inverse trigonometric functions.

or

These are not all of the answers to the question. Let’s start by looking at the left side.

This angle is between 0 and π/2 in quadrant I. We know this because the range of the inverse sine

function is

This means that this value for t is one of our answer in the interval that we need. We are not, however, getting all of the angles where the sine value is ¼ .

continued on next slide

solve the equation on the interval12

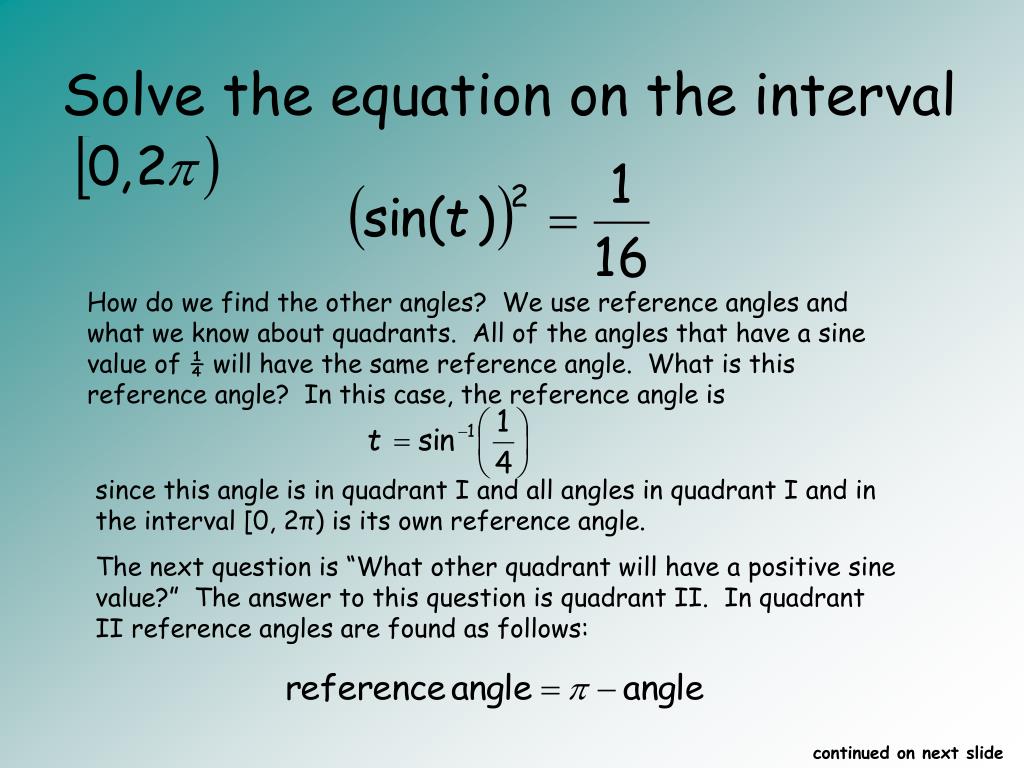

Solve the equation on the interval

How do we find the other angles? We use reference angles and what we know about quadrants. All of the angles that have a sine value of ¼ will have the same reference angle. What is this reference angle? In this case, the reference angle is

since this angle is in quadrant I and all angles in quadrant I and in the interval [0, 2π) is its own reference angle.

The next question is “What other quadrant will have a positive sine value?” The answer to this question is quadrant II. In quadrant II reference angles are found as follows:

continued on next slide

solve the equation on the interval13

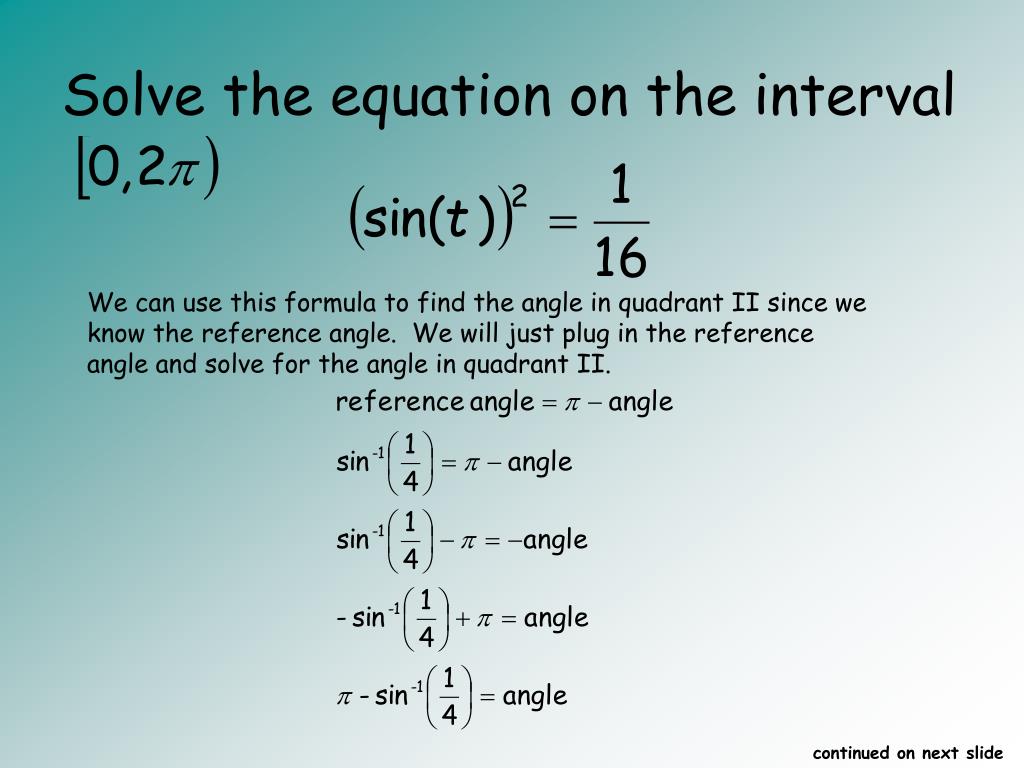

Solve the equation on the interval

We can use this formula to find the angle in quadrant II since we know the reference angle. We will just plug in the reference angle and solve for the angle in quadrant II.

continued on next slide

solve the equation on the interval14

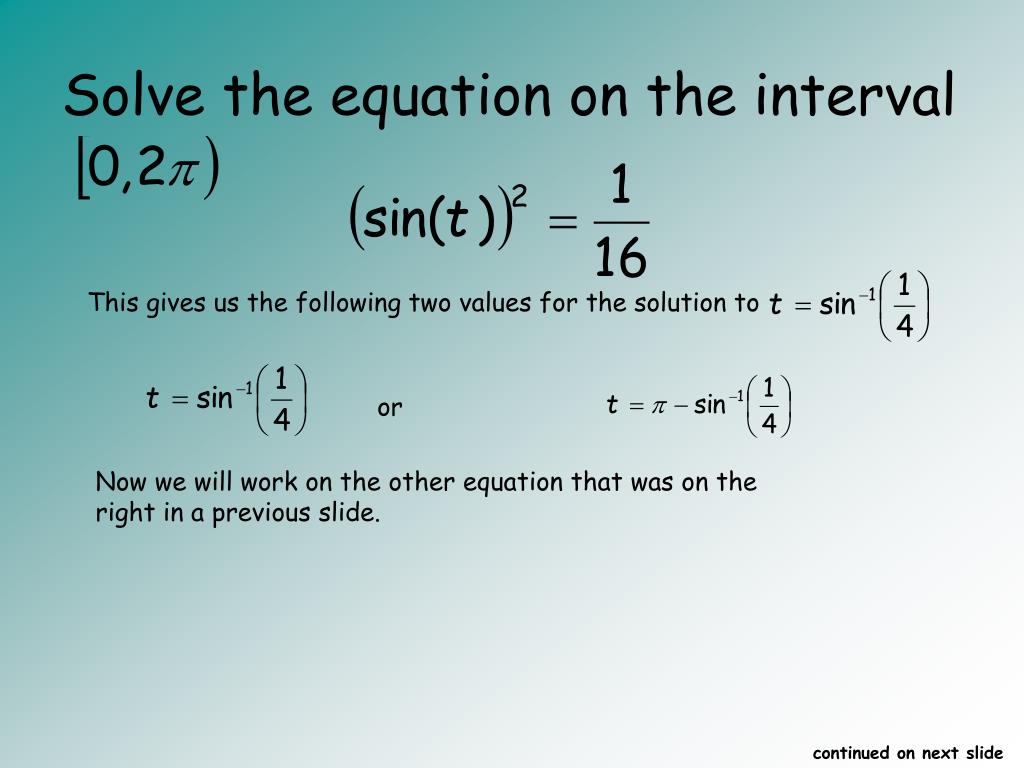

Solve the equation on the interval

This gives us the following two values for the solution to

or

Now we will work on the other equation that was on the right in a previous slide.

continued on next slide

solve the equation on the interval15

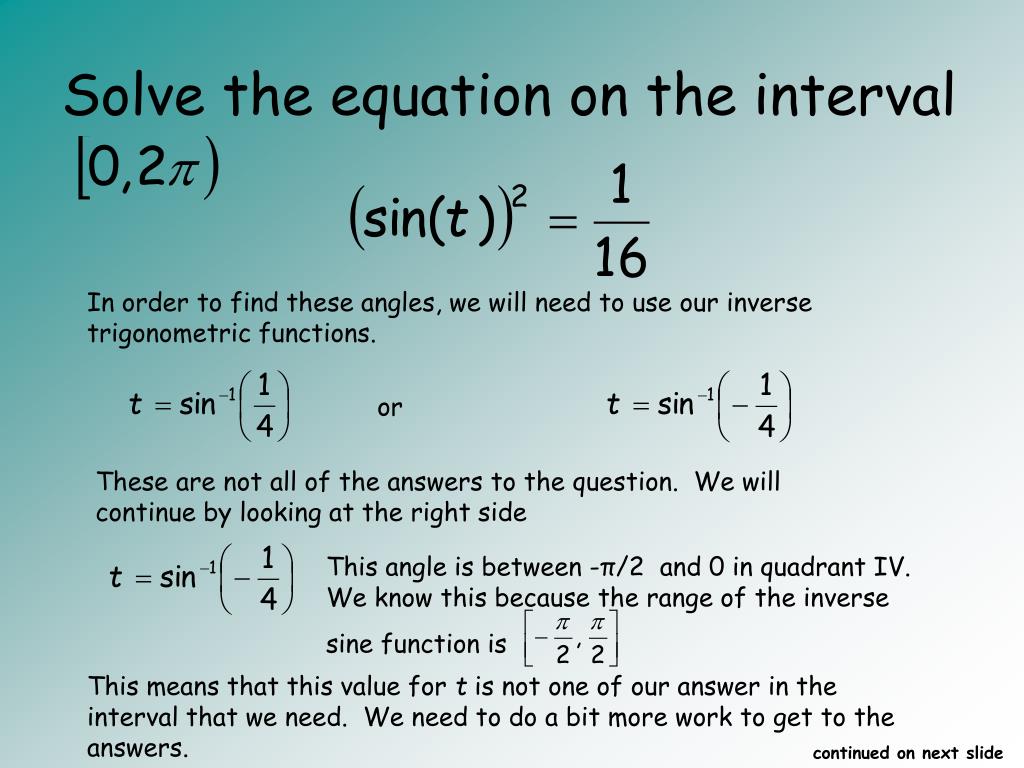

Solve the equation on the interval

In order to find these angles, we will need to use our inverse trigonometric functions.

or

These are not all of the answers to the question. We will continue by looking at the right side

This angle is between -π/2 and 0 in quadrant IV. We know this because the range of the inverse

sine function is

This means that this value for t is not one of our answer in the interval that we need. We need to do a bit more work to get to the answers.

continued on next slide

solve the equation on the interval16

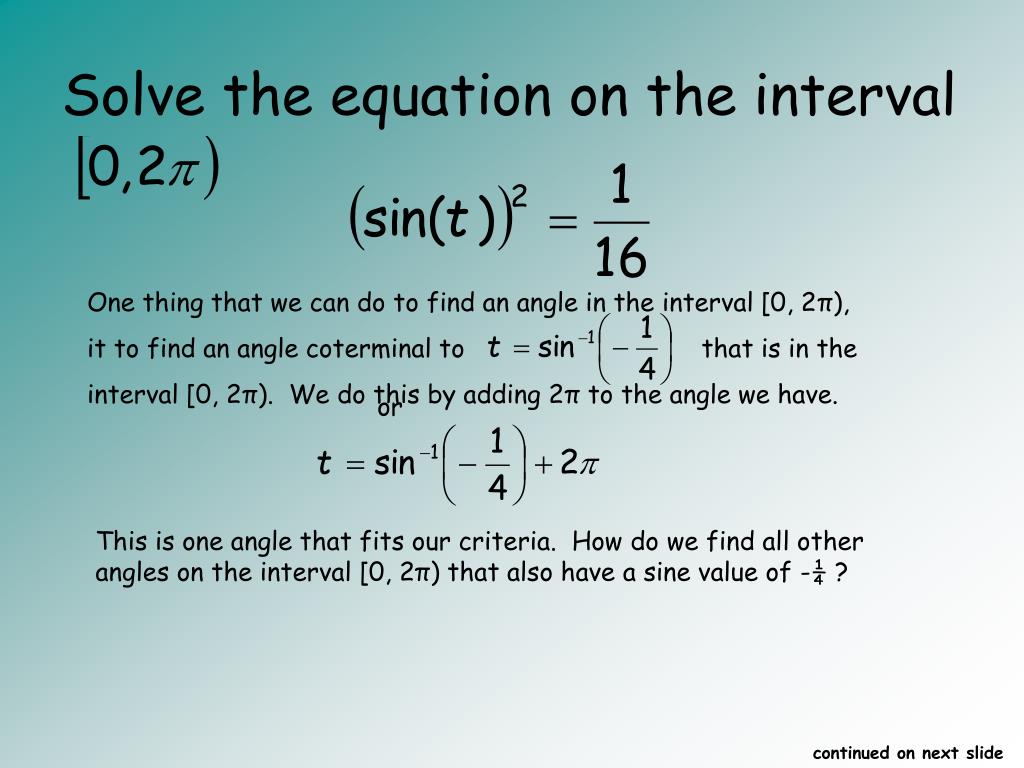

Solve the equation on the interval

One thing that we can do to find an angle in the interval [0, 2π),

it to find an angle coterminal to that is in the

interval [0, 2π). We do this by adding 2π to the angle we have.

or

This is one angle that fits our criteria. How do we find all other angles on the interval [0, 2π) that also have a sine value of -¼ ?

continued on next slide

solve the equation on the interval17

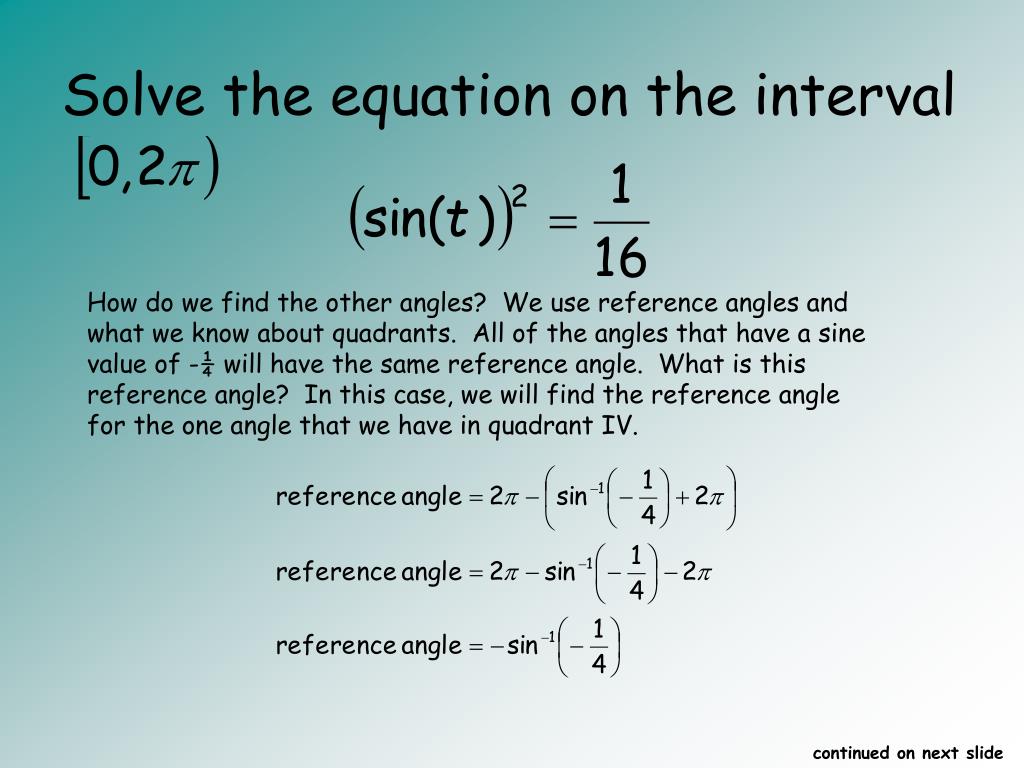

Solve the equation on the interval

How do we find the other angles? We use reference angles and what we know about quadrants. All of the angles that have a sine value of -¼ will have the same reference angle. What is this reference angle? In this case, we will find the reference angle for the one angle that we have in quadrant IV.

continued on next slide

solve the equation on the interval18

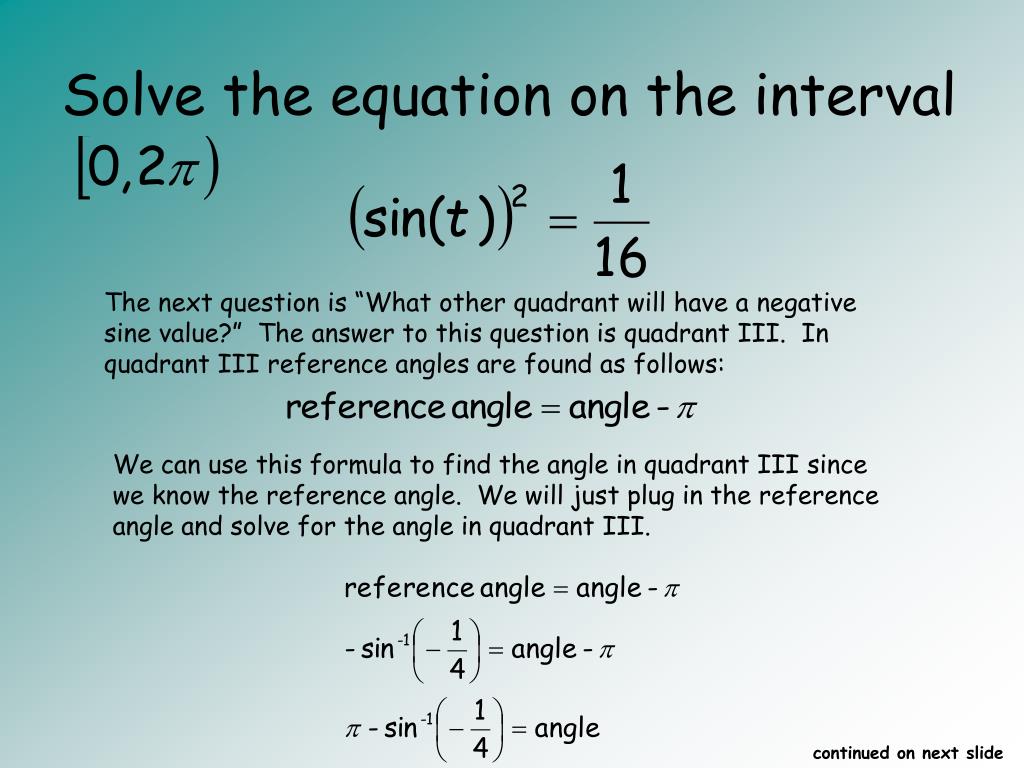

Solve the equation on the interval

The next question is “What other quadrant will have a negative sine value?” The answer to this question is quadrant III. In quadrant III reference angles are found as follows:

We can use this formula to find the angle in quadrant III since we know the reference angle. We will just plug in the reference angle and solve for the angle in quadrant III.

continued on next slide

solve the equation on the interval19
Solve the equation on the interval

This gives us the following two values for the solution to

or

Thus we have all solutions to the original equation.

or

or

find all solutions to the equation

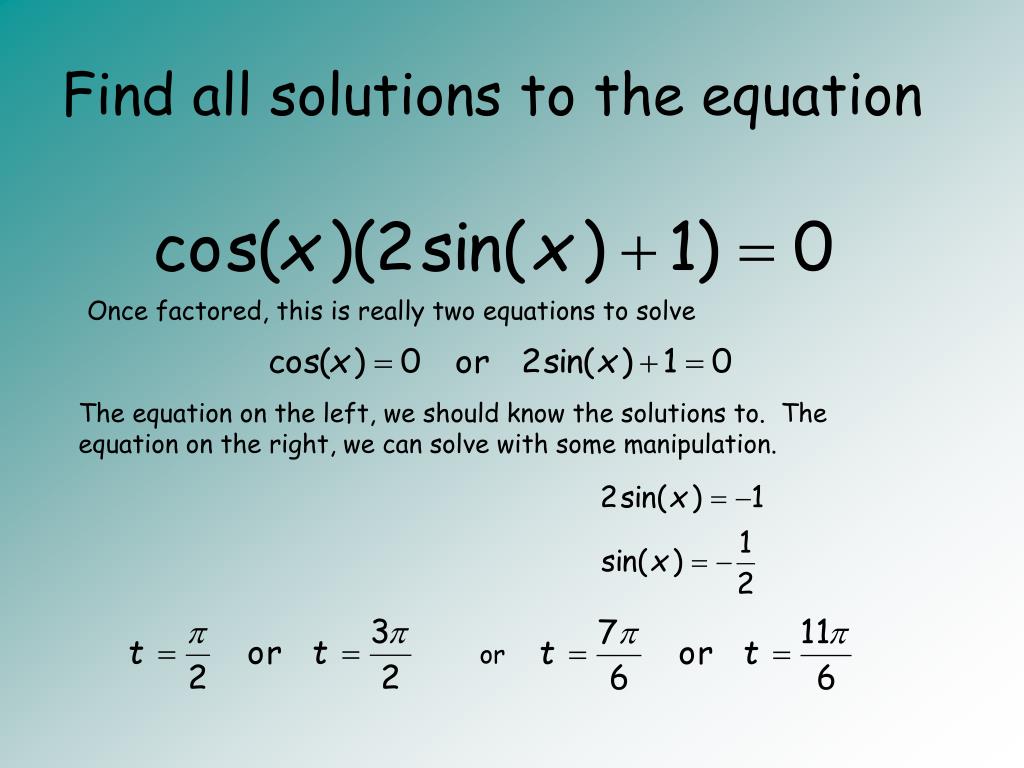

Find all solutions to the equation

Once factored, this is really two equations to solve

The equation on the left, we should know the solutions to. The equation on the right, we can solve with some manipulation.

or

solve the equation on the interval20

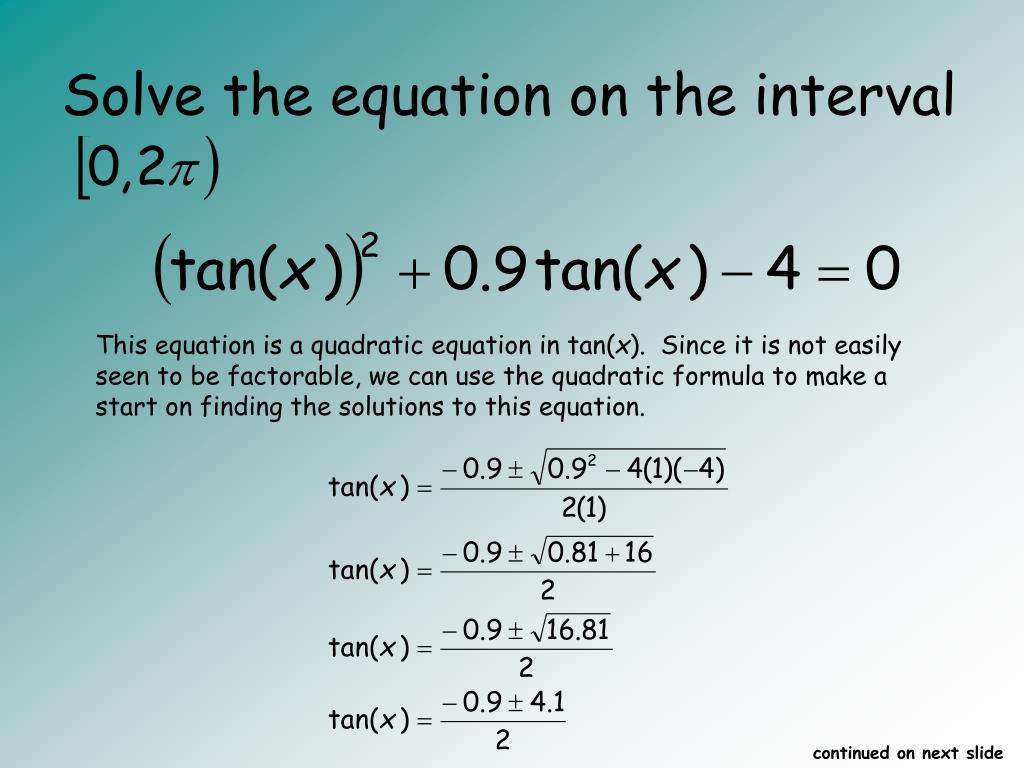

Solve the equation on the interval

This equation is a quadratic equation in tan(x). Since it is not easily seen to be factorable, we can use the quadratic formula to make a start on finding the solutions to this equation.

continued on next slide

solve the equation on the interval21

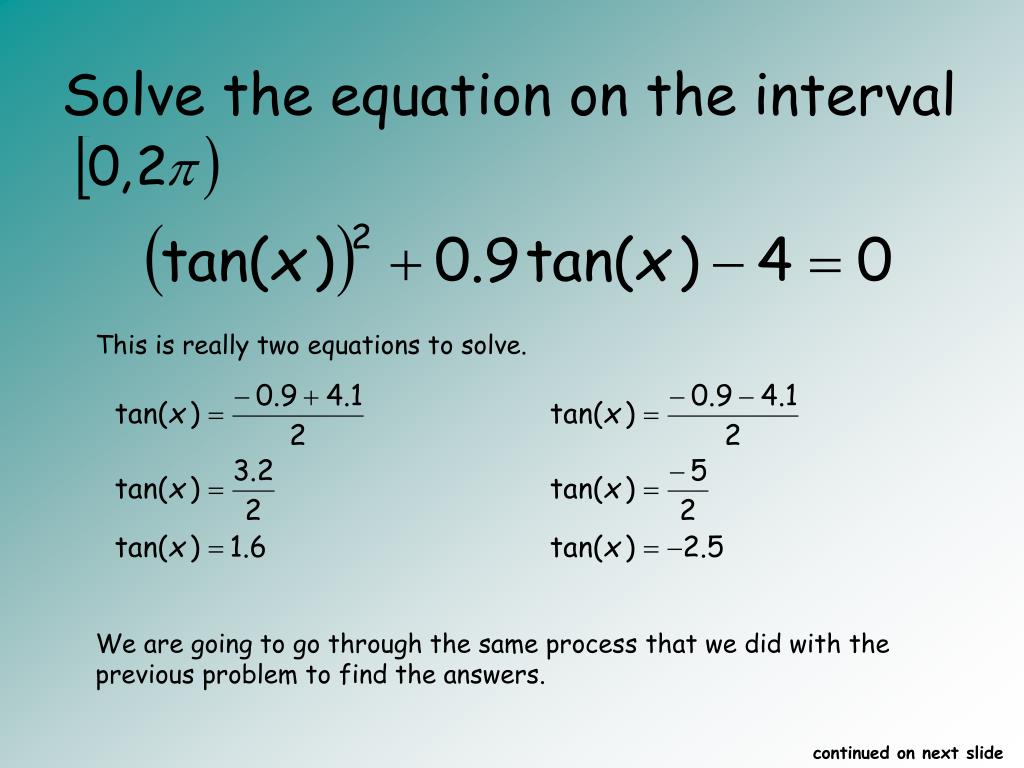

Solve the equation on the interval

This is really two equations to solve.

We are going to go through the same process that we did with the previous problem to find the answers.

continued on next slide

solve the equation on the interval22

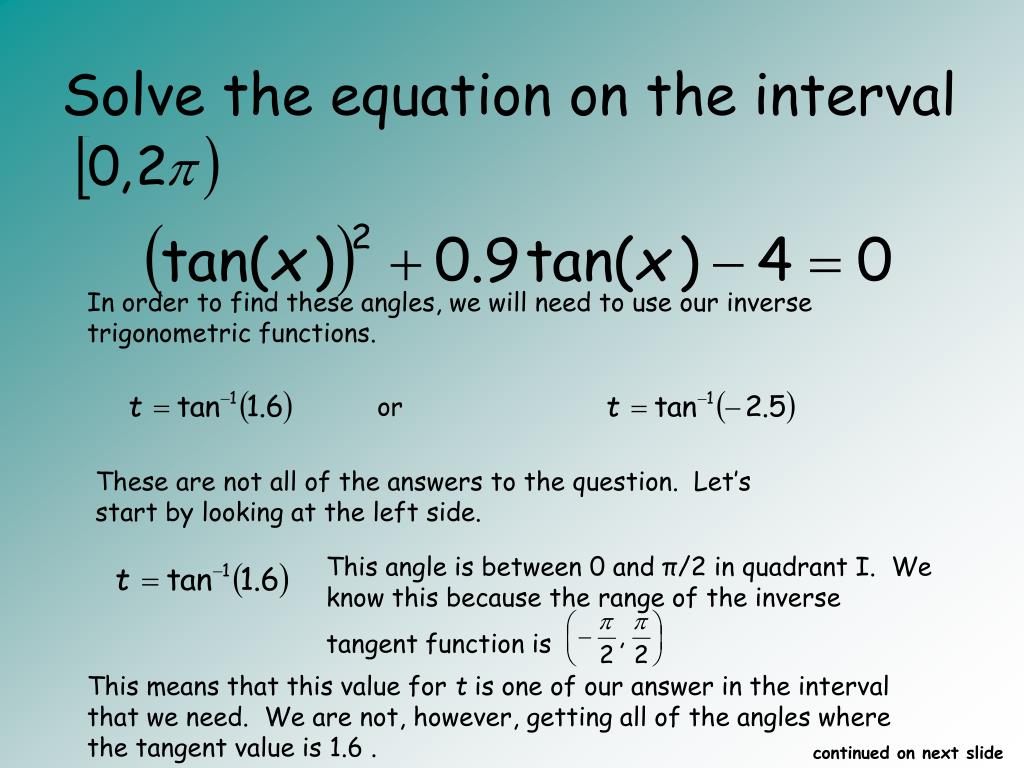

Solve the equation on the interval

In order to find these angles, we will need to use our inverse trigonometric functions.

or

These are not all of the answers to the question. Let’s start by looking at the left side.

This angle is between 0 and π/2 in quadrant I. We know this because the range of the inverse

tangent function is

This means that this value for t is one of our answer in the interval that we need. We are not, however, getting all of the angles where the tangent value is 1.6 .

continued on next slide

solve the equation on the interval23

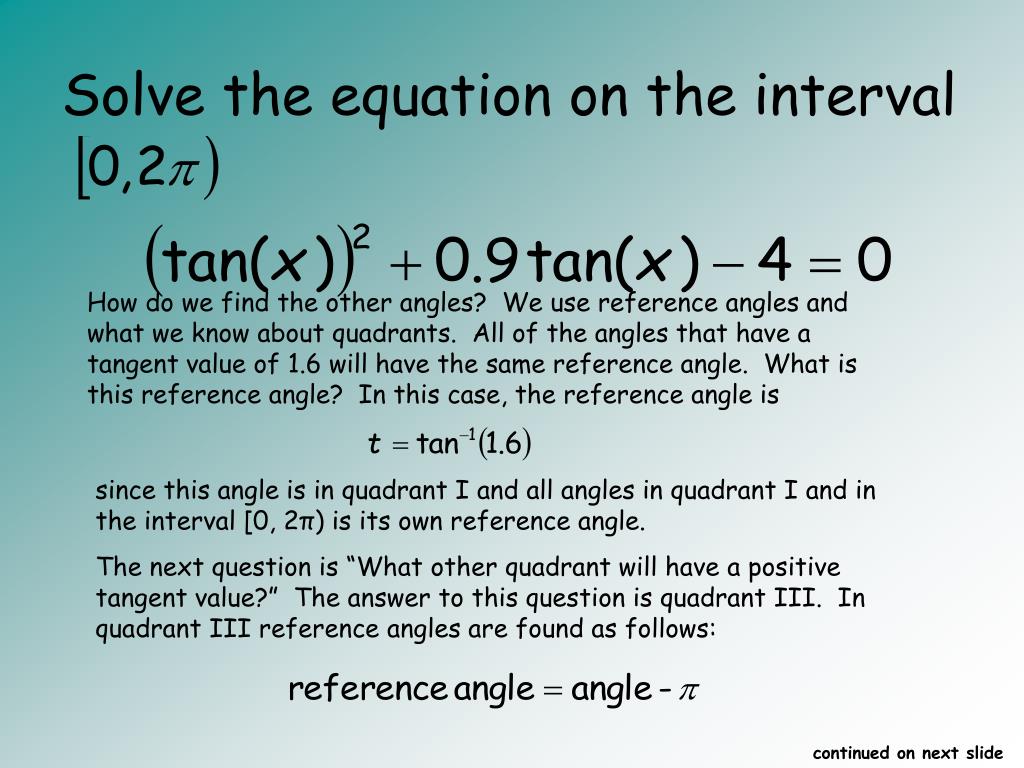

Solve the equation on the interval

How do we find the other angles? We use reference angles and what we know about quadrants. All of the angles that have a tangent value of 1.6 will have the same reference angle. What is this reference angle? In this case, the reference angle is

since this angle is in quadrant I and all angles in quadrant I and in the interval [0, 2π) is its own reference angle.

The next question is “What other quadrant will have a positive tangent value?” The answer to this question is quadrant III. In quadrant III reference angles are found as follows:

continued on next slide

solve the equation on the interval24

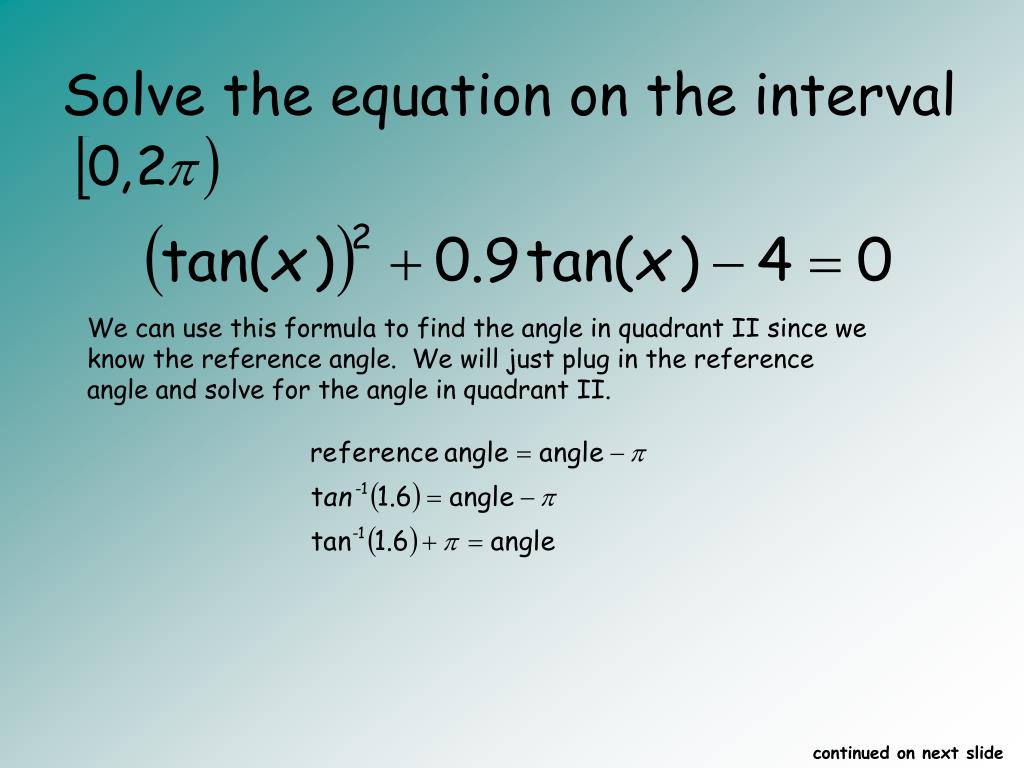

Solve the equation on the interval

We can use this formula to find the angle in quadrant II since we know the reference angle. We will just plug in the reference angle and solve for the angle in quadrant II.

continued on next slide

solve the equation on the interval25

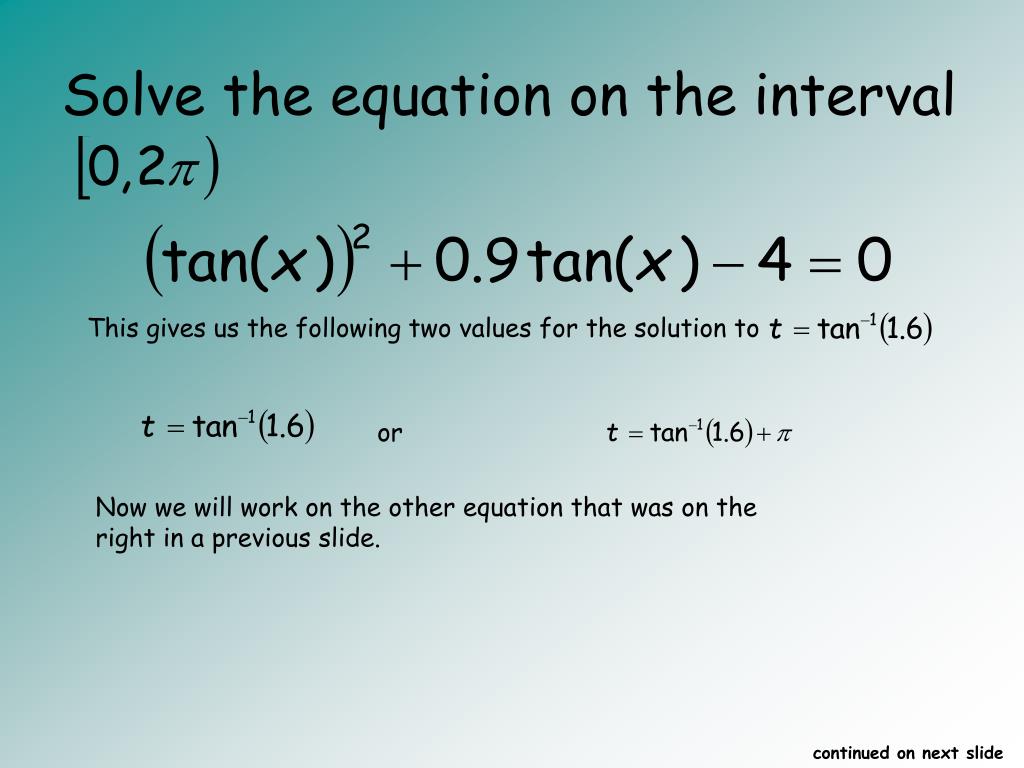

Solve the equation on the interval

This gives us the following two values for the solution to

or

Now we will work on the other equation that was on the right in a previous slide.

continued on next slide

solve the equation on the interval26

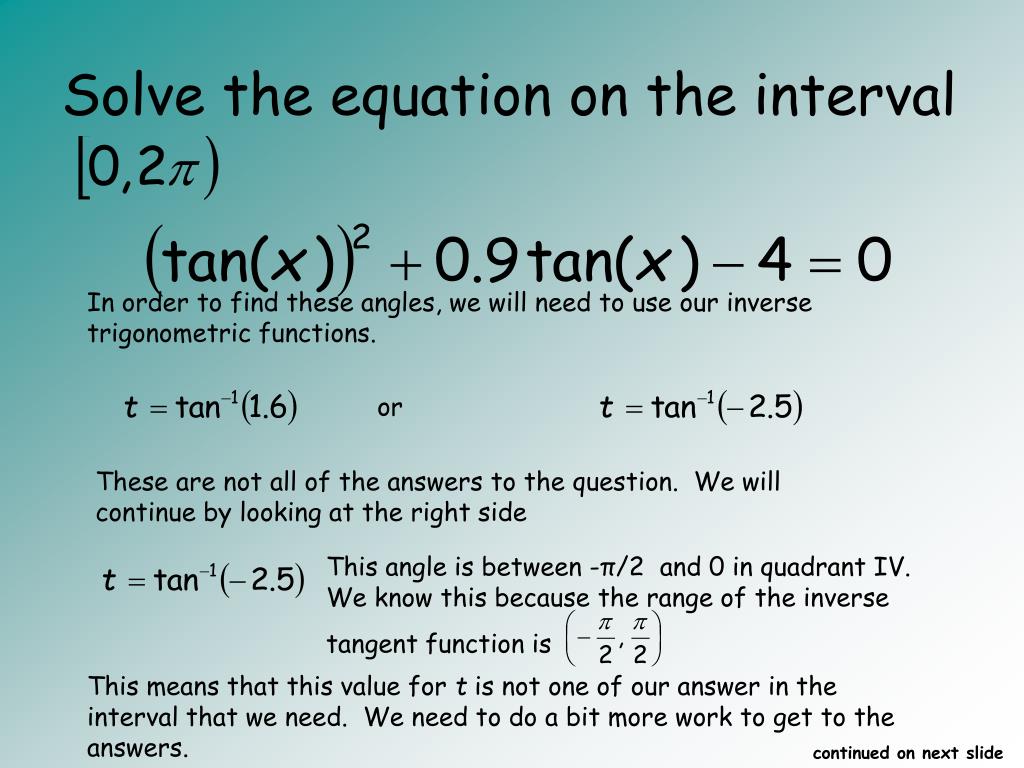

Solve the equation on the interval

In order to find these angles, we will need to use our inverse trigonometric functions.

or

These are not all of the answers to the question. We will continue by looking at the right side

This angle is between -π/2 and 0 in quadrant IV. We know this because the range of the inverse

tangent function is

This means that this value for t is not one of our answer in the interval that we need. We need to do a bit more work to get to the answers.

continued on next slide

solve the equation on the interval27

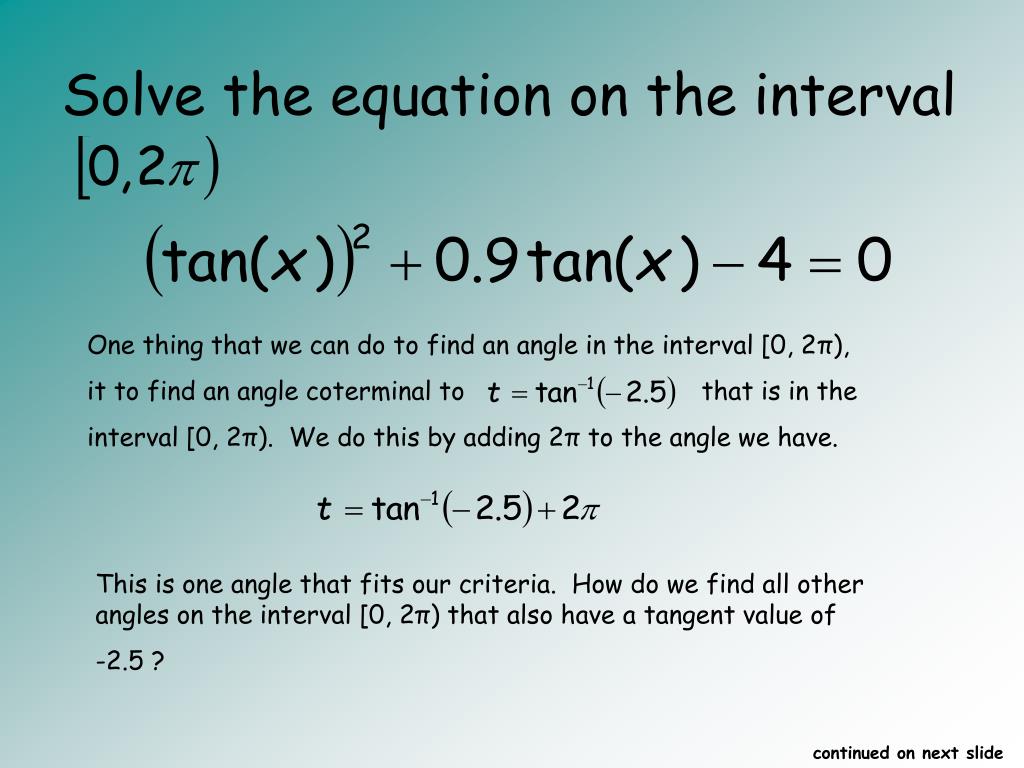

Solve the equation on the interval

One thing that we can do to find an angle in the interval [0, 2π),

it to find an angle coterminal to that is in the

interval [0, 2π). We do this by adding 2π to the angle we have.

This is one angle that fits our criteria. How do we find all other angles on the interval [0, 2π) that also have a tangent value of

-2.5 ?

continued on next slide

solve the equation on the interval28

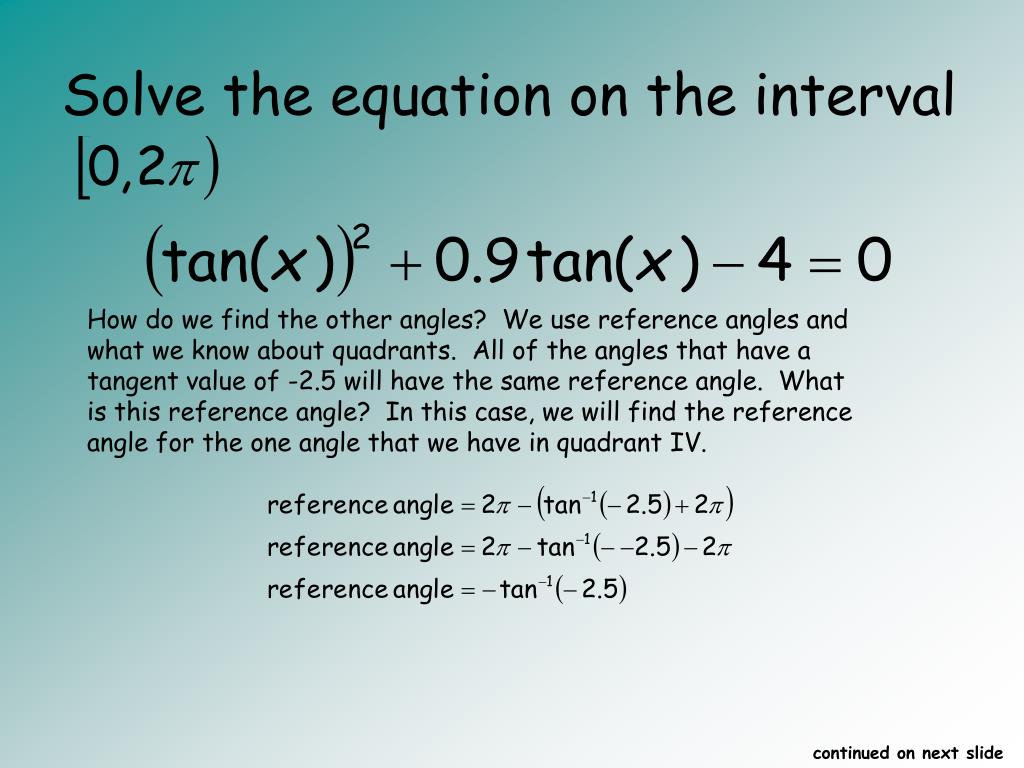

Solve the equation on the interval

How do we find the other angles? We use reference angles and what we know about quadrants. All of the angles that have a tangent value of -2.5 will have the same reference angle. What is this reference angle? In this case, we will find the reference angle for the one angle that we have in quadrant IV.

continued on next slide

solve the equation on the interval29

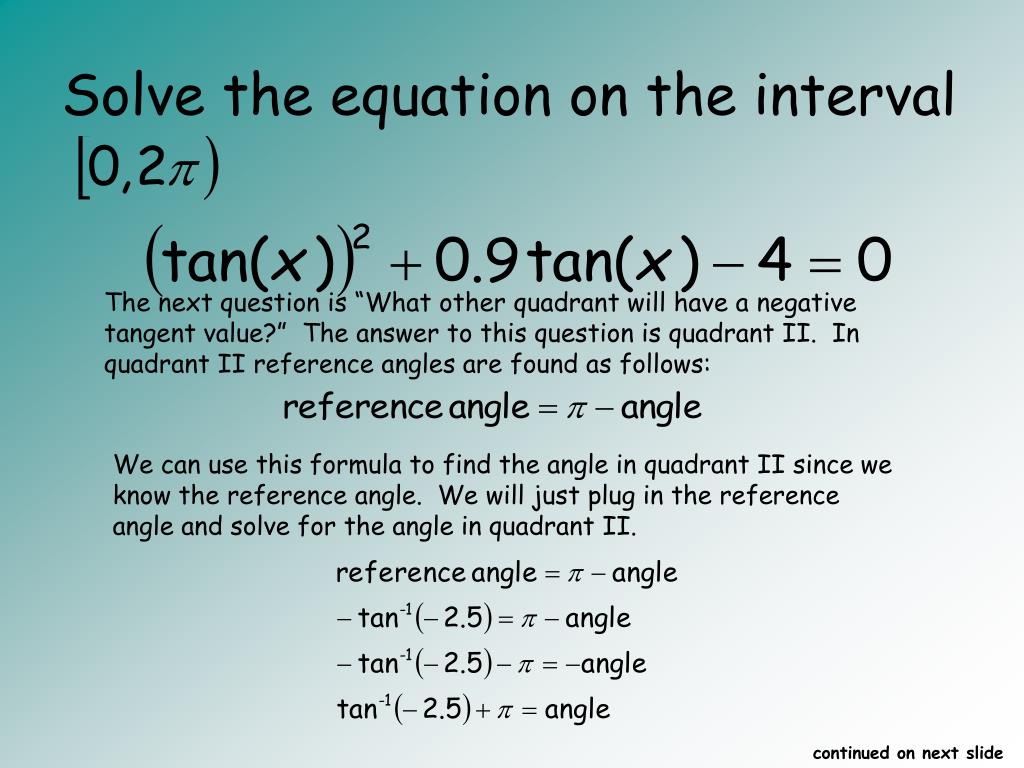

Solve the equation on the interval

The next question is “What other quadrant will have a negative tangent value?” The answer to this question is quadrant II. In quadrant II reference angles are found as follows:

We can use this formula to find the angle in quadrant II since we know the reference angle. We will just plug in the reference angle and solve for the angle in quadrant II.

continued on next slide

solve the equation on the interval30

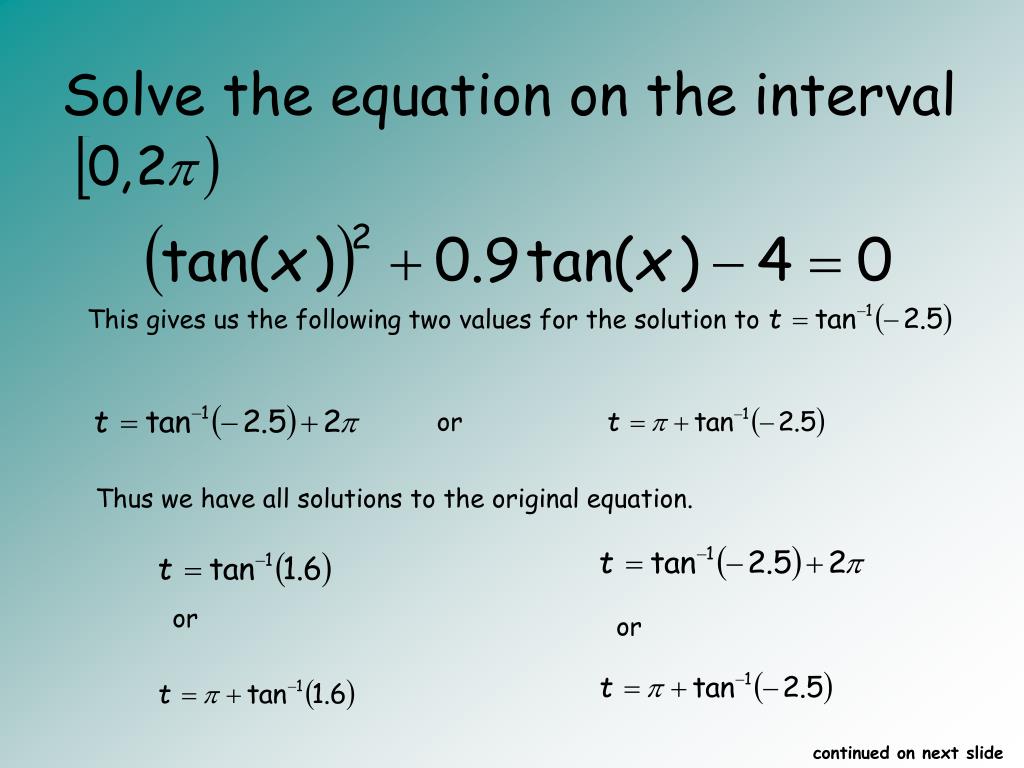

Solve the equation on the interval

This gives us the following two values for the solution to

or

Thus we have all solutions to the original equation.

or

or
