Lecture 15 Cold Climates Glaciers and Ice Ages

Glacier: a large, long-lasting mass of ice, formed on land that moves under the influence of gravity Glaciers form by accumulation and compaction of snow Packed snow becomes firn Then refreezes to ice. Lecture 15 Cold Climates Glaciers and Ice Ages.

Download Presentation

Lecture 15 Cold Climates Glaciers and Ice Ages

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

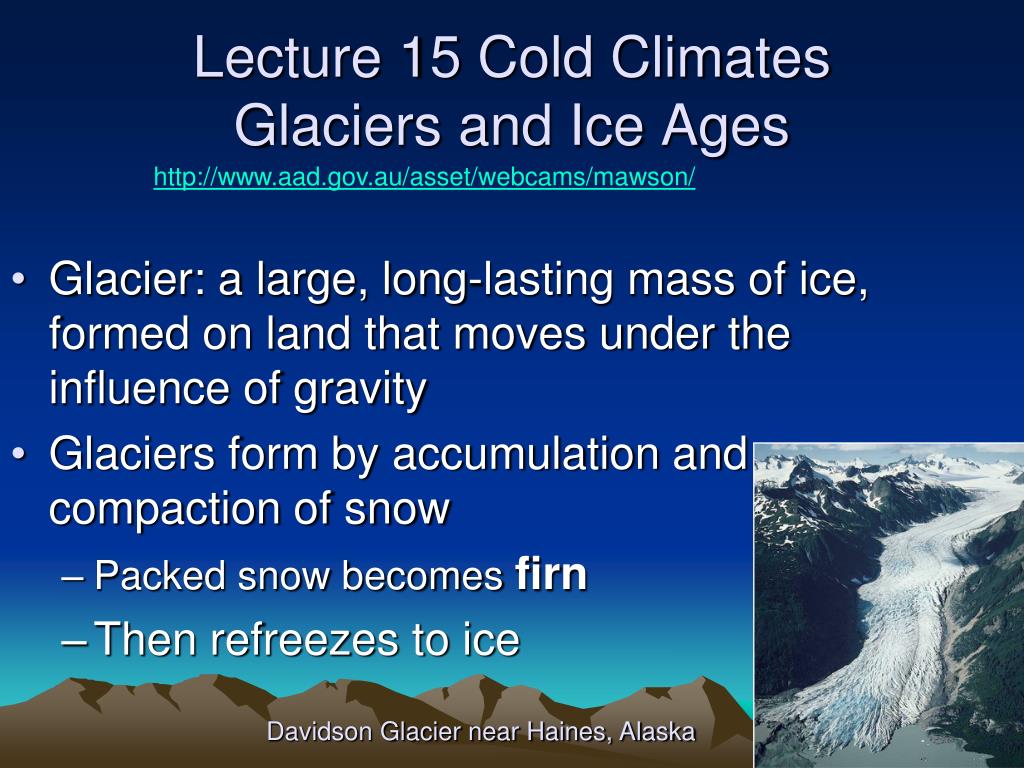

  1. Glacier: a large, long-lasting mass of ice, formed on land that moves under the influence of gravity Glaciers form by accumulation and compaction of snow Packed snow becomes firn Then refreezes to ice Lecture 15 Cold ClimatesGlaciers and Ice Ages http://www.aad.gov.au/asset/webcams/mawson/ Davidson Glacier near Haines, Alaska

  2. Formation of Glacial Ice from Snow snowball iceball Alpine Glacier: it is just a frozen river

  3. Types of Glaciers Continental Alpine Alpine glaciation: found in mountainous regions Continental glaciation: exists where a large part of a continent is covered by glacial ice Cover vast areas

  4. Alpine Glaciers– Cirque Glacier Mount Edith Cavell, Jasper National Park, Canada

  5. Alpine Glaciers – Valley Glacier Lateral and medial moraines Tongas National Forest, Alaska

  6. Types of Glaciers – Icecap and Continental http://www.nmm.ac.uk/server/show/conWebDoc.1221 Sentinal Range, Antarctica • Antarctica is the broadest high place on Earth, the ice cap is up to 4km thick • and covers the continent • Antarctica is a desert, with only 15 cm (6 inches) of snowfall a year around • the South Pole. The air is too cold to hold much moisture. • The lowest recorded temperature is -89.2 °C. • There is no life in Antarctica except near the coast

  7. http://www.aad.gov.au/asset/webcams/mawson/

  8. Types of Glaciers – Piedmont & Tidewater Piedmont: Originally confined alpine, spread at foot of mountains Source:Jim Wark/Peter Arnold, Inc. Calving

  9. Iceberg Calving – Hubbard Glacier, Wrangell-St. Elias National Park, Alaska

  10. A Glacier’s Budget • Budget = Gain – Loss • Gains snow in zone of accumulation • Loses ice in zone of ablation • Budget can be positive (net growth) • Static • or negative (net melting)

  11. A Glacier’s Budget Year round Snow Summer Rain Note that a glacier is a river. Even if the terminus doesn’t advance, it still flows downhill

  12. Mechanics of Glacial Flow • Internal deformation • Ice crystals slide past one another • Basal Sliding Entire glacier slides downhill on a thin film of meltwater at its base. • Glacier always flows toward zone of ablation Basal Sliding Discussion:Ice skates and sleds

  13. Erosion 1: Glacial Abrasion in Bedrock Glaciers cause erosion Rock embedded in Ice Source:Tom Bean

  14. Glacial Erosion – Roche Moutonée 2. Quarrying FROST WEDGING

  15. Glacial Erosion – Roche Moutonée Yosemite NP, Calif

  16. Erosion by Glaciers (cont.) • Alpine glaciers erode mountain slopes into horseshoe shaped basins called cirques • Melting forms cirque lake (tarn) • Erosion of two or more cirques erodes intervening rock • Horns :pointy peaks made by trios • Arêtes: long serrated ridges by pairs • Cols: passes through the arêtes

  17. Alpine Glacial Erosion Cirque and valley glaciers form in river valleys, cut U-shapes

  18. Alpine Glacial Erosion Cirque glaciers erode uphill, widen Valley glaciers enlarge Arêtes, Horn, Col, HANGING VALLEYS

  19. Yosemite Falls from Hanging Valley

  20. U-Shaped Glacial Valley in Southeastern Alaska Valley glaciers erode a large quantity of bedrock and sediment Convert V-shaped stream valleys into U-shaped glacial valleys.

  21. Seawater Flooded U-ShapedValleys: Fjords Bela Bela Fjord, BC Sea Level rose as glaciers melted

  22. Erosion by Continental Glaciation • Erosional Landforms much larger in scale than alpine glaciers • Whalebacks – huge Roche Moutonée • Huge U-shaped troughs – Finger Lakes, Great Lakes, Puget Sound, Loch Ness were all once stream valleys excavated by Ice Sheets

  23. Erosion by Continental Glaciation (Great Lakes, Finger Lakes) Superior Huron Michigan Ontario Erie Source:U.S. Dept. of Interior, USGS Eros Date Center

  24. Glacial Deposits - Drift • Collectively called Glacial Drift • TYPE 1: UNSORTED • Glacial Till: unsorted, unstratified sediments deposited by melting ice. • May contain glacial erratics • Often accumulates at glacier’s terminus as a TerminalMoraine: hills of sediment left by a glacier’s retreat. • Moraines may be reshaped by a later glacial advance into Drumlins: rounded elongated hills

  25. Advance & Retreat: Moraines Note moraine, no matter direction Analogy: Escalator

  26. Discussion: Advance & Retreat of Glaciers and Terminal Moraines

  27. Large Granite Erratics Favored by climbers with families

  28. Medial Moraines

  29. Wrangell-St. Elias NP, SE AK Medial Moraines – Kennicott Glacier

  30. The Origin of Drumlins Glacier retreats, leaving a terminal moraine. Then it advances again, and redistributes the drift as a spoon shaped hill called a drumlin.

  31. Drumlins Rochester,NY

  32. Glacial Deposits - Drift • TYPE 2: SORTED • Outwash: sorted stratified sediments deposited by meltwater streams • Loess: wind erosion of drying outwash silt. • Eskers: sinuous meltwater deposits of sand and gravel underneath ice

  33. Origin of Eskers

  34. Eskers and Kettles in South Dakota

  35. Effects of Glaciation • Change Climate –increase precipitation pluvial lakes • Depress continents & lateral rebound • Drop sea-level:alter coastlines • Moraines form Dams – Proglacial Lakes • Divert streams – Ohio and Missouri rivers

  36. Formation of Terraces due to Crustal Rebound

  37. Lowered Sea-level - Land bridge Bering Glacier grows, sea-level drops

  38. Lowered Sea-level exposed continental shelf Massive extinctions of shallow-water marine organisms

  39. The Creation of Glacial Lake Missoula Purcell Lobe blocks Clark Fork River

  40. The Draining of Glacial Lake Missoula Repeated many times, last time 13000 kya

  41. Giant Ripples of the Missoula Flooding Flood kills everything in its path, 26 times Giant Ripples Country road for scale

  42. Max Glacier Distribution 20,000 ya Maximum glaciation occurs at coincidence of three astronomical cycles if high land in polar latitudes

  43. Causes of Ice Ages • Plate Tectonics Moves Continents to Poles Raises mountains above snowline Albedo increases, colder, spread • Orbit distance, Axis Tilt and Wobble • Moderates solar radiation past 65o Latitude • Croll-Milankovitch Cycles ~ every 100,000 years • With many smaller cycles between • Need low summertime radiation past 65o Latitude less melting, glaciers expand

  44. Milankovitch Cycles http://en.wikipedia.org/wiki/Milankovitch_cycles The energy of solar radiation drops off as the square of the distance Further away Not as hot 100,000 years

  45. High latitude getting more sunlight in winter Warm Wet Winter Cool Summer Snow doesn’t melt Glaciers grow High latitude getting less sunlight in summer Cold Dry Winter Hot Summer Snow melts Glaciers shrink High latitude getting more sunlight in summer 41,000 years

  46. at Perihelion at Perihelion Determines which hemisphere gets conditions suitable for glaciation 25,700 years

  47. One More Point On This • The orbital affects that Milankovitch suggested as a partial cause for ice ages each have a different period. • They combine at irregular intervals • Many glaciation peaks are about 100,000 years apart, but that is ONLY an average. This suggests that orbital ellipticity is important. The worst glaciations occur when minimum tilt coincides with maximum ellipticity.

  48. Earth’s Past Ice Ages • Tertiary to Quaternary cooling – Pleistocene • None in Mesozoic • Late Pennsylvanian & Permian in southern continents (Gondwana) • Ordovician glaciation (Gondwana) • Area that is now the Sahara at South Pole • PreCambrian Tillites (Lithified Till) • Three, maybe four,episodes • Oldest 2.8 bya • 750 mya ice from poles to tropic “Snowball Earth” Cenozoic Mesozoic Paleozoic Paleozoic PreCambrian

  49. Permian Glaciation – GondwanaTillites
