atlas ls1 infrastructure installation of a new 10 000 litre lhe dewar for the solenoid

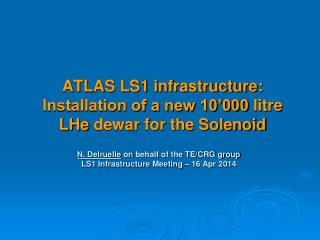

ATLAS LS1 infrastructure: Installation of a new 10’000 litreLHedewar for the Solenoid

N. Delruelleon behalf of the TE/CRG groupLS1 Infrastructure Meeting – 16 Apr 2014

outline
Outline
  • layout of the new supply
    • 10’000 litre LHedewar
    • Interconnecting valve box
    • 2 Transfer Lines TL4 and TL5
  • Planning of the new supply
    • Manufacture
    • Integration in UX15
layout of the new supply
Layout of the new supply

Existingtransfer line TL2

New transfer line TL4

New 10’000 L dewar

Existingtransfer line TL1

New valve box

New transfer line TL5

Courtesy of Jos Metselaar

layout of the new supply1
Layout of the new supply

Existingtransfer line TL2

New transfer line TL4

New 10’000 L dewar

Existingtransfer line TL3 to solenoid

New valve box

Courtesy of Jos Metselaar

manufacture planning
Manufacture planning
  • The valve box:
    • Manufacturing: by week 12/201418/2014
    • Test of the electrical cabinet: by week 14/201418/2014
  • Transfer lines TL4 & TL5:
    • Manufacturing: by week 10/2014 ˅
  • The 10’000 litre LHedewar:
    • Manufacturing inner & outer vessel: by week 5/201416/2014
    • Insulation: by week 7/201418/2014
    • Inner plumbing: by week 10/201421/2014
    • Test of the electrical cabinet: by week 10/201422/2014
installation planning in point 1
Installation planning in Point 1
  • The valve box:
    • Installation: week 20/2014 (12 May)
  • Transfer lines TL5:
    • Installation: fromweek 20 to week 23/2014 (from 12 May to06 June)
    • Leak test on TL5: week 24/2014 (09 June)
  • The 10’000 litre LHedewar & TL4:
    • Handling & Installation: week 24/2014 (09 June)
    • Connection between dewar and TL4: week 25/2014 (16 June)
    • Leak test on TL4: week 26/2014 (23 June)
    • Cutting & connection to existing TL3: from week 27 toweek 29/2014 (from 01 July to 18 July)
