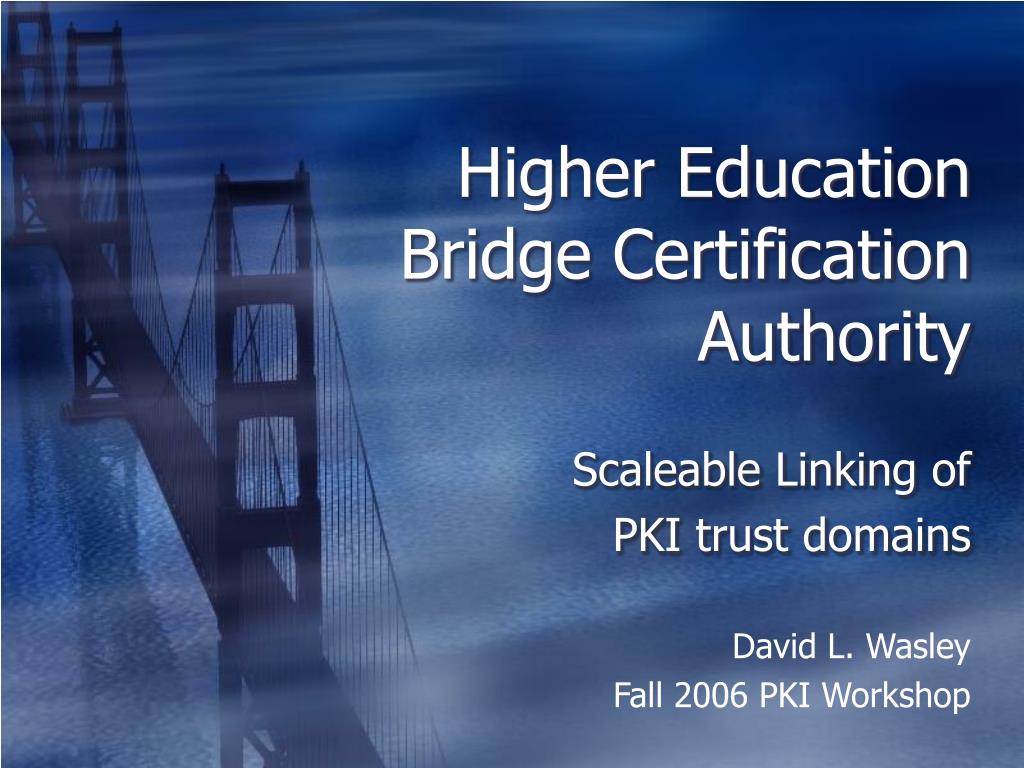

  1. Higher Education Bridge Certification Authority Scaleable Linking of PKI trust domains David L. Wasley Fall 2006 PKI Workshop

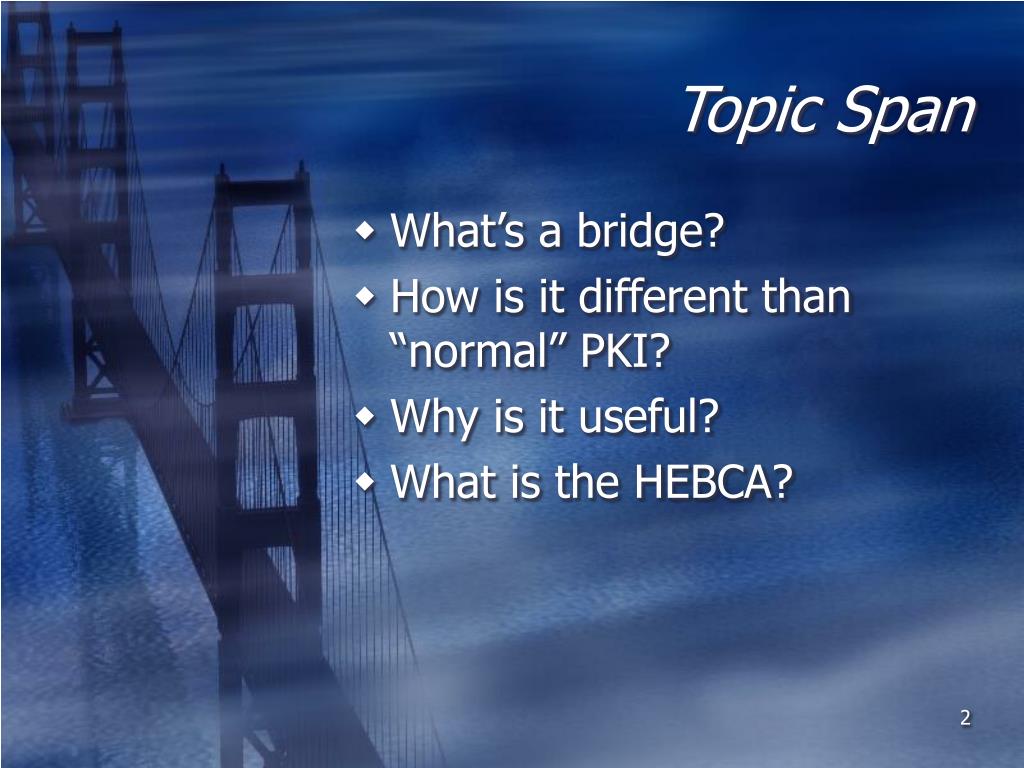

  2. Topic Span • What’s a bridge? • How is it different than “normal” PKI? • Why is it useful? • What is the HEBCA?

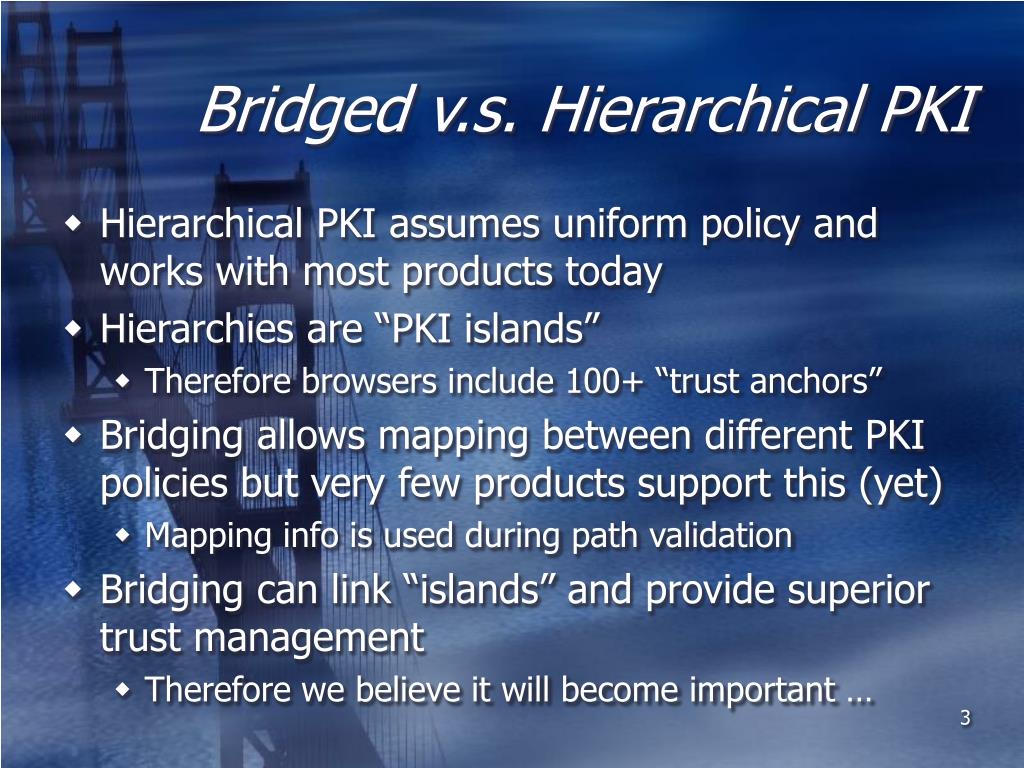

  3. Bridged v.s. Hierarchical PKI • Hierarchical PKI assumes uniform policy and works with most products today • Hierarchies are “PKI islands” • Therefore browsers include 100+ “trust anchors” • Bridging allows mapping between different PKI policies but very few products support this (yet) • Mapping info is used during path validation • Bridging can link “islands” and provide superior trust management • Therefore we believe it will become important …

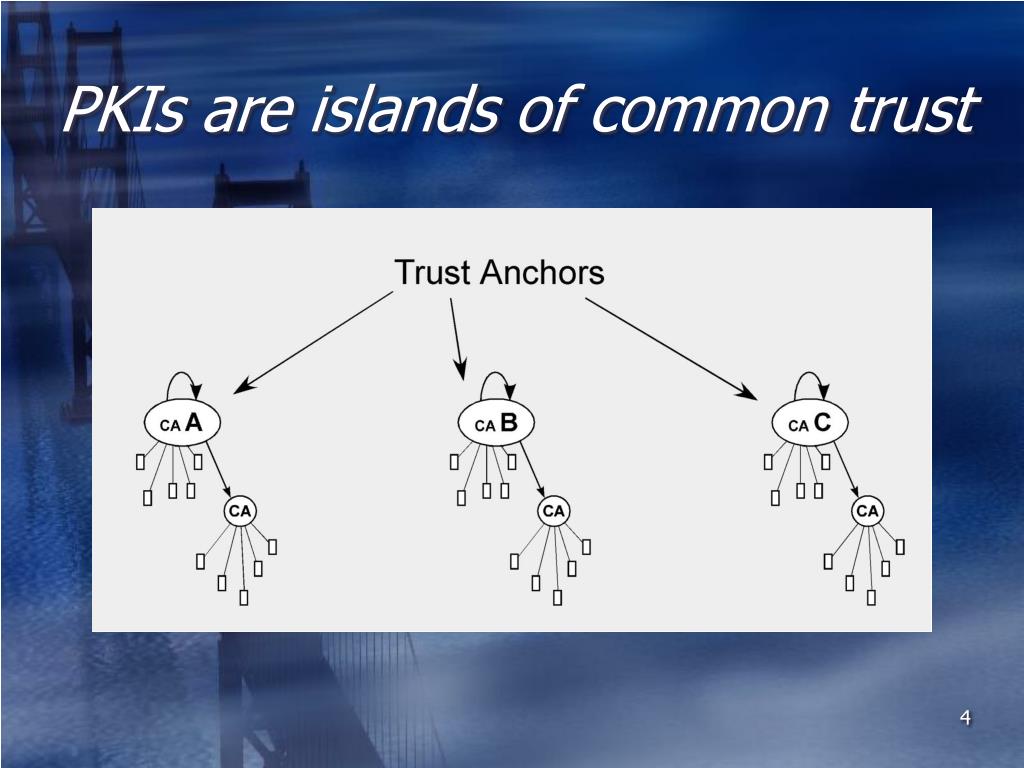

  4. PKIs are islands of common trust

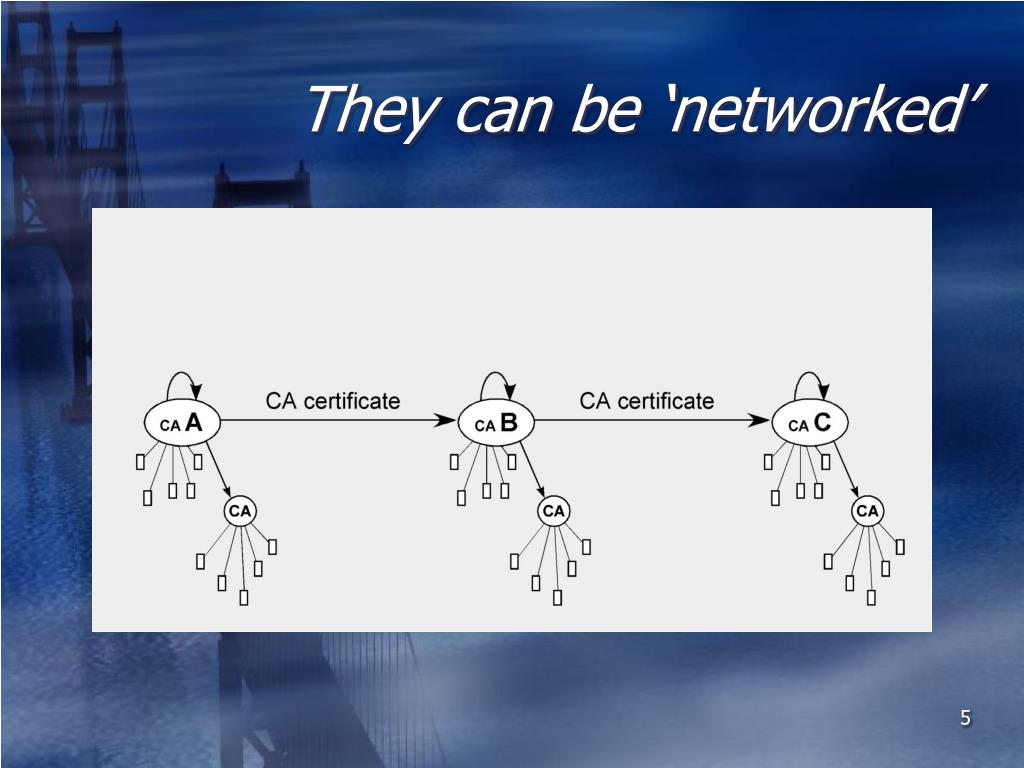

  5. They can be ‘networked’

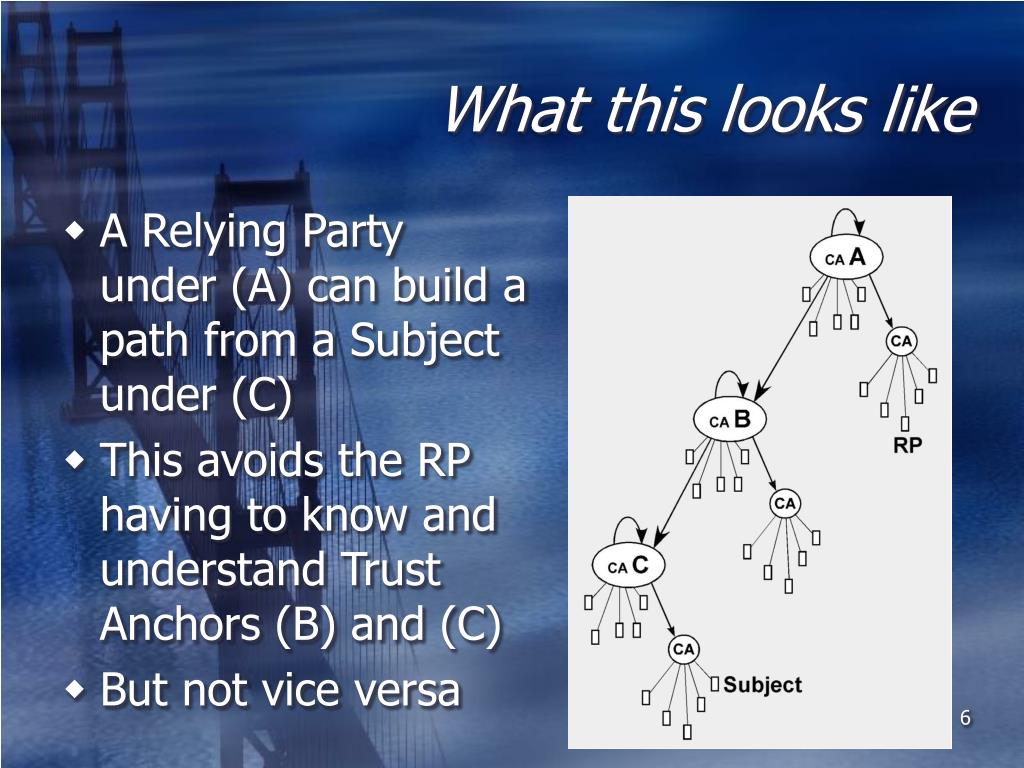

  6. What this looks like • A Relying Party under (A) can build a path from a Subject under (C) • This avoids the RP having to know and understand Trust Anchors (B) and (C) • But not vice versa

  7. Cross-cert can be done bi-laterally

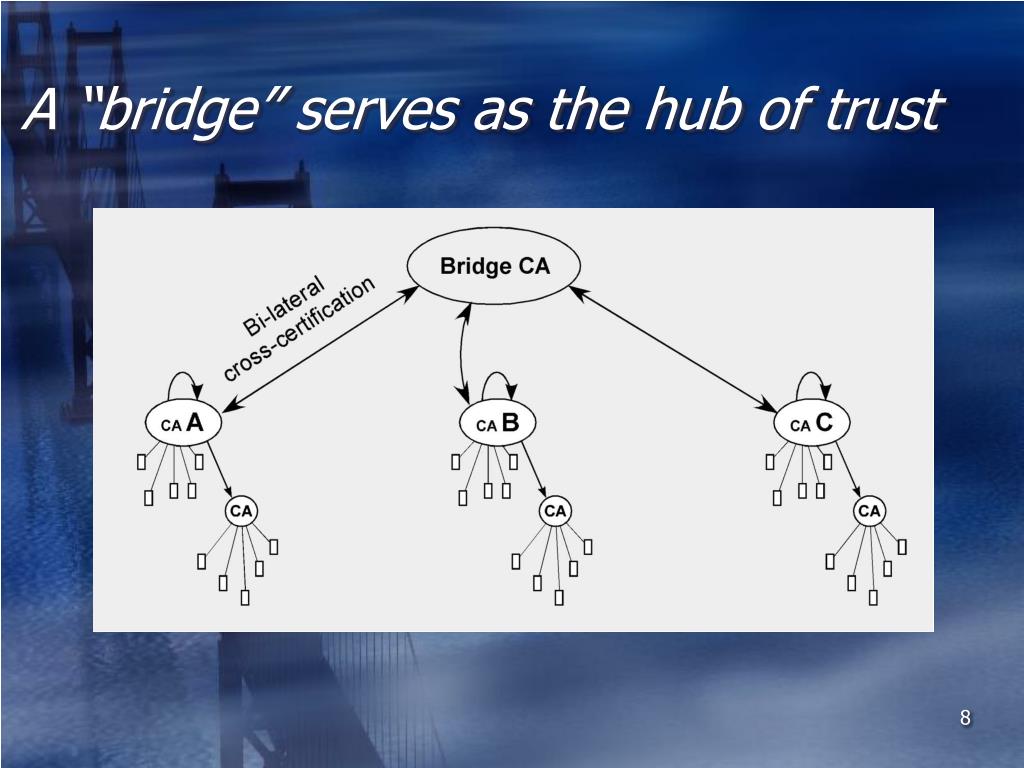

  8. A “bridge” serves as the hub of trust

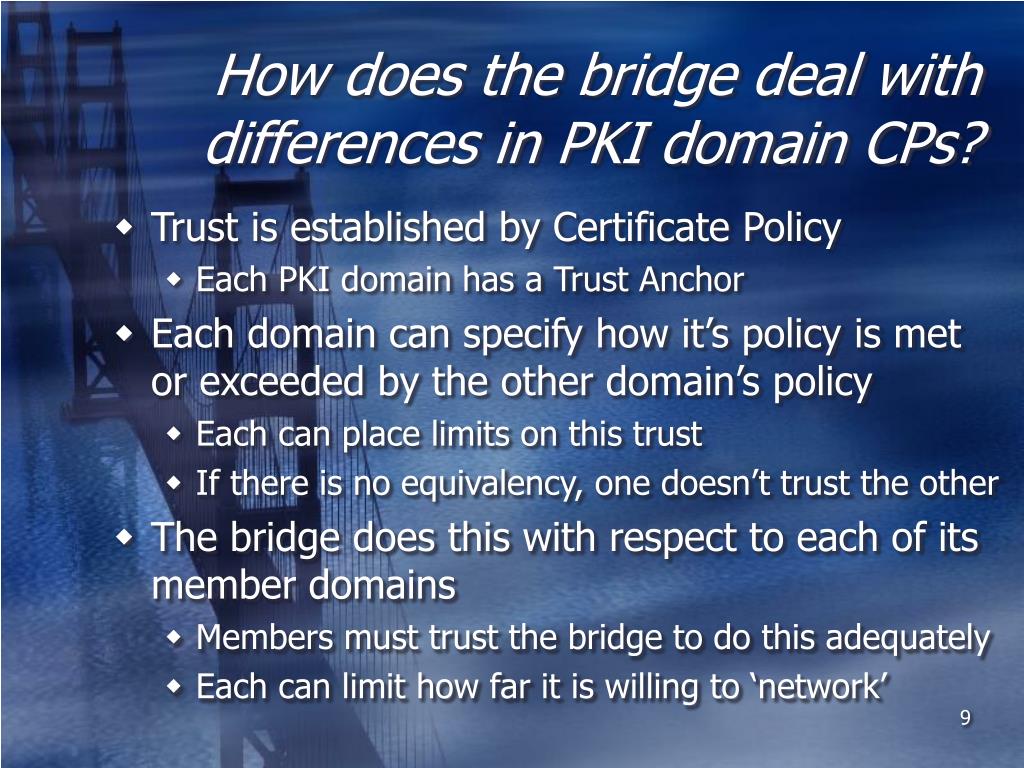

  9. How does the bridge deal with differences in PKI domain CPs? • Trust is established by Certificate Policy • Each PKI domain has a Trust Anchor • Each domain can specify how it’s policy is metor exceeded by the other domain’s policy • Each can place limits on this trust • If there is no equivalency, one doesn’t trust the other • The bridge does this with respect to each of its member domains • Members must trust the bridge to do this adequately • Each can limit how far it is willing to ‘network’

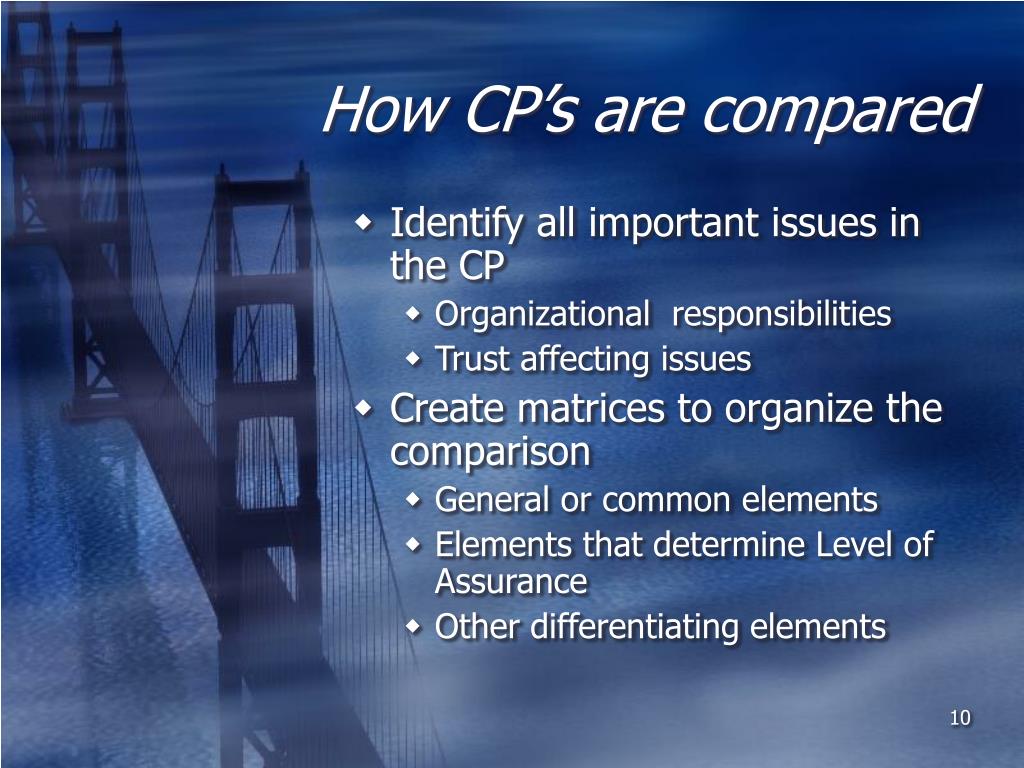

  10. How CP’s are compared • Identify all important issues in the CP • Organizational responsibilities • Trust affecting issues • Create matrices to organize the comparison • General or common elements • Elements that determine Level of Assurance • Other differentiating elements

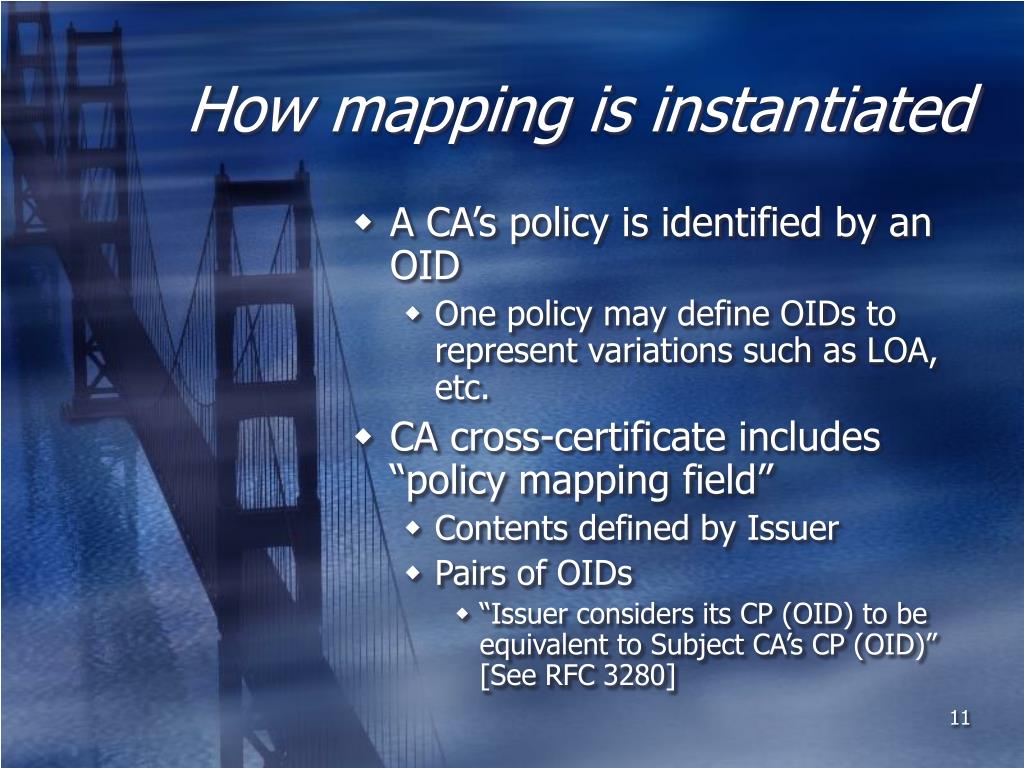

  11. How mapping is instantiated • A CA’s policy is identified by an OID • One policy may define OIDs to represent variations such as LOA, etc. • CA cross-certificate includes “policy mapping field” • Contents defined by Issuer • Pairs of OIDs • “Issuer considers its CP (OID) to be equivalent to Subject CA’s CP (OID)” [See RFC 3280]

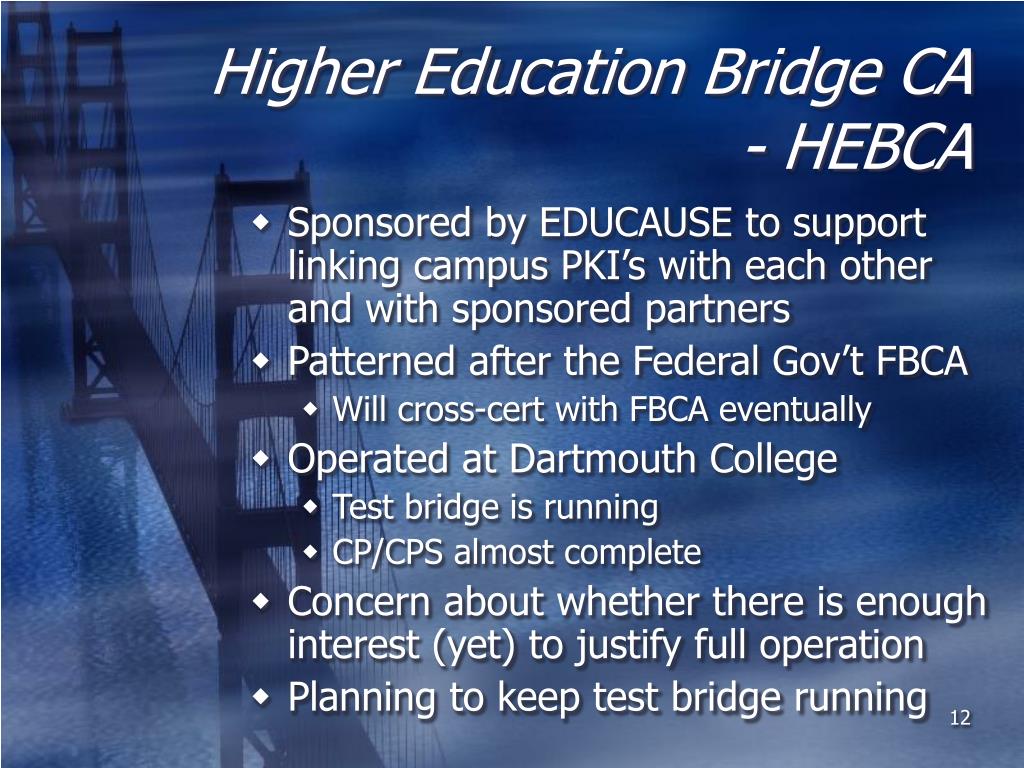

  12. Higher Education Bridge CA- HEBCA • Sponsored by EDUCAUSE to support linking campus PKI’s with each other and with sponsored partners • Patterned after the Federal Gov’t FBCA • Will cross-cert with FBCA eventually • Operated at Dartmouth College • Test bridge is running • CP/CPS almost complete • Concern about whether there is enough interest (yet) to justify full operation • Planning to keep test bridge running

  13. Questions? • dlwasley@earthlink.net
