TRIGEMINAL NEURALGIA. dr shabeel pn. Introduction. Disorder characterized by lancinating attacks of severe facial pain Diagnosis based primarily on a history of characteristic pain attacks that are consistent with specific research & clinical criteria.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'TRIGEMINAL NEURALGIA' - alegria

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
  • Disorder characterized by lancinating attacks of severe facial pain
  • Diagnosis based primarily on a history of characteristic pain attacks that are consistent with specific research & clinical criteria

Dr.Haris PS/OMR

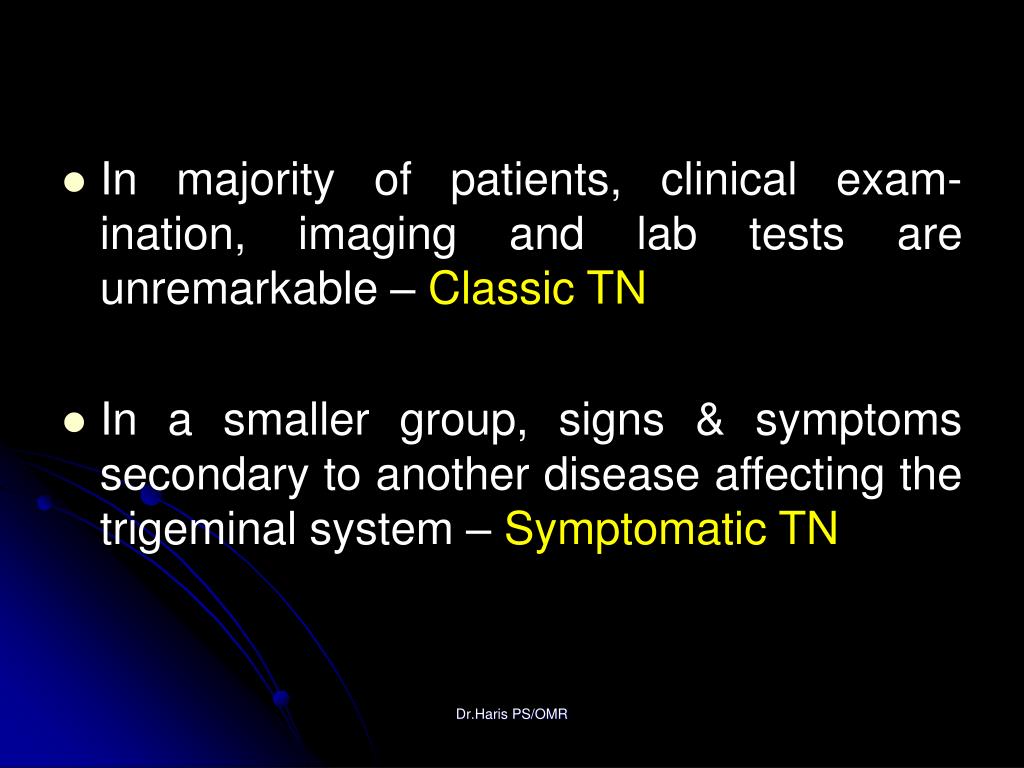

In majority of patients, clinical exam-ination, imaging and lab tests are unremarkable – Classic TN
  • In a smaller group, signs & symptoms secondary to another disease affecting the trigeminal system – Symptomatic TN

Dr.Haris PS/OMR

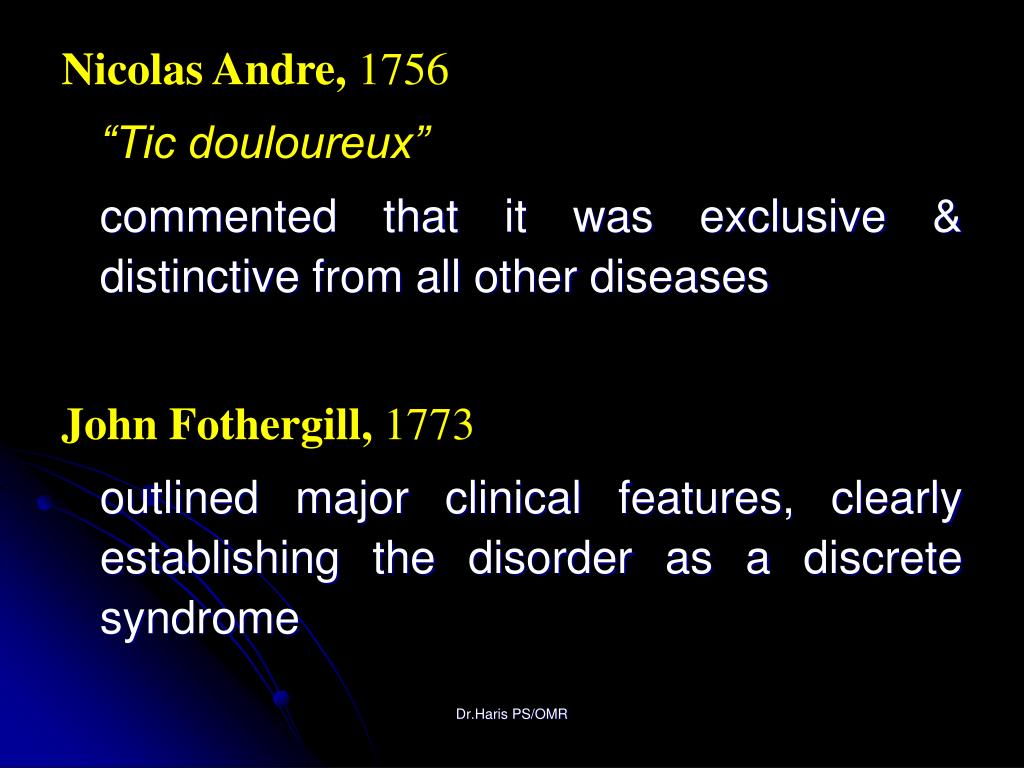

Nicolas Andre, 1756

“Tic douloureux”

commented that it was exclusive & distinctive from all other diseases

John Fothergill, 1773

outlined major clinical features, clearly establishing the disorder as a discrete syndrome

Dr.Haris PS/OMR

epidemiology and demographics

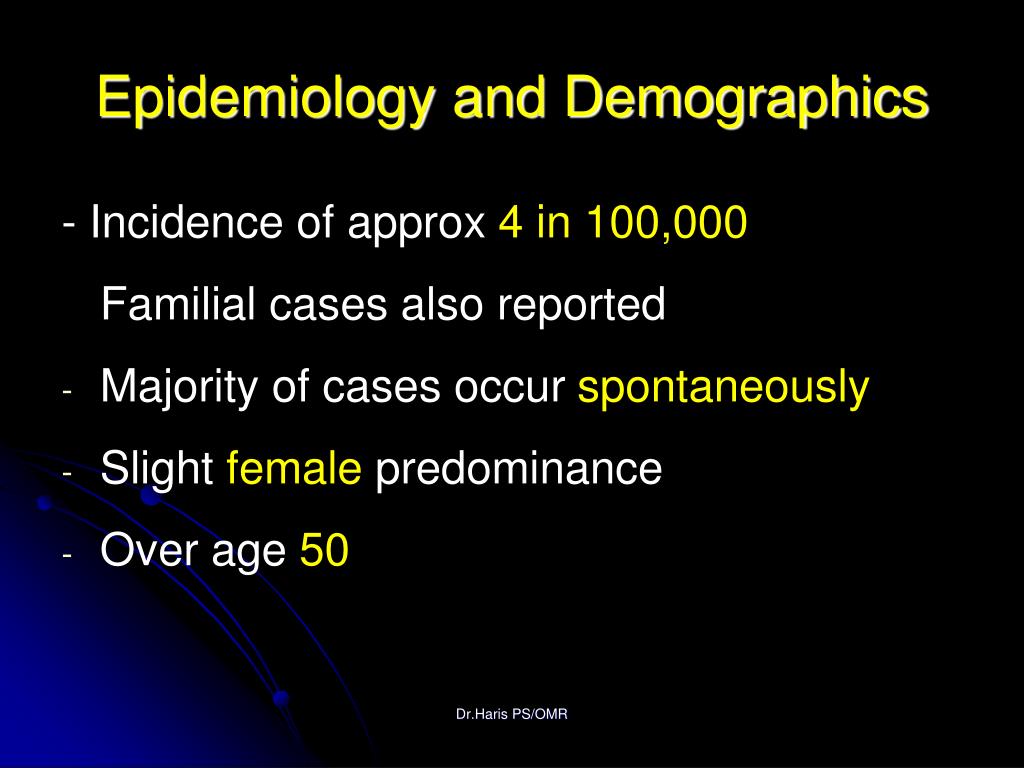

Epidemiology and Demographics

- Incidence of approx 4 in 100,000

Familial cases also reported

  • Majority of cases occur spontaneously
  • Slight female predominance
  • Over age 50

Dr.Haris PS/OMR

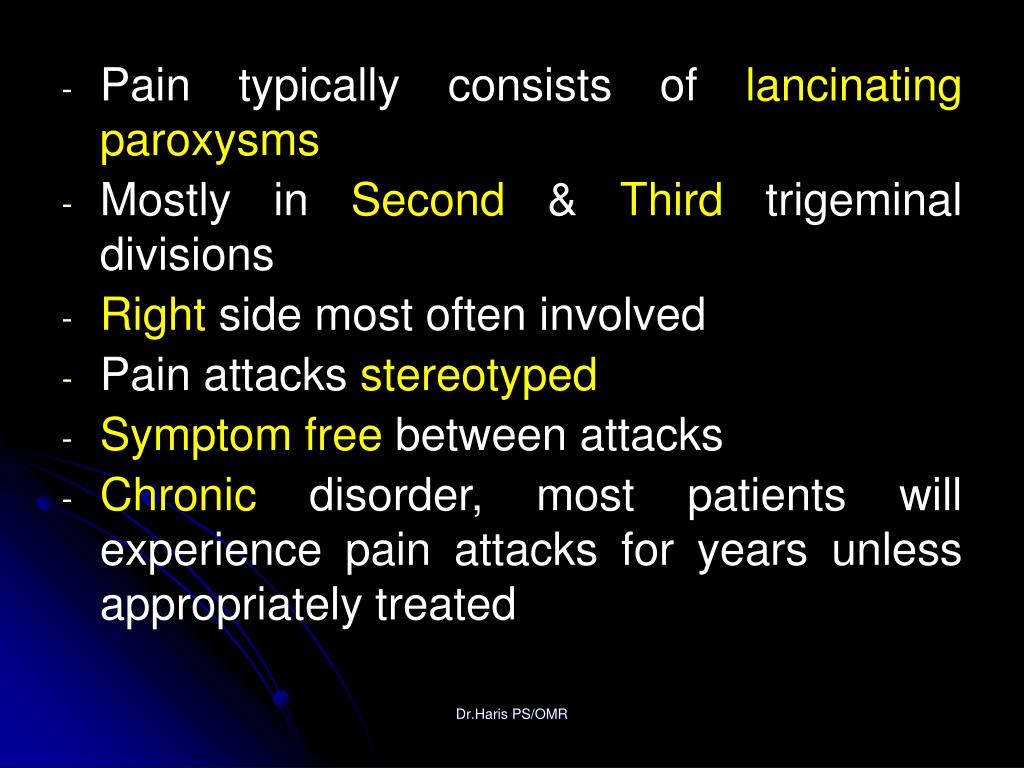

Pain typically consists of lancinatingparoxysms
  • Mostly in Second & Third trigeminal divisions
  • Right side most often involved
  • Pain attacks stereotyped
  • Symptomfree between attacks
  • Chronic disorder, most patients will experience pain attacks for years unless appropriately treated

Dr.Haris PS/OMR

etiology and pathogenesis

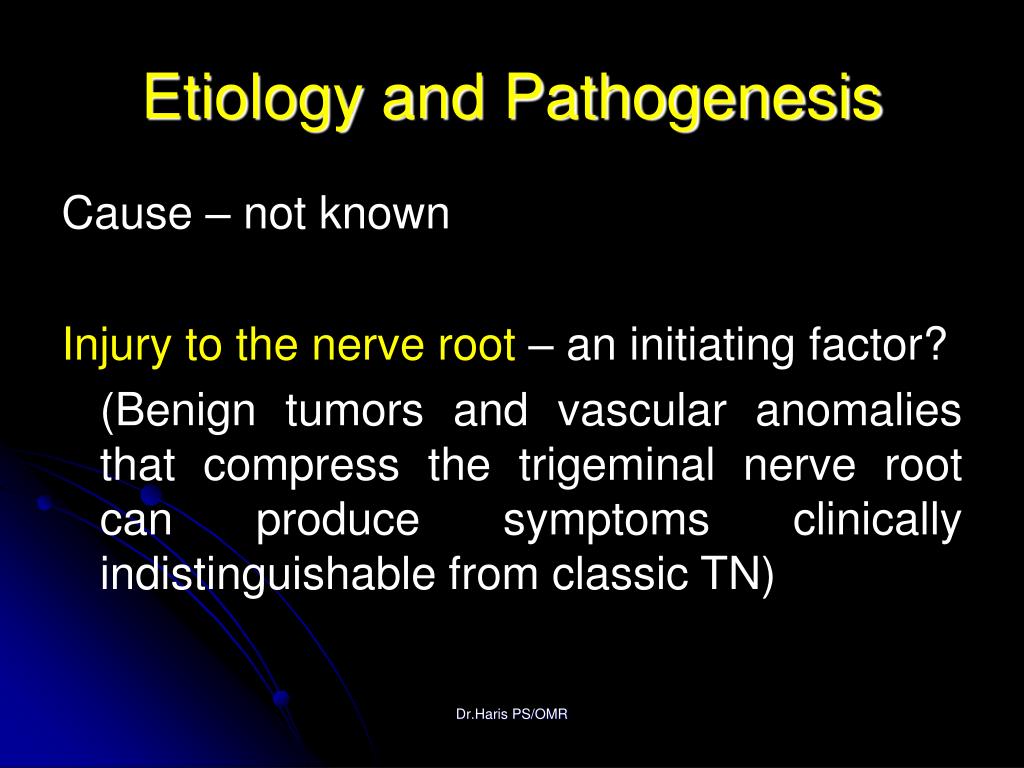

Etiology and Pathogenesis

Cause – not known

Injury to the nerve root – an initiating factor?

(Benign tumors and vascular anomalies that compress the trigeminal nerve root can produce symptoms clinically indistinguishable from classic TN)

Dr.Haris PS/OMR

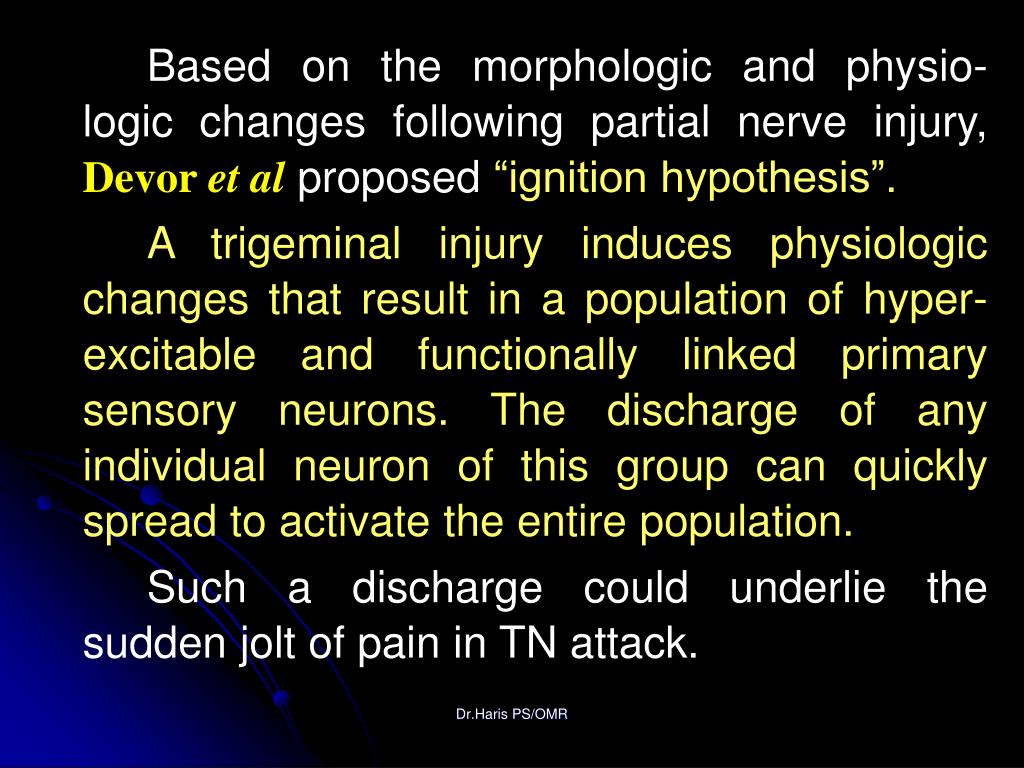

Based on the morphologic and physio-logic changes following partial nerve injury, Devor et al proposed “ignition hypothesis”.

A trigeminal injury induces physiologic changes that result in a population of hyper-excitable and functionally linked primary sensory neurons. The discharge of any individual neuron of this group can quickly spread to activate the entire population.

Such a discharge could underlie the sudden jolt of pain in TN attack.

Dr.Haris PS/OMR

clinical presentation and physical findings
Clinical Presentation andPhysical Findings

Diagnosis of TN based on distinctive signs & symptoms.

White & Sweet articulated diagnostic criteria for TN.

Consists of 5 major clinical features that define the diagnosis of TN

Dr.Haris PS/OMR

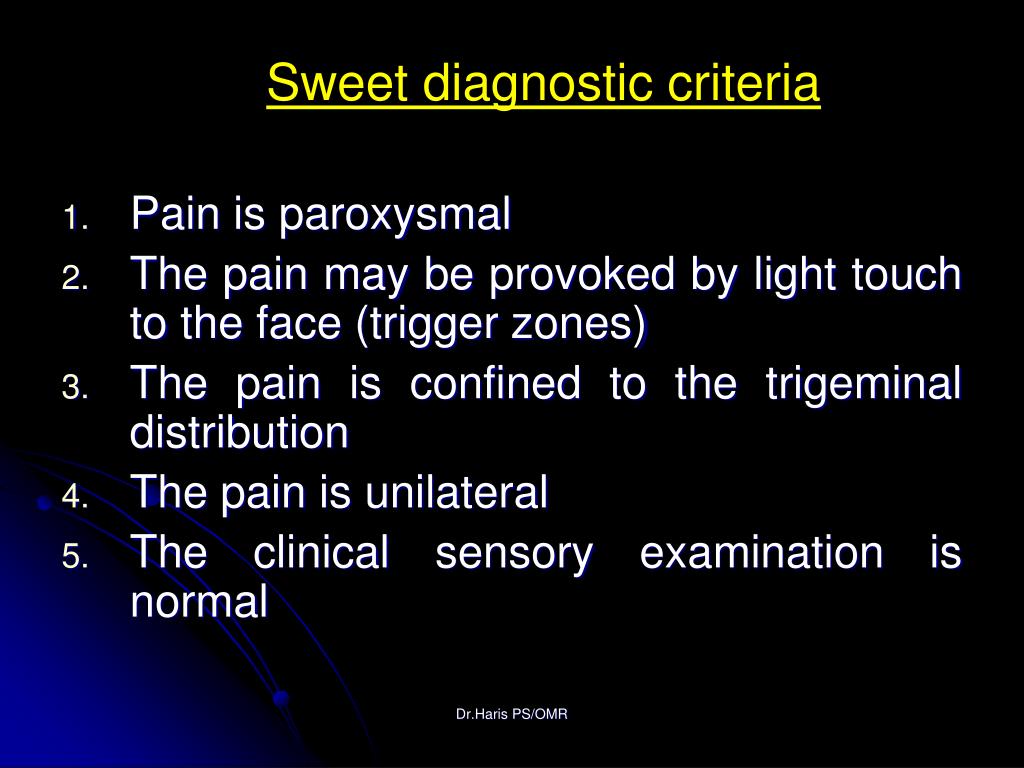

Sweet diagnostic criteria
  • Pain is paroxysmal
  • The pain may be provoked by light touch to the face (trigger zones)
  • The pain is confined to the trigeminal distribution
  • The pain is unilateral
  • The clinical sensory examination is normal

Dr.Haris PS/OMR

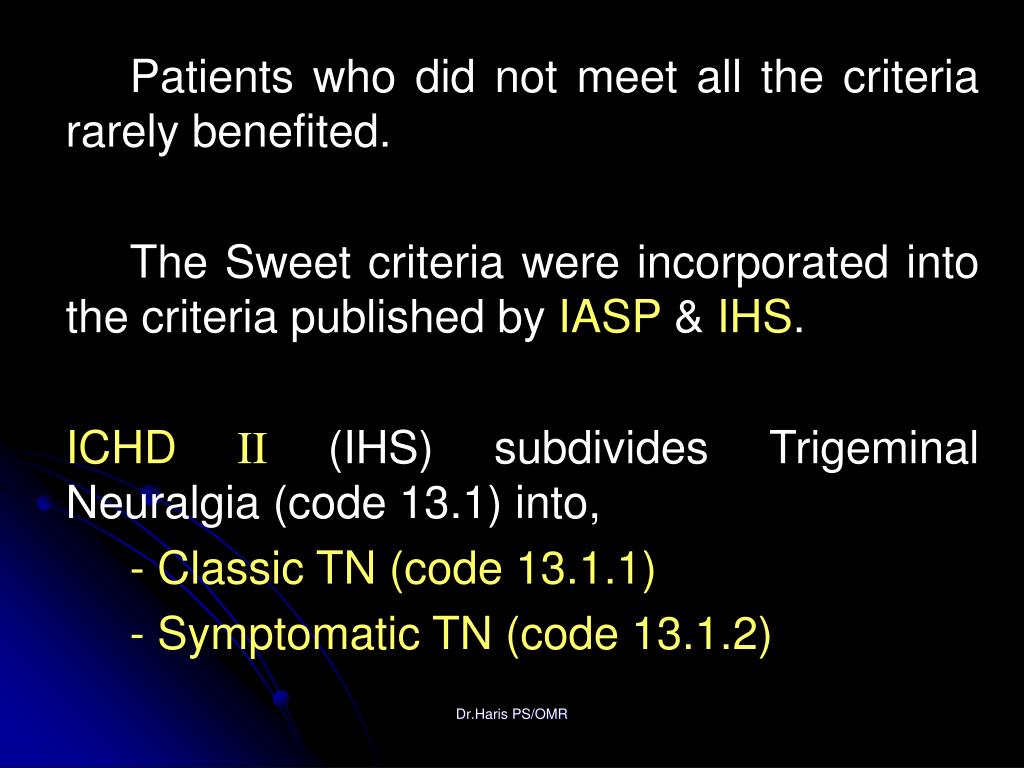

Patients who did not meet all the criteria rarely benefited.

The Sweet criteria were incorporated into the criteria published by IASP & IHS.

ICHDII(IHS)subdivides Trigeminal Neuralgia (code 13.1) into,

- Classic TN (code 13.1.1)

- Symptomatic TN (code 13.1.2)

Dr.Haris PS/OMR

Classic TN (13.1.1)

Most common form- idiopathic, and also associated with vascular compression.

“a unilateral disorder characterized by brief electric shock-like pains, abrupt in onset and termination, limited to the distribution of one or more divisions of trigeminal nerve. Pain is commonly evoked by trivial stimuli including washing, shaving, smoking, talking and/or brushing the teeth (trigger factors) and frequently occurs spontaneously. Small areas in the nasolabial fold and/or chin may be particularly susceptible to the precipitation of pain (trigger areas). The pains usually remit for variable periods.”

Dr.Haris PS/OMR

ICHD Criteria for Classical TN (13.1.1)
  • Paroxysmal attacks of pain lasting from a fraction of a second to 2 minutes, affecting one or more divisions of the trigeminal nerve and fulfilling criteria B and C
  • Pain has at least one of the following characteristics:

1. intense, sharp, superficial or stabbing

2. precipitated from trigger areas or by trigger factors

  • Attacks are stereotyped in individual patient.
  • There is no clinically evident neurological deficit.
  • Not attribute to another disorder.

Dr.Haris PS/OMR

Symptomatic TN (13.1.2)

- Results from another disease process (MS or a cerebellopontine angle tumor)

“Pain indistinguishable from 13.1.1 classic TN but caused by a demonstrable structural lesion other than vascular compression.”

Dr.Haris PS/OMR

ICHD Criteria for Symptomatic TN (13.1.2)
  • Paroxysmal attacks of pain lasting from a fraction of a second to 2 minutes, with or without persistence of aching between paroxysms, affecting one or more divisions of trigeminal nerve and fulfilling criteria B and C.
  • Pain has at least one of the following characteristics:

1. Intense, sharp, superficial or stabbing

2. Precipitated from trigger areas or by trigger factors.

  • Attacks are stereotyped in individual patient.
  • A causative lesion, other than vascular compression, has been demonstrated by special investigations and/or posterior fossa exploration.

Dr.Haris PS/OMR

The pain of TN……
  • Paroxysmal attacks
  • Electric shock like quality
  • Sudden onset & severe in intensity  facial grimace
  • Duration btw 1 sec and 2 min
  • Instantaneous electric shock sensation that’s over in much less than a sec – ‘lightning bolt’
  • Symptom free btw attacks.

Dr.Haris PS/OMR

Trigger zones……

A TN “trigger zone” is an area of facial skin or oral mucosa where a low intensity mechanical stimulation can elicit a typical pain attack.

  • Only a few mm in size
  • In perioral region
  • First division trigger zones are very rare.
  • Presence of trigger zone pathognomonic.
  • May result from ephatic coupling btw partially damaged trigeminal axons.

Dr.Haris PS/OMR

Pain confined to trigeminal zone
  • Most frequently in 3rd division
  • Less frequently in 2nd or in both divisions
  • Pain attacks are stereotyped
  • Unilateral
  • Bilateral in MS
  • Clinical sensory examination is normal

Dr.Haris PS/OMR

clinical evaluation
Clinical evaluation

Diagnosis based on clinical history, supplemented by physical examination findings and cranial imaging studies.

Detailed intraoral examination to rule out odontogenic and non odontogenic source for the pain

Examination of CN V, VII & VIII

Symptomatic TN from a CPA mass often shows facial weakness and hearing loss on that side

Dr.Haris PS/OMR

diagnostic testing

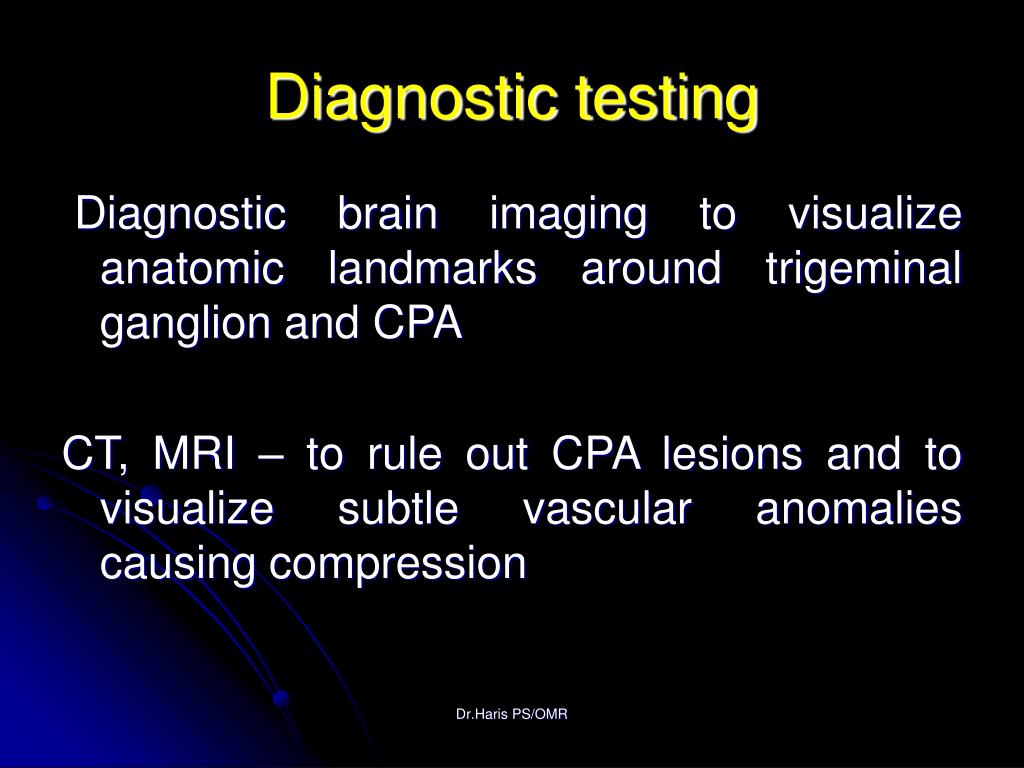

Diagnostic testing

Diagnostic brain imaging to visualize anatomic landmarks around trigeminal ganglion and CPA

CT, MRI – to rule out CPA lesions and to visualize subtle vascular anomalies causing compression

Dr.Haris PS/OMR

medical management and treatment
Medical Management and Treatment

TN unique – majority of patients respond to treatment and may have total elimination of pain attacks

Dr.Haris PS/OMR

pharmacologic therapy primary drug therapy
Pharmacologic therapyPrimary drug therapy

Bergouignan, 1942 found that the anticonvulsant phenytoin effectively controlled attacks of TN

Similarity in mechanisms between epilepsy & TN pain attacks.

Dr.Haris PS/OMR

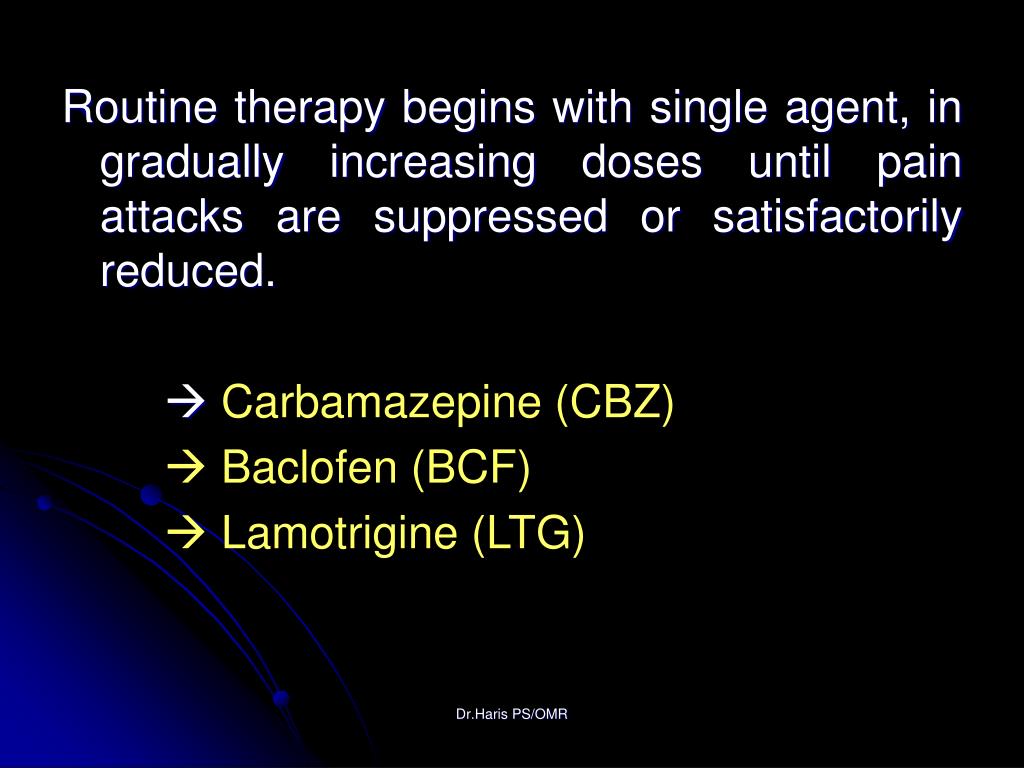

Routine therapy begins with single agent, in gradually increasing doses until pain attacks are suppressed or satisfactorily reduced.

 Carbamazepine (CBZ)

 Baclofen (BCF)

 Lamotrigine (LTG)

Dr.Haris PS/OMR

CBZ superior to Phenytoin

CBZ monotherapy provides symptom control in up to 80% patients

BCF equally effective, better tolerated


- Clonazepam, Gabapentin, Topiramate, Oxcarbazepine, Tiagabine, Levetiracetam and Zonisamide.

Dr.Haris PS/OMR

multiple drug therapy

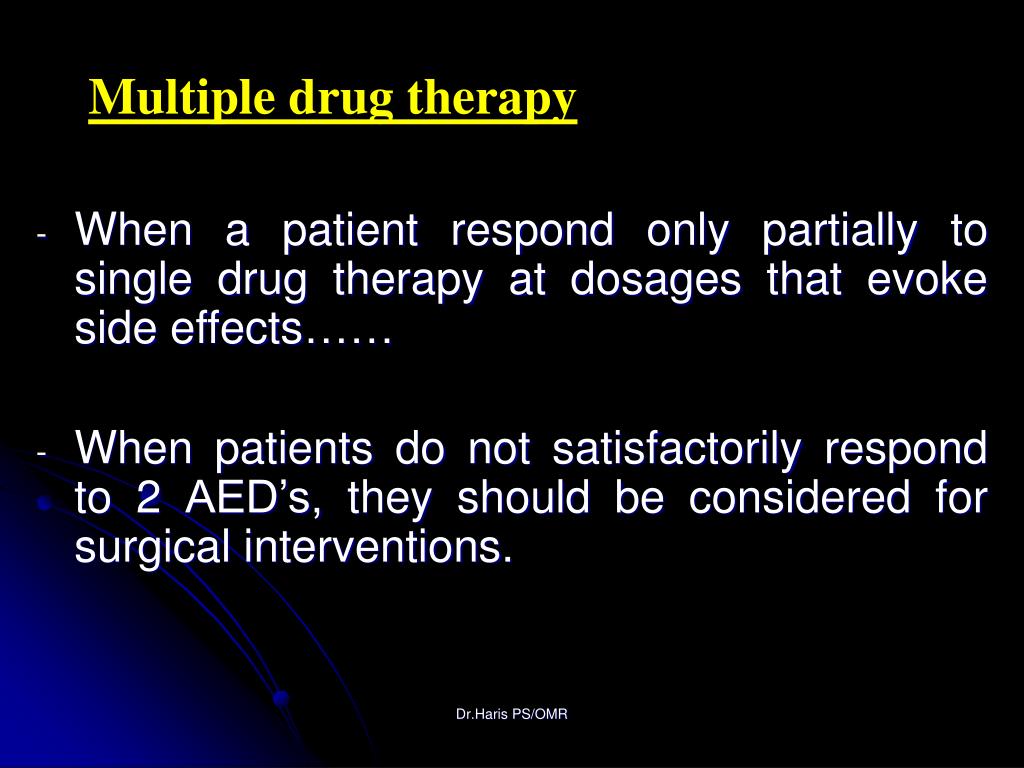

Multiple drug therapy
  • When a patient respond only partially to single drug therapy at dosages that evoke side effects……
  • When patients do not satisfactorily respond to 2 AED’s, they should be considered for surgical interventions.

Dr.Haris PS/OMR

surgical options

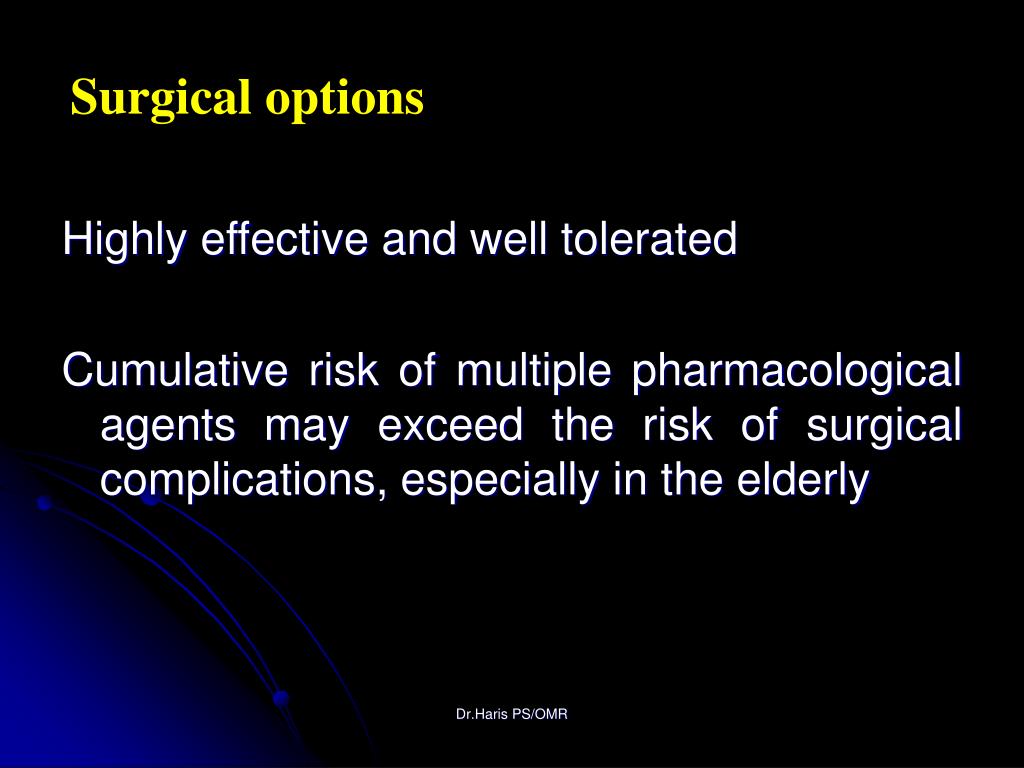

Surgical options

Highly effective and well tolerated

Cumulative risk of multiple pharmacological agents may exceed the risk of surgical complications, especially in the elderly

Dr.Haris PS/OMR

  • Percutaneous stereotactic radiofrequency thermal lesioning of the trigeminal ganglion and/or root (RFL)
  • Posterior fossa exploration and microvascular decompression (MVD) of the trigeminal root
  • Gamma knife radiation to the trigeminal root entry zone (GKR)

Produce satisfactory relief of TN symptoms in 80 – 90% of patients. Incidence of complications is low and specific for the technique employed.

Dr.Haris PS/OMR

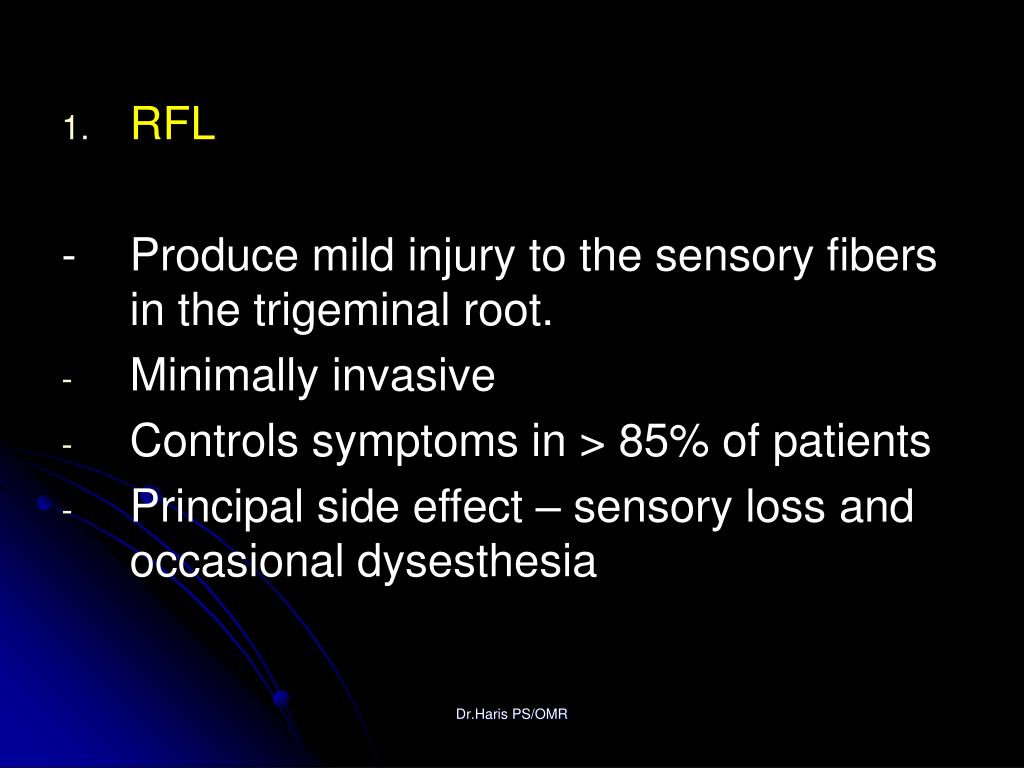

- Produce mild injury to the sensory fibers in the trigeminal root.

  • Minimally invasive
  • Controls symptoms in > 85% of patients
  • Principal side effect – sensory loss and occasional dysesthesia

Dr.Haris PS/OMR

Posterior fossa exploration and MVD
  • More complex and invasive
  • Directly treats the hypothetical cause while minimizing any sensory damage

Dr.Haris PS/OMR

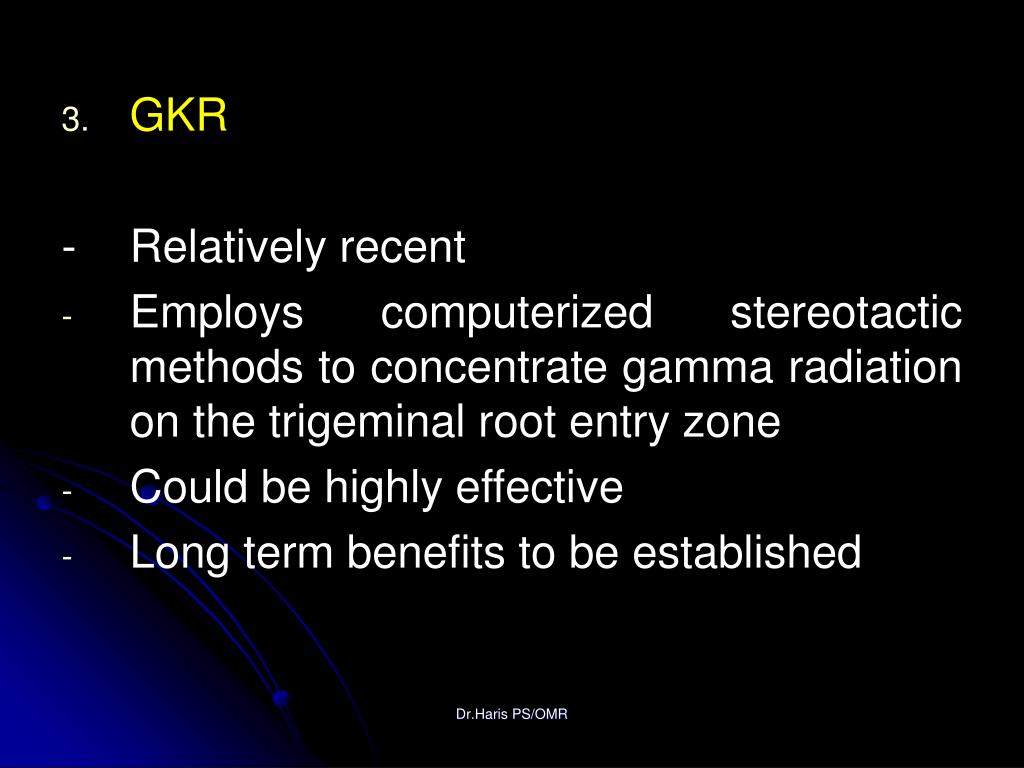

- Relatively recent

  • Employs computerized stereotactic methods to concentrate gamma radiation on the trigeminal root entry zone
  • Could be highly effective
  • Long term benefits to be established

Dr.Haris PS/OMR

RFL for patients who are elderly or medically frail.
  • Posterior fossa exploration and MVD for younger healthier patients who can tolerate the longer more invasive surgical procedure.
  • GKR as an alternative to RFL in frail or elderly patients. MVD or RFL remains the standard for surgical treatment of younger patients who have considerable life expectancy

Dr.Haris PS/OMR

  • Many fundamental questions about patho-physiology of the disorder remain unanswered
  • Development of drugs specific for TN
  • Lack of objective testing remains as a problem
  • fMRI– potential future diagnostic tool

Dr.Haris PS/OMR
