  1. HTML5 Media API

  2. Who am I • Ran Bar-Zik \ @barzik • PHP\Drupal Developer at HP Software R&D • Working at HP Live Network project. • My professional site: internet-israel.com

  3. HTML5 Media tags: Audio Audio tag: <audio controls="controls">  <source src="horse.ogg" type="audio/ogg">  <source src="horse.mp3" type="audio/mp3">  Your browser does not support the audio tag.</audio>

  4. HTML5 Media tags: Video Video tag: <video controls="controls">  <source src="movie.mp4" type="video/mp4">  <source src="movie.ogg" type="video/ogg">  Your browser does not support the video tag.</video>

  5. Supporting Browsers • Chrome • Firefox • Opera • Safari • Internet Explorer 9+

  6. Media Tags Attribute • src = URL - The source of the media • Autoplay = Boolean • Loop = Boolean • Controls = Boolean • Preload = auto(yes), metadata(only meta data) or none Video only: • Poster = URL - The source of the poster • Muted = Boolean

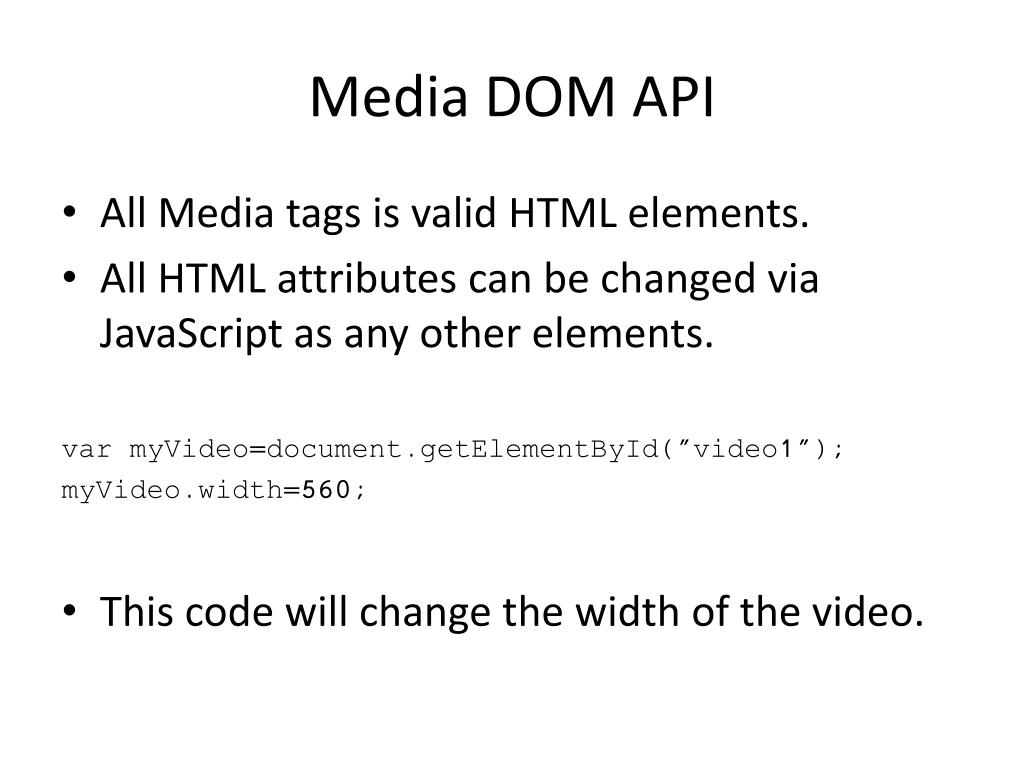

  7. Media DOM API • All Media tags is valid HTML elements. • All HTML attributes can be changed via JavaScript as any other elements. varmyVideo=document.getElementById("video1"); myVideo.width=560; • This code will change the width of the video.

  8. Basic API Methods\Properties: Play Methods for play \ pause:varmyVideo=document.getElementById("video1"); myVideo.play(); myVideo.pause(); Property for play \ pause: myVideo.paused; //return TRUE\FALSE

  9. Basic API Methods\Properties: Seek Methods for play \ pause:varmyVideo=document.getElementById("video1"); myVideo.duration = X; //Seek Property for seeking: myVideo.currentTime//return seconds myVideo.duration //return duration in seconds myVideo.seeking //return TRUE\FALSE

  10. Basic API Properties: Volume Properties for play \ pause:varmyVideo=document.getElementById("video1"); myVideo.volume //returns volume (0-1) myVideo.volume = X //define the video volume myVideo.muted // returns FALSE/TRUE

  11. API Properties: Event handling document.getElementById(“video1”).addEventListener('ended',myHandler,false); function myHandler(e) { //your function }

  12. API Methods\Properties: Ready State Property for finding the ready state: myVideo.readyState; //return ready state code 0 - nothing 1 – meta data available (duration) 2 – have current data (enough for current frame) 3 – have future data (enough for this frame and the next one). 4 – have enough data (can finish the show)

  13. Video\Audio subtitles Why subtitles matters? • Hebrew • Accessibility • SEO

  14. Using track tag • Simple way for implementing Subtitles. • Right now is being implemented by Safari\Chrome only. • In the future – it will be the best practice – SEO wise.

  15. Using track tag • Simple way for implementing Subtitles. • Right now is being implemented by Safari\Chrome only. • In the future – it will be the best practice – SEO wise.

  16. Track example <video src="foo.ogv"> <track kind="subtitles" label="English subtitles" src="subtitles_en.vtt" srclang="en" default> </track> <track kind="subtitles" label="Deutsche Untertitel" src="subtitles_de.vtt" srclang="de"> </track> </video>

  17. WebVTT: Web Video Text Track example 00:11.000 --> 00:13.000 We are in New York City 00:13.000 --> 00:16.000 actually at the Lucern Hotel, just down the street 00:16.000 --> 00:18.000 from the American Museum of Natural History More information on WebVTT is in W3C: http://dev.w3.org/html5/webvtt/

  18. Test with track support with Modernizr Described in Modernizr documentation: //first run that oneModernizr.addTest('track', function(){ var video = document.createElement('video'); return typeofvideo.addTextTrack === 'function' }); // return TRUE or FALSE Modernizr.track

  19. JavaScript track fallback You can Support track elements with captionatorjs(Having problems with IE9) http://captionatorjs.com/

  20. JavaScript track fallback You can implement your own subtitle JavaScript based system. With or without jQuery. Example: http://www.internet-israel.com/?p=3489

  21. HTML 5 Video future feature: mediagroup\ Media Controller • Using mediagroup attribute will help sync between movies. • Helping to implement commercials embedding, audio commentary etc. <video id="video1" controls="controls" mediagroup="test"> <source src="mov_bbb.mp4" type="video/mp4"> <source src="mov_bbb.ogg" type="video/ogg"> Your browser does not support HTML5 video. </video> <video id="video2" controls="controls" mediagroup="test"> <source src="mov_bbb.mp4" type="video/mp4"> <source src="mov_bbb.ogg" type="video/ogg"> Your browser does not support HTML5 video. </video>

  22. More Current Implementation • There are a lot of new features that are not implemented yet. • For current information. Check:http://www.longtailvideo.com/html5/
