Presentation Transcript
slide1

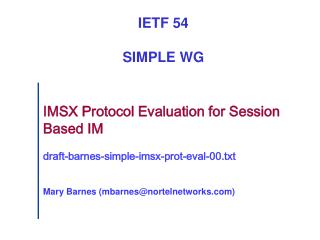

IETF 54

SIMPLE WG

IMSX Protocol Evaluation for Session Based IM

draft-barnes-simple-imsx-prot-eval-00.txt

Mary Barnes (mbarnes@nortelnetworks.com)

overview
Overview
  • Overview of analysis
  • General conclusions
  • Other Disadvantage/Advantages of IMSX
  • Related mailing list discussions
overview of analysis
Overview of analysis
  • Evaluates the suitability of the IMSX protocol as a transport for Session Based IM.
    • IMSX (draft-mrose-simple-exchange-01) defines a BEEP (RFC 3080) profile for exchanging CPIM messages after SIP has performed its session setup signaling.
  • Compares IMSX against the IMPP requirements (RFC 2779) .
  • Compares the ability for IMSX to interoperate with other IM systems based upon the CPIM profile (draft-ietf-impp-cpim-02).
  • Discusses IMSX with regards to the Guidelines for Instant Message Sessions (draft-mankin-im-session-guide-00).
general conclusions
General Conclusions
  • IMSX meets the majority of the CPIM requirements with the exception of the Network topology requirements, which were beyond the scope of the original design intent of BEEP:
    • Middlebox traversal (NATs and FIREWALLS) for IMSX is a requirement that is currently not specifically addressed by BEEP. However, it is deemed equivalent to and addressed by the same mechanism which would be used for TCP based SIP media.
    • IMSX does not address the proxy or relay requirements for support of IM. However, a solution to this requirement is not beyond the scope of BEEP.
  • Related to these requirements, as evaluated against the IM Session Guidelines, the IMSX/BEEP IM Session solution does not fully address intermediaries.
additional disadvantages of imsx
Additional Disadvantages of IMSX
  • Beyond the identified requirements, which are not fully met, additional disadvantages of IMSX as the Session IM protocol are:
    • BEEP does not currently support threading.
    • Requires the development and support of a new protocol for most existing SIP implementations.
additional advantages of imsx
Additional Advantages of IMSX
  • A user can use a single TCP connection for multiple IM Session connections to the same user.
  • Several channels may be multiplexed over the same TCP connection having different characteristics.
  • For this model of a single TCP connection, interleaving provides a fair share of the use of connection to support the multiple types of media.
mailing list discussion on imsx beep
Mailing List Discussion on IMSX/BEEP
  • One Pro IMSX/BEEP posting: “I personally lean towards the mrose approach. BEEP does a decent job of the message delivery operation. It allows standardized relay elements to be added as needed and provides for a sort of path-discovery that would appear to be beneficial in firewall traversal scenarios. It provides a nice layering distinction between "can I talk to you" and "may I talk to the network".”
  • One Con IMSX/BEEP posting:
    • “have to administer two very different types of devices, with different (and, in the case of mrose, undefined) network management.”
    • Doesn’t see the advantages to mrose wrt "standardized relay elements to be added as needed". What can be added there that can't be added in simple-message?
  • One proposal to progress IMSX as informational, with message-session being the WG document (standards track).
