Presentation Transcript
slide1

Edu Rad

CLEVELAND CLINIC

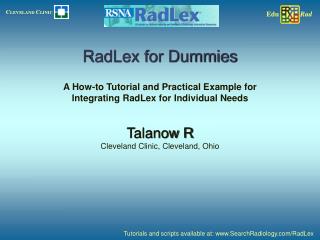

RadLex for DummiesA How-to Tutorial and Practical Example for Integrating RadLex for Individual Needs

Talanow RCleveland Clinic, Cleveland, Ohio

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide2

Menu

Click on a link to view a specific area

or wait until the slideshow begins

Purpose

Content Organization

Summary

Quick Intro to RadLex

How can RadLex be used?

Important resources

How-to step by step tutorials:

PERL Tutorial

PHP Tutorial

ASP Tutorial

Where can I get examples?

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide3

Purpose

RadLex is a lexicon for uniform indexing and retrieval of radiology information resources. It offers users and developers to share the information via several ways. One way is the possibility to retrieve the information directly from the user's website. However, for less computer experienced users this may become a difficult task to perform.

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide4

Content Organization

We provide a tutorial how to create an interface to use the RadLex information from the user's own website. Step by step, the tutorial explains the requirements which are needed to perform this task and explains the indivdual steps with explanatory text and images. This tutorial demonstrates also a working and useful example. After this tutorial, even a not well computer experienced user should be able to integrate a RadLex interface into the own website.

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide5

Summary

This tutorial explains in an - even for a less computer experienced user - understandable way how to create a working RadLex interface for individual purposes such as integrating into the own website.

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide6

RadLex for Dummies

The following slides will provide you with a tutorial, how to create an interface to use the RadLex information from your own website

Sit down, relax and enjoy!

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide7

What is Radlex?

  • Sponsored by RSNA and other organizations.
  • RadLex is a single unified source of Radiology terms and unifies/supplements other lexicons and standards, such as SNOMED-CT, and DICOM.
  • It faces the challenge that images, imaging reports, and medical records move online, and that radiologists need a unified language to organize and retrieve them.

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide8

What is Radlex?

  • Radiologists currently use a variety of terminologies and standards, but no single lexicon serves all of their needs. That’s where RadLex comes into play…
  • RadLex is a single unified source of Radiology terms that is designed to unify language to organize and retrieve images, imaging reports, and medical records.
  • About 12000 RadLex terms are currently included
  • Integration of different languages (German) is planned

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide9

The RadLex term lexicon is divided in multiple categories:

  • treatment
  • imaging procedure attribute
  • substance
  • procedure step
  • imaging observation

characteristic

  • modifier
  • foreign body
  • imaging observation
  • anatomic entity
  • teaching attribute
  • relationship
  • imaging service request
  • image quality

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide10

How can RadLex be used?

  • RadLex offers to use the lexicon for individual needs.
  • Methods of Radlex usage:
    • Through RadLex browser
    • On own website (through RadLex API)

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide11

How can RadLex be used?

The RadLex lexicon can be either accessed by the end user through the RadLex browser provided by the RadLex website…

Customized display

Uniform display

…or can be individually displayed by a third party website through the RadLex API interface.

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide12

How can RadLex be used?

RadLex Browser

  • Pros:
  • No programming necessary
  • Independent from user’s
  • resources (server, URL, etc.)
  • Contras:
  • Not customizable to individual needs
  • Static layout and display of search results

Screenshot RadLex browser

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide13

How can RadLex be used?

RadLex on own website (through API)

  • Pros:
  • Customizable to individual needs
  • Flexible layout and display of search results
  • Integration into other programs
  • Contras:
  • User need software & hardware resources (server, URL, etc.)
  • Programming skills necessary -> This tutorial, including downloadable scripts should alleviate parts of this burden

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide14

How-to step by step

RadLex API acts as a webservice, which allows developers to query the RadLex terminology and retrieve an XML API methods.

Basically, we need to do 5 steps!

Step 1: Open connection to the RadLex server

Step 2: Send a query to the RadLex server

Step 3: Accept the incoming XML data

Step 4: Identify and count nodes (child elements)

Step 5: Format the output to your individual needs

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide15

How-to step by step

On the next slides you will be provided with simplified codes for several programming languages (PERL, PHP and ASP).

The complete codes can be downloaded for free.

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide16

How-to step by step

PERL

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide17

How-to step by step

PERL Example

Step 1: Open connection to the RadLex server

use LWP::Simple qw(get $ua);

$url = "http://radlex.org/search?query=$q"; $q = search term

Step 2: Send a query to the RadLex server

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide18

How-to step by step

PERL Example

Step 3: Accept the incoming XML data

$efetch_result = get($url); get the data

This is an XML example returned by the RadLex server for the search term “lipoma”

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide19

How-to step by step

PERL Example

Step 4: Identify and count nodes (child elements)

Search for the tags “term”, which is a child (node) of the tag “terms”

@entries = split(/<\/term>/,$efetch_result);

Now, go through each node (foreach loop) and split the information

foreach (

@entries){@fields = split(/"/,$_);

Create an array (list) of terms (e.g. for diagnoses)

push(@diagnosis,$fields[4]);

}end of loop

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide20

How-to step by step

PERL Example

Step 5: Format the output to your individual needs

Now go through the terms in our created list and do whatever you want

foreach (@diagnosis){

Example: Create a hyperlink for each term

$links_s .= qq~: <a href="?search=$_">$_</a> :~;

Or create a pulldown menu item for each term

$option_s .= qq~<option value="$_">$_</option>~;}

Example: Create a search form, including the pulldown menu with all similar terms

$similar = qq~<form action=""><select name="search"><option value="">Similar terms to $q</option>$option_s</select><input type="submit" value=">>" ></form>~;

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide21

PERL code example

Complete script code

(downloadable)

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide22

Et voila!

Working online

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide23

How-to step by step

PHP

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide24

How-to step by step

PHP Example

Step 1: Open connection to the RadLex server

$xmlDoc = new DOMDocument();

$xml=("http://radlex.org/search?query=".$q); $q = search term

Step 2: Send a query to the RadLex server

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide25

How-to step by step

PHP Example

Step 3: Accept the incoming XML data

$xmlDoc->load($xml); get the data

This is an XML example returned by the RadLex server for the search term “lipoma”

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide26

How-to step by step

PHP Example

Step 4: Identify and count nodes (child elements)

Search for the tag “terms”, which includes all children (the terms we are looking for)

$x=$xmlDoc->getElementsByTagName('terms');

Get now the items (have tag “term”)

$c = $xmlDoc->getElementsByTagName('term');

Now, count each item (foreach loop)

foreach($c as $cs){

$j ++;

} end of loop

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide27

How-to step by step

PHP Example

Step 5: Format the output to your individual needs

Now go through each item (term) and do whatever you want (here: create hyperlinks)

for ($i=0; $i<=$j; $i++)

{

$term=$x->item(0)->getElementsByTagName('term') ->item($i)->childNodes->item(0)->nodeValue;

print ("<p><a href='?search=" . $term . "'>" . $term . "</a>");

}

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide28

PHP code example

Complete script code

(downloadable)

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide29

Et voila!

Working online

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide30

How-to step by step

ASP

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide31

How-to step by step

ASP Example

Step 1: Open connection to the RadLex server

Set xmlHttp = Server.CreateObject("MSXML2.ServerXMLHTTP.3.0")

xmlHttp.Open "GET", URLToRSS, false

xmlHttp.Send()

URLToRSS = "http://radlex.org/search?query=" & Request(“q")

q = search term

Step 2: Send a query to the RadLex server

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide32

How-to step by step

ASP Example

Step 3: Accept the incoming XML data

RSSXML = xmlHttp.ResponseText get the data

This is an XML example returned by the RadLex server for the search term “lipoma”

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide33

How-to step by step

ASP Example

Step 4: Identify and count nodes (child elements)

Search for the tag “terms”, which includes all children (the terms we are looking for)

Set RSSItems = xmlDOM.getElementsByTagName("terms")

Now, through each node (for each loop)

Set SearchtermItems = RSSItem.getElementsByTagName("term")

for each Searchtermitem in SearchtermItems

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide34

How-to step by step

ASP Example

Step 5: Format the output to your individual needs

Now go through each item (term) and do whatever you want (here: create hyperlinks)

RSSSearchterm = "<a href='?search="& Searchtermitem.text & "'>" & Searchtermitem.text & "</a>, <br /> “

Response.Write RSSSearchterm

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide35

ASP code example

Complete script code

(downloadable)

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide36

Et voila!

Working online

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide37

Test the scripts by putting the search termat the end of the URL (after “?search=“)

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide39

Important Links

  • RadLex homepage:

http://www.rsna.org/radlex/

  • RadLex Viewer:

http://radlex.org/viewer

  • RadLex Documentation:

ftp://ftp.ihe.net/RadLex/documentation.html

  • Radlex API (Application programming interface):

http://radlexwiki.rsna.org/?title=RadLex_API

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide40

Example Codes

(Free download)

  • RadLex Tutorial homepage:

http://www.SearchRadiology.com/RadLex

  • Example script (written in PERL):

http://www.searchradiology.com/radlex/radlex-perl.zip

  • Example script (written in PHP):

http://www.searchradiology.com/radlex/radlex-php.zip

  • Example script (written in ASP):

http://www.searchradiology.com/radlex/radlex-asp.zip

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide41

Thank you for taking the time to watch this RadLex tutorial. I hope that you found it useful and might take advantage of RadLex’ phantastic features for your own website.

For more information and suggestions please contact:

Roland Talanow, MD, PhD

Email: programs@talanow.info

MENU

Tutorials and scripts available at: www.SearchRadiology.com/RadLex

slide42

Edu Rad

CLEVELAND CLINIC

RadLex for DummiesA How-to Tutorial and Practical Example for Integrating RadLex for Individual Needs

Talanow RCleveland Clinic, Cleveland, Ohio

Tutorials and scripts available at: www.SearchRadiology.com/RadLex
