Presentation Transcript
Module 2 1 pharmacodynamics l.jpg

Module 2# 1Pharmacodynamics

Kash Desai


HSc A120

Slide3 l.jpg

Drug Receptors and Pharmacodynamics(how drugs work on the body)

The action of a drug on the body, including receptor interactions, dose-response phenomena, and mechanisms of therapeutic and toxic action.

Slide4 l.jpg



(how drugs work on the body)

  • many drugs inhibit enzymes

  • Enzymes control a number of metabolic processes

  • A very common mode of action of many drugs

    • in the patient (ACE inhibitors)

    • in microbes (sulfas, penicillins)

    • in cancer cells (5-FU, 6-MP)

  • some drugs bind to:

    • proteins (in patient, or microbes)

    • the genome (cyclophosphamide)

    • microtubules (vincristine)

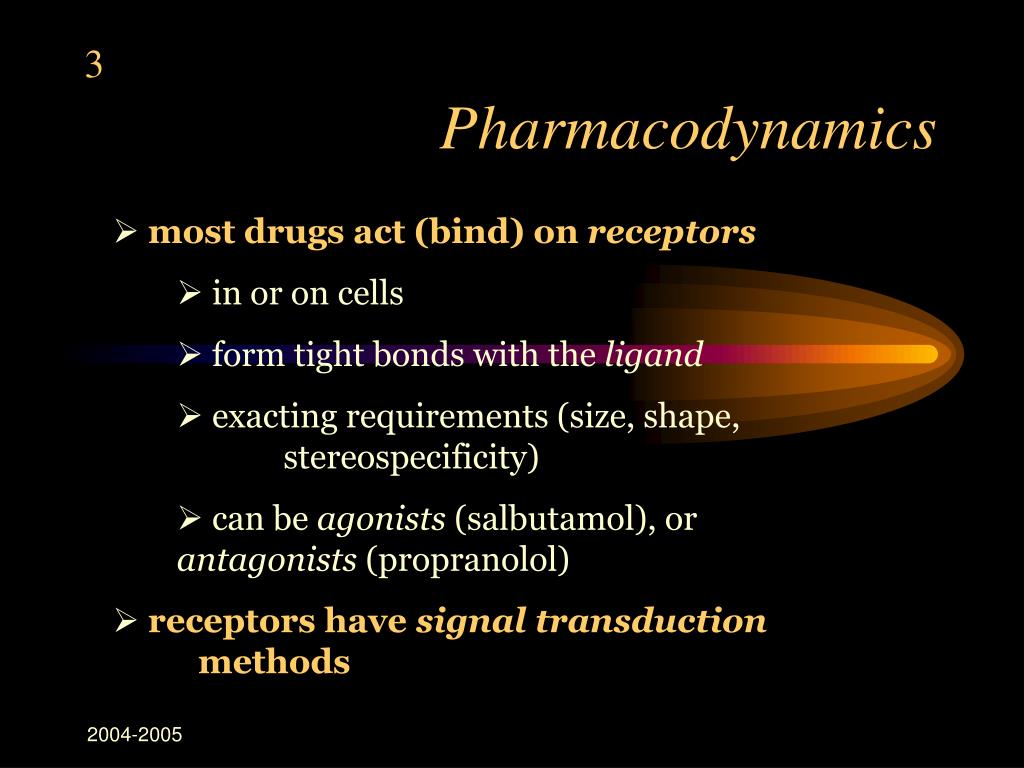

Pharmacodynamics l.jpg



  • most drugs act (bind) on receptors

    • in or on cells

    • form tight bonds with the ligand

    • exacting requirements (size, shape, stereospecificity)

    • can be agonists (salbutamol), or antagonists (propranolol)

  • receptors have signal transduction methods

Drug receptor l.jpg
Drug Receptor

  • A macromolecular component of a cell with which a drug interacts to produce a response

  • Usually a protein

Types of protein receptors l.jpg
Types of Protein Receptors

  • Regulatory – change the activity of cellular enzymes

  • Enzymes – may be inhibited or activated

  • Transport – e.g. Na+ /K+ ATP’ase

  • Structural – these form cell parts

Dose response curves l.jpg


dose response curves

k 1

[D] + [R] [DR] effect

k -1

k1/k-1 = affinity const.

k-1/k1 = dissociation const.(kd)

at equilibrium:

[D] x [R] x k1 = [DR] x k-1

so that: [DR] = k1

[D] [R] k-1

the lower the kd the more potent the drug

Drug receptor binding l.jpg
Drug - Receptor Binding

D + R DR Complex

Affinity – measure of propensity of a drug to bind receptor; the attractiveness of drug and receptor

  • Covalent bonds are stable and essentially irreversible

  • Electrostatic bonds may be strong or weak, but are usually reversible


Drug receptor interaction l.jpg
Drug Receptor Interaction

Efficacy (or Intrinsic Activity) – ability of a bound drug to change the receptor in a way that produces an effect; some drugs possess affinity but NOT efficacy


DR Complex

Slide11 l.jpg

Drug-receptor interaction


Drug + Free Receptor

Drug-receptor Complex


(100 - DR)




D = drug concentration

DR= concentration of drug-receptor complex

100 - DR = free receptor concentration

Drug receptor interaction12 l.jpg
Drug-receptor interaction

  • At equilibrium:

    [D] x [R] x k1 = [DR] x k-1

    so that: [DR] = k1

    [D] [R] k-1

    k-1/k1 = dissociation constant (kd)

What can we learn l.jpg

  • At equilibrium:

    [D] x [R] x k1 = [DR] x k-1

    so that: [DR] = k1

    [D] [R] k-1

    k-1/k1 = dissociation constant (kd)

What can we learn?

  • Ke (k1/k-1) is called the affinity constant

  • DR is the response; D is concentration of drug

  • when DR = 50 percent (effect is half maximal), D (or EC50) is equal to kd or the reciprocal of the affinity constant

  • response is a measure of efficacy

  • drugs that have parallel dose-response curves often have the same mechanism of action

Dose response curves 2 l.jpg

% occupancy


dose response curves-2

effect = [DR] = Emax* [D]/([D]+EC50)

Concept: spare receptors

Arithmetic dose scale l.jpg
Arithmetic Dose Scale

  • Rate of change is rapid at first and becomes progressively smaller as the dose is increased

  • Eventually, increments in dose produce no further change in effect i.e., maximal effect for that drug is obtained

  • Difficult to analyze mathematically

Log dose scale l.jpg
Log Dose Scale

  • transforms hyperbolic curve to a sigmoid (almost a straight line)

  • compresses dose scale

  • proportionate doses occur at equal intervals

  • straightens line

  • easier to analyze mathematically

Potency l.jpg

Relative position of the dose-effect curve along the dose axis

Has little clinical significance for a given therapeutic effect

A more potent of two drugs is not clinically superior

Low potency is a disadvantage only if the dose is so large that it is awkward to administer


Slide19 l.jpg

Relative Potency axis







Slide20 l.jpg

7 axis

Why are there spare receptors?

  • allow maximal response without total receptor occupancy – increase sensitivity of the system

  • spare receptors can bind (and internalize) extra ligand preventing an exaggerated response if too much ligand is present

The receptor theory assumes that all receptors should be occupied to produce a maximal response. In that case at half maximal effect EC50=kd. Sometimes, full effect is seen at a fractional receptor occupation

A gonists and antagonists l.jpg

10 axis

Agonists and antagonists

  • agonist has affinity plus intrinsic activity

  • antagonist has affinity but no intrinsic activity

  • partial agonist has affinity and less intrinsic activity

  • competitive antagonists can be overcome

Agonist drugs l.jpg
Agonist Drugs axis

  • drugs that interact with and activate receptors; they possess both affinity and efficacy

  • two types

    • Full – an agonist with maximal efficacy

    • Partial – an agonist with less then maximal efficacy

Slide23 l.jpg

Agonist Dose Response Curves axis

Full agonist

Partial agonist



Antagonist drug l.jpg
Antagonist Drug axis

  • Antagonists interact with the receptor but do NOT change the receptor

  • they have affinity but NO efficacy

  • two types

    • Competitive

    • Noncompetitive

Competitive antagonist l.jpg
Competitive Antagonist axis

  • competes with agonist for receptor

  • surmountable with increasing agonist concentration

  • displaces agonist dose response curve to the right (dextral shift)

  • reduces the apparent affinity of the agonist i.e., increases 1/Ke

Noncompetitive antagonist l.jpg
Noncompetitive Antagonist axis

  • drug binds to receptor and stays bound

  • irreversible – does not let go of receptor

  • produces slight dextral shift in the agonist DR curve in the low concentration range

  • this looks like competitive antagonist

  • but, as more and more receptors are bound (and essentially destroyed), the agonist drug becomes incapable of eliciting a maximal effect

D esensitization l.jpg

11 axis


  • agonists tend to desensitize receptors

    • homologous (decreased receptor number)

    • heterologous (decreased signal transduction)

  • antagonists tend to up regulate receptors

Dose response curves 3 quantal dose response curves used in populations response is yes no l.jpg

8 axis

doseresponsecurves-3quantal dose response curves(used in populations, response is yes/no)

Therapeutic index =Toxic Dose50/Effective Dose50 (TD50/ED50)

Dr curve whole animal l.jpg
DR Curve: Whole Animal axis

  • Graded – response measured on a continuous scale

  • Quantal – response is an either/or event

    • relates dose and frequency of response in a population of individuals

    • often derived from frequency distribution of doses required to produce a specified effect

Effectiveness toxicity lethality l.jpg
Effectiveness, toxicity, lethality axis

  • ED50 - Median Effective Dose 50; the dose at which 50 percent of the population or sample manifests a given effect; used with quantal dr curves

  • TD50 - Median Toxic Dose 50 - dose at which 50 percent of the population manifests a given toxic effect

  • LD50 - Median Toxic Dose 50 - dose which kills 50 percent of the subjects

Quantification of drug safety l.jpg
Quantification of drug safety axis

TD50 or LD50

Therapeutic Index =


Slide32 l.jpg

Drug A axis











Slide33 l.jpg

Drug B axis











Slide34 l.jpg

9 axis

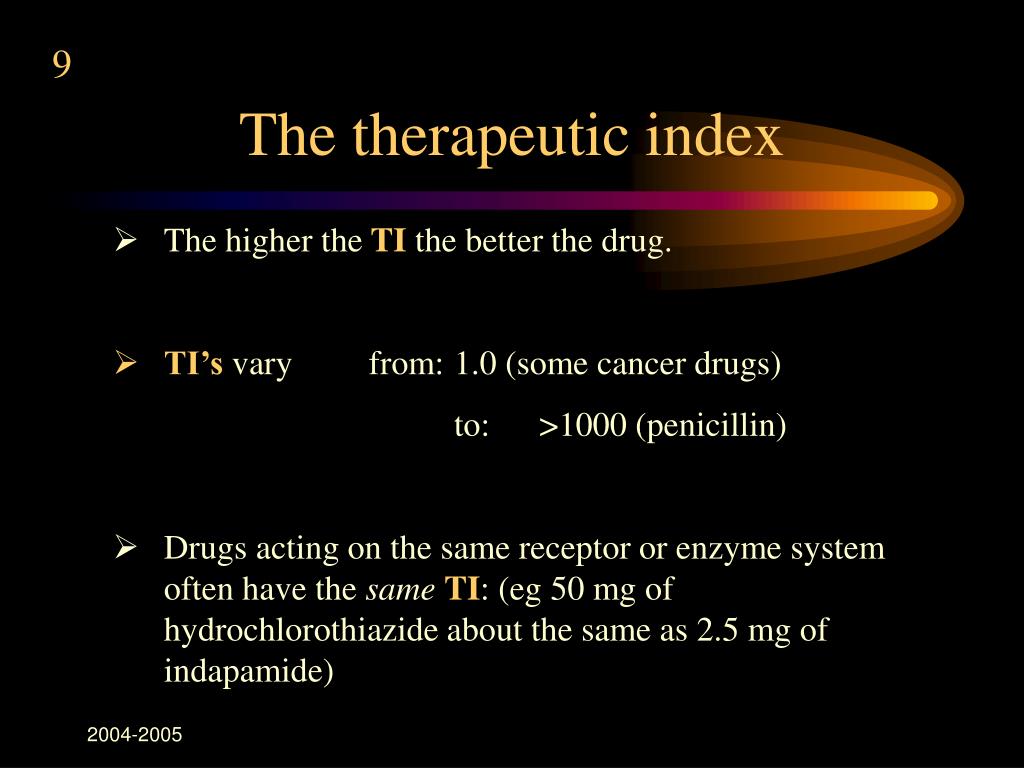

The therapeutic index

  • The higher theTI the better the drug.

  • TI’s vary from: 1.0 (some cancer drugs)

    to: >1000 (penicillin)

  • Drugs acting on the same receptor or enzyme system often have the same TI: (eg 50 mg of hydrochlorothiazide about the same as 2.5 mg of indapamide)

S ignal transduction l.jpg

  • ion channel linked

    • (speedy)

  • G protein linked

    • (amplifier)

  • nuclear (gene) linked

    • (long lasting)


Signal transduction

Slide36 l.jpg

  • Structure: axis

  • Single polypeptide chain threaded back and forth resulting in 7 transmembrane å helices

  • There’s a G protein attached to the cytoplasmic side of the membrane (functions as a switch).

1. G protein-linked receptors

Slide38 l.jpg

  • 2. Tyrosine-kinase receptors axis

  • Structure:

    • Receptors exist as individual polypeptides

    • Each has an extracellular signal-binding site

    • An intracellular tail with a number of tyrosines and a single å helix spanning the membrane

Slide40 l.jpg

Slide41 l.jpg

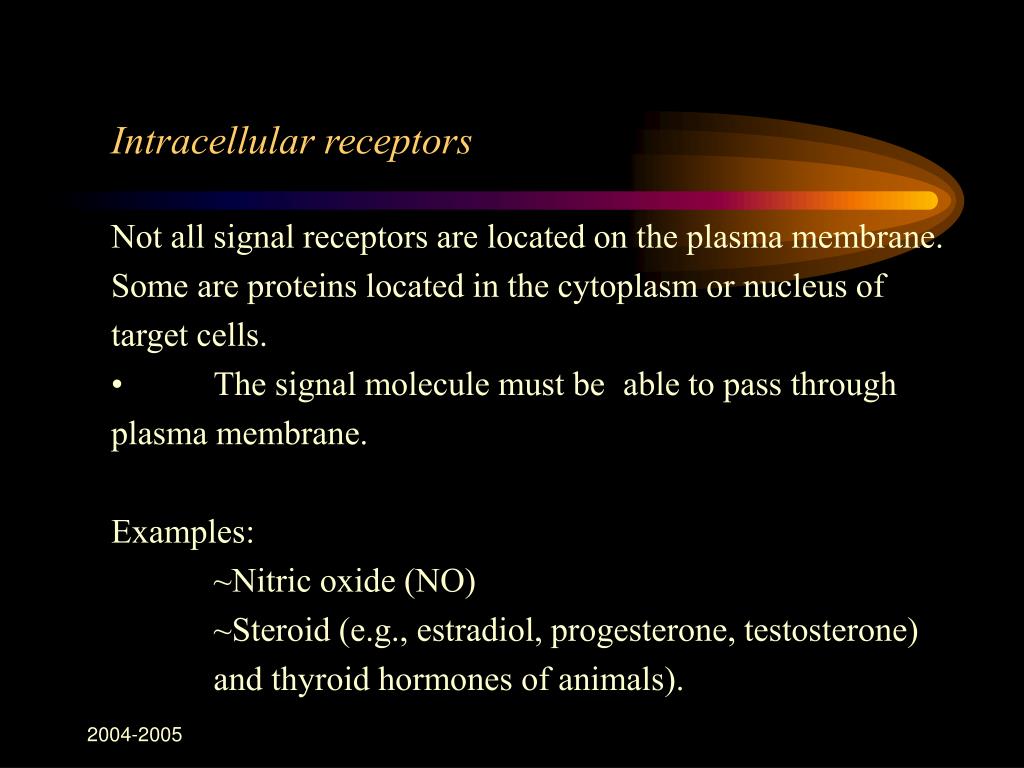

Intracellular receptors axis

Not all signal receptors are located on the plasma membrane. Some are proteins located in the cytoplasm or nucleus of target cells.

• The signal molecule must be able to pass through plasma membrane.


~Nitric oxide (NO)

~Steroid (e.g., estradiol, progesterone, testosterone) and thyroid hormones of animals).

Slide42 l.jpg

  • B. Second Messengers axis

    • Small, nonprotein, water-soluble molecules or ions

    • Readily spread throughout the cell by diffusion

    • Two most widely used second messengers are:

      • 1. Cycle AMP

      • 2. Calcium ions Ca2+

Slide43 l.jpg

  • 2. Calcium Ions (Ca axis2+) and Inositol Trisphosphate

    • Calcium more widely used than cAMP

      • used in neurotransmitters, growth factors, some hormones

    • Increases in Ca2+ causes many possible responses:

      • Muscle cell contraction

      • Secretion of certain substance

      • Cell division

Slide44 l.jpg

  • Two benefits of a signal-transduction pathway axis

  • 1. Signal amplification

  • 2. Signal specificity

  • A. Signal amplification

    • Proteins persist in active form long enough to process numerous molecules of substrate

    • Each catalytic step activates more products then in the proceeding steps

Summary l.jpg

12 axis


  • most drugs act through receptors

  • there are 4 common signal transduction methods

  • the interaction between drug and receptor can be described mathematically and graphically

  • agonists have both affinity (kd) and intrinsic activity ()

  • antagonists have affinity only

  • antagonists can be competitive (change kd) or

  • non-competitive (change ) when mixed with agonists

  • agonists desensitize receptors.

  • antagonists sensitize receptors.
