Presentation Transcript
ncpsma 2010 workshop ridgecrest nc

NCPSMA 2010 WorkshopRidgecrest, NC

“Required Facilities Plan Review by School Planning, DPI”

Roger W. Ballard

Consulting Architect

School Planning Section

School Support Division

NC Department of Public Instruction

Raleigh, NC

Website: www.schoolclearinghouse.org

outline required facilities plan review by school planning dpi
OUTLINE “ Required Facilities Plan Review by School Planning, DPI”
  • Projects we review vs. Projects we don’t review
  • Pre-Engineered Buildings
  • Modular Units and Modular Construction
  • Bleachers / Grandstands
  • Athletic Out-Buildings / Other Small Projects

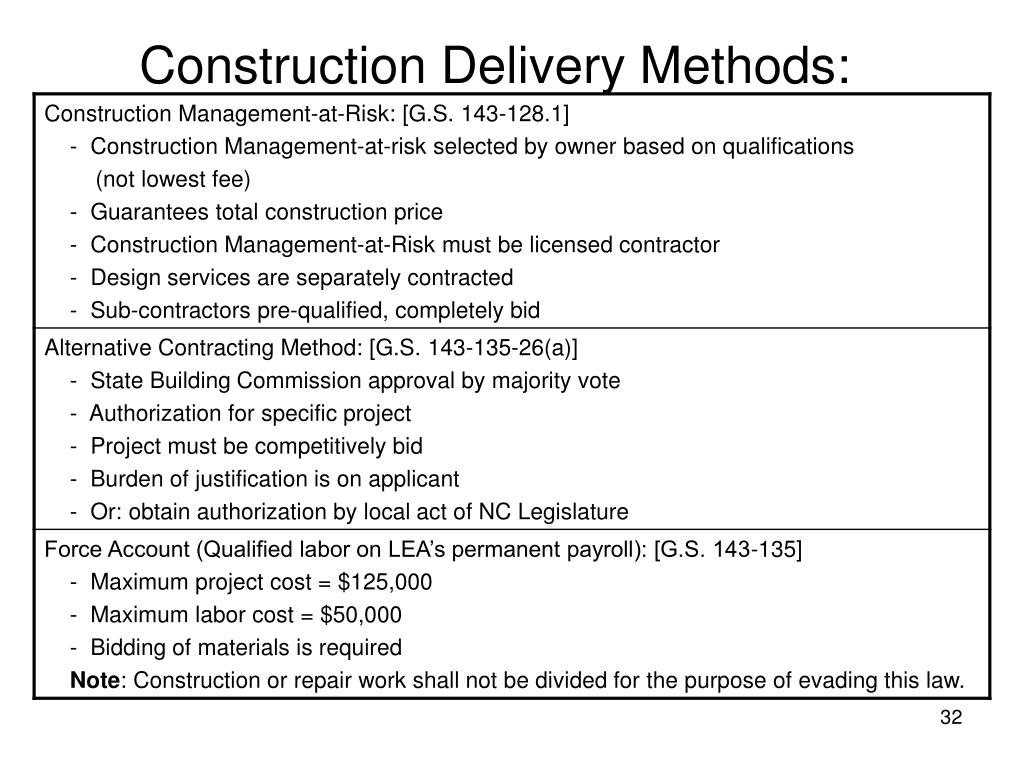

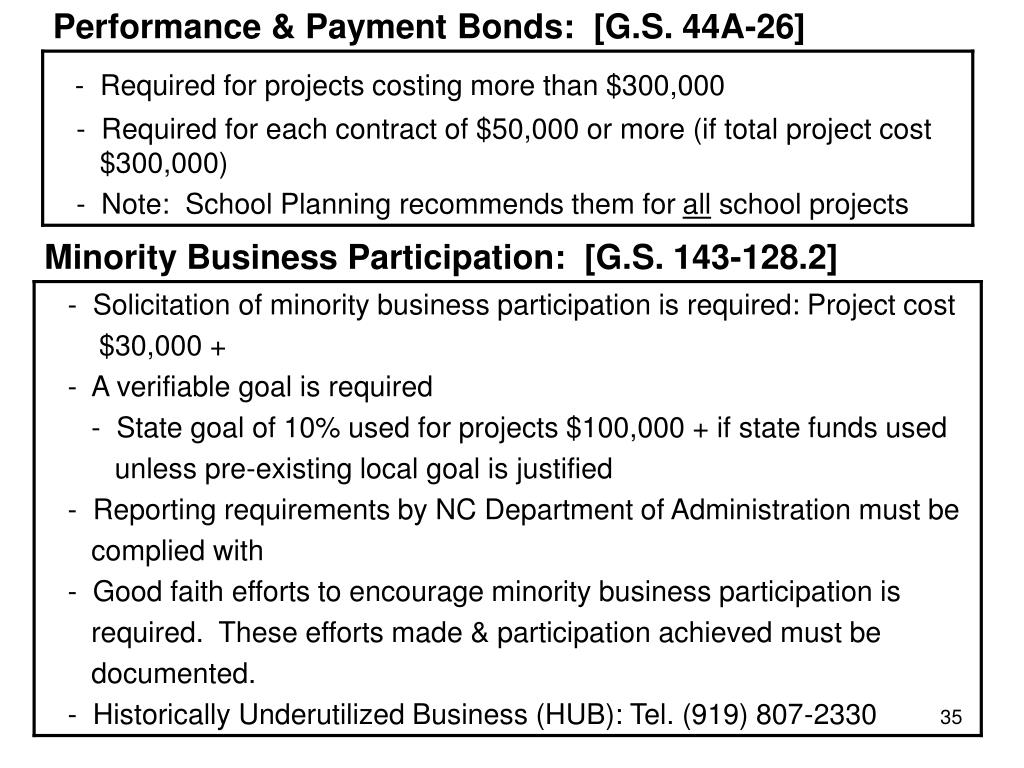

  • Contract/Construction Requirements for Public School Projects

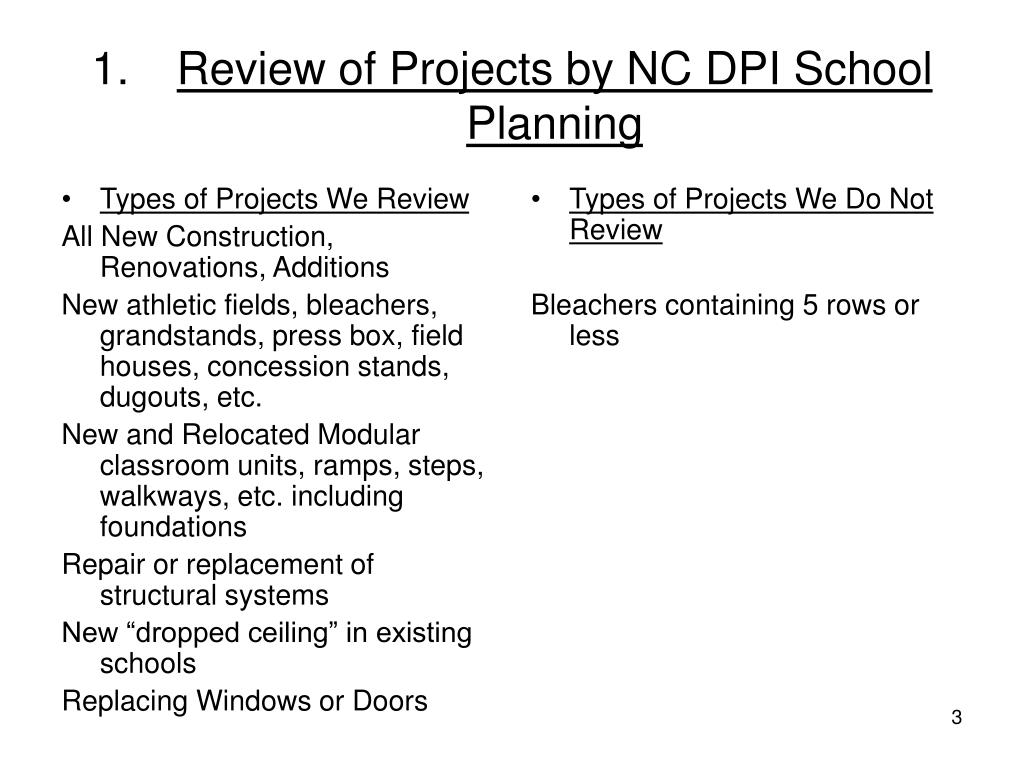

1 review of projects by nc dpi school planning
Types of Projects We Review

All New Construction, Renovations, Additions

New athletic fields, bleachers, grandstands, press box, field houses, concession stands, dugouts, etc.

New and Relocated Modular classroom units, ramps, steps, walkways, etc. including foundations

Repair or replacement of structural systems

New “dropped ceiling” in existing schools

Replacing Windows or Doors

Types of Projects We Do Not Review

Bleachers containing 5 rows or less

1. Review of Projects by NC DPI School Planning

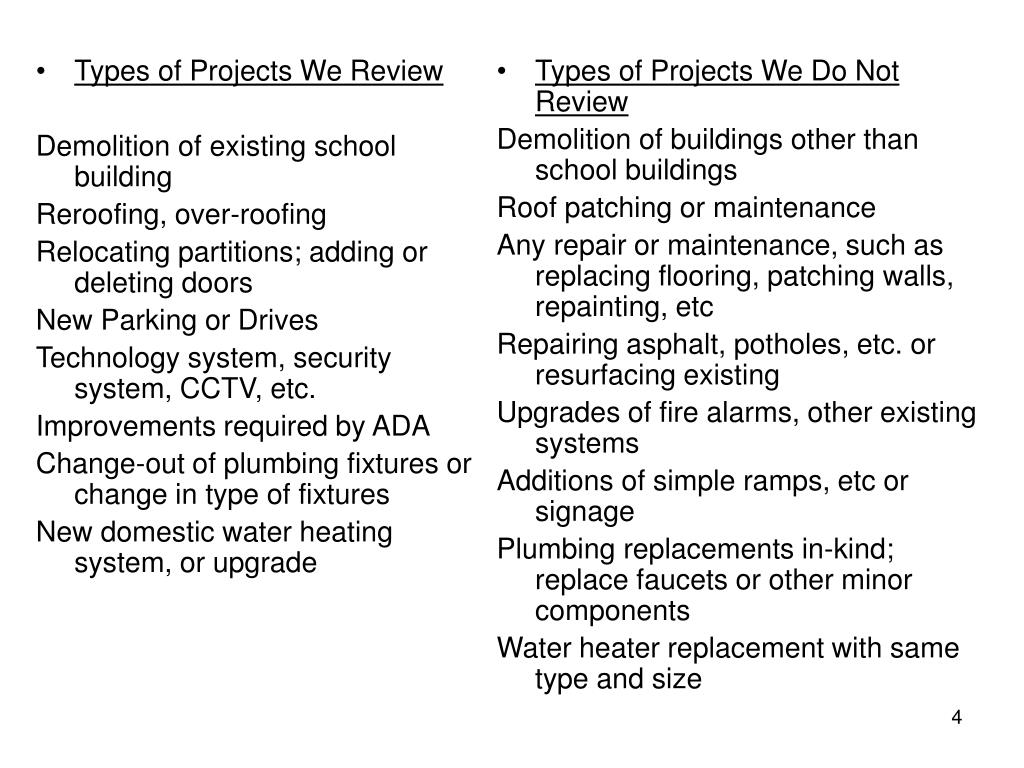

slide4
Types of Projects We Review

Demolition of existing school building

Reroofing, over-roofing

Relocating partitions; adding or deleting doors

New Parking or Drives

Technology system, security system, CCTV, etc.

Improvements required by ADA

Change-out of plumbing fixtures or change in type of fixtures

New domestic water heating system, or upgrade

Types of Projects We Do Not Review

Demolition of buildings other than school buildings

Roof patching or maintenance

Any repair or maintenance, such as replacing flooring, patching walls, repainting, etc

Repairing asphalt, potholes, etc. or resurfacing existing

Upgrades of fire alarms, other existing systems

Additions of simple ramps, etc or signage

Plumbing replacements in-kind; replace faucets or other minor components

Water heater replacement with same type and size

slide5
Types of Projects We Review

New HVAC systems; new boilers; new chillers; changes in type of system; demo and replacement of air distribution system, etc.

Upgrade or redesign HVAC control system

New energy conservation system

Complete replacement of exist HVAC or plumbing piping system; extension of existing system

Major components of Power Distribution System

New lighting systems (interior or exterior)

Any new system affecting health, or welfare of students or personnel such as fire suppression, emergency power generation, etc

Types of Projects We Do Not Review

HVAC equipment replacement in-kind; small air handling or condensing units (5 ton or less); air diffusers and grills; fan, heaters, etc.

Replacement of HVAC control components

Repair of existing insulation

Repair of existing piping

Adding electrical outlets to existing systems

Replacing or adding lighting fixtures to existing systems

Replacement of isolated safety components with new elements meeting code and similar to those currently in service

2 pre engineered buildings

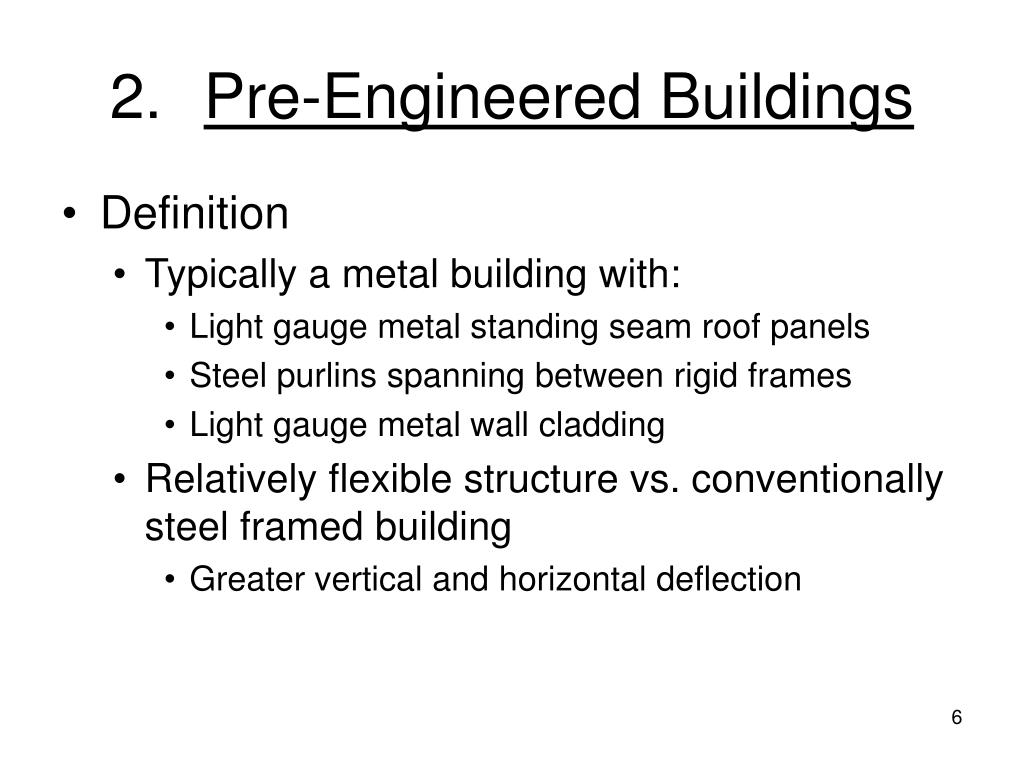

2. Pre-Engineered Buildings
  • Definition
    • Typically a metal building with:
      • Light gauge metal standing seam roof panels
      • Steel purlins spanning between rigid frames
      • Light gauge metal wall cladding
    • Relatively flexible structure vs. conventionally steel framed building
      • Greater vertical and horizontal deflection
2 pre engineered buildings7
2. Pre-Engineered Buildings
  • General
    • May be purchased by local school boards as
      • Part of a new school project, addition or renovation
      • Stand-alone building project
    • Must be designed by NC licensed architect and/or engineer
    • Must be submitted to School Planning, DPI for review (G.S. 115C-521)
    • Superstructure designed by certified engineer and fabricated by a pre-engineered manufacturer as a complete system
      • Foundation system designed by an independent NC licensed structural engineer (engineer of record for the project)
      • Engineer of Record shall review and approve the pre-engineered manufacturer’s shop drawings
2 pre engineered buildings8
2. Pre-Engineered Buildings
  • School Planning will issue a Certificate of Review upon completion of the review and certification that the Engineer of Record has reviewed and approved the pre-engineered structural system
  • Project architect and engineer (Architect/Engineer of record) must be in the employment of the owner (G.S. 133-1)
    • Project designers cannot be employed by or have financial interest in manufacturers or suppliers of pre-engineered structures
2 pre engineered buildings9
2. Pre-Engineered Buildings
  • Advantages to Pre-Engineered Buildings
    • Fast erection
    • Low cost if manufacturer’s standard package/inventory and no add-ons
    • Open clear span
    • Easily expanded to match needs
  • Disadvantages
    • Marginal design, material and construction
    • Not energy efficient
    • Higher lifetime maintenance
    • Not durable for long term use (10-15 years max.)
    • May not include all construction/fit-up needed for intended building use
    • No secondary roof membrane
    • Usually no internally finished walls

Note: Pre-engineered buildings are generally not recommended for school

buildings except for non-instructional purposes: storage, maintenance

facility, etc

2 pre engineered buildings10
2. Pre-Engineered Buildings
  • Items to Consider:
    • All manufacturer’s drawings and design calculations
      • Affix Professional seal and signature of NC Licensed professional engineer
    • Roof system is very light. Check NC Code wind uplift attachment requirements for:
      • Roof deck
      • Roof structural members
      • Anchorage of steel columns and column piers/footings
    • Roof deck has little diaphragm capacity
      • Horizontal cross-bracing: on roof plane in both directions
    • Check roof structural members for surcharge load due to snow drifting
2 pre engineered buildings11
2. Pre-Engineered Buildings
  • Provide portal frames and/or cross bracing at side walls for proper building stabilization
  • Use pre-engineered frame at end walls and wind columns
    • System should easily accommodate future expansion
  • Horizontal ties or hairpins to resist outward thrust at base of rigid frame’s column
  • Check foundation system against forces calculated by pre-engineered manufacturer
  • Provide for and locate all collateral loads
    • Sprinklers
    • Basketball goals
    • Exhaust fans
    • Underhung equipment
    • Mechanical and Electrical systems
    • Ceilings
2 pre engineered buildings12
2. Pre-Engineered Buildings
  • Field modifications of structural members
    • Approved by pre-engineered building manufacturer
    • Carried out under supervision of engineer of record or a registered structural engineer.
  • Brick veneer and/or masonry wall enclosures
    • Specify limitation of horizontal deflection/lateral drift of the pre-engineered frames
  • We recommend the pre-engineered manufacturer be an AISC (American Institute of Steel Construction) certified steel fabricator
2 pre engineered buildings13
2. Pre-Engineered Buildings
  • Minimum Drawings for DPI, School Planning Section
    • Site plan showing relationship to:
      • Drives
      • Walks
      • Parking areas
      • Playfields
      • Utilities
      • Other buildings and site improvements
      • Property lines
2 pre engineered buildings14

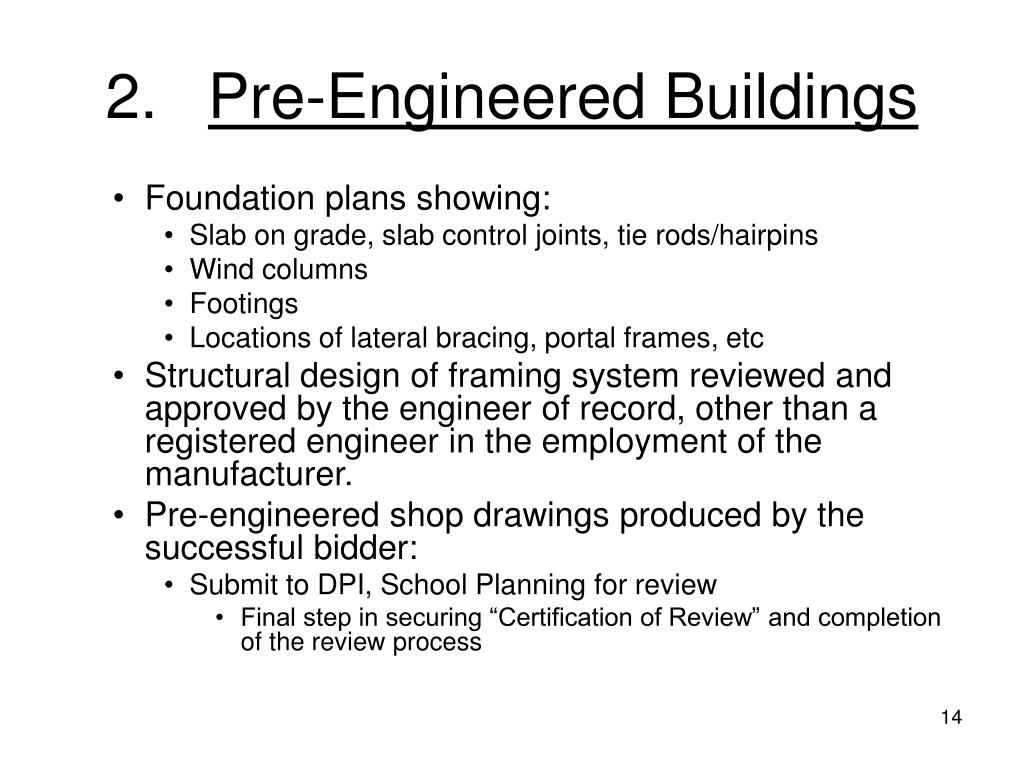

2. Pre-Engineered Buildings
  • Foundation plans showing:
    • Slab on grade, slab control joints, tie rods/hairpins
    • Wind columns
    • Footings
    • Locations of lateral bracing, portal frames, etc
  • Structural design of framing system reviewed and approved by the engineer of record, other than a registered engineer in the employment of the manufacturer.
  • Pre-engineered shop drawings produced by the successful bidder:
    • Submit to DPI, School Planning for review
      • Final step in securing “Certification of Review” and completion of the review process
2 pre engineered buildings15

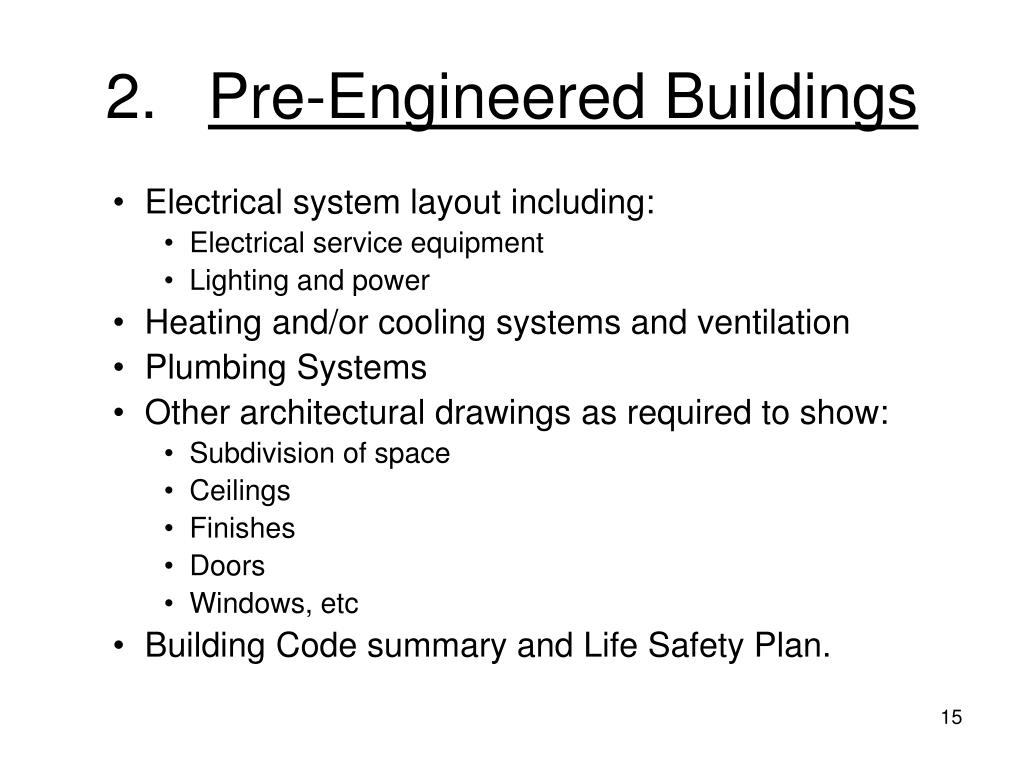

2. Pre-Engineered Buildings
  • Electrical system layout including:
    • Electrical service equipment
    • Lighting and power
  • Heating and/or cooling systems and ventilation
  • Plumbing Systems
  • Other architectural drawings as required to show:
    • Subdivision of space
    • Ceilings
    • Finishes
    • Doors
    • Windows, etc
  • Building Code summary and Life Safety Plan.
3 modular units and modular construction g s 115c 521 g s chapter 143
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • Mobile/Modular Buildings (freestanding, temporary, relocatable, single classroom or toilet units)
    • Bidding for purchase and installation laws similar to on-site, stick-built buildings
    • DPI, School Planning must review and approve plans
3 modular units and modular construction g s 115c 521 g s chapter 14317
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • Modular Construction (as opposed to mobile/modular buildings)
    • Factory constructed modular components transported to the site
      • Entire sections of the building per-fabricated by mobile/modular manufacturer
      • Or smaller components: wall panels, roofing panels, etc.
    • Site already prepared with foundations and underground utilities
    • When the components are joined together the building is known as “modular construction”
      • Permanent building using pre-manufactured units
        • Even if technically possible to disassemble and move them
    • Modular Units assembled to form more than single classroom and/or requiring halls, toilets, etc. becomes permanent modular construction
      • Must comply with all general statutes related to construction
      • Must undergo complete state and local plan review
      • Sometimes referred to as “Mega-Modulars”
3 modular units and modular construction g s 115c 521 g s chapter 14318
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • General Requirements for Freestanding Mobil/Modular Units
    • General Statutes for permanent, site-built structures to be followed
      • Taking bids for purchase
        • Formal or informal (depending on dollar value)
      • Must meet NC State Building Code requirements
      • Shop drawings: Approval Stamp from third party certification agency approved by the NC Department of Insurance (DOI)
      • Manufacturers must be approved for commercial construction by the Manufactured Building Section of DOI
      • Wind and other locale-specific code provisions must be met
3 modular units and modular construction g s 115c 521 g s chapter 14319
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • Site-Specific Procedures (new and relocated Units)
    • Submit plans to School Planning for review and comment
    • Submit plans to local building inspector for approval and permitting
    • Plans shall indicate the following information:
      • Site Plan
        • Proposed location of units and any joining of multiple units
        • Distances to both staff and student toilets (200 ft. max.)
        • Building Code toilet facilities required for entire campus (may require modular toilet units)
3 modular units and modular construction g s 115c 521 g s chapter 14320

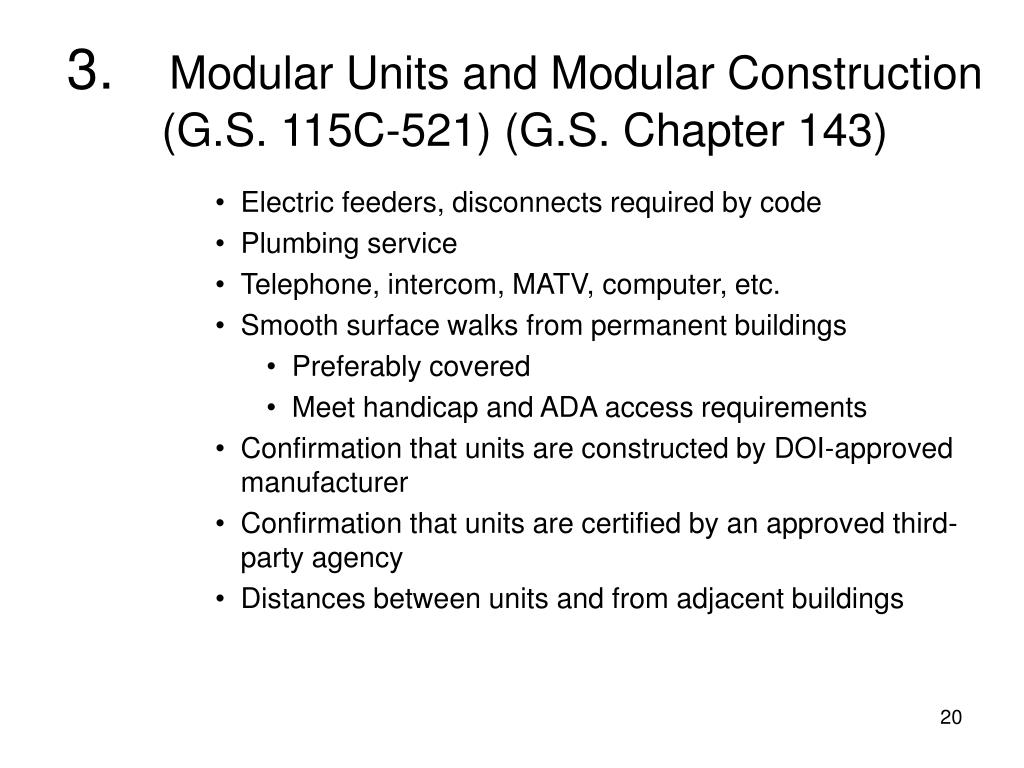

3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • Electric feeders, disconnects required by code
  • Plumbing service
  • Telephone, intercom, MATV, computer, etc.
  • Smooth surface walks from permanent buildings
    • Preferably covered
    • Meet handicap and ADA access requirements
  • Confirmation that units are constructed by DOI-approved manufacturer
  • Confirmation that units are certified by an approved third-party agency
  • Distances between units and from adjacent buildings
3 modular units and modular construction g s 115c 521 g s chapter 14321
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)

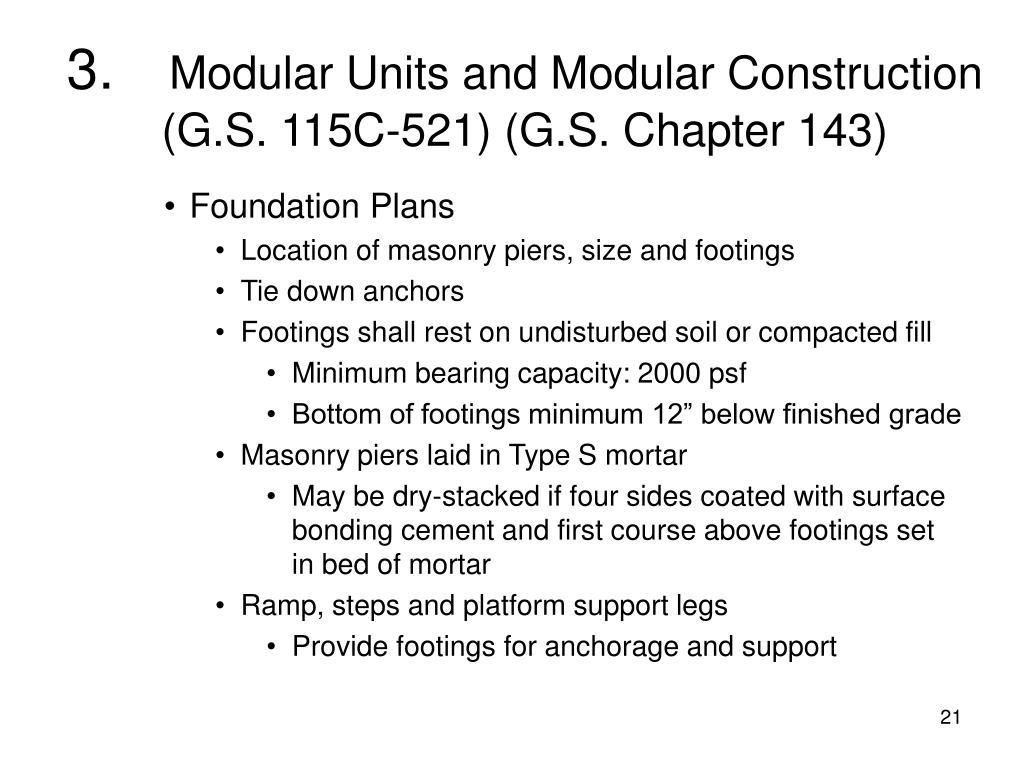

  • Foundation Plans
    • Location of masonry piers, size and footings
    • Tie down anchors
    • Footings shall rest on undisturbed soil or compacted fill
      • Minimum bearing capacity: 2000 psf
      • Bottom of footings minimum 12” below finished grade
    • Masonry piers laid in Type S mortar
      • May be dry-stacked if four sides coated with surface bonding cement and first course above footings set in bed of mortar
    • Ramp, steps and platform support legs
      • Provide footings for anchorage and support
3 modular units and modular construction g s 115c 521 g s chapter 14322
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • Building Plans
    • Submit manufacturer’s architectural drawings
      • Showing compliance with NC Building Code
      • Accessibility provisions
      • Fire Code
      • Plumbing Code
      • Seal and signature of architect or engineer licensed in NC
    • Submit manufacturer’s plumbing, mechanical and electrical drawings bearing seal and signature of engineer licensed in NC
3 modular units and modular construction g s 115c 521 g s chapter 14323
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • Other Considerations
    • Indicate other connections to permanent buildings
    • Though not required by Code, School Planning recommends:
      • Two-way intercom systems for safety
      • Computer networking
      • Telephone systems
      • MATV connections
      • All the above between all units and the permanent school structures
3 modular units and modular construction g s 115c 521 g s chapter 14324
3. Modular Units and Modular Construction (G.S. 115C-521) (G.S. Chapter 143)
  • During on-site assembly multiple classroom and large buildings require particular attention to:
    • Life safety systems
    • Fire code provisions
    • Plumbing and electrical connections
  • HVAC units should be inspected, tuned and balanced before occupancy
    • This is especially true if modular units/buildings are being relocated.
4 bleachers and grandstands

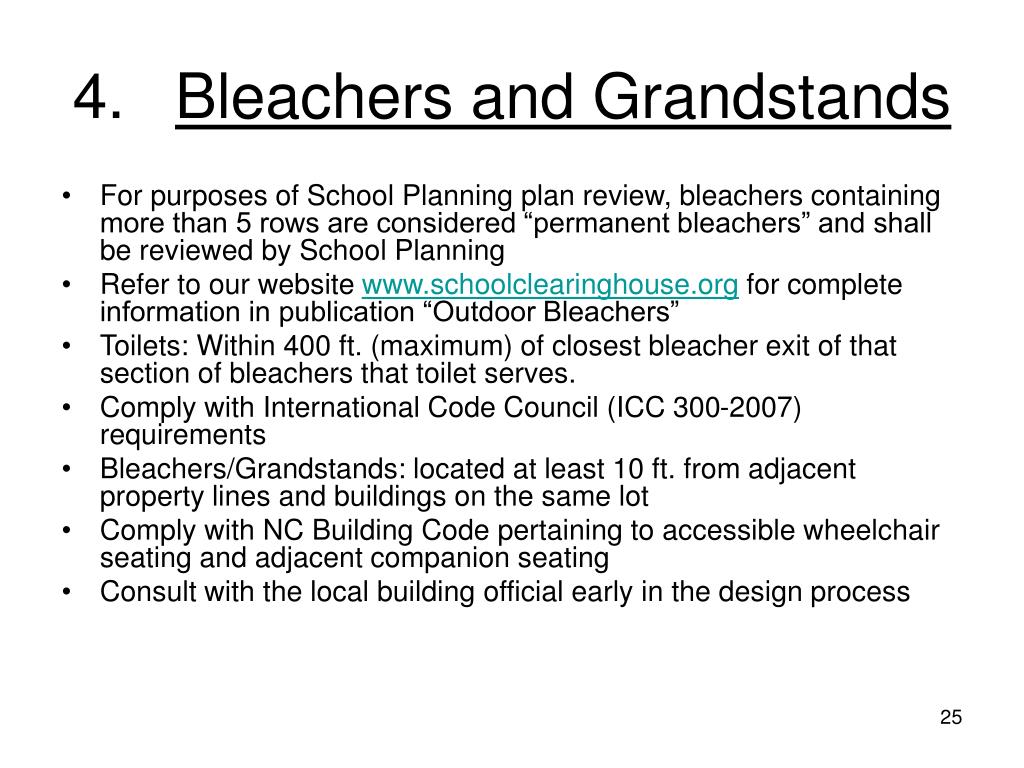

4. Bleachers and Grandstands
  • For purposes of School Planning plan review, bleachers containing more than 5 rows are considered “permanent bleachers” and shall be reviewed by School Planning
  • Refer to our website www.schoolclearinghouse.org for complete information in publication “Outdoor Bleachers”
  • Toilets: Within 400 ft. (maximum) of closest bleacher exit of that section of bleachers that toilet serves.
  • Comply with International Code Council (ICC 300-2007) requirements
  • Bleachers/Grandstands: located at least 10 ft. from adjacent property lines and buildings on the same lot
  • Comply with NC Building Code pertaining to accessible wheelchair seating and adjacent companion seating
  • Consult with the local building official early in the design process
4 bleachers and grandstands26
4. Bleachers and Grandstands
  • Minimum drawings for bleacher/grandstand projects submitted for plan review:
    • Site plan showing playfields, drives, walks, parking, buildings, handicapped accessibility, property lines nearby, toilet facilities location and distance
    • Plan showing seating layout, aisles, ramps, steps, railings, guards, handicapped seating, dimensions to adjacent site features
    • Cross section showing seat/foot boards, railings/guards, foundations, concrete slab under footprint and structural elements
    • Include: riser height, row spacing, heights above grade, railing/guard heights
    • Provide enlarged details needed to describe project fully
    • Submit bleacher/grandstand shop drawings from successful bidder for final step in receipt of “Certificate of Review”
5 athletic out buildings other small projects
5. Athletic Out-Buildings / Other Small Projects

Small projects, including:

  • Concession stands - press boxes
  • Athletic/shop facilities - weight rooms
  • Field houses - storage facilities
  • Permanent greenhouses - ticket booths
  • Baseball dugouts
  • Bleachers
  • Toilet buildings
5 athletic out buildings other small projects28
5. Athletic Out-Buildings / Other Small Projects

Minimum drawings required for small projects:

  • Site plan (project location, - finishes

existing buildings, walks, - HVAC (if any)

drives, etc.) - plumbing (if any)

  • Floor plan/s - electrical (if any)
  • Foundation plan - site utilities
  • Wall sections
  • Elevations
  • Details

Note: Even though some of these projects will not require being

designed by a registered architect/engineer, the designer’s

name and address must be on the drawings [G.S. 133-1.1(e)]

6 contract construction requirements for public schools projects
6. Contract / Construction Requirements For Public Schools Projects

Projects Requiring Licensed Architect/Engineer:

[G.S. 133-1.1(a)] *Projects Cost

Threshold

*Project costs are market value / replacement costs if competitively bid (not

reduced by any donated labor, material or cash)

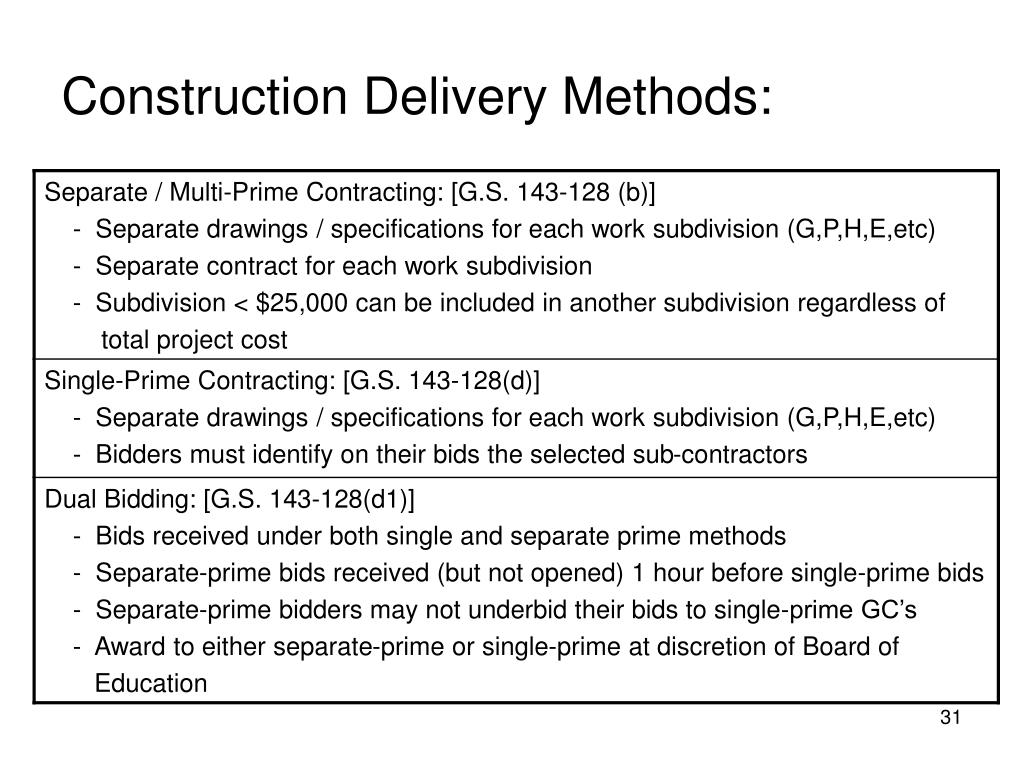

selection of design professional architect engineer construction manager g s 143 64 31
Selection of Design Professional (Architect / Engineer / Construction Manager): [G.S. 143-64.31]
slide35

Performance & Payment Bonds: [G.S. 44A-26]

Minority Business Participation: [G.S. 143-128.2]

slide38

Alternate Bid for Preferred Brand/s: [G.S. 133-3]

NC Department of Insurance Review of School Projects: [G.S. 58-34-40]
