hw group complete ip acs solution
HW group = complete IP ACS solution

HW group provide complete IP ACS solution for IT department or System Integrators.

  • HW group recommends you lock type which can be used in your mechanical environment.
  • HW group provides you IP based unit (LAN or GSM) for control the locks.
  • HW group offers you application software as well as integration with 3rd party software solutions.
sms access control
SMS Access Control

Text:

4

5

2

3

Rack 54

Send

Mr. Pink

23

rfid card access control
RFID Card Access Control

Mr. Green

801F0652073704

what is different on hwg acs
What is different on HWg ACS?
  • HWg IP-based ACS is focused for high volume applications.
  • HWg IP-based ACS can be used even as fully standalone solution.
  • HWg ACS can be implemented by System Integrator or by IT Department of the final customer.
  • HWg ACS can be easily integrated to any existing Software Application.
benefits for the customer
Benefits for the customer

Real added value of Controlled Access for final customer (Collocation Center).

  • You can receive SMS or Email from every door opening or unknown card attempt.
  • Open swing handle by: SMS, RFID tag, DIN key, Web or from operator command centre
  • Who was in your cabinet and when? You know and you are independent on the collocation center administrator.
  • Manage RFID cards remotely over web or central software.
ip access control for industry
IP Access Control for industry

ACS (Access Control System) from HW group is fully IP based and support various locks.

door access control options
Door Access Control options

With HWg Access control you can open each doors with several ways:

  • Local: Mechanical key
  • Local: RFID / Keypad / Finger print
  • Remotely GSM: Over SMS
  • Remotely IP: Central RFID reader
  • Remotely IP: Device Web interface
  • Remotely IP: Central SW (HWg-DCD)
  • Remotely IP: 3rd party SW (SDK / SNMP)
online offline ip access system
Online / Offline IP Access system

OnlineIP Access Control

OfflineIP Access Control

  • Enterprise solution (scalable)
  • Require full time IP connection
  • No local database (White list only)
  • Central software (server required)
  • SDK for integration with 3rd party SW
  • Standalone solution
  • Full Web management
  • Local users database
  • Email / SMS reports
  • No software / server required
offline system pharmacy

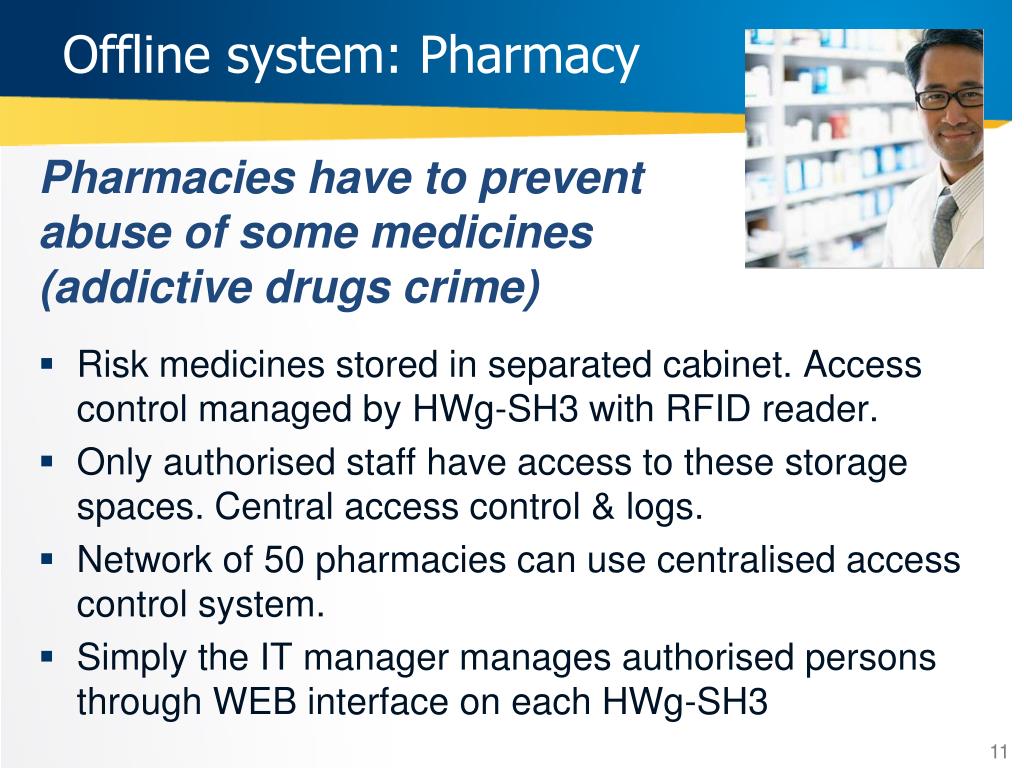

Offline system: Pharmacy

Pharmacies have to prevent abuse of some medicines (addictive drugs crime)

  • Risk medicines stored in separated cabinet. Access control managed by HWg-SH3 with RFID reader.
  • Only authorised staff have access to these storage spaces. Central access control & logs.
  • Network of 50 pharmacies can use centralised access control system.
  • Simply the IT manager manages authorised persons through WEB interface on each HWg-SH3
o n line system telco sites
Online system: Telco sites

There are more and more technologies on remote telecommunication sites.

  • Infrastructure in public places can be accessed by several companies with “sometime authorised” persons.
  • There can be several ways to control doors:SMS / RFID / Call operator / Keys
  • The HWg-SH2 is for basic remote door control
  • Poseidon 4001 is Access Control & Monitoring solution
  • Central Access Control system can use HWg-DCD application or any other 3rd party software
hw group access control devices
HW group Access Control devices

HWg-SH2

HWg-SH3

Poseidon 4001

IP-based cabinet access system for two Swing-Handles.

The HWg-SH2 enables control to the locks over IP. It’s connecting the locks to another system.

IP-based Cabinet ACS (Access Control System) with RFID reader and local user database.

With HWg-SH3 you can see who opened the doors. If it was “Mr. White” or “Mr. Black”.

The HWg-SH3 can be used in both modes (Online or Offline).

Cabinet Monitoring & Access Control System in one box.

It’s a two-in-one solution for sensors (temperature, doors, voltage, power) and access control (swing handle, RFID reader).

Easy to be integrated with 3rd party systems (SNMP, Modbus/TCP XML).

hwg sh2 remote lock control
HWg-SH2: Remote lock control

Limitation of using SH2 Local lock (Door release button) DI for door opening.

  • By using the DI input on SH2 to release doors you can use any kind of low cost reader (Finger print or RFID) in any standard.
  • Using DI interface you will not see the name of “Mr. Black” on the web interface of HWg-SH2. Only “Authorised person”.
  • The SW system will never know who opened the doors.
  • User database is stored in this external reader. Users can’t be managed over IP.
  • The HWg-SH2 enables control to the locks over IP. It’s connecting the locks to another system.
hwg sh2 ip based access system
HWg-SH2: IP based Access System

Simple remote door control product for 2 doors (front / rear).

  • Ethernet: RJ45 (10/100 Mbps)
  • WEB: Built-in Web server
  • Protocols: SNMP, SysLog, SMTP
  • Free Software: HWg-DCD up to 8 units
  • SDK: Can be controlled from 3rd party SW
  • Electronic Swing Handles: 2x HWg-SH1 (Southco H3-EM) supported.
  • Inputs: 2 Digital Inputs (DI) for door contacts (front/back door)
  • Local lock: Digital input (dry contact) for door release button or external lock.
hw group access control devices17
HW group Access Control devices

HWg-SH2

HWg-SH3

Poseidon 4001

IP-based cabinet access system for two Swing-Handles.

The HWg-SH2 enables control to the locks over IP. It’s connecting the locks to another system.

IP-based Cabinet ACS (Access Control System) with RFID reader and local user database.

With HWg-SH3 you can see who opened the doors. If it was “Mr. White” or “Mr. Black”.

The HWg-SH3 can be used in both modes (Online or Offline).

Cabinet Monitoring & Access Control System in one box.

It’s a two-in-one solution for sensors (temperature, doors, voltage, power) and access control (swing handle, RFID reader).

Easy to be integrated with 3rd party systems (SNMP, Modbus/TCP XML).

hwg sh3 practically
HWg-SH3: Practically

HWg-SH3 is universal solution for IP based ACS (Access Control System)

  • With HWg-SH3 you can see who opened the doors. If it was “Mr. White” or “Mr. Black”.
  • With HWg-SH3 you can use both modes (Online or Offline).
  • Offline mode means you can edit the database over the HWg-SH3 web interface.
  • Online mode means Central database. The HWg-SH3 contains “White list” of users granted access, while the connection to the server is not available. Database is then stored on the central server with all detail rules (Mr. White can open doors between 9-17 only).
hwg sh3 ip based rfid acs
HWg-SH3: IP based RFID ACS

HWg-SH3 = IP controlled RFID ACS (Access Control System) for Online or Offline mode.

  • WEB: Built-in Web server (Ethernet 10/100 Mbps)
  • Protocols: SNMP, SysLog, SMTP
  • Free Software: HWg-DCD up to 8 units
  • SDK: Can be controlled from 3rd party SW
  • Electronic Swing Handles: 2x HWg-SH1
  • Inputs: 2 Digital Inputs (DI) for door contacts (front/back door)
  • RFID reader: RS-232 for connecting a RFID reader (several systems)
  • Local RFID card database: White list + 100 users WEB database management for Offline mode
hw group access control devices22
HW group Access Control devices

HWg-SH2

HWg-SH3

Poseidon 4001

IP-based cabinet access system for two Swing-Handles.

The HWg-SH2 enables control to the locks over IP. It’s connecting the locks to another system.

IP-based Cabinet ACS (Access Control System) with RFID reader and local user database.

With HWg-SH3 you can see who opened the doors. If it was “Mr. White” or “Mr. Black”.

The HWg-SH3 can be used in both modes (Online or Offline).

Cabinet Monitoring & Access Control System in one box.

It’s a two-in-one solution for sensors (temperature, doors, voltage, power) and access control (swing handle, RFID reader).

Easy to be integrated with 3rd party systems (SNMP, Modbus/TCP XML).

poseidon 4001 access monitoring
Poseidon 4001: Access & Monitoring

Poseidon 4001 is complex device for cabinet Monitoring & Access Control system

  • WEB: Built-in Web server (Ethernet 10/100 Mbps)
  • Protocols: SNMP, SMTP, Modbus/TCP
  • Free Software: HWg-DCD up to 8 units
  • SDK: Can be controlled from 3rd party SW
  • Local card database: White List
  • Electronic Swing Handles: 2x HWg-SH1
  • RFID reader: RS-232 for connecting the RFID reader
  • Inputs: 6 Digital Inputs (DI)
  • Outputs: 6 Digital Inputs (DI)
  • Sensors: 4x RJ11 for up to 18 1-Wire UNI sensors (°C, %RH, V, mA, A)
poseidon 4001 datacenter cabinet acs
Poseidon 4001: Datacenter Cabinet ACS

Environment Monitoring & ACS (online mode) in one system

  • RFID reader connected by RS-232
  • Users database on the central server in the HWg-DCD software.
  • When IP connection not available, internal “White list” is used.
  • White list for 2K users editable in HWg-DCD only.
hwg acs software options
HWg ACS Software options

Used Software or HW connection to the 3rd party software is essential for the real project.

HWg-DCD

Generic SNMP

3rd party SW

DataCenter Dashboard

Original software by HW group for cabinets ACS (Access Control)

All HWg devices supported

Group of users

Group of cabinets

White lists support

GSM modem support

Free for 8 cabinets

All devices can be monitored or controlled by SNMP.

It’s not secure enough, but it’s compatible with any software on the market.

Nagios / Zabbix / Cacti

HP OpenView

IBM Tivoli

Microsoft MSC Essentials

HW group provide SDK (Software Development Kit) for free.

It makes integration with any 3rd party software very easy.

Support with SW integration

Plenty programming languages supported

Several M2M protocols available

hwg dcd features
HWg-DCD: Features
  • Platform:Windows (NT service)
  • License: Free of charge up to 8 cabinets
  • Maximum capacity: Max 500 cabinets (1000 doors)
  • Communication: Email, LAN SMS interface, GSM modem
  • Group Functions: Group of users / Group of cabinets (racks)
  • GSM modem: SMS alerts / door control (connected to the PC)
  • Statistics: Access logs / rack, SMS alerts
  • Aisle doors indication: Light RED if any doors in the isle opened
snmp interface hw group acs units
SNMP interface - HW group ACS units

With using SNMP interface you can connect HWg ACS to any NMS (Network Monitoring System).

  • HP OpenView
  • IBM Tivoli NetView
  • Nagios / Zabbix / Cacti
  • CA Unicenter TNG
  • GFi MSN
  • ActiveXperts NM,
  • Intellipool NM
  • IpswitchWhatsUp
  • Castle Rock Computing'sSNMPc
  • LoriotPro version 3
  • MG-SOFT Net Inspector
  • Mercury SiteScope
  • AdRemNetCrunch 4
  • PaesslerIPCheck
  • The Dude
  • ..and many more
3 rd party software integration
3rd party software integration

All HW group products for Access Control are opened for integration with 3rd party software. (M2M protocols)

  • SDK available (Software Development Kit)
  • Documented “HWg ACS protocol”
  • XML interface
  • SNMP interface (Read only even R/W)
  • For Users: Web / Email / SMS / SysLog
hwg acs lock options
HWg ACS Lock options

HWg Access Control System can be used with various mechanical lock systems (manufactures).

Cabinet SwingHandle

Special cabinet locks

Doors lock

electronic lock 1 swing handle sh1
Electronic lock 1: Swing handle SH1

Top Mount Bracket

Latch Body

Driver ShaftSingle or Multipoint

Handle

Motor and GearboxHousing

LED ElectronicStatus Indicator

Connector

Electronic LockingMechanism

Bottom MountingLock Cover

DIN Profile cylinder

again what is different on hwg acs
Again: What is different on HWg ACS?
  • HWg IP-based ACS is focused for high volume applications.
  • HWg IP-based ACS can be used even as fully standalone solution.
  • HWg ACS can be implemented by System Integrator or by IT Department of the final customer.
  • HWg ACS can be easily integrated to any existing Software Application.
who is potential customer
Who is potential customer
  • Highway technology sites
  • Remote telecommunication cabinets
  • Railway systems
  • Pharmacies, Hospitals (addictive drugs)
  • Utilities (Power, Water, Gas)
  • Airports
  • Military protected areas
your next step test it
Your Next step: Test it

You can order HWg-SH3 SHset(components):

your next step show it 1
Your Next step: Show it 1

You can order HWg demo rack 10:

Complete small 10” cabinet access system. Ready for demonstration, just plug the power..

your next step show it 2
Your Next step: Show it 2
  • 10” black metal cabinet
  • Swing handle HWg-SH1 installed
  • LAN: WiFi Router & RJ45
  • HWg-SH3 inside
  • 2 RFID cards included in the delivery
  • Power & RJ45 (LAN) from backside
  • Easy to demonstrate with Notebook only. No Software required
access control system faq
Access Control System FAQ
  • Can I connect different RFID readers?Yes, but with some technical limitations. Ask for more.
  • Can I read who opened doors?Yes, with HWg-SH3 or Poseidon 4001 with RS-232 or Wiegand RFID readers.
  • Which unit you recommend me for stand alone installation?If you don’t want to use any software, the HWg-SH3 in Offline mode is solution for you.
contact hw group directly
Contact HW group directly

Why to make a business with HW group:

  • Original EU products
  • Good margins for partners
  • Longtime partnership
  • Direct support from manufacture
  • HW group CEOJan Řehák
  • Sales DirectorJiří Slabý
  • Sales supportMagdalena Juranková

Tel: +420 222 511 918

Fax: +420 222 513 833
