1. MOTION IN A PLANE NEWTON’S LAWS PHY1012F PHY1012F KINEMATICS IN 2D KINEMATICS IN 2D Gregor Leigh gregor.leigh@uct.ac.za

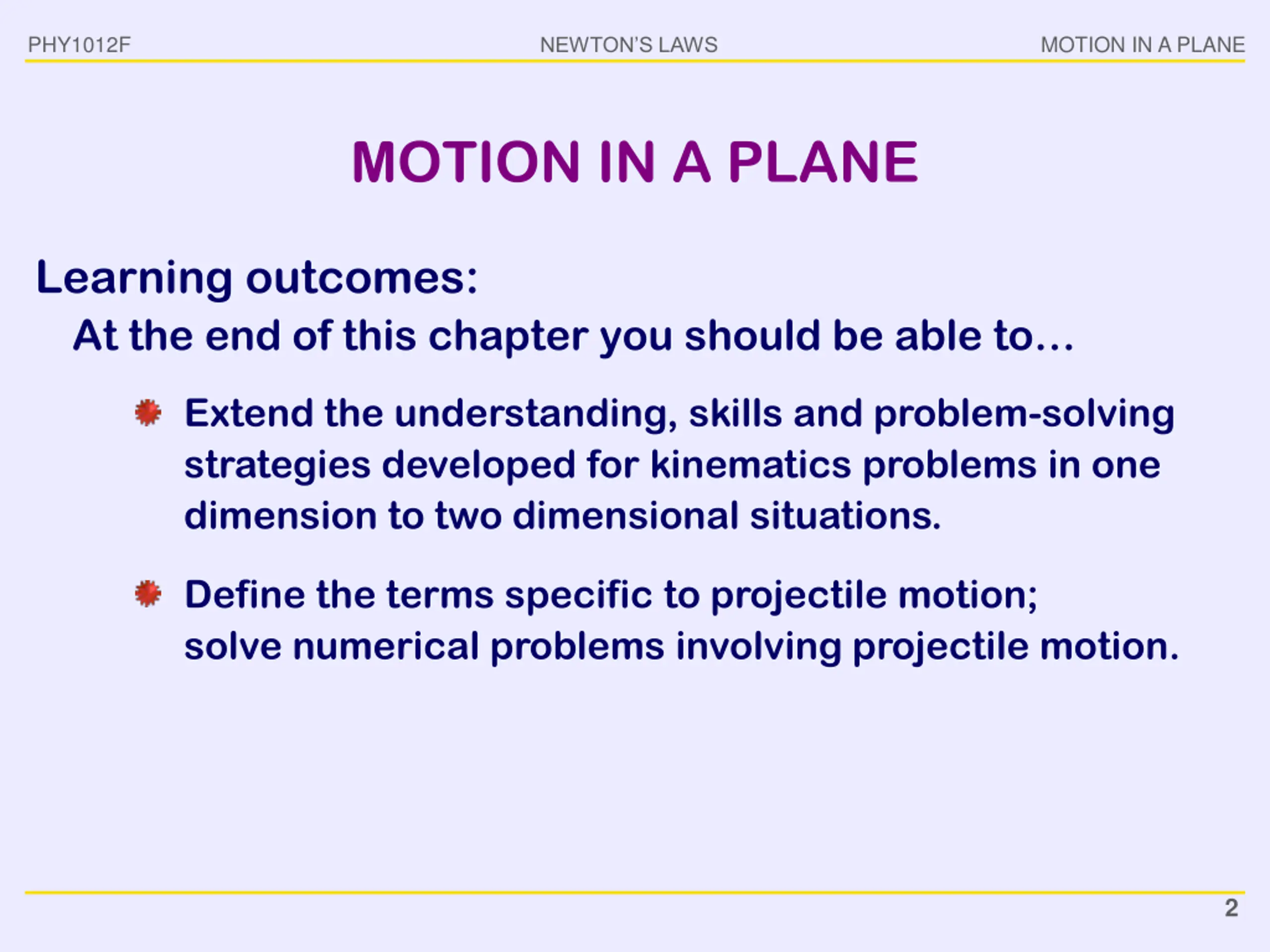

2. PHY1012F MOTION IN A PLANE NEWTON’S LAWS MOTION IN A PLANE Learning outcomes: At the end of this chapter you should be able to… Extend the understanding, skills and problem-solving strategies developed for kinematics problems in one dimension to two dimensional situations. Define the terms specific to projectile motion; solve numerical problems involving projectile motion. 2

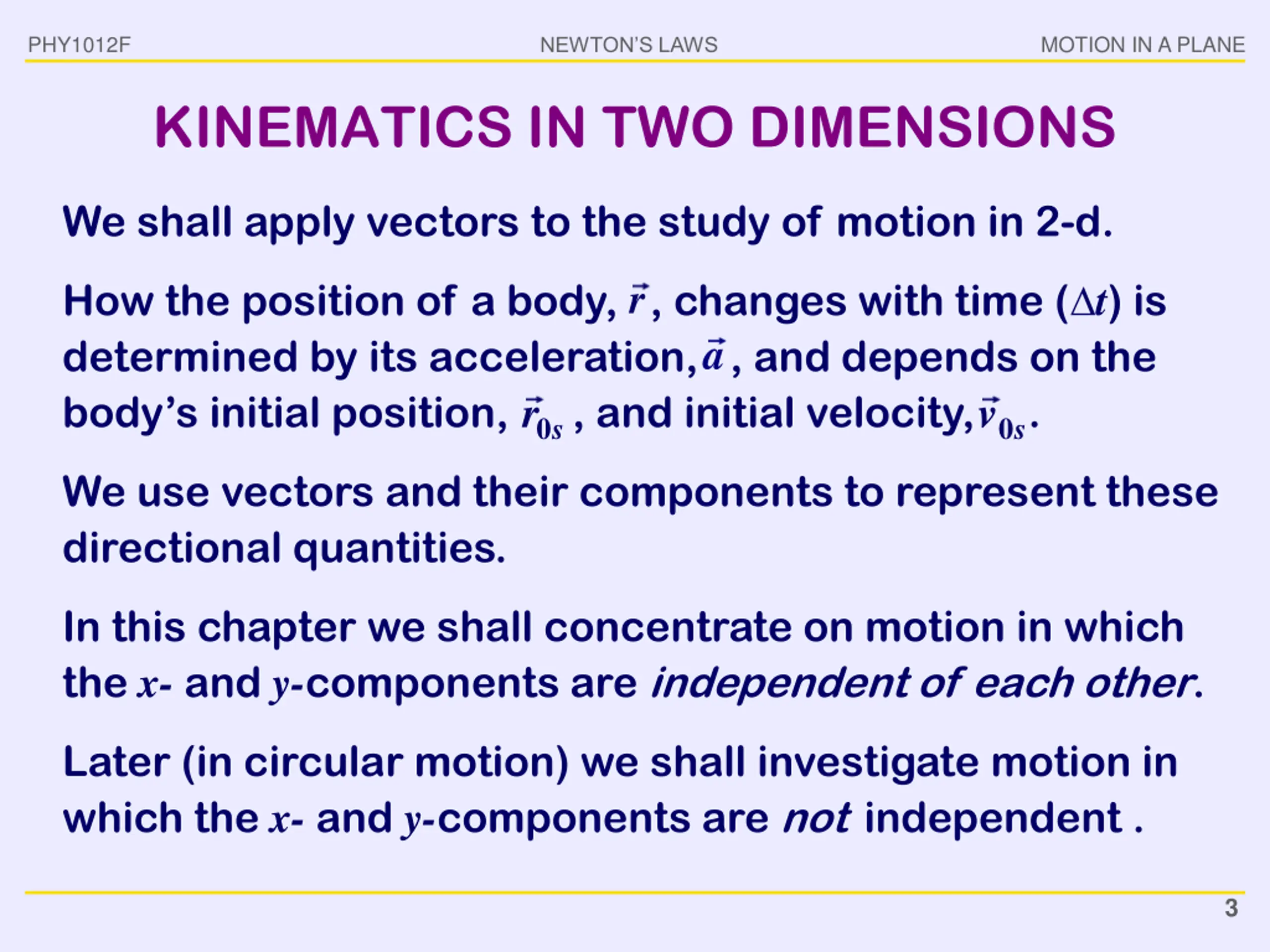

3. PHY1012F MOTION IN A PLANE NEWTON’S LAWS KINEMATICS IN TWO DIMENSIONS We shall apply vectors to the study of motion in 2-d. How the position of a body, , changes with time (t) is determined by its acceleration, , and depends on the body’s initial position, , and initial velocity, . 0s r r a v 0s We use vectors and their components to represent these directional quantities. In this chapter we shall concentrate on motion in which the x- and y-components are independent of each other. Later (in circular motion) we shall investigate motion in which the x- and y-components are not independent . 3

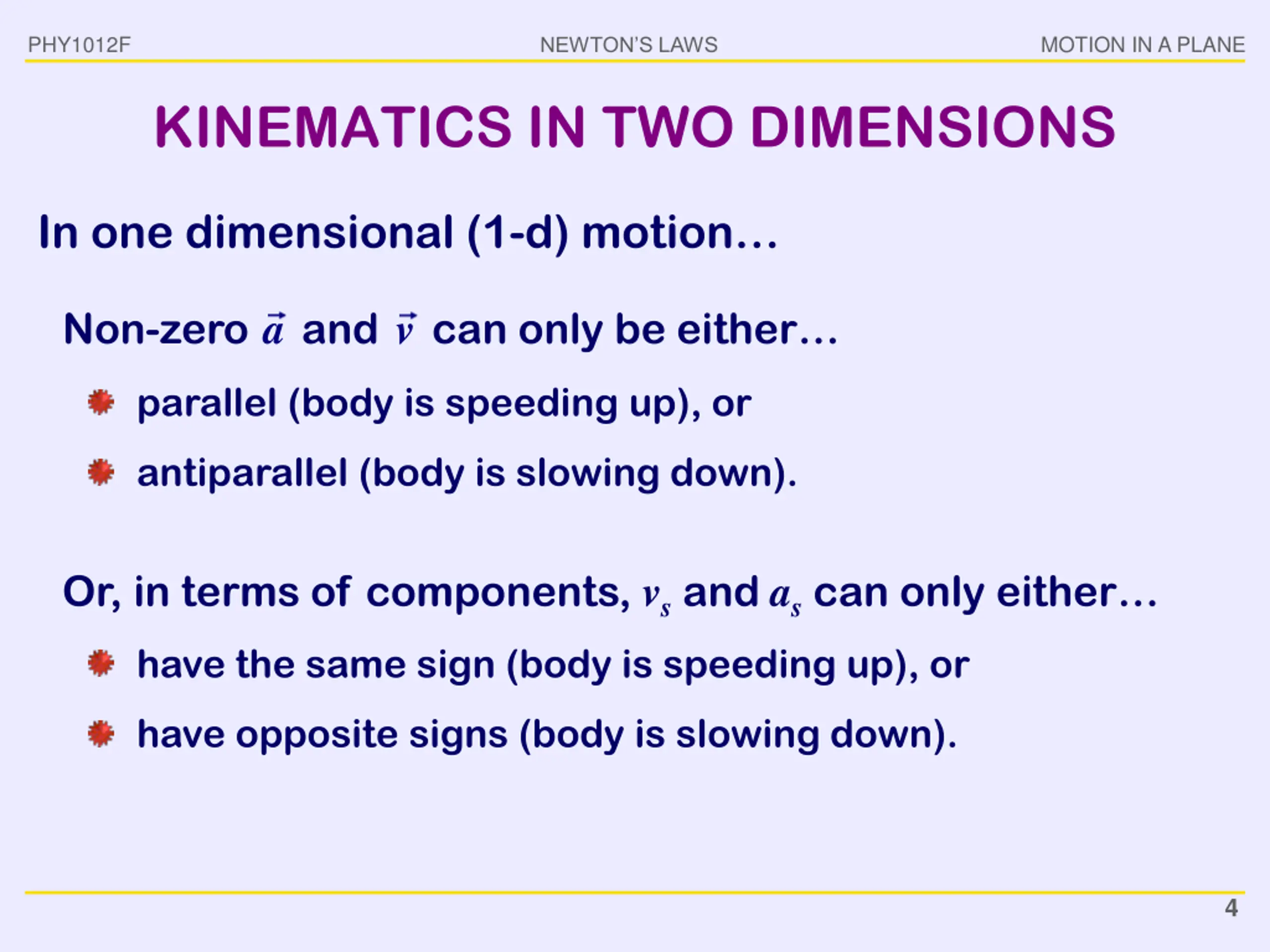

4. PHY1012F MOTION IN A PLANE NEWTON’S LAWS KINEMATICS IN TWO DIMENSIONS In one dimensional (1-d) motion… Non-zero and can only be either… a v parallel (body is speeding up), or antiparallel (body is slowing down). Or, in terms of components, vsand ascan only either… have the same sign (body is speeding up), or have opposite signs (body is slowing down). 4

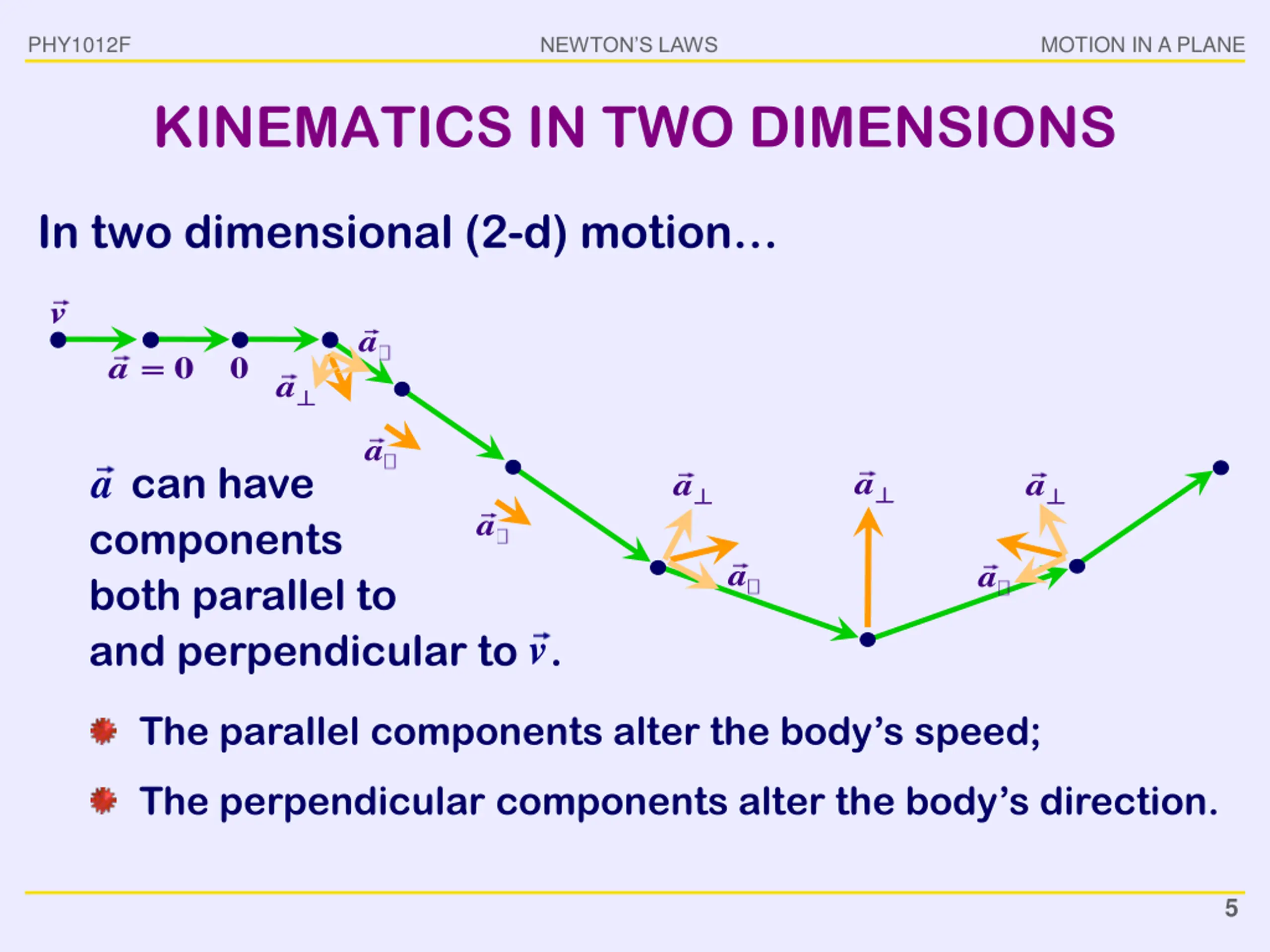

5. PHY1012F MOTION IN A PLANE NEWTON’S LAWS KINEMATICS IN TWO DIMENSIONS In two dimensional (2-d) motion… v a a   0 0 a  a a can have components both parallel to and perpendicular to . a  a  a  a a a v The parallel components alter the body’s speed; The perpendicular components alter the body’s direction. 5

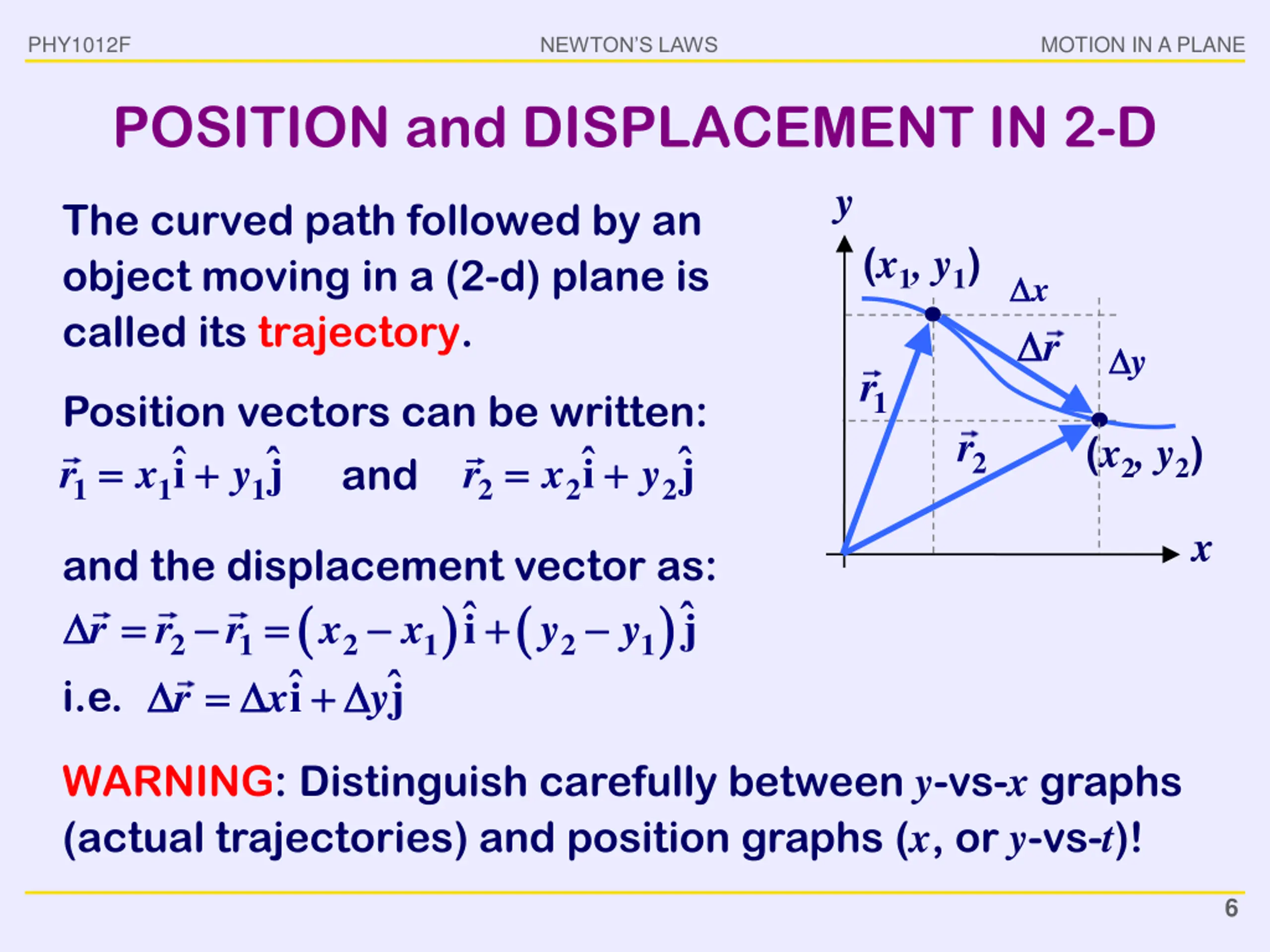

6. PHY1012F MOTION IN A PLANE NEWTON’S LAWS POSITION and DISPLACEMENT IN 2-D y The curved path followed by an object moving in a (2-d) plane is called its trajectory. (x1, y1)   x   r   y 1r Position vectors can be written: ˆ ˆ i j r x y     and 2r (x2, y2) ˆ i ˆ j     r x y 1 1 1 2 2 2 x and the displacement vector as:   2 1 2 r r r x           ˆ ˆ i j r x y         i.e.   1     1 ˆ i ˆ j     x y y 2 WARNING: Distinguish carefully between y-vs-x graphs (actual trajectories) and position graphs (x, or y-vs-t)! 6

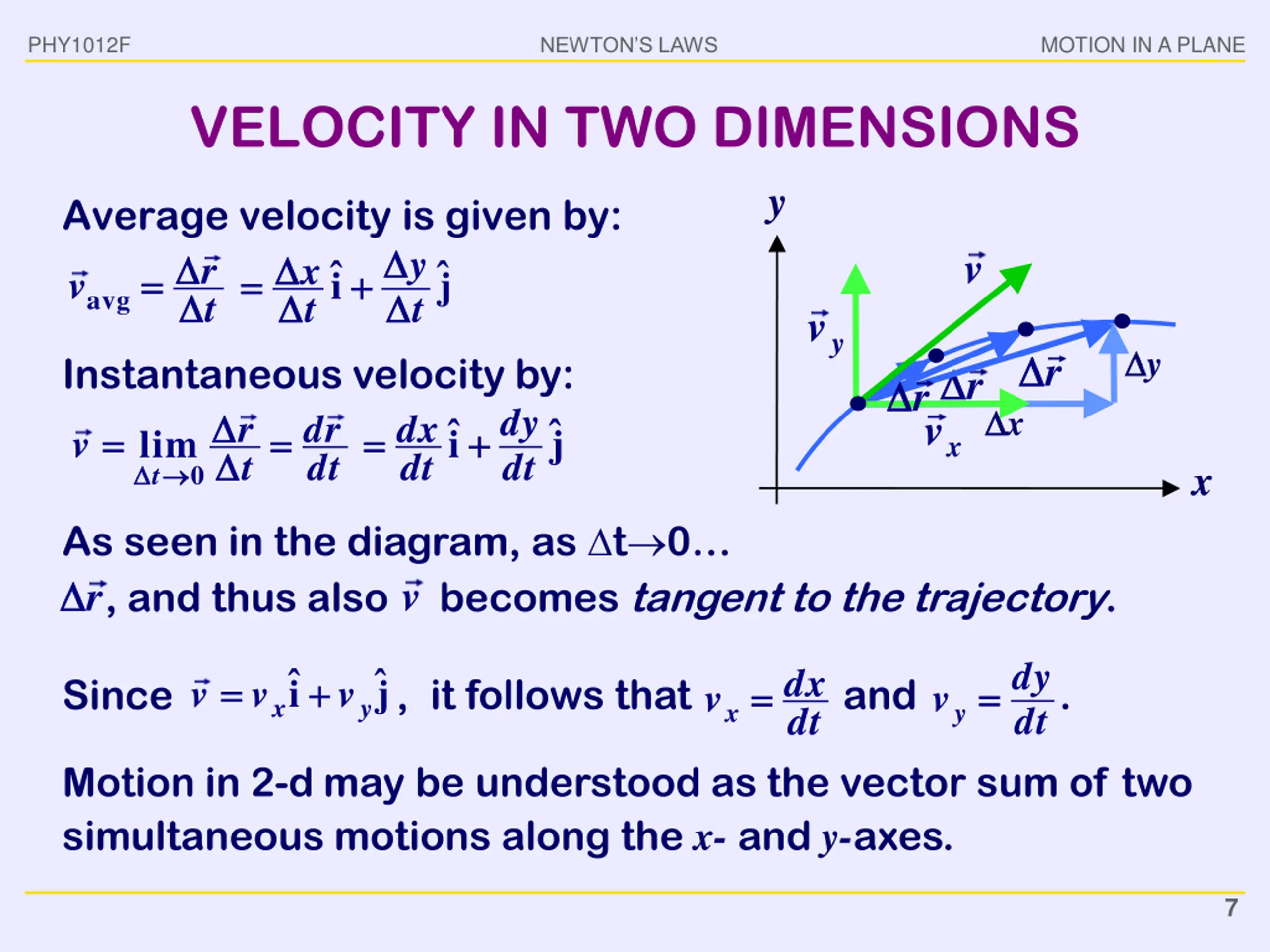

7. PHY1012F MOTION IN A PLANE NEWTON’S LAWS VELOCITY IN TWO DIMENSIONS y Average velocity is given by: ˆ i t       y t v     r t x ˆ j        v avg v y  y   r Instantaneous velocity by:   v r   r dy dt  x     dx dt r t dr dt ˆ i ˆ j         v lim t     x x 0 As seen in the diagram, as t0… r   , and thus also becomes tangent to the trajectory. v dy dt dx dt ˆ i ˆ j Since , v     v v it follows that and .     v v x y y x Motion in 2-d may be understood as the vector sum of two simultaneous motions along the x- and y-axes. 7

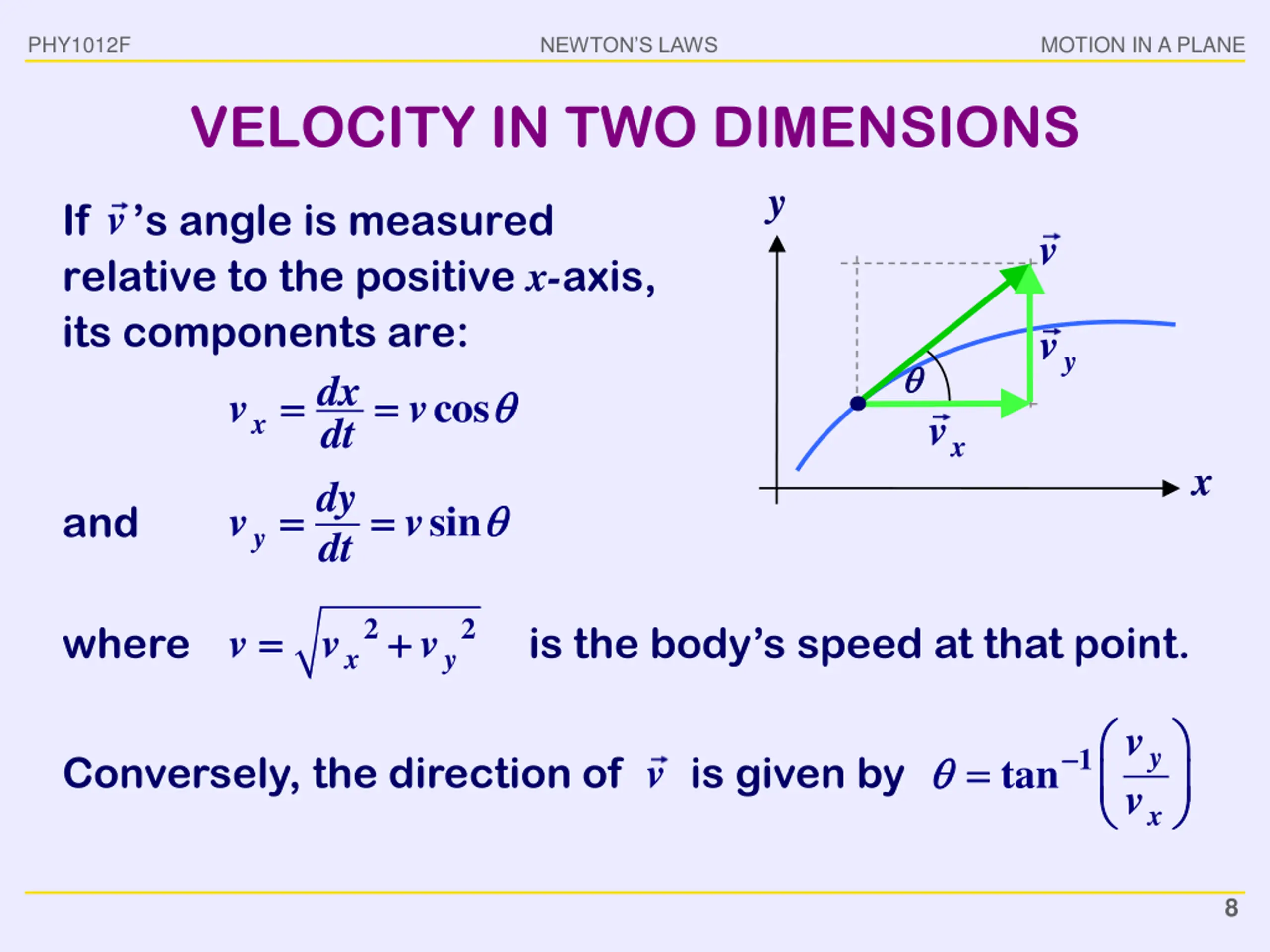

8. PHY1012F MOTION IN A PLANE NEWTON’S LAWS VELOCITY IN TWO DIMENSIONS y v If ’s angle is measured relative to the positive x-axis, its components are: dx v dt dy v dt v v y         v cos v x x x       v sin and y 2 2 where is the body’s speed at that point. x y v v v     v v              y 1     v Conversely, the direction of is given by tan x 8

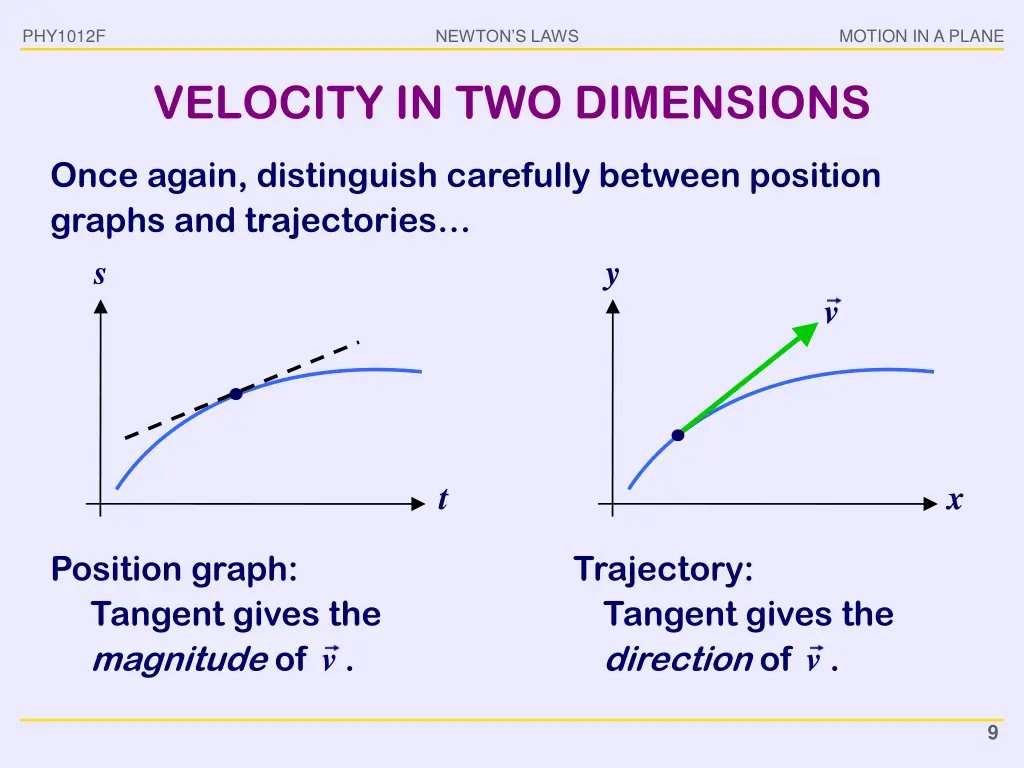

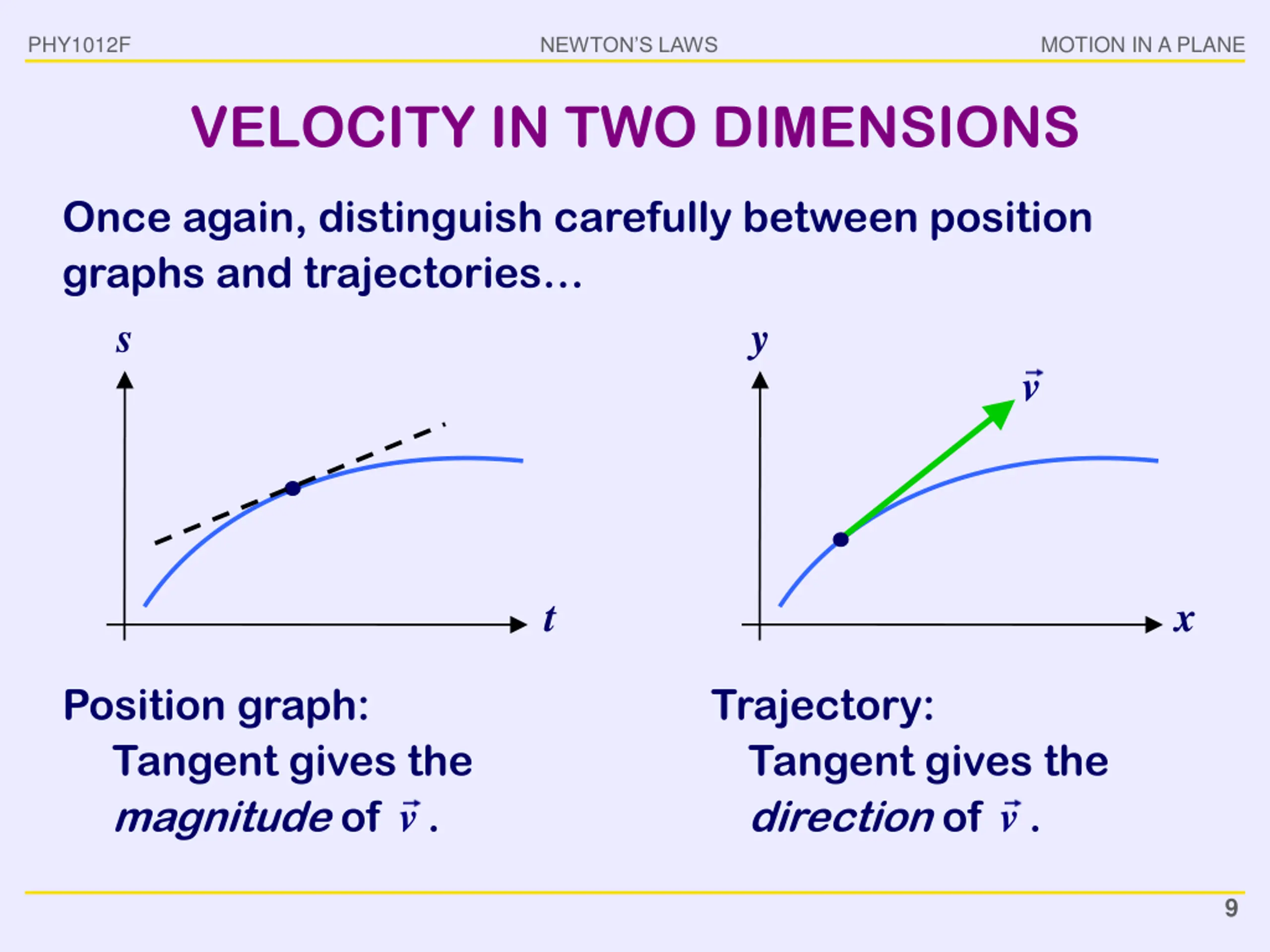

9. PHY1012F MOTION IN A PLANE NEWTON’S LAWS VELOCITY IN TWO DIMENSIONS Once again, distinguish carefully between position graphs and trajectories… s y v t x Position graph: Tangent gives the magnitude of . Trajectory: Tangent gives the direction of . v v 9

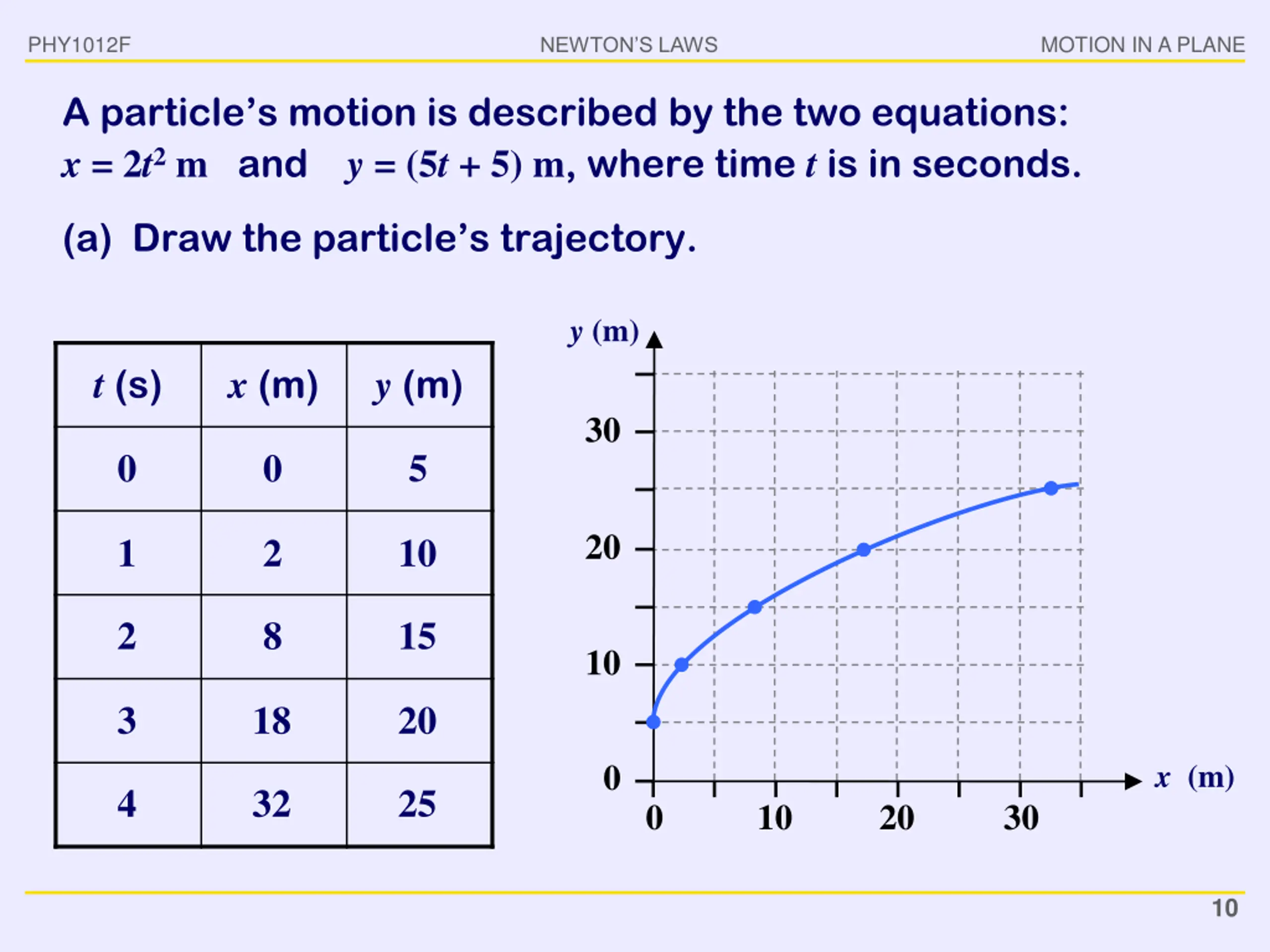

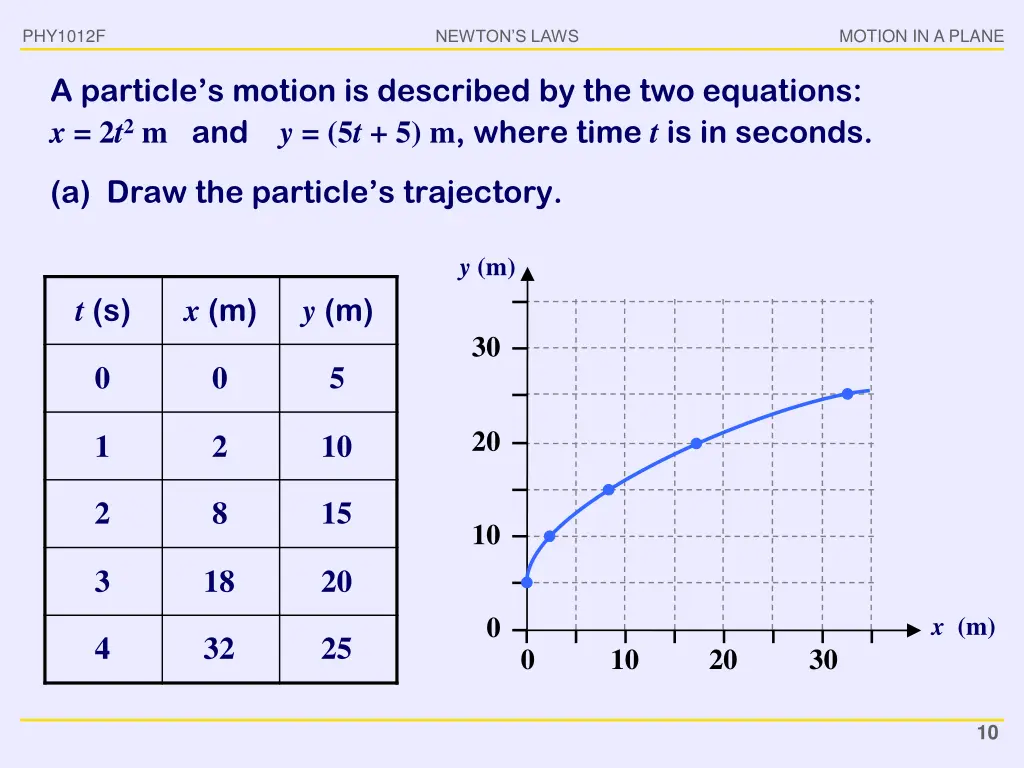

10. PHY1012F MOTION IN A PLANE NEWTON’S LAWS A particle’s motion is described by the two equations: x = 2t2m and y = (5t + 5) m, where time t is in seconds. (a) Draw the particle’s trajectory. y (m) t (s) x (m) y (m) 30 0 0 5 20 1 2 10 2 8 15 10 3 18 20 0 x (m) 4 32 25 0 10 20 30 10

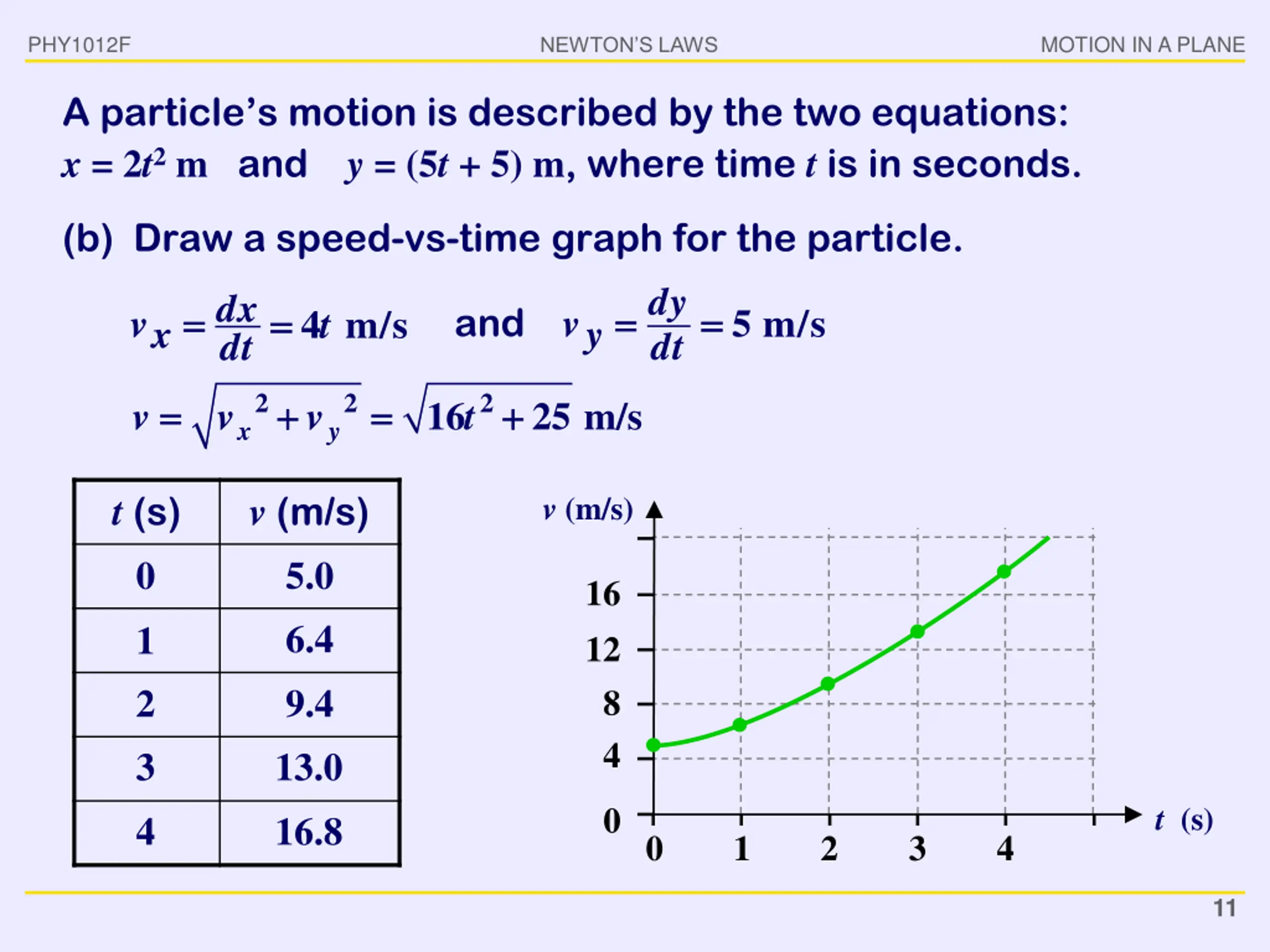

11. PHY1012F MOTION IN A PLANE NEWTON’S LAWS A particle’s motion is described by the two equations: x = 2t2m and y = (5t + 5) m, where time t is in seconds. (b) Draw a speed-vs-time graph for the particle. dy dt dx dt         vy and vx 5 m/s 4 m/s t 2 2 2         v v v t 16 25 m/s x y t (s) 0 v (m/s) 5.0 v (m/s) 16 12 6.4 9.4 13.0 16.8 1 2 3 4 8 4 0 t (s) 0 1 2 3 4 11

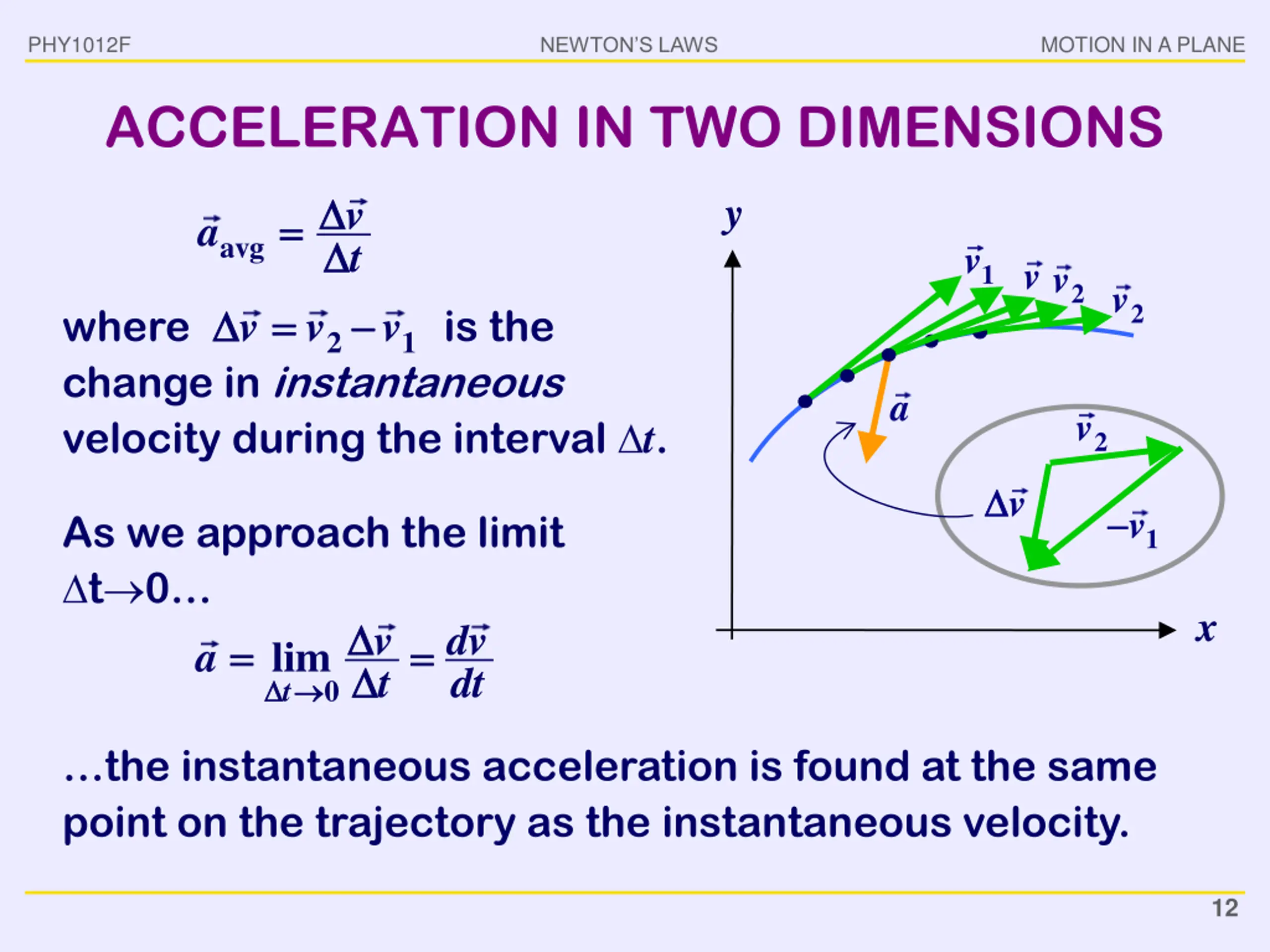

12. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ACCELERATION IN TWO DIMENSIONS   y v t      v a avg 1v v 2 v 2 v     v v where is the change in instantaneous velocity during the interval t. 2 1 a 2 v   v   1v As we approach the limit t0… lim t     x     v t dv dt     a 0 …the instantaneous acceleration is found at the same point on the trajectory as the instantaneous velocity. 12

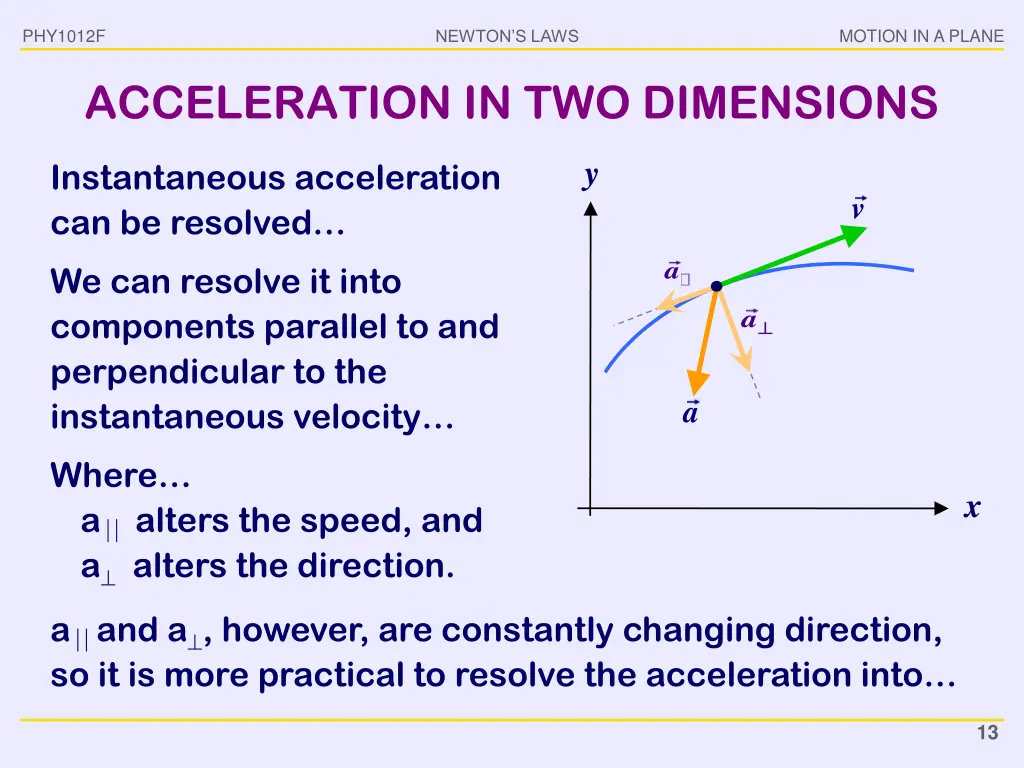

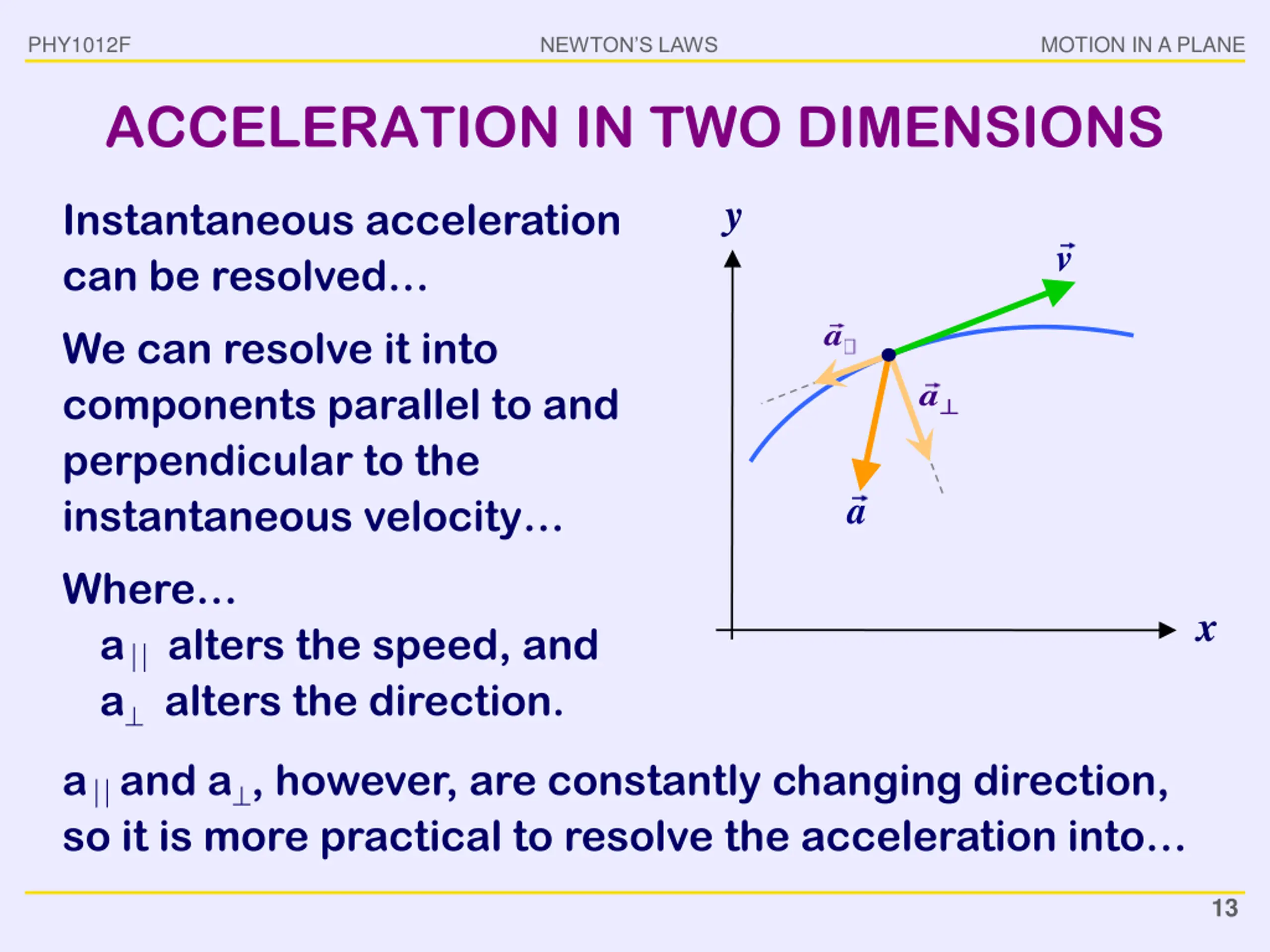

13. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ACCELERATION IN TWO DIMENSIONS y Instantaneous acceleration can be resolved… v a We can resolve it into components parallel to and perpendicular to the instantaneous velocity… a  a Where… aalters the speed, and aalters the direction. x aand a, however, are constantly changing direction, so it is more practical to resolve the acceleration into… 13

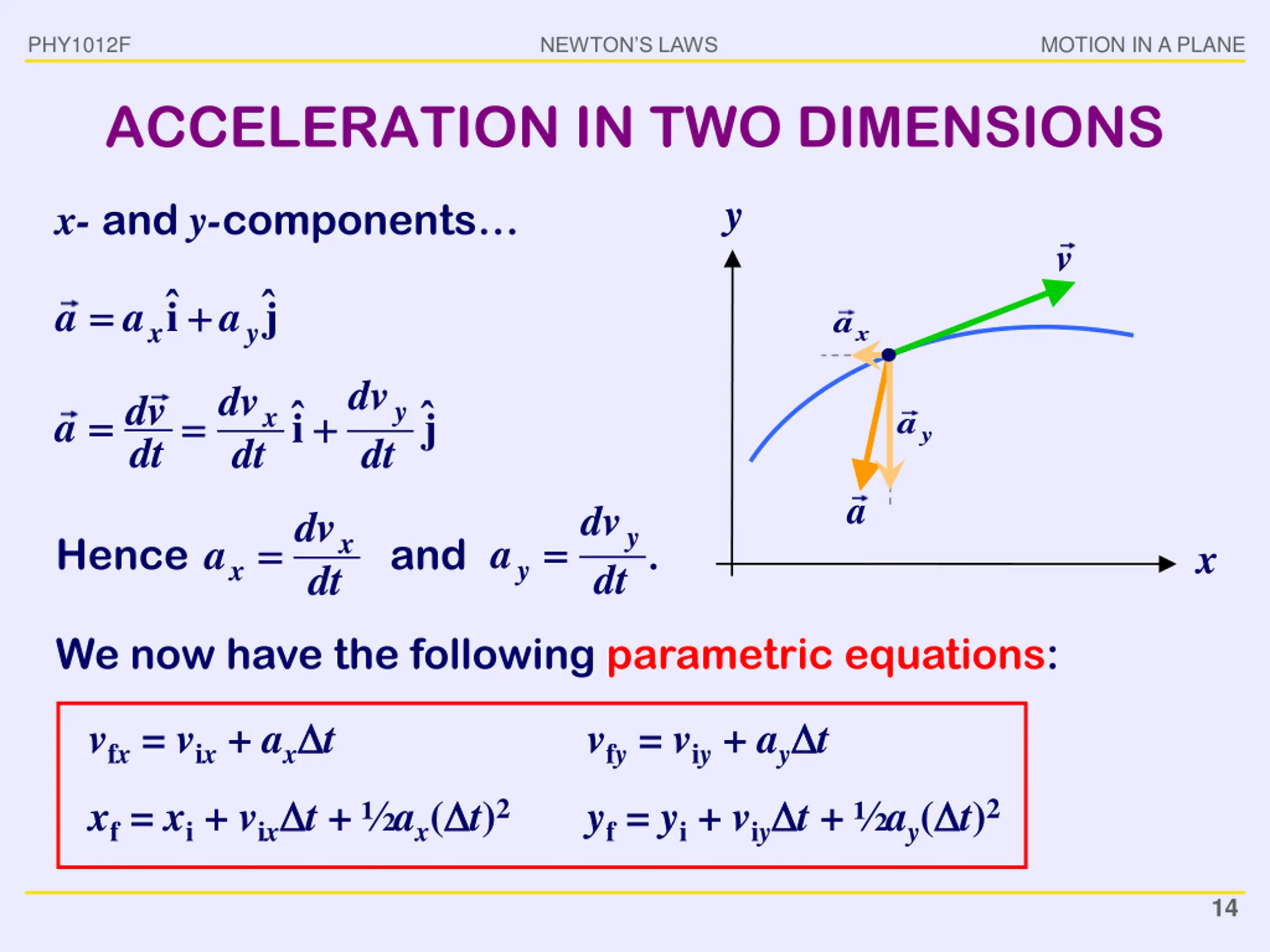

14. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ACCELERATION IN TWO DIMENSIONS y x- and y-components… v ˆ i ˆ j     a a a a x y x dv dt dv dt dv dt ˆ i ˆ j y x       a a y a dv dt dv y x     a Hence and . x a dt x y We now have the following parametric equations: vfx= vix+ ax t xf= xi+ vix t + ½ax( t)2 vfy= viy+ ay t yf= yi+ viy t + ½ay( t)2 14

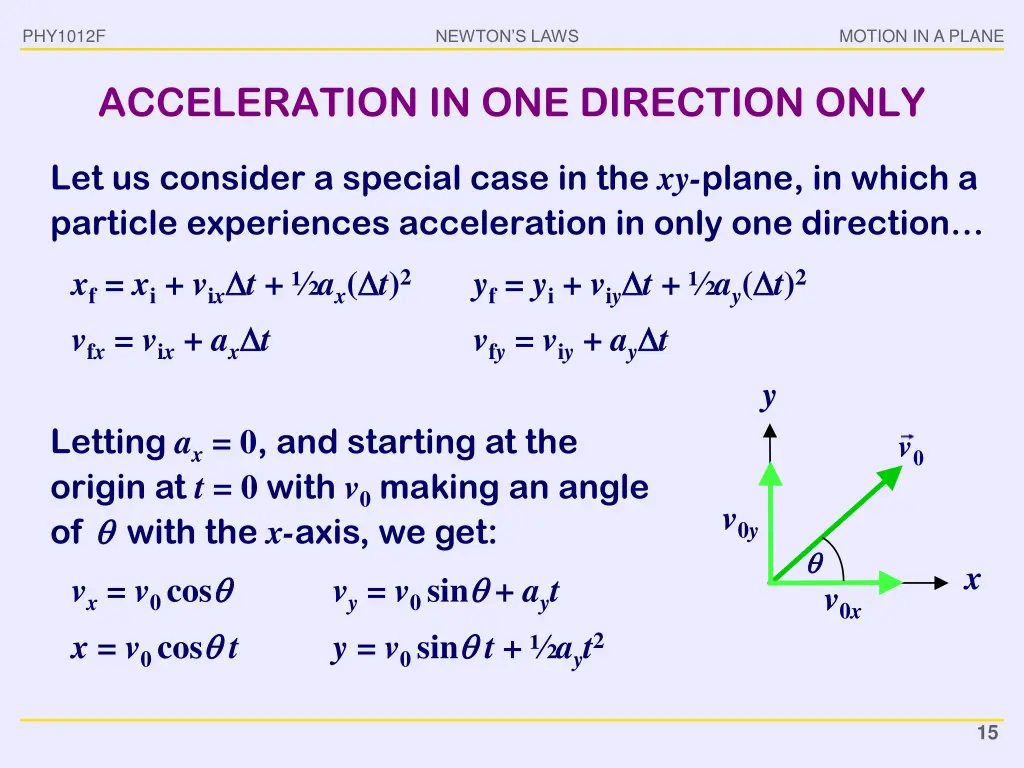

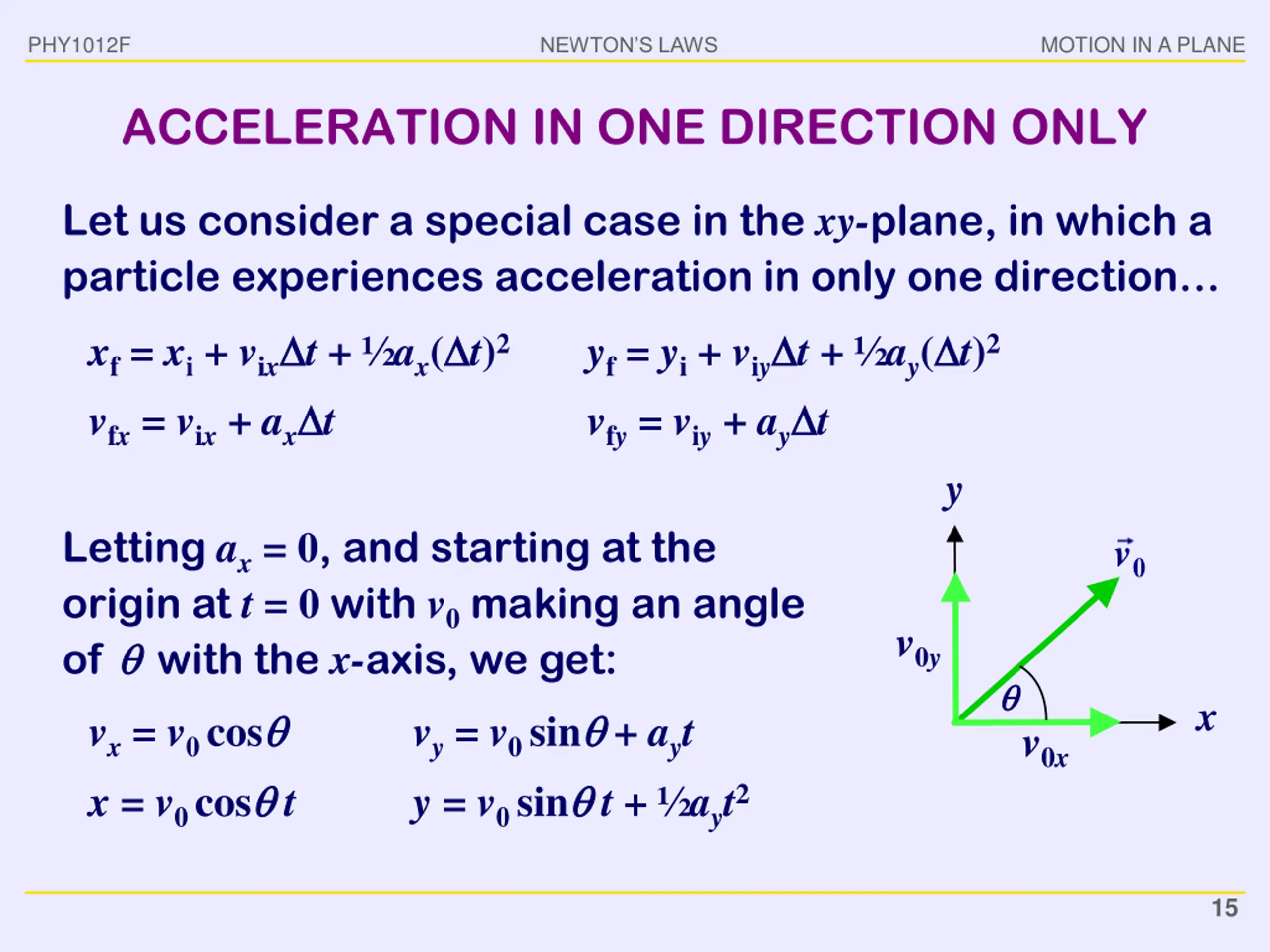

15. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ACCELERATION IN ONE DIRECTION ONLY Let us consider a special case in the xy-plane, in which a particle experiences acceleration in only one direction… xf= xi+ vix t + ½ax( t)2 yf= yi+ viy t + ½ay( t)2 vfx= vix+ ax t vfy= viy+ ay t y Letting ax= 0, and starting at the origin at t = 0 with v0making an angle of   with the x-axis, we get: 0v v0y   x vx= v0cos  vy= v0sin  + ayt v0x x = v0cos  t y = v0sin  t + ½ayt2 15

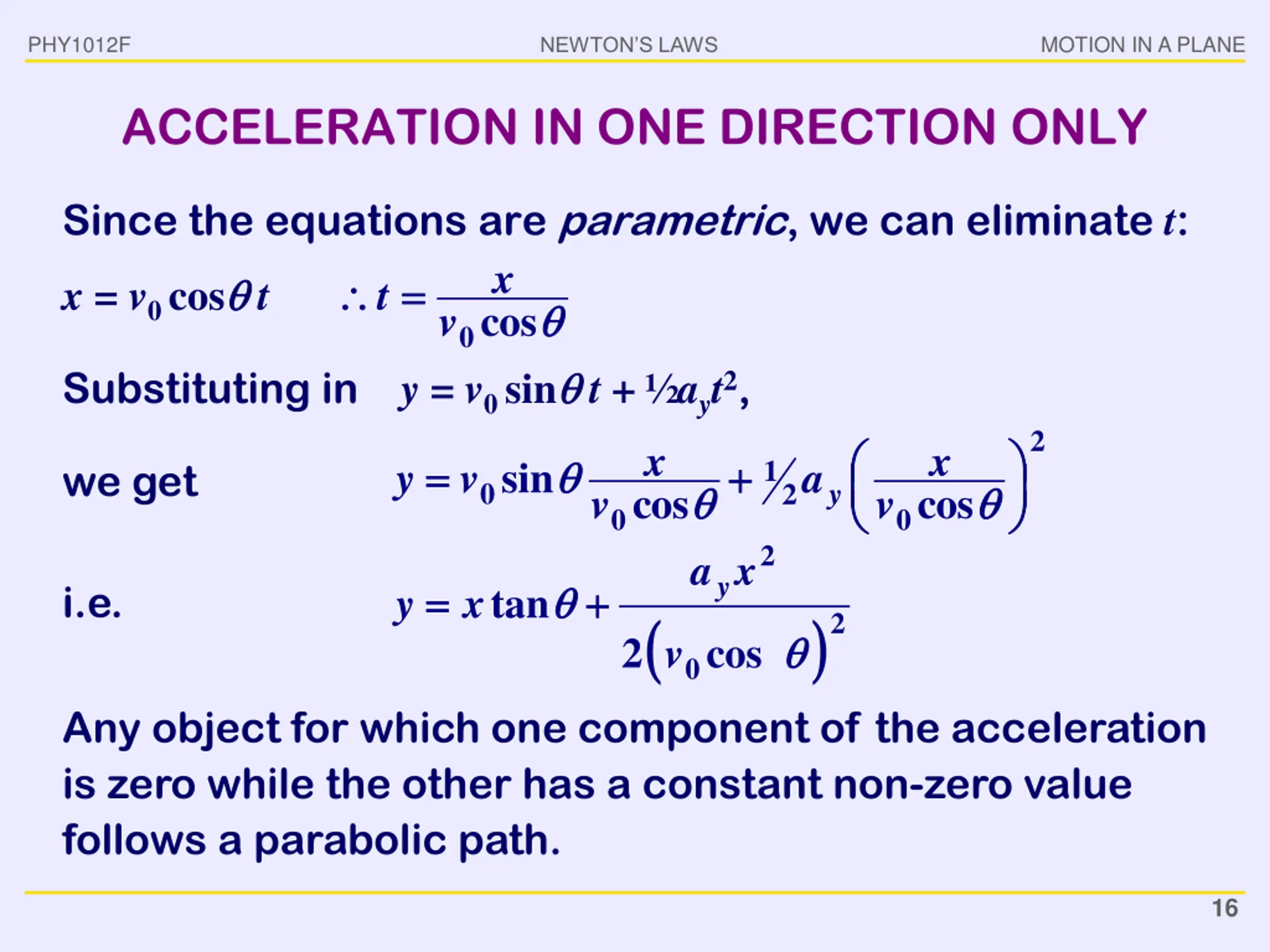

16. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ACCELERATION IN ONE DIRECTION ONLY Since the equations are parametric, we can eliminate t: x t v       x = v0cos  t 0cos y = v0sin  t + ½ayt2, Substituting in 2 x x                   y v a sin 1 we get   a x   y 0 2 v v cos cos 0 0 2 y       i.e. y x tan     2   v 2 cos 0 Any object for which one component of the acceleration is zero while the other has a constant non-zero value follows a parabolic path. 16

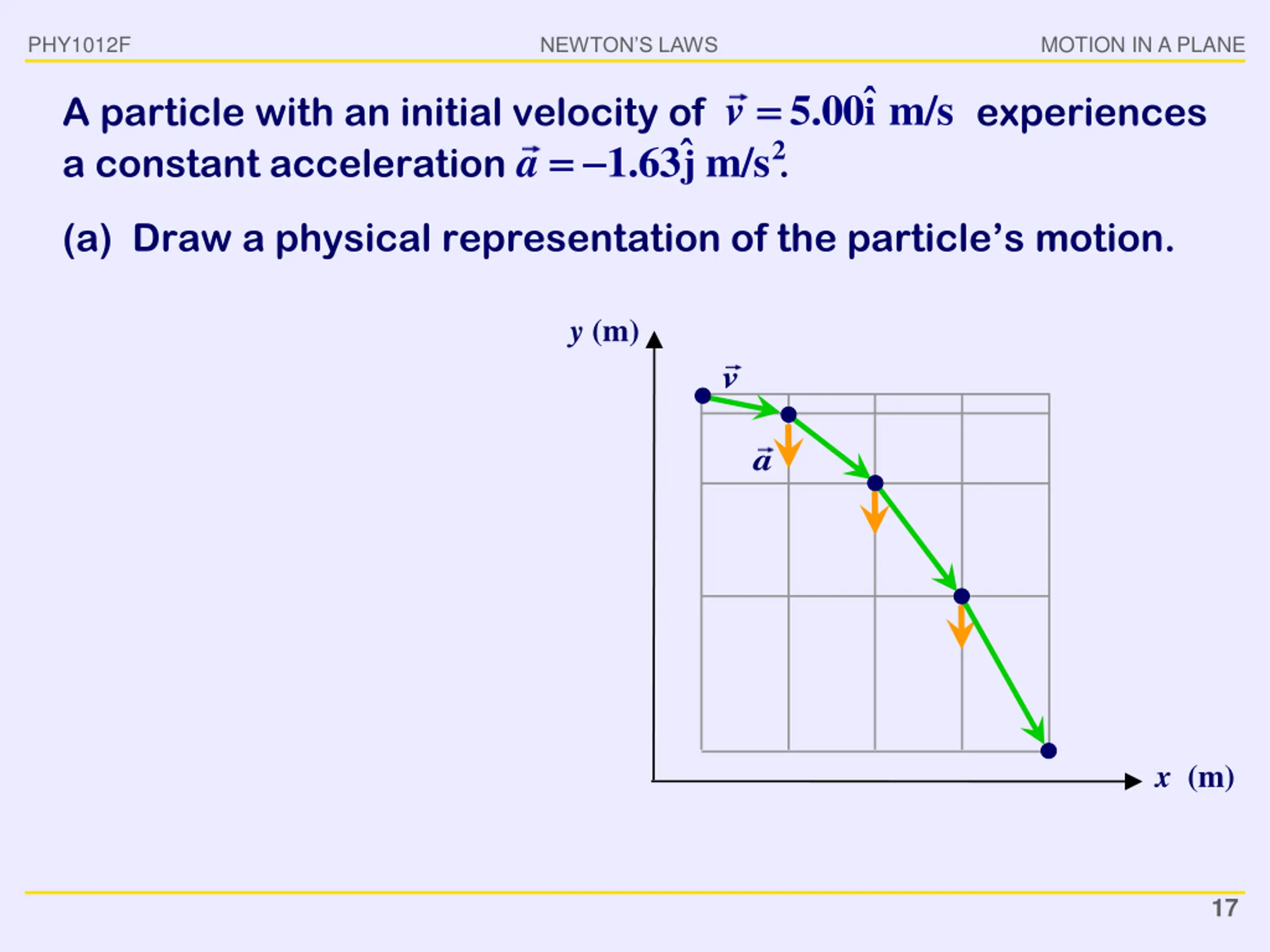

17. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ˆi v   5.00 m/s A particle with an initial velocity of experiences a constant acceleration . 1.63 m/s a     ˆj 2 (a) Draw a physical representation of the particle’s motion. y (m) v a x (m) 17

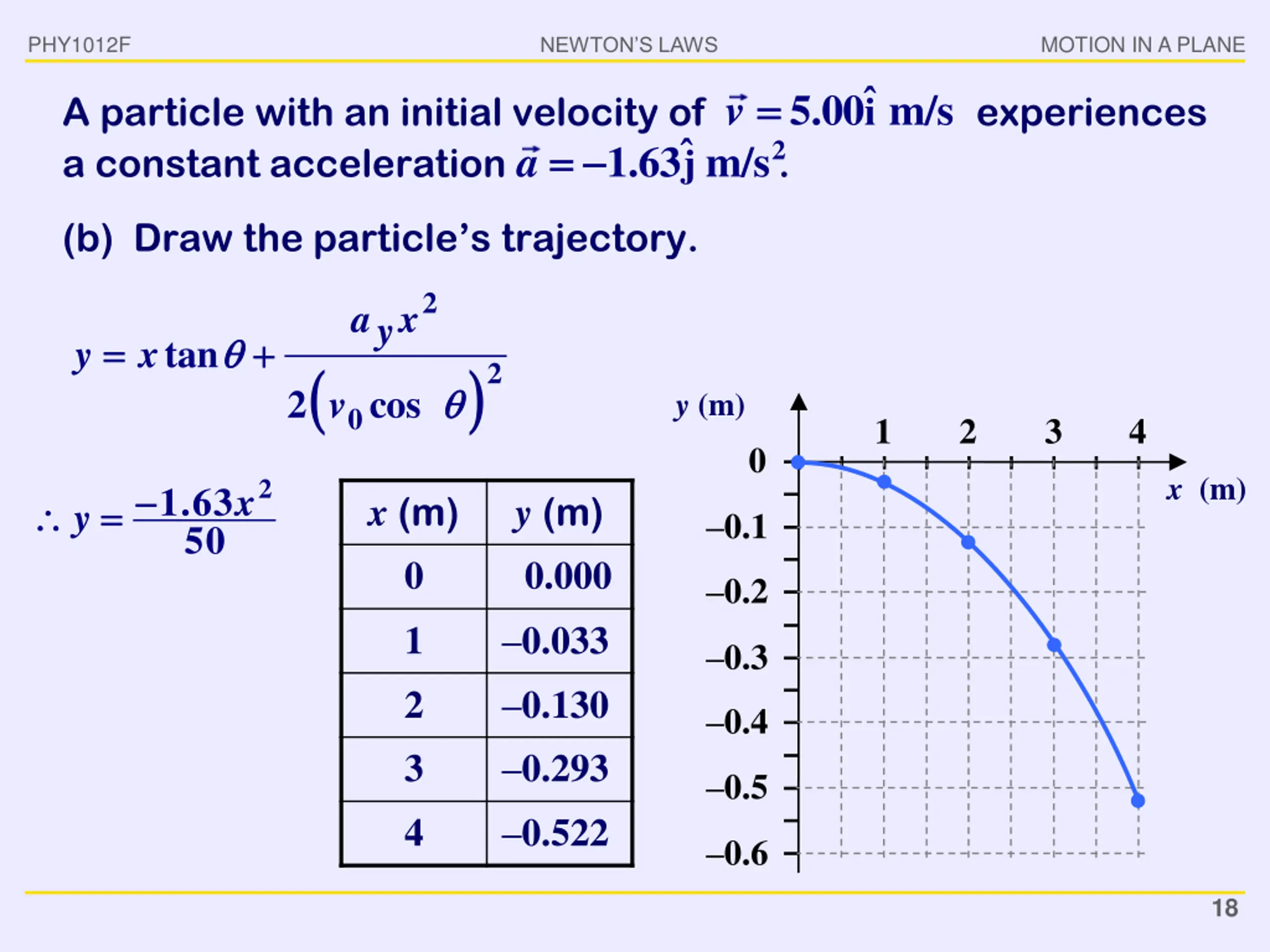

18. PHY1012F MOTION IN A PLANE NEWTON’S LAWS ˆi v   5.00 m/s A particle with an initial velocity of experiences a constant acceleration . 1.63 m/s a     ˆj 2 (b) Draw the particle’s trajectory. 2 a x y       y x tan     2   v 2 cos y (m) 0 1 2 3 4 0 x (m) 2   x 1.63 50 x (m) 0 y (m) 0.000     y –0.1 –0.2 1 2 3 4 –0.033 –0.130 –0.293 –0.522 –0.3 –0.4 –0.5 –0.6 18

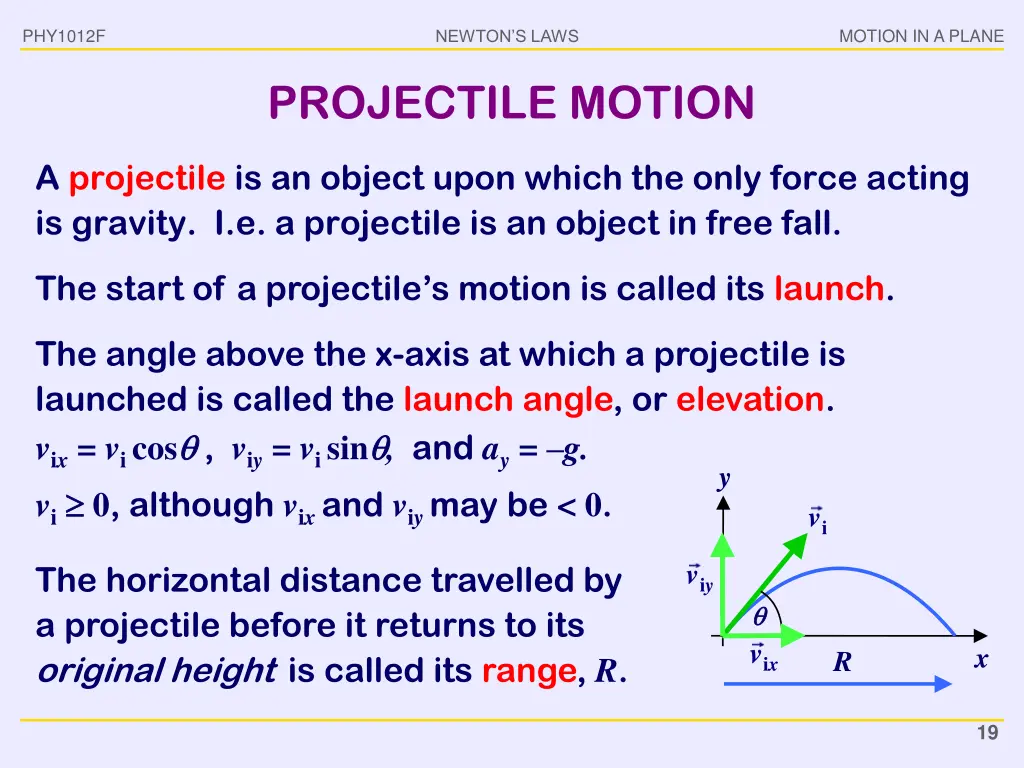

19. PHY1012F MOTION IN A PLANE NEWTON’S LAWS PROJECTILE MOTION A projectile is an object upon which the only force acting is gravity. I.e. a projectile is an object in free fall. The start of a projectile’s motion is called its launch. The angle above the x-axis at which a projectile is launched is called the launch angle, or elevation. vix= vicos  , viy= visin , and ay= –g. vi  0, although vix and viy may be < 0. y iv v The horizontal distance travelled by a projectile before it returns to its original height is called its range, R. iy   v x R ix 19

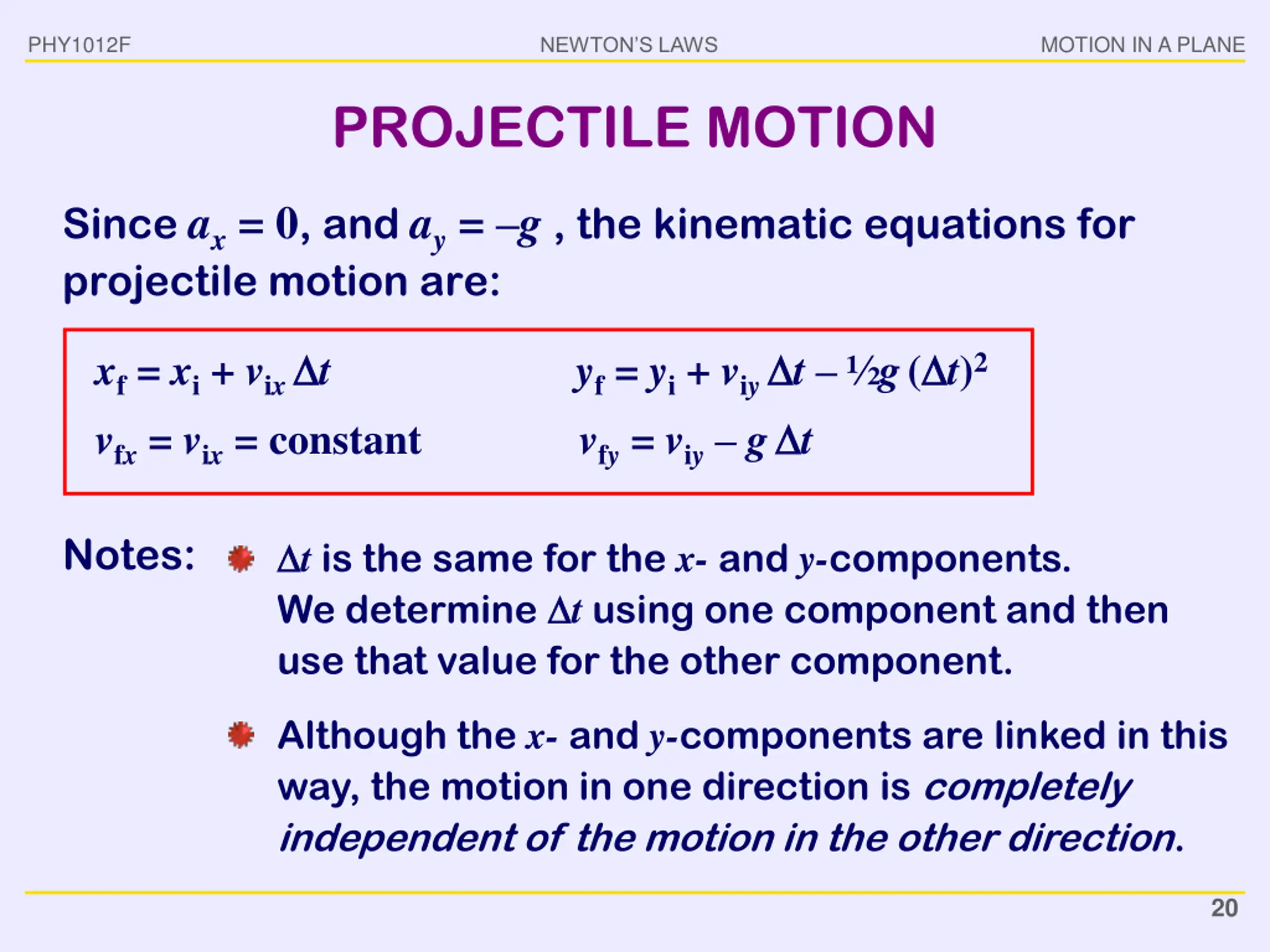

20. PHY1012F MOTION IN A PLANE NEWTON’S LAWS PROJECTILE MOTION Since ax= 0, and ay= –g , the kinematic equations for projectile motion are: xf= xi+ vix  t yf= yi+ viy  t – ½g( t)2 vfy= viy– g t vfx= vix= constant Notes:  t is the same for the x- and y-components. We determine  t using one component and then use that value for the other component. Although the x- and y-components are linked in this way, the motion in one direction is completely independent of the motion in the other direction. 20

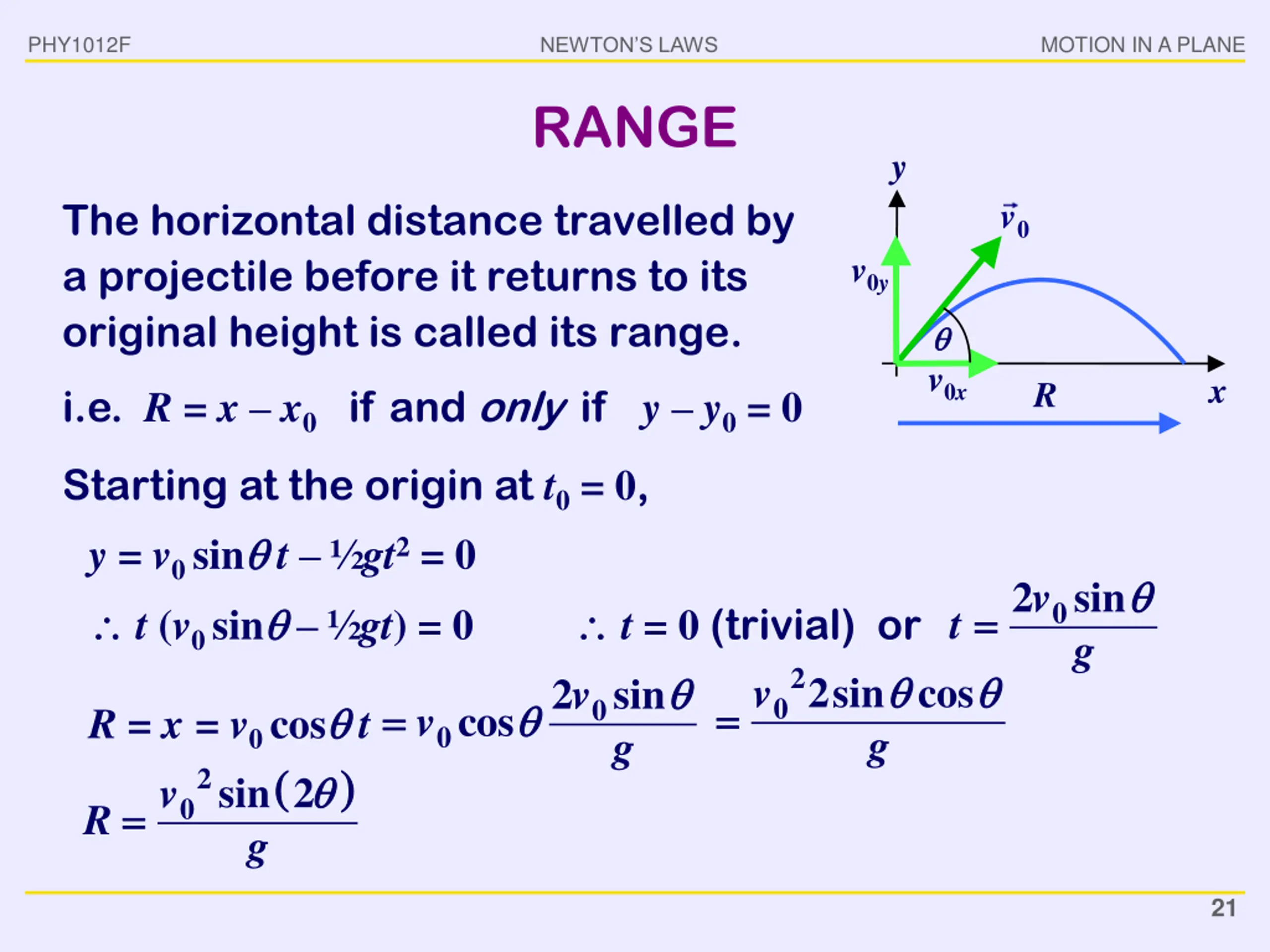

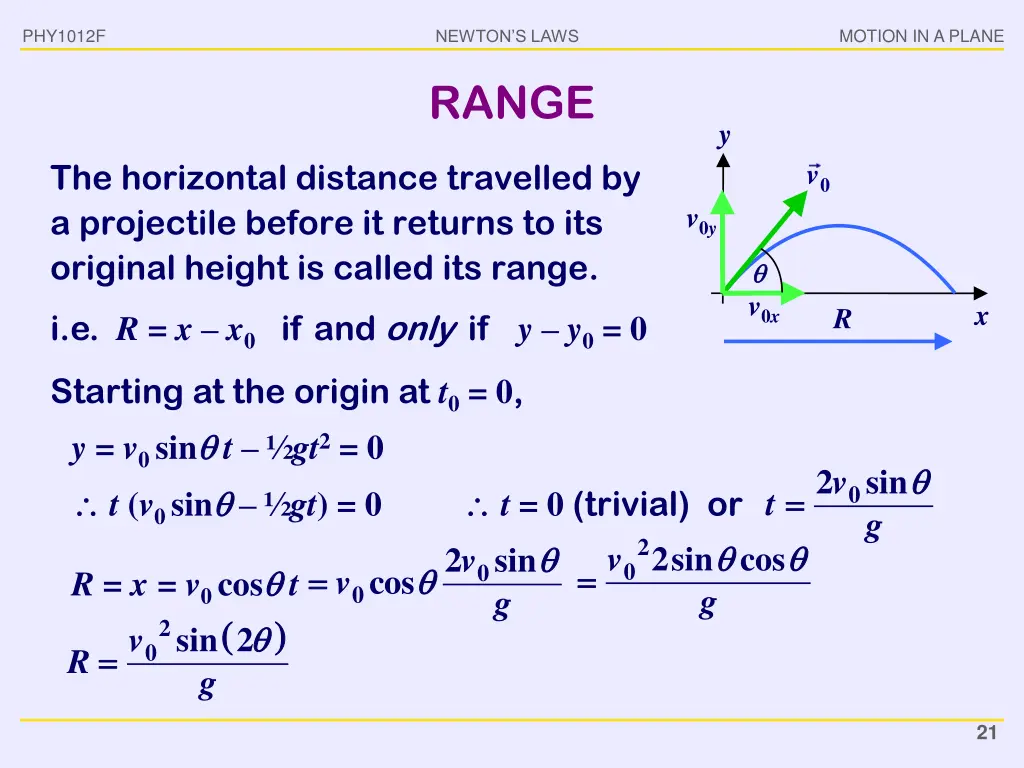

21. PHY1012F MOTION IN A PLANE NEWTON’S LAWS RANGE y 0v The horizontal distance travelled by a projectile before it returns to its original height is called its range. v0y   v0x x R i.e. R = x – x0 if and only if y – y0= 0 Starting at the origin at t0= 0, y = v0sin  t – ½gt2= 0   t (v0sin  – ½gt) = 0   v 2 sin g 0       t = 0 (trivial) or t 2     v 02sin cos g v 2 sin g   0     = v0cos  t v cos R = x 0     2   v 0sin 2   R g 21

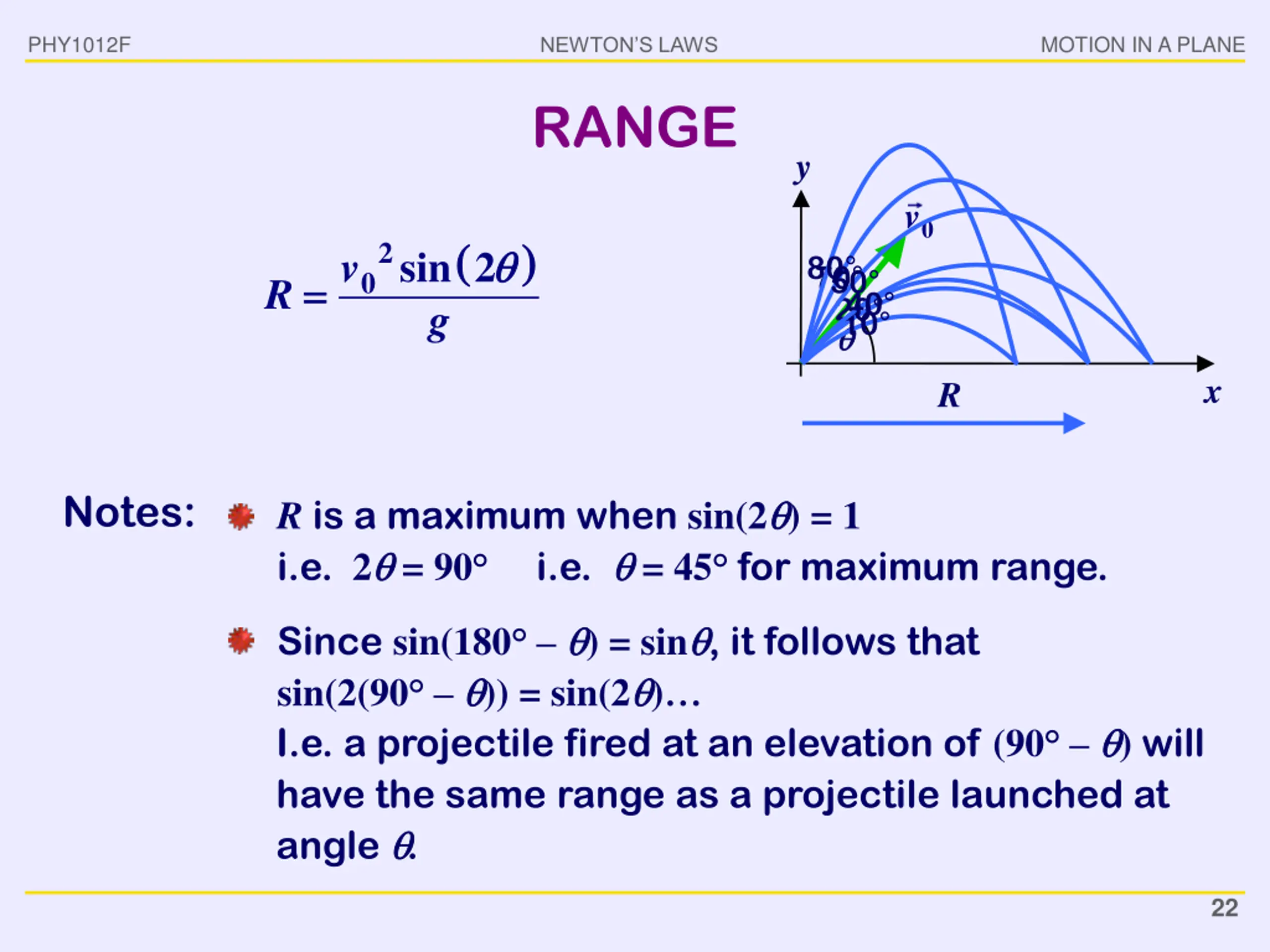

22. PHY1012F MOTION IN A PLANE NEWTON’S LAWS RANGE y 0v     2   v 0sin 2 70° 80° 50°   R 40° 20° 10° g   x R Notes: R is a maximum when sin(2 ) = 1 i.e. 2  = 90° i.e.   = 45° for maximum range. Since sin(180° –  ) = sin , it follows that sin(2(90° –  )) = sin(2 )… I.e. a projectile fired at an elevation of (90° –  ) will have the same range as a projectile launched at angle  . 22

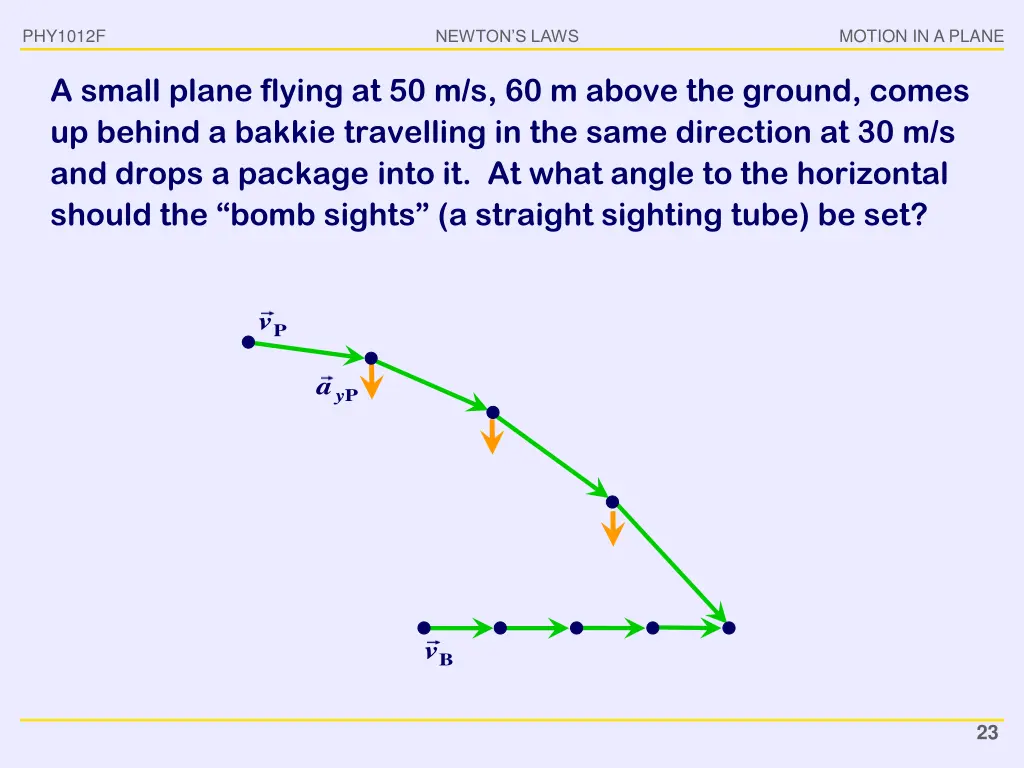

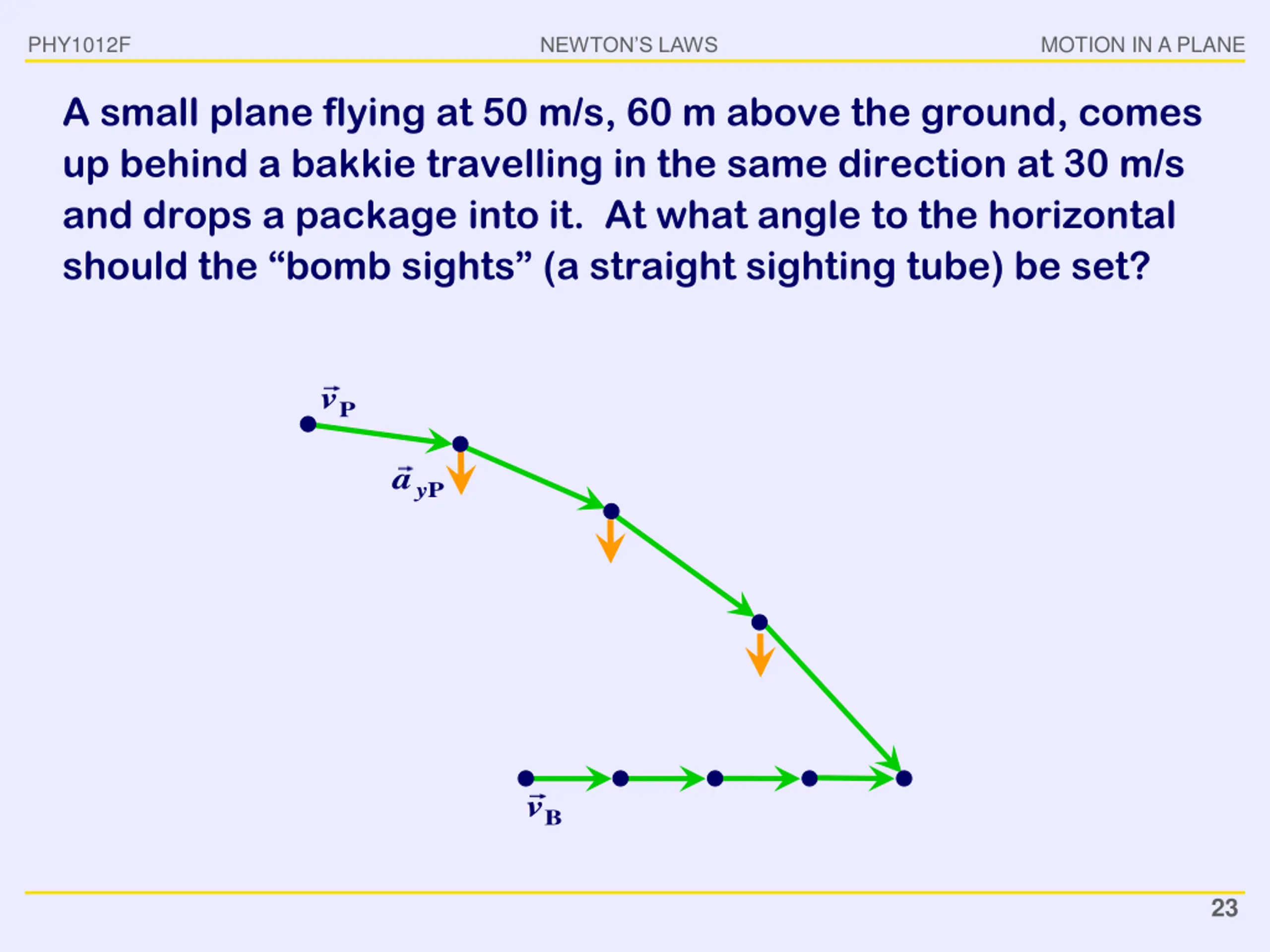

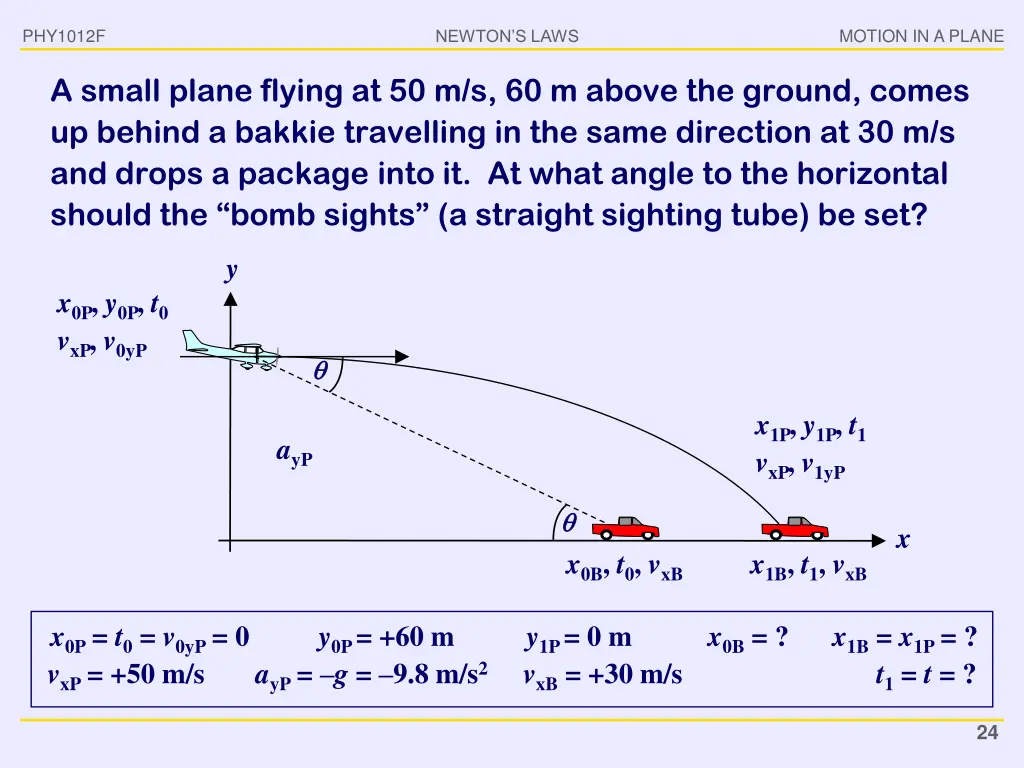

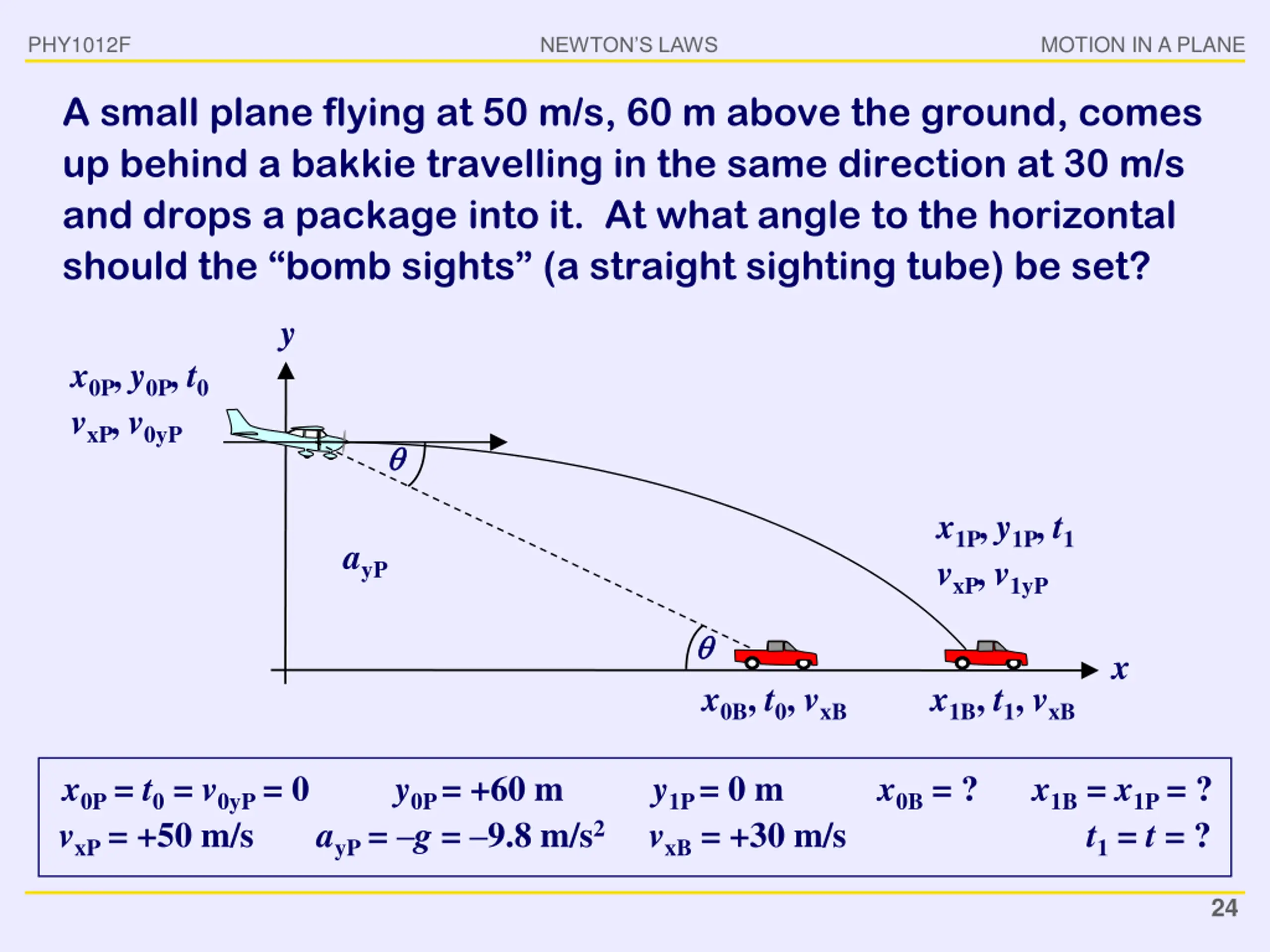

23. PHY1012F MOTION IN A PLANE NEWTON’S LAWS A small plane flying at 50 m/s, 60 m above the ground, comes up behind a bakkie travelling in the same direction at 30 m/s and drops a package into it. At what angle to the horizontal should the “bomb sights” (a straight sighting tube) be set? v P a y P v B 23

24. PHY1012F MOTION IN A PLANE NEWTON’S LAWS A small plane flying at 50 m/s, 60 m above the ground, comes up behind a bakkie travelling in the same direction at 30 m/s and drops a package into it. At what angle to the horizontal should the “bomb sights” (a straight sighting tube) be set? y x0P, y0P, t0 vxP, v0yP   x1P, y1P, t1 vxP, v1yP ayP   x x0B, t0, vxB x1B, t1, vxB x0P= t0= v0yP= 0 vxP= +50 m/s y0P = +60 m ayP= –g = –9.8 m/s2 y1P = 0 m vxB= +30 m/s x0B= ? x1B= x1P= ? t1= t = ? 24

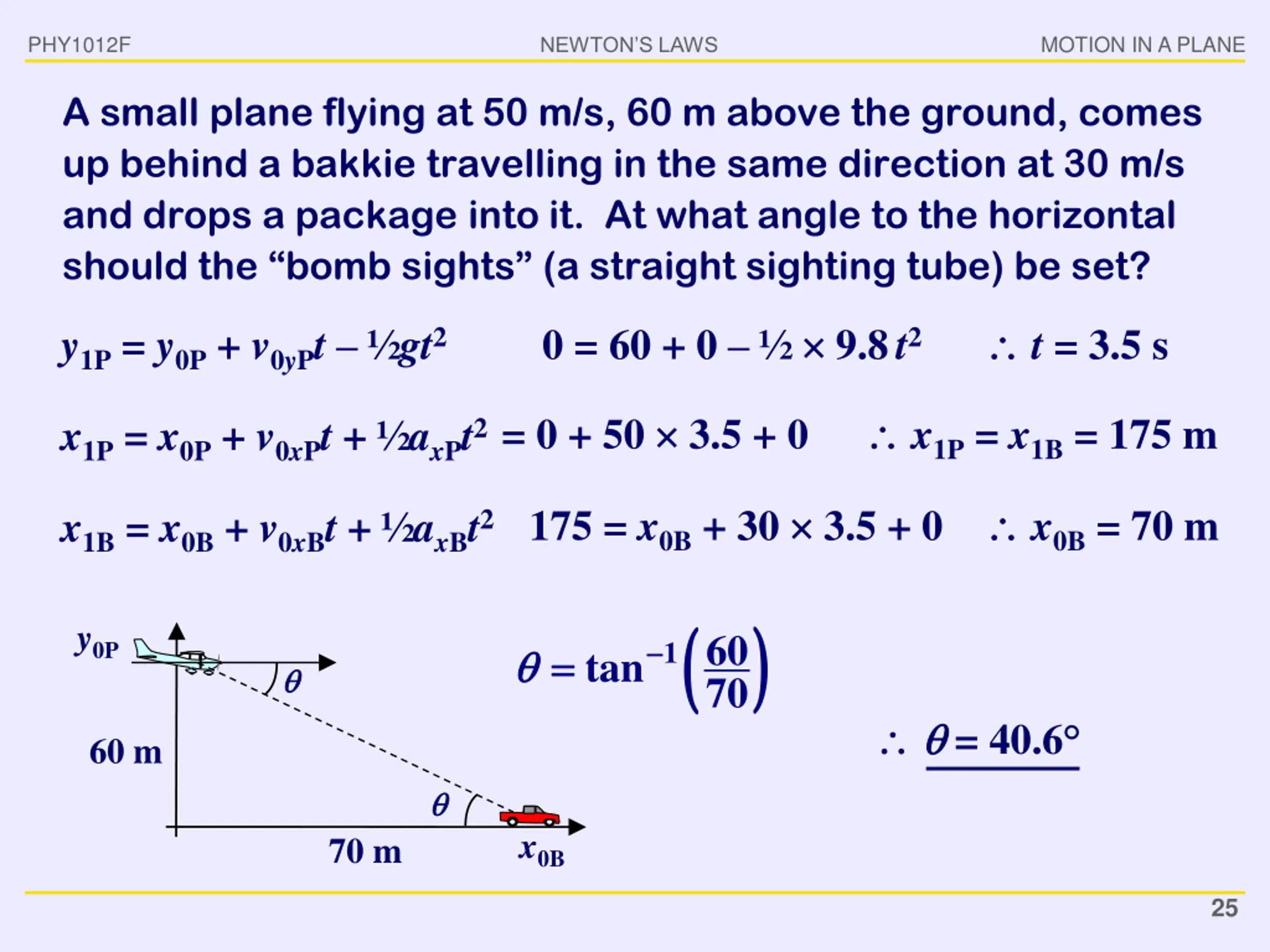

25. PHY1012F MOTION IN A PLANE NEWTON’S LAWS A small plane flying at 50 m/s, 60 m above the ground, comes up behind a bakkie travelling in the same direction at 30 m/s and drops a package into it. At what angle to the horizontal should the “bomb sights” (a straight sighting tube) be set? 0 = 60 + 0 – ½   9.8t2   t = 3.5 s y1P= y0P+ v0yPt – ½gt2 x1P= x0P+ v0xPt + ½axPt2= 0 + 50   3.5 + 0   x1P= x1B= 175 m x1B= x0B+ v0xBt + ½axBt2 175 = x0B+ 30   3.5 + 0   x0B= 70 m     70 y0P 1 60       tan       = 40.6° 60 m   x0B 70 m 25

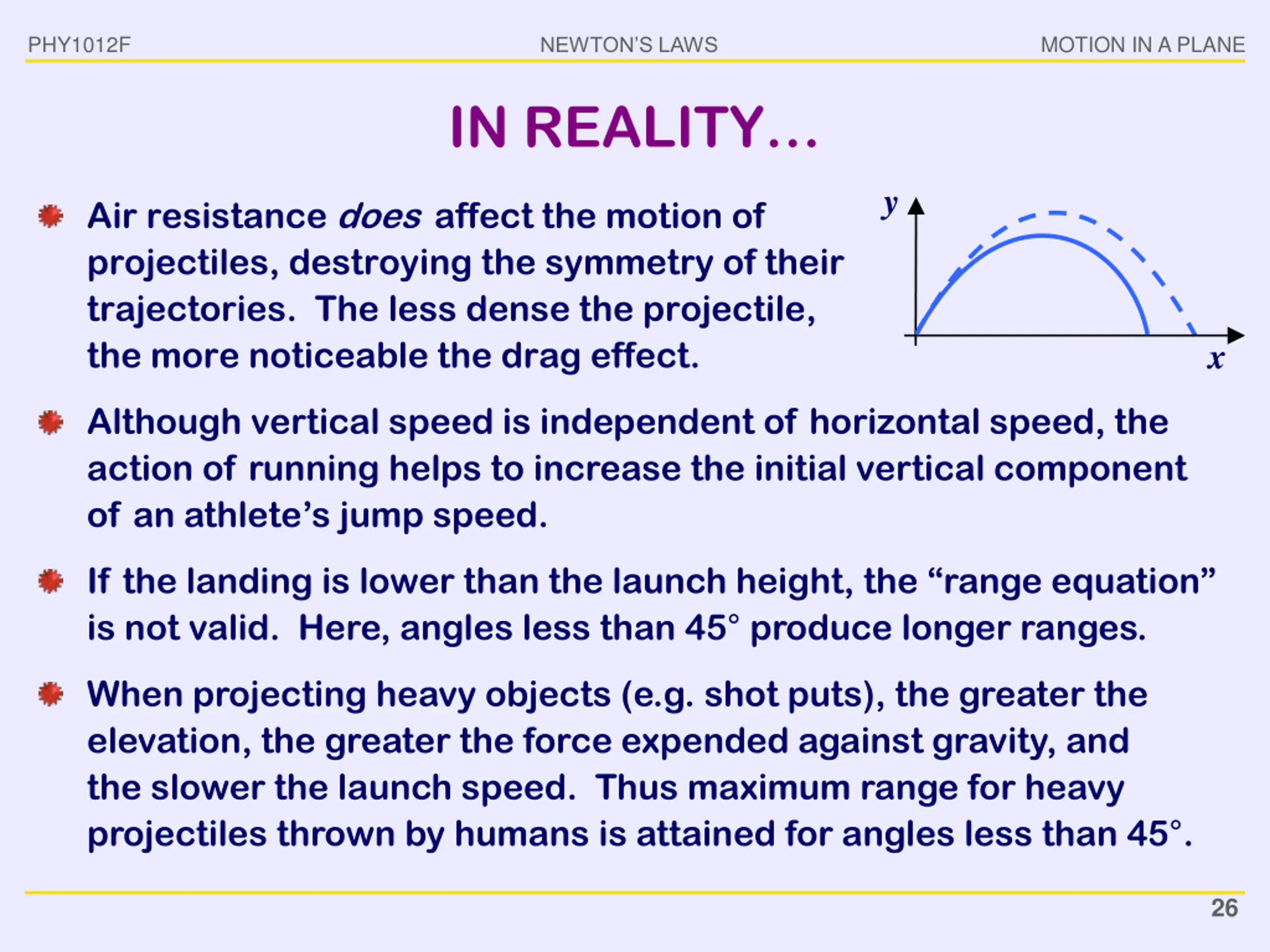

26. PHY1012F MOTION IN A PLANE NEWTON’S LAWS IN REALITY… y Air resistance does affect the motion of projectiles, destroying the symmetry of their trajectories. The less dense the projectile, the more noticeable the drag effect. x Although vertical speed is independent of horizontal speed, the action of running helps to increase the initial vertical component of an athlete’s jump speed. If the landing is lower than the launch height, the “range equation” is not valid. Here, angles less than 45° produce longer ranges. When projecting heavy objects (e.g. shot puts), the greater the elevation, the greater the force expended against gravity, and the slower the launch speed. Thus maximum range for heavy projectiles thrown by humans is attained for angles less than 45°. 26

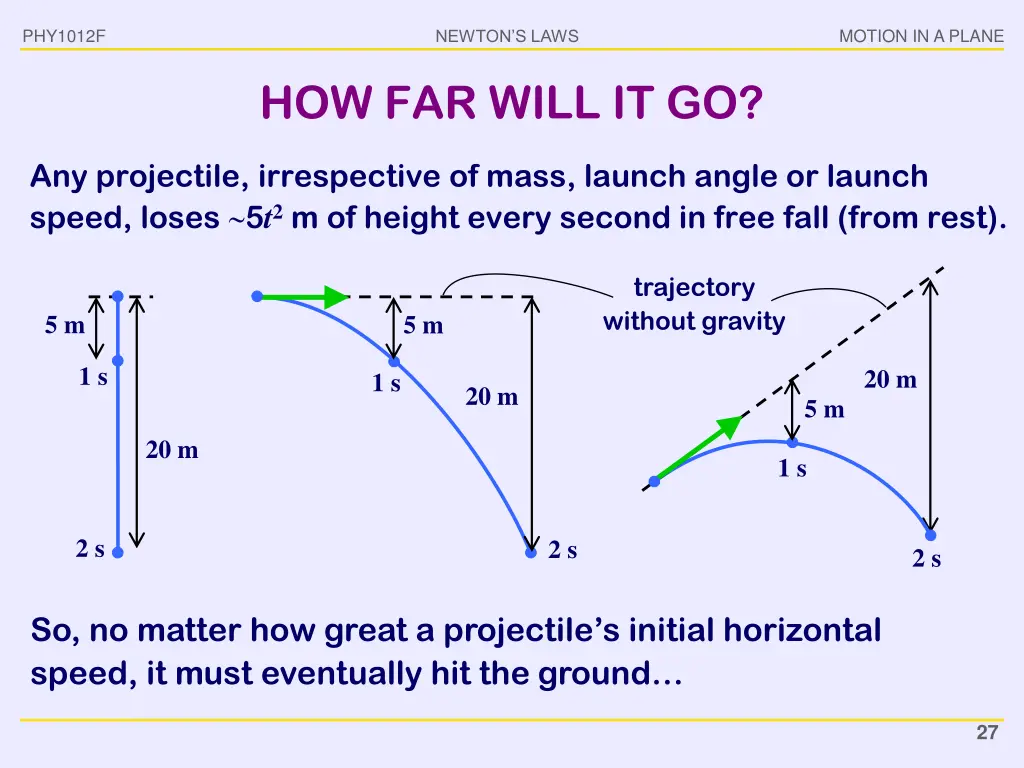

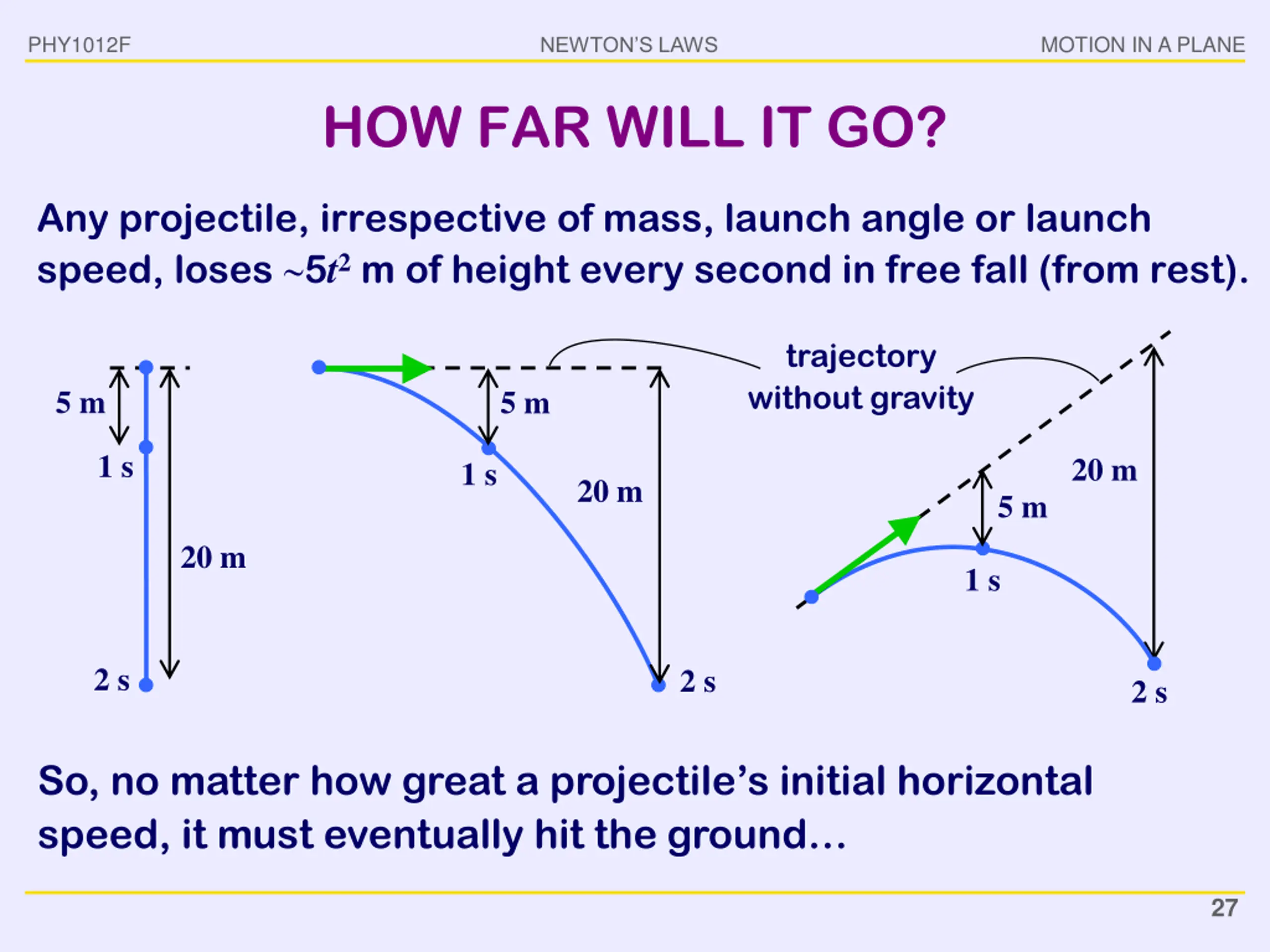

27. PHY1012F MOTION IN A PLANE NEWTON’S LAWS HOW FAR WILL IT GO? Any projectile, irrespective of mass, launch angle or launch speed, loses 5t2m of height every second in free fall (from rest). trajectory without gravity 5 m 5 m 1 s 20 m 1 s 20 m 5 m 20 m 1 s 2 s 2 s 2 s So, no matter how great a projectile’s initial horizontal speed, it must eventually hit the ground… 27

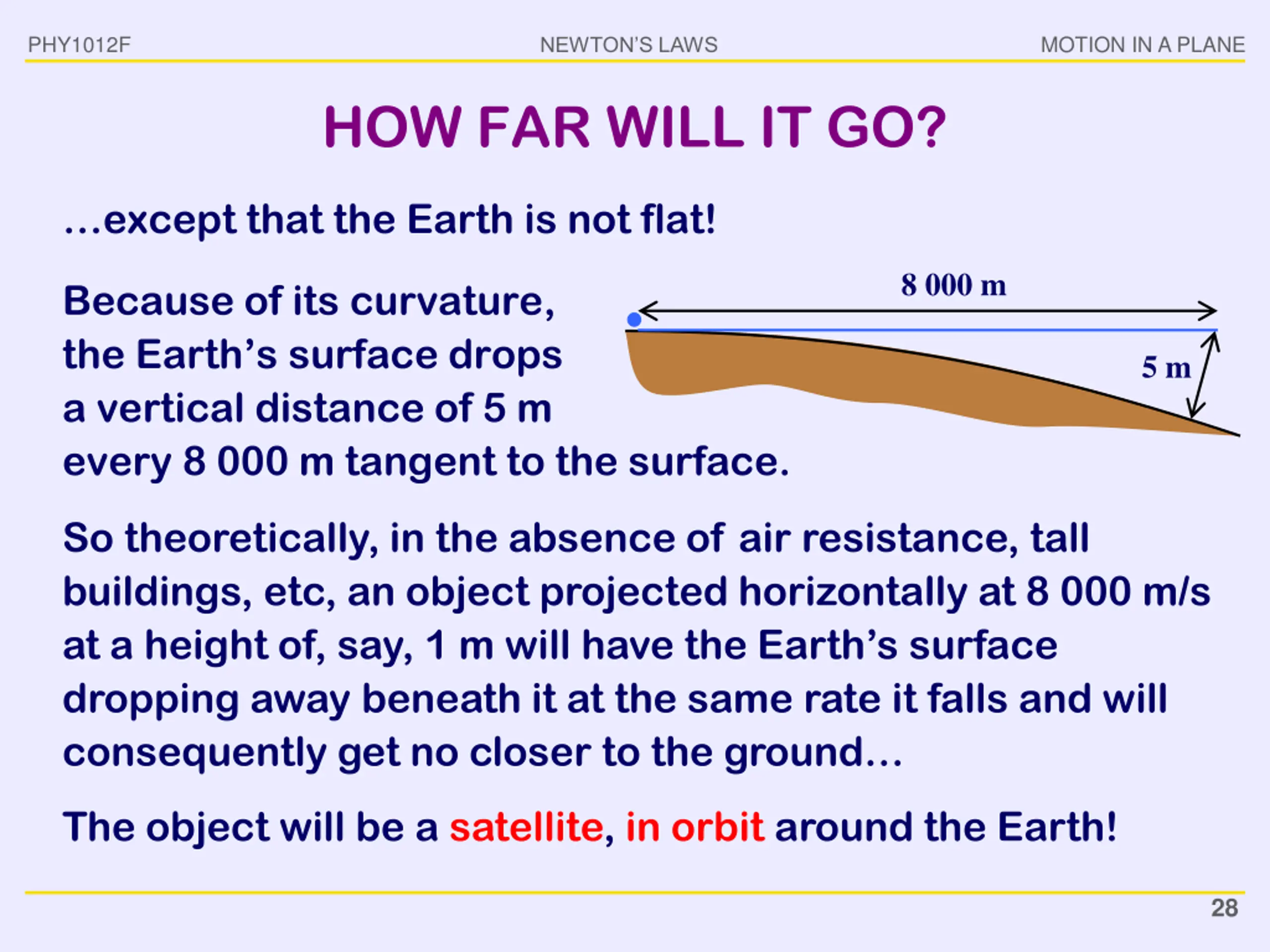

28. PHY1012F MOTION IN A PLANE NEWTON’S LAWS HOW FAR WILL IT GO? …except that the Earth is not flat! 8 000 m Because of its curvature, the Earth’s surface drops a vertical distance of 5 m every 8 000 m tangent to the surface. 5 m So theoretically, in the absence of air resistance, tall buildings, etc, an object projected horizontally at 8 000 m/s at a height of, say, 1 m will have the Earth’s surface dropping away beneath it at the same rate it falls and will consequently get no closer to the ground… The object will be a satellite, in orbit around the Earth! 28

29. PHY1012F MOTION IN A PLANE NEWTON’S LAWS MOTION IN A PLANE Learning outcomes: At the end of this chapter you should be able to… Extend the understanding, skills and problem-solving strategies developed for kinematics problems in one dimension to two dimensional situations. Define the terms specific to projectile motion; solve numerical problems involving projectile motion. 29
